Pixel AFXSM-5 Installation Instructions Manual

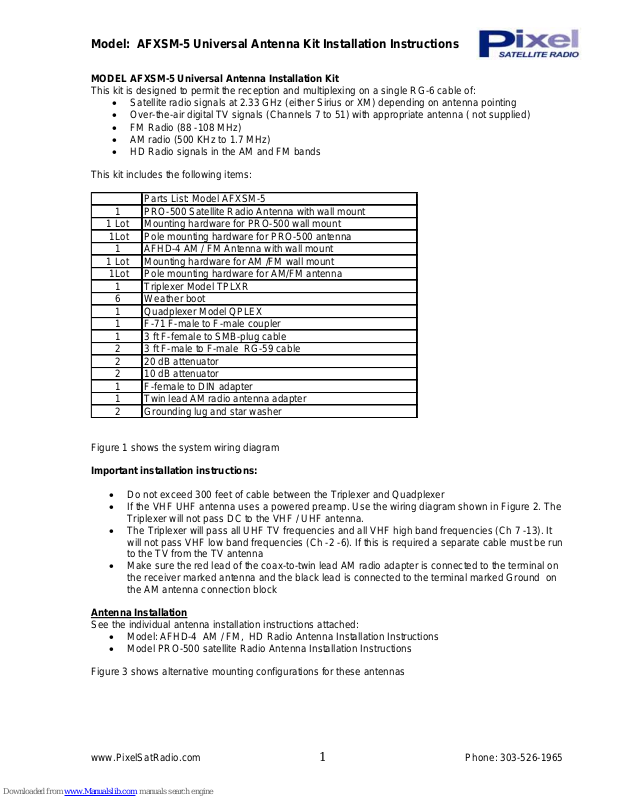

Model: AFXSM-5 Universal Antenna Kit Installation Instructions

MODEL AFXSM-5 Universal Antenna Installation Kit

This kit is designed to permit the reception and multiplexing on a single RG-6 cable of:

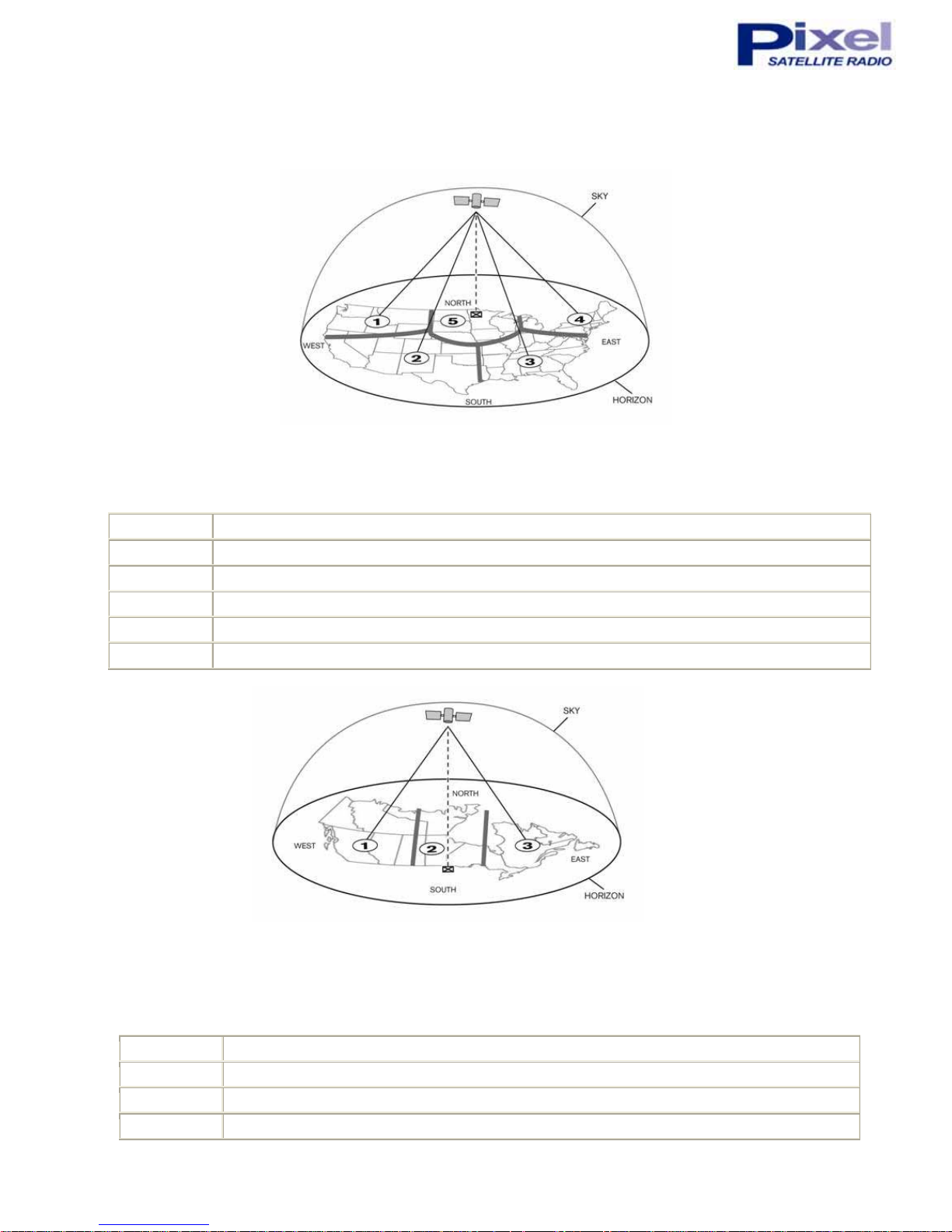

• Satellite radio signals at 2.33 GHz (either Sirius or XM) depending on antenna pointing

• Over-the-air digital TV signals (Channels 7 to 51) with appropriate antenna ( not supplied)

• FM Radio (88 -108 MHz)

• AM radio (500 KHz to 1.7 MHz)

• HD Radio signals in the AM and FM bands

This kit includes the following items:

Parts List: Model AFXSM-5

1 PRO-500 Satellite Radio Antenna with wall mount
1 Lot Mounting hardware for PRO-500 wall mount
1Lot Pole mounting hardware for PRO-500 antenna

1 AFHD-4 AM / FM Antenna with wall mount
1 Lot Mounting hardware for AM /FM wall mount
1Lot Pole mounting hardware for AM/FM antenna

1 Triplexer Model TPLXR

6 Weather boot

1 Quadplexer Model QPLEX

1 F-71 F-male to F-male coupler

1 3 ft F-female to SMB-plug cable

2 3 ft F-male to F-male RG-59 cable

2 20 dB attenuator

2 10 dB attenuator

1 F-female to DIN adapter

1 Twin lead AM radio antenna adapter

2 Grounding lug and star washer

Figure 1 shows the system wiring diagram

Important installation instructions:

• Do not exceed 300 feet of cable between the Triplexer and Quadplexer

• If the VHF UHF antenna uses a powered preamp. Use the wiring diagram shown in Figure 2. The

Triplexer will not pass DC to the VHF / UHF antenna.

• The Triplexer will pass all UHF TV frequencies and all VHF high band frequencies (Ch 7 -13). It
will not pass VHF low band frequencies (Ch -2 -6). If this is required a separate cable must be run
to the TV from the TV antenna

• Make sure the red lead of the coax-to-twin lead AM radio adapter is connected to the terminal on
the receiver marked antenna and the black lead is connected to the terminal marked Ground on
the AM antenna connection block

Antenna Installation

See the individual antenna installation instructions attached:

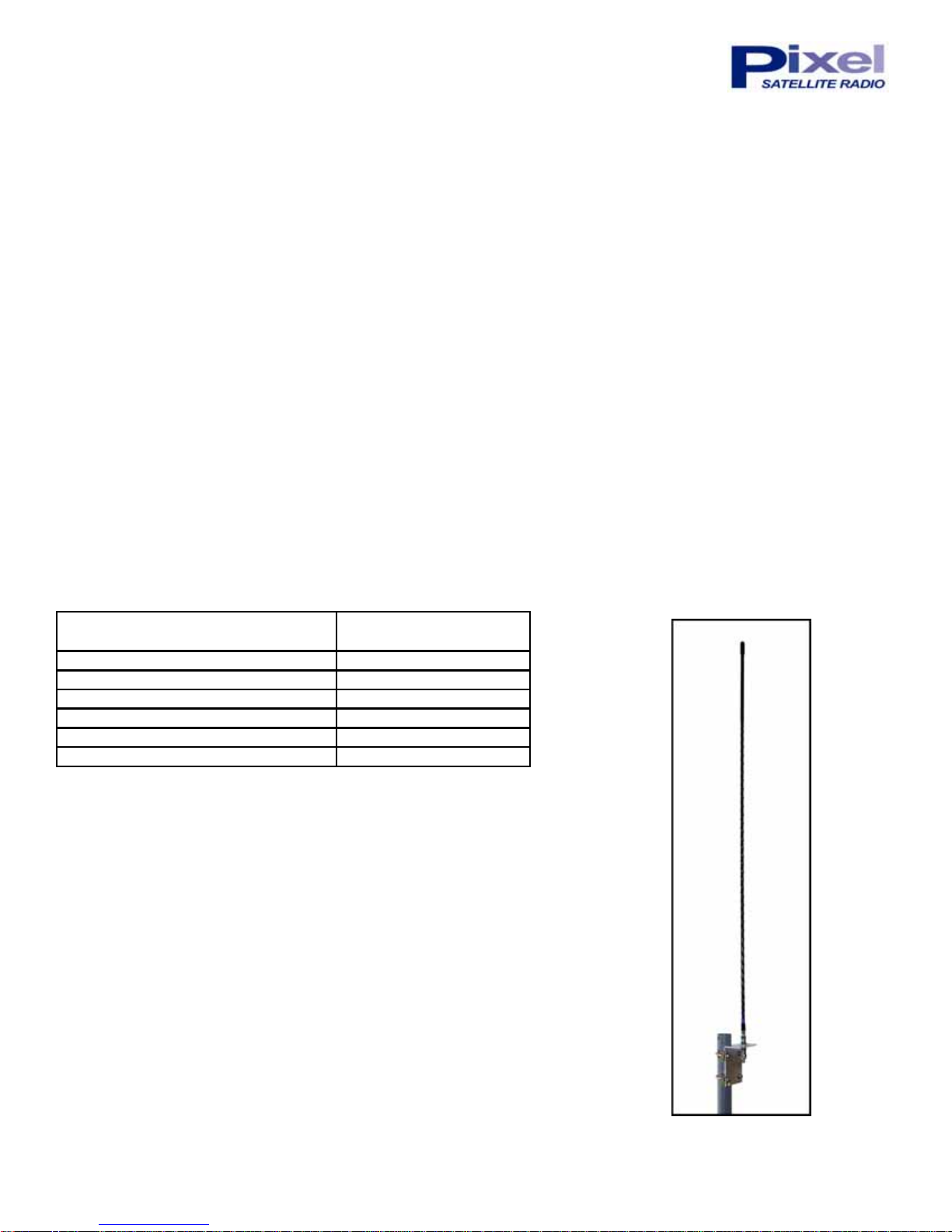

• Model: AFHD-4 AM / FM, HD Radio Antenna Installation Instructions

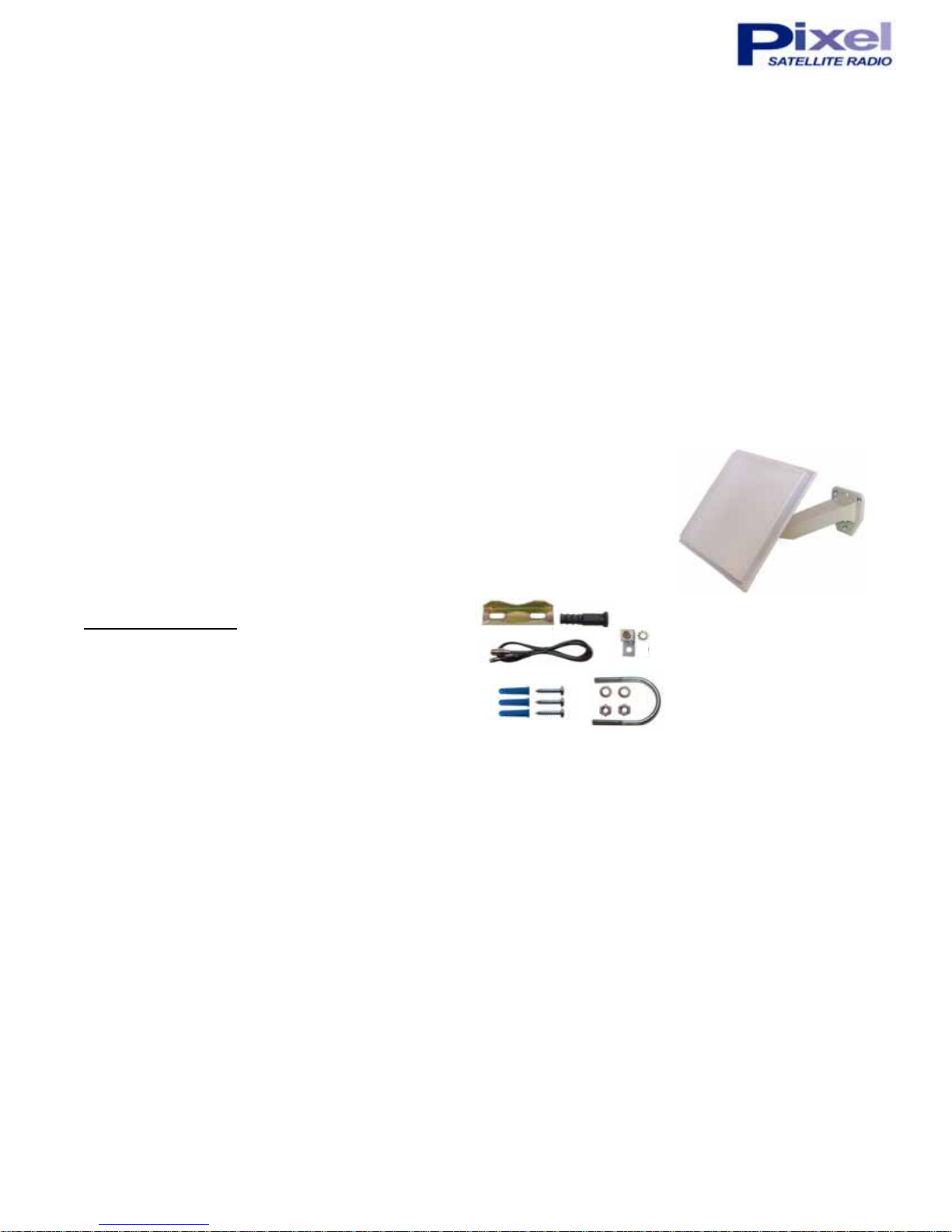

• Model PRO-500 satellite Radio Antenna Installation Instructions

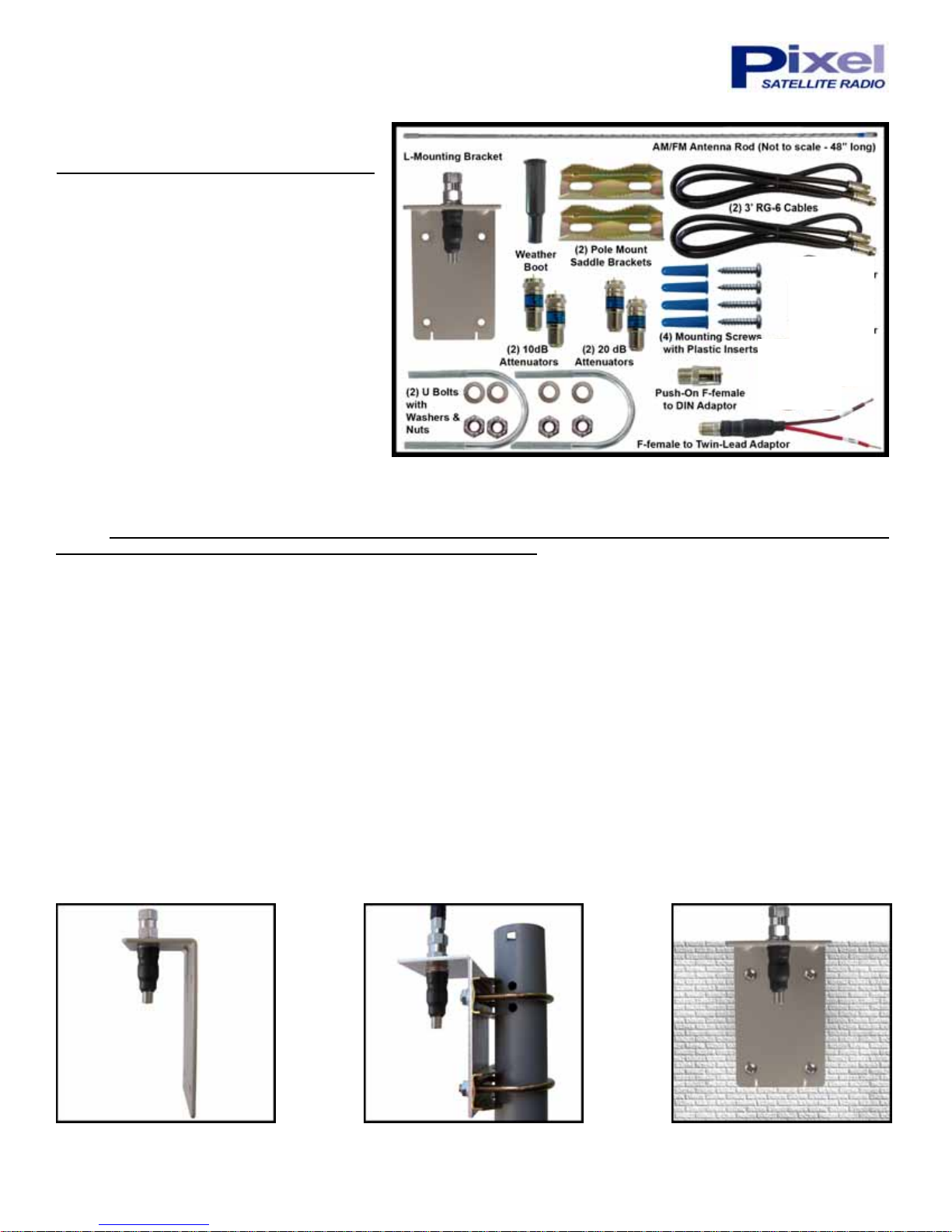

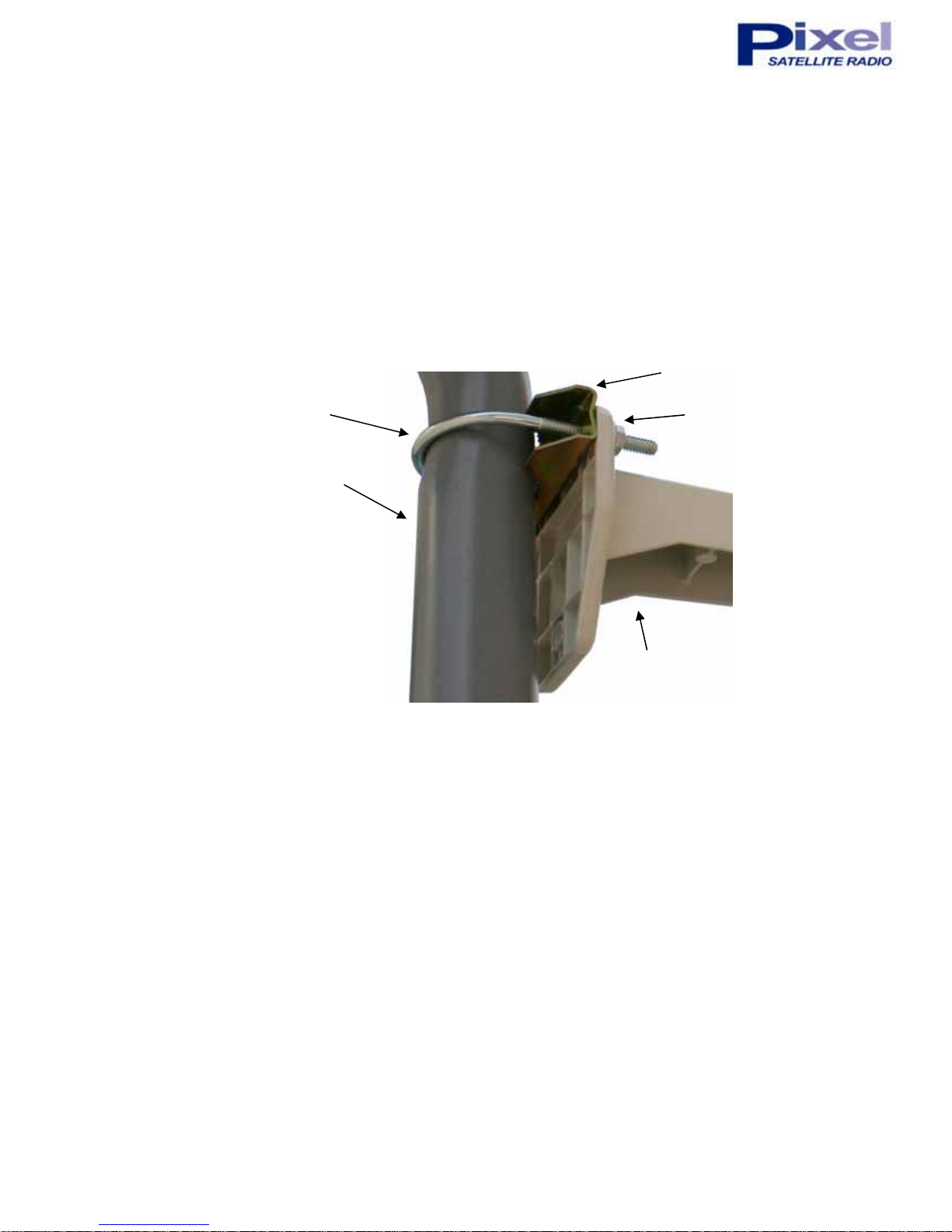

Figure 3 shows alternative mounting configurations for these antennas

www.PixelSatRadio.com 1 Phone: [phone]

Model: AFXSM-5 Universal Antenna Kit Installation Instructions

www.PixelSatRadio.com 2 Phone: [phone]

Model: AFXSM-5 Universal Antenna Kit Installation Instructions

www.PixelSatRadio.com 3 Phone: [phone]

Model: AFXSM-5 Universal Antenna Kit Installation Instructions

www.PixelSatRadio.com 4 Phone: [phone]

Model: AFXSM-5 Universal Antenna Kit Installation Instructions

Warranty

Pixel Technologies warrants its products against defects in material or workmanship for a period of 12 months from
the date of retail sale unless otherwise contracted.

Defective products will be repaired or replaced at the sole discretion of Pixel Technologies, Inc.

Shipping Your Product for Warranty Repair

• When shipping your product you must include the following:

• A copy of the receipt, invoice, or other proof of purchase.

• A description of the problem

• Include all original components that came with the unit. Missing components will not be replaced.

• Include return name, physical address, & telephone number/email address and RMA nu mber.
(An RMA number can be obtained by calling Pixel Technologies at (303) 526- 1965)

• Please ship product by traceable means (such as UPS, FedEx, etc)

Return Material Authorization (RMA)

You must email or call us and obtain an RMA number before returning any product and be sure to write it clearly on
the outside of the package. We reserve the right to refuse any products returned to us without a return authorization
number clearly written on the outside of the return package. All returns or exchanges MUST be postmarked within 3
business days after an RMA number is issued. Please keep products and packaging in like-new condition when
returning for a refund to avoid fees for damaged/missing items. Packaging may be opened, but ALL items must be
present including the packaging itself and literature. Items that have been physically d amaged and show clear signs
of wear also cannot be returned.

Damaged, Missing, Delayed or Wrong Items Shipped
Pixel Technologies is not responsible for items that may be damaged, lost, or missing by the shipping company, or

"carrier" (UPS, DHL, USPS, etc.). All products and packaging should be carefully inspected upon receipt. Any and all
claims regarding wrong item shipped, missing items, or items damaged in shipping must be made to us by email or
phone within 7 (seven) calendar days of your order being marked delivered to you by the carrier; after that we can
no longer file any claims. The purchaser should alert the carrier and Pixel Technologies that a claim needs to be filed
for that shipment. Once the claim is approved, we will re-ship your item at no additional charge.

If we shipped you the wrong item, we will ship out the correct item to you at no additional charge. We will ask that
you return the incorrect item to us. An RMA number will be issued and you will be fairly compensated for your return
shipping expenses. We reserve the right to choose a shipping method for your replacement, normally matching the
same in-transit time as your original shipment.

If an item is missing, we will review the order, checking correct package weight, etc.. If we determine that the item
was in fact omitted through our error, we will ship the item out at no additional charge to you. Shipping method will be
equal in speed to the original shipping method at time of order (Air or Express service may not apply to shipments
going to Hawaii, Alaska, or Canada).

If a piece is missing from a kit (for example, a cable) we will ship the missing piece via the carrier and shipping
method of our choice.

We will be happy to help you with the details of packaging and shipping your merchandise for credit or exchange if
defective. Some limitations and restrictions apply. Replacements for defective items are usually shippe d within 1-3
business days (via ground) after receipt of the defective item.

We strive to ship products out as soon as possible. Once items are shipped, Pixel Technologies has no control
over the timeliness of the shipments and cannot be held responsible for any delays caused by the carrier .

If necessary, Pixel Technologies will aid in the filing of an appropriate claim with the carrier in the event of
package loss or damage. We cannot refund shipping charges regardless of reason for delayed shipments.

www.PixelSatRadio.com 5 Phone: [phone]
