Page 1

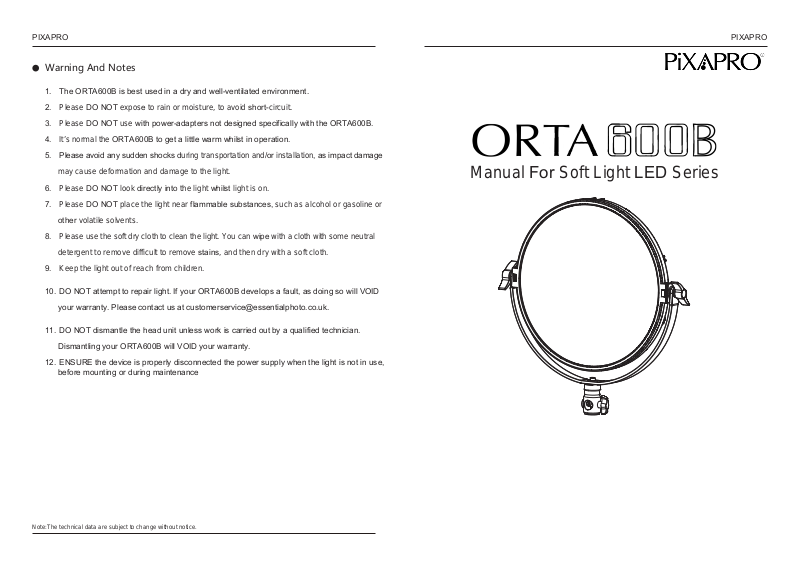

Warning And Notes
1. The ORTA600B is best used in a dry and well-ventilated environment.
2. Please DO NOT expose to rain or moisture, to avoid short-circuit.
PIXAPROPIXAPRO
3. Please
4. It’s normal the ORTA600B to get a little warm whilst in operation.
5. Please avoid any sudden shocks during transportation and/or installation, as impact damage
6. Please DO NOT look directly into the light whilst light is on.
7. Please DO NOT place the light near flammable substances, such as alcohol or gasoline or
8. Please use the soft dry cloth to clean the light. You can wipe with a cloth with some neutral
9. Keep the light out of reach from children.
10. DO NOT attempt to repair light. If your ORTA600B develops a fault, as doing so will VOID
11. DO NOT dismantle the head unit unless work is carried out by a qualified technician.
12. ENSURE the device is properly disconnected the power supply when the light is not in use,
DO NOT use with power-adapters not designed specifically with the ORTA600B.
may cause deformation and damage to the light.
other volatile solvents.
detergent to remove difficult to remove stains, and then dry with a soft cloth.
your warranty. Please contact us at [email protected].
Dismantling your ORTA600B will VOID your warranty.
before mounting or during maintenance
Manual For Soft Light LED Series
Note:The technical data are subject to change without notice.
Page 2
PIXAPRO PIXAPRO
Product Introduction Overview
Thank you for purchasing PIXAPRO ORTA600B. This 60W LED light panel features 600 premium
SMD LEDs which have low heat emissions, for an ultra-long and extended lifespan.
1
The ORTA600B's features a stylish, yet durable outer-casing with a user-friendly user-interface.
It also features step-less dimming and Bi-color adjustment make live show more effective, the
light is more soft, no dazzling, and workable for different environment shooting. 2.4G wireless
remote control, easy operation.
Model Parameter List
Model
Output Power
Luminous Flux
LED Quantity
Color Temperature
Light Source
Color rendering index
Dimmer
Remote Control
Remote control distance
DMX512 dimmer
Lithium Battery Type
DC power input
Size
ORTA 600B
60W
6000 LM
600 PCS
3200K-5600K
0.2W high brightness Smd LED
≥95
10%-100%
99 channels 2.4G wireless remote control
>30M
YES
NP-F750/970*2 / SONY BP V type series of lithium battery
DC15-19V
300 x 300 x 55mm
2
3
4
5
6
7
8
10
12
14
9
11
13
15
16
1
Light diffuser
2
Angle adjusting knob
3
Yoke
Hot shoe Mount
4
Vents
5
6
V-Mount Battery Plate
7
Sony L-Series Battery Plate
(for NP-F750/970 batteries)
8
Color temperature Control Dial
3200K~5600K
9
Brightness Control Dial
10%~100%
10
DMX512 input/output
11
Power socket
Power switch
12
“I” for battery power supply, “O” for Power off, “II” for
mains power supply
13
LCD display
14
Quick access to 400K color temperature
15
DMX512 control switch
16
DMX512 address selection
Rotating to select address
9
