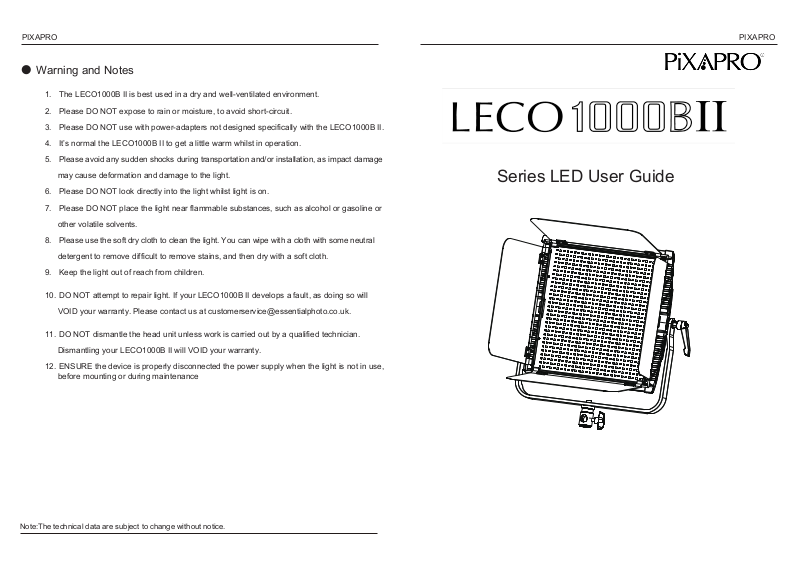

Warning and Notes
1. The LECO1000B II is best used in a dry and well-ventilated environment.
2. Please DO NOT expose to rain or moisture, to avoid short-circuit.
3. Please DO NOT use with power-adapters not designed specifically with the LECO1000B II.
4. It’s normal the LECO1000B II to get a little warm whilst in operation.
PIXAPROPIXAPRO
5. Please avoid any sudden shocks
may cause deformation and damage to the light.
6. Please DO NOT look directly into the light whilst light is on.
7. Please DO NOT place the light near flammable substances, such as alcohol or gasoline or
other volatile solvents.
8. Please use the soft dry cloth to clean the light. You can wipe with a cloth with some neutral
detergent to remove difficult to remove stains, and then dry with a soft cloth.
9. Keep the light out of reach from children.
10. DO NOT attempt to repair light. If your LECO1000B II develops a fault, as doing so will
VOID your warranty. Please contact us at customerservice@essentialphoto.co.uk.
11. DO NOT dismantle the head unit unless work is carried out by a qualified technician.
Dismantling your LECO1000B II will VOID your warranty.
12. ENSURE the device is properly disconnected the power supply when the light is not in use,
before mounting or during maintenance
during transportation and/or installation, as impact damage
Series LED User Guide
Note:The technical data are subject to change without notice.
PIXAPROPIXAPRO
Product Information
Thank you for purchasing LECO1000B II. This 100W LED panel features 900 premium
LED chips. The LED chips emit very little heat and the outstanding design prevents the unit from
being hurt by overheat with the feature of fast heat - dissipation, which will effectively extends
the lifespan of the light panel.
This LECO1000B II's outer-casing is made from high-quality aviation-grade aluminum
which makes the LECO1000B II a light-weight yet durable LED panel. The brightness can be
adjusted between (10% ~ 100%) and includes an option for you to adjust the colour-
temperature between 3200K (Tungsten Balanced) and 5600K (Daylight Balanced). In addition to
this, the unit features a 2.4GHz wireless remote control dimmer, that enables you to adjust the
brightness and the colour-temperature remotely to achieve your desired look.
Specifications
Model
Output Power
Luminous Flux
LED Quantity
Colour Temperature
Light Source
Color rendering index
Dimmer
Remote Control
Remote control distance
DMX512 dimmer
Lithium Battery Type
DC power input
Adapter
size
(Do not contain light barrier)
99 channels 2.4G wireless remote control
SONY BP V type series of lithium battery
LECO 1000B II
100W
9000 LM
900 PCS
3200-5600K Continuous adjustment
0.2W SMD LED
≥95
10%-100%
>50M
YES (RJ45 interface)
DC13-19V
DC19V 4.7A GX16-2(plug)
300*300*46mm
Overview
2
1
Vents
5
Channel add and
Battery gusset plate
3
4
The lock knob
9
DMX socket
10
Power switch
12
U-shaped bracket
1
Vents
Battery gusset plate
3
Channel add and subtract adjusting button
5
In different modes, the can be adjusted (increase or decrease). Both DMX, and wireless remote control are
numerical.
6
Adjustment Dial
In different modes, the can adjust the brightness (increase or decrease) Both percentage and colour temperature
are numerical.
7
DMX/remote control switch key
Press "DMX / 2.4 G", when the "DMX" corresponding Indicator light, At this time only use DMX controller to
control.
Press "DMX / 2.4 G", when the "2.4G" corresponding Indicator light bright, At this time use 2.4 G remote control
or manual control control panel.
8
Brightness / Color temperature switching button
Press "DIMMER/COLOUR", when the "DIMMER" corresponding Indicator light bright, Available adjust knob to
change the brightness.
Press "DIMMER/COLOUR", when the "COLOUR" corresponding Indicator light bright, Available adjust knob to
change the Color temperature.
9
DMX socket
After RJ45 interface connection, can support the DMX512 protocol control computer control.
Power switch
10
Press “Ⅰ ”for the direction of the battery power , according to the "O" direction to shut down, according to Press “Ⅱ”
adapter power.
Power cord socket
11
LED display
2
The lock knob
4
12
U-shaped bracket
GK-S90B PRO
subtract adjusting button
Brightness / Color
8
temperature switching button
11
LED display
6
Adjustment Dial
7
DMX/remote
control switch key
Power cord socket
