7020 Koll Center Pkwy . Suite #138 . Pleasanton . CA 94566 . U.S.A.
Phone: 925.426.9100 . Fax: 925.426.8200 . Website: www.pixainc.com
SPECIFICATIONS
Display Specification
• Signal 0.70" DDR DMD 1024 X 576 Display Technology.
• Brightness: 1500 Ansi Lumen (typical)
• Contrast Ratio: Typical 1300:1 (Full-On/Full-In).
• Image Size For Minimum 35" And Maximum 280" Diagonal.
• Audible Noise: Max. 32Dba.
• Aspect Ratio: Standard 4:3 and wide screen 16:9
System Specification
• System: NTSC/PAL/SECAM / NTSC 4.43.
• Throw Distance: 1.5M - 10M.
• Focusing Range: 1.5 To 10.0 Meter (60" To 394"), Optimal 1.5 To 5.0 Meter (60" To 197").
• Color Wheel: 4 Segmentations with x2 speed frames, 6 Segmentations with x2 speed frames.
• Projection Lens: Zoom Ratio: 1.2:1 With F/2.4, 100% Offset.

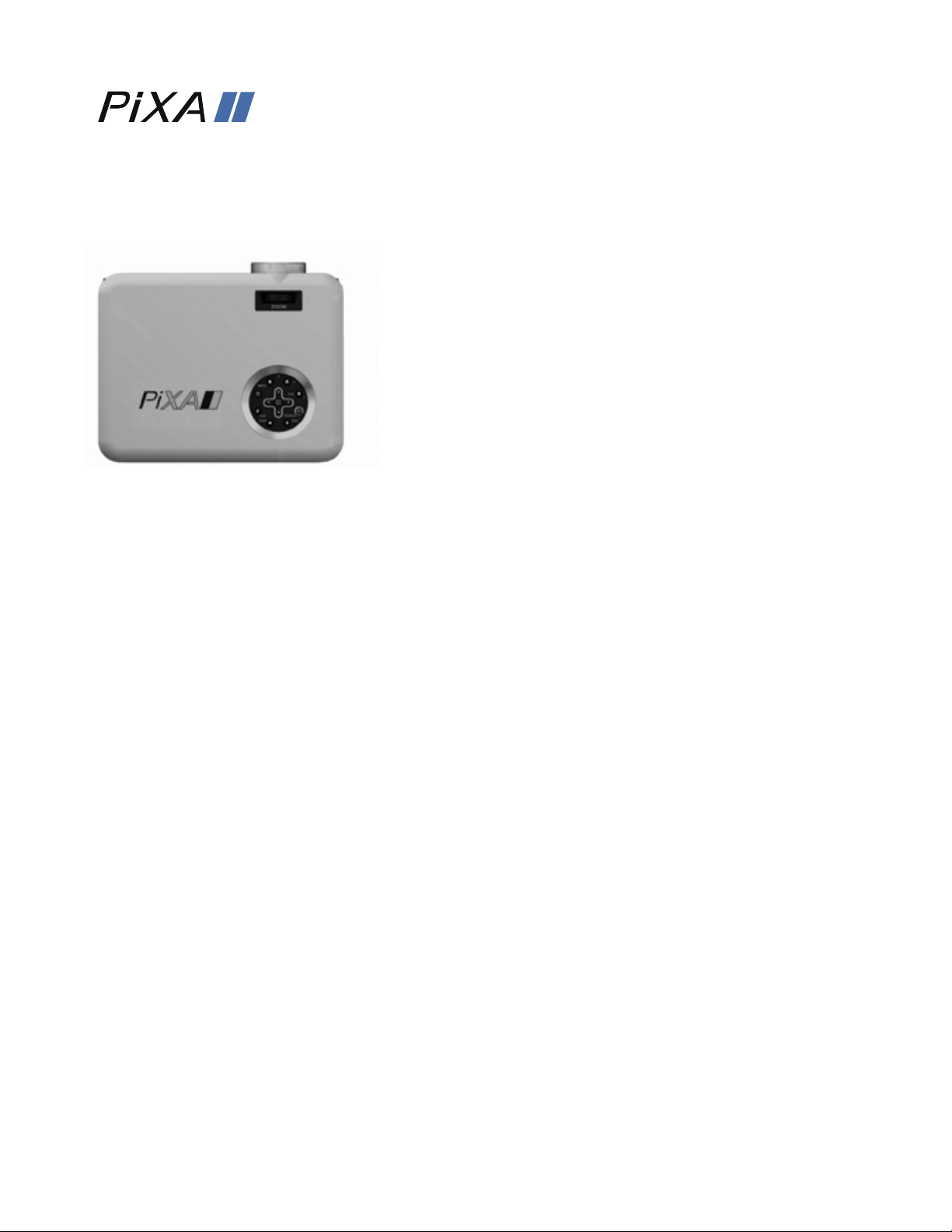

All-in-One DLP
Home Theatre Projector
Model No.
DHT-300
KEY FEATURES
• Signal 0.70" DDR DMD 1024 X 576 Display
Technology.
• Image Size For Minimum 35" And Maximum 280"
Diagonal.
• Brightness: Zeiss 1500 Ansi Lumen.
• Plug in TV Tuner option of NTSC, PAL and SECAM.
• Contrast Ratio: 1300:1.
• Build-In 5 In-One Dsc Multiple Memory Card Reader.
• Optional 5.1 Wireless Speakers.
• Optional wireless microphone module.
• Build In DVD Player with intelligent progressive scan.
• Lamp Boost Mode: P-VIP 250W/2000 Hours (Normal Mode) 200W/ 3500 Hours (Eco Mode).
• Keystone Correction: 24 degrees (+/- 12 Degrees).
• Scanning Frequency: Automatic Frequency Control:
Horizontal: 15 - 82Khz.
Vertical: 50 - 85 Hz.
• Operating Temperature: 5 C To +35 C
• Safety Regulations: 1. - FCC/Class B, Ce, CCC, UL, cUL, TUV, CB.
Connector Specification
• Computer: SXGA (Compression)/XGA/SVGA/VGA/Mac.
• Input:
RCA jack x 3: HDTV, EDTV, SDTV
Mini DIN 4 Pin X 1: S-Video
Composite (RCA) x 1: Composite Video
RCA audio Jack L/R x 1: Audio L/R in
RS232x1: RS232 In
DVI-I x1: Standard Digital/Iterance RGB
3.5mm mini Jack x 1: PC Audio In
D20Pins-Terminal x 1: For TV cable
• Output: 3.5mm mini Jack x 1: Audio Out
• Video Compatibility:
HDTV: 480i, 480p, 576I, 576p, 720p, 1080i
NTSC: M (3.58MHZ), 4.43MHz
PAL: B, D, G, I, M, N
SECAM: B, D, G, K, K1, L
• C Computer Compatibility: SXGA, XGA, SVGA, VGA, Mac
• Built-In Speaker: 2Watt built in speakers X 1.
• Wireless Speaker : 2 or 5.1 (Optional)
Physical Characteristics
• DHT-200 Dimensions (W x D x H): 333mm x 258mm x 119mm
• DHT-200 Net Weight: 4.5 Kg (10Lb).
• Power Supply:100 To 240VAC, 50 To 60 Hz.
• Power Consumption: 330 Watt
Updated: Feb 2004
