Distance To Screen Distance (Meter/Inch)
1.5/60
2.0/79
3.0/119
5.0/197
7.0/276
8.0/315
10.0/394
Max. Screen Diagonal (Meter/Inch)
1.09/43
1.45/57
2.18/86
3.63/143
5.08/200
5.80/228
7.25/285
Min Screen. Diagonal (Meter/Inch)
0.94/37
1.25/49
1.88/74
3.13/123
4.38/172
5.00/197
6.25/246
7020 Koll Center Pkwy . Suite #138 . Pleasanton . CA 94566 . U.S.A.
Phone: 925.426.9100 . Fax: 925.426.8200 . Website: www.pixainc.com

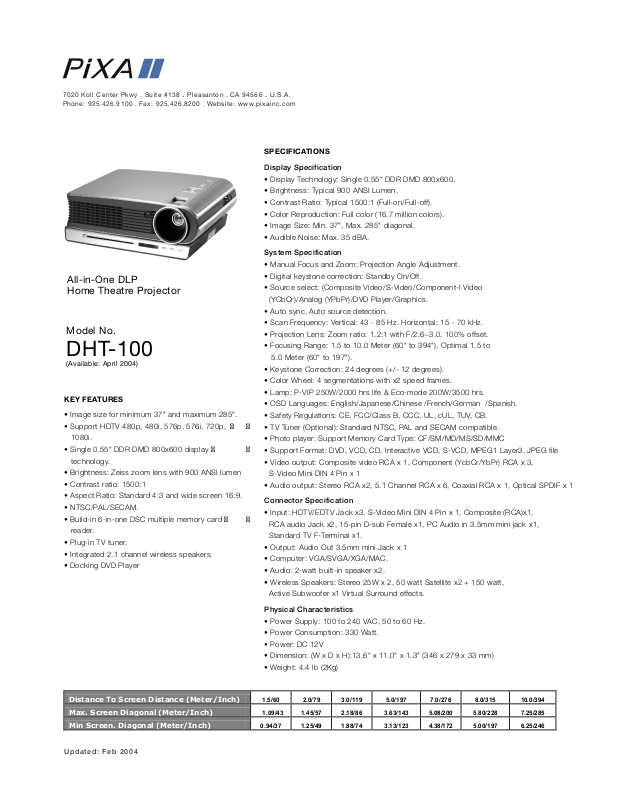

SPECIFICATIONS
Display Specification
• Display Technology: Single 0.55" DDR DMD 800x600.
• Brightness: Typical 900 ANSI Lumen.
• Contrast Ratio: Typical 1500:1 (Full-on/Full-off).
• Color Reproduction: Full color (16.7 million colors).
• Image Size: Min. 37", Max. 285" diagonal.
• Audible Noise: Max. 35 dBA.
System Specification
• Manual Focus and Zoom: Projection Angle Adjustment.
All-in-One DLP
Home Theatre Projector
• Digital keystone correction: Standby On/Off.
• Source select: (Composite Video/S-Video/Component-I Video
(YCbCr)/Analog (YPbPr)/DVD Player/Graphics.
• Auto sync, Auto source detection.
• Scan Frequency: Vertical: 43 - 85 Hz. Horizontal: 15 - 70 kHz.
Model No.
DHT-100
(Available: April 2004)
• Projection Lens: Zoom ratio: 1.2:1 with F/2.6~3.0, 100% offset.
• Focusing Range: 1.5 to 10.0 Meter (60" to 394"), Optimal 1.5 to
5.0 Meter (60" to 197").
• Keystone Correction: 24 degrees (+/- 12 degrees).
• Color Wheel: 4 segmentations with x2 speed frames.
KEY FEATURES
• Image size for minimum 37" and maximum 285".
• Support HDTV 480p, 480i, 576p, 576i, 720p,
1080i.
• Single 0.55" DDR DMD 800x600 display
technology.
• Brightness: Zeiss zoom lens with 900 ANSI lumen
• Contrast ratio: 1500:1
• Aspect Ratio: Standard 4:3 and wide screen 16:9.
• NTSC/PAL/SECAM.
• Build-in 6-in-one DSC multiple memory card
reader.
• Plug-in TV tuner.
• Integrated 2.1 channel wireless speakers.
• Docking DVD Player
• Lamp: P-VIP 250W/2000 hrs life & Eco-mode 200W/3500 hrs.
• OSD Languages: English/Japanese/Chinese /French/German /Spanish.
• Safety Regulations: CE, FCC/Class B, CCC, UL, cUL, TUV, CB.
• TV Tuner (Optional): Standard NTSC, PAL and SECAM compatible.
• Photo player: Support Memory Card Type: CF/SM/MD/MS/SD/MMC
• Support Format: DVD, VCD, CD, Interactive VCD, S-VCD, MPEG1 Layer3, JPEG file
• Video output: Composite video RCA x 1, Component (YcbCr/YbPr) RCA x 3,
S-Video Mini DIN 4 Pin x 1
• Audio output: Stereo RCA x2, 5.1 Channel RCA x 6, Coaxial RCA x 1, Optical SPDIF x 1
Connector Specification
• Input: HDTV/EDTV Jack x3, S-Video Mini DIN 4 Pin x 1, Composite (RCA)x1,
RCA audio Jack x2, 15-pin D-sub Female x1, PC Audio in 3.5mm mini jack x1,
Standard TV F-Terminal x1.
• Output: Audio Out 3.5mm mini Jack x 1
• Computer: VGA/SVGA/XGA/MAC.
• Audio: 2-watt built-in speaker x2.
• Wireless Speakers: Stereo 25W x 2, 50 watt Satellite x2 + 150 watt,
Active Subwoofer x1 Virtual Surround effects.
Physical Characteristics
• Power Supply: 100 to 240 VAC, 50 to 60 Hz.
• Power Consumption: 330 Watt.
• Power: DC 12V
• Dimension: (W x D x H):13.6" x 11.0" x 1.3" (346 x 279 x 33 mm)
• Weight: 4.4 lb (2Kg)
Updated: Feb 2004
