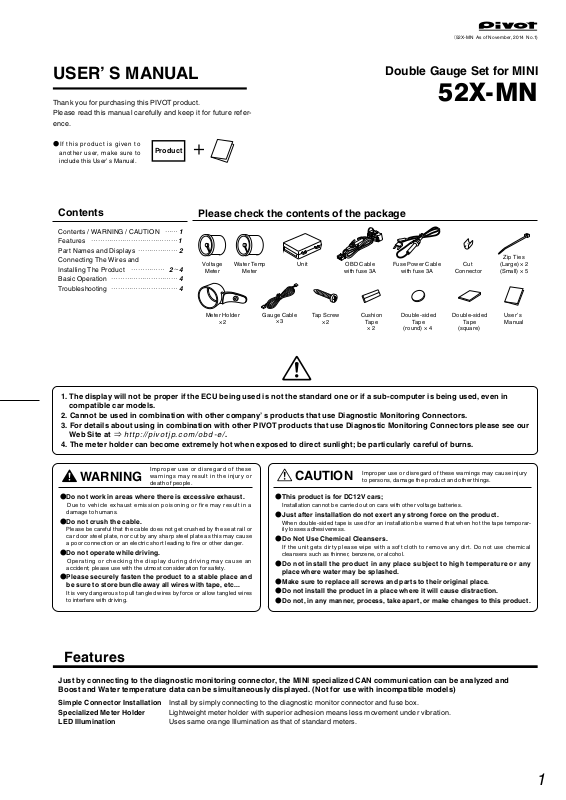

USER’ S MANUAL
Thank you for purchasing this PIVOT product.
Please read this manual carefully and keep it for future reference.
●If this product is given to
another u ser, make sure to
include this User’ s Manual.
Contents
Contents / WARNING / CAUTION …… 1 Features ………………………………… 1 Part Names and Displays ……………… 2 Connecting The Wires and Installing The Product …………… 2 ~4 Basic Operation ………………………… 4 Troubleshooting ………………………… 4
Product
＋
Please check the contents of the package
Volt age
Meter
Meter Holder
×2
Water Temp
Meter
Gauge Cable
×3
Unit OBD Cable
Tap Screw
×2
with fuse 3A
Cushion
Tape
Double Gauge Set for MINI
52X-MN
× 2
Fuse Power Cable
with fuse 3A
Double-sided
Tape
(round) × 4
Cut
Connector
Double-sided
Tape
(square)
Zip Ties
(Large) × 2
(Small) × 5
User’ s
Manual
1. The display will not be proper if the ECU being used is not the standard one or if a sub-computer is being used, even in
compatible car models.
2. Cannot be used in combination with other company’ s products that use Diagnostic Monitoring Connectors.
3. For details about using in combination with other PIVOT products that use Diagnostic Monitoring Connectors please see our
Web Site at ⇒ http://pivotjp.com/obd-e/.
4. The meter holder can become extremely hot when exposed to direct sunlight; be particularly careful of burns.
Improp er use or disrega rd of these
WARNING
●Do not work in areas where there is excessive exhaust.
Due to vehi cle exhaust emission poisoni ng or fire m ay result i n a
damage to humans.
●Do not crush the cable.
Please be careful that the c able do es not get crushed by the seat rail or
car door steel plate, nor cut by any shar p steel pl ate as thi s may cause
a poor connection or an electric short leading to fire or other danger.
●Do not op erate while driving.
Operat ing or ch eckin g the dis play dur ing driving may cause an
accident; please use with the utmost consideration for safety.
●Please securely fasten the product to a stable place and
be sure to store bundle away all wires with tape, etc...
It is very dangerous to pull tangled wire s by force or allow ta ngled w ires
to inter fere with driving.
warnings may resu lt in the injury or
death of people.
CAUTION
●This product is for DC12V cars;
Installation cannot be carried out on cars with other voltage batteries.
●Just after installation do not exert any strong force on the product.
When double- sided tape is used for an install ation be warned that when hot the tap e temporar-
ily losses adhesiveness.
●Do Not Use Chemical Cleansers.
If the unit gets dirty please wipe with a soft cloth to remove any dirt. Do not use chemical
cleansers suc h as thin ner, benzen e, or alco hol.
●Do not install the product in any place subject to high temperature or any
place where water may be splashed.
●Make sure to replace all screws and parts to their original place.
●Do not install the product in a place where it will cause distraction.
●Do not, in any manner, process, take apart, or make changes to this product.
Improp er use or disrega rd of these warnin gs may cau se injur y
to perso ns, damage the pr oduct and other things.
Features
Just by connecting to the diagnostic monitoring connector, the MINI specialized CAN communication can be analyzed and
Boost and Water temperature data can be simultaneously displayed. (Not for use with incompatible models)
Simple Connector Installation Install by simply connecting to the diagnostic monitor connector and fuse box.
Specialized Meter Holder Lightweight meter holder with superior adhesion means less movement under vibration.
LED Illumination Uses same orange Illumination as that of standard meters.
1
ø56.5
ø52
Displays and Uses Part Names
(Absol ute pres sure dis play)
Boost
Display 0〜154kPa
Check Boost etc.
Use
Ex:40kPa Ex:95˚C
Water Temperature
Display 20˚C〜120˚C
Prevention of overheating
Use
Check Heating etc.
100
STEPPING
GAUGE
40
120
WATER
TEMP
20
°C
80
60
【Meter】
Illumination
Keep lighting the meter in operation.
(Needl e: Red, Dia l: Orang e)
[Uni t：mm]
Size
Opening Demo
The need le will move to the lowest value side several times, then it will move
to the maximum value and finally to reading for current measurement item.
ø56.5
ø56.5
386
ø52
Connecting wires and Installing the product
Bezel
Dial
Needle
Shows the
current values.
UnitMeter
70
Depth22
50
【Unit】
(View from Meter Connection)
3
(View from Car Connection)
Meter connector
1
Connect gauge cable
Power connector
2
Connect OBD Cable
Spare
3
No need to use
1
2
Basic Wiring
Backside
Remove
the key
Gauge Cable
Installation Example
(In case of MINI R56)
Please carry out wiring with the engine turned OFF and the key removed.
of Meter
Backside
3-pin
Connector
(1.5m)
100
120
80
WATER
TEMP
60
STEPPING
20
GAUGE
40
of Meter
Unit
OBD
3-pin
METER
Connector
The 3-pin connectors can be connected to any of the three positions
Meter
°C
6-pin
Connector
Connector
Red
※1
Red
OBD Cable
1-pin
RedYellow
(0.5m)
Connect to Power
(I GN = 12V with key switch ON)
*Not as no rmal power sourc e
Fuse
(0.5m)
Fuse Power Cable
Diagnostic
Monitoring
Connector
OBD
Connector
※1
Do not use Red Cable
of 1-pin connector
from OBD Cable fuse.
2
Unit
Install to out of
the way places
OBD Connector
Connect to the Diagnostic
Monitoring Connector
Fuse
Connect to IGN Fuse
(Not as nor mal powe r source)
Cable
Diagnostic Monitoring
Connector
Diagnostic Monitoring
Connector
Open
Cover
Fuse Box
1
Meter Holder
Fuse
(included)
Connecting to a Power Source
The foll owing is just one example of w iring to t he fuse box of a BMW MIN I COOPER S SV16 (steering
wheel on right). If your model is different and you are unsure of how to c onnec t pleas e contact your de aler.
Remove the Cover of the Fuse Box
①
Use a flathead screwdriver or such tool to remove
the cover of the fuse box found on the side of the
panel to the right of the steering wheel.
Fuse Box
Fuse Box
Cover
If you are unable to get power
from the fuse box, please
wire dire ctly to IGN (12V with
key in ON position).
2
Locate the Diagnostic Monitoring
①
Connecting the OBD Connector
Connector Position
Diagnostic Monitoring
Diagnostic Monitoring
Connector
Connector
Insert the Fuse
②
Remove the fuse for I GN (12 V with key
switch ON), and insert the 7.5 A minifuse from the fuse power cable.
Fuse
Fuse
(included)
(included)
OBD Cable
Red
Yello w Re d
1-pin Connec tor
Open the Cover
②
Cover
Cover
Example of a place of specific fuse
Ex: BMW MINI COOPER S SV16 (steering wheel on right, 2010 MODEL)
(Front of t he fuse box)
Diagnostic Monitoring
Connector
Fuse Power Cable
Positi on = 4th column fro m the lef t
Numbe r = 32 or 34
Capacity = 7.5A
*If you wis h to get power from a fuse
other than the 7.5A mini- fuse, pl ease
purchase separately.
IGN
Cut
Completely insert the OBD
③
and 5th row from th e top
(Not as normal
power source)
Connector
Insert the OBD connec tor to the diagnostic
monitoring connector
from the Unit.
Fuse
=
Cut connector
(or soldering)
Open
Open
3
Affix the supplied meter holder to the bac k
of the sta ndard t achom eter.
Remove the standard tachometer
①
Unscrew the two s crews (tor que scr ew T30 x 2) from t he base at the back of the tachometer and remove it by pulling it forward. (As the wiring for the tachometer is connected to
inside the steering column it cannot be removed. Carry out all operations with the wiring
pulled out but connected.)
*Make sure not to lose any removed parts.
Unscrew the screws at the
②
back of the tachometer
Remove the screw fro m the hol e at the
back of th e tacho meter.
*Put the bolt store in a safe pla ce.
Affix Double-sided Tape to
③
the Stay on the Meter Holder
Affix the provided dou ble-sided t ape
(round) to the two places as shown in the
figure to the right.
Fastening The Meter
Tac hom ete r
(Backside)
Two scr ews
(torque screw
T30 x 2 )
Hole
Double-sided Tape
(round)
Installing without
removing tachometer
Cable
Cable
Tac hom ete r
(Backside)
Remove
Diagnostic Monitoring
Diagnostic Monitoring
Connector
Connector
Lightly Fasten the Meter
④
Holder
Line up th e screw holes on the origi nal
tachometer with the screw holes on
the meter holder a nd lightly faste n with
the double-sided tape.
*Do not press to strongly on the tape;
it may become dif ficult to remove.
When installing the 52X-MN please
make adju stment s to line up t he
meters on each side.
Fix the meter holder with
⑤
the screws
Use the provided tap screws to faste n.
Return the tachometer
⑥
to its original position
Return the tachometer to its original
place by going in th e reverse order
from ① above, and securely fasten
with the t wo screws.
Fasten the meter to the
⑦
meter holder
Affix the provided cus hion ta pe to two
places on the sid es of the m eter. Pull
the meter cable through the hole at the
back of th e meter ho lder and inser t it
into the 5-pin connector at the back of
the meter. Af ter havin g decided the
angle pr ess the m eter into the hold er
at finish the installation.
Tac h om eter (B ack si de)
Meter Holder (Backside)
Cushion tape (two places)
Meter Holder
(Backside)
Tap screw
(included)
Two scr ews
Meter Holder
Meter Cab le
3
4
Connecting each Cable and the Unit and Installing
Connect Gauge Cable and OBD Cable to the Unit
●Gauge Cable
Connect to the Unit.
※The 3-pin co nnectors can
be connected to a ny of the
three positions
●Fuse Power Cable ●OBD Cable
Connect to
1-pin connector
of OBD Cable.
Connect to the Unit.
Installing the Unit
Fasten the unit into positions not usually affected by water.
Fastening to Flat Space When Fastenings to
Unit
Double-sided
tape(square)
(Included)
Clean to
remove
oil and du st.
a Cable or Pipe
Zip tie
(Large)
Thick cable
or pipe
Through
holes
Notes about using the OBD Connector
Make sure to g rip the
distended portions
when pulling it out or
inserting it.
If you unable to get a grip
on the distended portions.
With som e car mod els it
may be dif ficult t o get a
good gr ip on the co nnect or.
How to use the Cut Connectors
10mm
1
Peel off of t he vinyl
cover at con nectio n.
4
Close ti ghtly wi th cut
connector.
10mm
2
Peel off of the vinyl
cover at the en d of
the prod uct’ s wire .
5
Insulate with vinyl
tape.
Do not pul l on the wires
when tr ying to r emove th e
conne ctor; th e wires m ay
become disconnected.
In such ca se, pull
out the co nnect or
by pullin g on the
end of the zi p tie.
3
Wrap around both wire
coils.
When crimping, please
use crimpers or use pliers
to bend and then solder
together.
Basic Operation
Key Switch ON
1423 5
(Engine start)
START
ENGINE
STOP
START
Opening Demo
(Start- up all together)
Real-time display Meter OFFKey Switch OFF
(Engine stop)
START
ENGINE
STOP
STOP
Troubleshooting
Trouble Possible Causes Possible Solutions
Meters do not work.
Poor connection of Gauge Cable ,
OBD Connector and Fuse Power Cable .
Poor connection or wrong wiring of Red
cable if wired directly to the power supply.
The unit has been installed into an incompatible car model.
Needle of the boost gauge is shifted
to slightly negative from 0 than the
Depending on the altitude, needle shifts about one scale by the characteristics of car side
sensor(absolute pressure), but this is not a malfunction.
others(relative pressure).
※Our products have already been recognized as our Industrial Property or are in the process of receiving Industrial Property status.
※We plan in the near future to take all possible legal measures to protect against unfair competition from look-alike products using similar designs,
regulating characteristics, circuitry and circuitry layout.
※We strictly prohibit the unlicensed use of the PIVOT trademark and the unauthorized use of PIVOT User’ s Manual.
Please reconfirm whether wiring and connections of Gauge Cable , OBD Connector and
Fuse Power Cable are correct or not.
Please reconfirm whether wiring and connections of Red cable is correct or not.
Please check the “Fitting List” .
4
PIVOT CORPORATION 87-3, Shimookada Okad a, Matsumoto-shi, Nagano, 39 0-0313 JAPAN
Loading...
