Produc t Number :
()

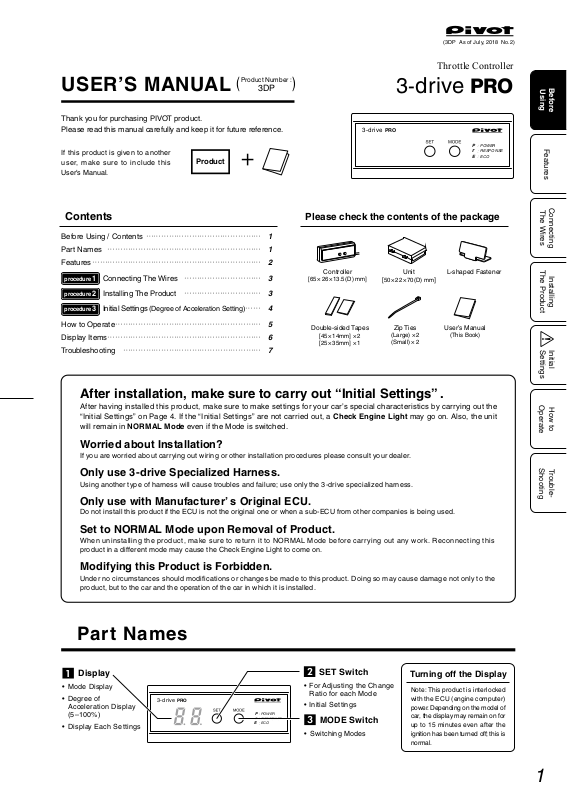

USER’S MANUAL
Thank you for purchasing PIVOT product.
Please read this manual carefully and keep it for future reference.
If this product is given to another
user, make sure to include this
User’s Manual.
Before Using / Contents ……………………………………… 1
Part Names …………………………………………………… 1
Features………………………………………………………… 2
procedure 1
Connecting The Wires ………………………… 3
procedure 2
Installing The Product ………………………… 3
procedure 3
Initial Settings (Degree of Acceleration Setting)…… 4
How to Operate………………………………………………… 5
Display Items…………………………………………………… 6
Troubleshooting ……………………………………………… 7
Product
3DP
Please check the contents of the packageContents
Controller
[65× 26× 13.5(D) mm]
Double-sided Tapes
[45× 14mm] × 2
[25× 35mm] × 1
3-drive PRO
[50× 22× 70(D) mm]
3
-
Unit
Zip Ties
(Large) × 2
(Small) × 2
(3D P As of July, 2018 No. 2)
Throttle Controller
drive
L-shaped Fastener
User’s Manual
(This Book)
PRO
P
POWER
r
RESPONSE
E
ECO
Before
Using
Features
Connecting
The Wires
The Product
Installing
Initial
Settings
After installation, make sure to carry out “Initial Settings” .
After having installed this product, make sure to make settings for your car ’s special characteristics by carrying out the
“Initial Settings” on Page 4. If the “Initial Settings” are not carried out, a Check Engine Light may go on. Also, the unit
will remain in NORMAL Mode even if the Mode is switched.
Worried about Installation?
If you are worr ied abo ut carr ying out wiring or other installation pro cedures please consult your dealer.
Only use 3-drive Specialized Harness.
Using another type of harness will cause tr oubles and failure; use onl y the 3- drive specialized harness.
Only use with Manufacturer’ s Original ECU.
Do not install this product if the ECU is not the original one or when a sub-ECU from other companies is being used.
Set to NORMAL Mode upon Removal of Product.
When uninstalling the product, make sure to return it to NORMAL Mode before carrying out any work. Reconnecting this
product in a dif ferent mode may cause the Check Engine Light to come on.
Modifying this Product is Forbidden.
Under no circumstances should modifications or changes be made to this product. Doing so may cause damage not only to the
product, but to the car and the operation of the car in which it is installed.
Part Names
SET Switch
Display
1
• Mode Display
• Degree of
Acceleration Display
(5–100%)
• Display Each Settings
3-drive PRO
P
r
E
POWER
RESPONSE
ECO
2
• For Adjusting the Change
Ratio for each Mode
• Initial Settings
MODE Switch
3
• Switching Modes
Turning off the Display
Note: This product is interlocked
with the ECU (engine computer)
power. Depending on the model of
car, the display may remain on for
up to 15 minutes even after the
ignition has been turned off; this is
normal.
Operate
Shooting
How to
Trouble-
1
Before
Throttle
Opening
76%
Throttle
Opening
22%
Throttle
Opening
39%
Throttle
Opening
62%
0 %
0 %
0 %
0 %
Features
No OBD Connection Necessary!
Using
Low-Profile Controller provides Genuine-Style Installation
Compatible with Collision Mitigation System and Euro Car
Features
The Wires
Connecting
Installing
The Product
Initial
Settings
How to
Operate
Trouble-
Shooting
Easy Connection to Accelerator Connector
Simplified wiring prevents signal malfunctions caused by
decreased voltage due to low-current circuitry.
Use with OBD Connected Products OK
With no need for a power connection to the OBD, it is
possible to use other OBD connected products without a
splitter connection.
Compact Controller Provides Genuine-Style
Installation
The compact, thin, square design with accentuated edge
allows for installation in any number of places without that
added-on look.
17 Step / 4 Mode Wide-Range Adjustment
The four modes include: “POWER” mode with 7 steps for
increasing response across all ranges, “RESPONSE”
mode with 5 steps for increasing response, like a wire
throttle, in the lower and middle ranges, “ECO” mode with
5 steps for suppressing rapid acceleration to help increase
gas mileage, and “NORMAL” mode for regular driving.
Comparison of Acceleration Time
Normal
r5
P7 P7
E5
23sec
20sec
19se c
Comparison of Fuel Consumption
Normal
r5
29sec
E5
58cc
High Precision Accelerator Opening Monitor
The highly precise monitoring displays accelerator
opening in units of 1% from 5 to 100%.
Optimized Control for Smooth Ride
Throttle control at all levels has been optimized to
provide a silky smooth ride.
Also Compatible with Collision Mitigation System
and Euro Car
This controller can be used in not only euro car, but
also, those equipped with collision mitigation systems.
Set to Prevent Malfunction
The initialization style set-up makes sure that malfunction will never occur no matter what type of pedal is
being used.
Safety System for Extra Peace of Mind
The safety system which automatically returns to
“NORMAL” mode upon poor connection or trouble
ensures your safety.
107c c
117 c c
157cc
r5: MAX. R ESPONSE m ode P7: MAX . POWER mod e E5: MAX. EC O mode
HONDA STEP WAGON (RG1) / Running distance: 0-400 m / Degree of acceleration: 30%
Examples of Changes in Throttle Opening
100
Throttle Opening (%)
P7
50
050100
P7: MAX. P OWER Mode r 5: MAX. RES PONSE M ode
E5: MAX. ECO Mode
r5
Normal
E5
Degree of Acceleration (%)
2
Air Intake
Degree of
Acceleration
%
e.g., 40
RESPONSE
Throttle
Opening
62%
Mode (r5)
0 %
ECO Mode (E5)
Throttle
Opening
22%
Note: In some car models with a Valvematic engine, control is carried out by the exhaust
valve rather than the throttle valve.
0 %
NORMAL Mode
Throttle
Opening
39%
0 %
Throttle Valve
POWER Mode (P7)
Throttle
Opening
76%
0 %
procedure
1
Connecting The Wires
Basic Wiring
Controller
Note: Af ter inserting the connector, pull lightly to make sure that it is securely locked .
When installing make sure to use the correct Specialized Harness for your car model.
6-pin Connector
(1.5m )
5-pin Connector
(See Note)
(See Note)
Unit
(0.5m)
Specialized Harness
(sold separately)
Accelerator Connector
Controller Specialized Harness (sold separately)
5-pin
Connector
Depending on the type of vehicle, if the connector is disconnected before the
ECU power is switched OFF the Check Engine Light may go on. (If the Light
comes on: > Refer to Page 8, “How to Turn Off the Check Engine Light” )
Note: For details ab out connect ing the s pecialized harness, please refer to the
procedure
Connect to the
side of the unit.
6-pin
Connector
Only disconnect the accelerator connector after having
waited at least 15 minutes from the time that the ignition
was turned OFF.
user’s ma nual that came wi th that ha rness .
2
Installing The Products
Connect to the side of the unit.
Tur n t he ig nit io n
to the OFF
position.
OFF
Passage of over
minutes
15
Accelerator
Accelerator
Connector
Disconnect
the connector
Accelerator
Before
Using
Features
Connecting
The Wires
The Product
Installing
Initial
Settings
Operate
How to
Do not use magnetic holders, such as for
a smartphone, to prevent malfunction.
Installing The Controller
(Examp le of Ins tallation)
Center
console
Fasten the c ables not to disconnect
connectors by getting caught on cables.
To S pec ial ize d
Harness
Label
On the steering
column cover
Instrument panel
Specialized
Harness
Zip Tie
(Small)
Please be sure to bundle away all wires with
tape not to get damaged by any steel plate or
screws as this may cause short circuit.
Install the Controller to a position which is easy to see.
Fastening to a Flat Place
Clean to remove
oil and dust.
Controller
Installing The UnitCable processing of the Unit
(Examp le of Ins tallation)
Under the steering
column cover
Double-sided
tape
[45 ×14m m]
As shown in the diagram below, fasten the unit into
positions not usually affected by water.
On the back side
of the under cover
Using the L-shaped Fas tener
By using t he L-shaped
Fastene r that co mes
with thi s produ ct, it is
possible to ins tall th e
unit on th e dashboard
even if it is c urved o r
on an angle.
Note: It is po ssibl e to
install the L-shaped
Fastene r in the
reverse direction.
On the inside of
the kick panel
Do not install into low positions
L-shaped Fastener
Double-sided tape
Controller
Fastening to a Flat Place
Double-sided tape
Unit
Double-sided
tape
[25× 35 mm]
Clean to remove
oil and dust.
Adjustable
angle for
easier
viewing
Shooting
Trouble-
3
procedure
3
(
Initial Settings
Degree of Acceleration Setting
Make sure to carry out these settings.
)
Using
Before
Features
The Wires
Connecting
Installing
The Product
Make sure to carry out
this operation.
Initial
Settings
When installing for
the first time
Initial
Settings
When installing into a
different car
Initial
Settings
• This operation sets the car’s accelerator
characteristics into the controller unit.
• If the “Initial Settings” are not carried out,
the unit will remain in NORMAL Mode even
if the Mode is switched.
• If this settings have been improperly made
a Check Engine Light may go on.
Before making the “Initial Settings”
1. Make settings only after having completed all wiring (connector installation).
2. Make settings with the ignition in the ON position(engine not running) and the gear in P
(
)
N
Neutral
.
[Making the Settings]
Operational Procedure
Turn the ignition ON.
1
(engine not running)
ON
Press the SET switch
2
until “0” is displayed.
When “0” appears
3
release the SET switch.
Pedal is not pressed down.
4
(Release the accelerator to 0%)
ENGINE
START
or
Without braking,
press down twice
The values shown in the display will
vary depending on the type of car.
STOP
Press until
“0” appears
Release
Controller Display Area
(Normal Mode)
If -- does not appear,
press the MODE switch
until -- appears.
Count down from 5 to 0
after the “
” blinking.
cA
Operational Procedure
With the accelerator at 100%,
7
press the
Once the display changes to
8
00. release the accelerator.
9
Setting Completed
If the device is re-installed into a different vehicle, make
sure to carry out these settings again.
Press
SET
switch.
After having finished settings and the battery or
wires have been disconnected it is not necessary
to carry out “Initial Settings” .
Set to
100
(
Parking
Controller Display Area
%
(Normal Mode)
)
or
(SET)
(100 %)
(100 %)
How to
Operate
Trouble-
Shooting
0%
Press the SET switch.
5
Press
Pedal is completely
6
pressed down.
(Press in on the accelerator to 100%)
Set to
%
0
Check the Settings
Do not press in on pedal
Press down on pedal
7
If is
displayed at
7
100%
Note: If the display is incorrect, start
again from step above.
If after the “Er” is shown the display returns to
as shown in 4 ( “L.1” or so on), it means that
the degree of acceleration settings have not
been confirmed properly. Re-do the settings
from step 4 .
2
(Normal Mode)
(100 %)
4
How to Operate
Switch the Mode
The Mode will change with each
pressing of the MODE switch.
Switch the Change Ratio
NORMAL Mode
ECO Mode
RESPONSE Mode
POWER Mode
Before
Using
Features
Connecting
The Wires
ECO Mode
Change with each pressing
of the SE T switch .
RESPONSE Mode
Change with each pressing
of the SE T switch .
POWER Mode
Change with each pressing
of the SE T switch .
Features of each mode
POWER Mode
Circuit
Sports
RESPONSE Mode
Sports
Circuit
Near the wire d chara cteristics
ECO Mode
ECO-driving City driving
In heavy traffic Slippery road
is displayed
is displayed
is displayed
RESPONSE
All rang e is impr oved.
FUEL EFFICIENCY
Downward trend.
RESPONSE
Low and mid-ran ge
is improved.
FUEL EFFICIENCY
Downward trend.
FUEL EFFICIENCY
Improving trend.
RESPONSE
All rang e is downward.
Note: Bett er than POWER m ode.
Smallest
Change Ratio
Smallest
Change Ratio
Smallest
Change Ratio
12345
12345
12345
67
Change
Ratio
Change
Ratio
Change
Ratio
Up
Normal
Down
Up
Normal
Down
Up
Normal
Down
Greatest
Change Ratio
Greatest
Change Ratio
Greatest
Change Ratio
100
Thrott le Open ing (%) Thrott le Open ing (%) Thrott le Open ing (%)
P7
50
050100
100
Normal
Degree of A ccele ration (%)
r5
50
050100
100
50
Normal
Degree of A ccele ration (%)
Normal
E5
050100
Degree of A ccele ration (%)
The Product
Settings
Operate
Shooting
Installing
Initial
How to
Trouble-
Even if the mode is switched the respective change ratio settings will not be changed.
5
Before
0%
100%
Degree of Acceleration Monitor
Using
• Degree of Acceleration Monitor shows the rate of acceleration output to the ECU
where 0 represents the pedal not being pressed in and 100 equals when the
pedal is fully pressed down.
• Displays accelerator opening in units of 1% from 5 to 100%.
(When it is 100%, 00. is displayed.)
Displays the amount of pressure placed on the accelerator pedal.
(output signal) [5–100%, 1% unit .]
Acceleration (output)
Degree of
(20%)
3-drive PRO
P
r
E
POWER
RESPONSE
ECO
Features
The Wires
Connecting
Installing
The Product
Initial
Settings
How to
Operate
Trouble-
Shooting
Check acceleration during ECO driving
USE 1
To ensure reduced fuel
consumption during
acceleration the degree of
acceleration should be
between 15% and 25%. To
further improve results use
ECO Mode when wishing to
save fuel.
Check acceleration during regular driving
USE 2
100
100%
0%
ECO
-
Check control status
USE 3
With the ignition in the ON position and
under NORMAL Mo de pres s in the pedal
until it reaches 4 0%, if the mode is
changed to P7 the display should read
67 (67%) and if placed in E5 the display
should c hange to 27 (27%).
Note: The ac tual di splay may d iffer s light ly.
Please use to check the degree of acceleration for any type of driving, not just ECO Mode.
Display Items
Display Items
Display Details
POWER Mode (higher number = higher response)
RESPONSE Mode (higher number = higher response)
ECO Mode (higher number = lower response)
NORMAL (Normal Performance)
(e.g. 32%)
Degree of Acceleration
Degree of Acceleration (100%)
Press down on pedal.
e.g. 40%
40%
Switch mode toP7Switch mode to
Display for Settings
Display Details
In NORMAL Mode
E5
Initial Settings Mode
Position when accelerator is
not pressed down
Position when accelerator is
fully pressed down
Settings Completed
6
Troubleshooting
Concerning Basic Operations and Car Problems
Trouble
The ignition is set to the O N posit ion but
the display of the M ain Uni t will not l ight
up.
OR the display go es OFF whi le in use.
A Check Engine Light has gone on.
While making “Initial Settings”
appears in the display.
an
Er
The ignition has been turned OFF but the
display remain on.
Concerning the Throttle Controller
Trouble Possible Causes Possible Solutions
changes cann ot be felt .
appears in the display.
--
The Mode and/or the setting of
change ratios can not be saved.
Poor connection of 5-pin Connector and
6-pin Connector .
Poor connection of Specialized Harness .
Specialized Harness being used is incorrect.
The acc elerator con necto r or Specialized Harness
was disc onnected wit h the ign ition i n the ON po sitio n or
within 15 mi nutes af ter having turne d the ign ition O FF.
The “Initial Settings” have not been properly carried
out.
The product was in a mode other than NORMAL
Mode when removed from a car and installed into a
different car.
The “Initial Settings” have not been properly carried
out.
This pro duct is interlocked wi th the ECU (engine co mputer) p ower. Depen ding on t he model of car, the
display may remain on for up to 15 minutes even after th e ignit ion has b een turned off ; this is n ormal.
The “Initial Se ttings” have not been pro perly c arrie d out.Even if the Mode is ch anged , the
The ignition ha s been turned to the OFF pos ition i mmedi ately af ter havin g finished the se tting of change ratio s or
changing the Mode.
Possible Causes Possible Solutions
Please reconfirm whether wiring and connections
are correct or not.
Re-connect the disconnected connector and turn
off the Light (See page 8 of this manual).
Make the “Initial Settings” (See page 4 of this
manual) and turn off the Light (See page 8).
After returning it to NORMAL Mode, carry out the
“Initial Settings” (See page 4 of thi s ma nual) and tur n
off the Light (See page 8).
Make the “ Initial Sett ings” (See page 4 of this
manual).
Make the “ Initial Sett ings” (See page 4 of this
manual).
After hav ing mad e setti ngs of change ra tios or
changing the Mode, wait for at leas t two seconds
before turning the ignition to th e OFF position.
Before
Using
Features
Connecting
The Wires
The Product
Installing
Initial
Settings
Operate
How to
7
Shooting
Tro ubl e-
WARNING
Improper use or disregard
of these warnings may
result in the injury or death
of people.
•
When making initial settings make sure to
stop the engine and place in Parking or
Neutral. It is dangerous to carry out these
settings while the engine is running.
•
Do not work in areas where there is excessive exhaust. Due to vehicle exhaust
emission poisoning or fire may result in a
damage to humans.
•
Do not crush the cable. Please be
careful that the cable does not get
crushed by the seat rail or car door
steel plate, nor cut by any sharp
steel plate as this may cause a
poor connection or an electric short
leading to fire or other danger.
•
While driving DO NOT operate
switches or pay prolonged
attention to the display; it is
extremely dangerous.
•
Make sure that all wiring and
fastening down of the product
does not interfere with driving
nor be done in such a way as to
cause poor connections.
8
CAUTION
Improper use or disregard
of these warnings may
cause injury to persons,
damage the product and/or
other things.
Note
How to Turn Off the Check Engine Light.
•
PIVOT Corporation accepts no responsibility, in any manner whatsoever, for
damage and/or trouble to your vehicle or
product, nor for any accidents that are the
result of the misuse of this product.
•
Please confirm that the type of vehicle you
wish to install into is listed in the “List of
Specialized Harnesses by Car Model for
3-drive · PRO” .
•
When installing this product, we
recommend that if technical knowledge becomes necessary please
consult a qualified mechanic.
•
If the device is improperly installed
or settings have been improperly
made a Check Engine Light may
go on.
•
Please wipe with a soft dry cloth
(a lens cloth).
•
Please do not use alcohol or
benzine.
This may cause damage to the
painted surface or cracks in the
plastic.
•
Do not, in any manner, process,
take apart, or make changes to
this product.
If the Check Engine Light comes on due to some operational mistake, please follow the directions below to turn it off.
1. Under normal conditions, start and stop the engine several times.
-
2. If that does not turn off the lamp, disconnect the cable from
terminal of the battery for about 10 minutes.
3. If that does not tur n off the lamp, please consult your local car dealer and have them turn it of f.
(Note)
• Our products have already been recognized as our Industrial Proper ty or are in the process of receiving Industrial Proper ty status.
• We plan in the near future to take all possible legal measures to protect against unfair comp etition from lo ok-alike produc ts usin g
similar designs, regulating characteristics, circuitry and circuitry layout.
Check Engine
Light is
• We strict ly prohibit the unlicensed use of the PIVOT trademark and the unauthorized use of PIVOT User’s Manual.
PIVOT CORPORATION
87-3, Shimookada Okada, Matsumoto-shi, Nagano, 390-0313 Japan TEL0263-46-5901
ON
Loading...
