imageRUNNER
5075/5065/5055
Latest technology and security enhancements. Full range of document handling capabilities. Exceptional performance and productivity.
Workgroup Imaging
E
x c E p t i o n a l
m u l t i f u n c t i o n
p E r f o r m a n c E
Speed, Power, and Reliability for Demanding Environments
Next-generation imageRUNNER technology delivers all the tools you need for professional results.
Speed, power, and reliability. What more do you need in a high-volume system? Much more. That’s why the imageRUNNER 5075/5065/5055 devices have been infused with the latest technology and security advance­ments to meet the expanding needs of today’s high-vol­ume departments and light production environments.
Featuring Canon’s next-generation imageCHIP system architecture for true job concurrency and exceptional multifunction performance, these imageRUNNER devices provide powerful capabilities to streamline workflows and speed job completion while keeping information securely in the hands of authorized users.
With a full range of document handling capa­bilities, powerful print controller options, and publishing management tools, the versatile imageRUNNER 5075/5065/5055 devices enable every employee to produce profes­sional-quality documents with ease.
Bound To Increase Productivity For Professional Results
The imageRUNNER 5075/5065/5055 devices are modular systems, allowing you to configure paper supply and advanced finishing accessories to meet your professional publishing requirements.
Robust Engine Design
Single-Pass Duplex Scanner/Feeder
~ Efficiently scans both sides of originals
simultaneously for maximum productivity.
~ Up to 100-ipm high-speed scanning
~ 100-sheet document feeding
Other Document Handling Options
~ Cassette-AB1
~ Copy Tray-L1
~ Tab Feeding Attachment-B1
~ ADF Access Handle-A1
Advanced Finishing Options
~ Supports high-volume stacking, versatile 50-sheet
stapling, and professional saddle-stitched booklet-finishing capabilities.
~ Feed preprinted stock into job streams and
automate “C” and “Z” folding tasks.
~ Ready documents for binding with in-line 2-/3-hole
punch capabilities.
Note: imageRUNNER 5075 shown with optional accessories.
Superior Paper Handling
~ Up to 110 lb. Index media weights, including
Tab Paper support.
~ A choice of two high-capacity paper decks to boost
paper capacity to a maximum of 7,650 sheets.
ad v a n c E d
f i n i s H i n g
a c c E s s o r i E s
Finisher-AD1 Saddle
Finisher-AD2
Document Insertion/Folding Unit-F1
Document Insertion Unit-E1
Puncher Unit-AT1
Paper Supply
Exceptional Performance and Productivity
Next-generation technologies give your department a professional edge.
The imageRUNNER 5075/5065/5055 devices are powered by Canon’s advanced imageCHIP (Concurrent Hyper Intelligent Platform) system architecture for fast multifunction processing and full concurrency. Its dual CPU design rips through image data at fast speeds for maximum productivity in high-volume environments. Vast memory capacities of 1GB RAM and a 40GB hard disk drive provide the virtual space to support multiple users and workflows in busy departments.
The imageRUNNER 5075/5065/5055 models ensure that every job is completed quickly with output speeds of up to 75/65/55 pages per minute (letter), respectively. System operation is simplified for walk-up users through the full­colour touch-screen interface and, for connected users, via easy-to-use printer drivers and device management utilities. Every employee has access to a complete range of image and document manipulation features, including support for 1200 x 1200-dpi image quality on every page. Plus, every imageRUNNER 5075/5065/5055 system employs Canon’s Fine Charac­ter and Edge Enhancement Technology (FCET) for print­ing clear, crisp text and images.
*
output for outstanding
imageCHIP System Architecture
A-Si Drum
v
a s t m E m o r y
c a p a c i t y
Each model is built on a solid frame to withstand the heavy workload of busy production environments. Induc­tion Heating (IH) Fusing technology helps reduce energy consumption and ensure near-instant system readiness. Long-lasting supplies and consumables deliver minimal maintenance and maximum uptime.
“Set On” Toner Bottle
Control Panel
*
Only available with certain page description languages.
Professional Document Production and Storage
Copy and store with more control than ever before.
Sophisticated Copying Simplified
Supports advanced digital copy features, like Job Block Com bination, that enables the production of complex docu ments by scanning multiple batches of originals saved with different settings and printing them as one document. Environments with more than one imageRUNNER 5075/5065/5055 system can double their productivity with Cascade Copy or output sets directly at the point of need with Remote Copy. Users can also boost programming efficiencies further with the Express Copy UI.
Harness the Power of Print-On-Demand
Streamline document storage tasks with the Mail Box feature – a great solution for frequent reprinting of forms and static documents. Per­sonalize each Mail Box with a user name, pass­word, and document deletion period. The new Copy and Store and Store and Print functions streamline workflows by executing multiple tasks in a single step while ensuring that a first-quality digital original is automatically archived.
Cascade Copy
Remote Copy
Professional Document Control from the Desktop
Use Canon’s imageWARE Document Manager Personal software to organize and manage files. Every PC serves as a virtual exten sion of the de­vice with the ability to archive, edit, retrieve, and manipulate documents stored in imageRUNNER Mail Boxes right from the desktop. Users can build complex documents in a simple drag-and­drop workflow for easy use, and then distribute scanned files to any destination.

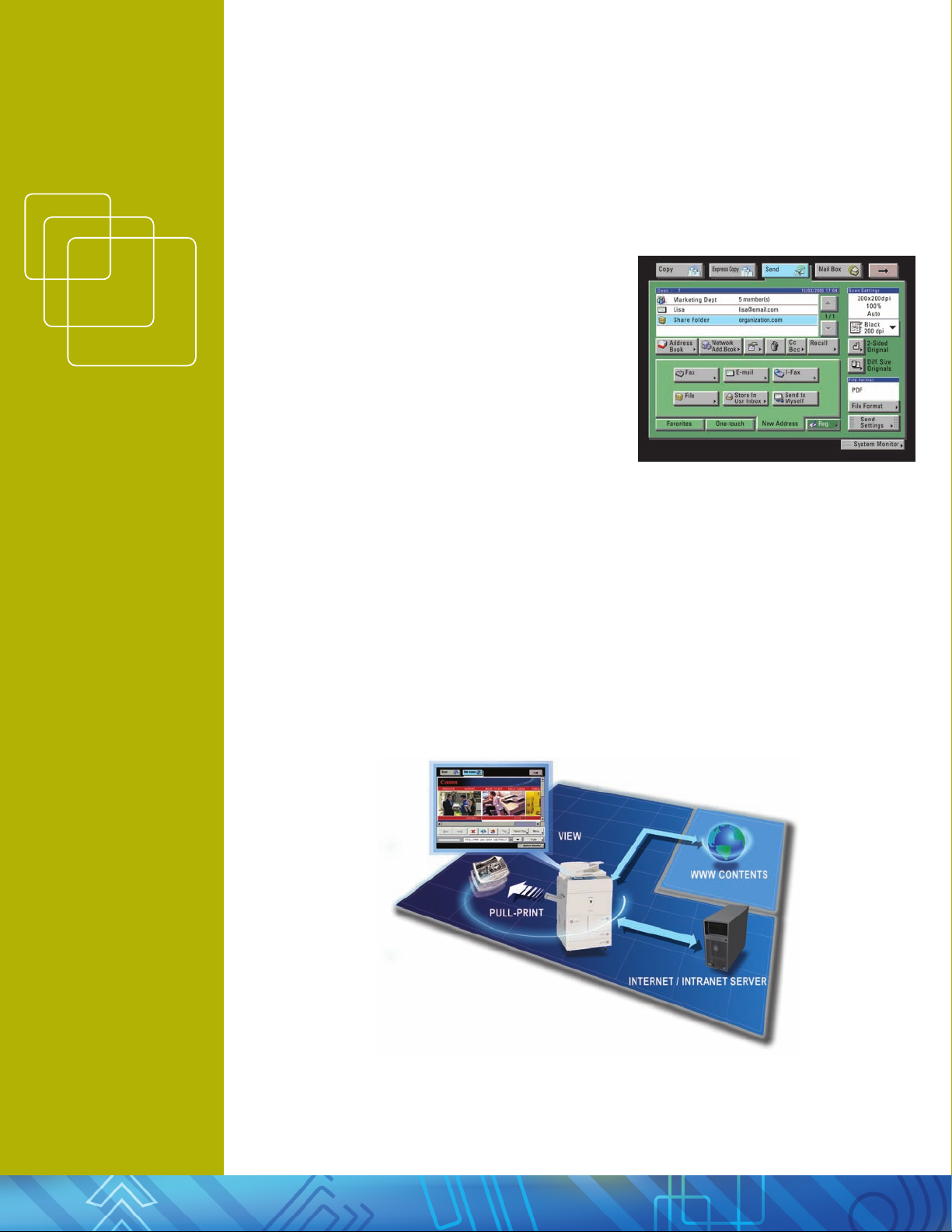

Express Copy Menu Mail Box Menu
Cascade/Remote Copy
ad v a n c E d d i g i t a l
c o p y f E a t u r E s
Professional Document Distribution And Communication
Access, collaborate, and share information from anywhere.
The Internet-ready imageRUNNER 5075/5065/5055 systems can be equipped with a host of features that support information sharing. Start with bundled TWAIN scanning for basic image capture needs with the easy-to-use Network ScanGear utility. Add tra­ditional Super G3 Faxing plus PC Fax capability for convenient faxing from the desktop.
With Canon’s Universal Send technology, users can push digital documents to any network destination – e-mail/I-fax addresses, network folders, and local Mail Boxes, all in one simple oper ation in popular industry formats. These devices also offer productivity-enhancing options, like the Searchable PDF feature, that enables fast keyword searches, information extraction and PDF Encryption, which adds a layer of protection to files as they travel across the network.
Maximize the Power of the Web
Support for the Web-based Distributed Authoring and Versioning (WebDAV) protocol facilitates employee collabo ration over the Internet. Team members can communicate from remote locations by scanning and securely sending documents from an imageRUNNER 5075/5065/5055 system to a shared storage service.
*
Universal Send
c
o m m u n i c a t E f r o m
r E m o t E l o c a t i o n s
Access to global information is at your fingertips with the Web Access Software option. Browse the Web or cor­porate intranet sites directly at the system’s full-colour touch-panel display, and then view or print Internet pages and PDF files right at the device.
Web Access Software
**
*
Requires Universal Send Kit-F1.
**
Printing with the Web Access feature requires the UFR II/PCL/PS printer Kit-R1.
Professional Printing Solutions
Optional print controllers provide professional publishing tools to users.
Activate the UFR II/PCL/PS Printer Kit-R1 to allow authorized users to share the imageRUNNER 5075/5065/5055 devices as network printers. This embedded print con­troller supports PCL 5e/6, and PostScript emulation with intuitive drivers, plus Canon’s proprietary UFR II (Ultra Fast Rendering) lan guage for excep tional printing perfor­mance in Windows
®
and Macintosh® operating
environments.
® 3TM
Choose the external imagePASS-S2 to gain sup­port for genuine Adobe
®
PostScript 3 along with PCL 5e/6, plus access to advanced options such as Hot Folders and Virtual Printers, Command Workstation plex workflows with automated job queuing.
®
, and EFI® Impose to manage com-
imagePASS-S2
All the tools you need for a professional high-volume document production system.
Document Make-Ready tools
User Inboxes
Jo b Submission
Do cum ent Storage
Special Copy Features
Job Block Combination: Combine different settings in one job
imageWARE Publishing Manager
Build dynamic docu­ments using drag-and­drop functionality
Web Access
Information retrieval from Internet and/or intranet
Print Driver
Page Layout, Finishing, Paper Source, and Quality settings
fa s t p r o c E s s i n g
Professional-Level Finishing
Saddle-Stitch Booklets Z-Fold
Advanced in-line finishing options
~ High Image Quality
~ Fast Processing
~ High-Speed Output
Print
Achieve Complete Control
Alter system functionality to meet your exact specifications.
Simplify Device Discovery and Management
imageWARE Enterprise Management Console (EMC) is a Web-based utility that simplifies and centralizes device installation and management, whether you’re supporting a single system or a fleet of networked devices. Versatile and scalable, imageWARE EMC enables remote manage­ment of device settings, discovery of new devices using automated tasks, and device-error notification via e-mail.
Specify which users have access to the device and its functions by setting restrictions on port usage and acceptable MAC or IP address ranges. Administrators can also broadcast system settings and copy Address Books from a reference device to up to 100 other imageRUNNER devices through the Device Informa­tion Delivery Function (DIDF) for consistent operabil­ity on all devices on the network.
Authorized users have total visibility to the system through the Remote UI utility. Access device status, job queues, and configuration information; monitor paper and supply levels; view documents in Mail Boxes; and edit Address Books via a standard Web browser.
imageWARE Enterprise Management Console
Control Access by Individual User
Ensure that only authorized personnel can access the device and the data stored inside it. With a choice of user authentication methods, administrators can track or limit system access to users. Select Single Sign-On (SSO) using network accounts, Simple Device Log-In (SDL), or Department ID.
m
o n i t o r p a p E r
a n d s u p p l y l E v E l s
Remote UI
Meet Unique Workflows
For environments with specialized needs, Canon’s MEAP Application Platform) architecture allows the system to incorporate unique software appli­cations that run embedded in the device and map to your specific workflows. The result is the total integration of your imageRUNNER 5075/5065/5055 systems into the business infrastructure by presenting customized applica­tions to walk-up users directly from the devices’ full-colour LCD panel.
MEAP Application: eCopy ShareScan OP
®
(Multifunctional Embedded
Data Pro t e c t i o n w i t h A ccess for All Authorized Users
Protect Critical Information
Take advantage of a number of standard and optional imageRUNNER security measures designed to keep confidential data secure. The Encrypted Secured Print Software option makes print data indecipherable before sending it over the network. The document can only be decrypted and printed after the correct password is entered at the control panel. When the Secure Watermark option is activated, the system embeds text and background patterns on printed documents that become visible if the page is reproduced, deterring users from copying sensitive information.
Universal Send security options include Digital Device and Digital User Signature Modes that provide traceability by verifying which unit and user scanned the document to ensure that files are coming from a trusted source.
For highly sensitive environments dealing with classified data, the HDD Data Encryption option encrypts all information before writing it to the hard disk drive, and has achieved Common Cri­teria (CC) Certification. When the optional HDD Data Erase Kit is added, the device can be set to automatically overwrite previously stored data.
Innovative Accessibility Options
Numerous options ensure easy access for every autho­rized user. Users have access to all system functions from a laptop or desktop PC using the Remote Operator’s Software Kit. This emulates the device control panel on a computer monitor. Users with visual impairments can receive audible confirmation of selected copy functions with the Voice Guidance Kit.
Digital Signature PDF
nu m E r o u s
s E c u r i t y

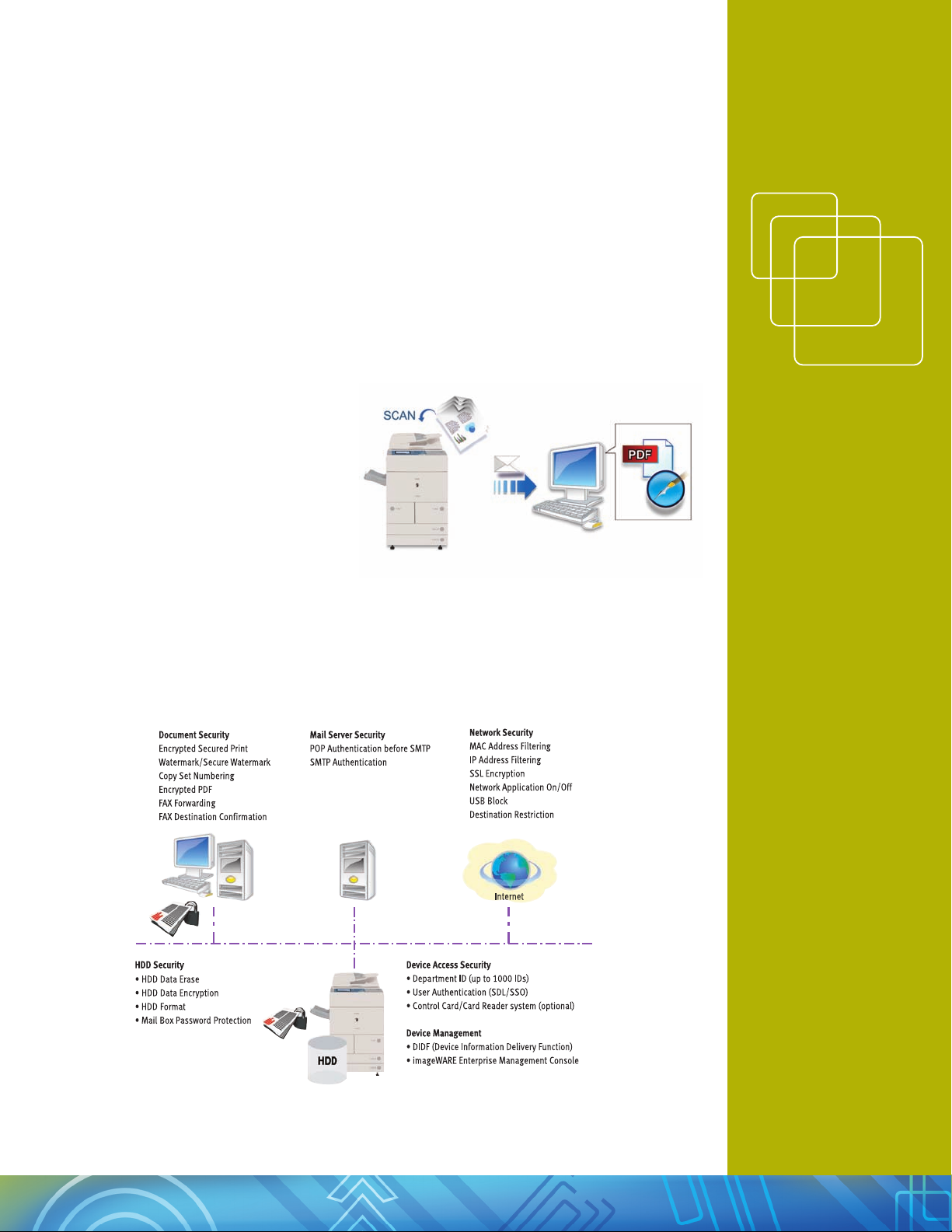

Device Management and Security Overview
m E a s u r E s
p
r o d u c E d o c u m E n t s
w i t H p r o f E s s i o n a l
r E s u l t s
Me et in g t he C ha l len ge s o f Ev e ry Environment
From busy corporate departments to specialized businesses, high-volume imageRUNNER devices are hard at work helping companies produce documents with professional results.
Corporate Offices
The general office can be a busy place and imageRUNNER corporate solutions are a perfect fit. Featuring ease-of-use, massive paper capacities, and long-lasting supplies, the imageRUNNER 5075/5065/5055 systems are excellent choices to support multiuser environments. Advanced document insertion and finishing capabilities enable the in-house production of sales reports and proposals with covers, heavy stock catalogs, brochures, employee handbooks, and more.
Manufacturing
From design schematics to patent applica­tions, or internal training materials to end-user assembly instructions, ever-changing market conditions and advancements in product tech­nologies yield a never-ending stream of docu­mentation produced by manufacturers. The imageRUNNER 5075/5065/5055 systems en­able the fast turnaround of critical documents while ensuring the integrity and confidentiality of new product designs and launch plans with the latest security enhancements.
Education
Learning institutions of all kinds generate millions of pages each semester for course syllabi, classroom learn­ing aids and handouts, exams, and administrative needs. High-volume imageRUNNER 5075/5065/5055 systems support students and faculty alike with the ability to handle multiple media types to create powerful learning tools, fast document scanning for article reprints, and massive memories with simple-to-use publishing soft­ware to easily update course packs for each new semes­ter and print desired quantities on demand.
Central Reproduction Departments
Paper-intensive businesses with dedicated reproduction departments are under constant pressure to meet dead­lines while maintaining optimal image quality. Volumes are unpre dictable and media requirements are as varied as the job types. High-volume imageRUNNER 5075/5065/5055 solutions deliver the paper supply, folding, and finishing versatility demanded by production environments.
Saddle-Stitched Booklets
Ha n d l E s
m u l t i p l E m E d i a
t y p E s
Z-FoldingC-Folding
Three-Hole Punching
imageRUNNER 5075/5065/5055 specifications
Main Specifications
Main Unit
Type: Monochrome Digital Multifunction
Imaging System: Laser Dry Electrostatic Transfer
Developing System: Dry Mono Component Toner Projection
Fixing System: Induction Heating Fusing System
Acceptable Originals: Sheets, books, and 3-Dimensional
Max. Original Size/ Max. Copy Size: 11” x 17” / 11” x 17”
Min. Copy Size: 3
Memory: Standard 1GB RAM + 40GB HDD (Shared)
Max. Copy Reservation: 20 Jobs
Max. Mail Boxes Supported: 100 User Inboxes, 1 Memory RX Inbox,
Scan Resolution: 600 x 600 dpi
Copy Resolution: 1200 x 600 dpi (Interpolated)
Engine Resolution: 1200 x 1200 dpi
Halftone: 256 Gradations of Gray
Exposure Control: Automatic or Manual (9 Levels)
Copy/Print Speeds: Up to 75/65/55 ppm (Letter)
First-Copy Time
5075: 3.1 Seconds from Platen Glass 5065/5055: 3.3 Seconds from Platen Glass
Warm-Up Time: 30 Seconds or less from
Multiple Copies: 1 to 9,999
Paper Supply
Standard: Dual Paper Drawers (1,500 Sheets Each) Dual 550-Sheet Paper Cassettes (550 Sheets Each) 50-Sheet Stack Bypass Optional: 3,500-Sheet Paper Deck Maximum Paper Supply: 7,650 Sheets
Acceptable Paper Sizes Upper Drawers: Letter Lower Cassettes: 11” x 17”, Legal, Letter, Letter-R, Statement-R, Executive Stack Bypass: 11” x 17”, Legal, Letter, Letter-R, Statement-R, Executive, Free Size (3
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
Duplexing: Standard Automatic Trayless Duplexing
Magnification
Standard Mode: 100% Zoom Mode: Platen: 25% - 400% (In 1% Increments) Feeder: 25% - 200% (In 1% Increments)
Interface Connections: 10/100Base-TX (RJ-45), USB 2.0 High Speed
Dimensions (H x W x D): 4 7
Weight: 474 lb. (215 kg)
Power Requirements: 120V AC, 60Hz, 20A
Power Consumption: 1.92kW (Max.)
Plug: NEMA 5-20P
Toner (Estimated Yield): 48,000 Impressions @ 6% Image Coverage
Drum (Estimated Yield): 3,000,000 Impressions
Imaging System
objects up to 4.4 lb.
7
/8” x 57/8” (via Stack Bypass)
50 Confidential Fax Inboxes
(Main Power Off or Sleep Mode)
7
and Envelopes
(From All Sources)
(1,207mm x 643mm x 743mm)
/8” x 57/8” to 115/8” x 17”),
1
/2” x 253/8” x 291/8
Single-Pass Duplex Scan Document Feeder
Acceptable Originals: Statement to 11” x 17”
Acceptable Weights
One-Sided Scanning: 11 lb. to 32 lb. Bond Two-Sided Scanning: 13 lb. to 32 lb. Bond
Paper Capacity: 100 Sheets (20 lb. Bond)
Original Scanning Speed: Up to 100 ipm (Letter @ 300 dpi, Two-Sided)
Up to 77 ipm (Letter @ 300 dpi, One-Sided)
Optional Accessories
Paper Deck-AD1/AE1
Acceptable Paper Size: Letter/11” x 17”, Legal, Letter, Letter-R
Paper Capacity: 3,500 Sheets (20 lb. Bond)
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
Finisher-AD1/Saddle Finisher-AD2
Number of Trays: 3 Trays
Acceptable Paper Sizes: 11” x 17”, Legal, Letter, Letter-R,
Acceptable Paper Weight: 17 lb. Bond to 140 lb. Index
Tray Capacities
(No Collating mode): Up to 4,000 Sheets (Letter) Staple Mode (Trays B & C) Tray B, Tray C: 1,300 Sheets/100 Sets [or 7 (Letter, Executive) 650 Sheets/50 Sets [or 3 (11” x 17”, Legal, Letter-R) Paper S izes: 11” x 17”, Legal, Letter, Letter-R, Executive Staple Positions: Any Corner Staple Double Staple in Right or Left Margin Saddle Stitch (Center Staple)
Stapling Capacity: 50 Sheets (Letter, Executive)
Saddle-Stitching:
Acceptable Paper Sizes: 11” x 17”, Legal, Letter-R Saddle-Stitch Capacity: 15 Sheets (60 Page Booklets)
Attachable Accessories: Document Insertion Unit-E1
Document Insertion Unit-E1 (Option for Finisher-AD1/Saddle Finisher-AD2)
Number of Trays: 1
Insertion Tray Capacity: 100 Sheets
Acceptable Paper Weight: 17 lb. Bond to 140 lb. Index
Acceptable Paper Sizes: 11” x 17”, Legal, Letter, Letter-R, Executive
Document Insertion/Folding Unit-F1 (Option for Finisher-AD1/Saddle Finisher-AD2)
Number of Trays: 1
Insertion Tray Capacity: 100 Sheets
Acceptable Paper Weight (Insertion): 17 lb. Bond to 140 lb. Index
Acceptable Paper Sizes: (Insertion): 11” x 17”, Legal, Letter, Letter-R, Executive
Acceptable Paper Weight (Folding): 17 lb. – 28 lb. Bond
Acceptable Paper Sizes (C-Fold): Letter-R
Acceptable Paper Sizes (Z-Fold): 11” x 17”, Legal, Letter-R
Statement, Statement-R, Executive,
7
Free Size (3
30 Sheets (11” x 17”, Legal, Letter-R)
*
Document Insertion/ Folding Unit-F1 Puncher Unit-AT1
/8” x 57/8” to 115/8” x 17”)
3
/8” (188.4mm) in Height]
3
/4” (96mm) in Height]
*
Folding Method: Roller Pressure Folding
C-Fold Output Tray Capacity: 40 Sheets
Puncher Unit-AT1 (Option for Finisher-AD1/Saddle Finisher-AD2)
Acceptable Paper Sizes: 11” x 17”, Legal, Letter, Letter-R
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
Punch Method: Sequential Processing System
Punch Type: 2 holes: (Legal, Letter-R)
3 holes: (11” x 17”, Letter)
Other Optional Accessories
UFR II/PCL/PS Printer Kit-R1
Encrypted Secured Print Software-C1
• Barcode Printing Kit-A1**
• Web Access Software-F1
• imagePASS-S2
• Hot Folders & Virtual Printers for imagePASS-S2
• Impose for imagePASS-S2
• Universal Send Kit-F1
• Digital User Signature PDF Kit-A1†
• Universal Send Searchable PDF Kit-A1†
• Universal Send PDF Security Feature Set-A1†
• Secure Watermark-A1
• Super G3 Fax Board-Z1
• HDD Data Encryption Kit-B2
• HDD Data Erase Kit-A1
• Expansion Bus Board-D2
• Remote Operator’s Software Kit-A2
• Voice Guidance Kit-B1††
• Cassette-AB1 (Replacement)
• Tab Feeding Attachment-B1
• Copy Tray-L1
• Card Reader-C1
• Card Reader Attachment-C2
• Braille Label Kit-A1
• ADF Access Handle-A1
• Stamp Unit-B1
• Stamp Unit Cartridge-C1
• Staple Cartridge-J1
• Staple Cartridge-D2
• eCopy Suite
• imageWARETM Suite
*
Available with Saddle Finisher-AD2 only.
**
Requires UFR II/PCL/PS Printer Kit-R1.
***
Requires UFR II/PCL/PS Printer Kit-R1 for printing Web pages and pdf files.
Requires Universal Send Kit-K1.
††
Requires Expansion Bus Board-D2.
(1 Sheet at a time)
**
***
As an ENERGY STAR Canon® has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
®
Partner,
Pitney Bowes 5500 Explorer Drive Mississauga, ON L4W 5C7
For more information call: 1-800-672-6937 www.pitneybowes.ca
© 2007 Pitney Bowes Ltd. All rights reserved. AD950-480C
Helping you optimize your mailstream.
At Pitney Bowes we have a term for the total sum of mail and documents, both traditional and digital, as well as packages that flow across your business and to your customers. We call it the mailstream, and we’re in business to help you move your mailstream more efficiently. The people, solutions and software of Pitney Bowes are dedicated to the seamless end­to-end flow of documents you handle every day. No one is better equipped to help you move the critical information your business relies on.
Our commitment to service.
Pitney Bowes is committed to providing our customers with the finest products and solutions backed by the highest quality service and customer care. We have a coast-to-coast network of trained Pitney Bowes service specialists plus a series of advanced customer service solutions to ensure our customers always receive the highest levels of service and support. Ask your Pitney Bowes Sales representative for more information about our
President’s Guarantee.
Loading...
