Page 1

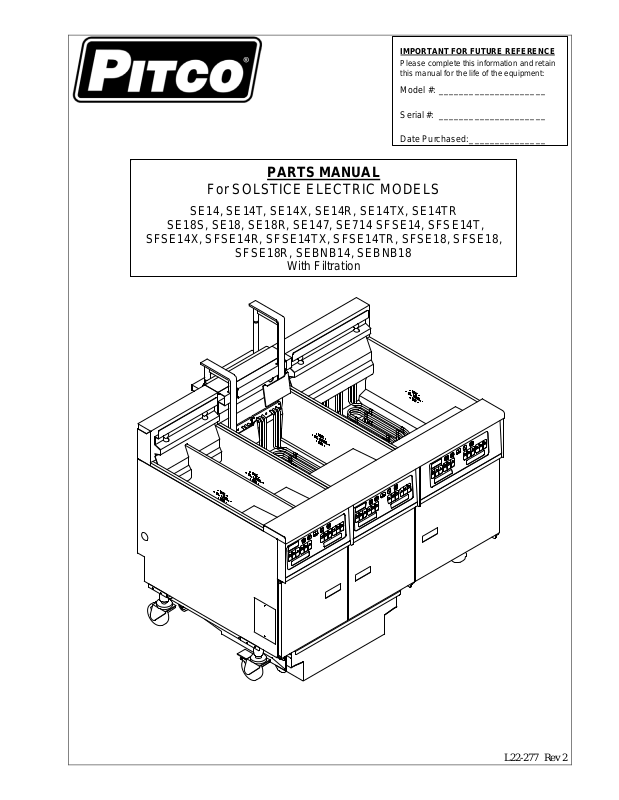

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain this manual for the life of the equipment:

PARTS MANUAL

Model #: _____________________

Serial #: _____________________

Date Purchased:_______________

For SOLSTICE ELECTRIC MODELS

SE14, SE14T, SE14X, SE14R, SE14TX, SE14TR

SE18S, SE18, SE18R, SE147, SE714 SFSE14, SFSE14T,

SFSE14X, SFSE14R, SFSE14TX, SFSE14TR, SFSE18, SFSE18,

SFSE18R, SEBNB14, SEBNB18

With Filtration

L22-277 Rev 2

Page 2

TO THE PURCHASER, OWNER AND STORE MANAGER

Please review these warnings prior to posting them in a prominent location for reference.

Post in a prominent location the instructions to be followed in the event that an operator smells gas. Obtain this information from your local gas supplier.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Improper installation, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this appliance.

Installation, maintenance and repairs should be performed by a Pitco Authorized Service and Parts (ASAP) company technician or other qualified personnel. Installation, maintenance or repairs by unauthorized and unqualified personnel will void the warranty.

Installation and all connections must be made according to national and local regulations and codes in force.

During the warranty period if a customer elects to use a non-original part or modifies an original part purchased from Pitco and/or its Authorized Service and Parts (AS AP) companies, this warranty will be void. In addition, Pitco and its affiliates will not be liable for any claims, damages or expenses incurred by the customer which arises directly or indirectly, in whole or in part, due to the installation of any modified part and/or received from an unauthorized service center.

This appliance, when installed, must be electrically grounded in accordance with local codes, or i n the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable.

Adequate means must be provided to LIMIT the movement or this appliance without depending on the gas or electrical cord connection. Single appliances equipped with legs must be stabilized by installing anchor straps. All appliances equipped with casters must be stabilized by installing restraining chains.

An appliance equipped with casters and a flexible gas line must be connected to the gas supply with a quick disconnect device. This quick disconnect must comply with ANSI Z24.41.

DO NOT alter or remove structural material on the appliance to accommodate placement under a ventilation hood.

DO NOT operate appliance unless all panels and access covers are attached correctly.

It is recommended that this appliance be inspected by a qualified service technician for proper performance and operation on a yearly basis

If gas flow to appliance is interrupted, or pilots extinguish, wait 5 minutes before attempting to relight the pilot to allow any residual gas in appliance to dissipate.

Ensure that the appliance can get enough air to keep the flame burning correctly. If the flame is starved for air, it can

TO THE PURCHASER

WARNING

This appliance is intended for professional use only and should be operated by fully trained and qualified personnel.

If the appliance is equipped with a power cord and it is damaged, it must be replaced by a Pitco Authorized Service and Parts (ASAP) company technician, or a similarly qualified person in order to avoid a hazard.

The power supply must be disconnected before servicing, maintaining or cleaning this appliance.

The appliance is NOT jet stream approved. DO NOT clean the appliance with a water jet.

DO NOT attempt to move this appliance or transfer hot liquids from one container to another when the unit is at operating temperature or filled with hot liquids. Serious personal injury could result if skin comes in contact with the hot surfaces or liquids.

DO NOT sit or stand on this appliance. The appliance’s front panel, tank, splash back, tank cover, workshelf, drain board is not a step. Serious injury could result from slipping, falling or contact with hot liquids.

NEVER use the appliance as a step for cleaning or accessing the ventilation hood. Serious injury could result from slips, trips or from contacting hot liquids.

The oil/shortening level should NOT fall below the minimum indicated level line at any time. The use of old shortening can be dangerous as it will have a re duced flash point and be more prone to surge boiling.

The contents of the crumb catch and/or filter pan of any filter system must be emptied into a fireproof container at the end of each day. Some food particles can spontaneously combust if left soaking in certain oil or shortening.

Completely shut the appliance down when shortening/oil is being drained from the appliance. This will prevent the appliance from heating up during the draining and filling process. Serious injury can occur.

This appliance is intended for indoor use only.

There is an open flame inside this appliance. The unit may get hot enough to set nearby materials on area around the appliance free from combustibles.

DO NOT supply the appliance with a gas that is not indicated on the data plate. If you need to convert the appliance to another type of fuel, contact your dealer.

DO NOT use an open flame to check for gas leaks! give off a dangerous carbon monoxide gas. Carbon onoxide is a clear odorless gas that can cause suffocation.

WARNING

fire. Keep the

WARNING

L22-277 Rev 2

Page 3

Exploded Parts-All Options Solstice Electric Models

TABLE OF CONTENTS

FRYER EXPLORED VIEW 1 PARTS LIST ................................................................................................. 1

FRYER EXPLORED VIEW 1 ....................................................................................................................... 2

FRYER EXPLODED 2 PARTS LIST ............................................................................................................ 3

FRYER EXPLODED 2 ................................................................................................................................. 4

FRYER EXPLODED 3 PARTS LIST ............................................................................................................ 5

FRYER EXPLODED 3 ................................................................................................................................. 6

TANK DRAWING A PARTS LIST ................................................................................................................ 7

TANK DRAWING A ..................................................................................................................................... 8

FRYER CABINET DRAWING B PARTS LIST ............................................................................................. 9

FRYER CABINET DRAWING B ................................................................................................................ 10

FRYER CABINET DRAWING B PARTS LIST ........................................................................................... 11

FRYER CABINET DRAWING B PARTS LIST ........................................................................................... 12

ENTRANCE BOX DRAWING C PARTS LIST ........................................................................................... 13

ENTRANCE BOX DRAWING C ................................................................................................................. 14

ENTRANCE BOX WIRE CHANNEL DRAWING D PARTS LIST ............................................................... 15

ENTRANCE BOX WIRE CHANNEL DRAWING D .................................................................................... 16

FRONT PANEL AND CONTROL BOX DRAWING E PARTS LIST ........................................................... 17

FRONT PANEL AND CONTROL BOX DRAWING E ................................................................................ 18

FRYER SMALL ASSEMBLIES DRAWING F PARTS LIST ....................................................................... 19

FRYER SMALL ASSEMBLIES DRAWING F ............................................................................................. 20

FRYER DRAIN LINE DRAWING G PARTS LIST ...................................................................................... 21

FRYER DRAIN LINE DRAWING G .......................................................................................................... 22

FILTER ASSEMBLY DRAWING H PARTS LIST ....................................................................................... 23

FILTER ASSEMBLY DRAWING H ............................................................................................................ 24

SEFD PUMP ASSEMBLY DRAWING J1 .................................................................................................. 26

SOLO FILTER AND SE147, SE714 PUMP ASSEMBLY DRAWING J2 PARTS LIST .............................. 27

SOLO FILTER AND SE147, SE714 PUMP ASSEMBLY DRAWING J2 .................................................... 28

PUMP CONTROL BOX DRAWING K PARTS LIST .................................................................................. 29

PUMP CONTROL BOX DRAWING K ....................................................................................................... 30

FLUSH HOSE ASSEMBLY DRAWING L PARTS LIST ............................................................................. 31

FLUSH HOSE ASSEMBLY DRAWING L .................................................................................................. 32

FLUSH HOSE NOZZLE OUTLET DRAWING M PARTS LIST .................................................................. 33

FLUSH HOSE NOZZLE OUTLET DRAWING M ...................................................................................... 34

RETURN PIPING DRAWING N PARTS LIST ........................................................................................... 35

RETURN PIPING DRAWING N ................................................................................................................. 36

BASKET LIFT DRAWING P PARTS LIST ................................................................................................. 37

BASKET LIFT DRAWING P ....................................................................................................................... 38

BASKET LIFT COMPONENTS DRAWING R PARTS LIST ...................................................................... 39

BASKET LIFT COMPONENTS DRAWING R ............................................................................................ 40

ACCESSORIES DRAWING T PARTS LIST .............................................................................................. 41

ACCESSORIES DRAWING T ................................................................................................................... 42

BREAD AND BATTER DRAWING U PARTS LIST ................................................................................... 43

BREAD AND BATTER DRAWING U ....................................................................................................... 44

L22-277 Rev 2

Page 4

Exploded Parts-All Options Solstice Electric Models

Fryer Explored View 1 Parts List

ITEM# PART# PART DESCRIPTION

1 PP10023 10-24 X 3/8 SELF TAPPING SCREW

A7021102-C FILTER PAN COVER SEFD

3 P6071516 CHROME HANDLE

A7026104-C FILTER PAN COVER SFSE14, SFSE14T A7026102-C FILTER PAN COVER SFSE18 A7026108-C FILTER PAN COVER SE147, SE714

B6665001-C FILTER PAN COVER ASSEMBLY SEFD B6665003-C FILTER PAN COVER ASSEMBLY SFSE18 B6665004-C FILTER PAN COVER ASSEMBLY SFSE14, SFSE14T

B6665007-C FILTER PAN COVER ASSEMBLY SE147, SE714

L22-277 Rev 2

Page 5

Exploded Parts-All Options Solstice Electric Models

Fryer Explored View 1

L22-277 Rev 2

Page 6

Exploded Parts-All Options Solstice Electric Models

Fryer Exploded 2 Parts List

ITEM# PART# PART DESCRIPTION

A3672603-C FRONT PANEL HEAT SHIELD SE18

2 A7028401-C FILTER PUMP PLATE MOUNTING ROD HOLDER 3 PP10023 SCREW 10 - 24 X 3/ SELF TAPPING 4 A7027902 FILTER PUMP PLATE MOUNTING ROD

6 7 A1849402-C POWER CORD BRACKET (CATFISH KING)

8 B6676001 FILTER PICK UP BLOCK (SFSE, SE147, SE714)

9 60068301 O-RING 1.00 ID X 1.375 OD VITON (SFSE, SE147, SE714) 10 P7037360 NIPPLE BLACK IRON 3/4NPT X 4-1/2 (SEFD) 11 A7027602 FILTER PICK UP BLOCK (SEFD) 12 PP11104 O-RING 1.00 ID X 1.18 OD VITON (SEFD) 13 A1846601-C REMOTE COMPUTER CABLE CLAMP

A3672605-C FRONT PANEL HEAT SHIELD SE14

A3673701-C FRONT PANEL HEAT SHIELD SE714 A3673703-C FRONT PANEL HEAT SHIELD SE147

A3667908-C FRONT PANEL BOTTOM SE14

A3667910-C FRONT PANEL BOTTOM SE18 A3667912-C FRONT PANEL BOTTOM SE147

A1631401-C CABINET BACK COVER SE14, SE18 A1633201-C CABINET BACK COVER SE147, SE714

L22-277 Rev 2

Page 7

Exploded Parts-All Options Solstice Electric Models

Fryer Exploded 2

L22-277 Rev 2

Page 8

Exploded Parts-All Options Solstice Electric Models

Fryer Exploded 3 Parts List

ITEM# PART# PART DESCRIPTION

3 4 PP10693 SCREW 10 - 24 X 3/8

5 PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING 6 A2962805 ENTRANCE BOX LOWER RH COVER SE18 7 A2962903 ENTRANCE BOX UPPER COVER SE18 8 A2962803 ENTRANCE BOX LOWER LH COVER SE18 9 A2962601 ENTRANCE BOX MIDDLE COVER SE18

A2962801 ENTRANCE BOX LOWER COVER SE14 A2962807 ENTRANCE BOX LOWER COVER SE7 A2962901 ENTRANCE BOX UPPER COVER SE14 A2962905 ENTRANCE BOX UPPER COVER SE7 A2963801 ENTRANCE BOX COVER BRACKET SE14 A2963803 ENTRANCE BOX COVER BRACKET SE7

L22-277 Rev 2

Page 9

Exploded Parts-All Options Solstice Electric Models

Fryer Exploded 3

L22-277 Rev 2

Page 10

Exploded Parts-All Options Solstice Electric Models

Tank Drawing A Parts List

ITEM#

4 5

9 10 11 12 13

15 16 17 18

20 21 22 23 24 25 26

PART# PART DESCRIPTION

B3325501-C TANK SE18, SFSE18 B3325301-C TANK SE14, SFSE14, SE147, SE714 B3325401-C TANK SE14T, SFSE14T B3325801-C TANK SE7 B3325502-C TANK SE18, SFSE18 FLOAT SWITCH (KFC) B3325302-C TANK SE14, SFSE14 FLOAT SWITCH (KFC) B3325402-C TANK SE14T, SFSE14T FLOAT SWITCH (KFC) A2961801-C ENTRANCE BOX HEAT SHIELD LH SE*14*, SE147, SE714

A2962001-C ENTRANCE BOX HEAT SHIELD LH SE*18 A2961702-C ENTRANCE BOX HEAT SHIELD SE*14*, SE147, SE714 A2961902-C ENTRANCE BOX HEAT SHIELD SE*18

A2964402-C ENTRANCE BOX HEAT SHIELD SE7

PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING

A2963601-C ENTRANCE BOX MOUNTING BRACKET SE*14* A2963603-C ENTRANCE BOX MOUNTING BRACKET SE18 A2963605-C ENTRANCE BOX MOUNTING BRACKET SE7

B4004403 DRAIN VALVE LH NON-LOCKING B4004404 DRAIN VALVE RH NON-LOCKING (SHOWN) B4004401 DRAIN VALVE LH LOCKING (NON-FILTER)

B4004402 DRAIN VALVE RH LOCKING (NON-FILTER) (SHOWN)

A2961803-C ENTRANCE BOX HEAT SHIELD RH SE*14*, SE147, SE714 A2962003-C ENTRANCE BOX HEAT SHIELD RH SE*18

P7036729 STEEL TANK PLUG 1/2NPT

60130101 TANK REAR ADAPTER 37.5 FLARE SWI VEL X 1/2MPT

A3342902 TANK HI LIMIT BRACKET LOWER

A3342802 TANK HI LIMIT BRACKET UPPER

60141201 HI LIMIT SWITCH

PP11366 SCREW 10 - 24 X 5/8 SST

A4021001-C DRAIN VALVE INTERLOCK MOUTING PLATE

50006601 TANK ELEMENT 8.5KW 208V

50006602 TANK ELEMENT 8.5KW 220V

50006614 TANK ELEMENT 8.5KW 230V

50006603 TANK ELEMENT 8.5KW 240V

50006604 TANK ELEMENT 8.5KW 480V

50006605 TANK ELEMENT 11KW 208V

50006606 TANK ELEMENT 11KW 220V

50006615 TANK ELEMENT 11KW 230V

50006607 TANK ELEMENT 11KW 240V

50006608 TANK ELEMENT 11KW 408V

50006609 TANK ELEMENT 7KW 208V

50006610 TANK ELEMENT 7KW 220V

50006611 TANK ELEMENT 7KW 230V

50006612 TANK ELEMENT 7KW 480V

50006613 TANK ELEMENT 7KW 208V

60088003 SCREW 1/4 - 20 X 3/4 SST HEX

60068304 O-RING VITON 1.75 ID X 2.215 OD

A3341901 TANK ELEMENT GASKET (FOR UNITS BUILT PRIOR TO 5-5-03)

A3342502 TANK PROBE BRACKET FRONT B6700605-C TANK PROBE KIT B6700607-C TANK PROBE KIT (KFC) B6700606-C TANK PROBE KIT (BACK UP THERMOSTAT)

A3342504 TANK PROBE BRACKET REAR B5302202-C LIQUID LEVEL FLOAT SWITCH (KFC)

A8030407 DRAIN LINE ADAPTOR (NON-FILTER)

B5305001 DRAIN VALVE INTERLOCK SENSOR

PP10263 PROXIMITY ACTUATOR PP10266 SCREW 4 - 40 X 1/4 PP10686 SCREW 6 - 32 X 1/4

L22-277 Rev 2

Page 11

Exploded Parts-All Options Solstice Electric Models

Tank Drawing A

L22-277 Rev 2

Page 12

Exploded Parts-All Options Solstice Electric Models

Fryer Cabinet Drawing B Parts List

ITEM# PART# PART DESCRIPTION

1 SEE PAGE 11 CABINET BACK 2 A1847901-C CABINET CENTER BRACE SE147, SE714 3 PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING 4 SEE PAGE 11 SPLASH BACK 5 60118201 BOLT, 1/4 - 20 X 3/8 6 60132001 SPLASH BACK STUD 7 SEE PAGE 11 BASKET HANGER 8 SEE PAGE 12 TOP DECK 9 A1510201-C CABINET SIDE SUPPORT

10 A1511206-C CABINET SIDE LH

A1846001-C CABINET SPACER PLATE SE14, SFSE14, SE14T, SFSE14T A1631101-C CABINET SPACER PLATE SE18, SFSE18

A1848101-C CABINET SPACER PLATE SE147

A1848001-C CABINET SPACER PLATE SE714 12 A3671102-C FRONT PANEL END CAP LH/RH 13 A6613102-C FITLER DRAIN LINE CAB COVER

18 19 P0093300 NUT 1/4 - 20 (KEP)

21 P0020600 SCREW 1/4 - 20 X 5/8 22 P6071300 MAGNET CATCH

24 SEE PAGE 41 FRONT CASTERS/LEGS 25 SEE PAGE 41 REAR CASTERS/LEGS 26 A3672502-C CABINET MID CAP

27 28 A1511208-C CABINET SIDE RH

29 A1844204-C CABINET REAR JOINING STRIP LOWER 30 A1907906-C TANK JOINING STRIP 31 60145301 GROUNDING LUG (CE ONLY)

33 A1847501-C CABINET POWER CORD BRACKET 34 35 P0075400 SCREW 10 - 24 X 1/2 SELF TAPPING

36 P6071498 RETURN LINE HOLE PLUG 1-1/2 37 60125801 SCREW 10 - 24 X 3/8 TH SST SLOT 38 SEE PAGE 12 CABINET ASSEMBLY

B3801702 HINGE LH TOP

B3801701 HINGE RH TOP

A1631801-C CABINET BACK BOTTOM BRACE SE14, SE14T A1632101-C CABINET BACK BOTTOM BRACE SE18

A1633101-C CABINET BACK BOTTOM BRACE SE147, SE714 A1632501-C CABINET BACK BOTTOM BRACE SFSE14, SFSE14T A1632601-C CABINET BACK BOTTOM BRACE SFSE18

B2304101-C DOOR SE14*, SFSE14* B2305002-C DOOR SLAM ACTION SE14*, SFSE14* B2304102-C DOOR SE18, SFSE18 B2305001-C DOOR SLAM ACTION SE18, SFSE18 B2304605-C DOOR SE147, SE714

B3801802 HINGE LH BOTTOM

B3801801 HINGE RH BOTTOM

B6670701 FILTER PAN GUIDE SEFD, SE147, SE714 LH

B6663701 FILTER PAN GUIDE SFSEFD LH

A1234301-C CABINET FRONT BOTTOM BRACE SE14, SE14T

A1234401-C CABINET FRONT BOTTOM BRACE SE18 A1234501-C CABINET FRONT BOTTOM BRACE SFSE14, SFSE14T A1234601-C CABINET FRONT BOTTOM BRACE SFSE18 A1234701-C CABINET FRONT BOTTOM BRACE SE147, SE714

A1847002 MAGNET CATCH BRACKET A1848302-C MAGNET CATCH BRACKET SE147, SE714 A1847101-C CABINET SLAM ACTION DOOR CATCH

B6670702 FILTER PAN GUIDE SEFD, SE147, SE714 RH

B6663702 FILTER PAN GUIDE SFSEFD RH

A4108601-C SPLASH BACK AIR DIVERTER SE14, SFSE14, SE14T, SFSE14T A4108603-C SPLASH BACK AIR DIVERTER SE18, SFSE18 A4108605-C SPLASH BACK AIR DIVERTER TALL SE14, SFSE14, SE14T, SFSE14T A4108607-C SPLASH BACK AIR DIVERTER TALL SE18, SFSE18 A4108801-C SPLASH BACK AIR DIVERTER SE147, SE714

PP11006 DOOR HANDLE RECESSED

60136401 LATCH,SLAM ACTION

L22-277 Rev 2

Page 13

Exploded Parts-All Options Solstice Electric Models

Fryer Cabinet Drawing B

L22-277 Rev 2

Page 14

Exploded Parts-All Options Solstice Electric Models

Fryer Cabinet Drawing B Parts List

ITEM# PART# PART DESCRIPTION

A1632001-C CABINET BACK SE14, SE14T, SFSE14, SFSE14T

A1632301-C CABINET BACK SE18, SFSE18 A1633301-C CABINET BACK SE147, SE714

A1633501-C CABINET BACK TALL SE14 A1631903-C CABINET BACK FLAT TOP SEBNB14 A1633401-C CABINET BACK TALL SE18 A1632203-C CABINET BACK FLAT TOP SEBNB18

A4108502-C SPLASH BACK SE14, SFSE14, SE14T, SFSE14T

A4108504-C SPLASH BACK SE18, SFSE18 A4108904-C SPLASH BACK SE147 A4108902-C SPLASH BACK SE714 A4108510-C SPLASH BACK TALL SE14, SFSE14, SE14T, SFSE14T

A4108512-C SPLASH BACK TALL SE18, SFSE18

A4106906-C SPLASH BACK SEBNB14

A4108508-C SPLASH BACK SEBNB18 A4108514-C SPLASH BACK SEBNB14 TALL A4108516-C SPLASH BACK SEBNB18 TALL

A3343904-C BASKET HANGER SE14*, SFSE14* A3343906-C BASKET HANGER SE18, SFSE18 A3343902-C BASKET HANGER SE7

A1103304-C BASKET HANGER SEBNB14

A1103306-C BASKET HANGER SEBNB18 A3343802-C BASKET HANGER TALL SE14*, SFSE14*

A3343804-C BASKET HANGER TALL SE18, SFSE18

L22-277 Rev 2

Page 15

Exploded Parts-All Options Solstice Electric Models

Fryer Cabinet Drawing B Parts List

ITEM# PART# PART DESCRIPTION

B3633605-C TOP DECK SE14 B3633601-C TOP DECK SE14/SE14 B3633701-C TOP DECK SE14/SE14/SE14 B3633801-C TOP DECK SE14/SE14/SE14/SE14 B3633603-C TOP DECK SE14/SE18 B3633702-C TOP DECK SE14/SE14/SE18

B3633703-C TOP DECK SE14/SE18/SE14 B3633705-C TOP DECK SE14/SE18/SE18

B3633802-C TOP DECK SE14/SE14/SE14/SE18

B3633803-C TOP DECK SE14/SE14/SE18/SE14 B3633804-C TOP DECK SE14/SE18/SE14/SE14 B3633806-C TOP DECK SE14/SE14/SE18/SE18 B3633807-C TOP DECK SE14/SE18/SE14/SE18 B3633809-C TOP DECK SE14/SE18/SE18/SE14 B3633815-C TOP DECK SE14/SE18/SE18/SE18

B3633606-C TOP DECK SE18 B3633602-C TOP DECK SE18/SE18 B3633708-C TOP DECK SE18/SE18/SE18 B3633816-C TOP DECK SE18/SE18/SE18/SE18 B3633604-C TOP DECK SE18/SE14 B3633704-C TOP DECK SE18/SE14/SE14

B3633706-C TOP DECK SE18/SE14/SE18 B3633707-C TOP DECK SE18/SE18/SE14 B3633805-C TOP DECK SE18/SE14/SE14/SE14 B3633808-C TOP DECK SE18/SE14/SE14/SE18 B3633810-C TOP DECK SE18/SE14/SE18/SE14

B3633811-C TOP DECK SE18/SE18/SE14/SE14 B3633812-C TOP DECK SE18/SE18/SE18/SE14

B3633813-C TOP DECK SE18/SE18/SE14/SE18 B3633814-C TOP DECK SE18/SE14/SE18/SE18 B3633607-C TOP DECK SE147, SE714 B1822714-C CABINET ASSEMBLY SE14, SE14T B1822712-C CABINET ASSEMBLY SE14, SE14T TALL BACK B1822706-C CABINET ASSEMBLY SE18 B1822713-C CABINET ASSEMBLY SE18 TALL BACK

B1822710-C CABINET ASSEMBLY SFSE14, SFSE14T B1822711-C CABINET ASSEMBLY SFSE18 B1824801-C CABINET ASSEMBLY SE147 B1824802-C CABINET ASSEMBLY SE714 B1822714-C CABINET ASSEMBLY SE14BNB FLAT TOP B1822715-C CABINET ASSEMBLY SE18BNB FLAT TOP

L22-277 Rev 2

Page 16

Exploded Parts-All Options Solstice Electric Models

Entrance Box Drawing C Parts List

ITEM# PART# PART DESCRIPTION

1 60139201 CONTACTOR 3P 50A 690V IEC 2 PP10693 SCREW 10 - 24 X 3/8 TH PHILIPS 3 P6071228 GROMMET 1.703ID X 2.50OD X 2.00 GROOVE 4 PP10560 CONTACTOR 24 VAC - 3 POLE QUICK CONNECT

5 6 P5045701 FUSE 40A SLO BLOW

7 P5045792 FUSE BLOCK 8

9 PP10605 FASTNER TERMINAL BLOCK 10

11 P6071490 HOLE PLUG 7/8 12 A2960501-C C ONTACTO R PLATE

15 16 A2963701-C TERMINAL BLOCK MOUNTING PLATE (SE18 ONLY)

18 P5045282 BARRIER TERMINAL BLOCK 4 POLE 19 P5045285 BARRIER TERMINAL BLOCK JUMPER 20 A2964601-C ENTRANCE BOX, EXTENSIONS UPPER (SE147, SE714) 21 A2964501-C ENTRANCE BOX, EXTENSIONS LOWER (SE147, SE714) 22 60145301 ALUMINUM GROUNDING LUG 23 PP10690 SCREW 6 - 32 X 1/2 TH PHILIPS 24 60072101 SCREW 10 - 24 X 3/8 RDH PHILIPS

PP10429 TRANSFORMER 80VA 120V - 240V TO 24VAC PP10428 TRANSFORMER 80VA 380V - 480V TO 24VAC

P5047301 TERMINAL BLOCK 3 POST P5047302 TERMINAL BLOCK 2 POST

A6043901 MARKING STRIP L3 & N P6094940 MARKING STRIP L1 & L2 P6094942 MARKING STRIP L1 TO L3

A2962501-C ENTRANCE BOX MOUNTING PLATE (SE14, SE14T)

A2962503-C ENTRANCE BOX MOUNTING PLATE (SE18)

A2962303-C ENTRANCE BOX SIDE RH (SE14, SE14T, SE147) A2962403-C ENTRANCE BOX SIDE RH (SE18) A2962301-C ENTRANCE BOX SIDE LH (SE14, SE14T, SE147) A2962401-C ENTRANCE BOX SIDE LH (SE18)

B2914902-C ENTRANCE BOX (SE14, SE14T, SE147) B2914903-C ENTRANCE BOX (SE18) B2914904-C ENTRANCE BOX (SE7)

B6752801 HARNESS TRANSFORMER/PUMP/B/L SUPPLY SE14, SE14T, SE147

B6756101 HARNESS TRANSFORMER/PUMP/B/L SUPPLY SE18

L22-277 Rev 2

Page 17

Exploded Parts-All Options Solstice Electric Models

Entrance Box Drawing C

L22-277 Rev 2

Page 18

Exploded Parts-All Options Solstice Electric Models

Entrance Box Wire Channel Drawing D Parts List

ITEM# PART# PART DESCRIPTION

1 60058302 CABLE CLAMP (NYLON)

A2963101-C ENTRANCE BOX RACEWAY SE14, SE14T

A2963201-C ENTRANCE BOX RACEWAY SE18

A2963401-C ENTRANCE BOX RACEWAY OUTLET SE14, SE14T

A2963001-C ENTRANCE BOX RACEWAY OUTLET SE18 4 A2960201-C ENTRANCE BOX VERTICLE RACEWAY 5 A2963301-C ENTRANCE BOX VERTICLE RACEWAY SIDE 6 A2960401-C ENTRANCE BOX VERTICLE RACEWAY COVER

A2963501-C ENTRANCE BOX RACEWAY COVER SE14, SE14T

A2963503-C ENTRANCE BOX RACEWAY COVER SE18

A2959809-C ENTRANCE BOX BASKET LIFT PLATE SE14T, SE147 8

A2959813-C ENTRANCE BOX BASKET LIFT PLATE SE14, SE18

A2959817-C ENTRANCE BOX BASKET LIFT PLATE YUM!

A2959811-C ENTRANCE BOX, HI-LIMIT/PROBE/DVI PLATE 9

A2959815-C ENTRANCE BOX, HI-LIMIT/PROBE/DVI BLANK PLATE SE14, SE18

10 60140701 RECEPTICLE 10A - 250V IE320F SCREW IN 11 PP10690 SCREW 6 - 32 X 1/2 TH PHILLIPS 12 PP10693 SCREW 10 - 24 X 3/8 TH PHILLIPS 13 PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING

B6760901 HIGH VOLTAGE HARNESS SE14 DELTA/SINGLE W/FUSE B6760802 HIGH VOLTAGE HARNESS SE14 DELTA/SINGLE W/O FUSE B6753201 HIGH VOLTAGE HARNESS SE14 WYE B6760902 HIGH VOLTAGE HARNESS SE18 DELTA/SINGLE W/FUSE B6760803 HIGH VOLTAGE HARNESS SE18 DELTA/SINGLE W/O FUSE

B6754401 HIGH VOLTAGE HARNESS SE18 WYE B6760701 HIGH VOLTAGE HARNESS SE14T DELTA/SINGLE W/FUSE B6760602 HIGH VOLTAGE HARNESS SE14T DELTA/SINGLE W/O FUSE B6753501 HIGH VOLTAGE HARNESS SE14T WYE B6759001 HIGH VOLTAGE HARNESS SE7 W/O DELTA/SINGLE FUSE

B6756401 HIGH VOLTAGE HARNESS SE7 WYE

B6752401 CONTROL HARNESS SE14, SE18, SE14T LH B6752501 CONTROL HARNESS SE14T RH

B6759101 CONTROL HARNESS SE14T RH KFC

B6758901 CONTROL HARNESS SE14, SE18, SE14T LH KFC B6756701 CONTROL HARNESS SE147 B6759001 CONTROL HARNESS SE7

L22-277 Rev 2

Page 19

Exploded Parts-All Options Solstice Electric Models

Entrance Box Wire Channel Drawing D

L22-277 Rev 2

Page 20

Exploded Parts-All Options Solstice Electric Models

Front Panel And Control Box Drawing E Parts List

ITEM# PART# PART DESCRIPTION

B3631304-C FRONT PANEL BEZEL SE14 (COMPUTER CONTROL) B3631305-C FRONT PANEL BEZEL SE18 (COMPUTER CONTROL)

B3631306-C FRONT PANEL BEZEL SE147, SE714 (COMPUTER CONTROL)

B3631803-C FRONT PANEL BEZEL SE14 (BLANK) B3631804-C FRONT PANEL BEZEL SE18 (BLANK)

60126601 3300 DIGITAL T-STAT SE14, SE18 60126701 3300 DIGITAL T-STAT SE14T, SE147, SE714

3 P0092300 NUT, 10- 24 HEX (KEP)

5 B6747001 WIRING RELAY BOARD NO BACK UP OPTION 6 60132703 FUSE CERAMIC 2.5A FA 1/4 X 1-1/4 7 60066801 SCREW 4 40 X .375

9 60132601 RELAY BOARD INSULATION 10 PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING 11 A3672201-C FRONT PANEL RELAY BOARD MOUNTING BRACKET 12 A2034801-C CONTROL BOX CABLE RETAINER (NO BACK UP OPTION)

14 A2034601-C CONTROL BOX CABLE RETAINER (CONTROL AND BACK UP) 15 60130501 STRAIN RELIEF

17 PP10995 ROCKER SWITCH SPST W/BK (I-0) W/IE 18 A3673804-C FRONT PANEL BEZEL SE147 19 FAST EM90/EM99 COMPUTER. CONTACT 1-800-243-9271 FOR SERVICE

21 P5045004 RECTANGLE AMBER LAMP 28V (KFC) 22

23 A3675403-C FRONT PANEL BRACKET RELAY (KFC) (W/DVI) 24 P5046686 RELAY 24VAC DPDT WITH MOUNTING TABS (KFC) (W/DVI) 25 60066801 SCREW 4 - 40 X .375 26 B6759701 WIRING DRAIN INTER LOCK (FKC) (W/DVI)

27 28 B6755901 WIRING SWITCH PANEL SE147

60126801 3600 COMPUTER SE14, SE18 60126802 3600 COMPUTER SE14T

PP11370 3600-14 COMPUTER I-12 (WHATABURGER) PP11371 3600-14 COMPUTER I-8 (WHATABURGER)

B6746501 WIRING RELAY BOARD TO CONTROL B6747501 WIRING RELAY BOARD TO CONTROL (KFC) B6755801 WIRING RELAY BOARD TO CONTROL (WHATABURGER)

B6759201

60127301 CONTROL RELAY BOARD 60133401 CONTROL RELAY BOARD (KFC)

A3673101-C FRONT PANEL ENTRANCE BOX SHIELD SE14 A3673103-C FRONT PANEL ENTRANCE BOX SHIELD SE18 A3673105-C FRONT PANEL ENTRANCE BOX SHIELD SE147

A3672401-C FRONT PANEL STRAIN RELIEF SUPPORT SE14 A3672403-C FRONT PANEL STRAIN RELIEF SUPPORT SE18 A3672405-C FRONT PANEL STRAIN RELIEF SUPPORT SE7 A3672407-C FRONT PANEL STRAIN RELIEF SUPPORT SE147, SE714

B3632703-C FRONT PANEL BEZEL SE14 (KFC) B3632704-C FRONT PANEL BEZEL SE14T (KFC) B3632705-C FRONT PANEL BEZEL SE18 (KFC)

PP10654 ROCKER SWITCH SPST W/BK (I-0) (KFC) PP10559 ROCKER SWITCH DPDT W/BK (0-1-(1)) (KFC) (W/DVI)

A3637002-C FRONT PANEL REMOTE COMPUTER BEZEL SE7 A3637004-C FRONT PANEL REMOTE COMPUTER BEZEL SE147

WIRING RELAY BOARD TO CONTROL SE14T (KFC)

L22-277 Rev 2

Page 21

Exploded Parts-All Options Solstice Electric Models

Front Panel And Control Box Drawing E

L22-277 Rev 2

Page 22

Exploded Parts-All Options Solstice Electric Models

Fryer Small Assemblies Drawing F Parts List

ITEM# PART# PART DESCRIPTION

1 60126001 RELAY 24VAC 3PDT W/ MOUNTING TABS 2 60143301 CONTROL POWER ON RESET CIRCUIT

A2036401-C H I-LIMIT RESET BOX OUTER RH

A2036403-C HI-LIMIT RESET BOX OUTER LH

4 A2036501-C HI-LIMIT RESET BOX LOWER 5 A2036601-C HI-LIMIT RESET BOX RELAY BRACKET 6 B6751401 HI-LIMIT RESEST WIRING 7 P5047151 PUSH BUTTON SWITCH SPST (1)-0 8 PP10023 SCREW 10 - 24 X 3/8 SELF TAPPING 9 P5047151 STRAIN RELIEF BUSHING RIGHT ANGLE

10 PP10687 SCREW 6 - 32 X 5/16 TH PHILLIPS 11 12 13 14 15

16 17 MELT CYCLE JUMPER PART OF ITEM 16

18 60129402 KNOB 19 60129501 STANDOFF, 6-32 20 60001201 GROMMET,.50 OD X.25 ID X .375 THK 21 60130501 STRAIN RELIEF LAY-IN

22 23

24 25

26 27

B6755501 WIRING HARNESS, REMOTE HOOD WHATABURGER B6755601 WIRING HARNESS, REMOTE FRYER (SHIELDED) WHATABURGER B6755701 WIRING HARNESS, INTERNAL CABINET WHATABURGER B6749301 WRG,CNTL RMT INTERNAL B6749401 WRG,CNTL RMT EXTERNAL (HOOD) 60126401 SOLID STATE CONTROL BOARD PRIMARY 60126301 SOLID STATE CONTROL BOARD BACK-UP

A6084001 LABEL SOLID STATE T-STAT PRIMARY

A6084101 LABEL SOLID STATE T-STAT BACK-UP

B2003501 CONTROL BOX SHEETMETAL ENCLOSURE

CONTROL BOX SHEETMETAL ENCLOSURE OUTER PART OF ITEM 23

B6746601 WIRING HARNESS RELAY BOAD TO T-STAT SE14,SE18,SE14T B6756301 WIRING HARNESS RELAY BOAD TO T-STAT SE147

P0091101 NUT 6-32 HEX

B2004203-C SOLID STATE T-STAT COMPLETE B2004204-C BACK-UP SOLID STATE T-STAT COMPLETE B2004208-C BACK-UP SOLID STATE T-STAT COMPLETE SE147

B2004901-C HI-LIMIT RESET BOX RH ASSEMBLY CE B2004902-C HI-LIMIT RESET BOX LH ASSEMBLY CE

L22-277 Rev 2

Page 23

Exploded Parts-All Options Solstice Electric Models

Fryer Small Assemblies Drawing F

L22-277 Rev 2

Page 24

Exploded Parts-All Options Solstice Electric Models

Fryer Drain Line Drawing G Parts List

ITEM# PART# PART DESCRIPTION

1 A702 22 01 FILTE R DRAIN FL ANGE 2 A702 21 01 FILTER DRAIN S EAL F ERRUL E 3 B666 51 01 FILTER DRAIN ELBOW

4 60088002 3/ 8-16 X 1-1/4 SCRE W 5A 6 00 683 03 F LURO POL YM ER O- RING, 3" X 3.25 O D (WHITE) 5B 60068302 VITON O-RING (BLACK )

B6678301 FILTER DRAIN LINE DOWN SPOUT SE14

B6 67 83 02 FILTER DRAIN LINE DO WN S P O UT S E18, SE18/SE14, SE14/SE18 B6670401 FILTER DRAIN LINE DOW N S P OUT SE 14T/S E 14, S E 147, S E 714

B6 67 04 03 F ILTER DRAIN LINE DO WN SPO UT SE14 T/SE18 7 60137501 STEE L P LUG, 1/2NPT INTERNAL HE X 8 B666 52 01 FILTER DRAIN TEE 9 60059301 DRAINLINE GASK E T

10 60127701 QUICK RELE A S E BA ND CLAMP

A7022401 DRAIN LINE TUBE SE 18/ SE 18

A7022407 DRAIN LINE TUBE SE 14/ SE 14

A7022409 DRAIN LINE TUBE S E 14T/S E14

A7022411 DRAIN LINE TUBE S E 14T/S E14T

A7022417 DRAIN LINE TUBE SE14/SE18, SE18/SE14

A7022419 DRAIN LINE TUBE SE14T/SE18, SE18/SE14T

12 A7021701 FILTER, NIPPLE A DA PTER 13 B6666701 F ILTER DRAIN OUTLET SE14T/14T, S FSE 14T 14 B6665301 FILTER DRAIN OUTLET LH

B6 66 54 01 FILTER DRAIN OUTLE T RH S G1 4/BNB

B6 66 54 02 FILTER DRA IN OUTLE T RH S G1 4T/ BNB

B6 66 54 03 FILTER DRAIN OUTLE T RH S G1 8/BNB

16 B6665501 B-N-B DRA IN LINE 17 B6666801 FILTER DRAIN ELBOW SE14T, SFSE14T LH/RH 18 B6666901 FILTER DRAIN TEE SE 14T 19 B6671402 FILTER DRAIN FIXED ELBOW SFSE14, SFSE18 20 B6675802 FILTER DRAIN TEE SFSE14, SFSE18

B6674401 FILTER DRAIN LINE DOWN SPOUT SFS E 14

B6674001 FILTER DRAIN LINE DOWN SPOUT SFS E 18

22 A7023701-C FILTER DRAIN OUTLET SUPPORT BRACKET 23 A702 38 01- C F ILTE R DRAIN OUTLE T SUPPORT MO UNTING B RACKE T INNER 24 A7023901-C FILTER DRAIN OUTLET SUPP ORT MOUNTING BRACK E T OUTER 25 P0075400 SCREW, 10-24 X 1/2 SE LF TAP P ING

A7024201-C FILTER DRAIN LINE SUP P ORT SE B NB 14

A7031801-C FILTER DRAIN LINE SUP P ORT SE B NB 18 27 P0113300 S CRE W, 1/4 - 20 X 3/8 28 PP 10668 ACORN NUT, 1/ 4 - 20 29 P0080650 W A S HE R, FLAT 1/4

L22-277 Rev 2

Page 25

Exploded Parts-All Options Solstice Electric Models

Fryer Drain Line Drawing G

L22-277 Rev 2

Page 26

Exploded Parts-All Options Solstice Electric Models

Filter Assembly Drawing H Parts List

ITEM# PART# PART DESCRIPTION

3 60068301 O-RING, VITON 1" ID X 1.375" OD

7 60131401 RIGID 2.5" CASTER 8 PP11208 LOCK WASHER #10 SST (SPLIT) 9 P0011300 SCREW, 10-24 X 3/8

10 60136301 EXTERNAL RETAINING RING 1-7/16"

11 12

13 14

B6671201 FILTER, STRAINER CAP SEFD B6671202 FILTER, STRAINER CAP SE147 B6674802 FILTER, PICKUP TUBE SEFD B6677901 FITLER, PICKUP TUBE SE147 B6673901 FILTER, PICKUP TUBE SFSE14 B6671001 FITLER, PICKUP TUBE SFSE18

B6663901 FILTER, SUPPORT CLIP SEFD PAPER B6676502 FILTER, SUPPORT CLIP SE147 PAPER B6666601 FILTER, SUPPORT CLIP SEFD, SE147, SE714 PAPERLESS B6671102 FILTER, SUPPORT CLIP SFSE14 PAPER B6671103 FILTER, SUPPORT CLIP SFSE18 PAPER B6677401 FILTER, SUPPORT CLIP SFSE* PAPERLESS B6676501 FILTER, SUPPORT CLIP 14 X 22 PAPER B6664301 FILTER, SUPPORT SEFD PAPER B6664303 FILTER, SUPPORT SE147, SFSE14 PAPER B6664002 FILTER, SUPPORT SEFD, SFSE18, SE147 PAPERLESS B6664003 FILTER, SUPPORT SFSE14 PAPERLESS B6664304 FILTER, SUPPORT SFSE18. 14 X 22 PAPER B6670802 FILTER, PAN SFSE14 B6670801 FILTER, PAN SFSE18 B6674701 FILTER, PAN SEFD

B6678801 FILTER, PAN SE147

B6629701 FILTER, PAPERLESS WIRE MESH ENVELOPE B6629703 FILTER, PAPERLESS WIRE MESH ENVELOPE SFSE14* B4004101 FILTER, PAN HANDLE (HARDEES) B6674902 FITLER PICK UP ASSEMBLY (PIZZA HUT)

PP112000 SCREW, 10-24 X 1/2

L22-277 Rev 2

Page 27

Exploded Parts-All Options Solstice Electric Models

Filter Assembly Drawing H

L22-277 Rev 2

Page 28

Exploded Parts-All Options Solstice Electric Models

SEFD Pump Assembly Drawing J1 Parts List

ITEM# PART# PART DESCRIPTION

1 60132201 FLUROPOLY M E R HOS E 3/ 4 NP T FEM ALE S WIVEL X 3/4 M P T 2 B6677001 FILTER INLET COUPLING 3 60131306 NIPP LE 3/4NPT X 11 BLACK IRON 4 A7029201-C FILTER PUMP MOUNTING PLA TE

60130801 PUMP ASSEMBLY 8GPM .3HP 115/220V (50/ 60HZ) 60130802 PUMP ASSEMBLY 8GPM .3HP 240V (50HZ) 60130803 P UMP M O TOR ONLY 8GPM .3HP 115/ 220V (50/60HZ)

6 P0080750 WA S HE R 5/ 16 F LAT 7 PP10828 NUT HEX 5/16 - 18 (KEP) 8 PP11261 BOLT 5/16 X 3/4

9 PP11338 POWER CORD MALE IEC-320 16-3 AWG (S EFD) 10 A7021301 FILTER INLET ELBOW 11 P P 10023 SCREW 10 - 24 X 3/8 SE LF TAP PING 12 P7037751 S TREET ELBOW BLACK IRON 90° 3/ 4NP T 13 A8033801 ELB OW F EMA LE X MA LE 15/16 FLARE

15 A 7092201-C FILTER PIPING CLAM P (S E 147, S E 714)

60130804 P UM P M OTOR ONLY 8GP M . 3HP 240V (50HZ) 60130805 PUMP HE AD ONLY 8GPM (NO M OTOR) 60130808 PUMP ASSEMBLY 8GPM .3HP 208V (50/60HZ) 60130809 P UMP MO TOR ONLY 8GPM . 3HP 208V (50/ 60HZ)

60133505 HEA TER TAP E 33W 120V 1/2 X 48 60133506 HE ATER TAPE 33W 240/220V 1/ 2 X 48 60133509 HEA TER TAP E 33W 208V 1/2 X 48

B6678201-C FILTER PUMP ASSEMY 115V W/O HE A T TAPE B6678202-C FILTER PUMP ASSEMY 208V W/O HE A T TAPE B6678203-C FILTER PUMP ASSEMY 220V W/O HE A T TAPE B6678204-C FILTER PUMP ASSEMY 240V W/O HE A T TAPE B6678205-C FILTER PUM P ASSE M Y 115V WITH HEAT TAP E B6678206-C FILTER PUM P ASSE M Y 208V WITH HEAT TAP E B6678207-C FILTER PUM P ASSE M Y 220V WITH HEAT TAP E B6678208-C FILTER PUM P ASSE M Y 240V WITH HEAT TAP E

L22-277 Rev 2

Page 29

Exploded Parts-All Options Solstice Electric Models

SEFD Pump Assembly Drawing J1

L22-277 Rev 2

Page 30

Exploded Parts-All Options Solstice Electric Models

Solo Filter And SE147, SE714 PUMP Assembly Drawing J2 Parts List

ITEM# PART# PART DESCRIPTION

1 60132201 FLUROPOLY M E R HOS E 3/ 4 NP T FEM A L E SW IV E L X 3/4 MPT 2 3 60131306 NIPP LE 3/4NPT X 11 BLACK IRON 4

8 9 PP11338 POWER CORD MALE IEC-320 16-3 AWG (S EFD)

10 P9037679 E LB O W B LA CK IRON 90° 3/ 4NP T 11 12 P7037751 STREET ELB OW B LACK IRON 90° 3/4NP T

13 A8033801 E LB OW F E M ALE X MALE 15/ 16 F LARE

15 A 7092201-C FILTER PIPING CLAM P (S E147, S E 7 14) 16 PP 10023 SCREW 10 - 24 X 3/8 S ELF TAP P ING

P7036603 COUPLING 3/4NPT (CRS) SE FD B6677001 FILTER INLET COUPLING SE1 47, S E714

A7028901-C FILTER P UMP MOUNTING PLATE S E F D

A7029701-C FILTER P UMP MOUNTING PLATE S E 147, S E 714

60143501 PUM P A SS E M BLY 8G P M .3HP 115/230V (50/60HZ) (SE147, S E714)

60143503 PUM P A SS E M BLY 8G P M .3HP 208/240V (50/60HZ) (SE147, S E714) 60143505 PUMP M OTOR ONLY 8GPM . 3HP 115/230V (50/ 60HZ) (SE 147, SE714) 60143506 PUMP M OTOR ONLY 8GPM . 3HP 208/240V (50/ 60HZ) (SE 147, SE714) 60143507 PUM P HEA D ONLY 8G P M (NO M OTOR) (SE 147, SE714) 60130801 P UM P ASSEM BLY 8GPM . 3HP 115/220V (50/ 60HZ) (SE FD) 60130802 PUMP A SS E M B LY 8GP M . 3 HP 240V (50HZ) (SEF D) 60130803 PUMP MOTOR ONLY 8GPM .3HP 115/ 220V (50/ 60HZ) (SEF D) 60130804 PUMP M O TOR ONLY 8GP M .3HP 240V (50HZ) (SE FD) 60130805 P UMP HEA D ONLY 8GP M (NO MO TOR) (SEF D) 60130808 PUMP A S S EMB LY 8GP M .3HP 208V (50/60HZ) (SEFD) 60130809 PUM P M OTOR ONLY 8GPM . 3HP 208V (50/60HZ) (SEFD) P0080650 WASHER 1/ 4 F LAT P0080750 WAS HE R 5/ 16 F LA T

60069101 NUT WITH CENTER LOCK 1/4 - 20

PP 10828 NUT HEX 5/16 - 18 (K E P)

P0020600 SCREW 1/4 - 20 X 5/8

PP 11261 BOLT 5/16 X 3/4

P7037350 NIPPLE B LA CK IRON 3/4NP T CLOSE (SEF D)

P7037355 NIPPLE 3/ 4NP T X 2 BLACK IRON (SE147, SE714)

60133505 HEATER TAP E 33W 120V 1/2 X 48 60133506 HEATER TAPE 33W 240/ 220V 1/2 X 48 60133509 HEATER TAP E 33W 208V 1/2 X 48

B6674601-C F ILTER PUM P ASSEMY 115V W /O HEAT TAP E (SEF D) B6674602-C F ILTER PUM P ASSEMY 208V W /O HEAT TAP E (SEF D) B6674603-C F ILTER PUM P ASSEMY 220V W /O HEAT TAP E (SEF D) B6674604-C F ILTER PUM P ASSEMY 240V W /O HEAT TAP E (SEF D) B6674605-C FILTER PUM P AS S E M Y 115V WITH HEAT TAP E (S EFD) B6674606-C FILTER PUM P AS S E M Y 208V WITH HEAT TAP E (S EFD) B6674607-C FILTER PUM P AS S E M Y 220V WITH HEAT TAP E (S EFD) B6674608-C FILTER PUM P AS S E M Y 240V WITH HEAT TAP E (S EFD)

B6678501-C FILTER PUMP A SSEMY 115V W/ O HE AT TAP E (S E147, S E 7 14)

B6678502-C FILTER PUMP A SS E M Y 208V W/O HEAT TAP E (S E147, S E 7 14) B6678503-C FILTER PUMP A SS E M Y 230V W/O HEAT TAP E (S E147, S E 7 14)

B6678504-C FILTER PUMP A SSEMY 240V W/ O HE AT TAP E (S E147, S E 7 14) B6678505-C FILTER PUM P A SSEMY 115V WITH HEAT TAPE (S E147, S E714)

B6678506-C FILTER PUM P A SSEMY 208V WITH HEAT TAPE (S E147, S E714) B6678507-C FILTER PUM P A SSEMY 230V WITH HEAT TAPE (S E147, S E714)

B6678508-C FILTER PUM P A SSEMY 240V WITH HEAT TAPE (S E147, S E714)

L22-277 Rev 2

Page 31

Exploded Parts-All Options Solstice Electric Models

Solo Filter And SE147, SE714 PUMP Assembly Drawing J2

L22-277 Rev 2

Page 32

Exploded Parts-All Options Solstice Electric Models

Pump Control Box Drawing K Parts List

ITEM# PART# PART DESCRIPTION

1 A7028701-C FILTER PUMP BOX HOUSING 2 B6748701 FILTER PUMP BOX WIRING 3 60130701 POWER INLET/OUTLET IEC320 4 P0092300 NUT 10 - 24 (KEP)

5 6

8 9 60132701 FUSE, CERAMIC 0.2A TD .25 X 1.25 (208/220/240V)

10 60128403 M-F JUMPER CORD IEC-320 16-3 AWG X 34" 11

PP11058 RELAY SPST 30A 24VAC (115V)

60104701 RELAY DPST 30A 24VAC (208/220/240V)

PP10693 SCREW 10 - 24 X 3/8 60130301 TRANSFORMER 5VA 120V 60130302 TRANSFORMER 5A 240VAC 60130303 TRANSFORMER 5VA 208V 60077901 CIRCUIT BREAKER, SPST 250V 10A (115V) 60078502 CIRCUIT BREAKER, DPST 250V 5A (208/220/240V)

PP11228 BUTT SPLICE BLUE (115V)

PP10765 FUSE HOLDER (208/220/240V)

B6675004-C FILTER PUMP CONTROL BOX ASSEMBLY 115V B6675005-C FILTER PUMP CONTROL BOX ASSEMBLY 208V B6675006-C FILTER PUMP CONTROL BOX ASSEMBLY 220/240V

L22-277 Rev 2

Page 33

Exploded Parts-All Options Solstice Electric Models

Pump Control Box Drawing K

L22-277 Rev 2

Page 34

Exploded Parts-All Options Solstice Electric Models

Flush Hose Assembly Drawing L Parts List

ITEM# PA RT# PA RT DESCRIPTION

1 B5305002 DVI ASSEMBLY 2 PP1 0266 SCRE W 4 - 40 X 1/4

A5062301-C FLUSH HOSE OUTER BRACKET

A5070701-C FLUSH HOUSE OUTER BRACKET SFSE14, SFSE14T 4 PP107 41 CO NNECTOR P USH VA LVE 5 P7037309 NIPPLE BLACK IRON, 3/8 NPT X 4-1/2 6 P7037321 NIPPLE BLACK IRON, 3/8 NPT X 10-1/2 7 60136001 REDUCING COUPLING 3/4 NPT X 3/8 NP T 8 60132201 FLUROPOLY M E R HOS E 3/4 NP T FEM ALE SWIVE L X 3/4 MP T 9 A 506240 1-C F LUS H HOSE INNER B RACKET

10 P6071780 VA LVE, BALL 3/8NP T 11 A5062201-C FLUSH HOSE VALVE SUPPORT BRACKET 12 P0075400 S CREW 10 - 24 X 1/2 SE LF TAP P ING 13 60131901 W ASHE R 5/ 8 SPRING 5/16 HOLE 14 NUT (PART OF ITEM 10) 15 P P10263 PROXIMITY SWITCH 16 P0190200 COTTER PIN 1/16 X 3/4

17 18 A5062101-C FLUSH HOSE VALVE HANDLE

20 B6748001 HEAT TAPE WIRING "Y" S PLITTER

B5006201 FLUS H HOSE HA NDLE B5007801 FLUSH HOSE HANDLE SFSE14, SFSE14T

60133501 HEA TER TAP E 1/2 X 33 (115V) 60133507 HEA TER TAP E 1/2 X 33 (208V) 60133502 HEATER TAPE 1/2 X 33 (220/240 V )

B67 4810 1 HEA T TAP E WIRING E XTENS ION 2 2" B67 4810 2 HEA T TAP E WIRING E XTENS ION 4 0"

B67 4810 3 HEA T TAP E WIRING E XTENS ION 5 9"

B5006107-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE (208V)

B5006111-C FLUSH HOSE ASSEMBLY W/O HEAT TAPE

B5006112-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE (115V)

B5006113-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE (220/240V) B5007901-C FLUSH HOSE ASSEMBLY W/O HEAT TAPE SFSE14*

B5007902-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE SFSE14* (115V) B5007903-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE SFSE14* (208V) B5007904-C FLUSH HOSE ASSEMBLY W/ HEAT TAPE SFSE14* (220/240V)

L22-277 Rev 2

Page 35

Exploded Parts-All Options Solstice Electric Models

Flush Hose Assembly Drawing L

L22-277 Rev 2

Page 36

Exploded Parts-All Options Solstice Electric Models

Flush Hose Nozzle Outlet Drawing M Parts List

ITEM# PART# PART DESCRIPTION

1 B6661002 FILTER RETURN NOZZLE 2 A6653505 FILTER RETURN HOSE 3 4 A7016401 COUPLING INSULATOR BODY 5 B6660001-C FILTER DISCONNET INSULATED COUPLING ASSEMBLY 6 B6623202-C FILTER FLUSH HOSE ASSEMBLY

PP10689 SCREW 6 - 32 X 1/2

L22-277 Rev 2

Page 37

Exploded Parts-All Options Solstice Electric Models

Flush Hose Nozzle Outlet Drawing M

L22-277 Rev 2

Page 38

Exploded Parts-All Options Solstice Electric Models

Return Piping Drawing N Parts List

ITEM# PART# PART DESCRIPTION

1 PP10263 PROXIMITY ACTUATOR SWITCH 2 A70 28601-C FILTER RETURN HANDLE B RA CK ET CLAMP

A702930 1-C F ILTER RETURN HANDLE BRACKE T SE 14, S E147, SE7

A7029303-C FILTER RETURN HANDLE BRA CK E T SE 14T

A7029305-C FILTER RETURN HANDLE B RACK E T SE 18

4 P P 10266 SCREW 4 - 40 X .250

B4005104 RETURN HANDLE SE14

6 P P10023 SCREW 10 - 24 X 1/2 SELF TAPPING 7 B5305001 DRAIN VALVE INTERLOCK ASSEMBLY 8 60129802 RETURN VALV E HA NDLE S E14T LH

9 P 01 90200 COTTER PIN 1/16 X 3/4 10 60131801 FILTER RETURN BALL VA LV E 3 WA Y (W / S E14, S E18, SE 14T RH HANDLE) 11 60130001 RETURN VALV E END CA P 12 A7029403-C FILTER RETURN BRACKET SEB NB 13 A7026601-C FILTER RETURN BRACKET FRONT SEBNB

15 A8033001 RETURN TEE FLARE X FLARE X FLARE SEBNB 16 P0080750 WA S HE R FLA T 5/16 17 PP10 693 SCRE W 10 - 24 X 3/8 TH PHILLIPS 18 60133801 VENT TUBE P LUG 19 60128010 FLEXIBLE TUBING W ITH FITTINGS 22.00 LH UNIT VE NT TUBE 20 60131901 SPRING W A SHE R 5/ 8 5/16 HOLE

B4005102 RE TURN HANDLE SE14T LH

B4005101 RETURN HANDLE SE 14T RH

B4005103 RETURN HANDLE SE18

60135901 HOSE REINFORCED FLUROPOLYMER SWIVEL X SWIVEL 14.5 (14-14) 60135902 HOSE REINFORCED FLUROPOLYMER SWIVEL X SWIVEL 19.5 (18-18) 60135903 HOSE RE INFORCE D F LUROP O LY M ER SWIVEL X SW IVEL 17. 5 (18-14, 14-18) 60128002 FLEXIBLE TUBING WITH FITTINGS 5.00 (INS IDE 1 4T-14T) 60128006 FLEXIBLE TUBING WITH FITTINGS 8.50 (14T-14T) 60128007 F LEXIBLE TUBING WITH FITTINGS 12. 50 (14-14T, 14T-14, 147) 60128008 FLEXIBLE TUBING W ITH FITTINGS 15. 5 0 (14-14) 60128009 FLE XIBLE TUBING W ITH FITTINGS 19.00 (18-18, 18-14, 1 4-18)

L22-277 Rev 2

Page 39

Exploded Parts-All Options Solstice Electric Models

Return Piping Drawing N

L22-277 Rev 2

Page 40

Exploded Parts-All Options Solstice Electric Models

Basket Lift Drawing P Parts List

ITEM # PART # PART DESCRIPTION

1 2 A5618302 BASKET LIFT MOUNT BOTTOM SG

3 4 PP10023 SCREW 10-24 X 3/8 SELF TAP 5

6 7 A5618502 BASKET LIFT DRIP SHIELD SG

8 PP10668 NUT ACORN W/CENTERLOCK 1/4-20 9 A5617902 BASKET LIFT HANGER SUPPORT AXLE SG

10 A5617801 BASKET LIFT HANGER SUPPORT WHEEL SG 11

A5619402 BASKET LIFT MOUNT LEFT-HAND SIDE SE14/SE14T

A5619406 BASKET LIFT MOUNT LEFT-HAND SIDE SE18

A5619404 BASKET LIFT MOUNT RIGHT-HAND SIDE SE14/SE14T A5619408 BASKET LIFT MOUNT RIGHT-HAND SIDE SE18

B5605901 BASKET LIFT HANGER WELDMENT LEFT-HAND SE14/SE14T B5605903 BASKET LIFT HANGER WELDMENT LEFT-HAND SE18 B5605902 BASKET LIFT HANGER WELDMENT RIGHT-HAND SE14/SE14T B5605904 BASKET LIFT HANGER WELDMENT RIGHT-HAND SE18

A5619302 BASKET LIFT HANGER SUPPORT SE14/SE14T A5619304 BASKET LIFT HANGER SUPPORT SE18 B5604403 BASKET LIFT HANGER SUPPORT ASSY SE14/SE14T (INCLUDES 8-11) B5604404 BASKET LIFT HANGER SUPPORT ASSY SE18 (INCLUDES 8-11)

L22-277 Rev 2

Page 41

Exploded Parts-All Options Solstice Electric Models

Basket Lift Drawing P

L22-277 Rev 2

Page 42

Exploded Parts-All Options Solstice Electric Models

Basket Lift Components Drawing R Parts List

ITEM # PART # PART DESCRIPTION

1 B5605601 BASKET LIFT BOX ACTUATOR MODULAR WELDMENT 2 A5619002 BASKET LIFT BOX COVER ACTUATOR MODULAR 3 60134001 CONTROL BASKET LIFT DRIVER BOARD 4 60134301 ACTUATOR 25 3.3-9.4 24VDC 1IPS LH 5 60134302 ACTUATOR 25 3.3-9.4 24VDC 1IPS RH 6 PP10429 TRANSFORMER 80VA 120/208/240V TO 24V

A2958102 ENTRANCE BOX SWITCH COVER 120V

8 B5308901 WIRING BASKET LIFT LIMIT SWITCH ACTUATOR

9 B6744901 WIRING VOLTAGE SELECT 120/208/220-240V 10 B6748901 WIRING HARNESS BASKET LIFT 11 B6779001 WIRING BASKET LIFT MAIN ACTUATOR 12 B6779101 WIRING BASKET LIFT TRANSFORMER ACTUATOR 13 60136901 CLAMP BASKET LIFT LIMIT SWITCH 14 P6071071 CLAMP WIRE 3/8 NYLON 15 PP10673 WASHER LOCK 1/4 SST SPLIT 16 N/A WASHER FLAT 1/4 SST 17 N/A HOLE PLUG KEYSTONE #7610 OR EQUIVALENT 18 N/A SCREW 6-32 X 3/4 PHH PNH SST W/LK WASHER 19 P0075400 SCREW 10-24 X 1/2 SELF TAP 20 PP10693 SCREW 10-24 X 3/8 PHH TRH ZN 21 N/A SCREW 10-24 X 3/8 INDT HEX W/EXT WASHER 22 N/A SOCKET HEAD CAP SCREW 1/4-20 X 1-1/2 SST 23 B5604601-C BASKET LIFT ACTUATOR BOX ALL VOLTAGES (NOT SHOWN)

A2958104 ENTRANCE BOX SWITCH COVER 208V

A2958106 ENTRANCE BOX SWITCH COVER 220/240V

L22-277 Rev 2

Page 43

Exploded Parts-All Options Solstice Electric Models

Basket Lift Components Drawing R

L22-277 Rev 2

Page 44

Exploded Parts-All Options Solstice Electric Models

Accessories Drawing T Parts List

ITEM # PART # PART DESCRIPTION

1 A3301001 CLEANOUT ROD 2 PP10056 CLEANING BRUSH 3 A2510101 DRAIN EXTENSION 4 B5008101 FRYER CRUMB SCOOP 5 B7404801 FILTER CRUMB SCOOP

A7025301 FILTER PAPER 14X22 (YUM!)

7 CONTACT PITCO FRONT WORKSHELF 8 CONTACT PITCO SIDE WORKSEHELVE/DRAINBOARD

9 CONTACT PITCO REAR WORKSHELF 10 CONTACT PITCO REAR WORKSHELF INSERT 11 CONTACT PITCO SPLASH GUARD SIDE

18 B5007501-C OUTLET BOX ASSEMBLY 125V 15A 19

PP10613 FILTER PAPER SEFD

A6667104 FILTER PAPER SFSE14, SFSE14T

60132401 9" LEG B3900704 9" LEG SET OF 4 B3902201 10" LEG SFSE*/SE147 60132401 9" LEG WITH BOTTOM BOLT FLANGE

PP10815 9" CASTER LOCKING

PP10814 9" CASTER NON-LOCKING B3901504 9" CASTER SET OF 4 (2 LOCKING, 2 NON-LOCKING 60095002 11" CASTER LOCKING (CATFISH KING) 60095001 11" CASTER NON-LOCKING (CATFISH KING) B3902302 9" RIGID CASTER NON-LOCKING B3902303 9" RIGID CASTER LOCKING B3902301 10" RIGID CASTER NON-LOCKING SFSE*/SE147 B3902303 10" RIGID CASTER LOCKING SFSE*/SE147 P6072184 TWIN BASKET SE18 P6072188 TWIN BASKET FINE MESH SE18 P6072145 TWIN BASKET SE14/SE14T P6072146 TWIN BASKET FINE MESH SE14/SE14T P6072147 TRIPLE BASKET SE14 P6072185 TRIPLE BASKET SE18 P6072143 SQUARE BULK BASKET FRONT HANDLE SE14 P6072144 SQUARE BULK BASKET FINE MESH FRONT HANDLE SE14 P6072181 SQUARE BULK BASKET FRONT HANDLE SE18 P6072180 SQUARE BULK BASKET SIDE HANDLES SE18 A4500601 TUBE RACK SE14 A4500201 TUBE SCREEN SE14 B4512401 TUBE RACK SE14T B4512501 TUBE SCREEN SE14T P6073186 TUBE RACK SE18 P6072186 TUBE SCREEN SE18

B7425401 FISH GRID SE18

A1842312-C SST CABINET BACK COVER SE14/SE14T A1842314-C SST CABINET BACK COVER SE18 A1842316-C SST CABINET BACK COVER SEBNB14 FLAT TOP A1842318-C SST CABINET BACK COVER SEBNB18 FLAT TOP

B2101505-C TANK COVER SE14/SE14T B2101506-C TANK COVER SE18 B2101605-C TANK COVER SE14/SE14T B/L B2101606-C TANK COVER SE18 B/L B2101509-C TANK COVER SE7

B5006901 FILTER CRUMB CATCH BASKET SEFD B6674101 FILTER CRUMB CATCH BASKET SFSE18

L22-277 Rev 2

Page 45

Exploded Parts-All Options Solstice Electric Models

Accessories Drawing T

L22-277 Rev 2

Page 46

Exploded Parts-All Options Solstice Electric Models

Bread And Batter Drawing U Parts List

ITEM # PART # PART DESCRIPTION

A5824208-C SCOOPED PAN LINER SEBNB14

A5824210-C SCOOPED PAN LINER SEBNB18

A5824101-C BNB BOTTOM SHELF SEBNB14

A5824103-C BNB BOTTOM SHELF SEBNB18

PP10907 FOODWARMER, BUILT-IN 115V

PP10908 FOODWARMER, BUILT-IN 208V

7 8 A5811004-C BNB HEAT LAMP COVER PLATE

9 PP10023 SCREW 10-24 X 3/8 SELF TAPPING

10 60125801 SCREW 10-24 X 3/8 TH SLOT

PP10909 FOODWARMER, BUILT-IN 240V P5044760 FOODWARMER, FREE STANDING 115V

P5044770 FOODWARMER, FREE STANDING 230V

B4508111 BNB SCREEN SEBNB14 B4508110 BNB SCREEN SEBNB18

A5823908-C BNB FLUSH WORK TO P SEBNB14 A5823910-C BNB FLUSH WORK TO P SEBNB18 B5804301-C BNB PAN SEBNB14 B5804302-C BNB PAN SEBNB18

A5824002-C BNB PAN SEBNB14 FLAT TOP

A5824004-C BNB PAN SEBNB18 FLAT TOP

L22-277 Rev 2

Page 47

Exploded Parts-All Options Solstice Electric Models

Bread And Batter Drawing U

L22-277 Rev 2

Page 48

Exploded Parts-All Options Solstice Electric Models

In the event of problems with or questions about your order, please contact the Pitco Frialator factory (603)225-6684 World Wide

MAILING ADDRESS – P.O. BOX 501, CONCORD, NH 03302-0501

SHIPPING ADDRESS – 10 FERRY ST., CONCORD, NH 03301

L22-277 Rev 2

In the event of problems with or questions about your equipment, please contact the Pitco Frialator Authorized Service and Parts representative (ASAP) covering your area, or contact Pitco at the numbers to the left.

listed

Pitco SFSE18R Parts Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
