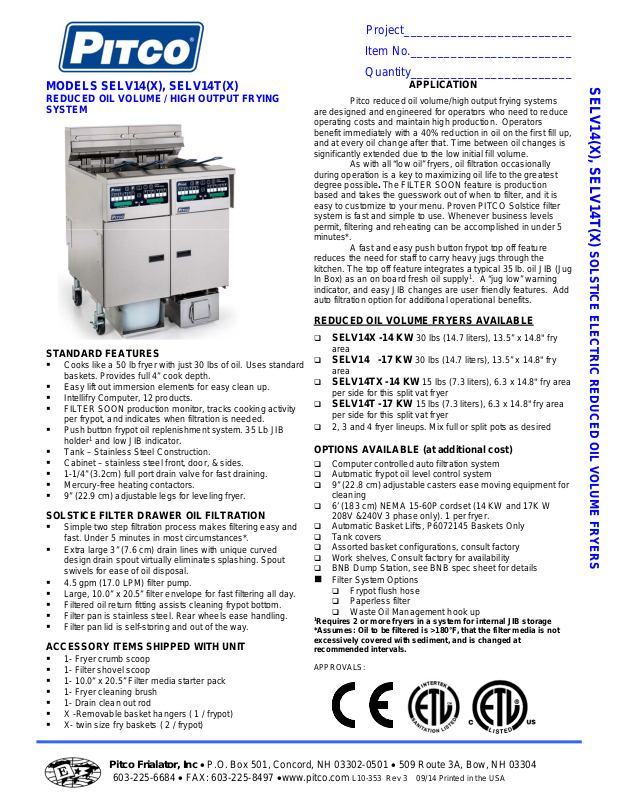

Pitco SELV14 User Manual

MODELS SELV14(X), SELV14T(X)

REDUCED OIL VOLUME / HIGH OUTPUT FRYING SYSTEM

STANDARD FEATURES



Cooks like a 50 lb fryer with just 30 lbs of oil. Uses standard baskets. Provides full 4” cook depth.

 Easy lift out immersion elements for easy clean up.  Intellifry Computer, 12 products.  FILTER SOON production monitor, tracks cooking activity

per frypot, and indicates when filtration is needed.

 Push button frypot oil replenishment system. 35 Lb JIB  Tank – Stainless Steel Construction.

 Cabinet – stainless steel front, door, & sides.  1-1/4” (3.2cm) full port drain valve for fast draining.  Mercury-free heating contactors.  9” (22.9 cm) adjustable legs for leveling fryer.

SOLSTICE FILTER DRAWER OIL FILTRATION

  Extra large 3” (7.6 cm) drain lines with unique curved

 4.5 gpm (17.0 LPM) filter pump.  Large, 10.0” x 20.5” filter envelope for fast filtering all day.  Filtered oil return fitting assists cleaning frypot bottom.  Filter pan is stainless steel. Rear wheels ease handling.  Filter pan lid is self-storing and out of the way.

ACCESSORY ITEMS SHIPPED WITH UNIT

  1- Filter shovel scoop  1- 10.0” x 20.5” Filter media starter pack   1- Drain clean out rod  X -Removable basket hangers ( 1 / frypot)  X- twin size fry baskets ( 2 / frypot)

holder

and low JIB indicator.

Simple two step filtration process makes filtering easy and fast. Under 5 minutes in most circumstances*.

design drain spout virtually eliminates splashing. Spout swivels for ease of oil disposal.

1- Fryer crumb scoop

1- Fryer cleaning brush

Project_________________________ Item No.________________________ Quantity________________________

APPLICATION

Pitco reduced oil volume/high output frying systems are designed and engineered for operators who need to reduce operating costs and maintain high production. Operators benefit immediately with a 40% reduction in oil on the first fill up, and at every oil change after that. Time between oil changes is significantly extended due to the low initial fill volume.

As with all “low oil” fryers, oil filtration occasionally during operation is a key to maximizing oil life to the greatest degree possible. The FILTER SOON feature is production based and takes the guesswork out of when to filter, and it is easy to customize to your menu. Proven PITCO Solstice filter system is fast and simple to use. Whenever business levels permit, filtering and reheating can be accomplished in under 5 minutes*.

A fast and easy push button frypot top off feature reduces the need for staff to carry heavy jugs through the kitchen. The top off feature integrates a typical 35 lb. oil JIB (Jug In Box) as an on board fresh oil supply indicator, and easy JIB changes are user friendly features. Add auto filtration option for additional operational benefits.

REDUCED OIL VOLUME FRYERS AVAILABLE

 SELV14X -14 KW 30 lbs (14.7 liters), 13.5” x 14.8" fry

area

 SELV14 -17 KW 30 lbs (14.7 liters), 13.5” x 14.8" fry

area

 SELV14TX -14 KW 15 lbs (7.3 liters), 6.3 x 14.8" fry area

per side for this split vat fryer

 SELV14T -17 KW 15 lbs (7.3 liters), 6.3 x 14.8" fry area

per side for this split vat fryer

 2, 3 and 4 fryer lineups. Mix full or split pots as desired

OPTIONS AVAILABLE (at additional cost)

 Computer controlled auto filtration system  Automatic frypot oil level control system  9” (22.8 cm) adjustable casters ease moving equipment for

cleaning

 6’ (183 cm) NEMA 15-60P cordset (14 KW and 17K W

208V &240V 3 phase only). 1 per fryer.

 Automatic Basket Lifts, P6072145 Baskets Only  Tank covers  Assorted basket configurations, consult factory  Work shelves, Consult factory for availability  BNB Dump Station, see BNB spec sheet for details

 Filter System Options

 Frypot flush hose  Paperless filter  Waste Oil Management hook up

Requires 2 or more fryers in a system for internal JIB storage *Assumes: Oil to be filtered is >180°F, that the filter media is not excessively covered with sediment, and is changed at recommended intervals.

APPROVALS:

. A “jug low” warning

SELV14(X), SELV14T(X) SOLSTICE ELECTRIC REDUCED OIL VOLUME FRYERS

Pitco Frialator, Inc  P.O. Box 501, Concord, NH 03302-0501  509 Route 3A, Bow, NH 03304

603-225-6684  FAX: 603-225-8497 www.pitco.com

L10-353 Rev 3 09/14 Printed in the USA

SELV14(X), SELV14T(X) SOLSTICE ELECTRIC REDUCED OIL VOLUME FRYERS

(

)

Model

SELV14,14X 13.5 x 14.8 x 4 in (34.3 x 37.6 x 10.2 cm) 30 Lbs (13.6 kg, 14.6L)

SELV14T,14TX

FILTER SPECIFICA TIONS

For Models

SF-SELV14,14T/14-2

SELV14(14T) -3/-4

ELECTRICAL

REQUIREMENTS

Model

SELV14X

SELV14TX

(both tanks)

SELV14

SELV14T

(both tanks)

1. Each fryer requires it's own separate power supply. 2. 200V Units will operate at 92% of rated power. 3. Other voltages may be available, consult factory .

4. Power supply for Basket Lifts and Filter motor is wired into the fryer's high voltage line terminal block, except for 480V which requires a separate single phase service for the basket lifts, and filter motor. (115V,8.0A for North America and 220-240V,4.0A for Export).

14 14 17 17

45 Lbs (20.4 kg) 70 Lbs (32.5 kg)

Single Phase (2 wire + ground)

208 220 230 240 480

200

65 67 65 61 58 29 37 39 37 35 34 17 20 65 67 65 61 58 29 37 39 37 35 34 17 20 79 82 78 74 71 36 46 48 45 43 41 21 24 79 82 78 74 71 36 46 48 45 43 41 21 24

SELV14(X), SELV14T(X) SOLSTICE ELECTRIC REDUCED OIL VOLUME FRYERS

Model

SELV14-2 SELV14-3 SELV14-4

Shipping Weight

502 Lbs ( 227.7 kg) 684 Lbs ( 310.3 kg) 866 Lbs ( 392.8 kg)

Filter Pump MotorPan Oil Capacity

1/3 HP 50/60 H z

200

SHIPPING INFORMATION (Approximate)

Shipping Crate Size H x W x L (Approximate)

57 x 34 x 47 in (144.8 x 86.3 x 119.4 cm) 56 x 51 x 41 in (146.2 x 129.5 x 104.1 cm) 56 x 68 x 43 in (146.2 x 129.5 x 109.2 cm)

Filter Pump Rated Flow

4.5 GPM (17.0 LPM) @ 60 Hz

3.8 GPM (14.4 LPM) @ 50 Hz

Nominal Amps Per Line (50/60 HZ)

3 Phase (3 wire + ground) 3 Phase "Y" (4 wire + ground)

208 220 230 240 480 415/240V

346/200V 380/220V

21 21 27 27

Oil CapacityCooking Area/Depth

15 Lbs (6.8 kg, 7.3 L)6.3 x 14.8 x 4 in (16.0 x 37.6 x 10.2 cm) per tank

Filter Media

Paper Envelope

20.5 x 10.0 in (52.1 x 25.4 cm) Paper Flat Sheet

8.8 x 22.6 in

21 21 26 26

22.4 x 57.4 cm

400/230V

Shipping Cube

52.7 ft

67.7 ft

94.8 ft

20 20 25 25

. (1.49 m . (1.92 m . (2.80 m

CONSUL T FA CTORY FOR SHIPP ING I NFORMATION ON OTHE R CONFIGURA TIO NS

CLEARANCES

INDIVIDUAL FRYER SPECIFICATIO NS

Front min.

30" (76.2 cm)

Floor mi n.

Sides min. Rear min.

Combustible material

SHORT FORM SPECIFICATIONS

Provide Pit co Sol stice El ectric Mod el (SELV xxx) ele ctric fryer syst em with X ( 2 to 4) fryers. Frye r shall be 30 l bs o il capacity (15 Lbs SELV1 4T), xxx K W , "xx by xx" cook area , SS pee ned tank , sta inless front, door,sides . Pivoting immersion type he at ing elements with hig h temp alloy sheath, mercur y-free contac tors, drai n valve interloc k, 1- 1/4" full port drain, 3/ 16" bottom door hing e. I ntellifr y computer with melt cyc le and boil out, filter soon func ti on and push button frypot top off. Provide options and acc essor ies as follows:

3 3 3
