Pepwave MAX and Pepxim User Manual
Pepwave Products: MAX 700/HD2/HD2 IP67/HD2 mini/HD4/Transit/CX4/BR1/BR1 Mini/BR1 Slim/BR1 ENT/BR1 Pro LTE/BR1 IP55/BR2 IP55//BR1 IP67/On-The-Go/MAX HD2/HD4 with MediaFast
Pepxim Products:
NPC/SD-PMU
Pepwave Firmware 7
January 2017
Copyright & Trademarks
Specifications are subject to change without notice. Copyright © 2017 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
http://www.peplink.com
2
Copyright @ 2017 Pepwave
Table of Contents
3.1 Supported Network Features 10
3.1.1 WAN 10
3.1.2 LAN 11
3.1.3 VPN 11
3.1.4 Firewall 11
3.1.5 Captive Portal 11
3.1.6 Outbound Policy 11
3.1.7 AP Controller 12
3.1.8 QoS 12
3.2 Other Supported Features 12
4.1 MAX 700 13
4.2 MAX HD2 15
4.3 MAX HD2 IP67 17
4.4 MAX HD2 Mini 18
4.5 MAX Transit 19
4.6 MAX CX4 20
4.7 MAX HD4 / HD2 and HD4 with MediaFast 21
4.8 MAX BR1 22
4.9 MAX BR1 MK2 24
4.10 MAX BR1 Slim 25
4.11 MAX BR1 ENT 25
4.12 MAX BR1 Pro LTE 27
4.13 MAX Hotspot 28
4.14 BR1 Mini 29
http://www.peplink.com
3
Copyright @ 2017 Pepwave
4.15 MAX BR1/2 IP55 30
4.16 MAX BR1 IP67 32
4.17 MAX On-The-Go 32
4.18 NPC (Network Power Controller) 33
4.19 SD-PMU 34
5.1 Drop-in Mode and LAN Bypass: Transparent Deployment 35
5.2 QoS: Clearer VoIP 35
5.3 Per-User Bandwidth Control 36
5.4 High Availability via VRRP 36
5.5 USB Modem and Android Tethering 37
5.6 Built-In Remote User VPN Support 38
5.7 SIM-card USSD support 39
6.1 Preparation 40
6.2 Constructing the Network 41
6.3 Configuring the Network Environment 41
7.1 Wall Mount 42
7.2 Car Mount 42
7.3 IP67 Installation Guide 42
9.1 Basic Settings 45
9.2 Port Settings 55
9.3 Captive Portal 56
10.1 Ethernet WAN 60
10.1.1 DHCP Connection 62
http://www.peplink.com
4
Copyright @ 2017 Pepwave
10.1.2 Static IP Connection 63
10.1.3 PPPoE Connection 65
10.1.4 L2TP Connection 66
10.2 Cellular WAN 67
10.3 Wi-Fi WAN 73
10.3.1 Creating Wi-Fi Connection Profiles 79
10.4 WAN Health Check 80
10.5 Dynamic DNS Settings 83
12.1 Setting Up MediaFast Content Caching 89
12.2 Scheduling Content Prefetching 90
12.3 Viewing MediaFast Statistics 92
13.1 PepVPN 93
13.2 The Pepwave Router Behind a NAT Router 100
13.3 SpeedFusionTM Status 101
14.1 IPsec VPN Settings 102
15.1 Outbound Policy 106
15.2 Custom Rules for Outbound Policy 107
15.2.1 Algorithm: Weighted Balance 108
15.2.2 Algorithm: Persistence 109
15.2.3 Algorithm: Enforced 110
15.2.4 Algorithm: Priority 111
15.2.5 Algorithm: Overflow 111
15.2.6 Algorithm: Least Used 112
15.2.7 Algorithm: Lowest Latency 112
15.2.8 Expert Mode 113
http://www.peplink.com
5
Copyright @ 2017 Pepwave
16.1 Port Forwarding Service 114
16.1.1 UPnP / NAT-PMP Settings 116
18.1 User Groups 119
18.2 Bandwidth Control 120
18.3 Application 120
18.3.1 Application Prioritization 120
18.3.2 Prioritization for Custom Applications 121
18.3.3 DSL/Cable Optimization 121
19.1 Outbound and Inbound Firewall Rules 122
19.1.1 Access Rules 122
19.1.2 Apply Firewall Rules to PepVpn Traffic 125
19.1.3 Intrusion Detection and DoS Prevention 126
19.2 Content Blocking 127
19.2.1 Application Blocking 127
19.2.2 Web Blocking 128
19.2.3 Customized Domains 128
19.2.4 Exempted User Groups 128
19.2.5 Exempted Subnets 128
19.2.6 URL Logging 128
21.1 High Availability 133
21.2 PPTP Server 137
21.3 Certificate Manager 139
http://www.peplink.com
6
Copyright @ 2017 Pepwave
21.4 Service Forwarding 139
21.4.1 SMTP Forwarding 140
21.4.2 Web Proxy Forwarding 141
21.4.3 DNS Forwarding 141
21.4.4 Custom Service Forwarding 141
21.5 Service Passthrough 142
21.6 GPS Forwarding 143
22.1 Wireless SSID 144
22.2 Settings 148
23.1 Info 154
23.2 Access Point (Usage) 156
23.3 Wireless SSID 158
23.4 Wireless Client 159
23.5 Nearby Device 161
23.6 Event Log 162
25.1 Admin Security 163
25.2 Firmware 168
25.3 Time 169
25.4 Schedule 169
25.5 Email Notification 171
25.6 Event Log 173
25.7 SNMP 173
25.8 InControl 176
25.9 Configuration 176
25.10 Feature Add-ons 178
25.11 Reboot 178
http://www.peplink.com
7
Copyright @ 2017 Pepwave
26.1 Ping 178
26.2 Traceroute Test 179
26.3 PepVPN Test 180
26.4 Wake-on-LAN 181
26.5 CLI (Command Line Interface Support) 181
27.1 Device 182
27.2 GPS Data 183
27.3 Active Sessions 183
27.4 Client List 185
27.5 WINS Client 186
27.6 UPnP / NAT-PMP 186
27.7 SpeedFusion Status 187
27.8 Event Log 191 28 Bandwidth Status 192
28.1 Real-Time 192
28.2 Hourly 193
28.3 Daily 194
28.4 Monthly 195
http://www.peplink.com
8
Copyright @ 2017 Pepwave
Tips
Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction!
http://youtu.be/UCkVQThLKO4
1 Introduction and Scope
Pepwave routers provide link aggregation and load balancing across multiple WAN connections, allowing a combination of technologies like 3G HSDPA, EVDO, 4G LTE, Wi-Fi, external WiMAX dongle, and satellite to be utilized to connect to the Internet.
The MAX wireless SD-WAN router series has a wide range of products suitable for many different deployments and markets. Entry level SD-WAN models such as the MAX BR1 are suitable for SMEs or branch offices. High-capacity SD-WAN routers such as the MAX HD2 are suitable for larger organizations and head offices.
This manual covers setting up Pepwave routers and provides an introduction to their features and usage.
http://www.peplink.com
9
Copyright @ 2017 Pepwave
Term
Definition
3G
3rd generation standards for wireless communications (e.g., HSDPA)
4G
4th generation standards for wireless communications (e.g., LTE)
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
EVDO
Evolution-Data Optimized
FQDN
Fully Qualified Domain Name
HSDPA
High-Speed Downlink Packet Access
HTTP
Hyper-Text Transfer Protocol
ICMP
Internet Control Message Protocol
IP
Internet Protocol
LAN
Local Area Network
MAC Address
Media Access Control Address
MTU
Maximum Transmission Unit
MSS
Maximum Segment Size
NAT
Network Address Translation
PPPoE
Point to Point Protocol over Ethernet
QoS
Quality of Service
SNMP
Simple Network Management Protocol
TCP
Transmission Control Protocol
UDP
User Datagram Protocol
VPN
Virtual Private Network
VRRP
Virtual Router Redundancy Protocol
WAN
Wide Area Network
WINS
Windows Internet Name Service
WLAN
Wireless Local Area Network
2 Glossary
The following terms, acronyms, and abbreviations are frequently used in this manual:
http://www.peplink.com
10
Copyright @ 2017 Pepwave
3 Product Features
Pepwave routers enable all LAN users to share broadband Internet connections, and they provide advanced features to enhance Internet access. Our Max BR wireless routers support multiple SIM cards. They can be configured to switch from using one SIM card to another SIM card according to different criteria, including wireless network reliability and data usage.
Our MAX HD series wireless routers are embedded with multiple 4G LTE modems, and allow simultaneous wireless Internet connections through multiple wireless networks. The wireless Internet connections can be bonded together using our SpeedFusion technology. This allows better reliability, larger bandwidth, and increased wireless coverage are comparing to use only one 4G LTE modem.
Below is a list of supported features on Pepwave routers. Features vary by model. For more information, please see peplink.com/products.
3.1 Supported Network Features
3.1.1 WAN
● Ethernet WAN connection in full/half duplex
● Static IP support for PPPoE
● Built-in cellular modems
● USB mobile connection(s)
● Wi-Fi WAN connection
● Network address translation (NAT)/port address translation (PAT)
● Inbound and outbound NAT mapping
● IPsec NAT-T and PPTP packet passthrough
● MAC address clone and passthrough
● Customizable MTU and MSS values
● WAN connection health check
● Dynamic DNS (supported service providers: changeip.com, dyndns.org, no-ip.org, tzo.com and
DNS-O-Matic)
● Ping, DNS lookup, and HTTP-based health check
http://www.peplink.com
11
Copyright @ 2017 Pepwave
3.1.2 LAN
● Wi-Fi AP
● Ethernet LAN ports
● DHCP server on LAN
● Extended DHCP option support
● Static routing rules
● VLAN on LAN support
3.1.3 VPN
● PepVPN with SpeedFusionTM
● PepVPN performance analyzer
● X.509 certificate support
● VPN load balancing and failover among selected WAN connections
● Bandwidth bonding and failover among selected WAN connections
● IPsec VPN for network-to-network connections (works with Cisco and Juniper only)
● Ability to route Internet traffic to a remote VPN peer
● Optional pre-shared key setting
● SpeedFusion
TM
throughput, ping, and traceroute tests
● PPTP server
● PPTP and IPsec passthrough
3.1.4 Firewall
● Outbound (LAN to WAN) firewall rules
● Inbound (WAN to LAN) firewall rules per WAN connection
● Intrusion detection and prevention
● Specification of NAT mappings
● Outbound firewall rules can be defined by destination domain name
3.1.5 Captive Portal
● Splash screen of open networks, login page for secure networks
● Customizable built-in captive portal
● Supports linking to outside page for captive portal
3.1.6 Outbound Policy
● Link load distribution per TCP/UDP service
● Persistent routing for specified source and/or destination IP addresses per TCP/UDP service
● Traffic prioritization and DSL optimization
http://www.peplink.com
12
Copyright @ 2017 Pepwave
● Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms
3.1.7 AP Controller
● Configure and manage Pepwave AP devices
● Review the status of connected APs
3.1.8 QoS
● Quality of service for different applications and custom protocols
● User group classification for different service levels
● Bandwidth usage control and monitoring on group- and user-level
● Application prioritization for custom protocols and DSL/cable optimization
3.2 Other Supported Features
● User-friendly web-based administration interface
● HTTP and HTTPS support for web admin interface
● Configurable web administration port and administrator password
● Firmware upgrades, configuration backups, ping, and traceroute via web admin interface
● Remote web-based configuration (via WAN and LAN interfaces)
● Time server synchronization
● SNMP
● Email notification
● Read-only user for web admin
● Shared IP drop-in mode
● Authentication and accounting by RADIUS server for web admin
● Built-in WINS servers*
● Syslog
● SIP passthrough
● PPTP packet passthrough
● Event log
● Active sessions
● Client list
● WINS client list *
● UPnP / NAT-PMP
● Real-time, hourly, daily, and monthly bandwidth usage reports and charts
● IPv6 support
http://www.peplink.com
13
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
● Support USB tethering on Android 2.2+ phones
* Not supported on MAX Surf-On-The-Go, and BR1 variants
4 Pepwave MAX Mobile Router Overview
4.1 MAX 700

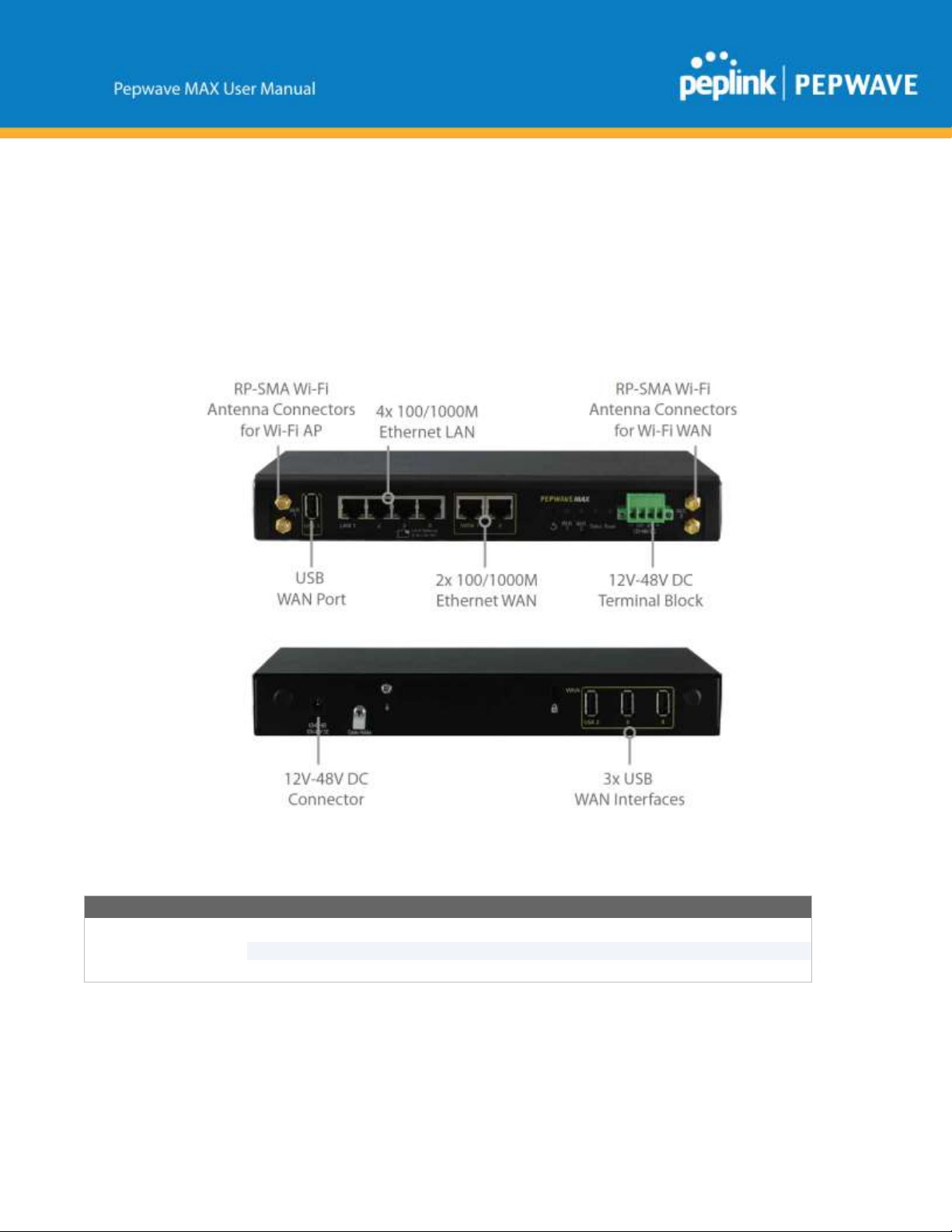

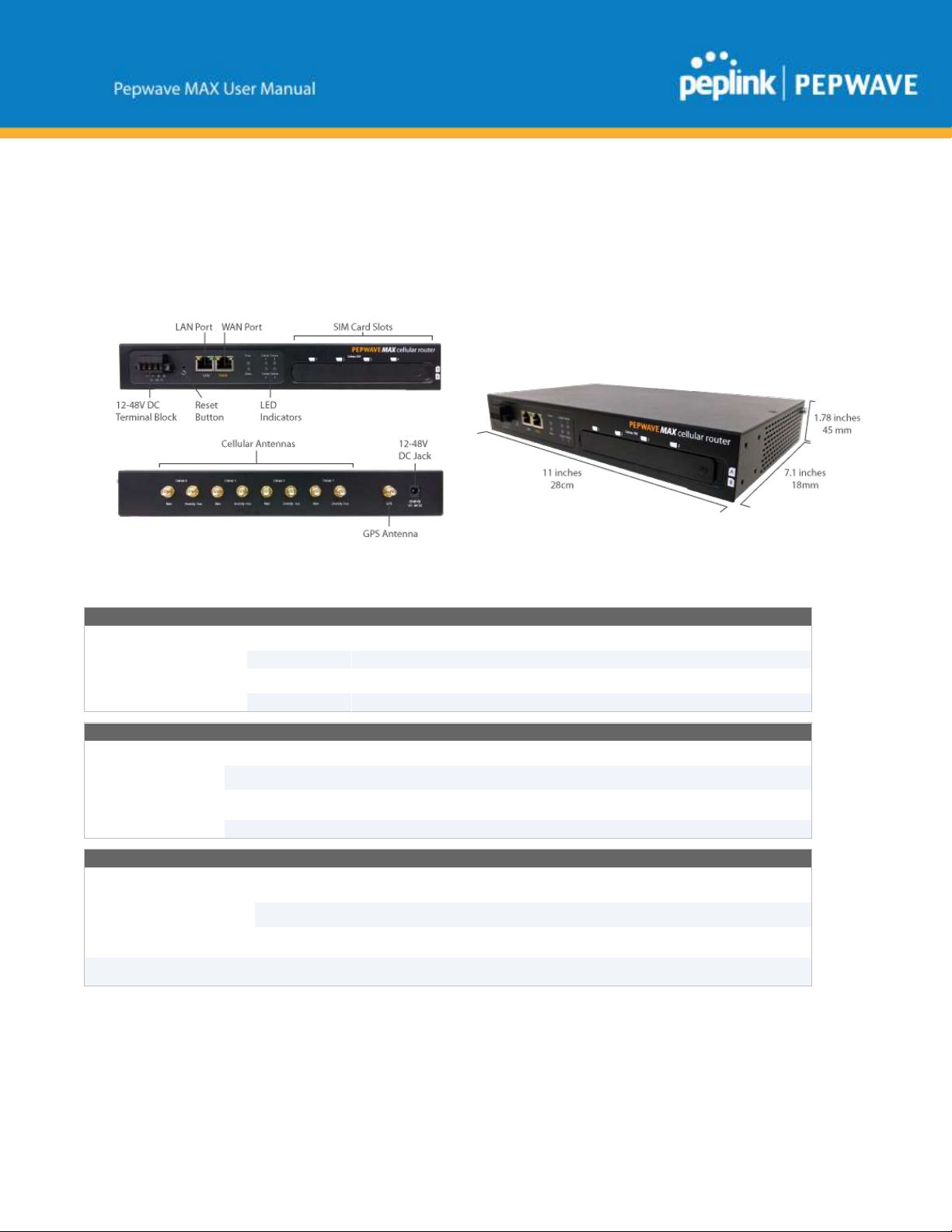

4.1.1 Panel Appearance
4.1.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
14
Copyright @ 2017 Pepwave
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN
OFF
Disconnected
Blinking slowly
Connecting to network
Blinking
Connected to network with traffic
ON
Connected to network without traffic
Wi-Fi AP
OFF
Disabled
Blinking slowly
Enabled but no client connected
Blinking
Connected to network with traffic
ON
Client(s) connected to wireless network
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100/ 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
15
Copyright @ 2017 Pepwave
4.2 MAX HD2
4.2.1 Panel Appearance
http://www.peplink.com
16
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.2.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
17
Copyright @ 2017 Pepwave
The statuses indicated by the front panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
4.3 MAX HD2 IP67
4.3.1 Panel Appearance
http://www.peplink.com
18
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular WAN Indicators
Cellular 1 /
Cellular 2
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.4 MAX HD2 mini
4.4.1 Panel Appearance
4.4.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
19
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular WAN Indicators
Cellular 1 / Cellular 2*
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.5 MAX Transit

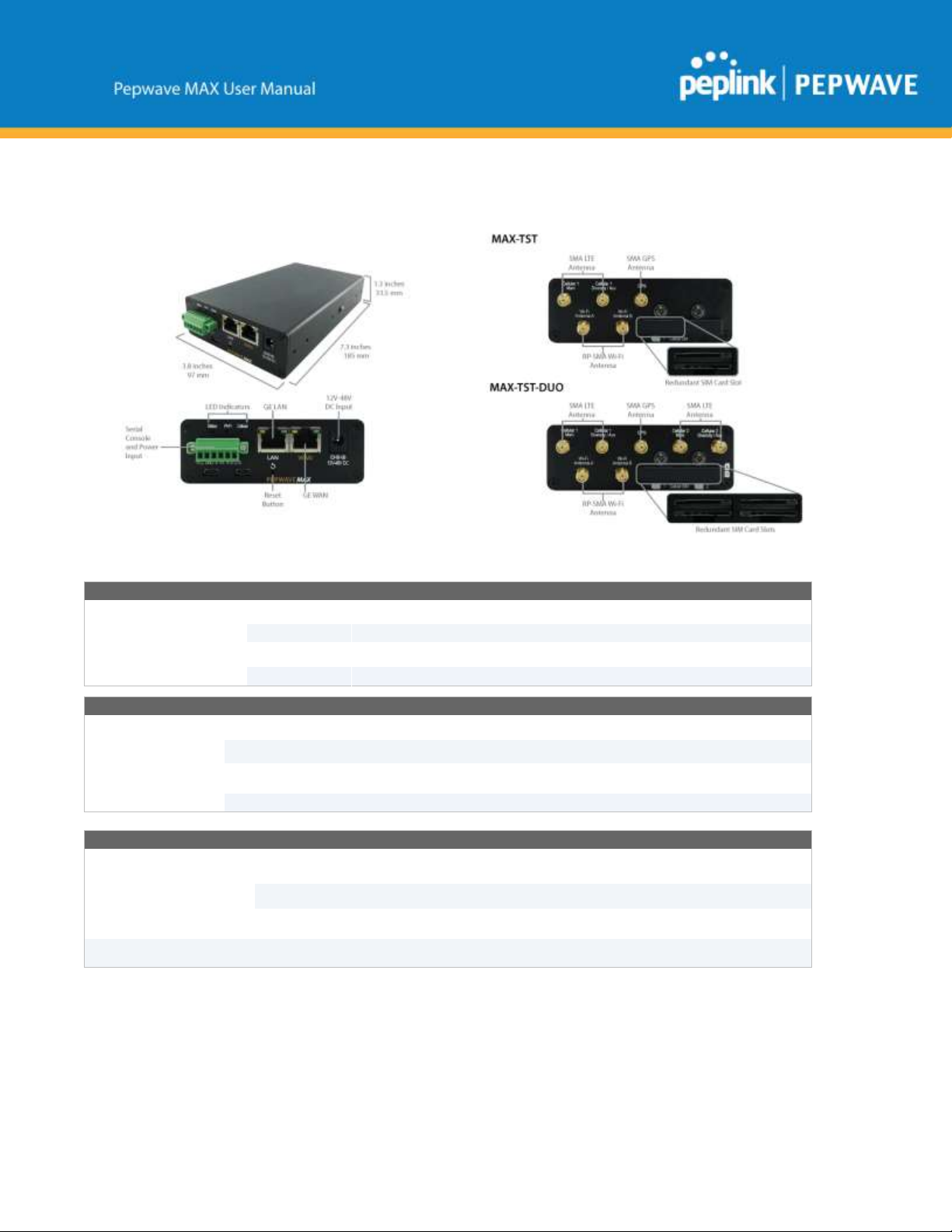

4.5.1 Panel Appearance
4.5.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
* For MAX-TST_DUO
http://www.peplink.com
20
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.6 MAX CX4
4.6.1 Panel Appearance
4.6.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
21
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.7 MAX HD4 / HD2 and HD4 with MediaFast

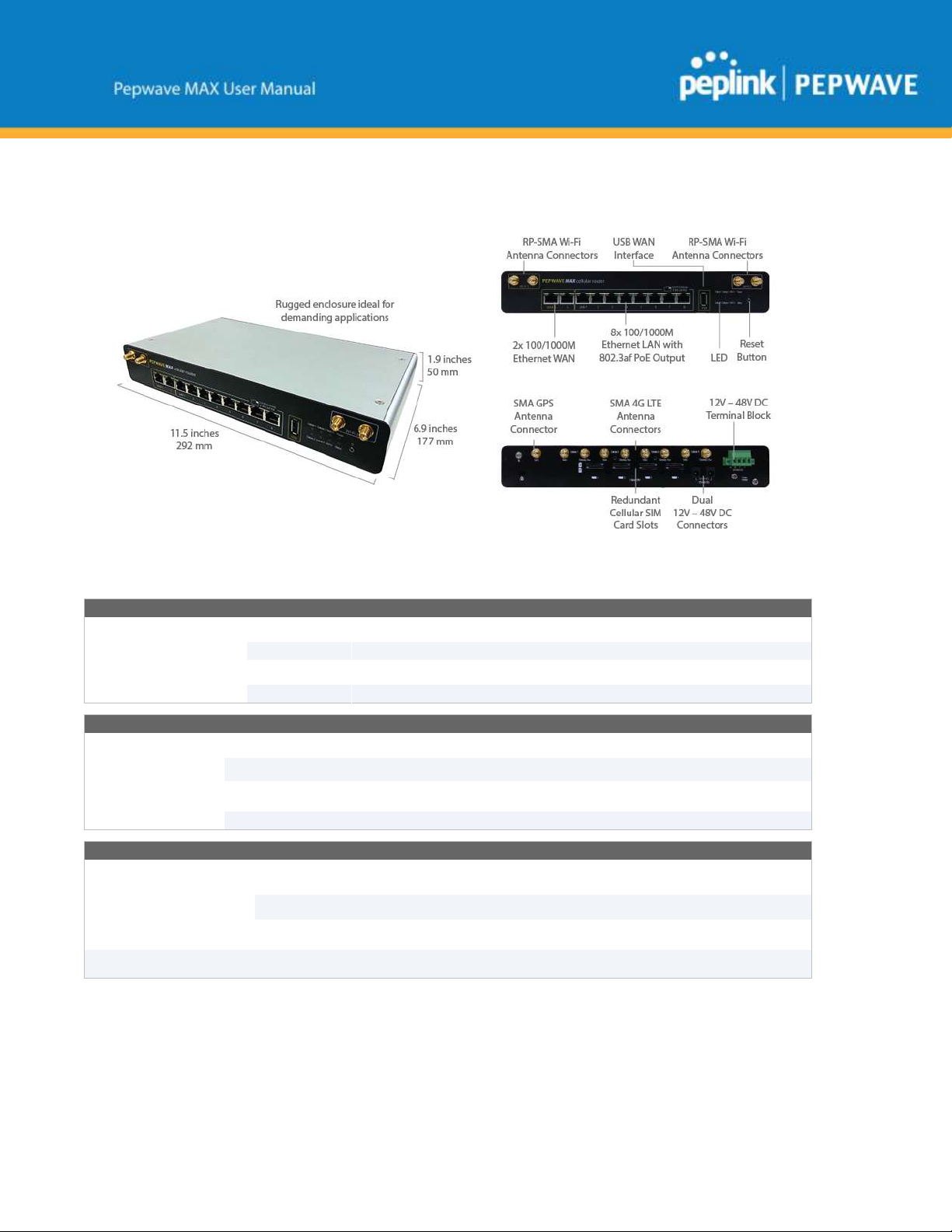

4.7.1 Panel Appearance
4.7.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
22
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
4.8 MAX BR1
4.8.1 Panel Appearance
4.8.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
23
Copyright @ 2017 Pepwave
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
http://www.peplink.com
24
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN /
Cellular 1 /
Cellular 2
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.9 MAX BR1 MK2
4.9.1 Panel Appearance
4.9.2 LED Indicators
http://www.peplink.com
25
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
4.10 MAX BR1 Slim
4.10.1 Panel Appearance
4.10.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
26
Copyright @ 2017 Pepwave
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
4.11 MAX BR1 ENT
4.11.1 Panel Appearance
4.11.2 LED Indicators
● The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
27
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
4.12 MAX BR1 Pro LTE
4.12.1 Panel Appearance
4.12.2 LED Indicators
● The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
28
Copyright @ 2017 Pepwave
LAN and Ethernet WAN Ports
Green LED
ON
10 / 100 / 1000 Mbps
Orange LED
Blinking
Data is transferring
OFF
No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
4.13 MAX Hotspot

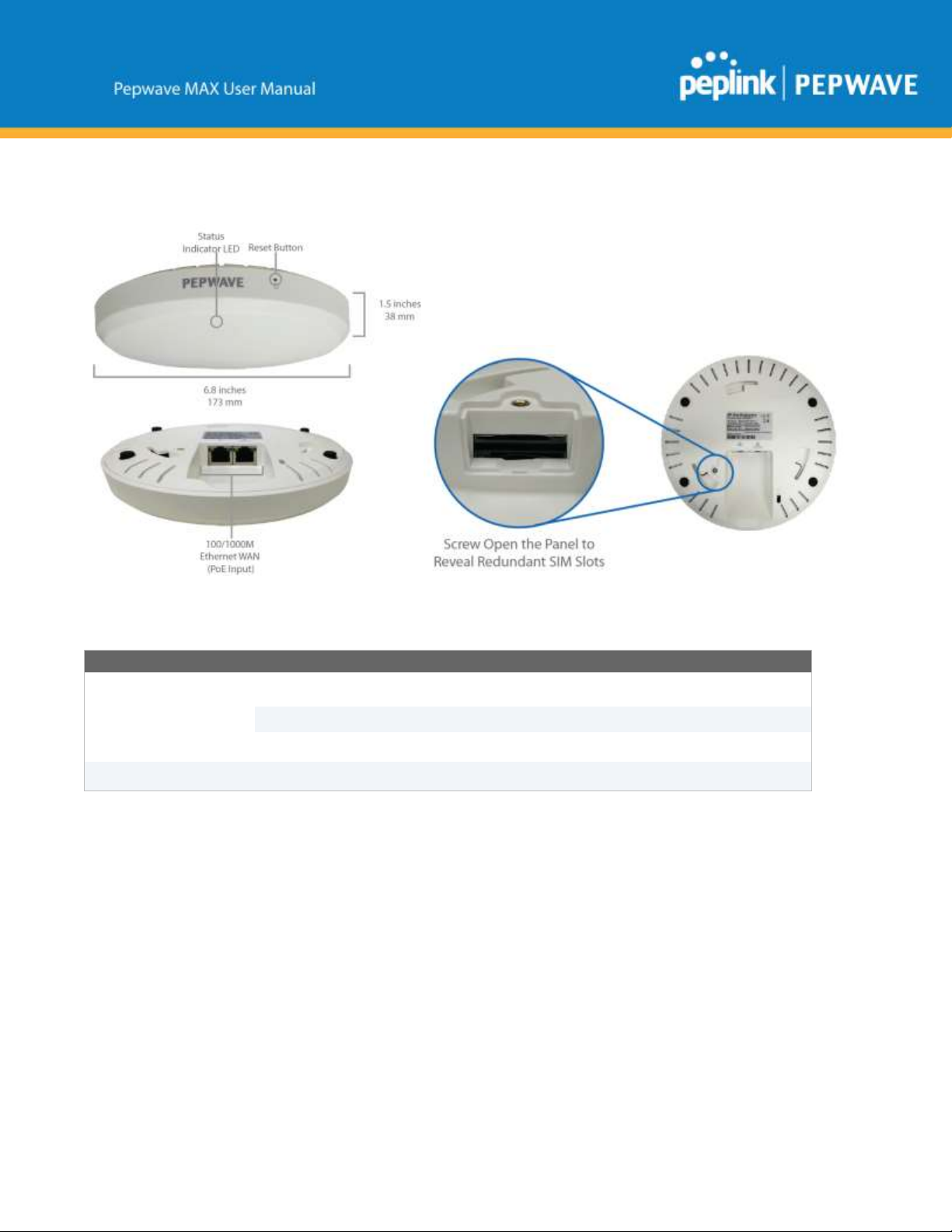

4.13.1 Panel Appearance
4.13.2 LED Indicators
http://www.peplink.com
29
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
4.14 BR1 Mini
4.14.1 Panel Appearance
4.14.2 LED Indicators
http://www.peplink.com
30
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi Indicators
Wi-Fi
OFF
Disabled Intermittent
Blinking slowly
Connecting to wireless network(s)
Blinking
Connected to wireless network(s) with traffic
ON
Connected to wireless network(s) without traffic
Cellular Indicators
Cellular
OFF
Disabled or no SIM card inserted
ON
Connecting or connected to network(s)
4.15 MAX BR1/2 IP55
4.15.1 Panel Appearance
4.15.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
31
Copyright @ 2017 Pepwave
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
OFF
Port is not connected
Port Type
Auto MDI/MDI-X ports
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
4.16 MAX BR1 IP67
4.16.1 Panel Appearance
4.16.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
32
Copyright @ 2017 Pepwave
Cellular Indicators
WAN
OFF
Modem is not attached to the port
Green
Modem is attached to the port
Wi-Fi Indicators
Wi-Fi
OFF
Disconnected from AP
Green
Connected to AP
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
4.17 MAX On-The-Go
4.17.1 Panel Appearance
4.17.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
33
Copyright @ 2017 Pepwave
LAN and Ethernet WAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
Port Type
Auto MDI/MDI-X ports
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
LAN Ports
Green LED
ON
100 Mbps
OFF
10 Mbps
Orange LED
ON
Port is connected without traffic
Blinking
Data is transferring
Port Type
Auto MDI/MDI-X ports
4.18 NPC (Network Power Controller)
4.18.1 Panel Appearance
4.18.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
http://www.peplink.com
34
Copyright @ 2017 Pepwave
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready
4.19 SD-PMU

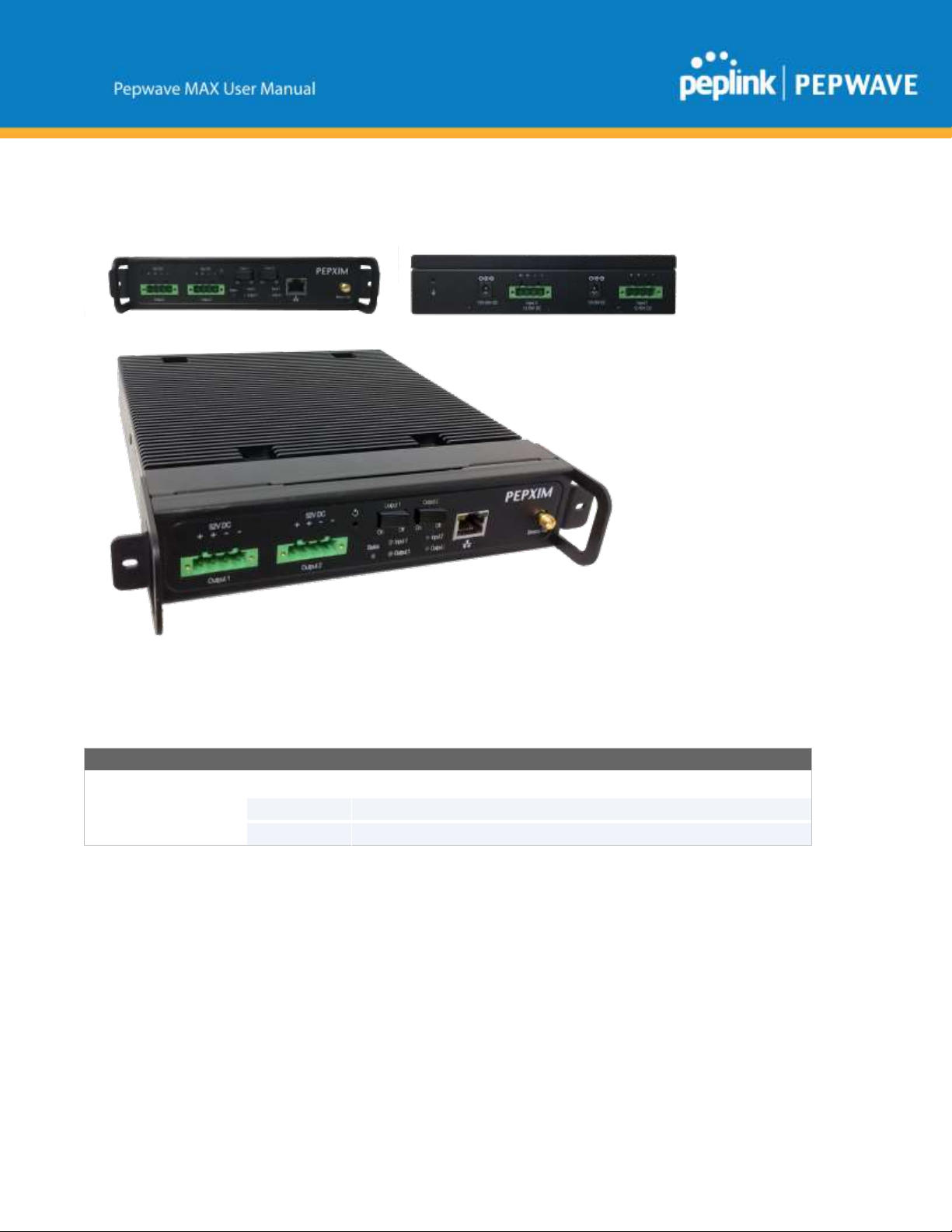

4.19.1 Panel Appearance
4.19.2 LED Indicators
http://www.peplink.com
35
Copyright @ 2017 Pepwave
5 Advanced Feature Summary
5.1 Drop-in Mode and LAN Bypass: Transparent Deployment
As your organization grows, it needs more bandwidth. But modifying your network would require effort better spent elsewhere. In Drop-in Mode, you can conveniently install your Peplink router without making any changes to your network. And if the Peplink router loses power for any reason, LAN Bypass will safely and automatically bypass the Peplink router to resume your original network connection.
Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants)
5.2 QoS: Clearer VoIP

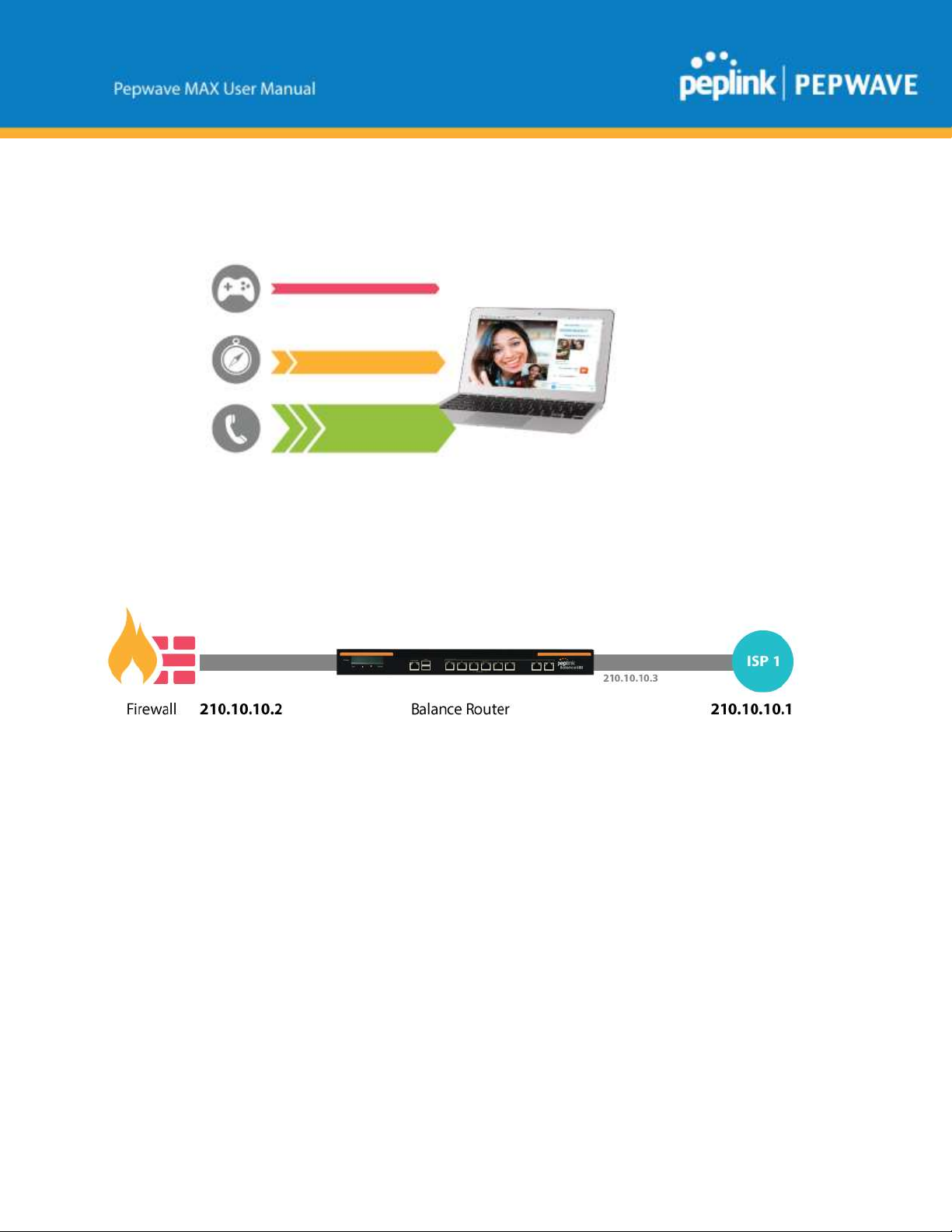

VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can detect VoIP
http://www.peplink.com
36
Copyright @ 2017 Pepwave
traffic and assign it the highest priority, giving you crystal-clear calls.
5.3 Per-User Bandwidth Control

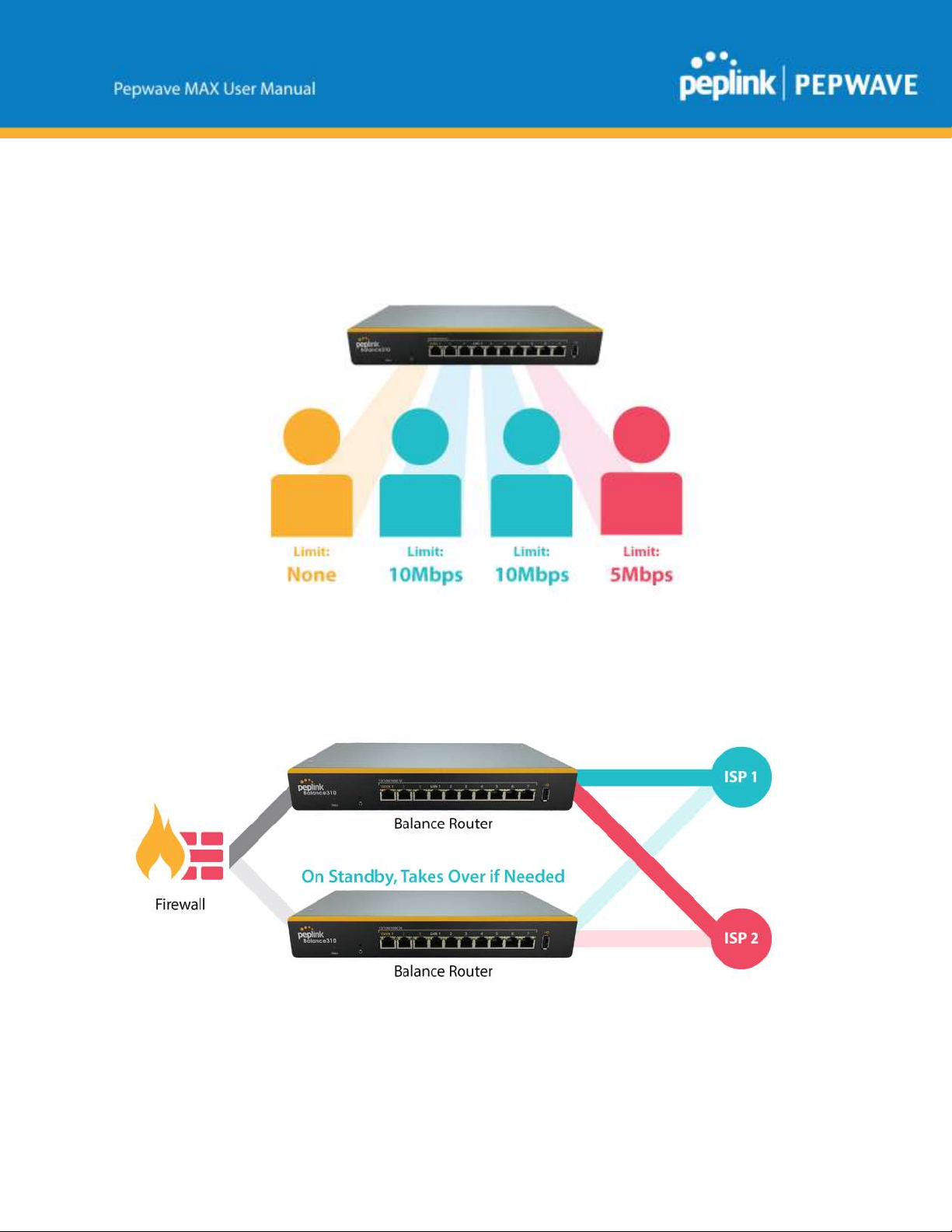

With per-user bandwidth control, you can define bandwidth control policies for up to 3 groups of users to prevent network congestion. Define groups by IP address and subnet, and set bandwidth limits for every user in the group.
5.4 High Availability via VRRP
http://www.peplink.com
37
Copyright @ 2017 Pepwave
When your organization has a corporate requirement demanding the highest availability with no single point of failure, you can deploy two Peplink routers in High Availability mode. With High Availability mode, the second device will take over when needed.
Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants)
5.5 USB Modem and Android Tethering
For increased WAN diversity, plug in a USB LTE modem as backup. Peplink routers are compatible with over 200 modem types. You can also tether to smartphones running Android 4.1.X and above.
Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants)
http://www.peplink.com
38
Copyright @ 2017 Pepwave
5.6 Built-In Remote User VPN Support
Use L2TP with IPsec to safely and conveniently connect remote clients to your private network. L2TP with IPsec is supported by most devices, but legacy devices can also connect using PPTP.
Click here for full instructions on setting up L2TP with IPsec.
http://www.peplink.com
39
Copyright @ 2017 Pepwave
5.7 SIM-card USSD support
Cellular-enabled routers can now use USSD to check their SIM card’s balance, process pre-paid cards, and configure carrier-specific services.Click here for full instructions on using USSD.
http://www.peplink.com
40
Copyright @ 2017 Pepwave
6 Installation
The following section details connecting Pepwave routers to your network.
6.1 Preparation
Before installing your Pepwave router, please prepare the following as appropriate for your installation:
● At least one Internet/WAN access account and/or Wi-Fi access information
● Depending on network connection type(s), one or more of the following:
● Ethernet WAN: A 10/100/1000BaseT UTP cable with RJ45 connector
● USB: A USB modem
● Embedded modem: A SIM card for GSM/HSPA service
● Wi-Fi WAN: Wi-Fi antennas
● PC Card/Express Card WAN: A PC Card/ExpressCard for the
corresponding card slot
● A computer installed with the TCP/IP network protocol and a supported web browser. Supported browsers include Microsoft Internet Explorer 8.0 or above, Mozilla Firefox 10.0 or above, Apple Safari 5.1 or above, and Google Chrome 18 or above.
http://www.peplink.com
41
Copyright @ 2017 Pepwave
6.2 Constructing the Network
At a high level, construct the network according to the following steps:
1. With an Ethernet cable, connect a computer to one of the LAN ports on the Pepwave router.
Repeat with different cables for up to 4 computers to be connected.
2. With another Ethernet cable or a USB modem/Wi-Fi antenna/PC Card/Express Card,
connect to one of the WAN ports on the Pepwave router. Repeat the same procedure for other WAN ports.
3. Connect the power adapter to the power connector on the rear panel of the Pepwave router,
The following figure schematically illustrates the resulting configuration:
and then plug it into a power outlet.
6.3 Configuring the Network Environment
To ensure that the Pepwave router works properly in the LAN environment and can access the Internet via WAN connections, please refer to the following setup procedures:
● LAN configuration For basic configuration, refer to Section 8, Connecting to the Web Admin Interface. For advanced configuration, go to Section 9, Configuring the LAN Interface(s).
● WAN configuration For basic configuration, refer to Section 8, Connecting to the Web Admin Interface. For advanced configuration, go to Section 9.2, Captive Portal.
http://www.peplink.com
42
Copyright @ 2017 Pepwave
7 Mounting the Unit
7.1 Wall Mount

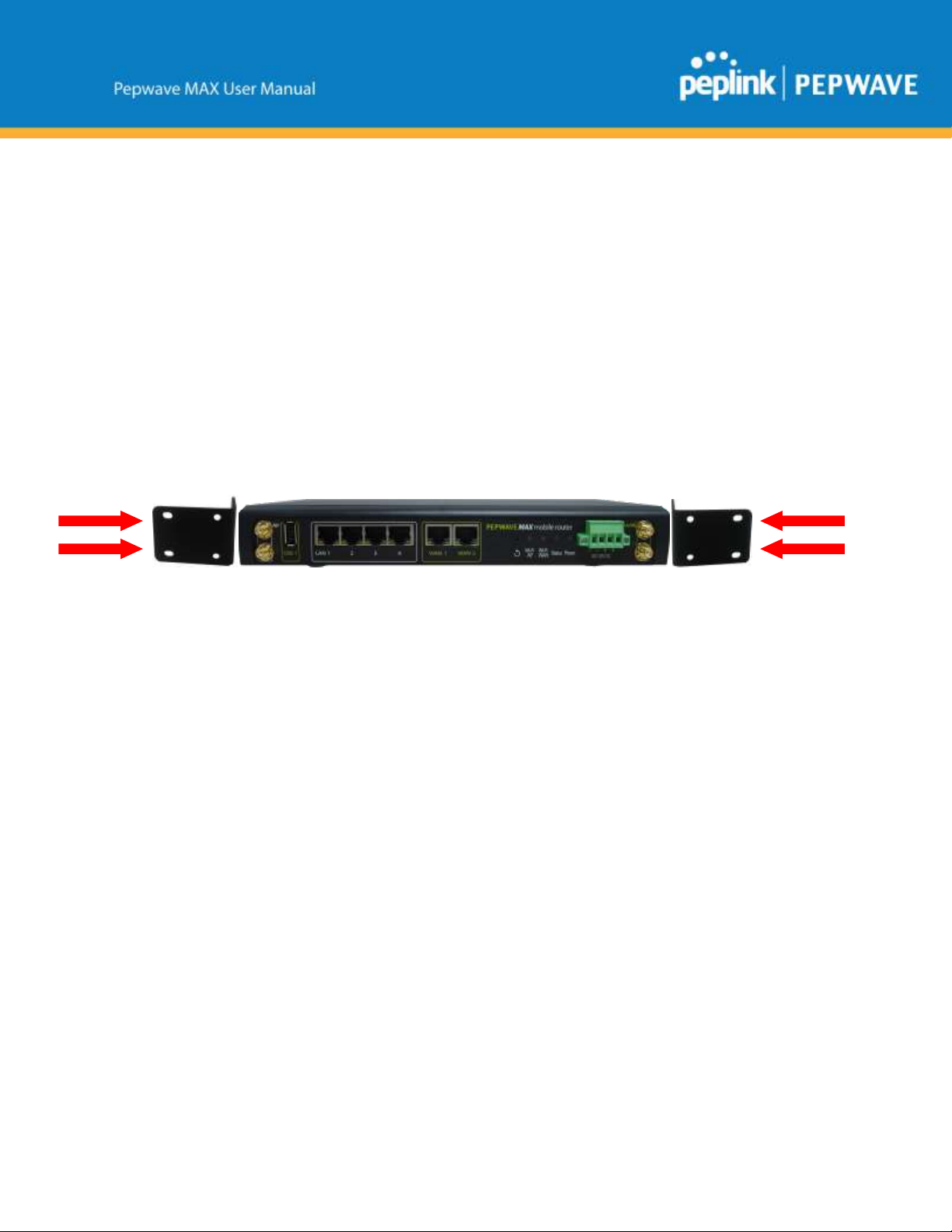

The Pepwave MAX 700/HD2/On-The-Go can be wall mounted using screws. After adding the screw on the wall, slide the MAX in the screw hole socket as indicated below. Recommeneded screw specification: M3.5 x 20mm, head diameter 6mm, head thickness 2.4mm.
The Pepwave MAX BR1 requires four screws for wall mounting.
7.2 Car Mount
The Pepwave MAX700/HD2 can be mounted in a vehicle using the included mounting brackets. Place the mounting brackets by the two sides and screw them onto the device.
7.3 IP67 Installation Guide
Installation instructions for IP67 devices can be found here: http://download.peplink.com/manual/IP67_Installation_Guide.pdf
http://www.peplink.com
43
Copyright @ 2017 Pepwave
8 Connecting to the Web Admin Interface
1. Start a web browser on a computer that is connected with the Pepwave router through the LAN.
2. To connect to the router’s web admin interface, enter the following LAN IP address in the address field of the web browser:
http://192.168.50.1
(This is the default LAN IP address for Pepwave routers.)
3. Enter the following to access the web admin interface.
Username: admin Password: admin
(This is the default username and password for Pepwave routers. The admin and read-only user passwords can be changed at System>Admin Security.)
4. After successful login, the Dashboard will be
http://www.peplink.com
44
Copyright @ 2017 Pepwave
Important Note
Configuration changes (e.g. WAN, LAN, admin settings, etc.) will take effect only after clicking the Save button at the bottom of each page. The Apply Changes button causes the changes to be saved and applied.
displayed
The Dashboard shows current WAN, LAN, and Wi-Fi AP statuses. Here, you can change WAN connection priority and switch on/off the Wi-Fi AP. For further information on setting up these connections, please refer to Sections 8 and 9.
Device Information displays details about the device, including model name, firmware version, and uptime. For further information, please refer to Section 22.
http://www.peplink.com
45
Copyright @ 2017 Pepwave
IP Settings
IP Address
The IP address and subnet mask of the Pepwave router on the LAN.
9 Configuring the LAN Interface(s)
9.1 Basic Settings

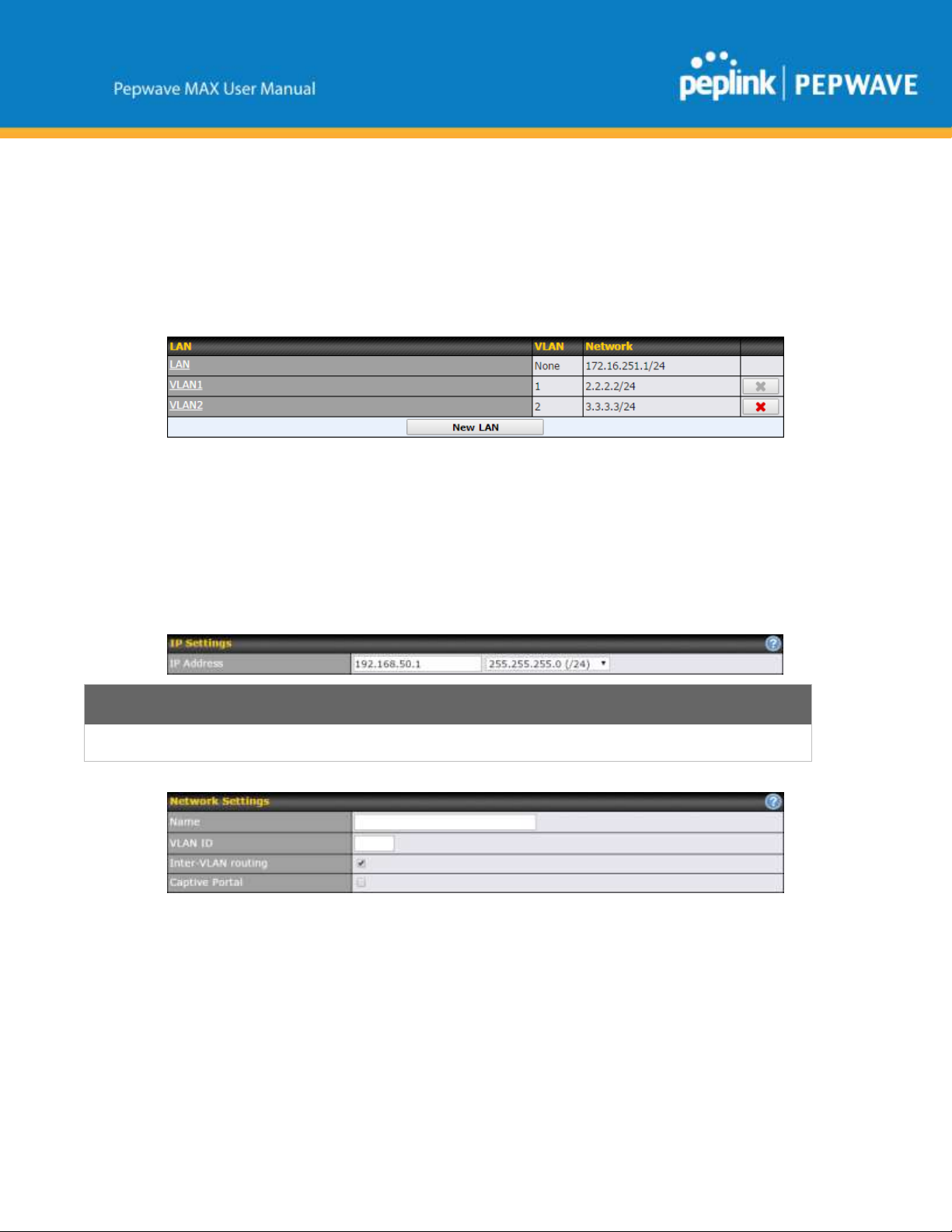

LAN interface settings are located at Network>LAN>Network Settings. Navigating to that page will result in the following dashboard:
This represents the LAN interfaces that are active on your router (including VLAN). A grey “X” means
that the VLAN is used in other settings and cannot be deleted. You can find which settings are using the
VLAN by hovering over the grey “X”. Alternatively, a red “X” means that there are no settings using the VLAN. You can delete that VLAN by
clicking the red “X”
Clicking any of the existing LAN interfaces (or creating a new one) will result in the following
http://www.peplink.com
46
Copyright @ 2017 Pepwave
Network Settings
Name
Enter a name for the LAN.
VLAN ID
Enter a number for your VLAN.
Inter-VLAN
routing
Check this box to enable routing between virtual LANs.

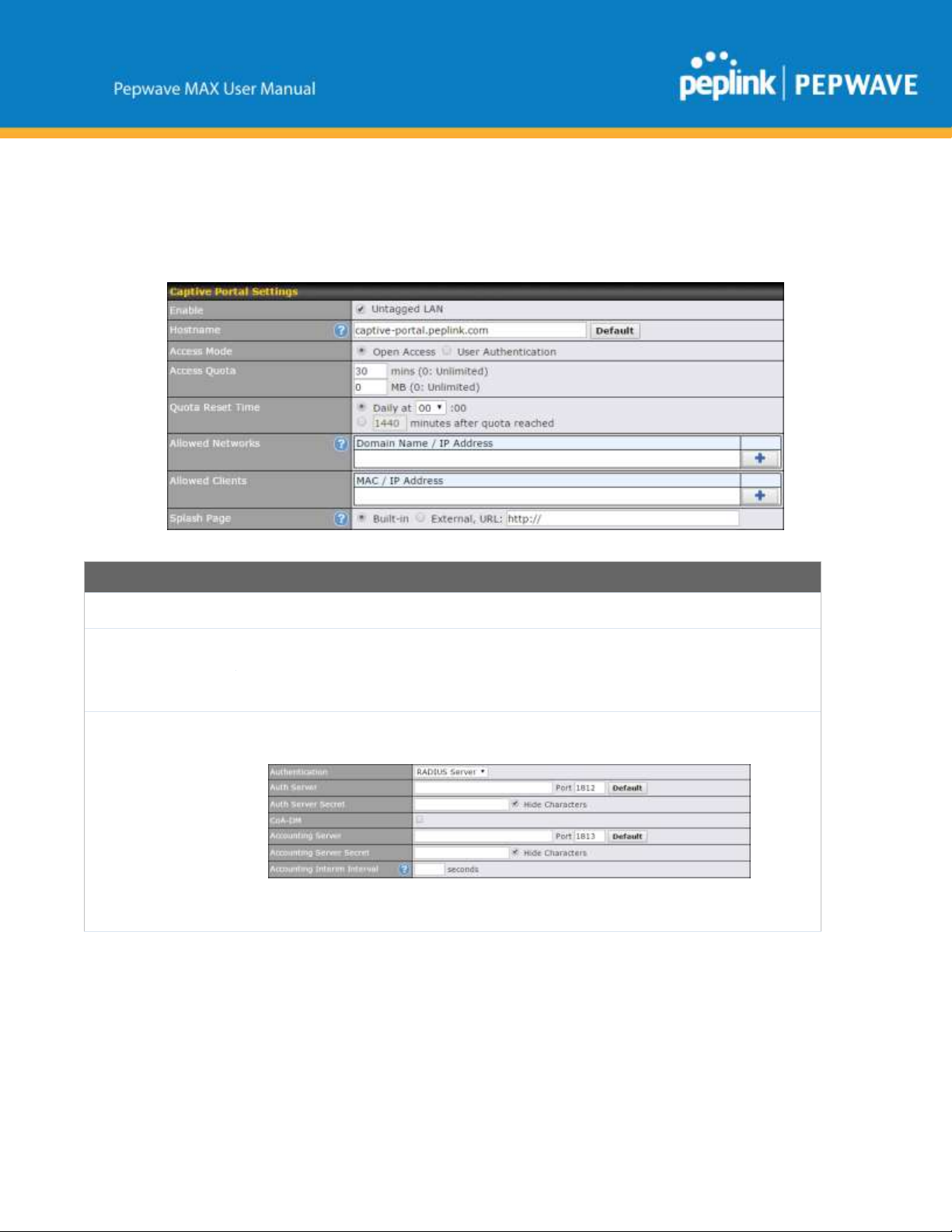

Captive Portal
Check this box to turn on captive portals.
http://www.peplink.com
47
Copyright @ 2017 Pepwave

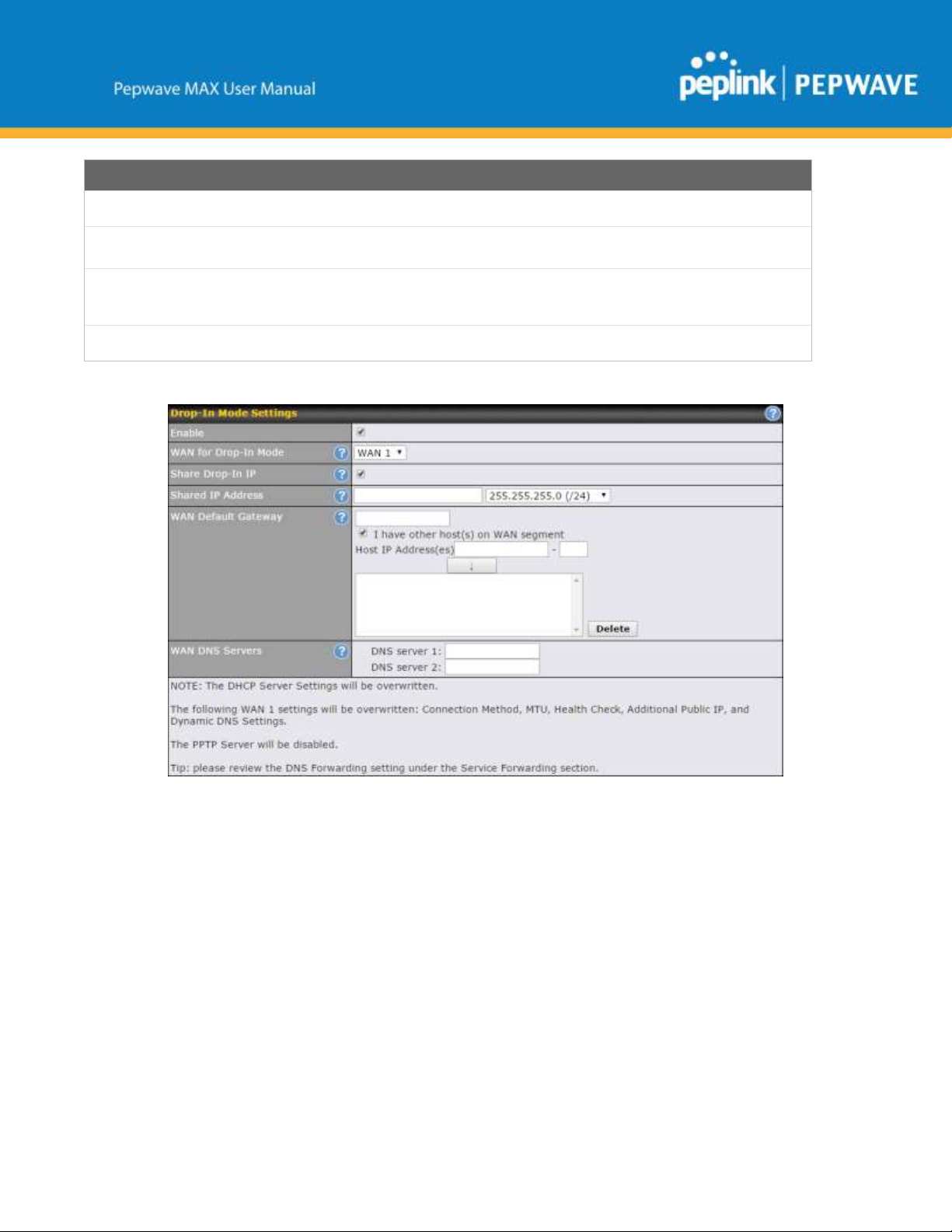

Drop-in Mode Settings
Enable
Drop-in mode eases the installation of Peplink routers on a live network between the existing firewall and router, such that no configuration changes are required on existing equipment. Check the box to enable the drop-in mode feature, if available on your model.
WAN for Drop-
In Mode
Select the WAN port to be used for drop-in mode. If WAN 1 with LAN Bypass is selected, the high availability feature will be disabled automatically.
Share Drop-In
IPA
When this option is enabled, the passthrough IP address will be used to connect to WAN hosts (email notification, remote syslog, etc.). The Pepwave router will listen for this IP address when WAN hosts access services provided by the Pepwave router (web admin access from the WAN, DNS server requests, etc.).
To connect to hosts on the LAN (email notification, remote syslog, etc.), the default gateway address will be used. The Pepwave router will listen for this IP address when LAN hosts access services provided by the Pepwave router (web admin access from the WAN, DNS proxy, etc.).
Shared IP
AddressA
Access to this IP address will be passed through to the LAN port if this device is not serving the service being accessed. The shared IP address will be used in connecting to hosts on the WAN (email notification, remote syslog, etc.) The device will also listen on the IP address when hosts on the WAN access services served on this device (web admin access from the WAN, DNS server, etc.)
WAN Default
Gateway
Enter the WAN router's IP address in this field. If there are more hosts in addition to the router on the WAN segment, check the I have other host(s) on WAN segment box and enter the IP address of the hosts that need to access LAN devices or be accessed by others.
WAN DNS
Servers
Enter the selected WAN's corresponding DNS server IP addresses.
A
- Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
48
Copyright @ 2017 Pepwave

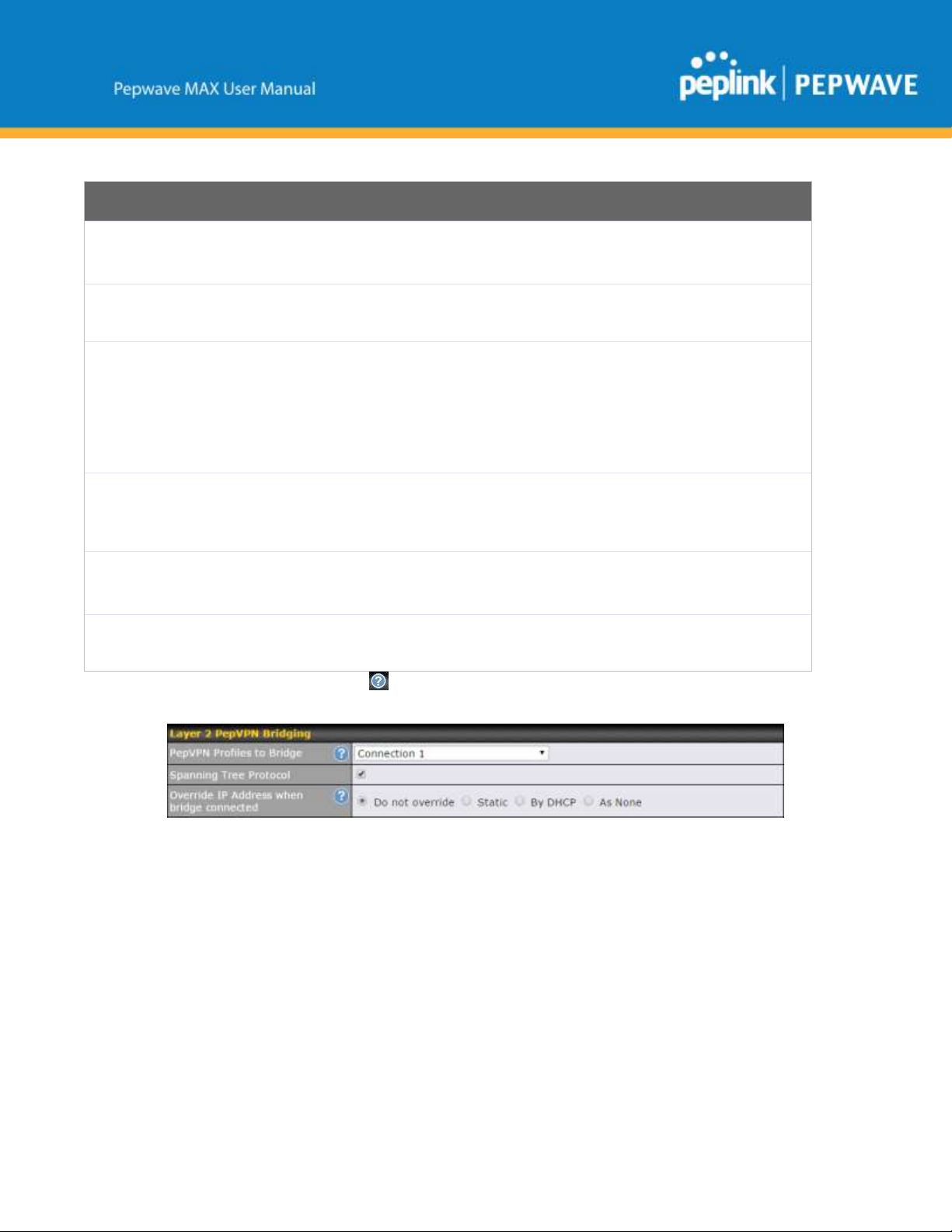

Layer 2 PepVPN Bridging
PepVPN Profiles
to Bridge
The remote network of the selected PepVPN profiles will be bridged with this local LAN, creating a Layer 2 PepVPN, they will be connected and operate like a single LAN, and any broadcast or multicast packets will be sent over the VPN.
Spanning Tree
Protocol
Click the box will enable STP for this layer 2 profile bridge.
Override IP
Address when
bridge connected
Select "Do not override" if the LAN IP address and local DHCP server should remain unchanged after the Layer 2 PepVPN is up.
If you choose to override IP address when the VPN is connected, the device will not act as a router, and most Layer 3 routing functions will cease to work.
http://www.peplink.com
49
Copyright @ 2017 Pepwave
DHCP Server Settings
DHCP Server
When this setting is enabled, the DHCP server automatically assigns an IP address to each computer that is connected via LAN and configured to obtain an IP address via DHCP. The Pepwave router’s DHCP server can prevent IP address collision on the LAN.
IP Range &
Subnet Mask
These settings allocate a range of IP addresses that will be assigned to LAN computers by the
Pepwave router’s DHCP server.
Lease Time
This setting specifies the length of time throughout which an IP address of a DHCP client remains valid. Upon expiration of the lease time, the assigned IP address will no longer be valid and renewal of the IP address assignment will be required.
DNS Servers
This option allows you to input the DNS server addresses to be offered to DHCP clients. If Assign DNS server automatically is selected, the Pepwave router’s built-in DNS server address (i.e., LAN
IP address) will be offered.
WINS Server
This option allows you to optionally specify a Windows Internet Name Service (WINS) server. You may choose to use the built-in WINS server or external WINS servers.
When this unit is connected using SpeedFusionTM, other VPN peers can share this unit's built-in WINS server by entering this unit's LAN IP address in their DHCP WINS Server setting. Afterward, all PC clients in the VPN can resolve the NetBIOS names of other clients in remote peers. If you have enabled this option, a list of WINS clients will be displayed at Status>WINS
Clients.
BOOTP
Check this box to enable BOOTP on older networks that still require it.
Extended
DHCP Option
In addition to standard DHCP options (e.g., DNS server address, gateway address, subnet mask), you can specify the value of additional extended DHCP options, as defined in RFC 2132. With these extended options enabled, you can pass additional configuration information to LAN hosts.
To define an extended DHCP option, click the Add button, choose the option to define and enter its value. For values that are in IP address list format, you can enter one IP address per line in the provided text area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the LAN. The computers to be assigned fixed IP addresses on the LAN are identified by their MAC addresses. The fixed IP address assignment is displayed as a cross-reference list between the computers’ names, MAC addresses, and fixed IP addresses.
Name (an optional field) allows you to specify a name to represent the device. MAC addresses should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new record. Press
to remove a record. Reserved client information can be imported from the Client List,
located at Status>Client List. For more details, please refer to Section 22.3.
http://www.peplink.com
50
Copyright @ 2017 Pepwave
LAN Physical Settings
Speed
This is the port speed of the LAN interface. It should be set to the same speed as the connected device to avoid port negotiation problems. When a static speed is set, you may choose whether to advertise its speed to the peer device. Auto is selected by default. You can choose not to advertise the port speed if the port has difficulty negotiating with the peer device.
Static Route Settings
Static Route
This table is for defining static routing rules for the LAN segment. A static route consists of the network address, subnet mask, and gateway address. The address and subnet mask values are in w.x.y.z format.
The local LAN subnet and subnets behind the LAN will be advertised to the VPN. Remote routes sent over the VPN will also be accepted. Any VPN member will be able to route to the local
subnets. Press to create a new route. Press to remove a route.
WINS Server Settings
Enable
Check the box to enable the WINS server. A list of WINS clients will be displayed at Status>WINS Clients.
http://www.peplink.com
51
Copyright @ 2017 Pepwave
DNS Proxy Settings
Enable
To enable the DNS proxy feature, check this box, and then set up the feature at Network>LAN>DNS Proxy Settings. A DNS proxy server can be enabled to serve DNS requests originating from LAN/PPTP/SpeedFusion
TM
peers. Requests are forwarded to the
DNS servers/resolvers defined for each WAN connection.
DNS Caching
This field is to enable DNS caching on the built-in DNS proxy server. When the option is
enabled, queried DNS replies will be cached until the records’ TTL has been reached. This
feature can help improve DNS lookup time. However, it cannot return the most up-to-date result for those frequently updated DNS records. By default, DNS Caching is disabled.
Include Google Public
DNS Servers
When this option is enabled, the DNS proxy server will also forward DNS requests to Google's Public DNS Servers, in addition to the DNS servers defined in each WAN. This could increase the DNS service's availability. This setting is disabled by default.
Local DNS Records
This table is for defining custom local DNS records. A static local DNS record consists of a host name and IP address. When looking up the host name from the LAN to LAN IP of
the Pepwave router, the corresponding IP address will be returned. Press to create a new record. Press to remove a record.
DNS Resolvers
A
Check the box to enable the WINS server. A list of WINS clients will be displayed at Network>LAN>DNS Proxy Settings>DNS Resolvers. This field specifies which DNS resolvers will receive forwarded DNS requests. If no WAN/VPN/LAN DNS resolver is selected, all of the WAN’s DNS resolvers will be selected. If a SpeedFusion
TM
peer is selected, you may enter the VPN peer’s DNS resolver IP
address(es). Queries will be forwarded to the selected connections’ resolvers. If all of the
selected connections are down, queries will be forwarded to all resolvers on healthy WAN connections.
A
- Advanced feature, please click the button on the top right hand corner to activate.
http://www.peplink.com
52
Copyright @ 2017 Pepwave
Bonjour Forwarding Settings
Enable
Check this box to turn on Bonjour forwarding.
Bonjour Service
Choose Service and Client networks from the drop-down menus, and then click to add the networks. To delete an existing Bonjour listing, click .
Finally, if needed, configure Bonjour forwarding, Apple’s zero configuration networking protocol. Once
VLAN configuration is complete, click Save to store your changes.
To enable VLAN configuration, click the button in the IP Settings section.
To add a new LAN, click the New LAN button. To change LAN settings, click the name of the LAN to change under the LAN heading.
The following settings are displayed when creating a new LAN or editing an existing LAN.
http://www.peplink.com
53
Copyright @ 2017 Pepwave
IP Settings
IP Address &
Subnet Mask
Enter the Pepwave router’s IP address and subnet mask values to be used on the LAN.
Network Settings
Name
Enter a name for the LAN.
VLAN ID
Enter a number for your VLAN.
Inter-VLAN
routing
Check this box to enable routing between virtual LANs.
Captive Portal
Check this box to turn on captive portals.
http://www.peplink.com
54
Copyright @ 2017 Pepwave
DHCP Server Settings
DHCP Server
When this setting is enabled, the Pepwave router’s DHCP server automatically assigns an IP address
to each computer that is connected via LAN and configured to obtain an IP address via DHCP. The Pepwave router’s DHCP server can prevent IP address collisions on the LAN.
To enable DHCP bridge relay, please click the icon on this menu item.
IP Range &
Subnet Mask
These settings allocate a range of IP address that will be assigned to LAN computers by the Pepwave
router’s DHCP server.
Lease Time
This setting specifies the length of time throughout which an IP address of a DHCP client remains valid. Upon expiration of Lease Time, the assigned IP address will no longer be valid and the IP address assignment must be renewed.
DNS Servers
This option allows you to input the DNS server addresses to be offered to DHCP clients. If Assign DNS server automatically is selected, the Pepwave router’s built-in DNS server address (i.e., LAN
IP address) will be offered.
WINS Servers
This option allows you to specify the Windows Internet Name Service (WINS) server. You may choose to use the built-in WINS server or external WINS servers. When this unit is connected using SpeedFusionTM, other VPN peers can share this unit's built-in WINS server by entering this unit's LAN IP address in their DHCP WINS Servers setting. Therefore, all PC clients in the VPN can resolve the NetBIOS names of other clients in remote peers. If you have enabled this option, a list of WINS clients will be displayed at Status>WINS Clients.
BOOTP
Check this box to enable BOOTP on older networks that still require it.
Extended DHCP
Option
In addition to standard DHCP options (e.g. DNS server address, gateway address, subnet mask), you can specify the value of additional extended DHCP options, as defined in RFC 2132. With these extended options enabled, you can pass additional configuration information to LAN hosts. To define an extended DHCP option, click the Add button, choose the option to define, and then enter its value. For values that are in IP address list format, you can enter one IP address per line in the provided text area input control. Each option can be defined once only.
DHCP
Reservation
This setting reserves the assignment of fixed IP addresses for a list of computers on the LAN. The computers to be assigned fixed IP addresses on the LAN are identified by their MAC addresses. The fixed IP address assignment is displayed as a cross-reference list between the computers’ names, MAC addresses, and fixed IP addresses. Name (an optional field) allows you to specify a name to represent the device. MAC addresses
should be in the format of 00:AA:BB:CC:DD:EE. Press to create a new record. Press to remove a record. Reserved clients information can be imported from the Client List, located at
Status>Client List. For more details, please refer to Section 22.3.
To configure DHCP relay, first click the button found next to the DHCP Server option to display the settings.
http://www.peplink.com
55
Copyright @ 2017 Pepwave
DHCP Relay Settings
Enable
Check this box to turn on DHCP relay. Click the icon to disable DHCP relay.
DHCP Server IP
Address
Enter the IP addresses of one or two DHCP servers in the provided fields. The DHCP servers entered here will receive relayed DHCP requests from the LAN. For active-passive DHCP server configurations, enter active and passive DHCP server relay IP addresses in DHCP Server 1 and
DHCP Server 2.
DHCP Option 82
DCHP Option 82 includes device information as relay agent for the attached client when forwarding
DHCP requests from client to server. This option also embeds the device’s MAC address and
network name in circuit and remote IDs. Check this box to enable DHCP Option 82.
Once DHCP is set up, configure LAN Physical Settings, Static Route Settings, WINS Server Settings, and DNS Proxy Settings as noted above.
9.2 Port Settings
To configure port settings, navigate to Network > Port Settings
On this screen, you can enable specific ports, as well as determine the speed of the LAN ports, whether each port is a trunk or access port, can well as which VLAN each link belongs to, if any.
http://www.peplink.com
56
Copyright @ 2017 Pepwave
Captive Portal Settings
Enable
Check Enable and then, optionally, select the LANs/VLANs that will use the captive portal.
Hostname
To customize the portal’s form submission and redirection URL, enter a new URL in this field.
To reset the URL to factory settings, click Default.
Access Mode
Click Open Access to allow clients to freely access your router. Click User Authentication to force your clients to authenticate before accessing your router.
RADIUS Server
This authenticates your clients through a RADIUS server. After selecting this option, you will see the following fields:
Fill in the necessary information to complete your connection to the server and enable authentication.
9.3 Captive Portal
The captive portal serves as gateway that clients have to pass if they wish to access the internet using your router. To configure, navigate to Network>LAN>Captive Portal.
http://www.peplink.com
57
Copyright @ 2017 Pepwave
LDAP Server
This authenticates your clients through a LDAP server. Upon selecting this option, you will see the following fields:
Fill in the necessary information to complete your connection to the server and enable authentication.
Access Quota
Set a time and data cap to each user’s Internet usage.
Quota Reset
Time
This menu determines how your usage quota resets. Setting it to Daily will reset it at a specified time every day. Setting a number of minutes after quota reached establish a timer for each user that begins after the quota has been reached.
Allowed
Networks
To whitelist a network, enter the domain name / IP address here and click . To delete an existing network from the list of allowed networks, click the button next to the listing.
Splash Page
Here, you can choose between using the Pepwave router’s built-in captive portal and redirecting clients to a URL you define.
The Portal Customization menu has two options: and . Clicking displays a pop­up previewing the captive portal that your clients will see. Clicking displays the following menu:
http://www.peplink.com
58
Copyright @ 2017 Pepwave
Portal Customization
Logo Image
Click the Choose File button to select a logo to use for the built-in portal.
Message
If you have any additional messages for your users, enter them in this field.
Terms &
Conditions
If you would like to use your own set of terms and conditions, please enter them here. If left empty, the built-in portal will display the default terms and conditions.
Custom
Landing
Page
Fill in this field to redirect clients to an external URL.
http://www.peplink.com
59
Copyright @ 2017 Pepwave
Important Note
Connection details will be changed and become effective immediately after clicking the Save and Apply button.
10 Configuring the WAN Interface(s)
WAN Interface settings are located at Network>WAN. To reorder WAN priority, drag on the appropriate WAN by holding the left mouse button, move it to the desired priority (the first one would be the highest priority, the second one would be lower priority, and so on), and drop it by releasing the mouse button.
To disable a particular WAN connection, drag on the appropriate WAN by holding the left mouse button, move it the Disabled row, and drop it by releasing the mouse button. You can also set priorities on the Dashboard. Click the Details button in the corresponding row to modify the connection setting.
http://www.peplink.com
60
Copyright @ 2017 Pepwave

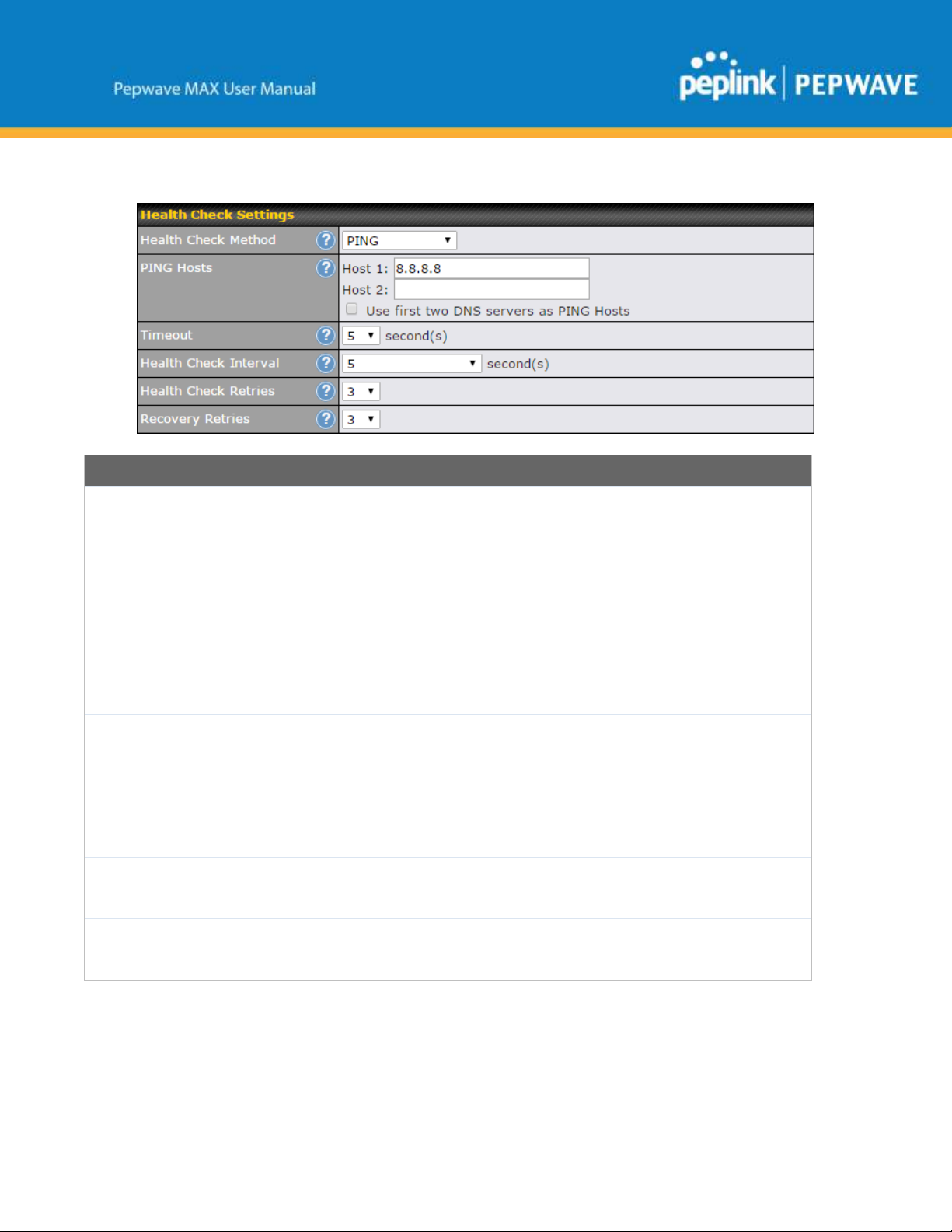

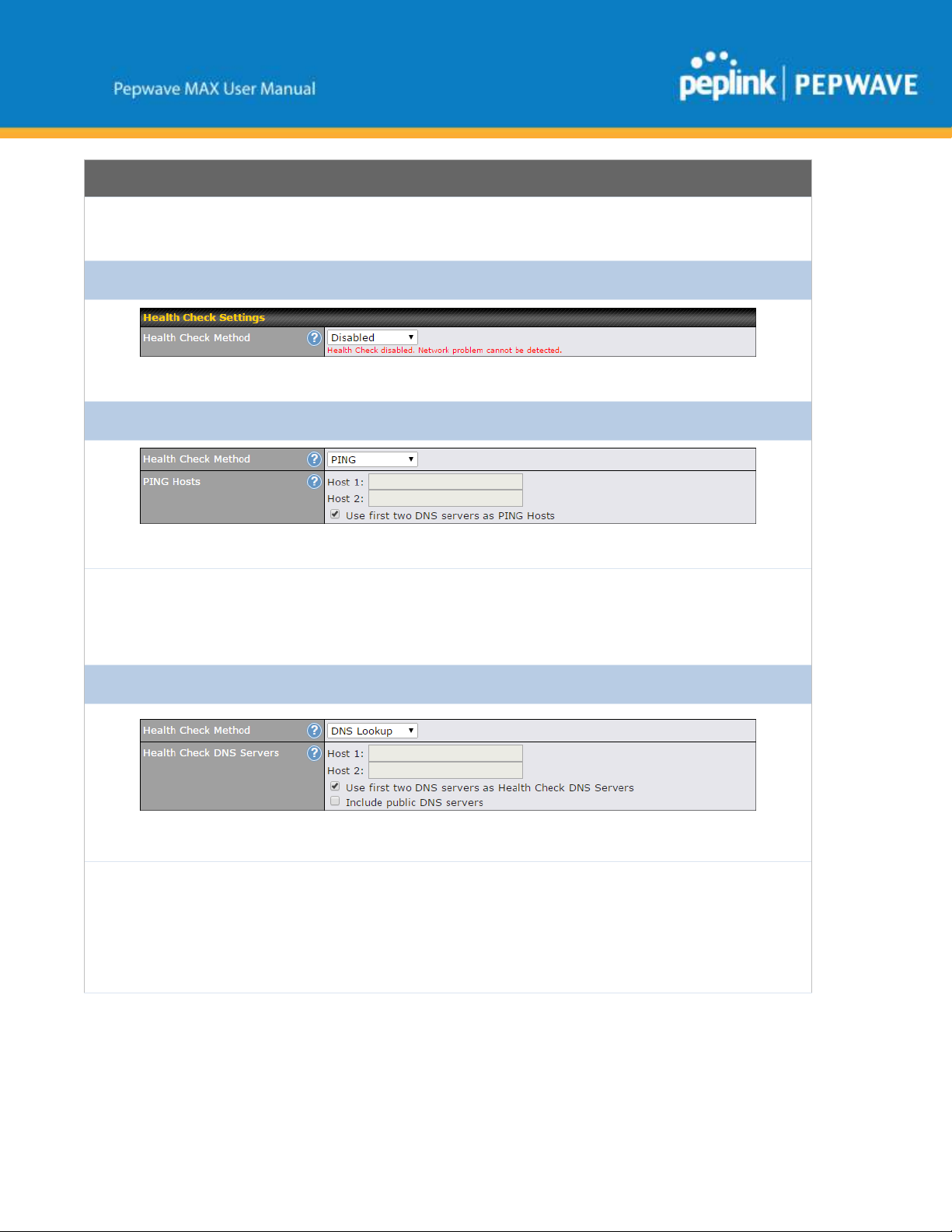

Health Check Settings
Health Check
Method
This field specifies the Health Check method to be used for this WAN connection.
● Disabled - The WAN connection is always considered to be up and will not be treated as down for any IP routing errors.
● PING - ICMP PING packets will be issued to test connectivity with configurable target IP addresses or host names.
● DNS Lookup - DNS lookups will be issued to test the connectivity with configurable target DNS server IP addresses.
● HTTP - HTTP connections will be issued to test the connectivity with configurable URLs and strings to match.
Default: DNS Lookup
PING Hosts
These fields are for specifying the target IP addresses or host names where ICMP Ping packets will be sent to for health check.
If the box Use first two DNS servers as PING Hosts is checked, the first two DNS servers will be the ping targets for checking the connection healthiness. If the box is not checked, the field Host 1 must be filled and the field Host 2 is optional.
The connection is considered to be up if ping responses are received from any one of the ping hosts.
Timeout
If a health check test cannot be completed within the specified amount of time, the test will be treated as failed.
Health Check
Interval
This is the time interval between each health check test.
10.1 Ethernet WAN
http://www.peplink.com
61
Copyright @ 2017 Pepwave
Health Check
Retries
This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries
This is the number of responses required after a health check failure before treating a connection as up again.

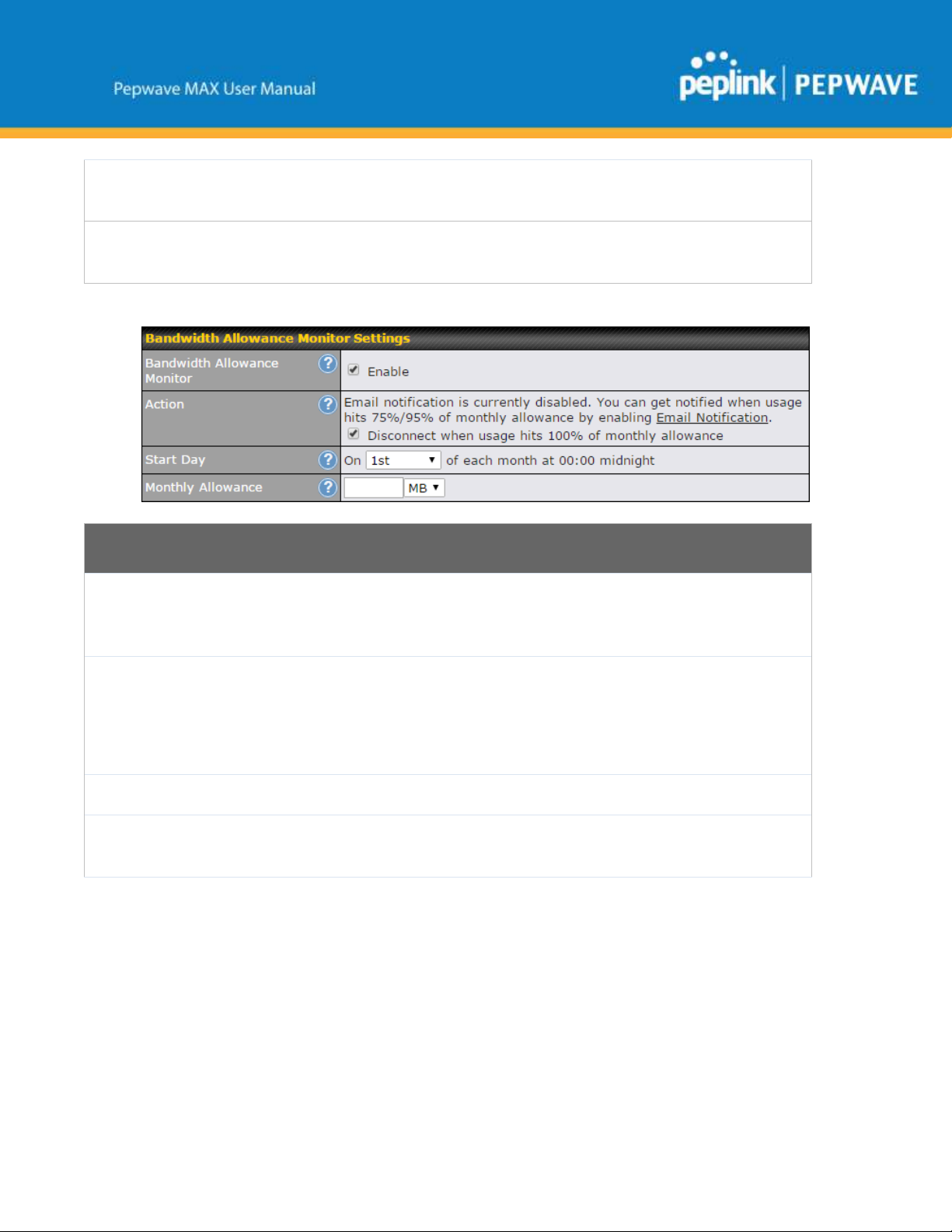

Bandwidth Allowance Monitor Settings
Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN connection for each billing cycle. When this option is not enabled, bandwidth usage of each month is still being tracked but no action will be taken.
Action
If Email Notification is enabled, you will receive an email notification when usage hits 75% and 95% of the monthly allowance.
If the box Disconnect when usage hits 100% of monthly allowance is checked, this WAN connection will be disconnected automatically when the usage hits the monthly allowance. It will not resume unless this option has been turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to select which day of the month a billing cycle starts.
Monthly
Allowance
This field is to specify the bandwidth allowance for each billing cycle.
http://www.peplink.com
62
Copyright @ 2017 Pepwave
Additional Public IP Settings
If you have access to status public IP addresses,, you can assign them on this field.
Dynamic DNS Settings
Dynamic DNS
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
10.1.1 DHCP Connection
There are four possible connection methods:
1. DHCP
2. Static IP
3. PPPoE
http://www.peplink.com
63
Copyright @ 2017 Pepwave
DHCP Connection Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is routable on the destination network. By clicking the help icon in this field, you can display the IP Forwarding option, if your network requires it.
IP Address/ Subnet
Mask/ Default
Gateway
This information is obtained from the ISP automatically.
Hostname
(Optional)
If your service provider's DHCP server requires you to supply a hostname value upon acquiring an IP address, you may enter the value here. If your service provider does not provide you with the value, you can safely bypass this option.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS (Domain Name System) servers to be used when a DNS lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers being assigned by the WAN DHCP server to be used for outbound DNS lookups over the connection. (The DNS servers are obtained along with the WAN IP address assigned from the DHCP server.)
When Use the following DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields.
4. L2TP The DHCP connection method is suitable if the ISP provides an IP address automatically using DHCP
(e.g., satellite modem, WiMAX modem, cable, Metro Ethernet, etc.).
10.1.2 Static IP Connection
The static IP connection method is suitable if your ISP provides a static IP address to connect directly.
http://www.peplink.com
64
Copyright @ 2017 Pepwave
Static IP Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is routable on the destination network. By clicking the help icon in this field, you can display the IP Forwarding option, if your network requires it.
IP Address /
Subnet Mask /
Default
Gateway
These settings allow you to specify the information required in order to communicate on the Internet via a fixed Internet IP address. The information is typically determined by and can be obtained from the ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS (Domain Name System) servers to be used when a DNS lookup is routed through this connection. Selecting Obtain DNS server address automatically results in the DNS servers being assigned by the WAN DHCP server to be used for outbound DNS lookups over the connection. (The DNS servers are obtained along with the WAN IP address assigned from the DHCP server.) When Use the following DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and DNS Server 2 fields.
http://www.peplink.com
65
Copyright @ 2017 Pepwave

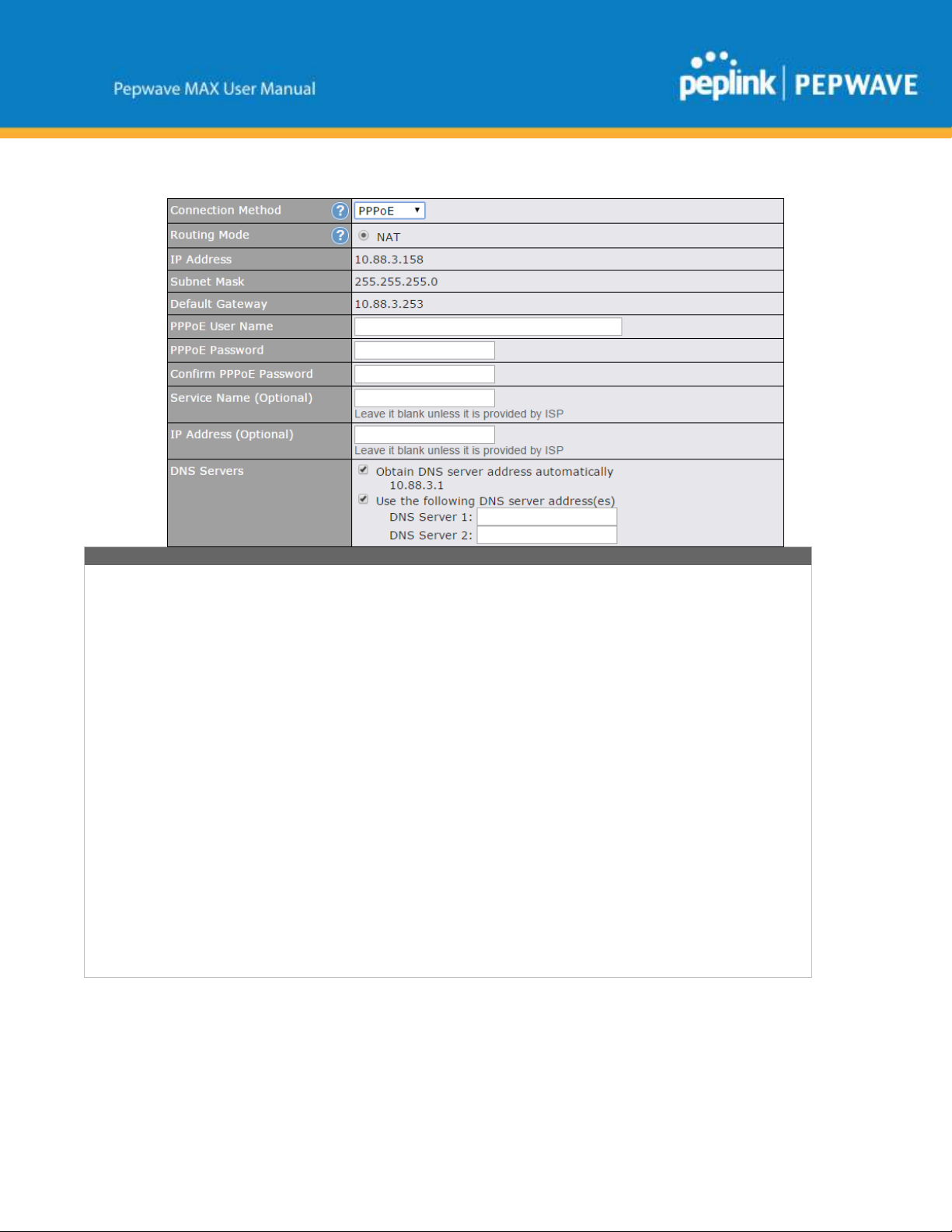

PPPoE Settings
Routing Mode
NAT allows substituting the real address in a packet with a mapped address that is routable on the destination network. By clicking the help icon in this field, you can display the IP Forwarding option, if your network requires it.
IP Address / Subnet
Mask / Default Gateway
This information is obtained from the ISP automatically.
PPPoE User Name /
Password
Enter the required information in these fields in order to connect via PPPoE to the ISP. The parameter values are determined by and can be obtained from the ISP.
Confirm PPPoE
Password
Verify your password by entering it again in this field.
Service Name (Optional)
Service name is provided by the ISP.
Note: Leave this field blank unless it is provided by your ISP.
IP Address (Optional)
If your ISP provides a PPPoE IP address, enter it here.
Note: Leave this field blank unless it is provided by your ISP.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS (Domain Name System) servers to be used when a DNS lookup is routed through this connection. Selecting Obtain DNS server address automatically results in the DNS servers being assigned by the WAN DHCP server to be used for outbound DNS lookups over the connection. (The DNS servers are obtained along with the WAN IP address assigned from the DHCP server.) When Use the following DNS server address(es) is selected, you may enter custom DNS server addresses for this WAN connection into the DNS Server 1 and
DNS Server 2 fields.
10.1.3 PPPoE Connection
This connection method is suitable if your ISP provides a login ID/password to connect via PPPoE.
http://www.peplink.com
66
Copyright @ 2017 Pepwave
L2TP Settings
L2TP User Name /
Password
Enter the required information in these fields in order to connect via L2TP to your ISP. The parameter values are determined by and can be obtained from your ISP.
Confirm L2TP Password
Verify your password by entering it again in this field.
Server IP Address / Host
L2TP server address is a parameter which is provided by your ISP. Note: Leave this field blank unless it is provided by your ISP.
Address Type
Your ISP will also indicate whether the server IP address is Dynamic or Static. Please click the
appropriate value.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS (Domain Name System) servers to be used when a DNS lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned by the PPPoE server to be used for outbound DNS lookups over the WAN connection. (The DNS servers are obtained along with the WAN IP address assigned from the PPPoE server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS server addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
10.1.4 L2TP Connection
L2TP has all the compatibility and convenience of PPTP with greater security. Combine this with IPsec for a good balance between ease of use and security.
http://www.peplink.com
67
Copyright @ 2017 Pepwave
Cellular Status
IMSI
This is the International Mobile Subscriber Identity which uniquely identifies the SIM card. This is applicable to 3G modems only.
MEID
Some Pepwave routers support both HSPA and EV-DO. For Sprint or Verizon Wireless EV-DO users, a unique MEID identifier code (in hexadecimal format) is used by the carrier to associate the EV-DO device with the user. This information is presented in hex and decimal format.
ESN
This serves the same purpose as MEID HEX but uses an older format.
IMEI
This is the unique ID for identifying the modem in GSM/HSPA mode.
10.2 Cellular WAN
To access cellular WAN settings, click Network>WAN>Details. (Available on the Pepwave MAX BR1, HD2, and HD2 IP67 only)
http://www.peplink.com
68
Copyright @ 2017 Pepwave
WAN Connection Settings
WAN Connection
Name
Enter a name to represent this WAN connection.
Operating
Schedule
Click the drop-down menu to apply a time schedule to this interface if needed.
Subnet Selection
Auto: The subnet mask will be set automatically.
Force /31 Subnet: The subnet mask will be set as 255.255.255.254(/31), and the gateway IP address will be recalculated.
Routing Mode
This option allows you to select the routing method to be used in routing IP frames via the WAN connection. The mode can be either NAT (network address translation) or IP Forwarding. Click the
button to enable IP forwarding.
DNS Servers
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS (Domain Name System) servers to be used when a DNS lookup is routed through this connection.
Selecting Obtain DNS server address automatically results in the DNS servers assigned by the PPPoE server to be used for outbound DNS lookups over the WAN connection. (The DNS servers are obtained along with the WAN IP address assigned from the PPPoE server.)
When Use the following DNS server address(es) is selected, you can enter custom DNS server addresses for this WAN connection into the DNS server 1 and DNS server 2 fields.
http://www.peplink.com
69
Copyright @ 2017 Pepwave
http://www.peplink.com
70
Copyright @ 2017 Pepwave
Cellular Settings
SIM Card
Indicate which SIM card this cellular WAN will use. Only applies to cellular WAN with redundant SIM cards.
Preferred SIM
Card
If both cards were enabled on the above field, then you can designate the priority of the SIM card slots here.
3G/2G
This drop-down menu allows restricting cellular to particular band. Click the button to enable the selection of specific bands.
Authentication
Choose from PAP Only or CHAP Only to use those authentication methods exclusively. Select Auto to automatically choose an authentication method.
Data Roaming
This checkbox enables data roaming on this particular SIM card. Please check your service provider’s
data roaming policy before proceeding.
Operator Settings
This setting applies to 3G/EDGE/GPRS modems only. It does not apply to EVDO/EVDO Rev. A modems. This allows you to configure the APN settings of your connection. If Auto is selected, the mobile operator should be detected automatically. The connected device will be configured and connection will be made automatically. If there is any difficulty in making connection, you may select Custom to enter your carrier’s APN, Login, Password, and Dial Number settings manually. The correct values can be obtained from your carrier. The default and recommended setting is Auto.
APN / Login /
Password /
SIM PIN
When Auto is selected, the information in these fields will be filled automatically. Select Custom to customize these parameters. The parameter values are determined by and can be obtained from the ISP.
Bandwidth
Allowance
Monitor
Check the box Enable to enable bandwidth usage monitoring on this WAN connection for each billing cycle. When this option is not enabled, bandwidth usage of each month is still being tracked but no action will be taken.
Action
If email notification is enabled, you will be notified by email when usage hits 75% and 95% of the monthly allowance. If Disconnect when usage hits 100% of monthly allowance is checked, this WAN connection will be disconnected automatically when the usage hits the monthly allowance. It will not resume connection unless this option has been turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN connection each month.
http://www.peplink.com
71
Copyright @ 2017 Pepwave
General Settings
Independent
from Backup
WANs
If this is checked, the connection will be working independent from other Backup WAN connections. Those in Backup Priority will ignore the status of this WAN connection, and will be used when none of the other higher priority connections are available.
Standby State
This option allows you to choose whether to remain connected or disconnected when this WAN connection is no longer in the highest priority and has entered the standby state. When Remain
connected is chosen, bringing up this WAN connection to active makes it immediately available for use.
Idle Disconnect
When Internet traffic is not detected within the user-specified timeframe, the modem will automatically disconnect. Once the traffic is resumed by the LAN host, the connection will be re-activated.
http://www.peplink.com
72
Copyright @ 2017 Pepwave
Health Check Settings
Health Check
Method
This setting allows you to specify the health check method for the cellular connection. Available options are Disabled, Ping, DNS Lookup, HTTP, and SmartCheck. The default method is DNS Lookup. See
Section 10.4 for configuration details.
Timeout
If a health check test cannot be completed within the specified amount of time, the test will be treated as failed.
Health Check
Interval
This is the time interval between each health check test.
Health Check
Retries
This is the number of consecutive check failures before treating a connection as down.
Recovery
Retries
This is the number of responses required after a health check failure before treating a connection as up again.
Dynamic DNS Settings
Dynamic DNS
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature. See Section 9.5 for configuration details.
MTU
MTU
This field is for specifying the Maximum Transmission Unit value of the WAN connection. An excessive MTU value can cause file downloads stall shortly after connected. You may consult your ISP for the connection's MTU value.
http://www.peplink.com
73
Copyright @ 2017 Pepwave
WAN Connection Settings
WAN Connection
Name
Enter a name to represent this WAN connection.
Operating
Schedule
Click the drop-down menu to apply a time schedule to this interface.
Independent from
Backup WANs
If this is checked, the connection will be working independent from other Backup WAN connections. Those in Backup Priority will ignore the status of this WAN connection, and will be used when none of the other higher priority connections are available.
Standby State
This setting specifies the state of the WAN connection while in standby. The available options are
Remain Connected (hot standby) and Disconnect (cold standby).
MTU
This setting specifies the maximum transmission unit. By default, MTU is set to Custom 1440. You may adjust the MTU value by editing the text field. Click Default to restore the default MTU value. Select Auto and the appropriate MTU value will be automatically detected. The auto­detection will run each time the WAN connection establishes
Reply to ICMP
PING
If this setting is disabled, the WAN connection will not respond to ICMP ping requests. By default, this setting is enabled.
10.3 Wi-Fi WAN
To access Wi-Fi WAN settings, click Network>WAN>Details.
http://www.peplink.com
74
Copyright @ 2017 Pepwave
Wi-Fi WAN Settings
Channel Width
Select the channel width for this Wi-Fi WAN. 20MHz will have greater support for older devices using 2.4Ghz, while 40MHz is appropriate for networks with newer devices that connect using 5Ghz
Channel
Selection
Determine whether the channel will be automatically selected. If you select custom, the following table will appear:
Data Rate
Selecting Auto will enable the router to automatically determine the best data rate, while manually selecting a rate will force devices to connect using the fixed rate.
Output Power
If you are setting up a network with many Wi-Fi devices in close proximity, then you can configure
the output power here. Click the “boost” button for additional power. However, with that option
ticked, output power may exced local regulatory limits.
Roaming
Checking this box will enable Wi-Fi roaming. Click the icon for additional options.
Connect to Any Open Mode AP
This option is to specify whether the Wi-Fi WAN will connect to any open mode access points it finds.
Beacon Miss
Counter
This sets the threshold for the number of missed beacons.
http://www.peplink.com
75
Copyright @ 2017 Pepwave
Bandwidth Allowance Monitor
Action
If Error! Reference source not found. is enabled, you will be notified by email when usage hits 75% and 95% of the monthly allowance.
If Disconnect when usage hits 100% of monthly allowance is checked, this WAN connection will be disconnected automatically when the usage hits the monthly allowance. It will not resume connection unless this option has been turned off or the usage has been reset when a new billing cycle starts.
Start Day
This option allows you to define which day of the month each billing cycle begins.
Monthly
Allowance
This field is for defining the maximum bandwidth usage allowed for the WAN connection each month.
http://www.peplink.com
76
Copyright @ 2017 Pepwave
Health Check Settings
Method
This setting specifies the health check method for the WAN connection. This value can be configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS Lookup. For mobile Internet connections, the value of Method can be configured as Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The connection will NOT be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via ICMP ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host will be the first DNS server for the corresponding WAN connection. Reliable ping hosts with a high uptime should be considered. By default, the first two DNS servers of the WAN connection are used as the ping hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS responses are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
This field allows you to specify two DNS hosts’ IP addresses with which connectivity is to be tested
via DNS Lookup. If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS servers
will be the DNS lookup targets for checking a connection's health. If the box is not checked, Host 1 must be filled, while a value for Host 2 is optional.
If Include public DNS servers is selected and no response is received from all specified DNS servers, DNS lookups will also be issued to some public DNS servers. A WAN connection will be
http://www.peplink.com
77
Copyright @ 2017 Pepwave
treated as down only if there is also no response received from the public DNS servers. Connections will be considered as up if DNS responses are received from any one of the health
check DNS servers, regardless of a positive or negative result. By default, the first two DNS servers of the WAN connection are used as the health check DNS servers.
Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match is left blank, a health check will pass if the HTTP return code is between 200 and 299 (Note: HTTP redirection codes 301 or 302 are treated as failures). When String to Match is filled, a health check will pass if the HTTP return code is between 200 and 299 and if the HTTP response content contains the string.
URL 2
WAN Settings>WAN Edit>Health Check Settings>URL2 If URL2 is also provided, a health check will pass if either one of the tests passed.
Other Health Check Settings
Timeout
This setting specifies the timeout in seconds for ping/DNS lookup requests. The default timeout is 5 seconds.
Health Check
Interval
This setting specifies the time interval in seconds between ping or DNS lookup requests. The default health check interval is 5 seconds.
Health Check
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the Peplink
http://www.peplink.com
78
Copyright @ 2017 Pepwave
Retries
Balance will treat the corresponding WAN connection as down. Default health retries is set to 3. Using the default Health Retries setting of 3, the corresponding WAN connection will be treated as down after three consecutive timeouts.
Recovery Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses that must be received before the Peplink Balance treats a previously down WAN connection as up again. By default, Recover Retries is set to 3. Using the default setting, a WAN connection that is treated as down will be considered as up again upon receiving three consecutive successful ping/DNS lookup responses.
Dynamic DNS Settings
Service Provider
This setting specifies the dynamic DNS service provider to be used for the WAN. Supported providers are:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
Select Disabled to disable this feature.
User ID / User /
Email
This setting specifies the registered user name for the dynamic DNS service.
Password / Pass /
TZO Key
This setting specifies the password for the dynamic DNS service.
Update All Hosts
Check this box to automatically update all hosts.
Hosts / Domain
This setting specifies a list of hostnames or domains to be associated with the public Internet IP address of the WAN connection.
http://www.peplink.com
79
Copyright @ 2017 Pepwave
Important Note
In order to use dynamic DNS services, appropriate hostname registration(s), as well as a valid account with a supported dynamic DNS service provider, are required.
A dynamic DNS update is performed whenever a WAN’s IP address is changed, such as when an IP is changed after a DHCP
IP refresh or reconnection.
Due to dynamic DNS service providers’ policies, a dynamic DNS host expires automatically when the host record has not been not updated for a long time. Therefore, the Peplink Balance performs an update every 23 days, even if a WAN’s IP address did
not change.
10.3.1 Creating Wi-Fi Connection Profiles
You can manually create a profile to connect to a Wi-Fi connection. This is useful for creating a profile for connecting to hidden-SSID access points. Click Network>WAN>Details>Create Profile… to get started.
This will open a window similar to the one shown below
http://www.peplink.com
80
Copyright @ 2017 Pepwave
Wi-Fi Connection Profile Settings
Type
Select whether the network will connect automatically or manually.
Network Name
(SSID)
Enter a name to represent this Wi-Fi connection.

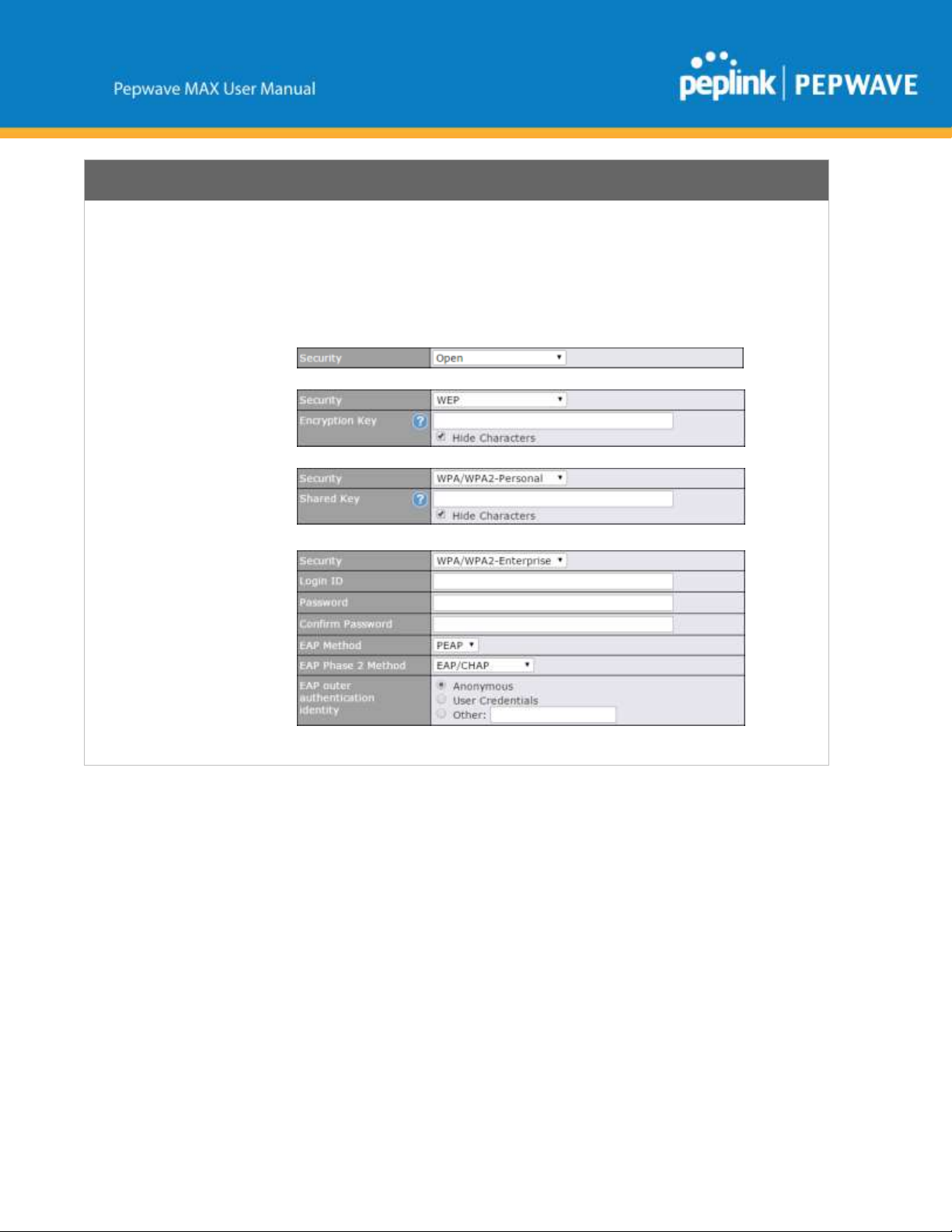

Security
This option allows you to select which security policy is used for this wireless network. Available options:
● Open
● WEP
● WPA/WPA2 – Personal
● WPA/WPA2 – Enterprise
10.4 WAN Health Check
To ensure traffic is routed to healthy WAN connections only, the Pepwave router can periodically check the health of each WAN connection. The health check settings for each WAN connection can be independently configured via Network>WAN>Details.
http://www.peplink.com
81
Copyright @ 2017 Pepwave
Health Check Settings
Method
This setting specifies the health check method for the WAN connection. This value can be configured as Disabled, PING, DNS Lookup, or HTTP. The default method is DNS Lookup. For mobile Internet connections, the value of Method can be configured as Disabled or SmartCheck.
Health Check Disabled
When Disabled is chosen in the Method field, the WAN connection will always be considered as up. The connection will NOT be treated as down in the event of IP routing errors.
Health Check Method: PING
ICMP ping packets will be issued to test the connectivity with a configurable target IP address or hostname. A WAN connection is considered as up if ping responses are received from either one or both of the ping hosts.
PING Hosts
This setting specifies IP addresses or hostnames with which connectivity is to be tested via ICMP ping. If Use first two DNS servers as Ping Hosts is checked, the target ping host will be the first DNS server for the corresponding WAN connection. Reliable ping hosts with a high uptime should be considered. By default, the first two DNS servers of the WAN connection are used as the ping hosts.
Health Check Method: DNS Lookup
DNS lookups will be issued to test connectivity with target DNS servers. The connection will be treated as up if DNS responses are received from one or both of the servers, regardless of whether the result was positive or negative.
Health Check
DNS Servers
This field allows you to specify two DNS hosts’ IP addresses with which connectivity is to be tested via DNS lookup. If Use first two DNS servers as Health Check DNS Servers is checked, the first two DNS servers will be the DNS lookup targets for checking a connection's health. If the box is not checked, Host 1 must be filled, while a value for Host 2 is optional. If Include public DNS servers is selected and no response is received from all specified DNS servers, DNS lookups will also be issued to some public DNS servers. A WAN connection will be treated as down only if there is also no response received from the public DNS servers. Connections will be considered as up if DNS responses are received from any one of the health check DNS servers, regardless of a positive or negative result. By default, the first two DNS servers
http://www.peplink.com
82
Copyright @ 2017 Pepwave
of the WAN connection are used as the health check DNS servers.
Health Check Method: HTTP
HTTP connections will be issued to test connectivity with configurable URLs and strings to match.
URL1
WAN Settings>WAN Edit>Health Check Settings>URL1
The URL will be retrieved when performing an HTTP health check. When String to Match is left blank, a health check will pass if the HTTP return code is between 200 and 299 (Note: HTTP redirection codes 301 or 302 are treated as failures). When String to Match is filled, a health check will pass if the HTTP return code is between 200 and 299 and if the HTTP response content contains the string.
URL 2
WAN Settings>WAN Edit>Health Check Settings>URL2 If URL2 is also provided, a health check will pass if either one of the tests passed.
Other Health Check Settings
Timeout
This setting specifies the timeout in seconds for ping/DNS lookup requests. The default timeout is 5 seconds.
Health Check
Interval
This setting specifies the time interval in seconds between ping or DNS lookup requests. The default health check interval is 5 seconds.
Health Check
Retries
This setting specifies the number of consecutive ping/DNS lookup timeouts after which the Pepwave router will treat the corresponding WAN connection as down. Default health retries is set to 3. Using the default Health Retries setting of 3, the corresponding WAN connection will be treated as down after three consecutive timeouts.
Recovery Retries
This setting specifies the number of consecutive successful ping/DNS lookup responses that must be received before the Pepwave router treats a previously down WAN connection as up again. By default, Recover Retries is set to 3. Using the default setting, a WAN connection that is treated as down will be considered as up again upon receiving three consecutive successful ping/DNS lookup responses.
http://www.peplink.com
83
Copyright @ 2017 Pepwave
Automatic Public DNS Server Check on DNS Test Failure
When the health check method is set to DNS Lookup and health checks fail, the Pepwave router will automatically perform DNS lookups on public DNS servers. If the tests are successful, the WAN may not be down, but rather the target DNS server malfunctioned. You will see the following warning message on the main page:
10.5 Dynamic DNS Settings
Pepwave routers are capable of registering the domain name relationships to dynamic DNS service providers. Through registration with dynamic DNS service provider(s), the default public Internet IP address of each WAN connection can be associated with a host name. With dynamic DNS service enabled for a WAN connection, you can connect to your WAN's IP address from the external, even if its IP address is dynamic. You must register for an account from the listed dynamic DNS service providers before enabling this option.
If the WAN connection's IP address is a reserved private IP address (i.e., behind a NAT router), the public IP of each WAN will be automatically reported to the DNS service provider.
Either upon a change in IP addresses or every 23 days without link reconnection, the Pepwave router
will connect to the dynamic DNS service provider to perform an IP address update within the provider’s
records.
The settings for dynamic DNS service provider(s) and the association of hostname(s) are configured via Network>WAN>Details>Dynamic DNS Service Provider/Dynamic DNS Settings.
http://www.peplink.com
84
Copyright @ 2017 Pepwave
Dynamic DNS Settings
Dynamic DNS
This setting specifies the dynamic DNS service provider to be used for the WAN based on supported dynamic DNS service providers:
● changeip.com
● dyndns.org
● no-ip.org
● tzo.com
● DNS-O-Matic
● Others…
Support custom Dynamic DNS servers by entering its URL. Works with any service compatible with DynDNS API.
Select Disabled to disable this feature.
Account Name /
Email Address
This setting specifies the registered user name for the dynamic DNS service.
Password / TZO
Key
This setting specifies the password for the dynamic DNS service.
Hosts / Domain
This field allows you to specify a list of host names or domains to be associated with the public Internet IP address of the WAN connection. If you need to enter more than one host, use a carriage return to separate them.
Important Note
In order to use dynamic DNS services, appropriate host name registration(s) and a valid account with a supported dynamic
DNS service provider are required. A dynamic DNS update is performed whenever a WAN’s IP address changes (e.g., the IP is changed after a DHCP IP refresh, reconnection, etc.). Due to dynamic DNS service providers’ policy, a dynamic DNS host
will automatically expire if the host record has not been updated for a long time. Therefore the Pepwave router performs an
update every 23 days, even if a WAN’s IP address has not changed.
http://www.peplink.com
85
Copyright @ 2017 Pepwave
AP Settings
SSID
You can select the wireless networks for 2.4 GHz or 5 GHz seperately for each SSID.
Operating
Country
This drop-down menu specifies the national/regional regulations which the Wi-Fi radio should follow.
● If a North American region is selected, RF channels 1 to 11 will be available and the maximum transmission power will be 26 dBm (400 mW).
● If European region is selected, RF channels 1 to 13 will be available. The maximum transmission power will be 20 dBm (100 mW).
NOTE: Users are required to choose an option suitable to local laws and regulations.
Preferred
Frequency
Indicate the preferred frequency to use for clients to connect.
Important Note
Per FCC regulation, the country selection is not available on all models marketed in the US. All US models are fixed to US channels only.
11 Advanced Wi-Fi Settings
Wi-Fi settings can be configured at Advanced>Wi-Fi Settings (or AP>Settings on some models). Note that menus displayed can vary by model.
http://www.peplink.com
86
Copyright @ 2017 Pepwave
AP Settings (part 2)
Protocol
This option allows you to specify whether 802.11b and/or 802.11g client association requests will be accepted. Available options are 802.11ng and 802.11na. By default, 802.11ng is selected.
Channel Width
Available options are 20 MHz, 40 MHz, and Auto (20/40 MHz) . Default is Auto (20/40 MHz), which allows both widths to be used simultaneously.
Channel
This option allows you to select which 802.11 RF channel will be utilized. Channel 1 (2.412 GHz) is selected by default.
Auto Channel
Update
Indicate the time of day at which update automatic channel selection.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4 relative power levels available – Max, High, Mid, and Low. The actual output power will be bound by the regulatory limits of the selected country.
Client Signal
Strength
Threshold
This setting determines the maximum strength at which the Wi-Fi AP can broadcast
Maximum
number of clients
This setting determines the maximum number of clients that can connect to this Wi-Fi frequency.
Advanced Wi-Fi AP settings can be displayed by clicking the on the top right-hand corner of the Wi- Fi AP Settings section, which can be found at AP>Settings. Other models will display a separate section called Wi-Fi AP Advanced Settings, which can be found at Advanced>Wi-Fi Settings.
http://www.peplink.com
87
Copyright @ 2017 Pepwave
Advanced AP Settings
Management VLAN ID
This field specifies the VLAN ID to tag to management traffic, such as communication traffic between the AP and the AP Controller. The value is zero by default, which means that no VLAN tagging will be applied. NOTE: Change this value with caution as alterations may result in loss of connection to the AP Controller.
Operating Schedule
Choose from the schedules that you have defined in System>Schedule. Select the schedule for the integrated AP to follow from the drop-down menu.
Beacon Rate A
This option is for setting the transmit bit rate for sending a beacon. By default, 1Mbps is selected.
Beacon Interval A
This option is for setting the time interval between each beacon. By default, 100ms is selected.
DTIM A
This field allows you to set the frequency for the beacon to include delivery traffic indication messages. The interval is measured in milliseconds. The default value is set to 1 ms.
RTS Threshold A
The RTS (Request to Clear) threshold determines the level of connection required before the AP starts sending data. The recommended standard of the RTS threshold is around 500.
Fragmentation
Threshold A
This setting determines the maximum size of a packet before it gets fragmented into multiple pieces.
Distance / Time
Convertor
Select the range you wish to cover with your Wi-Fi, and the router will make recommendations for the Slot Time and ACK Timeout.
Slot Time
A
This field is for specifying the unit wait time before transmitting a packet. By default, this field is set to 9 µs.
ACK Timeout
A
This field is for setting the wait time to receive an acknowledgement packet before performing a retransmission. By default, this field is set to 48 µs.
Frame Aggregation
A
This option allows you to enable frame aggregation to increase transmission throughput.
A
- Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
88
Copyright @ 2017 Pepwave
Web Administration Settings
Enable
Ticking this box enables web admin access for APs located on the WAN.
Web Access
Protocol
Determines whether the web admin portal can be accessed thorugh HTTP or HTTPS
Management Port
Determines the port at which the management UI can be accessed.
Admin Username
Determines the username to be used for logging into the web admin portal
Admin Password
Determines the password for the web admin portal on external AP.
Wi-Fi WAN Settings
Channel Width
Available options are 20/40 MHz and 20 MHz. Default is 20/40 MHz, which allows both widths to be used simultaneously.
Bit Rate
This option allows you to select a specific bit rate for data transfer over the device’s Wi-Fi network. By default, Auto is selected.
Output Power
This option is for specifying the transmission output power for the Wi-Fi AP. There are 4 relative power levels available – Max, High, Mid, and Low. The actual output power will be bound by the regulatory limits of the selected country. Note that selecting the Boost option may cause the MAX’s radio output to exceed local regulatory limits.
Wi-Fi WAN settings can be configured at Advanced>Wi-Fi Settings (or Advanced>Wi-Fi WAN or some models).
http://www.peplink.com
89
Copyright @ 2017 Pepwave
Cache Control Settings
Domain
Choose to Cache on all domains, or enter domain names and then choose either Cache the specified domains only or Do not cache the specified domains.
Source IP Subnet
This setting allows caching to be applied to the user-specified IP subnets. If "Any" is selected, then caching will apply to all subnets.
Content Type
Check these boxes to cache the listed content types or leave boxes unchecked to disable caching for the listed types.
Cache Lifetime
Settings
Enter a file extension, such as JPG or DOC. Then enter a lifetime in days to specify how long files with that extension will be cached. Add or delete entries using the controls on the right.
12 MediaFast Configuration
MediaFast settings can be configured from the Network menu.
12.1 Setting Up MediaFast Content Caching
To access MediaFast content caching settings, select Advanced>Cache Control
http://www.peplink.com
90
Copyright @ 2017 Pepwave
Prefetch Schedule Settings
Name
This field displays the name given to the scheduled download.
Status
Check the status of your scheduled download here.
Next Run
Time/Last Run
Time
These fields display the date and time of the next and most recent occurrences of the scheduled download.
Last Duration
Check this field to ensure that the most recent download took as long as expected to complete. A value that is too low might indicate an incomplete download or incorrectly specified download target, while a value that is too long could mean a download with an incorrectly specified target or stop time.
Result
This field indicates whether downloads are in progress ( ) or complete ( ).
Last Download
Check this field to ensure that the most recent download file size is within the expected range. A value that is too low might indicate an incomplete download or incorrectly specified download target, while a value that is too long could mean a download with an incorrectly specified target or stop time. This field is also useful for quickly seeing which downloads are consuming the most storage space.
Actions
To begin a scheduled download immediately, click .
12.2 Scheduling Content Prefetching
Content prefetching allows you to download content on a schedule that you define, which can help to preserve network bandwidth during busy times and keep costs down. To access MediaFast content prefetching settings, select Advanced >Prefetch Schedule.
http://www.peplink.com
91
Copyright @ 2017 Pepwave
To cancel a scheduled download, click . To edit a scheduled download, click . To delete a scheduled download, click .
New Schedule
Click to begin creating a new scheduled download. Clicking the button will cause the following screen to appear:
Simply provide the requested information to create your schedule.
Clear Web Cache
To clear all cached content, click this button. Note that this action cannot be undone.
Clear Statistics
To clear all prefetch and status page statistics, click this button.
http://www.peplink.com
92
Copyright @ 2017 Pepwave

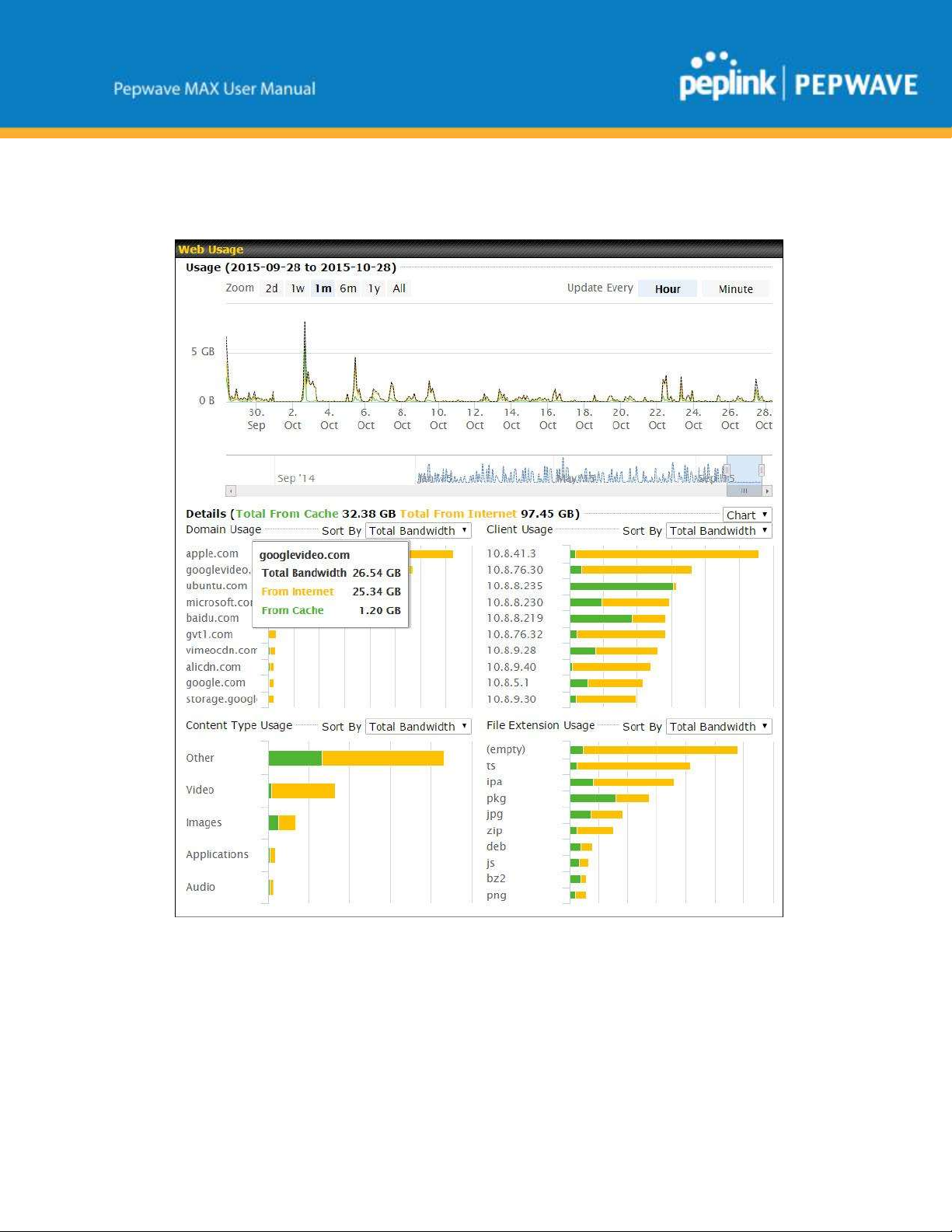

12.3 Viewing MediaFast Statistics
To get details on storage and bandwidth usage, select Status>MediaFast.
http://www.peplink.com
93
Copyright @ 2017 Pepwave
13 Bandwidth Bonding SpeedFusion
Pepwave bandwidth bonding SpeedFusionTM is our patented technology that enables our SD-WAN routers to bond multiple Internet connections to increase site-to-site bandwidth and reliability. SpeedFusion functionality securely connects your Pepwave router to another Pepwave or Peplink device (Peplink Balance 210/310/380/580/710/1350 only). Data, voice, or video communications between these locations are kept confidential across the public Internet.
Bandwidth bonding SpeedFusionTM is specifically designed for multi-WAN environments. In case of failures and network congestion at one or more WANs, other WANs can be used to continue carrying the network traffic.
Different models of our SD-WAN routers have different numbers of site-to-site connections allowed. End-users who need to have more site-to-site connections can purchase a SpeedFusion license to increase the number of site-to-site connections allowed.
Pepwave routers can aggregate all WAN connections’ bandwidth for routing SpeedFusion Unless all the WAN connections of one site are down, Pepwave routers can keep the VPN up and running.
TM
/ PepVPN
TM
traffic.
VPN bandwidth bonding is supported in Firmware 5.1 or above. All available bandwidth will be utilized to establish the VPN tunnel, and all traffic will be load balanced at packet level across all links. VPN bandwidth bonding is enabled by default.
13.1 PepVPN
To configure PepVPN and SpeedFusion, navigate to Advanced>SpeedFusion™ or Advanced>PepVPN.
http://www.peplink.com
94
Copyright @ 2017 Pepwave
The local LAN subnet and subnets behind the LAN (defined under Static Route on the LAN settings page) will be advertised to the VPN. All VPN members (branch offices and headquarters) will be able to route to local subnets. Note that all LAN subnets and the subnets behind them must be unique. Otherwise, VPN members will not be able to access each other.
All data can be routed over the VPN using the 256-bit AES encryption standard. To configure, navigate to Advanced>SpeedFusion™ or Advanced>PepVPN and click the New Profile button to create a new VPN profile (you may have to first save the displayed default profile in order to acesss the New Profile button). Each profile specifies the settings for making VPN connection with one remote Pepwave or Peplink device. Note that available settings vary by model.
A list of defined SpeedFusion connection profiles and a Link Failure Detection Time option will be shown. Click the New Profile button to create a new VPN connection profile for making a VPN connection to a remote Peplink Balance via the available WAN connections. Each profile is for making a VPN connection with one remote Peplink Balance.
http://www.peplink.com
95
Copyright @ 2017 Pepwave
PepVPN Profile Settings
Name
This field is for specifying a name to represent this profile. The name can be any combination of alphanumeric characters (0-9, A-Z, a-z), underscores (_), dashes (-), and/or non-leading/trailing spaces ( ).
Active
When this box is checked, this VPN connection profile will be enabled. Otherwise, it will be disabled.
Encryption
By default, VPN traffic is encrypted with 256-bit AES. If Off is selected on both sides of a VPN connection, no encryption will be applied.
Authentication
Select from By Remote ID Only, Preshared Key, or X.509 to specify the method the Peplink Balance will use to authenticate peers. When selecting By Remote ID Only, be sure to enter a unique peer ID number in the Remote ID field.
Remote ID /
Pre-shared Key
This optional field becomes available when Remote ID / Pre-shared Key is selected as the Peplink Balance’s VPN Authentication method, as explained above. Pre-shared Key defines the pre-shared key used for this particular VPN connection. The VPN connection's session key will be further protected by the pre-shared key. The connection will be up only if the pre-shared keys on each side match. When the peer is running firmware 5.0+, this setting will be ignored.
Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by pasting a CSV. If
http://www.peplink.com
96
Copyright @ 2017 Pepwave
you wish to paste a CSV, click the icon next to the “Remote ID / Preshared Key” setting.
Remote
ID/Remote
Certificate
These optional fields become available when X.509 is selected as the Peplink Balance’s VPN authentication method, as explained above. To authenticate VPN connections using X.509 certificates, copy and paste certificate details into these fields. To get more information on a listed X.509 certificate, click the Show Details link below the field.
Allow Shared
Remote ID
When this option is enabled, the router will allow multiple peers to run using the same remote ID.
NAT Mode
Check this box to allow the local DHCP server to assign an IP address to the remote peer. When NAT Mode is enabled, all remote traffic over the VPN will be tagged with the assigned IP address using network address translation.
Remote IP
Address / Host
Names
(Optional)
If NAT Mode is not enabled, you can enter a remote peer’s WAN IP address or hostname(s) here. If the remote uses more than one address, enter only one of them here. Multiple hostnames are allowed and can be separated by a space character or carriage return. Dynamic-DNS host names are also accepted.
This field is optional. With this field filled, the Peplink Balance will initiate connection to each of the remote IP addresses until it succeeds in making a connection. If the field is empty, the Peplink Balance will wait for connection from the remote peer. Therefore, at least one of the two VPN peers must specify this value. Otherwise, VPN connections cannot be established.
Cost
Define path cost for this profile. OSPF will determine the best route through the network using the assigned cost. Default: 10
Data Port
This field is used to specify a UDP port number for transporting outgoing VPN data. If Default is selected, UDP port 4500 will be used. Port 32015 will be used if the remote unit uses Firmware prior to version 5.4 or if port 4500 is unavailable. If Custom is selected, enter an outgoing port number from 1 to 65535.
Bandwidth Limit
Define maximum download and upload speed to each individual peer. This functionality requires the peer to use PepVPN version 4.0.0 or above.
Cost
Define path cost for this profile. OSPF will determine the best route through the network using the assigned cost.
Default: 10
WAN
SmoothingA
Select the degree to which WAN Smoothing will be implemented across your WAN links.
Use IP ToS
Checking this button enables the use of IP ToS header field.
Latency
Difference Cutoff
Traffic will be stopped for links that exceed the specified millisecond value with respect to the lowest latency link. (e.g. Lowest latency is 100ms, a value of 500ms means links with latency 600ms or more will not be used)
http://www.peplink.com
97
Copyright @ 2017 Pepwave
WAN Connection Priority
WAN
Connection
Priority
If your device supports it, you can specify the priority of WAN connections to be used for making VPN connections. WAN connections set to OFF will never be used. Only available WAN connections with the highest priority will be used.
To enable asymmetric connections, connection mapping to remote WANs, cut-off latency, and packet loss suspension time, click the button.
Send All Traffic To
This feature allows you to redirect all traffic to a specified PepVPN connection. Click the button to select your connection and the following menu will appear:
A
- Advanced feature, please click the button on the top right-hand corner to activate.
To enable Layer 2 Bridging between PepVPN profiles, navigate to Network>LAN>Basic
Settings>*LAN Profile Name* and refer to instructions in section 9.1
8.41
http://www.peplink.com
98
Copyright @ 2017 Pepwave
You could also specify a DNS server to resolve incoming DNS requests. Click the checkbox next to Backup Site to designate a backup SpeedFusion profile that will take over, should the main PepVPN connection fail.
Outbound Policy/PepVPN Outbound Custom Rules
Some models allow you to set outbound policy and custom outbound rules from Advanced>PepVPN. See Section 14 for more information on outbound policy settings.
PepVPN Local ID
The local ID is a text string to identify this local unit when establishing a VPN connection. When creating a profile on a remote unit, this local ID must be entered in the remote unit's Remote ID field. Click the icon to edit Local ID.
PepVPN Settings
Handshake PortA
To designate a custom handshake port (TCP), click the custom radio button and enter the port number you wish to designate.
http://www.peplink.com
99
Copyright @ 2017 Pepwave
Backward
Compatibility
Determine the level of backward compatibility needed for PepVPN tunnels. The use of the Latest setting is recommended as it will improve the performance and resilience of SpeedFusion connections.
Link Failure
Detection Time
The bonded VPN can detect routing failures on the path between two sites over each WAN connection. Failed WAN connections will not be used to route VPN traffic. Health check packets are sent to the remote unit to detect any failure. The more frequently checks are sent, the shorter the detection time, although more bandwidth will be consumed. When Recommended (default) is selected, a health check packet is sent every five seconds, and the expected detection time is 15 seconds. When Fast is selected, a health check packet is sent every three seconds, and the expected detection time is six seconds. When Faster is selected, a health check packet is sent every second, and the expected detection time is two seconds. When Extreme is selected, a health check packet is sent every 0.1 second, and the expected detection time is less than one second.
Important Note
Peplink proprietary SpeedFusionTM uses TCP port 32015 and UDP port 4500 for establishing VPN connections. If you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols to allow inbound and outbound traffic to pass through the firewall.
Tip
Want to know more about VPN sub-second session failover? Visit our YouTube Channel for a video tutorial!
http://youtu.be/TLQgdpPSY88
A
- Advanced feature, please click the button on the top right-hand corner to activate.
http://www.peplink.com
100
Copyright @ 2017 Pepwave
13.2 The Pepwave Router Behind a NAT Router
Pepwave routers support establishing SpeedFusionTM over WAN connections which are behind a NAT (network address translation) router.
To enable a WAN connection behind a NAT router to accept VPN connections, you can configure the NAT router in front of the WAN connection to inbound port-forward TCP port 32015 to the Pepwave router.
If one or more WAN connections on Unit A can accept VPN connections (by means of port forwarding or not), while none of the WAN connections on the peer Unit B can do so, you should enter all of Unit A’s public IP addresses or hostnames into Unit B’s Remote IP Addresses / Host Names field. Leave the field in Unit A blank. With this setting, a SpeedFusion connections on both sides will be utilized.
See the following diagram for an example of this setup in use:
TM
connection can be set up and all WAN
One of the WANs connected to Router A is non-NAT’d (212.1.1.1). The rest of the WANs connected to
Router A and all WANs connected to Router B are NAT’d. In this case, the Peer IP Addresses / Host Names field for Router B should be filled with all of Router A’s hostnames or public IP addresses (i.e.,
212.1.1.1, 212.2.2.2, and 212.3.3.3), and the field in Router A can be left blank. The two NAT routers on WAN1 and WAN3 connected to Router A should inbound port-forward TCP port 32015 to Router A so that all WANs will be utilized in establishing the VPN.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
