Pismolabs Technology P1021LTE User Manual

Starting from Firmware 5.2, outbound traffic can be prioritized to go through SpeedFusion

connection(s). By default, VPN connections are not included in the priority list.

Tip

Configure multiple distribution rules to accommodate different kinds of services.

14.2.5 Algorithm: Overflow

The traffic matching this rule will be routed through the healthy WAN connection that has the highest priority and is not in full load. When this connection gets saturated, new sessions will be routed to the next healthy WAN connection that is not in full load.

Drag and drop to specify the order of WAN connections to be used for routing traffic. Only the highest priority healthy connection that is not in full load will be used.

14.2.6 Algorithm: Least Used

The traffic matching this rule will be routed through the healthy WAN connection that is selected in Connection and has the most available download bandwidth. The available download bandwidth of a WAN connection is calculated from the total download bandwidth specified on the WAN settings page and the current download usage. The available bandwidth and WAN selection is determined every time an IP session is made.

http://www.peplink.com 92 Copyright @ 2019 Pepxim

14.2.7 Algorithm: Lowest Latency

The traffic matching this rule will be routed through the healthy WAN connection that is selected in Connection and has the lowest latency. Latency checking packets are issued periodically to a nearby router of each WAN connection to determine its latency value. The latency of a WAN is the packet round trip time of the WAN connection. Additional network usage may be incurred as a result.

Tip

The roundtrip time of a 6M down/640k uplink can be higher than that of a 2M down/2M up link because the overall round trip time is lengthened by its slower upload bandwidth, despite its higher downlink speed. Therefore, this algorithm is good for two scenarios:

˗ All WAN connections are symmetric; or ˗ A latency sensitive application must be routed through the lowest latency WAN, regardless of the WAN’s

available bandwidth.

14.2.8 Expert Mode Expert Mode is available on some Pepwave routers for use by

advanced users. To enable the feature, click on the help icon and click turn on Expert Modeį

In Expert Mode, a new special rule, SpeedFusion

Routes, is

displayed in the Custom Rules table. This rule represents all SpeedFusion

routes learned from remote VPN peers. By default, this bar is on the top of all custom rules. This position means that traffic for remote VPN subnets will be routed to the corresponding VPN peer. You can create custom Priority or Enforced rules and move them above the bar to override the SpeedFusion

routes.

Upon disabling Expert Mode, all rules above the bar will be removed.

http://www.peplink.com 93 Copyright @ 2019 Pepxim

Port Forwarding Settings

Enable

15 Inbound Access

15.1 Port Forwarding Service

Pepwave routers can act as a firewall that blocks, by default, all inbound access from the Internet. By using port forwarding, Internet users can access servers behind the Pepwave router. Inbound port forwarding rules can be defined at Advanced>Port Forwarding.

To define a new service, click Add Service.

http://www.peplink.com 94 Copyright @ 2019 Pepxim

This setting specifies whether the inbound service takes effect. When Enable is checked, the

Name

setting.

inbound service takes effect: traffic is matched and actions are taken by the Pepwave router based on the other parameters of the rule. When this setting is disabled, the inbound service does not take effect: the Pepwave router disregards the other parameters of the rule.

Service

IP Protocol

Port

This setting identifies the service to the system administrator. Valid values for this setting consist of only alphanumeric and underscore “_” characters.

The IP Protocol setting, along with the Port setting, specifies the protocol of the service as TCP, UDP, ICMP, or IP. Traffic that is received by the Pepwave router via the specified protocol at the specified port(s) is forwarded to the LAN hosts specified by the Servers setting. Please see below for details on the Port and Servers settings. Alternatively, the Protocol Selection Tool drop-down menu can be used to automatically fill in the protocol and a single port number of common Internet services (e.g. HTTP, HTTPS, etc.). After selecting an item from the Protocol Selection Tool drop-down menu, the protocol and port number remain manually modifiable.

The Port setting specifies the port(s) that correspond to the service, and can be configured to behave in one of the following manners:

Any Port, Single Port, Port Range, Port Map, and Range Mapping

Any Port: all traffic that is received by the Pepwave router via the specified protocol is forwarded to the servers specified by the Servers setting. For example, with IP Protocol set to TCP, and Port set to Any Port, all TCP traffic is forwarded to the configured servers.

Single Port: traffic that is received by the Pepwave router via the specified protocol at the

specified port is forwarded via the same port to the servers specified by the Servers setting. For example, with IP Protocol set to TCP, and Port set to Single Port and Service Port 80, TCP traffic received on port 80 is forwarded to the configured servers via port 80.

Port Range: traffic that is received by the Pepwave router via the specified protocol at the specified port range is forwarded via the same respective ports to the LAN hosts specified by the Servers setting. For example, with IP Protocol set to TCP, and Port set to Port Range and Service Ports 80-88, TCP traffic received on ports 80 through 88 is forwarded to the configured servers via the respective ports.

Port Mapping: traffic that is received by Pepwave router via the specified protocol at the specified port is forwarded via a different port to the servers specified by the Servers setting. For example, with IP Protocol set to TCP, and Port set to Port Mapping, Service Port 80, and Map to Port 88, TCP traffic on port 80 is forwarded to the configured servers via port 88. (Please see below for details on the Servers setting.)

Range Mapping: traffic that is received by the Pepwave router via the specified protocol at the specified port range is forwarded via a different port to the servers specified by the Servers

http://www.peplink.com 95 Copyright @ 2019 Pepxim

Address(es)

Address

Inbound IP

This setting specifies the WAN connections and Internet IP address(es) from which the service can be accessed.

Server IP

This setting specifies the LAN IP address of the server that handles the requests for the service.

15.1.1 UPnP / NAT-PMP Settings

UPnP and NAT-PMP are network protocols which allow a computer connected to the LAN port to automatically configure the router to allow parties on the WAN port to connect to itself. That way, the process of inbound port forwarding becomes automated.

When a computer creates a rule using these protocols, the specified TCP/UDP port of all WAN connections' default IP address will be forwarded.

Check the corresponding box(es) to enable UPnP and/or NAT-PMP. Enable these features only if you trust the computers connected to the LAN ports.

When the options are enabled, a table listing all the forwarded ports under these two protocols can be found at Status>UPnP / NAT-PMP.

16 NAT Mappings

NAT mappings allow IP address mapping of all inbound and outbound NAT’d traffic to and from an internal client IP address. Settings to configure NAT mappings are located at Advanced>NAT Mappings.

To add a rule for NAT mappings, click Add NAT Rule.

http://www.peplink.com 96 Copyright @ 2019 Pepxim

outbound traffic. This option is only available when

IP Address

is selected.

IP Range

IP Network

NAT Mapping Settings

LAN

Client(s)

Address

Range

Network

Inbound

Mappings

NAT mapping rules can be defined for a single LAN IP Address, an IP Range, or an IP Network.

This refers to the LAN host’s private IP address. The system maps this address to a number of public IP addresses (specified below) in order to facilitate inbound and

The IP range is a contiguous group of private IP addresses used by the LAN host. The system maps these addresses to a number of public IP addresses (specified below) to facilitate outbound traffic. This option is only available when

The IP network refers to all private IP addresses and ranges managed by the LAN host. The system maps these addresses to a number of public IP addresses (specified below) to facilitate outbound traffic. This option is only available when

This setting specifies the WAN connections and corresponding WAN-specific Internet IP addresses on which the system should bind. Any access to the specified WAN connection(s) and IP address(es) will be forwarded to the LAN host. This option is only available when IP Address is selected in the LAN Client(s) field.

Note that inbound mapping is not needed for WAN connections in drop-in mode or IP forwarding mode. Also note that each WAN IP address can be associated to one NAT mapping only.

is selected.

http://www.peplink.com 97 Copyright @ 2019 Pepxim

This setting specifies the WAN IP addresses that should be used when an IP connection is made from a LAN host to the Internet. Each LAN host in an IP range or IP network will be evenly mapped to one of each selected WAN's IP addresses (for better IP address

Outbound

Mappings

utilization) in a persistent manner (for better application compatibility).

Note that if you do not want to use a specific WAN for outgoing accesses, you should still choose default here, then customize the outbound access rule in the Outbound Policy section. Also note that WAN connections in drop-in mode or IP forwarding mode are not shown here.

Click Save to save the settings when configuration has been completed.

Important Note

Inbound firewall rules override the Inbound Mappings settings.

17 QoS

17.1 User Groups

LAN and PPTP clients can be categorized into three user groups: Manager, Staff, and Guest. This menu allows you to define rules and assign client IP addresses or subnets to a user group. You can apply different bandwidth and traffic prioritization policies on each user group in the Bandwidth Control and Application sections (note that the options available here vary by model).

The table is automatically sorted by rule precedence. The smaller and more specific subnets are put towards the top of the table and have higher precedence; larger and less specific subnets are placed towards the bottom.

Click the Add button to define clients and their user group. Click the button to remove the defined rule. Two default rules are pre-defined and put at the bottom. They are All DHCP

reservation clients and Everyone, and they cannot be removed. The All DHCP reservation client represents the LAN clients defined in the DHCP Reservation table on the LAN settings

page. Everyone represents all clients that are not defined in any rule above. Click on a rule to change its group.

http://www.peplink.com 98 Copyright @ 2019 Pepxim

Add / Edit User Group

Subnet / IP

Address

Group

From the drop-down menu, choose whether you are going to define the client(s) by an IP Address or a Subnet. If IP Address is selected, enter a name defined in DHCP reservation table or a LAN client's IP address. If Subnet is selected, enter a subnet address and specify its subnet mask.

This field is to define which User Group the specified subnet / IP address belongs to.

Once users have been assigned to a user group, their internet traffic will be restricted by rules defined for that particular group. Please refer to the following two sections for details.

17.2 Bandwidth Control

You can define a maximum download speed (over all WAN connections) and upload speed (for each WAN connection) that each individual Staff and Guest member can consume. No limit can be imposed on individual Manager members. By default, download and upload bandwidth limits are set to unlimited (set as 0).

http://www.peplink.com 99 Copyright @ 2019 Pepxim

17.3 Application

17.3.1 Application Prioritization

On many Pepwave routers, you can choose whether to apply the same prioritization settings to all user groups or customize the settings for each group.

Three application priority levels can be set: ɥ can detect various application traffic types by inspecting the packet content. Select an

application by choosing a supported application, or by defining a custom application manually. The priority preference of supported applications is placed at the top of the table. Custom applications are at the bottom.

High,ʈ Normal, andɧLow. Pepwave routers

17.3.2 Prioritization for Custom Applications

Click the Add button to define a custom application. Click the button in the Action column to delete the custom application in the corresponding row.

When Supported Applications is selected, the Pepwave router will inspect network traffic and prioritize the selected applications. Alternatively, you can select Custom Applications and define the application by providing the protocol, scope, port number, and DSCP value.

http://www.peplink.com 100 Copyright @ 2019 Pepxim

17.3.3 DSL/Cable Optimization

DSL/cable-based WAN connections have lower upload bandwidth and higher download bandwidth. When a DSL/cable circuit's uplink is congested, the download bandwidth will be affected. Users will not be able to download data at full speed until the uplink becomes less congested. DSL/Cable Optimization can relieve such an issue. When it is enabled, the download speed will become less affected by the upload traffic. By default, this feature is enabled.

18 Firewall

A firewall is a mechanism that selectively filters data traffic between the WAN side (the Internet) and the LAN side of the network. It can protect the local network from potential hacker attacks, access to offensive websites, and/or other inappropriate uses.

The firewall functionality of Pepwave routers supports the selective filtering of data traffic in both directions:

˗ Outbound (LAN to WAN) ˗ Inbound (WAN to LAN)

The firewall also supports the following functionality:

˗ Intrusion detection and DoS prevention ˗ Web blocking

http://www.peplink.com 101 Copyright @ 2019 Pepxim

With SpeedFusion

enabled, the firewall rules also apply to VPN tunneled traffic.

18.1 Outbound and Inbound Firewall Rules

18.1.1 Access Rules The outbound firewall settings are located at Advanced>Firewall>Access Rules>Outbound

Firewall Rules.

Click Add Rule to display the following screen:

http://www.peplink.com 102 Copyright @ 2019 Pepxim

Inbound firewall settings are located at Advanced>Firewall>Access Rules>Inbound Firewall Rules.

Click Add Rule to display the following screen:

Rules are matched from top to bottom. If a connection matches any one of the upper rules, the matching process will stop. If none of the rules match, the Default rule will be applied. By default, the Default rule is set as Allow for both outbound and inbound access.

http://www.peplink.com 103 Copyright @ 2019 Pepxim

(Inbound)

Inbound / Outbound Firewall Settings

Rule Name

Enable

WAN

Connection

Protocol

Source IP &

Port

This setting specifies a name for the firewall rule.

This setting specifies whether the firewall rule should take effect. If the box is checked, the firewall rule takes effect. If the traffic matches the specified protocol/IP/port, actions will be taken by the Pepwave router based on the other parameters of the rule. If the box is not checked, the firewall rule does not take effect. The Pepwave router will disregard the other parameters of the rule.

Click the dropdown menu next to the checkbox to place this firewall rule on a time schedule.

Select the WAN connection that this firewall rule should apply to.

This setting specifies the protocol to be matched. Via a drop-down menu, the following protocols can be specified:

˗ TCP ˗ UDP ˗ ICMP ˗ IP

Alternatively, the Protocol Selection Tool drop-down menu can be used to automatically fill in the protocol and port number of common Internet services (e.g., HTTP, HTTPS, etc.) After selecting an item from the Protocol Selection Tool drop-down menu, the protocol and port number remains manually modifiable.

This specifies the source IP address(es) and port number(s) to be matched for the firewall rule. A single address, or a network, can be specified as the Source IP & Port setting, as indicated by the following screenshot:

In addition, a single port, or a range of ports, can be specified for the Source IP & Port settings.

This specifies the destination IP address(es) and port number(s) to be matched for the firewall rule. A single address, or a network, can be specified as the Destination IP & Port setting, as indicated by the following screenshot:

Destination IP

& Port

Action

In addition, a single port, or a range of ports, can be specified for the Destination IP & Port settings.

This setting specifies the action to be taken by the router upon encountering traffic that matches the both of the following:

http://www.peplink.com 104 Copyright @ 2019 Pepxim

a corresponding Allow firewall rule will be required.

Source IP & port

Destination IP & port

With the value of Allow for the Action setting, the matching traffic passes through the router (to be routed to the destination). If the value of the Action setting is set to Deny, the matching traffic does not pass through the router (and is discarded).

This setting specifies whether or not to log matched firewall events. The logged messages are shown on the page Status>Event Log. A sample message is as follows:

Aug 13 23:47:44 Denied CONN=Ethernet WAN SRC=20.3.2.1

DST=192.168.1.20 LEN=48 PROTO=TCP SPT=2260 DPT=80

CONN: The connection where the log entry refers to

Event Logging

SRC: Source IP address

DST: Destination IP address

LEN: Packet length

PROTO: Protocol

SPT: Source port

DPT: Destination port

Click Save to store your changes. To create an additional firewall rule, click Add Rule and repeat the above steps.

To change a rule’s priority, simply drag and drop the rule:

Hold the left mouse button on the rule.

˗ ˗ Move it to the desired position. ˗ Drop it by releasing the mouse button.

Tip

If the default inbound rule is set to Allow for NAT-enabled WANs, no inbound Allow firewall rules will be required for inbound port forwarding and inbound NAT mapping rules. However, if the default inbound rule is set as Deny,

18.1.2 Apply Firewall Rules to PepVpn Traffic

When this option is enabled, Outbound Firewall Rules will be applied to PepVPN traffic. To turn on this feature, click , check the Enable check box, and press the Save button.

http://www.peplink.com 105 Copyright @ 2019 Pepxim

18.1.3 Intrusion Detection and DoS Prevention

Pepwave routers can detect and prevent intrusions and denial-of-service (DoS) attacks from the Internet. To turn on this feature, click , check the Enable check box, and press the Save button.

When this feature is enabled, the Pepwave router will detect and prevent the following kinds of intrusions and denial-of-service attacks.

˗ Port scan

o NMAP FIN/URG/PSH o Xmas tree o Another Xmas tree o Null scan o SYN/RST o SYN/FIN

˗ SYN flood prevention ˗

Ping flood attack prevention

http://www.peplink.com 106 Copyright @ 2019 Pepxim

18.2 Content Blocking

18.2.1 Application Blocking

Choose applications to be blocked from LAN/PPTP/PepVPN peer clients' access, except for

http://www.peplink.com 107 Copyright @ 2019 Pepxim

those on the Exempted User Groups or Exempted Subnets defined below.

18.2.2 Web Blocking

Defines web site domain names to be blocked from LAN/PPTP/PepVPN peer clients' access except for those on the Exempted User Groups or Exempted Subnets defined below.

If "foobar.com" is entered, any web site with a host name ending in foobar.com will be blocked, e.g. www.foobar.com, foobar.com, etc. However, "myfoobar.com" will not be blocked.

You may enter the wild card ".*" at the end of a domain name to block any web site with a host name having the domain name in the middle. If you enter "foobar.*", then "www.foobar.com", "www.foobar.co.jp", or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not supported.

The device will inspect and look for blocked domain names on all HTTP traffic. Secure web (HTTPS) traffic is not supported.

18.2.3 Customized Domains

Enter an appropriate website address, and the Peplink Balance will block and disallow LAN/PPTP/SpeedFusionTM peer clients to access these websites. Exceptions can be added using the instructions in Sections 20.1.3.2 and 20.1.3.3. You may enter the wild card ".*" at the end of a domain name to block any web site with a host name having the domain name in the middle. For example, If you enter "foobar.*," then "www.foobar.com," "www.foobar.co.jp," or "foobar.co.uk" will be blocked. Placing the wild card in any other position is not supported. The Peplink Balance will inspect and look for blocked domain names on all HTTP traffic. Secure web (HTTPS) traffic is not supported.

18.2.4 Exempted User Groups

Check and select pre-defined user group(s) who can be exempted from the access blocking rules. User groups can be defined at QoS>User Groups section. Please refer to Section 17.1 for details.

18.2.5 Exempted Subnets

With the subnet defined in the field, clients on the particular subnet(s) can be exempted from the access blocking rules.

http://www.peplink.com 108 Copyright @ 2019 Pepxim

OSPF

18.2.6 URL Logging

Click enable, and the enter the ip address and port (if applicable) where your remote syslog server is located.

19 OSPF & RIPv2

The Peplink Balance supports OSPF and RIPv2 dynamic routing protocols. Click the Network tab from the top bar, and then click the OSPF & RIPv2 item on the sidebar to reach the following menu:

Router ID

Area

This field determines the ID of the router. By default, this is specified as the LAN IP address. If you want to specify your own ID, enter it in the Custom field.

This is an overview of the OSPFv2 areas you have defined. Click on the area name to configure it. To set a new area, click Add. To delete an existing area, click .

http://www.peplink.com 109 Copyright @ 2019 Pepxim

OSPF Settings

Link Type

Area ID

Authentication

Interfaces

To access RIPv2 settings, click .

Determine the name of your Area ID to apply to this group. Machines linked to this group will send and receive related OSPF packets, while unlinked machines will ignore it.

Choose the network type that this area will use.

Choose an authentication method, if one is used, from this drop-down menu. Available options are MD5 and Text. Enter the authentication key next to the drop-down menu.

Determine which interfaces this area will use to listen to and deliver OSPF packets

http://www.peplink.com 110 Copyright @ 2019 Pepxim

RIPv2 Settings

Interfaces

Authentication

Choose an authentication method, if one is used, from this drop-down menu. Available options are MD5 and Text. Enter the authentication key next to the drop-down menu.

Determine which interfaces this group will use to listen to and deliver RIPv2 packets.

20 Remote User Access

a Networks routed by a Peplink Balance can be remotely accessed via L2TP with IPsec or PPTP. To configure this feature, navigate to Network > Remote User Access

http://www.peplink.com 111 Copyright @ 2019 Pepxim

Remote User Access Settings

Enable

Click the checkbox to enable Remote User Access.

http://www.peplink.com 112 Copyright @ 2019 Pepxim

Network

Authentication

VPN Type

Determine whether remote devices can connect to the Balance using L2TP with IPsec or PPTP. For greater security, we recommend you connect using L2TP with IPsec.

Preshared Key

Listen On

Connect to

User Accounts

Enter your preshared key in the text field. Please note that remote devices will need this preshared key to access the Balance.

This setting is for specifying the WAN IP addresses where the PPTP server of the router should listen on.

Select the VLAN network for remote users to enable remote user access on.

Determine the method of authenticating remote users.

This setting allows you to define the PPTP User Accounts. Click Add to input username and password to create an account. After adding the user accounts, you can click on a username to edit the account password. Click the button X to delete the account in its corresponding row.

Click the button to switch to enters user accounts by pasting the information in.CSV format.

Miscellaneous Settings

The miscellaneous settings include configuration for high availability, PPTP server, service forwarding, and service passthrough.

20.1 High Availability

Many Pepwave routers support high availability (HA) configurations via an open standard virtual router redundancy protocol (VRRP, RFC 3768). In an HA configuration, two Pepwave routers provide redundancy and failover in a master-slave arrangement. In the event that the master unit is down, the slave unit becomes active. High availability will be disabled automatically where there is a drop-in connection configured on a LAN bypass port.

http://www.peplink.com 113 Copyright @ 2019 Pepxim

In the diagram, the WAN ports of each Pepwave router connect to the router and to the modem. Both Pepwave routers connect to the same LAN switch via a LAN port.

An elaboration on the technical details of the implementation of the virtual router redundancy protocol (VRRP, RFC 3768) by Pepwave routers follows:

˗ In an HA configuration, the two Pepwave routers communicate with each other using

VRRP over the LAN.

˗ The two Pepwave routers broadcast heartbeat signals to the LAN at a frequency of one

heartbeat signal per second.

˗ In the event that no heartbeat signal from the master Pepwave router is received in 3

seconds (or longer) since the last heartbeat signal, the slave Pepwave router becomes active.

˗ The slave Pepwave router initiates the WAN connections and binds to a previously

configured LAN IP address.

˗ At a subsequent point when the master Pepwave router recovers, it will once again

become active.

You can configure high availability at Advanced>Misc. Settings>High Availability.

http://www.peplink.com 114 Copyright @ 2019 Pepxim

Enable

The two Pepwave routers in the pair must have the same

Group Number

value.

Recovery

You can refer to the

Event Log

for the configuration synchronization status.

Number

Administration

Subnet Mask

Interface for Master Router Interface for Slave Router

High Availability

Checking this box specifies that the Pepwave router is part of a high availability configuration.

Group Number

Preferred Role

Resume

Master Role

Upon

Configuration

Sync.

Master Serial

Virtual IP

LAN

This number identifies a pair of Pepwave routers operating in a high availability configuration.

This setting specifies whether the Pepwave router operates in master or slave mode. Click the corresponding radio button to set the role of the unit. One of the units in the pair must be configured as the master, and the other unit must be configured as the slave.

This option is displayed when Master mode is selected in Preferred Role. If this option is enabled, once the device has recovered from an outage, it will take over and resume its Master role from the slave unit.

This option is displayed when Slave mode is selected in Preferred Role. If this option is enabled and the Master Serial Number entered matches with the actual master unit's, the master unit will automatically transfer the configuration to this unit. Please make sure the LAN IP Address and the Subnet Mask fields are set correctly in the LAN settings page.

If Configuration Sync. is checked, the serial number of the master unit is required here for the feature to work properly.

The HA pair must share the same Virtual IP. The Virtual IP and the LAN Administration IP must be under the same network.

This setting specifies a LAN IP address to be used for accessing administration functionality. This address should be unique within the LAN.

This setting specifies the subnet mask of the LAN.

http://www.peplink.com 115 Copyright @ 2019 Pepxim

Important Note

For Pepwave routers in NAT mode, the virtual IP (VIP) should be set as the default gateway for all hosts on the LAN segment. For example, a firewall sitting behind the Pepwave router should set its default gateway as the virtual IP instead of the IP of the master router.

In drop-in mode, no other configuration needs to be set.

http://www.peplink.com 116 Copyright @ 2019 Pepxim

Please note that the drop-in WAN cannot be configured as a LAN bypass port while it is configured for high availability.

20.2 PPTP Server

Pepwave routers feature a built-in PPTP server, which enables remote computers to conveniently and securely access the local network. PPTP server settings are located at Advanced>Misc. Settings>PPTP Server.

Check the box to enable PPTP server functionality. All connected PPTP sessions are displayed at Status>Client List. Please refer to Section 22.3 for details. Note that available options vary by model.

http://www.peplink.com 117 Copyright @ 2019 Pepxim

RADIUS Server

PPTP Server Settings

Listen On

Authentication

This setting is for specifying the WAN connection(s) and IP address(es) that the PPTP server should listen on.

This setting is for specifying the user database source for PPTP authentication. Three sources can be selected: Local User Accounts, LDAP Server, or RADIUS Server. Local User Accounts - User accounts are stored in the Pepwave router locally. You can add/modify/delete accounts in the User Accounts table. LDAP Server - Authenticate with an external LDAP server. This has been tested with Open LDAP servers where passwords are NTLM hashed. Active Directory is not supported. (You can choose to use RADIUS to authenticate with a Windows server.)

- Authenticate with an external RADIUS server. This has been tested with

http://www.peplink.com 118 Copyright @ 2019 Pepxim

after s

electing

Enable

Microsoft Windows Internet Authentication Service and FreeRADIUS servers where passwords are NTLM hashed or in plain text.

This setting allows you to define PPTP user accounts for authentication via local user

User Accounts

accounts. Click Add to input username and password to create an account. After adding

the user accounts, you can click on a username to edit the account password. Click to delete the account in its corresponding row.

20.3 Certificate Manager

This section allows you to assign certificates for local VPN and web admin SSL. The local keys will not be transferred to another device by any means.

20.4 Service Forwarding

Service forwarding settings are located at Advanced>Misc. Settings>Service Forwarding.

Service Forwarding

When this option is enabled, all outgoing SMTP connections destined for any host at

SMTP Forwarding

Web Proxy

Forwarding

TCP port 25 will be intercepted. These connections will be redirected to a specified SMTP server and port number. SMTP server settings for each WAN can be specified

When this option is enabled, all outgoing connections destined for the proxy server specified in Web Proxy Interception Settings will be intercepted. These connections will be redirected to a specified web proxy server and port number. Web

http://www.peplink.com 119 Copyright @ 2019 Pepxim

Enable

number.

proxy interception settings and proxy server settings for each WAN can be specified

DNS Forwarding

Custom Service

Forwarding

after selecting

When this option is enabled, all outgoing DNS lookups will be intercepted and redirected to the built-in DNS name server. If any LAN device is using the DNS name servers of a WAN connection, you may want to enable this option to enhance the DNS availability without modifying the DNS server setting of the clients. The built-in DNS name server will distribute DNS lookups to corresponding DNS servers of all available WAN connections. In this case, DNS service will not be interrupted, even if any WAN connection is down.

When custom service forwarding is enabled, outgoing traffic with the specified TCP port will be forwarded to a local or remote server by defining its IP address and port

20.4.1 SMTP Forwarding

Some ISPs require their users to send e-mails via the ISP’s SMTP server. All outgoing SMTP connections are blocked except those connecting to the ISP’s. Pepwave routers support intercepting and redirecting all outgoing SMTP connections (destined for TCP port 25) via a WAN connection to the WAN’s corresponding SMTP server.

To enable the feature, select Enable under SMTP Forwarding Setup. Check Enable Forwarding for the WAN connection(s) that needs forwarding. Under SMTP Server, enter the ISP’s e-mail server host name or IP address. Under SMTP Port, enter the TCP port number for each WAN.

The Pepwave router will intercept SMTP connections. Choose a WAN port according to the outbound policy, and then forward the connection to the SMTP server if the chosen WAN has enabled forwarding. If the forwarding is disabled for a WAN connection, SMTP connections for the WAN will be simply be forwarded to the connection’s original destination.

Note

http://www.peplink.com 120 Copyright @ 2019 Pepxim

Section 14.2

If you want to route all SMTP connections only to particular WAN connection(s), you should create a custom rule in outbound policy (see

20.4.2 Web Proxy Forwarding

When this feature is enabled, the Pepwave router will intercept all outgoing connections destined for the proxy server specified in Web Proxy Interception Settings, choose a WAN connection with reference to the outbound policy, and then forward them to the specified web proxy server and port number. Redirected server settings for each WAN can be set here. If forwarding is disabled for a WAN, web proxy connections for the WAN will be simply forwarded to the connection’s original destination.

20.4.3 DNS Forwarding

When DNS forwarding is enabled, all clients’ outgoing DNS requests will also be intercepted and forwarded to the built-in DNS proxy server.

20.4.4 Custom Service Forwarding

http://www.peplink.com 121 Copyright @ 2019 Pepxim

the same FTP session to the same WAN. If you have an FTP server listening on a port

After clicking the enable checkbox, enter your TCP port for traffic heading to the router, and then specify the IP Address and Port of the server you wish to forward to the service to.

20.5 Service Passthrough

Service passthrough settings can be found at Advanced>Misc. Settings>Service Passthrough.

Some Internet services need to be specially handled in a multi-WAN environment. Pepwave routers can handle these services such that Internet applications do not notice being behind a multi-WAN router. Settings for service passthrough support are available here.

Service Passthrough Support

Session initiation protocol, aka SIP, is a voice-over-IP protocol. The Pepwave router can act as a SIP application layer gateway (ALG) which binds connections for the same SIP session to the same WAN connection and translate IP address in the SIP packets

SIP

H.323

FTP

correctly in NAT mode. Such passthrough support is always enabled, and there are two modes for selection: Standard Mode and Compatibility Mode. If your SIP server’s signal port number is non-standard, you can check the box Define custom signal ports and input the port numbers to the text boxes.

With this option enabled, protocols that provide audio-visual communication sessions will be defined on any packet network and pass through the Pepwave router.

FTP sessions consist of two TCP connections; one for control and one for data. In a multi-WAN situation, they must be routed to the same WAN connection. Otherwise, problems will arise in transferring files. By default, the Pepwave router monitors TCP control connections on port 21 for any FTP connections and binds TCP connections of

http://www.peplink.com 122 Copyright @ 2019 Pepxim

number other than 21, you can check Define custom control ports and enter the port numbers in the text boxes.

The Pepwave router monitors outgoing TFTP connections and routes any incoming

TFTP

IPsec NAT-T

TFTP data packets back to the client. Select Enable if you want to enable TFTP passthrough support.

This field is for enabling the support of IPsec NAT-T passthrough. UDP ports 500, 4500, and 10000 are monitored by default. You may add more custom data ports that your IPsec system uses by checking Define custom ports. If the VPN contains IPsec site-to- site VPN traffic, check Route IPsec Site-to-Site VPN and choose the WAN connection to route the traffic to.

20.6 GPS Forwarding

Using the GPS forwarding feature, some Pepwave routers can automatically send GPS reports to a specified server. To set up GPS forwarding, navigate to Advanced>GPS Forwarding.

GPS Forwarding

Enable

Server

GPS Report

Format

Check this box to turn on GPS forwarding.

Enter the name/IP address of the server that will receive GPS data. Also specify a port number, protocol (UDP or TCP), and a report interval of between 1 and 10 seconds.

Click to save these settings.

Choose from NMEA or TAIP format for sending GPS reports.

http://www.peplink.com 123 Copyright @ 2019 Pepxim

Special Note

information and pricing details.

NMEA Sentence

Type

If you’ve chosen to send GPS reports in NMEA format, select one or more sentence types for sending the data (GPRMC, GPGGA, GPVTG, GPGSA, and GPGSV).

Vehicle ID

TAIP Sentence

Type/TAIP ID

(optional)

The vehicle ID will be appended in the last field of the NMEA sentence. Note that the NMEA sentence will become customized and non-standard.

If you’ve chosen to send GPS reports in TAIP format, select one or more sentence types for sending the data (PV—Position / Velocity Solution and CP—Compact Velocity

Solution). You can also optionally include an ID number in the TAIP ID field.

21 AP Controller

The AP controller acts as a centralized controller of Pepwave AP devices. With this feature, users can customize and manage multiple APs from a single Pepwave router interface.

Each Pepwave router can control a limited number of routers without additional cost. To manage more, a Full Edition license is required. Please contact your Authorized Reseller or the Peplink Sales Team for more

To configure, navigate to the AP tab.

21.1 Wireless SSID

This menu is the first one that appears after clicking the AP tab. This screen can also be reached by clicking AP>Wireless SSID. Note the appearance of this screen varies by model.

http://www.peplink.com 124 Copyright @ 2019 Pepxim

AP Controller

The AP controller for managing Pepwave APs can be enabled by checking this box. When

Management

Permitted AP

this option is enabled, the AP controller will wait for management connections originating from APs over the LAN on TCP and UDP port 11753. It will also wait for captive portal connections on TCP port 443. An extended DHCP option, CAPWAP Access Controller addresses (field

138), will be added to the DHCP server. A local DNS record, AP Controller, will be added to the local DNS proxy.

Access points to manage can be specified here. If Any is selected, the AP controller will manage any AP that reports to it. If Approved List is selected, only APs with serial numbers listed in the provided text box will be managed.

Current SSID information appears in the SSID section. To edit an existing SSID, click its name in the list. To add a new SSID, click Add. Note that the following settings vary by model.

http://www.peplink.com 125 Copyright @ 2019 Pepxim

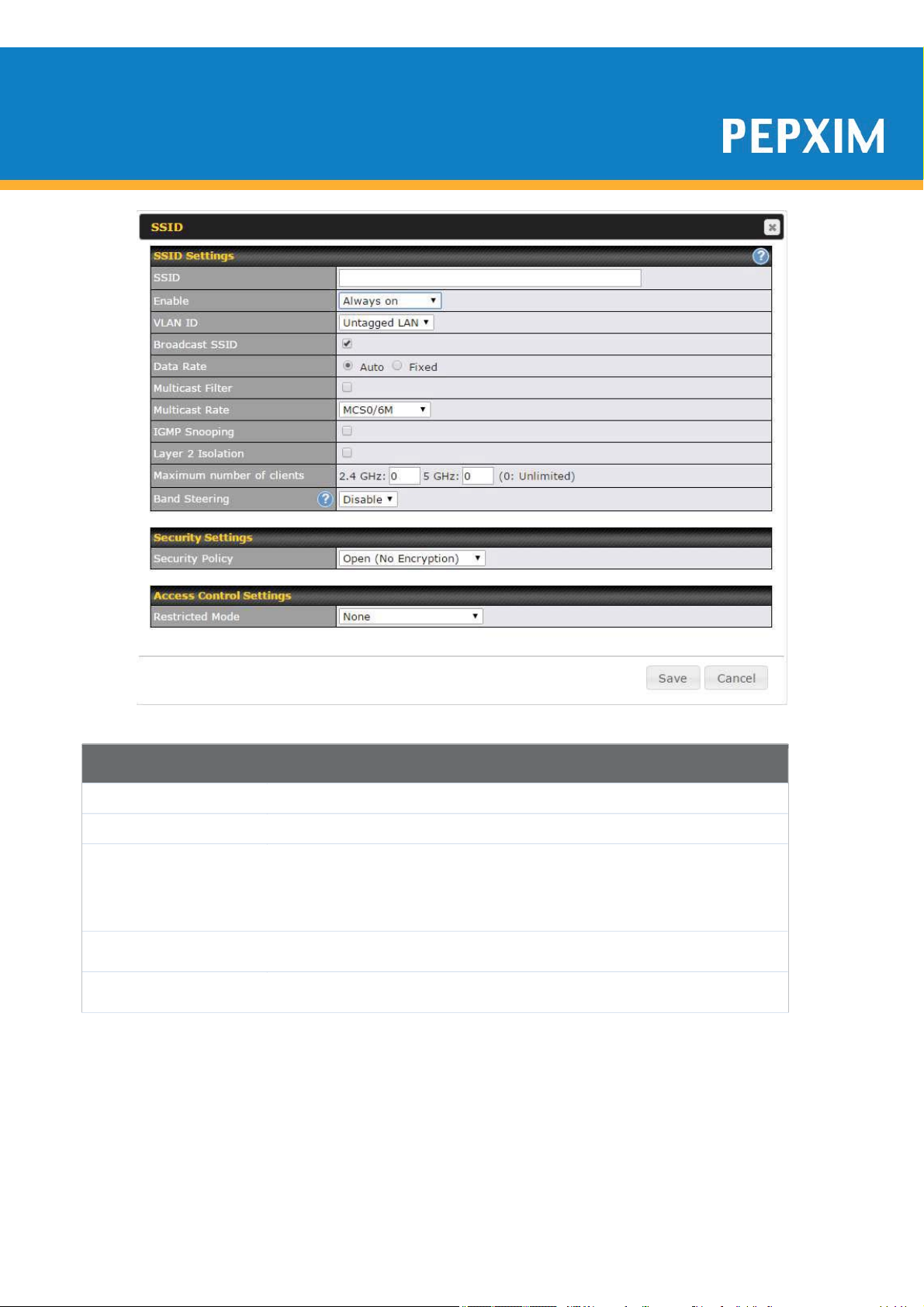

SSID

Enable

Broadcast SSID

Fixed

SSID Settings

This setting specifies the SSID of the virtual AP to be scanned by Wi-Fi clients.

Click the drop-down menu to apply a time schedule to this interface

This setting specifies the VLAN ID to be tagged on all outgoing packets generated from this wireless network (i.e., packets that travel from the Wi-Fi segment through

VLAN ID

Broadcast SSID

Data Rate A

the Pepwave AP One unit to the Ethernet segment via the LAN port). The default value of this setting is 0, which means VLAN tagging is disabled (instead of tagged with zero).

This setting specifies whether or not Wi-Fi clients can scan the SSID of this wireless network.

Select Auto to allow the Pepwave router to set the data rate automatically, or select

and choose a rate from the displayed drop-down menu.

is enabled by default.

http://www.peplink.com 126 Copyright @ 2019 Pepxim

Multicast Filter

options and values available here.

network traffic, select this option.

(QoS)

of Clients

Prefer

Disab

le.

Security Settings

Static WEP

This setting enables the filtering of multicast network traffic to the wireless SSID.

This setting specifies the transmit rate to be used for sending multicast network

Multicast RateA

traffic. The selected Protocol and Channel Bonding settings will affect the rate

IGMP Snooping A

DHCP Option 82 A

Network Priority

Layer 2 Isolation A

Maximum Number

Band Steering A

- Advanced feature. Click the button on the top right-hand corner to activate.

To allow the Pepwave router to listen to internet group management protocol (IGMP)

If you use a distributed DHCP server/relay environment, you can enable this option to provide additional information on the manner in which clients are physically connected to the network.

Select from Gold, Silver, and Bronze to control the QoS priority of this wireless network’s traffic.

Layer 2 refers to the second layer in the ISO Open System Interconnect model. When this option is enabled, clients on the same VLAN, SSID, or subnet are isolated to that VLAN, SSID, or subnet, which can enhance security. Traffic is passed to upper communication layer(s). By default, the setting is disabled.

Indicate the maximum number of clients that should be able to connect to each frequency.

Band steering allows the Pepwave router to steer AP clients from the 2.4GHz band to the 5GHz band for better usage of bandwidth. To make steering mandatory, select Enforce. To cause the Pepwave router to preferentially choose steering, select

. The default for this setting is

Security

Policy

This setting configures the wireless authentication and encryption methods. Available options are Open (No Encryption), WPA/WPA2 - Personal, WPA/WPA2 – Enterprise and

http://www.peplink.com 127 Copyright @ 2019 Pepxim

be weak.

List

server.

RADIUS server.

Access Control

The settings allow administrator to control access using MAC address filtering. Available options are None, Deny all except listed, Accept all except listed, and RADIUS MAC Authentication.

When WPA/WPA2 - Enterprise is configured, RADIUS-based 802.1 x authentication is enabled. Under this configuration, the Shared Key option should be disabled. When using

Restricted

Mode

this method, select the appropriate version using the V1/V2 controls. The security level of this method is known to be very high. When WPA/WPA2- Personal is configured, a shared key is used for data encryption and authentication. When using this configuration, the Shared Key option should be enabled. Key length must be between eight and 63 characters (inclusive). The security level of this method is known to be high. The configuration of Static WEP parameters enables pre-shared WEP key encryption. Authentication is not supported by this method. The security level of this method is known to

MAC Address

Connection coming from the MAC addresses in this list will be either denied or accepted based the option selected in the previous field.

RADIUS Server Settings

Host

Secret

Enter the IP address of the primary RADIUS server and, if applicable, the secondary RADIUS

Enter the RADIUS shared secret for the primary server and, if applicable, the secondary

http://www.peplink.com 128 Copyright @ 2019 Pepxim

Authentication

Port

In field, enter the UDP authentication port(s) used by your RADIUS server(s) or click the

Default button to enter 1812.

Accounting

In field, enter the UDP accounting port(s) used by your RADIUS server(s) or click the Default button to enter 1813.

21.2 Settings

On many Pepwave models, the AP settings screen (AP>Settings) looks similar to the example below:

http://www.peplink.com 129 Copyright @ 2019 Pepxim

Operating

AP Settings

These buttons specify which wireless networks will use this AP profile. You can also

SSID

select the frequencies at which each network will transmit. Please note that the Peplink Balance does not detect whether the AP is capable of transmitting at both frequencies. Instructions to transmit at unsupported frequencies will be ignored by the AP.

This drop-down menu specifies the national / regional regulations which the AP should

http://www.peplink.com 130 Copyright @ 2019 Pepxim

Country

follow.

˗ If a North American region is selected, RF channels 1 to 11 will be available and

the maximum transmission power will be 26 dBm (400 mW).

˗ If European region is selected, RF channels 1 to 13 will be available. The

maximum transmission power will be 20 dBm (100 mW). NOTE: Users are required to choose an option suitable to local laws and regulations. Per FCC regulation, the country selection is not available on all models marketed in US.

All US models are fixed to US channels only.

Preferred

Frequency

Protocol

Channel Width

Channel

Auto Channel

Update

Output PowerA

These buttons determine the frequency at which access points will attempt to broadcast. This feature will only work for APs that can transmit at both 5.4GHz and 5GHz frequencies.

This section displays the 2.4 GHz protocols your APs are using.

There are three options: 20 MHz, 20/40 MHz, and 40 MHz. With this feature enabled, the Wi-Fi system can use two channels at once. Using two channels improves the performance of the Wi-Fi connection.

This drop-down menu selects the 802.11 channel to be utilized. Available options are from 1 to 11 and from 1 to 13 for the North America region and Europe region, respectively. (Channel 14 is only available when the country is selected as Japan with protocol 802.11b.) If Aut o is set, the system will perform channel scanning based on the scheduled time set and choose the most suitable channel automatically.

Indicate the time of day at which update automatic channel selection.

This drop-down menu determines the power at which the AP under this profile will broadcast. When fixed settings are selected, the AP will broadcast at the specified power level, regardless of context. When Dynamic settings are selected, the AP will adjust its power level based on its surrounding APs in order to maximize performance.

The Dynamic: Auto setting will set the AP to do this automatically. Otherwise, the Dynamic: Manual setting will set the AP to dynamically adjust only of instructed to do so. If you have set Dynamic:Manual, you can go to AP>Toolbox>Auto Power Adj. to give your AP further instructions.

If you click the Boost checkbox, the AP under this profile will transmit using additional power. Please note that using this option with several APs in close proximity will lead to increased interference.

Client Signal

Strength

This field determines that maximum signal strength each individual client will receive. The measurment unit is megawatts.

ThresholdA

Max number of

ClientsA

This field determines the maximum clients that can be connected to APs under this profile.

http://www.peplink.com 131 Copyright @ 2019 Pepxim

Management

VLAN ID

This field specifies the VLAN ID to tag to management traffic, such as AP to AP controller communication traffic. The value is 0 by default, meaning that no VLAN tagging will be applied. NOTE: change this value with caution as alterations may result in loss of connection to the AP controller.

Operating

Schedule

Beacon RateA

Beacon Interval

DTIMA

RTS Threshold

Fragmentation

ThresholdA

Distance/Time

ConverterA

Slot TimeA

ACK TimeoutA

Choose from the schedules that you have defined in System>Schedule. Select the schedule for the integrated AP to follow from the drop-down menu.

This drop-down menu provides the option to send beacons in different transmit bit rates. The bit rates are 1Mbps, 2Mbps, 5.5Mbps, 6Mbps, and 11Mbps.

This drop-down menu provides the option to set the time between each beacon send.

Available options are 100ms, 250ms, and 500ms.

This field provides the option to set the frequency for beacon to include delivery traffic indication messages (DTIM). The interval unit is measured in milliseconds.

This field provides the option to set the minimum packet size for the unit to send an RTS

using the RTS/CTS handshake. Setting 0 disables this feature.

Determines the maximum size (in bytes) that each packet fragment will be broken down into. Set 0 to disable fragmentation.

Select the distance you want your Wi-Fi to cover in order to adjust the below parameters. Default values are recommended.

This field provides the option to modify the unit wait time before it transmits. The default value is 9μs.

This field provides the option to set the wait time to receive acknowledgement packet before doing retransmission. The default value is 48μs.

Frame

AggregationA

Frame Length

With this feature enabled, throughput will be increased by sending two or more data frames in a single transmission.

This field is only available when Frame Aggregation is enabled. It specifies the frame length for frame aggregation. By default, it is set to 50000.

- Advanced feature. Click the button on the top right-hand corner to activate.

http://www.peplink.com 132 Copyright @ 2019 Pepxim

of the AP.

Protocol

Management Port

Name

Generate

button and let the system generate a random password automatically.

Web Administration Settings

Enable

Web Access

HTTP to HTTPS

Redirection

Admin User

Admin Password

Check the box to allow the Pepwave router to manage the web admin access information

These buttons specify the web access protocol used for accessing the web admin of the AP. The two available options are HTTP and HTTPS.

This field specifies the management port used for accessing the device.

This option will be available if you have chosen HTTPS as the Web Access Protocol. With this enabled, any HTTP access to the web admin will redirect to HTTPS automatically.

This field specifies the administrator username of the web admin. It is set as admin by default.

This field allows you to specify a new administrator password. You may also click the

Navigating to AP>Settings on some Pepwave models displays a screen similar to the one shown below:

http://www.peplink.com 133 Copyright @ 2019 Pepxim

the US. All US models are fixed to US channels only.

Wi-Fi Radio Settings

Operating

Country

Wi-Fi Antenna

This option sets the country whose regulations the Pepwave router follows.

Choose from the router's internal or optional external antennas, if so equipped.

Important Note

Per FCC regulations, the country selection is not available on all models marketed in

Wi-Fi AP Settings

This option allows you to specify whether 802.11b and/or 802.11g client association

Protocol

Channel

Channel Width

Output Power

requests will be accepted. Available options are 802.11ng and 802.11na. By default,

802.11ng is selected.

This option allows you to select which 802.11 RF channel will be used. Channel 1 (2.412 GHz) is selected by default.

Auto (20/40 MHz) and 20 MHz are available. The default setting is Auto (20/40 MHz),

which allows both widths to be used simultaneously.

This option is for specifying the transmission output power for the Wi-Fi AP. There are 4 relative power levels available – Max, High, Mid, and Low. The actual output power will be bound by the regulatory limits of the selected country.

Beacon RateA

Beacon Interval

DTIMA

Slot TimeA

ACK TimeoutA

Frame

This option is for setting the transmit bit rate for sending a beacon. By default, 1Mbps is selected.

This option is for setting the time interval between each beacon. By default, 100ms is

selected.

This field allows you to set the frequency for the beacon to include a delivery traffic indication message. The interval is measured in milliseconds. The default value is set to 1 ms.

This field is for specifying the wait time before the Router transmits a packet. By default, this field is set to 9 μs.

This field is for setting the wait time to receive an acknowledgement packet before performing a retransmission. By default, this field is set to 48 μs.

This option allows you to enable frame aggregation to increase transmission throughput.

http://www.peplink.com 134 Copyright @ 2019 Pepxim

AggregationA

Guard IntervalA

- Advanced feature, please click the button on the top right-hand corner to activate.

This setting allows choosing a short or long guard period interval for your transmissions.

22 AP Controller Status

22.1 Info

A comprehensive overview of your AP can be accessed by navigating to AP > Controller Status > Info.

AP Controller

License Limit

This field displays the maximum number of AP your Balance router can control. You can purchase licenses to increase the number of AP you can manage.

http://www.peplink.com 135 Copyright @ 2019 Pepxim

Underneath, there are two check boxes labeled 2.4 Ghz and 5 Ghz. Clicking either box

Frequency

SSID

will toggle the display of information for that frequency. By default, the graphs display the number of clients and data usage for both 2.4GHz and 5 GHz frequencies.

The colored boxes indicate the SSID to display information for. Clicking any colored box will toggle the display of information for that SSID. By default, all the graphs show information for all SSIDs.

No. of APs

No.of Clients

Data Usage

This pie chart and table indicates how many APs are online and how many are offline.

This graph displays the number of clients connected to each network at any given time. Mouse over any line on the graph to see how many clients connected to a specific SSID for that point in time.

This graph enables you to see the data usage of any SSID for any given time period. Mouse over any line on the graph to see the data usage by each SSID for that point in time. Use the buttons next to Zoom to select the time scale you wish to view. In addition, you could use the sliders at the bottom to further refine your timescale.

Events

This event log displays all activity on your AP network, down to the client level. Click View Alerts to see only alerts, and click the More… link for additional records.

http://www.peplink.com 136 Copyright @ 2019 Pepxim

22.2 Access Point (Usage)

A detailed breakdown of data usage for each AP is available at AP > Controller Status > Access Point.

Usage

AP Name/Serial

Number

Online Status

Managed

Wireless Devices

This field enables you to quickly find your device if you know its name or serial number. Fill in the field to begin searching. Partial names and serial numbers are supported.

This button toggles whether your search will include offline devices.

This table shows the detailed information on each AP, including channel, number of clients, upload traffic, and download traffic. Click the blue arrows at the left of the table to expand and collapse information on each device group. You could also expand and

collapse all groups by using the buttons.

On the right of the table, you will see the following icons: .

Click the icon to see a usage table for each client:

Click the icon to configure each client

http://www.peplink.com 137 Copyright @ 2019 Pepxim

Data Usage by

For easier network management, you can give each client a name and designate its location. You can also designate which firmware pack (if any) this client will follow, as well as the channels on which the client will broadcast.

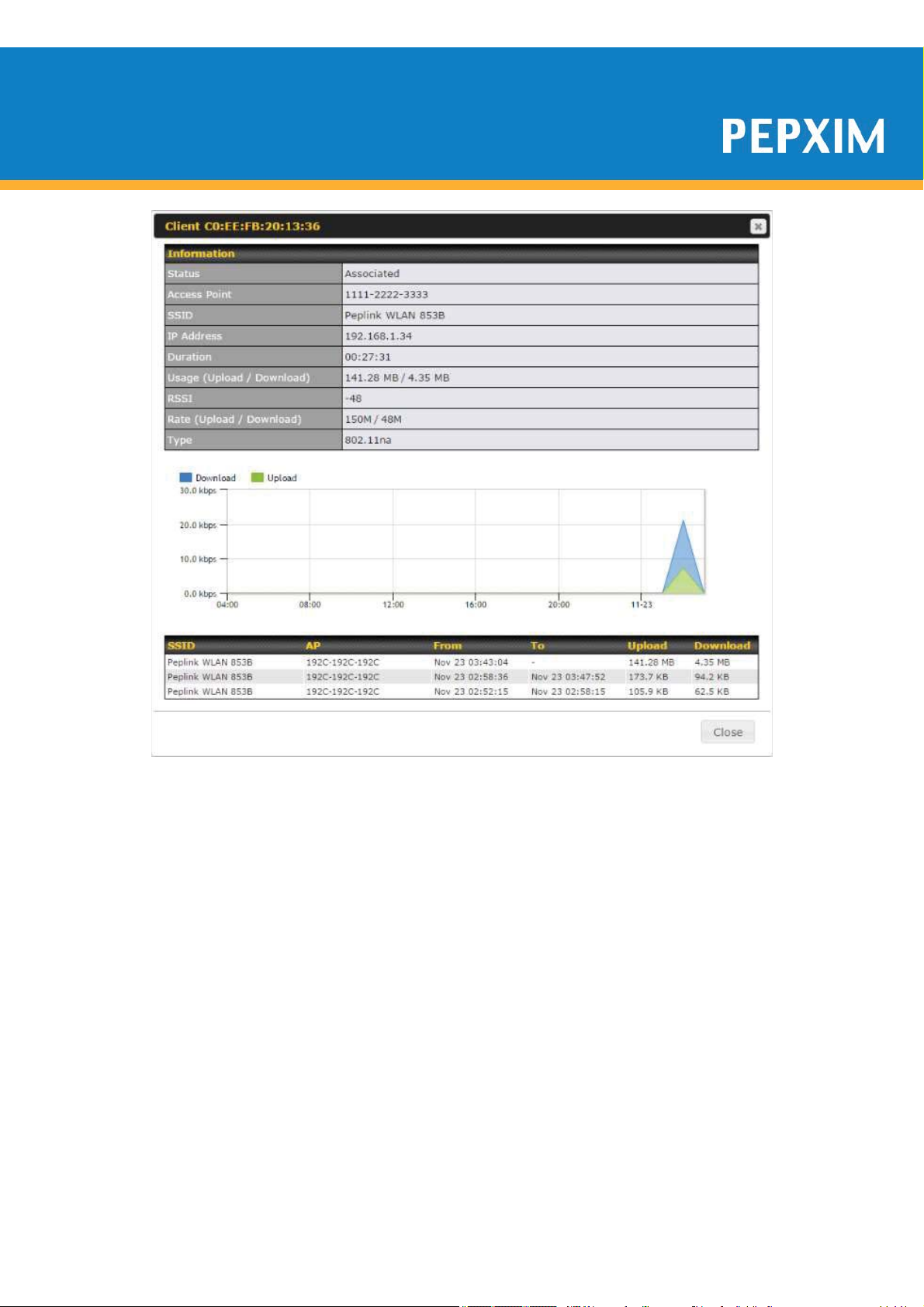

Click the icon to see a graph displaying usage:

Click any point in the graphs to display detailed usage and client information for that device, using that SSID, at that point in time. On the

menu, you can

http://www.peplink.com 138 Copyright @ 2019 Pepxim

display the information by SSID or by AP send/receive rate. Click the Event tab next to Wireless Usage to view a detailed event log for that

particular device:

22.3 Wireless SSID

In-depth SSID reports are available under AP > Controller Status > Wireless SSID.

Click the blue arrow on any SSID to obtain more detailed usage information on each SSID.

22.4 Wireless Client

You can search for specific Wi-Fi users by navigating to AP > Controller Status > Wireless Client.

http://www.peplink.com 139 Copyright @ 2019 Pepxim

Here, you will be able to see your network’s heaviest users as well as search for specific users. Click the icon to bookmark specific users, and click the icon for additional details about each user:

http://www.peplink.com 140 Copyright @ 2019 Pepxim

22.5 Nearby Device

A listing of near devices can be accessed by navigating to AP > Controller Status > Nearby Device.

http://www.peplink.com 141 Copyright @ 2019 Pepxim

Suspected Rogue Devices

Hovering over the device MAC address will result in a popup with information on how this device was detected. Click the icons and the device will be moved to the bottom table of identified devices.

22.6

You can access the AP Controller Event log by navigating to AP > Controller Status > Event Log.

http://www.peplink.com 142 Copyright @ 2019 Pepxim

Event Log

Check for Updates

Events

This event log displays all activity on your AP network, down to the client level. Use to filter box to search by MAC address, SSID, AP Serial Number, or AP Profile name. Click View Alerts to see only alerts, and click the More… link for additional records.

23 Toolbox

Tools for managing firmware packs can be found at AP>Toolbox.

Firmware Packs

Here, you can manage the firmware of your AP. Clicking on will result in information regarding each firmware pack. To receive new firmware packs, you can click

http://www.peplink.com 143 Copyright @ 2019 Pepxim

to download new packs, or you can click

Manual Upload

to manually upload a firmware pack. Click

Default

to define which firmware pack i

s default.

24 System Settings

24.1 Admin Security

There are two types of user accounts available for accessing the web admin: admin and user. They represent two user levels: the admin level has full administration access, while the user level is read-only. The user level can access only the device's status information; users cannot make any changes on the device.

Admin account UI User account UI

A web login session will be logged out automatically when it has been idle longer than the Web Session Timeout. Before the session expires, you may click the Logout button in the web admin to exit the session.

0 hours 0 minutes signifies an unlimited session time. This setting should be used only in special situations, as it will lower the system security level if users do not log out before closing the browser. The default is 4 hours, 0 minutes.

For security reasons, after logging in to the web admin Interface for the first time, it is recommended to change the administrator password. Configuring the administration interface to be accessible only from the LAN can further improve system security. Administrative settings configuration is located at System>Admin Security.

http://www.peplink.com 144 Copyright @ 2019 Pepxim

Name

Password

Name

User Password

Admin Settings

Router Name

Admin User

Admin

Confirm Admin

Read-only User

This field allows you to define a name for this Pepwave router. By default, Router Name is set as MAX_XXXX, where XXXX refers to the last 4 digits of the unit’s serial number.

Admin User Name is set as admin by default, but can be changed, if desired.

This field allows you to specify a new administrator password.

This field allows you to verify and confirm the new administrator password.

Read-only User Name is set as user by default, but can be changed, if desired.

This field allows you to specify a new user password. Once the user password is set, the

http://www.peplink.com 145 Copyright @ 2019 Pepxim

Password

Auth Server

Secret

Server

Server Secret

Connection

CLI SSH Port

Access

read-only user feature will be enabled.

Confirm User

Web Session

Timeout

Authentication

by RADIUS

Auth Protocol

Auth Server

Auth Timeout

Accounting

This field allows you to verify and confirm the new user password.

This field specifies the number of hours and minutes that a web session can remain idle before the Pepwave router terminates its access to the web admin interface. By default, it is set to 4 hours.

With this box is checked, the web admin will authenticate using an external RADIUS server. Authenticated users are treated as either "admin" with full read-write permission or “user” with read-only access. Local admin and user accounts will be disabled. When the device is not able to communicate with the external RADIUS server, local accounts will be enabled again for emergency access. Additional authentication options will be available once this box is checked.

This specifies the authentication protocol used. Available options are MS-CHAP v2 and PAP.

This specifies the access address and port of the external RADIUS server.

This field is for entering the secret key for accessing the RADIUS server.

This option specifies the time value for authentication timeout.

This specifies the access address and port of the external accounting server.

This field is for entering the secret key for accessing the accounting server.

Network

CLI SSH

Security

This option is for specifying the network connection to be used for authentication. Users can choose from LAN, WAN, and VPN connections.

The CLI (command line interface) can be accessed via SSH. This field enables CLI support. For additional information regarding CLI, please refer to Section 21.16.

This field determines the port on which clients can access CLI SSH.

This menu allows you to choose between granting access to LAN and WAN clients, or to LAN clients only.

This option is for specifying the protocol(s) through which the web admin interface can be accessed:

˗ HTTP ˗ HTTPS ˗ HTTP/HTTPS

http://www.peplink.com 146 Copyright @ 2019 Pepxim

Port

Web Admin

Access

This field is for specifying the port number on which the web admin interface can be accessed.

This option is for specifying the network interfaces through which the web admin interface can be accessed:

˗ LAN only ˗ LAN/WAN

If LAN/WAN is chosen, the WAN Connection Access Settings form will be displayed.

LAN Connection Access Settings

Allowed LAN

Networks

Allowed

Source IP

Subnets

This field allows you to permit only specific networks or VLANs to access the Web UI.

WAN Connection Access Settings

This field allows you to restrict web admin access only from defined IP subnets.

˗ Any - Allow web admin accesses to be from anywhere, without IP address

restriction.

˗ Allow access from the following IP subnets only - Restrict web admin access only

from the defined IP subnets. When this is chosen, a text input area will be displayed

http://www.peplink.com 147 Copyright @ 2019 Pepxim

beneath:

The allowed IP subnet addresses should be entered into this text area. Each IP subnet must be in form of w.x.y.z/m, where w.x.y.z is an IP address (e.g., 192.168.0.0), and m is the subnet mask in CIDR format, which is between 0 and 32 inclusively (For example,

192.168.0.0/24). To define multiple subnets, separate each IP subnet one in a line. For example:

192.168.0.0/24

10.8.0.0/16

Allowed WAN

IP Address(es)

This is to choose which WAN IP address(es) the web server should listen on.

24.2 Firmware

Pepwave router firmware is upgradeable through the web admin interface. Firmware upgrade functionality is located at System>Firmware.

There are two ways to upgrade the unit. The first method is through an online download. The second method is to upload a firmware file manually.

To perform an online download, click on the Check for Firmware button. The Pepwave router will check online for new firmware. If new firmware is available, the Pepwave router will automatically download the firmware. The rest of the upgrade process will be automatically initiated.

You may also download a firmware image from the Peplink website and update the unit manually. To update using a firmware image, click Choose File to select the firmware file from the local computer, and then click Manual Upgrade to send the firmware to the Pepwave router. It will then automatically initiate the firmware upgrade process.

Please note that all Peplink devices can store two different firmware versions in two different partitions. A firmware upgrade will always replace the inactive partition. If you want to keep the

http://www.peplink.com 148 Copyright @ 2019 Pepxim

If the firmware is rolled back from 5.x to 4.x, the configurations will be lost.

inactive firmware, you can simply reboot your device with the inactive firmware and then perform the firmware upgrade.

Important Note

The firmware upgrade process may not necessarily preserve the previous configuration, and the behavior varies on a case-by-case basis. Consult the release notes for the particular firmware version before installing. Do not disconnect the power during firmware upgrade process. Do not attempt to upload a non-firmware file or a firmware file that is not supported by Peplink. Upgrading the Pepwave router with an invalid firmware file will damage the unit and may void the warranty.

Important Note

24.3 Time

Time Settings enables the system clock of the Pepwave router to be synchronized with a specified time server. Time settings are located at System>Time.

Time Settings

This specifies the time zone (along with the corresponding Daylight Savings Time scheme).

Time Zone

Time Server

The Time Zone value affects the time stamps in the Pepwave router’s event log and e-mail notifications. Check Show all to show all time zone options.

This setting specifies the NTP network time server to be utilized by the Pepwave router.

24.4 Schedule

Enable and disable different functions (such as WAN connections, outbound policy, and firewalls at different times, based on a user-scheduled configuration profile. The settings for this are

http://www.peplink.com 149 Copyright @ 2019 Pepxim

located at System > Schedule

Enable scheduling, and then click on your schedule name or on the New Schedule button to begin.

Edit Schedule Profile

Enabling

Name

Click this checkbox to enable this schedule profile. Note that if this is disabled, then any associated features will also have their scheduling disabled.

Enter your desired name for this particular schedule profile.

Schedule

Click the drop-down menu to choose pre-defined schedules as your starting point. Please note that upon selection, previous changes on the schedule map will be deleted.

Schedule Map

Click on the desired times to enable features at that time period. You can hold your mouse for faster entry.

24.5 Email Notification

Email notification functionality provides a system administrator with up-to-date information on network status. The settings for configuring email notifications are found at System>Email

Notification.

Email Notification Settings

Notification

SMTP Server

SSL Encryption

This setting specifies whether or not to enable email notification. If Enable is checked, the Pepwave router will send email messages to system administrators when the WAN status changes or when new firmware is available. If Enable is not checked, email notification is disabled and the Pepwave router will not send email messages.

This setting specifies the SMTP server to be used for sending email. If the server requires authentication, check Require authentication.

Check the box to enable SMTPS. When the box is checked, SMTP Port will be changed to 465 automatically.

This field is for specifying the SMTP port number. By default, this is set to 25; when SSL

SMTP Port

Encryption is checked, the default port number will be set to 465. You may customize the port number by editing this field. Click Default to restore the number to its default setting.

SMTP User

Name /

This setting specifies the SMTP username and password while sending email. These options are shown only if Require authentication is checked in the SMTP Server setting.

Password

Confirm SMTP

Password

Sender’s Email

Address

Recipient’s

Email Address

This field allows you to verify and confirm the new administrator password.

This setting specifies the email address the Pepwave router will use to send reports.

This setting specifies the email address(es) to which the Pepwave router will send email notifications. For multiple recipients, separate each email addresses using the enter key.

After you have finished setting up email notifications, you can click the Test Email Notification button to test the settings before saving. After Test Email Notification is clicked, you will see this screen to confirm the settings:

Click Send Test Notification to confirm. In a few seconds, you will see a message with detailed test results.

24.6 Event Log

Event log functionality enables event logging at a specified remote syslog server. The settings for configuring the remote system log can be found at System>Event Log.

Event Log Settings

Remote Syslog

Host

Push Events

This setting specifies whether or not to log events at the specified remote syslog server.

This setting specifies the IP address or hostname of the remote syslog server.

The Pepwave router can also send push notifications to mobile devices that have our Mobile Router Utility installed. Check the box to activate this feature.

For more information on the Router Utility, go to: www.peplink.com/products/router-utility

Name

SNMP Port

SNMPv1

SNMPv2

SNMPv3

24.7 SNMP

SNMP or simple network management protocol is an open standard that can be used to collect information about the Pepwave router. SNMP configuration is located at System>SNMP.

SNMP Settings

SNMP Device

This field shows the router name defined at System>Admin Security.

This option specifies the port which SNMP will use. The default port is 161.

This option allows you to enable SNMP version 1.

This option allows you to enable SNMP version 2.

This option allows you to enable SNMP version 3.

To add a community for either SNMPv1 or SNMPv2, click the Add SNMP Community button in the Community Name table, upon which the following screen is displayed:

SNMP Community Settings

Community

Name

Allowed Source

Subnet

This setting specifies the SNMP community name.

This setting specifies a subnet from which access to the SNMP server is allowed. Enter subnet address here (e.g., 192.168.1.0) and select the appropriate subnet mask.

Address

To define a user name for SNMPv3, click Add SNMP User in the SNMPv3 User Name table,

upon which the following screen is displayed:

SNMPv3 User Settings

User Name

This setting specifies a user name to be used in SNMPv3.

This setting specifies via a drop-down menu one of the following valid authentication protocols:

Authentication

Protocol

Privacy Protocol

˗ NONE ˗ MD5 ˗ SHA

When MD5 or SHA is selected, an entry field will appear for the password.

This setting specifies via a drop-down menu one of the following valid privacy protocols:

˗ NONE ˗ DES

When DES is selected, an entry field will appear for the password.

24.8 InControl

InControl is a cloud-based service which allows you to manage all of your Peplink and Pepwave devices with one unified system. With it, you can generate reports, gather statistics, and configure your devices automatically. All of this is now possible with InControl.

When this check box is checked, the device's status information will be sent to the Peplink InControl system. This device's usage data and configuration will be sent to the system if you enable the features in the system.

Alternately, you could also privately host InControl. Simply check the box beside the “Privately Host InControl” open, and enter the IP Address of your InControl Host.

You can sign up for an InControl account at https://incontrol2.peplink.com/. You can register your devices under the account, monitor their status, see their usage reports, and receive offline notifications.

24.9 Configuration

Backing up Pepwave router settings immediately after successful completion of initial setup is strongly recommended. The functionality to download and upload Pepwave router settings is found at System>Configuration. Note that available options vary by model.

Settings

Configurations

Availability Pair

Configuration

Restore

Configuration

to Factory

The Restore Factory Settings button is to reset the configuration to factory default settings. After clicking the button, you will need to click the Apply Changes button on the top right corner to make the settings effective.

Download

Active

Upload

Configurations

Upload

Configurations

from High

Click Download to backup the current active settings.

To restore or change settings based on a configuration file, click Choose File to locate the configuration file on the local computer, and then click Upload. The new settings can then be applied by clicking the Apply Changes button on the page header, or you can cancel the procedure by pressing discard on the main page of the web admin interface.

In a high availability (HA) configuration, a Pepwave router can quickly load the configuration of its HA counterpart. To do so, click the Upload button. After loading the settings, configure the LAN IP address of the Pepwve router so that it is different from the HA counterpart.

24.10 Feature Add-ons

Some Pepwave routers have features that can be activated upon purchase. Once the purchase is complete, you will receive an activation key. Enter the key in the Activation Key field, click Activate, and then click Apply Changes.

24.11 Reboot

This page provides a reboot button for restarting the system. For maximum reliability, the Pepwave router can equip with two copies of firmware. Each copy can be a different version. You can select the firmware version you would like to reboot the device with. The firmware marked with (Running) is the current system boot up firmware.

Please note that a firmware upgrade will always replace the inactive firmware partition.

25 Tools

25.1 Ping

The ping test tool sends pings through a specified Ethernet interface or a SpeedFusionTM VPN connection. You can specify the number of pings in the field Number of times, to a maximum number of 10 times. Packet Size can be set to a maximum of 1472 bytes. The ping utility is located at System>Tools>Ping, illustrated below:

Tip

A system administrator can use the ping utility to manually check the connectivity of a particular LAN/WAN connection.

25.2 Traceroute Test

The traceroute test tool traces the routing path to the destination through a particular Ethernet interface or a SpeedFusion System>Tools>Traceroute.

connection. The traceroute test utility is located at

Tip

A system administrator can use the traceroute utility to analyze the connection path of a LAN/WAN connection.

25.3 PepVPN Test

The PepVPN Test tool can help to test the throughput between different VPN peers. You can define the Test Type, Direction, and Duration of the test, and press Go! to perform the throughput test. The VPN test utility is located at System>Tools>PepVPN Test, illustrated as follows:

25.4 Wake-on-LAN

Peplink routers can send special “magic packets” to any client specified from the Web UI. To access this feature, navigate to System > Tools > Wake-on-LAN

Select a client from the drop-down list and click Send to send a “magic packet”

25.5 CLI (Command Line Interface Support)

The CLI (command line interface) can be accessed via SSH. This field enables CLI support. The below settings specify which TCP port and which interface(s) should accept remote SSH CLI access. The user name and password used for remote SSH CLI access are the same as those used for web admin access.

26 Status

26.1 Device

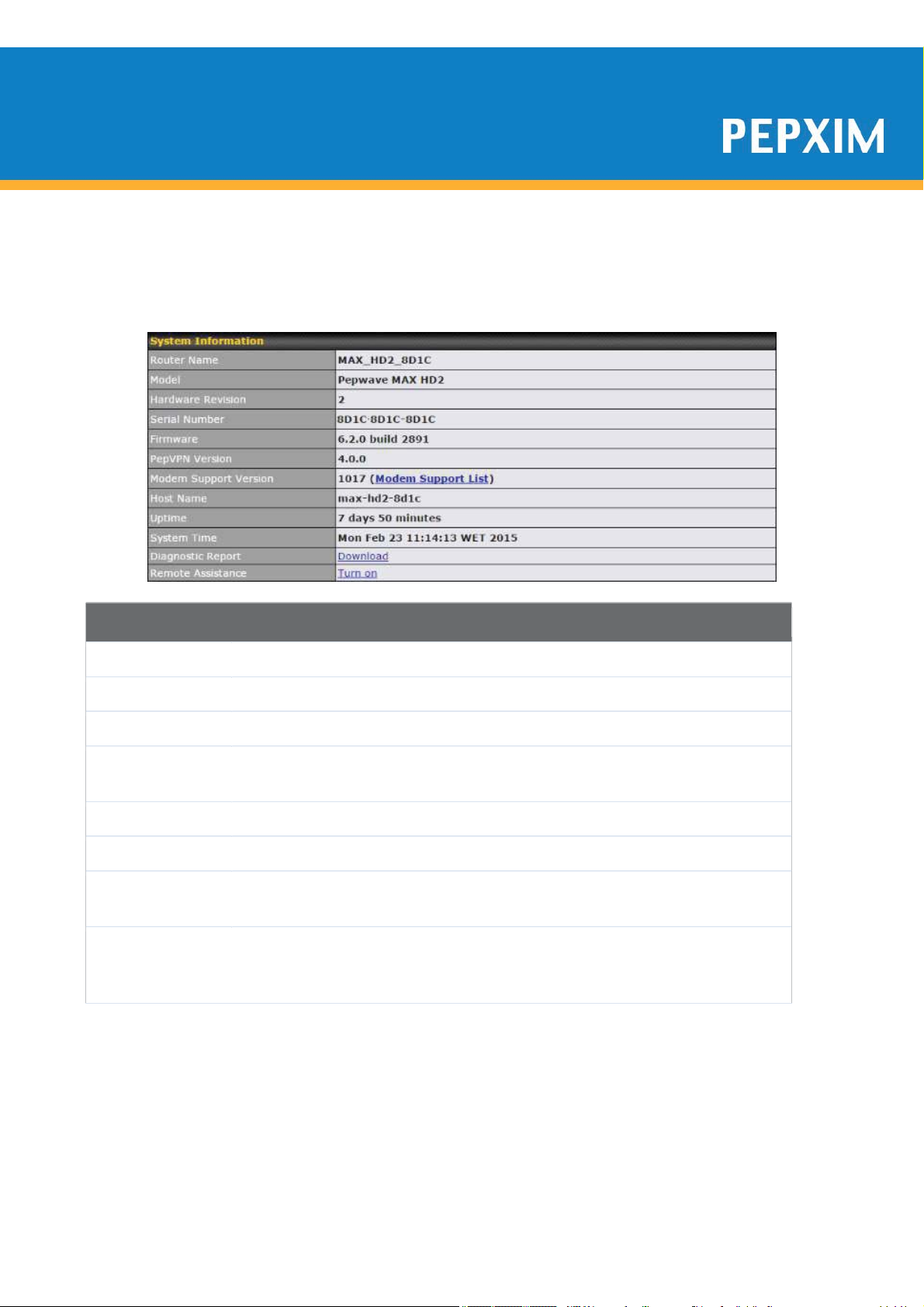

System information is located at Status>Device.

System Information

Router Name

Model

Product Code

Hardware

Revision

Serial Number

Firmware

PepVPN

Version

Modem

Support

This is the name specified in the Router Name field located at System>Admin Security.

This shows the model name and number of this device.

If your model uses a product code, it will appear here.

This shows the hardware version of this device.

This shows the serial number of this device.

This shows the firmware version this device is currently running.

This shows the current PepVPN version.

This shows the modem support version. For a list of supported modems, click Modem

Support List.

Version

System>Reboot.

Host Name

The host name assigned to the Pepwave router appears here.

Uptime

System Time

Diagnostic

Report

Remote

Assistance

This shows the length of time since the device has been rebooted.

This shows the current system time.

The Download link is for exporting a diagnostic report file required for system investigation.

Click Turn on to enable remote assistance.

The second table shows the MAC address of each LAN/WAN interface connected. To view your device’s End User License Agreement (EULA), click .

Important Note

If you encounter issues and would like to contact the Pepwave Support Team (http://www.pepwave.com/contact/), please download the diagnostic report file and attach it along with a description of your issue. In Firmware 5.1 or before, the diagnostic report file can be obtained at

26.2 GPS Data

The MAX HD2 and HD2 IP67 automatically store up to seven days of GPS location data in GPS eXchange format (GPX). To review this data using third-party applications, click Status>Device and then download your GPX file.

The Pepwave MAX BR1, HD2, and HD2 IP67 export real-time location data in NMEA format through the LAN IP address at TCP port 60660. It is accessible from the LAN or over a SpeedFusion connection. To access the data via a virtual serial port, install a virtual serial port driver. Visit http://www.peplink.com/index.php?view=faq&id=294 to download the driver.

26.3 Active Sessions

Information on active sessions can be found at Status>Active Sessions>Overview.

This screen displays the number of sessions initiated by each application. Click on each service listing for additional information. This screen also indicates the number of sessions initiated by each WAN port. In addition, you can see which clients are initiating the most sessions.

You can also perform a filtered search for specific sessions. You can filter by subnet, port, protocol, and interface. To perform a search, navigate to Status>Active Sessions>Search.

This Active Sessions section displays the active inbound/outbound sessions of each WAN connection on the Pepwave router. A filter is available to sort active session information. Enter a keyword in the field or check one of the WAN connection boxes for filtering.

26.4 Client List

The client list table is located at Status>Client List. It lists DHCP and online client IP addresses, names (retrieved from the DHCP reservation table or defined by users), current download and upload rate, and MAC address.

Clients can be imported into the DHCP reservation table by clicking the button on the right. You can update the record after import by going to Network>LAN.

If the PPTP server (see Section 19.2), SpeedFusion (see Section 20) is enabled, you may see the corresponding connection name listed in the Name field.

(see Section 12.1), or AP controller

26.5 WINS Client

The WINS client list table is located at Status>WINS Client.

The WINS client table lists the IP addresses and names of WINS clients. This option will only be available when you have enabled the WINS server (navigation: Network>Interfaces>LAN). The names of clients retrieved will be automatically matched into the Client List (see previous section). Click Flush All to flush all WINS client records.

26.6 UPnP / NAT-PMP

The table that shows the forwarded ports under UPnP and NAT-PMP protocols is located at Status>UPnP/NAT-PMP. This section appears only if you have enabled UPnP / NAT-PMP as mentioned in Section 16.1.1.

Click to delete a single UPnP / NAT-PMP record in its corresponding row. To delete all records, click Delete All on the right-hand side below the table.

Important Note

UPnP / NAT-PMP records will be deleted immediately after clicking the button or Delete All, without the need to click Save or Confirm.

26.7 SpeedFusion Status

Current SpeedFusionTM status information is located at Status>SpeedFusionTM. Details about SpeedFusion

Click on the corresponding peer name to explore the WAN connection(s) status and subnet information of each VPN peer.

connection peers appears as below:

Click the button for a chart displaying real-time throughput, latency, and drop-rate information for each WAN connection.

When pressing the button, the following menu will appear:

After clicking the icon, the following menu appears:

Select the L2 protocol (TCP/UDP), direction, and duration and click the Start button to begin the general throughput test.

The bandwidth bonding feature of PepVPN occurs when multiple WAN lines from one end merge with multiple WAN lines from the other end. For this to happen, each WAN line needs to form a connection with all the WAN lines on the opposite end. The function of the PepVPN analyzer is to report the throughput, packet loss, and latency of all possible combinations of connections. Please note that the PepVPN Analyzer will temporarily interrupt VPN

connectivity and will restore after test.

After clicking the icon, the analyzer will require several minutes to perform its analysis depending the number of WAN links in the SpeedFusion

Tunnel. Once the test the complete,

the report will appear:

"O" indicates that specific WAN / Tunnel is active for that particular test. "Tx Avg." is the averaged throughput across the full 10 seconds time, while "Tx Max." is the

averaged throughput of the fastest 30% of time.

26.8 Event Log

Event log information is located at Status>Event Log.

The log section displays a list of events that has taken place on the Pepwave router. Check Auto Refresh to refresh log entries automatically. Click the Clear Log button to clear the log.

27 Bandwidth Status

This section shows bandwidth usage statistics and is located at Status>Bandwidth. Bandwidth usage at the LAN while the device is switched off (e.g., LAN bypass) is neither recorded nor shown.

27.1 Real-Time

The Data transferred since installation table indicates how much network traffic has been processed by the device since the first bootup. The Data transferred since last reboot table indicates how much network traffic has been processed by the device since the last bootup.

27.2 Hourly

This page shows the hourly bandwidth usage for all WAN connections, with the option of viewing each individual connection. Select the desired connection to check from the drop-down menu.

27.3 Daily

This page shows the daily bandwidth usage for all WAN connections, with the option of viewing each individual connection.

Select the connection to check from the drop-down menu. If you have enabled the Bandwidth Monitoring feature, the Current Billing Cycle table for that WAN connection will be displayed.

Click on a date to view the client bandwidth usage of that specific date. This feature is not available if you have selected to view the bandwidth usage of only a particular WAN connection. The scale of the graph can be set to display megabytes (MB) or gigabytes (GB).

All WAN Daily Bandwidth Usage

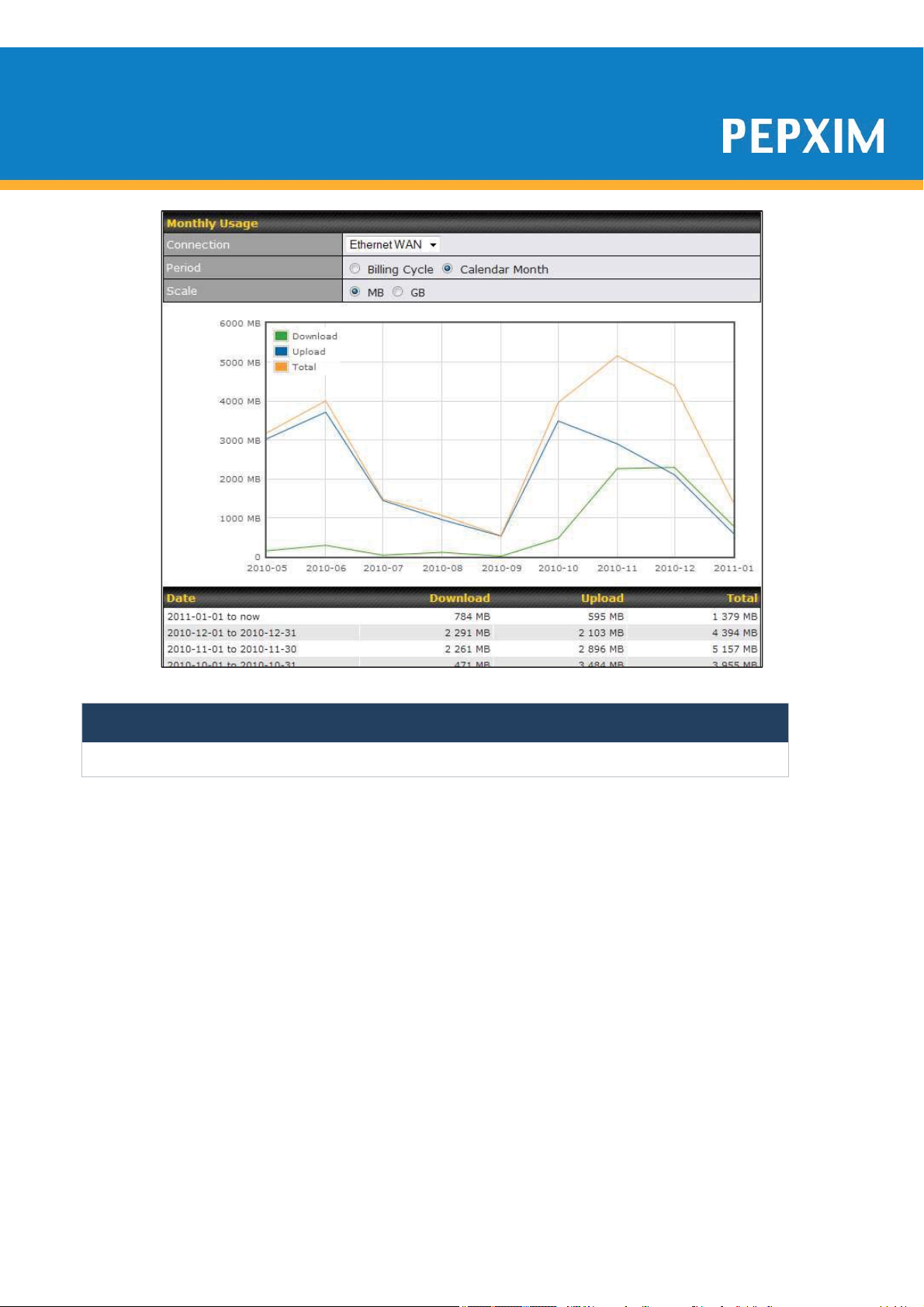

27.4 Monthly

This page shows the monthly bandwidth usage for each WAN connection. If you have enabled the Bandwidth Monitoring feature, you can check the usage of each particular connection and view the information by Billing Cycle or by Calendar Month.

Click the first two rows to view the client bandwidth usage in the last two months. This feature is not available if you have chosen to view the bandwidth of an individual WAN connection. The scale of the graph can be set to display megabytes (MB) or gigabytes (GB).

All WAN Monthly Bandwidth Usage

Ethernet WAN Monthly Bandwidth Usage

Tip

By default, the scale of data size is in MB. 1GB equals 1024MB.

Appendix A. Restoration of Factory Defaults

To restore the factory default settings on a Pepwave router, follow the steps below:

1. Locate the reset button on the front or back panel of the Pepwave router.

2. With a paper clip, press the reset button and hold it for at least 10 seconds, until the unit reboots itself.

After the Pepwave router finishes rebooting, the factory default settings will be restored.

Important Note

All previous configurations and bandwidth usage data will be lost after restoring factory default settings. Regular backup of configuration settings is strongly recommended.

Appendix B: Declaration

1. The device supports time division technology

2. Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

3. Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

To maintain compliance with the RF exposure guidelines, place the unit at least 20cm from nearby persons.

Mise en garde_: Pour assurer la conformité aux directives relatives à l'exposition aux fréquences radio, le jouet doit êtreplacé à au moins 20_cm des personnes à proximité.

Caution :

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and (iii) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas; (iii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. Radiation Exposure Statement: (For MAX BR1 Mini) This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 25cm between the radiator & your body.

Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 25 cm de distance entre la source de rayonnement et votre corps.

4. CE Statement for Pepwave Routers

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: This device complies with the essential requirements of the Radio Equipment Directive 2014/53/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the RE Directive 2014/53/EU:

- EN 60950-1: 2006 + A11: 2009+A1: 2010+ A12: 2011+A12: 2013 Safety of Information Technology Equipment

- EN50385 : 2002 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public EN 300 328 V1.7.1: 2006

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

- EN 301 908-1 V5.2.1: 2011

Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements, covering essential requirements of article 3.2 of the R&TTE Directive

- EN 301 511 V9.0.2: 2003

Global System for Mobile communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800 bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC)

- EN 301 489-1 V1.9.2: 2008

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

- EN 301 489-7 V1.3.1: 2005

ElectroMagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment ad services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS)

- EN 301 489-17 V2.2.1: 2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

- EN 301 489-24 V1.5.1: 2010

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment

Recycling - Our product bears this selective sorting symbol for Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU. This means this product must be handled according to this Directive. Old

electrical appliance must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points.

příslušnými ustanoveními směrnice 1999/5/ES.

sätetele.

[Lithuanian]

[Dutch]

[Hungarian]

levantnimi določili

Česky [Czech]

[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími

Dansk [Danish]

Deutsch

[German]

Eesti [Estonian]

English

Español

[Spanish]

Ελληνική

[Greek]

Français

[French]

Italiano [Italian]

Latviski

[Latvian]

Lietuvių

Nederlands

Malti [Maltese]

Magyar

Polski [Polish]

Português

[Portuguese]

Slovensko

[Slovenian]

Slovensky

[Slovak]

Suomi [Finnish]

Svenska

[Swedish]

Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele

Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus]megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi re direktive 1999/5/ES.

[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia]spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Pismolabs Technology P1021LTE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
