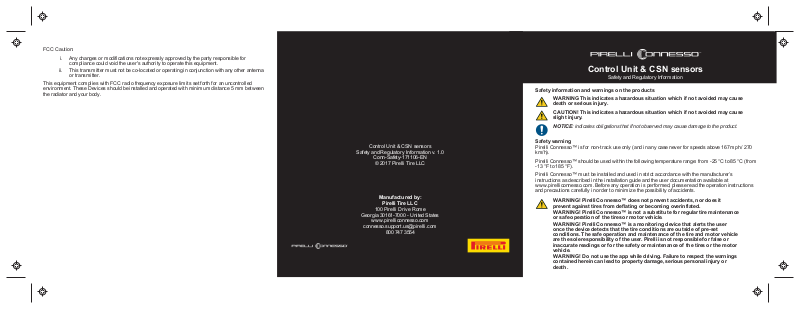

Pirelli Tire CCSN2, CCSN1 User Manual

FCC Caution:
i. Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
ii. This tr ansmitter m ust not be co-located or operating in conjunction with any other antenna
or transmitter.
This equipment complies with F CC radio frequency exposure limits set forth for an uncontrolled environment. These Devices should be installed and operatedw ith minimum distance 5 m m between ther adiator and your body.
Control Unit & CSN sensors
Safety andR egulatory Information
Safety information and warnings on t he products
WARNING This indicates a hazardous situation which if not avoided may cause death or serious injury.
CAUTION! This indicates a hazardous situation which if not avoided may cause slight injury.
NOTICE: indicates obligations that if not observed may cause damage to theproduct.
Control Unit & CSN sensors
Safety andR egulatory Information v. 1.0
Conn-Safety-171106-EN
© 2017 Pirelli Tire LLC
Manufactured by:
Pirelli Tire LLC
100 Pirelli Dr ive Rome
Georgia 30161-7000 - United States
connesso.support.us@pirelli.com
800 747 3554
Safety warning
Pirelli Connesso™ is for non-track use only ( and in any case never for speeds above 167 mph / 270 km/h).
Pirelli Connesso™ should be usedwithin thefollowing temperature range:from -25 °C to 85 °C ( from
-13 °F to 185°F).
Pirelli Connesso™ must be installed and usedi n strict accordancewith them anufacturer’s instructions as described in the installation guide andthe user documentation available at www.pirelliconnesso.com. Before any operation is performed, pleaser ead the operationinstructions and precautions carefully i n order to minimize the possibility of accidents.
WARNING! Pirelli Connesso™ does not prevent accidents, nor d oes it prevent against t ires from deflating or becoming overinflated.
WARNING! Pirelli Connesso™ is not a substitut e for regular tire maintenance or safe operation of the tires or motor vehicle.
WARNING! Pirelli Connesso™ is a monitoring device that alerts the user once the d evicedetects th at the tire conditions areoutside of pre-set conditions. The safe operation and maintenance of th e tire and motor vehicle are the sole responsibility of the user. Pirelli is not responsible for false or inaccurate readings or for the safety or maintenance of the tires or t he motor vehicle.
WARNING! D o not uset he app while driving. Failure to respect t he warnings contained herein can lead to property damage, serious personal injury or death.
WARNING! D riving on tires with improper inflation p ressureis dangerous. Thesesituations can cause a tire failure, including tread/belt separation, even at a later date, which could lead to an accident and cause property damage, serious personal injuri or death.
WARNING! Pirelli Connesso™, including the A pp are operable even while your vehicle is in motion. It is very important t hat you and others always exercise caution and drive appropriate to road conditions and in accordance with all t raffic lawsincluding laws regarding operation of smartphones and other mobiledevices while drinving. T he information provided by Pirelli Connesso™, including the App is not intended to replace the information provided to you on the road (for example, traffic signs, lane closures, police instructions) or through op eration o f your vehicle. Always drivesafely and do not rely on Pirelli Connesso™ or app to provide accurate information regarding directions, road conditions or d riving hazards.
Wireless Interface
The sensor/control unit contains a non-replaceable lithium battery andthey are r adio devices with wireless i nterface.
The product is provided with a Bluetoot h int erface operating in the 2.4 GHz ISM band. (i.e. 2.4000 - 2.4835 GHz).
The product complieswith th e Bluetooth® low energymodulesf eaturing Bluetooth® Low Energy (BLE) 4.0 and later versions
Cleaning instructions
Use a damp cloth for cleaning. Do not use liquid or aerosol cleansers.
Maintenance / service
NOTICE: In case the product requires service, contact the service center Do not open the product case.
Disposal of End of Life Sensors and Control Unit and tires
The Sensors and Control U nit contain a non-replaceable lithium battery.
Disposal instructions fo r users
The crossed-out wheeled bin symbol on the product or on its packaging indicates that this product shall be collected separately and not be disposed o f with unsorted municipal waste.
The end-of -life Sensorsand Cont rol Unit shall be disposed of according to any applicablelaws and regulation.
It is your responsibility to dispose of your end-o f-life Sensors and Control Unit (including batt eries) properly and separately from t he unsorted mun icipal waste stream.
The separate collection and recycling of your end- of-life Sensors and Con trol Un it at t he time of disposal will help to conserve natural resources and ensure that it is recovered in a manner that prot ects human health and the environment and supports the reuseand/or recycling of materialst he equipment is made of .
For more information about whereyou can drop off your end-of- life Sensors and Control Unit f or recovery,pleaserefer t o your local relevant entities, such as city office or household waste disposal service.
In casea tire reaches its end-of -life, any Sensor must be removed from the tire and disposed of separatelyand NOT via normal end-of-life tire disposal methods.
Waste packaging shall be separatelycollected in accordance with the applicable local waste collection rules.
Lithium batteries contain flammable materials such as lithium, organic solventand other chemical ingredients.
Improper handling of lithium batteries may r esult i n heat generation, fire or explosion, with a risk of personal injury and/or environmental damage. To prevent these accidents in battery handling, be sure to observe thefollowing precaution
n Do not dispose of batteries in fire n Do not heat batteries n Do not disassemble batteries
DO N OT DISPOSE OF AS HOUSEHOLD U NSORTED WA STE
Regulatory Information Control Unit Model name CC U Contains FCC ID XPYNINAB1
Sensor Model name CSN FCC ID 2ANX7CCSN1
Federal Comm unications Comm ission (FCC ) statement
The equipment complies wi th Part 15 of theFCC Rules. Operation is subject to the followingtwo conditions:
i. The equipment may not cause harmful interference, and
ii. The equipment m ust accept any interferencer eceived, including interferencethat may
cause undesired operation.
This equipment has been tested and found to comply wi th thel imits for a Class B digital device, pursuant to Part 15 of the FCC R ules. These lim its are designed to provide reasonable protection against harmful interferencei n a residential i nstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or televisionr eception, which can be determined by turningthe equipment off and on, theU ser is encouragedto tr y to correct thei nterference by one of thefollowing measures:
i. Reorient or relocatethe receiving antenna.
ii. Increase the separation between theequipment andreceiver.
iii. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
iv. Consult the dealer or an experiencedr adio/TV technician for help.
Cont rolUnit &C SNsensors | Safety and Re gulatory Informa tion v.1 .0 | Conn -Safety-17110 6-EN|©20 17 PirelliTireLL C
