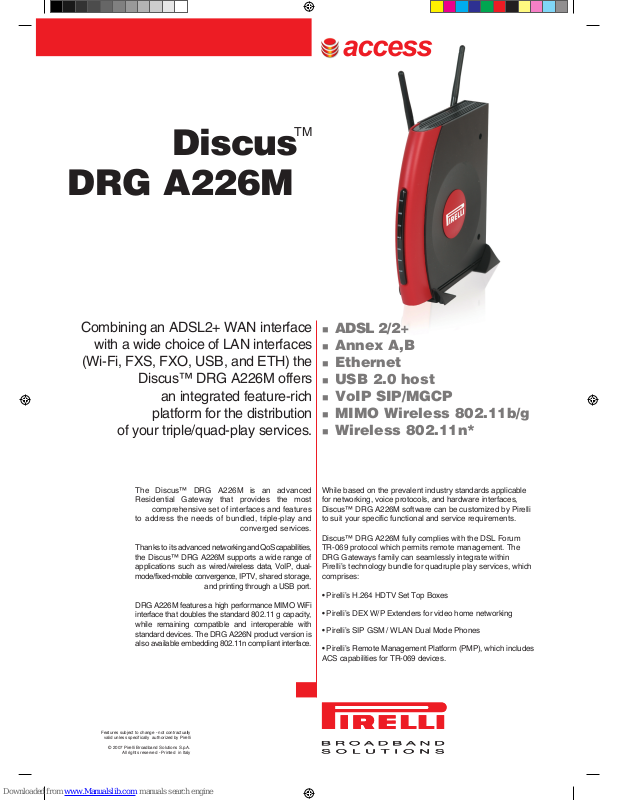

Page 1
ADSL 2/2+
Annex A,B
Ethernet
USB 2.0 host
VoIP SIP/MGCP
MIMO Wireless 802.11b/g
Wireless 802.11n*
Combining an ADSL2+ WAN interface
with a wide choice of LAN interfaces
(Wi-Fi, FXS, FXO, USB, and ETH) the
Discus™ DRG A226M offers
an integrated feature-rich
platform for the distribution
of your triple/quad-play services.
The Discus™ DRG A226M is an advanced
Residential Gateway that provides the most
comprehensive set of interfaces and features
to address the needs of bundled, triple-play and
converged services.
Thanks to its advanced networking and QoS capabilities,
the Discus™ DRG A226M supports a wide range of
applications such as wired/wireless data, VoIP, dualmode/fixed-mobile convergence, IPTV, shared storage,
and printing through a USB port.
DRG A226M features a high performance MIMO WiFi
interface that doubles the standard 802.11 g capacity,
while remaining compatible and interoperable with
standard devices. The DRG A226N product version is
also available embedding 802.11n compliant interface.
TM
Features subject to change - not contractually
valid unless specifically authorized by Pirelli
© 2007 Pirelli Broadband Solutions S.p.A.
All rights reserved - Printed in Italy
While based on the prevalent industry standards applicable
for networking, voice protocols, and hardware interfaces,
Discus™ DRG A226M software can be customized by Pirelli
to suit your specific functional and service requirements.
Discus™ DRG A226M fully complies with the DSL Forum
TR-069 protocol which permits remote management. The
DRG Gateways family can seamlessly integrate within
Pirelli’s technology bundle for quadruple play services, which
comprises:
• Pirelli’s H.264 HDTV Set Top Boxes
• Pirelli’s DEX W/P Extenders for video home networking
• Pirelli’s SIP GSM / WLAN Dual Mode Phones
• Pirelli’s Remote Management Platform (PMP), which includes
ACS capabilities for TR-069 devices.

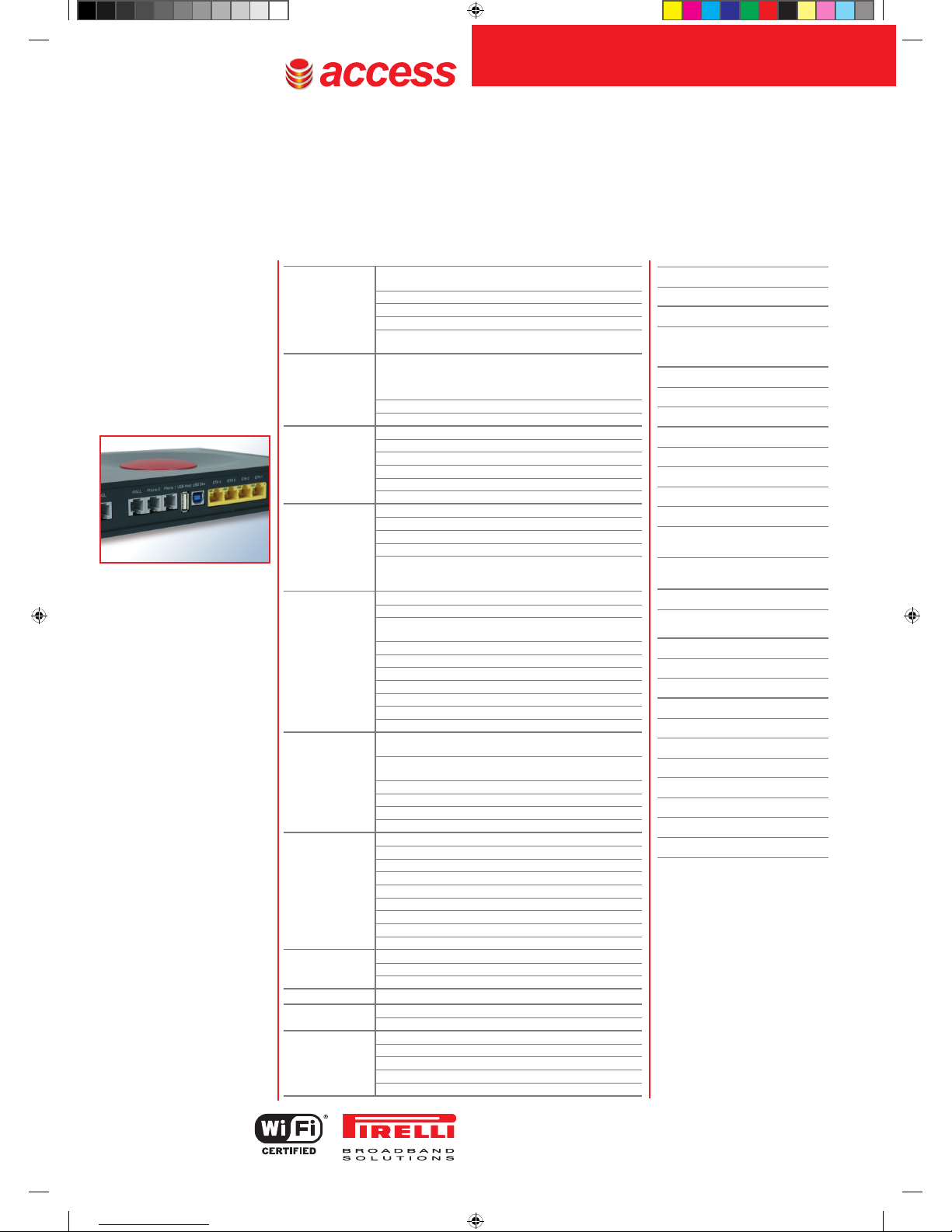

Page 2
DRG_A226M_02/2007
Discus
TM
DRG A226M
ADSL 2/2+
Annex A,B
Ethernet
USB 2.0 host
VoIP SIP/MGCP
MIMO Wireless
802.11b/g
Wireless 802.11n*
Buttons
1 x Reset Button.
1 x Power Button
LEDs
Power, Ethernet link/activity, Wireless
activity, USB link/activity, Phones,
ADSL line Activity, Internet Activity
Power Adapter
INPUT: 100-240Vac 50/60 Hz 0.51 A
OUTPUT: 15 Vdc 1.2 A
Environmental Specifications
Temperature:
• Operating: 0 to 40 ° C
• Non Operating: -20 to 65 °C
Relative Humidity:
• Operating: 10% to 85% non
condensing
• Non Operating:5% to 95% non
condensing
Agency Approvals and Certifications
CE mark, ITU-T K21, WEEE, RoHS,
Wi-Fi certification (by Wi-Fi alliance)
Physical Specifications:
Dimensions: 250 x 220 x 95 mm
Weight: 1.25 kg
Standard Package Content
DRG A226M
Power adapter
Ethernet cable
USB cable
Phone cable
Quick guide
CD
Features subject to change - not contractually
valid unless specifically authorized by Pirelli
© 2007 Pirelli Broadband Solutions S.p.A.
All rights reserved - Printed in Italy
Pirelli Broadband Solutions N.A.
75 Fifth Street NW Suite 320
Atlanta, GA 30308 USA
Phone: +404 920 0749
Fax: +404 920 0748
Pirelli Broadband Solutions S.p.A
Viale Sarca, 222 - 20126 Milano – Italy
Fax: +39 02 6442 7811
[email protected]
www.pirelli.com
TECHNICAL SPECIFICATIONS
WAN interface
1 ADSL Line port (RJ-11plug) supporting the following
standards:
• AADSL (G.992.1, G992.2, T1.413, G994.1, G.997.1)
• ADSL2 (G.992.3)
• ADSL2+ (G992.5)
Annex A/Annex B are available in different
product versions
LAN Interfaces
N° 4 10/100BASE-T Ethernet ports (RJ-45 plug), compliant
IEEE 802.3, with auto MDIX and auto-negotiation.
Ports can be configured in order to be dedicated to video
traffic to/from a STB
N° 1 USB Host v.2.0
N° 1 USB Device v1.1
Wireless LAN
Interface
IEEE 802.11 b/g
IEEE 802.11n in model A226N
Security: WPA/WPA2 (IEEE 802.11i)
Multiple SSID
QoS: WMM (IEEE 802.11e)
N°2 external antennas (optionally internal)
ATM features
ATM (AAL5) payload format
UBR, VBR-nrt, VBR-rt, CBR traffic classes
Up to 8 PVC
Pre-emptive SAR
Multiple physical queues (up
to 8) per traffic class, with priority-based
scheduling support
VoIP Interfaces
Signaling protocol: SIP, MGCP
Echo cancellation: G.165/168
Voice compression: G.711 (a/µ law), G.723, G.726, G.729a
with configurable packet length
DTMF detection and generation
Silence suppression and comfort noise generation
Adaptive jitter buffer
FAXoIP: G.711 pass-through and T.38
Ports:
• N°2 FXS Phone port (RJ11 Plug)
• N°1 FXO Phone port (RJ11 Plug)
WAN Protocol
Encapsulation
Power, Ethernet link/activity, Wireless activity, USB link/
activity, Phones, ADSL line Activity, Internet Activity
Bridged/Routed Ethernet over ATM (RFC
2684 / RFC 1483)
PPP over Ethernet (RFC 2516)
PPP over ATM (RFC 2364
IP over ATM (RFC 1577)
MTU settable
Routing /
Bridging
RIP v1/v2 and static Routing
NAT/NAPT (with ALGs)
IP QoS
DHCP Server/Client
VPN pass-through
IPv4
DNS relay
NTP
IGMPv2 proxy
QoS
Traffic shaping (ATM layer)
Priority-based scheduling (up to 8* queues,max 4 per PVC )
DSCP/TOS remarking
Security
Programmable firewall
VLAN
Supports multiple VLAN ID per ports
Configurable layer-two switching
Remote
management
DSL Forum TR-069
TFTP client for remote firmware upgrade
Diagnostics and LOGs
Telnet with CLI
WEB server with Admin/User configuration Pages
* Option - Check availability with Pirelli
sales representatives
