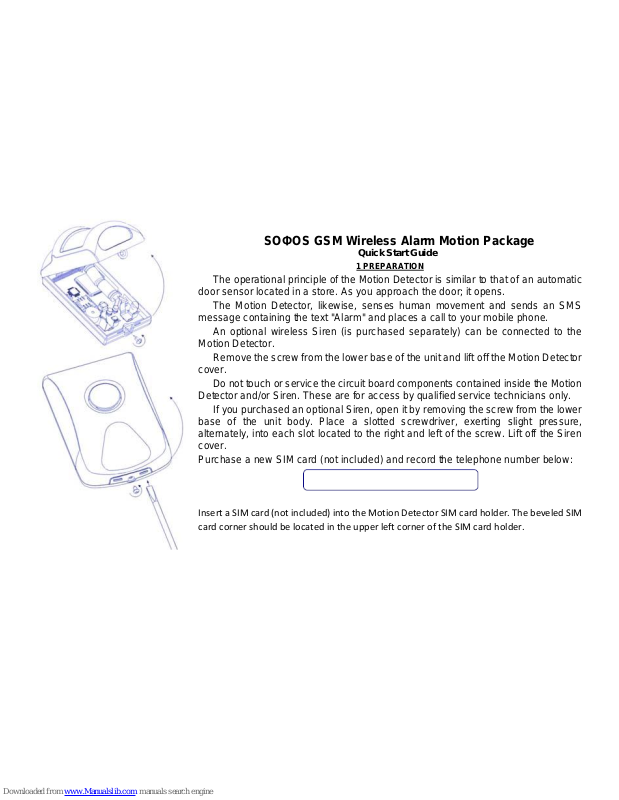

SOΦOS GSM Wireless Alarm Motion Package
Quick Start Guide
1 PREPARATION
The operational principle of the Motion Detector is similar to that of an automatic
door sensor located in a store. As you approach the door; it opens.
The Motion Detector, likewise, senses human movement and sends an SMS
message containing the text "Alarm" and places a call to your mobile phone.
An optional wireless Siren (is purchased separately) can be connected to the
Motion Detector.
Remove the screw from the lower base of the unit and lift off the Motion Detector
cover.
Do not touch or service the circuit board components contained inside the Motion
Detector and/or Siren. These are for access by qualified service technicians only.
If you purchased an optional Siren, open it by removing the screw from the lower
base of the unit body. Place a slotted screwdriver, exerting slight pressure,
alternately, into each slot located to the right and left of the screw. Lift off the Siren
cover.
Purchase a new SIM card (not included) and record the telephone number below:
Insert a SIM card (not included) into the Motion Detector SIM card holder. The beveled SIM
card corner should be located in the upper left corner of the SIM card holder.
2 SET UP
You will have only one minute to complete the set up procedure, after which the Motion Detector will turn off. If
you were unable to complete all the set up procedure steps, remove the battery from the Motion Detector and the Siren,
wait 2 minutes and repeat the set up procedure from the beginning.
Re-install the battery into the Motion Detector battery holder observing the correct polarity. Wait for 3 audible sound
signals and then call the Motion Detector (the telephone number recorded in the space on page 1) from your telephone.
After receiving the call, the Motion Detector will emit an audible sound signal and will then disconnect the incoming call.
In order to set up the Siren, remove the protective plastic insert from between the battery and its holder. After an
audible sound signal, the LED (Light Emitting Diode) will blink 3 times indicating that the Siren is successfully connected
to the Motion Detector.
Set up the Remote Controller by briefly pressing button "A"; Set up will conclude by emitting an audible sound signal.
Replace the covers on the Motion Detector and Siren; insert and tighten the screws. In approximately 1 minute you
will receive an incoming SMS message containing set up details. Simply confirm that immediately following position 1)
your telephone number is registered and visible. The additional sets up details are for advanced users only.
3 INSTALLATION
Install the Motion Detector in a location inaccessible by unauthorized persons and with an unobstructed view of the
protected zone. The recommended installation height is approximately 2m/6.5'. The detection range for human presence
is approximately 10m/33' within the protected zone.
Do not install the Motion Detector near heat sources (fireplaces, stoves, air conditioners, heating radiators) or in any
location exposed to strong air flow or direct sunlight.
Use the included wall bracket or double sided adhesive tape to mount the Motion Detector on the wall. The wall on
which the Motion Detector is mounted should not be exposed to vibration. The presence of objects in the protected
zone, such as furniture, screens, plants, etc., might create "blind spots", possibly hindering the detection of human
presence. The presence of animals and birds within the protected zone may trigger false alarming. Detection zones
are shown below.
The Siren may be placed in any convenient location, for example, on a bookshelf or hung on a screw. Maximum Siren effective
range is 100m/328'.
4 ARMING & DISARMING
• Arming protection mode: Press button "A" on the Remote Controller, the LED will blink green and red, the Siren
will beep once and will then emit an audible sound signal. For 1 minute, the Motion Detector will continue to emit
audible sound signals. During this span of time, the protected zone must be vacated. Simply exit to an adjacent
room.
• Wait for an incoming SMS message containing the text "Armed by RC* 1".
• Wait for 2-3 minutes.
• Disarming protection mode: Prior to entering the protected premises, press button "B" on the Remote Controller.
The LED will blink yellow and green.
• The Siren will beep twice and will then emit 2 audible sound signals.
Wait for an incoming SMS message containing the text "Disarmed by RC* 1"; now enter the premises.
*RC = Remote Controller
5 SPECIFICATIONS
6 VERIFICATION
• Press button "A" on the Remote Controller, the LED will blink green and red, the Siren will beep once and will then
emit an audible sound signal. For 1 minute, the Motion Detector will continue to emit audible sound signals.
During this span of time, the protected zone must be vacated. Simply exit to an adjacent room.
• Wait for an incoming SMS message containing the text "Armed by RC* 1".
• Wait for 2-3 minutes and then enter the protected zone.
• The Siren will start emitting audible sound and visual light signals.
• Wait for an incoming SMS message containing the text "Alarm" and an incoming call from the Motion Detector.
• Place a call from your telephone to the Motion Detector SIM card telephone number.
• The Siren will beep twice and will then emit 2 audible sound signals. In time of alarming the Siren will emit loud
sound signals and flashing strobe lights during 1 minute.
• Wait for an incoming SMS message containing the text "Disarmed by incoming call from +XXXXXXXXXXX" (your
telephone number).
7 FCC INFORMATION
This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions:
This device may not cause harmful interface, and
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
8 WARRANTY INFORMATION
Warranty period is one year from date of purchase.
During the Warranty period manufacturer will repair, exchange, adjust, or replace at its discretion, any defective
product.
This warranty does not cover damage resulting from any unauthorized attempt to repair or from any use not in
accordance with the instruction manual. Warranty does not cover physical damage of any kind whatsoever or cover
damage caused by any attempt to tamper with or disassemble the product.
Warranty does not cover the battery.
You should replace the battery in case of reception of SMS message about low power level.
Warranty period commences on the day first purchased from manufacturer or an authorized reseller as evidenced by
a purchase receipt. Without a valid receipt of purchase, manufacturer is relieved of its obligation to provide warranty
service.
