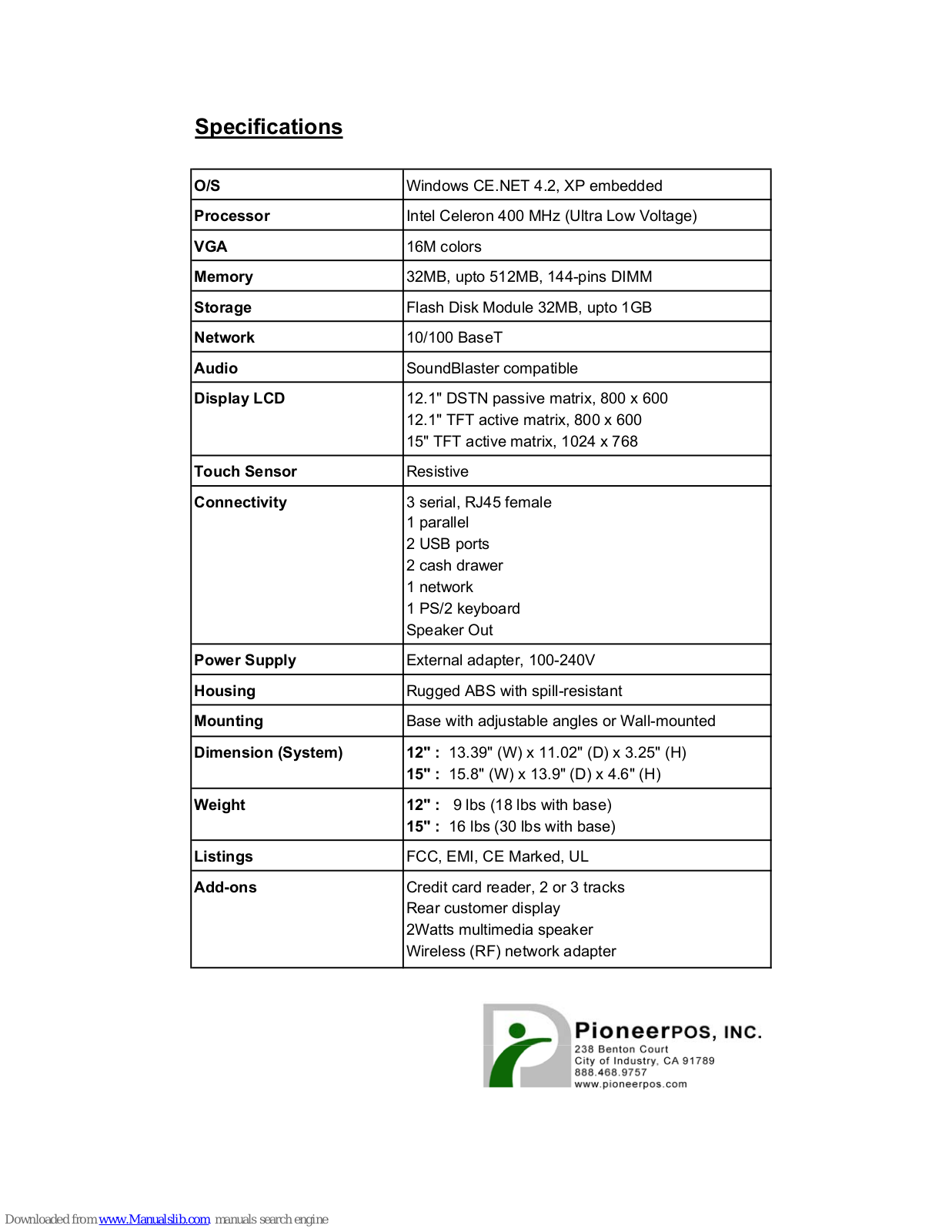

Specifications
O/S
Processor
VGA
Memory
Storage
Network
Audio
Display LCD
Touch Sensor
Connectivity
Windows CE.NET 4.2, XP embedded
Intel Celeron 400 MHz (Ultra Low Voltage)
16M colors
32MB, upto 512MB, 144-pins DIMM
Flash Disk Module 32MB, upto 1GB
10/100 BaseT
SoundBlaster compatible
12.1" DSTN passive matrix, 800 x 600
12.1" TFT active matrix, 800 x 600
15" TFT active matrix, 1024 x 768
Resistive
3 serial, RJ45 female
1 parallel
2 USB ports
2 cash drawer
1 network
1 PS/2 keyboard
Speaker Out
Power Supply
Housing
Mounting
Dimension (System)
Weight
Listings
Add-ons
External adapter, 100-240V
Rugged ABS with spill-resistant
Base with adjustable angles or Wall-mounted
12" : 13.39" (W) x 11.02" (D) x 3.25" (H)
15" : 15.8" (W) x 13.9" (D) x 4.6" (H)
12" : 9 lbs (18 lbs with base)
15" : 16 lbs (30 lbs with base)
FCC, EMI, CE Marked, UL
Credit card reader, 2 or 3 tracks
Rear customer display
2Watts multimedia speaker
Wireless (RF) network adapter
