Pioneer SX-20DAB User manual

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

Information for users on collection and disposal of old equipment and used batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Symbol examples

for batteries

Symbol for

equipment

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-1_B1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on.

A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service

center or your dealer for a replacement.

S002*_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left

unused for a long period of time (for

example, when on vacation).

D3-4-2-2-2a*_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 40 cm at top, 10 cm at rear, and 20 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

D3-11-15-5-2_A1_En

For Norway customers

Utstyr som er koplet til beskyttelsesjord via nettplugg og/eller via annet jordtilkoplet utstyr – og er tilkoplet et kabel-TV nett, kan forårsake brannfare. For å unngå dette skal det ved tilkopling av utstyret til kabel-TV nettet installeres en galvanisk isolator mellom utstyret og kabel-TV nettet.

For Sweden customers

Utrustning som är kopplad till skyddsjord via jordat vägguttag och/eller via annan utrustning och samtidigt är kopplad till kabel-TV nät kan i vissa fall medföra risk för brand.

För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator finnas mellan utrustningen och kabel-

V nätet.

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly.

Ventilation

Contents

01 Before you start

What’s in the box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Loading the batteries in the remote control . . . . . . . . . . . . . . . . . . . . 4

Installing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

02 Connecting up

Making cable connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connecting speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connecting antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

03 Controls and displays

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

04 Operation

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Making an audio recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Listening to the FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

An introduction to RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Listening to the DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Selecting DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching the desired speakers on . . . . . . . . . . . . . . . . . . . . . . . . . 13

To set for automatic standby status (Auto Power Down) . . . . . . . . . 13

Restoring all the settings to the factory default settings . . . . . . . . . 13

05 Additional information

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

01 Before you start

7 m

30 °

Chapter 1:

Before you start

What’s in the box

Please confirm that the following accessories are in the box when you open it.

•Remote control

• AAA/IEC R03 dry cell batteries x2

• FM/DAB wire antenna

•Power cord

• Warranty card

• Quick start guide

• Safety Brochure

• These operating instructions (CD-ROM)

Note

• Illustrations featured in the Operating Instructions may have been modified or simplified for ease of explanation, and may therefore differ from the actual product appearance.

• The illustrations used here are mainly of the SX20DAB-S (Silver) model.

Loading the batteries in the remote control

1 Open the rear lid.

2 Insert the new batteries, matching the polarities as indicated inside the case.

3 Close the rear lid.

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

WARNING

• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

CAUTION

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

• When inserting the batteries, make sure not to damage the springs on the battery’s  terminals. This can cause batteries to leak or overheat.

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.

• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).

• Do not heat batteries, disassemble them, or throw them into flames or water.

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.

• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/ area.

Using the remote control

The remote has a range of about 7 m at an angle of about 30º from the remote sensor.

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.

• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

• Replace the batteries when you notice a fall off in the operating range of the remote.

Installing the receiver

When installing this unit, make sure to put it on a level and stable surface.

• Don’t install it on the following places: – on a color TV (the screen may distort) – near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound. – in direct sunlight – in damp or wet areas – in extremely hot or cold areas – in places where there is vibration or other movement – in places that are very dusty – in places that have hot fumes or oils (such as a kitchen)

• Do not mount the unit on a sofa or other object or material with absorbent qualities, since sound quality may be adversely affected.

Connecting up 02

REC

PLAY

AC IN

SPEAKERS

RECORDER

INININ

SIGNAL

GND

OUT

PHONO (MM

)FM/DAB

ANTENNA

SACD/CD

NETWORK

LRL

SACD/CD player

Network audio player

Speaker system B

Speaker system A

Turntable

FM/DAB antennas

(see page 6)

CD recorder or

Cassette deck

Right Left

Right

Left

Power cord

(included)

Left (white)

Right (red)

10 mm

Chapter 2:

Connecting up

Making cable connections

CAUTION

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

• Connect the power cord after all the connections between devices have been completed.

Important

•The SIGNAL GND terminal is provided to reduce

noise when connecting the unit to components such as an analog turntable.

• Do not connect the PHONO (MM) terminals to any

component other than a turntable; also, do not connect to a turntable equipped with built-in equalizer. An excessively high sound output may be produced, resulting in damage to your speakers or other devices.

• The unit’s PHONO (MM) terminals are designed to

be used with turntables equipped with MM (moving-magnet) type cartridges. Turntables equipped with MC (moving-coil) cartridges cannot be used.

• Make sure not to bend the cables over the top of this unit (as shown in the illustration). If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

• If your turntable has a grounding wire, secure it to the ground terminal on this receiver.

Note

• When connecting a tape cassette deck, playback noise may be heard, depending on the installation location. This noise is caused by leakage flux from the receiver’s transformer. In this event, change the installation location, or move the deck farther from the receiver.

Connecting audio cables

Connect the white plug to the left (L) jack, and the red plug to the right (R) jack. Be sure to insert the plugs fully into the jacks.

Connecting speaker cables

1 Twist the cable cores.

2 Loosen the nut on the

SPEAKERS terminal, and insert the speaker cable into the exposed hole in the terminal shaft.

3 Retighten the terminal nut.

12 3

CAUTION

• When using only one set of speaker terminals (SPEAKERS A or SPEAKERS B), the speaker used should have a nominal impedance between 4  and 16 . When using both sets of terminals, the connected speakers should have nominal impedance between 8  and 16 . Consult the instructions accompanying your speakers for details regarding the impedance value.

• Make sure the positive and negative (+/–) terminals on the receiver match those on the speakers.

• These speaker terminals carry HAZARDOUS live voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

02 Connecting up

FM/DAB

ANTENNA

75 coaxial cable

F connector

AC IN

To AC outlet

Power cord

Connecting antennas

Connect the FM/DAB wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Using external antennas below).

FM/DAB

ANTENNA

1 Connect the FM/DAB wire antenna into the FM/DAB antenna socket.

For best results, extend the FM/DAB antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

Using external antennas

Use a F connector (not supplied) to connect an external FM/DAB antenna.

Plugging in

CAUTION

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described below.

Important

• When going on a trip or otherwise not using the unit for an extended period, always disconnect the power cord from its outlet. Note that various internal settings will not be lost even if the power cord is disconnected from its outlet for an extended time.

• If it is necessary to detach the power cord, first be sure to press /I STANDBY/ON on the front panel so receiver is turned OFF.

After you’ve finished making all connections, plug the unit into an AC outlet.

1 Plug the supplied power cord into the AC IN

socket on the rear panel of the unit.

2 Plug the other end into an AC outlet.

Controls and displays 03

Chapter 3:

Controls and displays

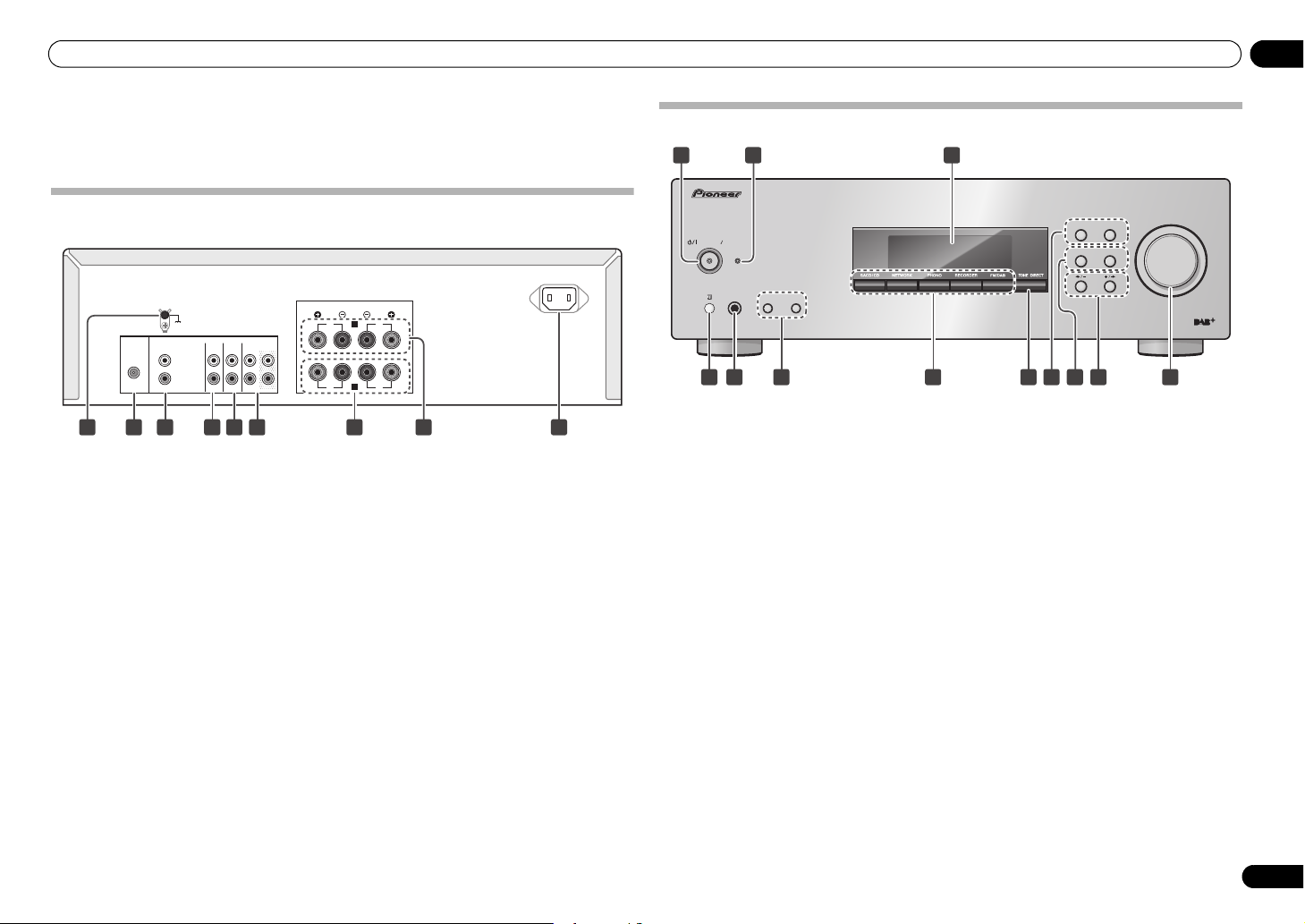

Rear panel

See pages 5-6 for details regarding connections.

SIGNAL

GND

RECORDER

SACD/CD

NETWORK

PHONO (MM

)

OUT

INININ

FM/DAB

ANTENNA

2 3 4 5 61 897

1 SIGNAL GND (Turntable ground) terminal

This ground terminal is designed to help reduce noise when a turntable is connected. It is not a safety ground.

2 ANTENNA terminal

Connect supplied FM/DAB wire antenna.

3 PHONO (MM) IN terminals

4 SACD/CD IN terminals

5 NETWORK IN terminals

6 RECORDER IN/OUT terminals

7 SPEAKERS A terminals

8 SPEAKERS B terminals

9 AC IN jack

Connect power cord to here and an AC wall socket.

SPEAKERS

R L

AC IN

Front panel

/I STANDBY/ON

Switches the receiver between off and on. When power is turned on, the power indicator in the

center of the button will lights blue.

2 STANDBY indicator

When power is set to standby, the indicator lights red.

3 Character display

See Display on page 8.

4 Remote sensor

Receives the signals from the remote control (page 4).

5 PHONES jack

Use to connect headphones. Be sure to switch off both A and B speakers.

6 SPEAKERS A/B buttons

These buttons allow you to select various combinations of speakers as follows:

•To drive A speakers, press SPEAKERS A button (SPEAKER:A is displayed).

•To drive B speakers, press SPEAKERS B button (SPEAKER:B is displayed).

• To drive both A and B speakers, press SPEAKERS A and B buttons in order (SPEAKER:AB is displayed).

• When using headphones for private listening, press these buttons in order to switch off the speakers A and B (SPEAKER:OFF is displayed, and H (

Headphones

2 3

STANDBY ON

STANDBY

PHONES

SPEAKERS

4 5

6 7 8 9

button

) indicator lights).

STEREO RECEIVER

SX-20DAB

MEMORY

TONE

TUNE / PRESET

BALANCE

VOLUME

10 11 12

7 Input function buttons

Use to select the input source to this receiver (page 9).

8 TONE DIRECT button

Press to select the TONE DIRECT mode (page 13).

9 Tuner control buttons

MEMORY – Press to store preset stations. TUNE/PRESET – Press to select the tuning mode or

the preset mode.

10 Sound control buttons

TONE – When adjusting the tone (bass and treble),

press to select the desired tone mode.

• Each time this button is pressed, the tone mode is changed to bass or treble.

BALANCE – When adjusting the sound volume balance, press to enter the balance mode.

/–

At the tuning mode, use to find radio frequencies. At the preset mode, use to select preset radio stations. Also used when setting up (TONE, BALANCE) the receiver.

12 VOLUME control

Use to adjust the volume level. (Also allows adjustment of the headphone sound volume.)

and +/ buttons

03 Controls and displays

21 3

SLEEP

APD

SPEAKERS

RDS PTY MUTE

VOLUME

SCAN

RETURNFM/DAB

FM MODE

BASS

NETWORK AUDIO PLAYER

SACD PLAYER

RETURN

HOME MENU

FUNC

SETUP

ENTER

TREBLE

BALANCE

MEMORY

TOP

SEARCH DISPLAY

DIMMER

TONE DIRECT

SURROUND

123

456

789

STANDBY/ON

STEREO RECEIVER

SACD/CD NETWORK PHONO RECORDER

ENTER

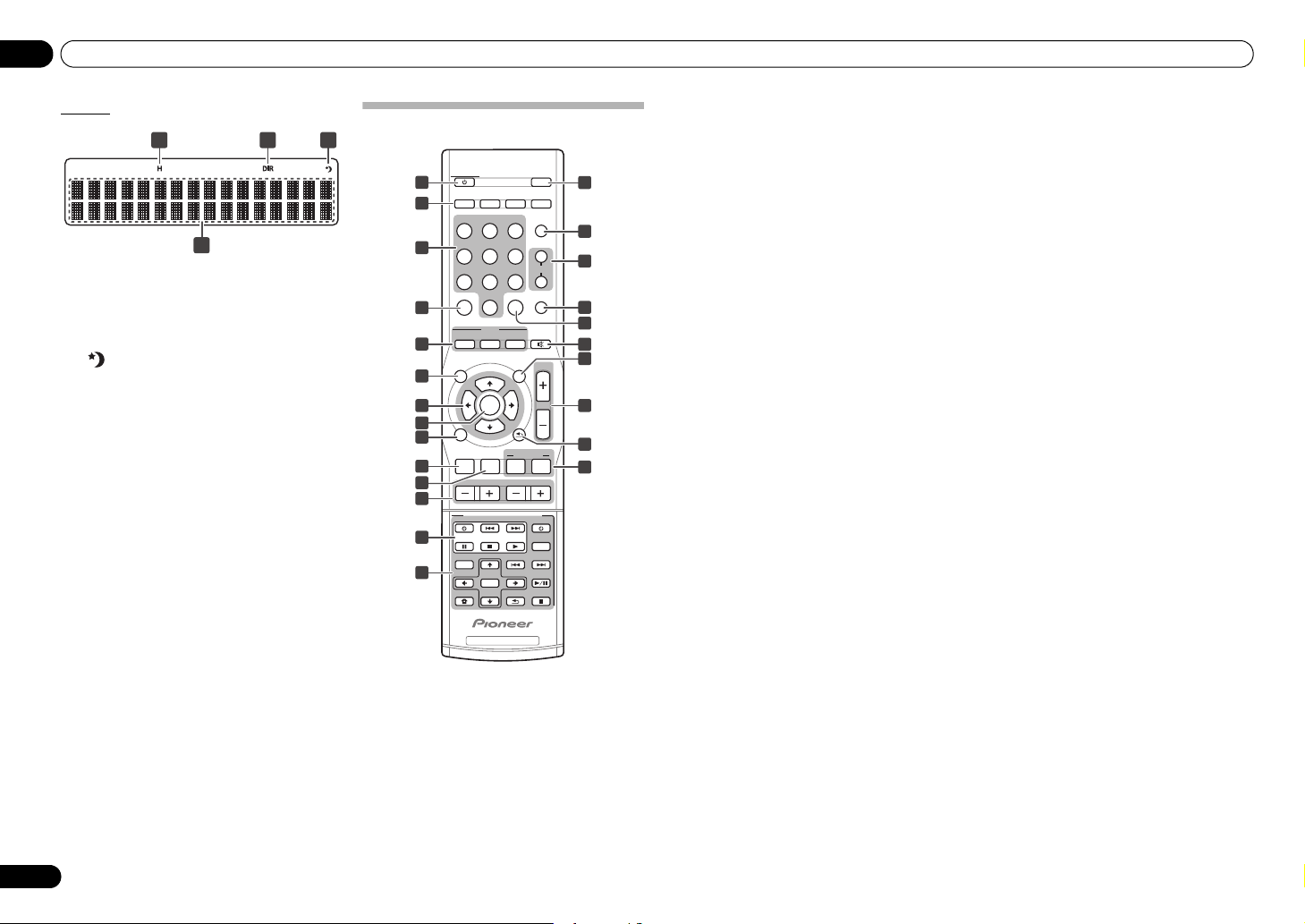

Display

1 H (Headphones) indicator

Lights when both speakers A and B are switched off.

2 DIR (Direct) indicator

Lights when the TONE DIRECT mode is switched on.

3 (Sleep) indicator

Lights when the receiver is in sleep mode.

4 Character display

Displays various system information.

Remote control

 STANDBY/ON

Switches the receiver between standby and on.

2 Input function buttons

Press to select an input source. These select the component connected to the corresponding input on the rear panel.

3 Numeric buttons (0 ~ 9)

Press to select or to store preset.

4 TONE DIRECT

Press to select the TONE DIRECT mode (page 13).

5 RDS control buttons

SEARCH – Use to select the search mode (page 11). PTY – Use to search for RDS program types

(page 11). DISPLAY – Use to display the RDS information

(page 11).

6TOP MENU

Press to display the DAB setting menu (page 11).

7 ///

Use to select system setting and switch modes.

TUNE / – Use to find radio frequencies (page 10).

PRESET /– Use to select preset radio stations (page 10).

8ENTER

Press to confirm actions.

9 FM/DAB

Switch between FM and DAB (page 10, 11).

10 FM MODE

Press to select the desired FM mode (Stereo or monaural) (page 10).

11 MEMORY

Press to store preset stations (page 10).

12 Tone control buttons

BASS +/– – Use to adjust Bass (page 12). TREBLE +/– – Use to adjust Treble (page 12).

13 SACD PLAYER control buttons

Use to control Pioneer SACD/CD player.

14 NETWORK AUDIO PLAYER control buttons

Use to control Pioneer network audio player.

15 SLEEP

Press to change the amount of time before the receiver switches into standby (10 min – 20 min – 30 min – 60 min – 90 min – Off). You can check the remaining sleep time at any time by pressing SLEEP once.

16 APD

Use to change the Auto Power Down function setting (page 13).

17 SPEAKERS A/B buttons

These buttons allow you to select various combinations of speakers as follows:

•To drive A speakers, press SPEAKERS A button (SPEAKER:A is displayed).

•To drive B speakers, press SPEAKERS B button (SPEAKER:B is displayed).

• To drive both A and B speakers, press SPEAKERS A and B buttons in order (SPEAKER:AB is displayed).

• When using headphones for private listening, press these buttons in order to switch off the speakers A and B (SPEAKER:OFF is displayed, and H indicator lights).

18 DIMMER

Dims or brightens the display. The brightness can be controlled in four steps.

19 SURROUND

Press to select the surround sound options (page 13).

20 MUTE

Mutes/unmutes the sound.

21 SCAN

Use when performing the following operations.

• FM:Press to scan the stations in the preset sequence (page 10).

• DAB:Select from DAB stations that can be received (DAB SCAN) (page 11).

22 VOLUME +/–

Use to set the listening volume.

23 RETURN

Press to exit the current menu screen.

24 BALANCE

When adjusting the sound volume balance (page 12).

Operation 04

SACD/CD player

Network audio player

Turntable

CD recorder or

Cassette deck

Playback

RDS PTY MUTE

VOLUME

ENTER

SCAN

RETURNFM/DAB

FM MODE

BASS TREBLE

BALANCE

MEMORY

TOP

SEARCH DISPLAY

DIMMER

TONE DIRECT

SURROUND

STEREO RECEIVER

VOLUME

TUNE / PRESET

MEMORY

STANDBY

SPEAKERS

PHONES

TONE

BALANCE

SX-20DAB

STANDBY ON

/I STANDBY/ON

STANDBY

iPod/USB 5V2.1A

PURE AUDIO Hi-Bit 32

FUNCTION



NETWORK AUDIO PLAYER

N-50

SACD/CD player

Network audio player

Turntable

Audio recording component (Cassette deck, etc.)

Playback

Recording

Chapter 4:

Operation

Playback

• To listen to the FM radio broadcasts, see page 10.

• To listen to the DAB radio broadcasts, see page 11.

STANDBY ON

STANDBY

PHONES

STANDBY/ON

SACD/CD NETWORK PHONO

SLEEP

RECORDER

NETWORK AUDIO PLAYER

/I STANDBY/ON

STANDBY

PURE AUDIO Hi-Bit 32

iPod/USB 5V2.1A

SPEAKERS

N-50

FUNCTION



32 56

STEREO RECEIVER

SX-20DAB

VOLUME

TUNE / PRESET

MEMORY

BALANCE

TONE

1 Turn on the power of the playback component.

2 Turn power ON to the unit. Press STANDBY/ON

• If the unit is in the standby mode, press the remote

control’s  STANDBY/ON button.

button on the front panel.

3 Select the source you want to playback.

Select the playback component.

• When using the remote control, the input function button can be used to select the component.

4 Start playback of the component you selected in step 1.

5 Adjust playback volume with control.

6 Adjust the tone to your preference using the TONE (

BASS

and

TREBLE

VOLUME

) controls.

7 Select a surround mode you want.

/I

Set the power to Standby

1 Press the remote control’s

button.

The next time you wish to turn on the power, press the remote control’s  STANDBY/ON button.

• If the front panel’s /I STANDBY/ON button is

pressed, the power will be turned off. In this case, if the power is off, pressing the remote control’s  STANDBY/ON button will not turn on the power. To turn on the power again, press the front panel’s / I STANDBY/ON button.

 STANDBY/

Note

• If the power cord is disconnected when the unit is in the standby mode the unit will turn off, but when the cord is then reconnected, the unit will not automatically turn on. After reconnecting the power cord, press the remote control’s  STANDBY/ON button to turn the power on.

Making an audio recording

You can make an audio recording from any audio source connected to the receiver.

1 Select the source you want to record.

STANDBY/ON

SACD/CD NETWORK PHONO

FM MODE BALANCE

MEMORY

RETURNFM/DAB

SLEEP

RECORDER

2 Start recording, then start playback of

the source component.

04 Operation

VOLUME

ENTER

SCAN

RETURNFM/DAB

TOP

VOLUME

ENTER

SCAN

RETURNFM/DAB

FM MODE BALANCE

MEMORY

TOP

2,4

VOLUME

ENTER

SCAN

RETURNFM/DAB

FM MODE BALANCE

MEMORY

TOP

VOLUME

ENTER

SCAN

RETURNFM/DAB

TOP

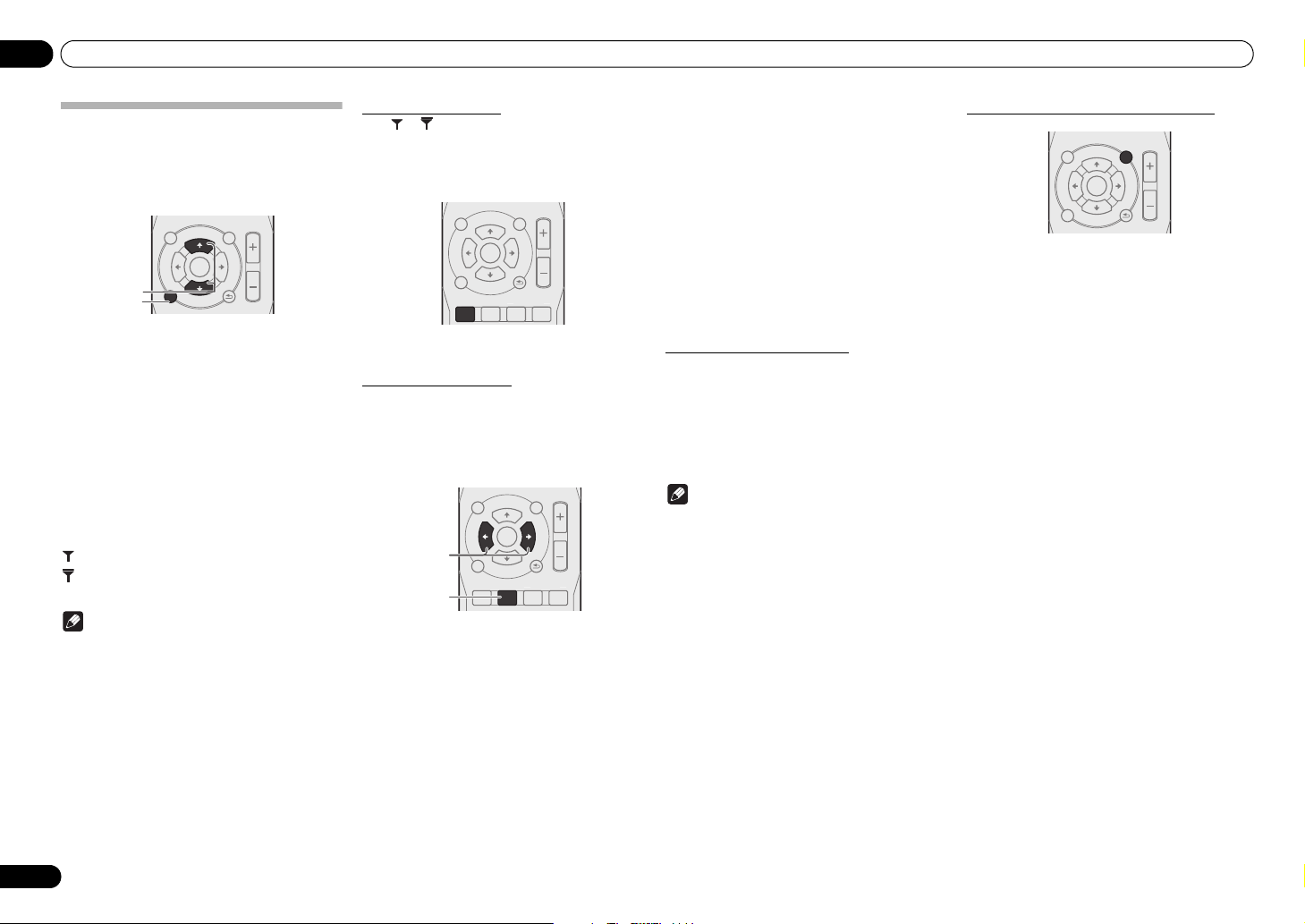

Listening to the FM radio

The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

1 Press FM band.

2 Tune to a station.

Automatic tuning

To search for stations in the currently selected band, press and hold / for about 0.5 second. The receiver will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning To change the frequency one step at a time, press /. High speed tuning

Press and hold / for high speed tuning.

received in auto stereo mode.

FM/DAB

repeatedly to select the

• There are three ways to do this:

– Lights when a normal broadcast channel.

– Lights when a stereo FM broadcast is being

Note

• You can also use the front panel controls. Press

TUNE/PRESET to enter tuning mode, then use / – or +/ to change the frequency.

Improving FM sound

If the or indicator does not light when tuning to an FM station because the signal is weak, set the stereo receiver to the mono reception mode.

• This should improve the sound quality and allow you to enjoy the broadcast.

1 Press

FM MODE

to select “

FM MONO

”.

Saving station presets

If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.

• Stations are stored in stereo.

1 Tune to a station you want to memorize.

See Listening to the FM radio above for more on this.

2 Press

Station preset display is blinking.

MEMORY

3 Within 5 seconds, press

/

to select

the station preset you want.

You can also use the numeric buttons.

Examples:

For “2” : Press “2”. For “17” : Press “1”, then press “7” within 2 seconds. For “30” : Press “0”.

• A stored frequency is erased from the memory by storing another frequency in its place.

• If station preset display stop blinking, start again from the above step 2.

4 Press

Station preset display stop blinking and the receiver stores the station.

MEMORY

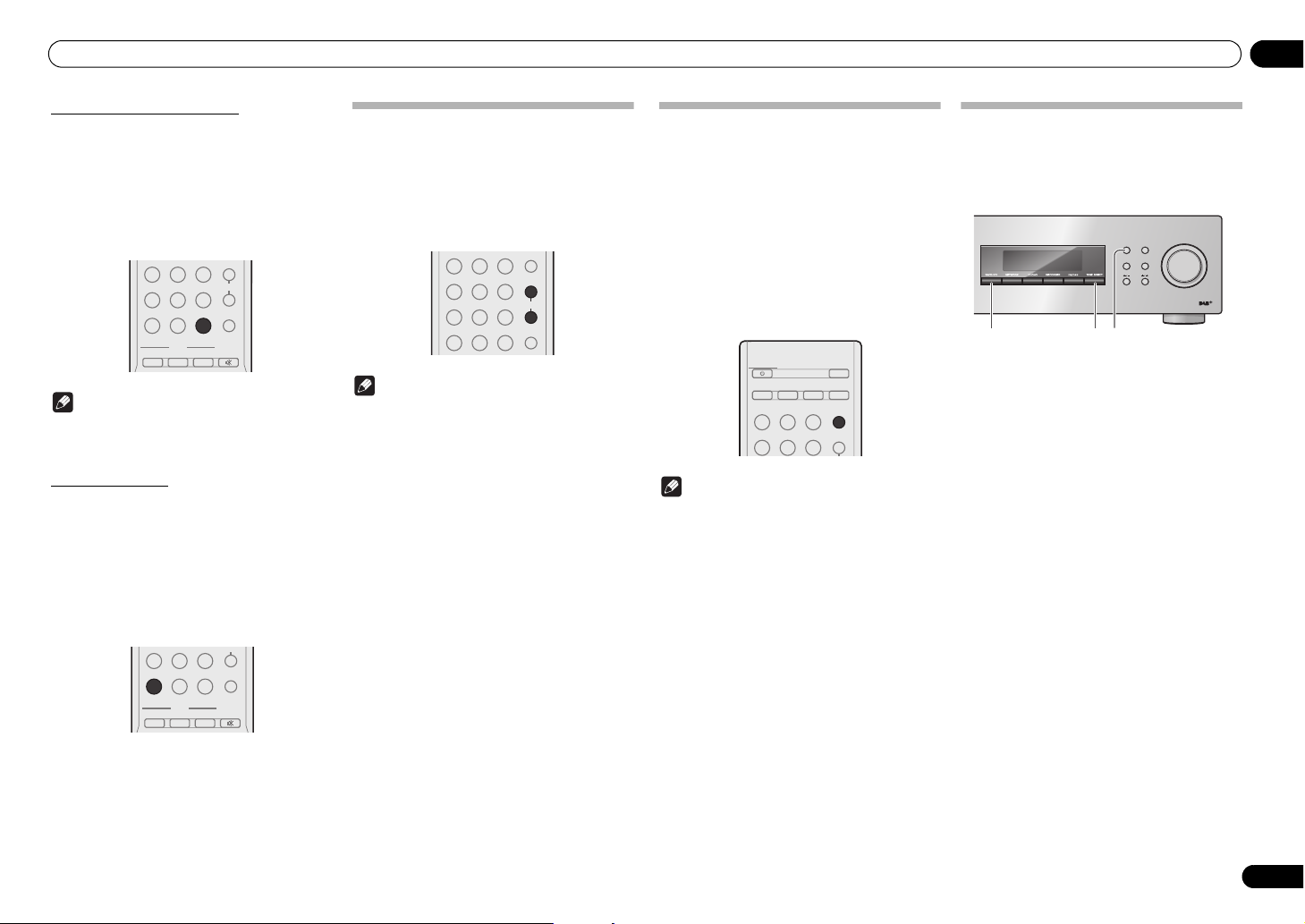

Listening to station presets

You will need to have some presets stored to do this. See Saving station presets above if you haven’t done this already.

1 Press you want.

/

to select the station preset

• You can also use the numeric buttons on the remote control to recall the station preset.

Note

• You can also use the front panel controls. Press TUNE/PRESET to enter preset mode, then use /– or +/ to select a preset station.

Scanning preset stations in sequence

1Press

The receiver will start scanning the stations in the preset sequence.

SCAN

• At the desired station, press this button again to stop scanning.

Operation 04

RDS PTY MUTE

VOLUME

ENTER

SCAN

RETURNFM/DAB

TOP

SEARCH DISPLAY

RDS

PTY MUTE

VOLUME

ENTER

SCAN

RETURNFM/DAB

TOP

SEARCH DISPLAY

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS

– News

AFFAIRS

– Current Affairs

INFO

– General Information

SPORT

– Sport

EDUCATE

– Educational

DRAMA

– Radio plays, etc.

CULTURE

– National or regional culture, t heater, etc.

SCIENCE

– Science and technology

VARIED

– Usually talk-based material, such as quiz shows or

interviews.

POP M

– Pop music

ROCK M

– Rock music

EASY M

– Easy listening

LIGHT M

– ‘Light’ classical music

CLASSICS

– ‘Serious’ classical music

OTHER M

– Music not fitting above categories

WEATHER

– Weather reports

FINANCE

– Stock market reports, commerce, trading, etc.

CHILDREN

– Programs for children

SOCIAL

– Social affair s

RELIGION

– Programs concerning religio n

PHONE IN

– Public expressing their views by phone

TRAVEL

– Holiday-type travel rather than traffic

announcements

LEISURE

– Leisure interests and hobbies

JAZZ

– Jazz

COUNTRY

– Country music

NATION M

– Popular music in a language other than English

OLDIES

– Popular music from the ’50s and ’60s

FOLK M

– Folk music

DOCUMENT

– Documentary

• In addition, there are three other program types,

TEST, ALARM and NONE. TEST and ALARM are used for emergency

announcements. NONE appears when a program type cannot be found.

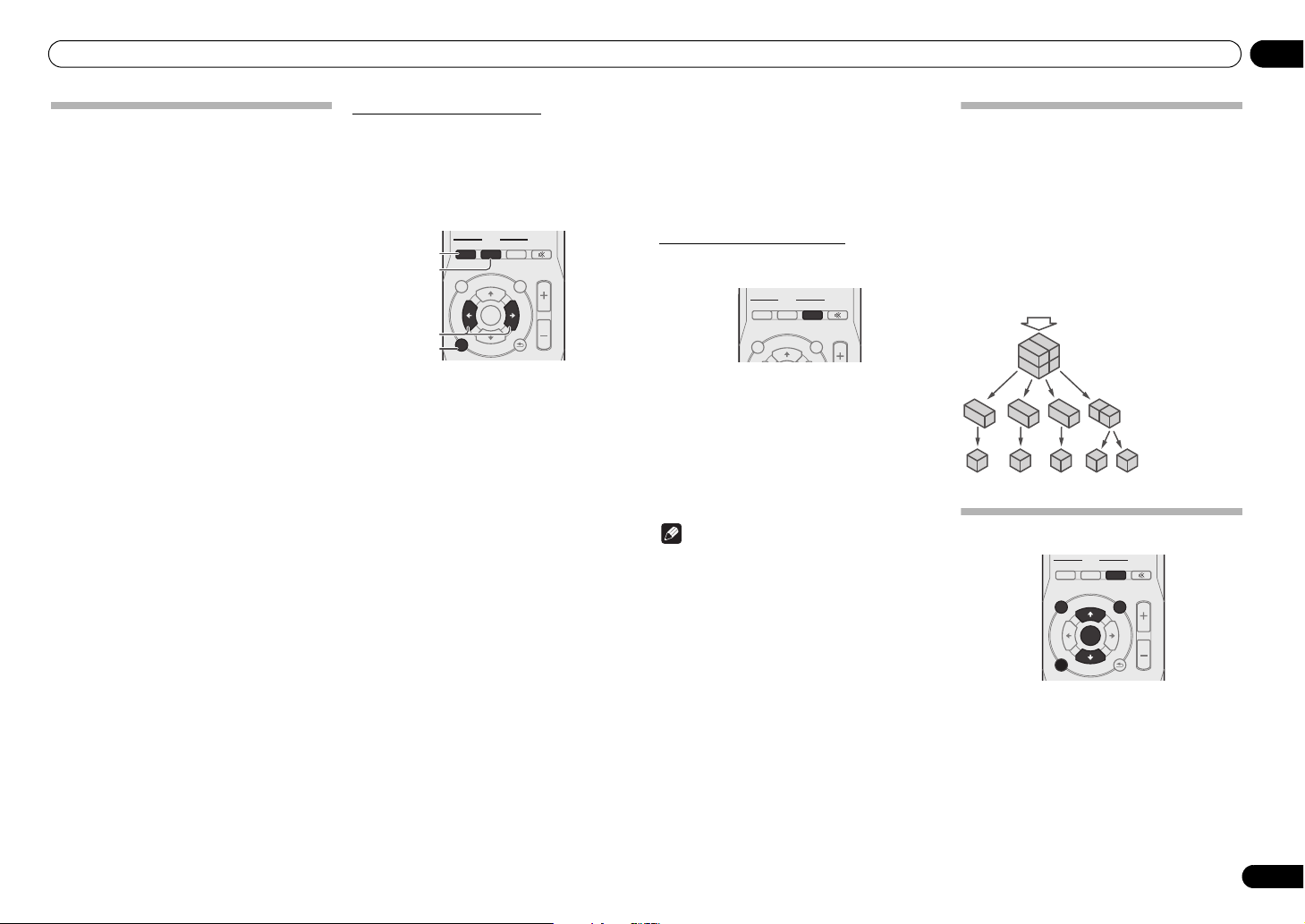

Searching for RDS programs

There are three ways of search for RDS programs as follows.

• RDS search – Use to automatically search and

receive the stations offering RDS services.

• PTY search – Use to automatically search and

receive the stations broadcasting the desired program type.

1Press FM band.

2Press mode you want.

The search mode changes as follows;

RDS SEARCH RDS search

PTY SEARCH PTY (Program Type) search

3 When the PTY search mode is selected, press you want to hear.

FM/DAB

repeatedly to select the

• RDS is only possible in the FM band.

RDS SEARCH

to select the search



OFF Off



(RDS

SEARCH)

RDS PTY

to select the program type

4 Press

The system starts searching through the station presets for a match, stopping when it was found one. Repeat to search for other stations.

/

to search the station.

• NO RDS is displayed if no other RDS station is

found.

•If NO PTY is displayed it means the tuner couldn’t

find that program type at the time of the search.

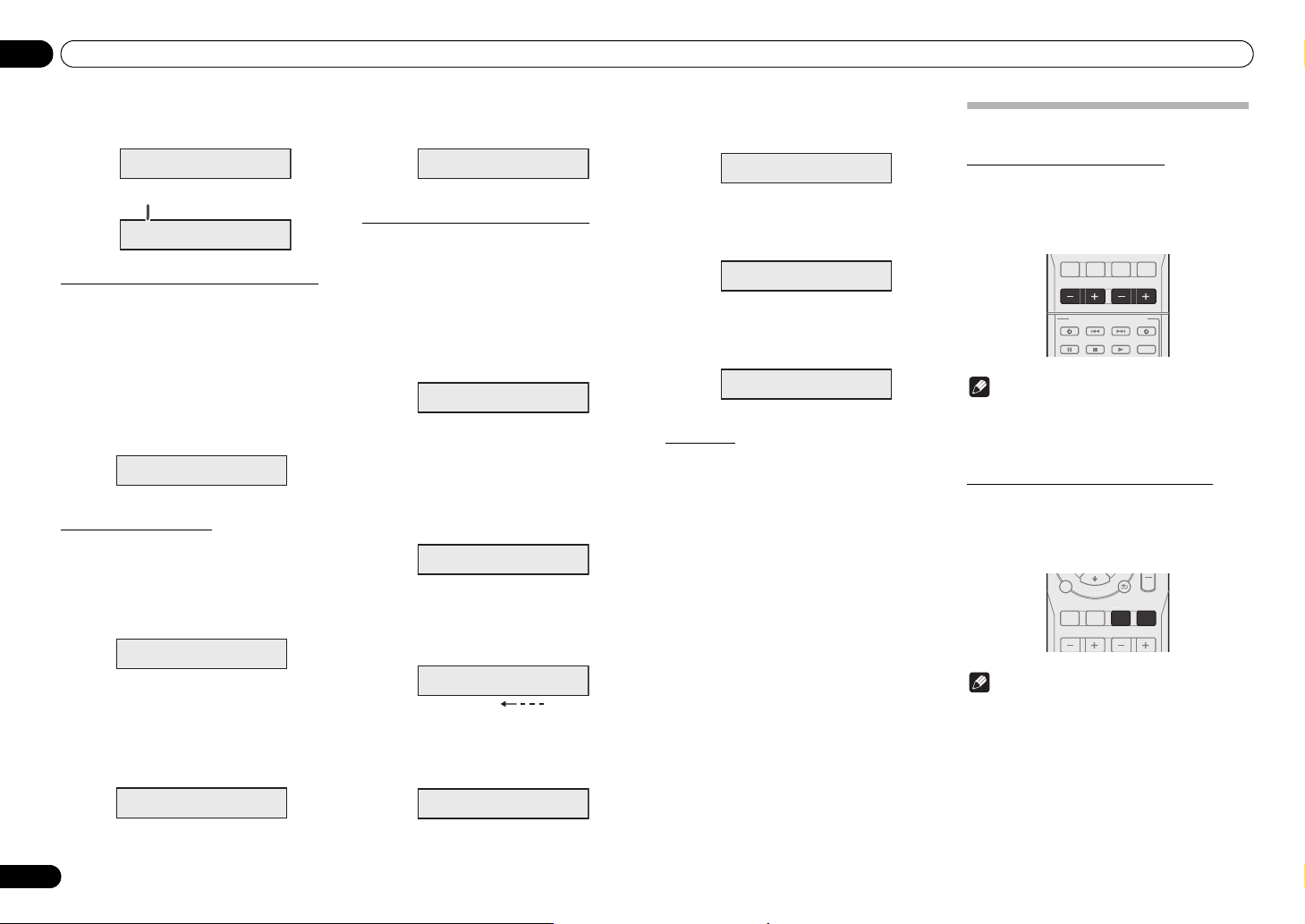

Displaying RDS information

Use the RDS DISPLAY button to display the different types of RDS information available.

RDS

PTY MUTE

SEARCH DISPLAY

TOP

1 Press RDS DISPLAY for RDS information.

Each press changes the display as follows:

• Program Service Name (PS) – The name of the radio

station.

•Program Type (PTY) – This indicates the kind of

program currently being broadcast.

• Radio Text (RT) – Messages sent by the radio

station. For example, a talk radio station may provide a phone number as RT.

Note

• If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly.

• If the signals are too weak or no RDS service is available, NO NAME, NO PTY, NO RDS or NO TEXT will be displayed.

VOLUME

SCAN

Listening to the DAB

DAB (Digital Audio Broadcasting) is a digital transmission system where audio signals are converted to digital signals for broadcasting.

DAB broadcasts a group of data called multiplex (ensemble) which may contain one or more stations (services). Each station contains a primary service and there may be one or more secondary services.

This allows several programs or services to be transmitted on a single frequency.

DAB SIGNAL

MULTIPLEX (ENSEMBLE)

SERVICES

SERVICES COMPONENTS (STATIONS)

Selecting DAB

04 Operation

BBC

DAB

News

Station name

BBC

BBC

(BBC5Live)

DAB No Tuned

BBC

News

Scroll

All the late

BBC

FREQ:239.200MHz

BBC

BBC Station

BBC

BITRATE:192kbps

BBC

RETURNFM/DAB

FM MODE

BASS TREBLE

BALANCE

MEMORY

1 Press the

FM/DAB

button repeatedly to

select "DAB".

Using the auto scan function manually

Using DAB for the very first time

The very first time you use DAB, press the SCAN button to run the Auto Scan.

If a new DAB station is introduced, or you move to a new area, you can run the Auto Scan function again.

1 Select DAB.

See Selecting DAB above for more on this.

2 Press the

SCAN

button.

DAB Scanning...

Selecting DAB stations

1 Select DAB.

See Selecting DAB above for more on this.

2 Press the TUNE DAB service.

3 Press the ENTER button to listen to the service.

The station is tuned.While the primary service is selected, brackets < > are displayed. While the secondary service is selected, brackets ( ) are displayed.

/

button to select a

If you select a station that cannot be received properly, “DAB No Tuned” is displayed.

Displaying DAB radio information

1Select DAB.

See Selecting DAB above for more on this.

2 Press the RDS DISPLAY repeatedly to display information about the selected DAB station.

Program Type

Displays the type of program.

SNR (Signal Noise Rate)

Noise may be generated and reception quality may become poor according to Signal Noise Rate. If reception quality is poor, move the antenna in different directions to find a position where the good rate is displayed.

BBC SNR:100

DLS (Dynamic Label Segment)

When tuned to a station which is broadcasting DLS text data, the text will scroll across the display.

Audio Mode

Displays the audio mode (stereo or mono).

BBC DAB Stereo

Frequency

Displays the frequency of the current multiplex.

Multiplex Name

Displays the name of the current multiplex.

Bitrate

Displays the bit rate.

DAB setup

1 Press the TOP MENU button.

/

2 Press then press the

The following settings are available for DAB.

DRC

The DRC (Dynamic Range Control) function lets you change the dynamic range of the received sound depending on the content of the broadcast so that the sound is easier to hear even when the volume is low. Press the / button to select the following options, and then press the ENTER button.

DRC:Off : DRC is switched off. Any DRC level broadcast will be ignored. This is the

default setting. DRC:On : Applies DRC level as sent with the broadcast.

Component Reset

Deletes all the stations.

“Reset: Yes?” appears, press the ENTER button.

While

to select the item to be set,

ENTER

button.

Sound settings

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.

1Use

BASS +/–

remote control to adjust bass or treble.

Note

• You can also use the front panel controls. Press

TONE repeatedly to select BASS or TREBLE, then press /– or +/ to adjust the bass or treble as desired.

Adjusting the sound volume balance

Adjust the sound volume balance between the left and right speakers.

1Press the sound volume balance.

Note

• You can also use the front panel controls. Press

BALANCE to enter balance mode, then use /– or +/ to adjust the balance.

FM MODE

BASS

NETWORK AUDIO PLAYER

SACD PLAYER

BALANCE

TREBLE +/–

BALANCE

MEMORY

TREBLE

then press

FUNC

on the

L/R

to adjust

Operation 04

SPEAKERS

RDS

PTY MUTE

SEARCH DISPLAY

DIMMER

TONE DIRECT

SURROUND

789

APD

SPEAKERS

DIMMER

TONE DIRECT

SURROUND

123

456

789

STEREO RECEIVER

VOLUME

TUNE / PRESET

MEMORY

TONE

BALANCE

SX-20DAB

1 2 1

Listening in surround sound

Allows you to create natural surround sound effects using just the left and right speakers.

• Default setting: OFF

1 Press

SURROUND

repeatedly to select

the surround sound options.

• You can select MIN, MID, MAX or OFF. If set to MAX, the surround sound effects will be more

emphasized.

456

789

TONE DIRECT

RDS PTY MUTE

SEARCH DISPLAY

Note

• Depending on the sound source, in some cases it may not be possible to achieve good results. In this case, set the setting to OFF.

SURROUND

SPEAKERS

DIMMER

Using Tone Direct

Use the Tone Direct modes when you want to hear the truest possible reproduction of a source.

1 Press (Direct mode ON) or OFF).

When DIRECT is selected, independent tone settings (Bass/Treble), Balance, Surround sound are disabled. In addition, DIR lights up and the front panel’s display will be turned off.

TONE DIRECT

CONTROL

to switch the

(Direct mode

DIR

Switching the desired speakers on

Then the corresponding speaker indication (SPK A (and/ or) B) is displayed and the sound can be heard from the speakers connected to the selected speaker terminals.

1Use the speaker system connected to A

SPEAKERS A/B

buttons to listen to

SPEAKERS

or B terminals.

Note

• When using the headphones for private listening,

press the corresponding SPEAKERS A/B buttons to switch off both A and B speakers.

To set for automatic standby status (Auto Power Down)

Set to automatically turn off the receiver after a specified time has passed (when the power has been on with no operation for several hours).

• Default setting: 6H

1 Press amount of time to allow before the power is turned off (when there has been no operation).

APD

repeatedly to specify the

• You can select 2, 4 or 6 hours, or OFF (if no

automatic shutoff is desired).

STANDBY/ON

SACD/CD NETWORK PHONO

123

456

SLEEP

RECORDER

APD

Note

• You can check the Auto Power Down setting at any

time by pressing APD once.

Restoring all the settings to the factory default settings

Use this procedure to reset all the receiver’s settings to the factory default. Use the front panel controls to do this.

1 When power is in standby mode, hold SACD/CD depressed simultaneously for two seconds.

2 When you see “ display, press

OK appears in the display to indicate that the receiver

has been reset to the factory default settings.

button and

RESET?

TONE DIRECT

MEMORY

” appear in the

button.

button

05 Additional information

Chapter 5:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Problem Remedy

The power does not turn on. • Is the power plug disconnected from the power outlet? Connect the power plug

Power turns off. • Is the Auto Power Down function turned ON? If you do not want the power to turn off

TEMP

shows in the display and the

volume level drops.

No sound is output when a function is selected.

No sound from one speaker. • Are the connection cabl es or speaker cables disconnected on one side? Reconnect

Considerable noise in radio broadcasts.

correctly to its outlet (page 6).

• Is the power cord disconnected from the AC IN connector? Connect the power cord correctly (page 6).

automatically, disable the Auto Power Down function (page 13).

• There is a possibly that the speaker cord’s exposed wire is in contact with the rear panel or another exposed wire, triggering the protection circuit. Firmly retwist the speaker’s exposed wire and connect it ensuring that it isn’t sticking out from the unit or the speaker terminal on the speaker.

• The temperature within the unit has exceeded the allowable value. Try moving the unit for better venti lation (page 3).

• Lower the volume level.

• After about a minute (you won’t be able to switch the unit on during this time), switch the receiver back on. If the message persists, call a Pioneer authorized independent service company.

• The temperature within the unit has exceeded the allowable value. Try moving the unit for better venti lation (page 3).

• Lower the volume level.

• A connection cable is disconnected or connected improperly. Check your connections (page 5).

• Connectors or pin plugs on a cable are dirty. Wipe off any dirt from connectors and pin plugs.

• Confirm that the unit’s input selector is set to the desired playback component. Set selector correctly (page 9).

•Press

MUTE

on the remote control to turn muting off (page 8).

securely (page 5).

• Connect the antenna (page 6 ) and adjust the position for best reception.

• Route any loose cables away from the antenna terminals and wires.

• Fully extend the FM/DAB wire antenna, position for best reception, and secure to a wall (or connect an outdoor FM/DAB antenna).

• Turn off equipment causing inter ference or move it away from the receiver (or move antennas farther away from equipment causing noise).

Problem Remedy

Broadcast stations cann ot be selected automatically.

Noise during playback of a cassette deck.

The display is dark or off. • Press

Can’t operate the remote control. • Replace the battery (page 4).

• Connect an outdoor antenna (page 6).

• Move the cassette deck away from your receiver, until the noise disappears.

DIMMER

• The front panel display is automatically turned off when the Tone Direct mode is set to

TONE DIRECT

TONE CONTROL

• Operate within 7 m, 30° of the remote sensor on the front panel (page 4).

• Remove the obstacle or operate from another position.

• Avoid exposing the remote sensor on the front panel to direct light.

• Is the control cord for one component connected improperly? Confirm correct connections (page 5).

on the remote control repeatedly to return to the default.

(ON). To see the display, press

(OFF).

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.

• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.

• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

TONE DIRECT

and set the function

Additional information 05

Miscellaneous

Specifications

Amplifier section

Power output specification is for when power supply is 230 V.

• Rated power output (both channels driven at 20 Hz to 20 kHz)

Audio section

• Input (Sensitivity/Impedance)

SACD/CD, NETWORK, RECORDER . . . . . 400 mV/47 k

PHONO (MM) . . . . . . . . . . . . . . . . . . . . . . . .5.5 mV/47 k

• Output (Level/Impedance)

REC OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mV/2.0 k

• Frequency response

SACD/CD, NETWORK, RECORDER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Hz to 100 kHz dB

• RIAA Deviation

PHONO (MM) . . . . . . . . . . . . . . 20 Hz to 20 kHz ±0.5 dB

• Tone control

Bass. . . . . . . . . . . . . . . . . . . . . . . . . . . . .± 14 dB (100 Hz)

Treble. . . . . . . . . . . . . . . . . . . . . . . . . . . .± 14 dB (10 kHz)

• Signal-to-Noise Ratio (IHF SHORTED, A-NETWORK)

SACD/CD, NETWORK, RECORDER . . . . . . . . . . 100 dB

PHONO (MM, 5.5 mV input) . . . . . . . . . . . . . . . . . . 80 dB

• Total Harmonic Distortion

SACD/CD, NETWORK, RECORDER . . . . . 0.02 % or less

• Guaranteed speaker impedance

A, B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4  to 16 

A+B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8  to 16 

Tuner Section

Frequency Range (FM). . . . . . . . . . 87.5 MHz to 108 MHz

Frequency Range (DAB) . .174.928 MHz to 239.200 MHz

Antenna Input (FM/DAB). . . . . . . . . . . .75  unbalanced

100 W+100 W (THD 1 %, 8 )

(1 kHz, 50 W, 8 )

Power requirements. . . . AC 220 V to 230 V, 50 Hz/60 Hz

Power consumption . . . . . . . . . . . . . . . . . . . . . . . . .210 W

In standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 W

Dimensions

. . . . . . . . . . . 435 mm (W) x 142.5 mm (H) x 364 mm (D)

Weight (without package) . . . . . . . . . . . . . . . . . . . . 8.3 kg

Accessories

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AAA/IEC R03 dry cell batteries . . . . . . . . . . . . . . . . . . . . 2

FM/DAB wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Power cord Warranty card Quick start guide Safety Brochure These operating instructions (CD-ROM)

Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.

• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

• “Pioneer” is a trademark of Pioneer Corporation, and is used under license.

<ARB7605-A>

Discover the benefits of registering your product online at

http://www.pioneer.co.uk

(or http://www.pioneer.eu).

Hanns-Martin-Schleyer-Str. 35, 47877 Willich, Germany Tel: +49(0)2154 913222

<UK>

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom Tel: +44(0)208 836 3612

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE Tel :+33(0)969 368 050

Pioneer SX-20DAB User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
