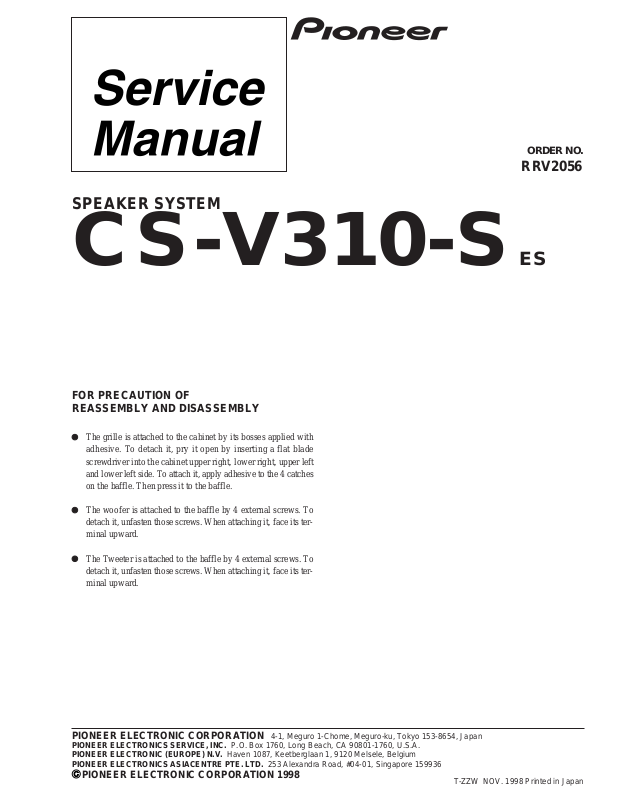

ORDER NO.
RRV2056
SPEAKER SYSTEM
CS-V310-S ES
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by its bosses applied with
adhesive. To detach it, pry it open by inserting a flat blade
screwdriver into the cabinet upper right, lower right, upper left
and lower left side. To attach it, apply adhesive to the 4 catches
on the baffle. Then press it to the baffle.
The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, face its terminal upward.
The Tweeter is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, face its terminal upward.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
T-ZZW NOV. 1998 Printed in Japan
Page 2
CS-V310-S
PARTS LIST
NOTES:
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description Part No.
NSP Cabinet (L) SMM1844
NSP Cabinet (R) SMM1845
Grille (L) SMG1654
Screw BPZ40P160FMC
NSP Logo 100 SAM1463
NSP Cosmetic Sash SAP1110
NSP Grille Net SAS1453
NSP Ring SBG1003
NSP Grille Frame (A) SNK1837
NSP Cosmetic Baffle SNK2383
Grille (R) SMG1655
Screw BPZ40P160FMC
NSP Logo 100 SAM1463
NSP Cosmetic Sash SAP1110
NSP Grille Net SAS1453
NSP Ring SBG1003
NSP Grille Frame (A) SNK1837
NSP Cosmetic Baffle SNK2383
Network ASSY SWN1593
NSP Catch SEB-075
NSP Packing (for Tweeter) SEE1062
NSP Input Terminal SKX1050
NSP Stamped Model Label (L) SME2904
NSP Model Label (L) SAN2691
NSP Stamped Model Label (R) SME2905
NSP Model Label (R) SAN2692
Mark No. Description Part No.
NSP Duct ASSY SMR1301
NSP Damper SER1254
NSP Duct 50 SMR1297
NSP Acoustic Absorbent SMV1935
Speaker 20 (Woofer) SWB1040
Speaker 77 (Tweeter) SWS1029
NSP Screw (for Catch) SBA-102
Screw (for Speaker) SBA-122
For Packing
NSP Accessories Set SME2906
NSP Hanging Hook Set SEA1446
NSP Screw Bag Set SEA1265
Bind Tapping Screw 5 BYC50P200FZB
(for Safety Belt)
NSP Screw Bag Set SEA1266
Screw BYC40P200FZB
(for Wall Hanging fixture)
Safety Belt SEW1019
NSP Packing Bag SHL-338
Hanging Hook SNB-393
NSP Polyethylene Bag S2 SHL-033
Operating Instructions SRD1212
(English/ Chinese)
Protector SHB1037
Protection Mat S5 SHC1208
Center Divider SHD1027
Packing Case SHG2189

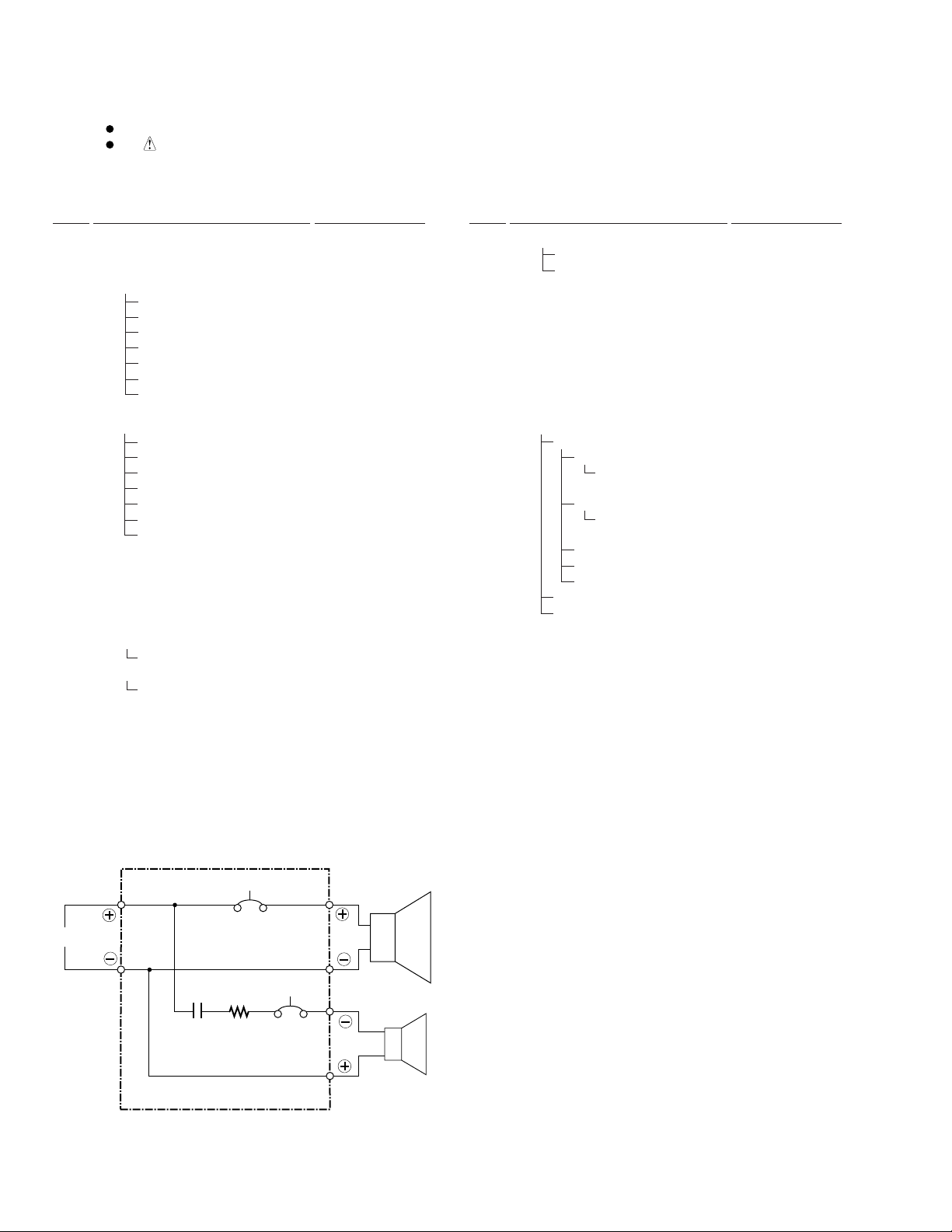

SCHEMATIC DIAGRAM
Network ASSY (SWN1593)
Red
INPUT
Black
1.8µF
2
Br1
1.4A
3.3Ω
Br2
0.5A
Woofer
Blue
White
White
Red
Tweeter
Br:
There is an internal automatic repeater protection unit (Br) which protects
the speaker from excessive input or abnormal signals.
Br operates if there is an excess input to the speaker and prevents sounds
from benign heard. If Br operates, lower the amplifier volume. Automatic
repetition will occur after about 5~10 seconds.
