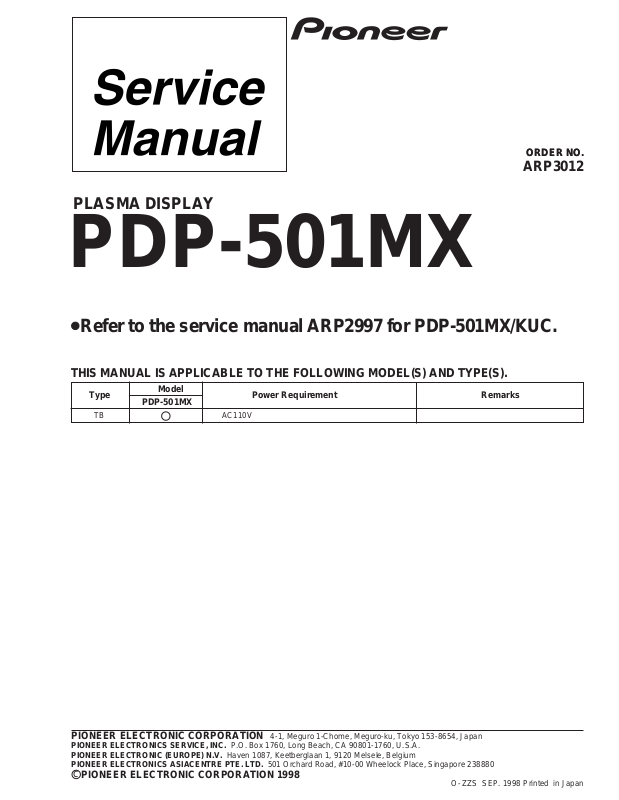

Page 1
ORDER NO.
ORDER NO.
ARP3012
PLASMA DISPLAY
PDP-501MX
Refer to the service manual ARP2997 for PDP-501MX/KUC.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
TB AC110V
Model
PDP-501MX
Power Requirement Remarks
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
c
PIONEER ELECTRONIC CORPORATION 1998
O- ZZS SEP. 1998 Printed in Japan

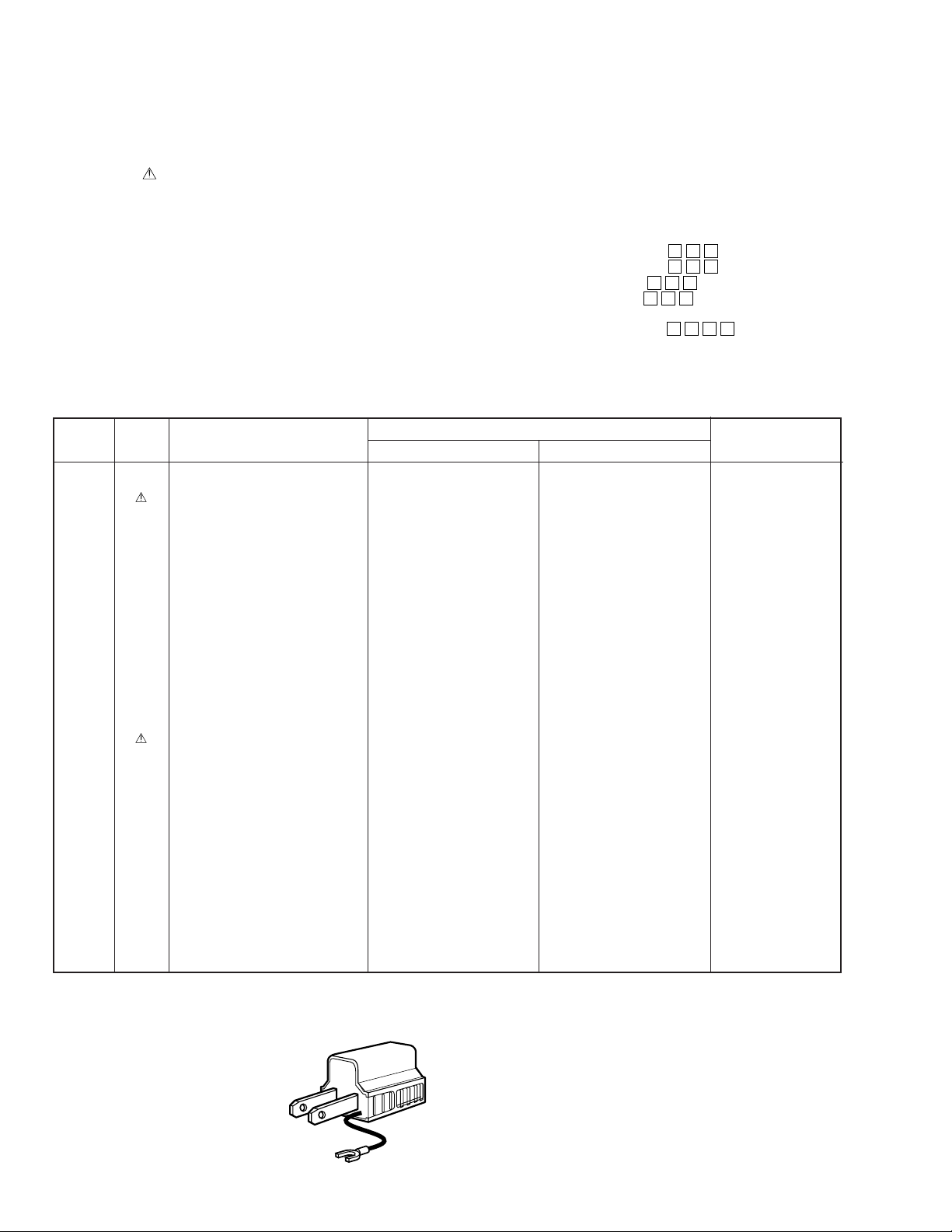

Page 2
PDP-501MX
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:•Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
CONTRAST OF PDP-501MX/TB AND PDP-501MX/KUC
PDP-501MX/TB and PDP-501MX/KUC are constructed the same except for the following:
Ref. No.
P5-13 UPPER CARTON AHD2980 AHD2993 illust.
P5-21 INSTRUCTION MANUAL ARE1337 Not Used
P5-15 PLASMA CAUTION SHEET ARM1145 ARM1149
The mark found on some component parts indicates the importance of the safety factor of the part.
•
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
•
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 Ω→56 × 10
47k Ω→47 × 10
1
→ 561 ........................................................ RD1/4PU 5 6 1 J
3
→ 473 ........................................................ RD1/4PU 4 7 3 J
0.5 Ω→R50 ..................................................................................... RN2H R 5 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω→ 562 × 10
Mark
Symbol and Description
1
→ 5621 ......................................................RN1/4PC 5 6 2 1 F
Part No.
PDP-501MX/KUC PDP-501MX/TB
1 Ω→1R0 ..................................................................................... RS1P
1 R 0
K
PACKING SECTION
PLUG Not Used AKM1160 * * Refer to the bottom
(Engish,French)
INSTRUCTION MANUAL Not Used ARE1340
(English,Chinese)
Remarks
P5-17 CAUTION SHEET ARM1146 ARM1154
P5-25 NSP WARRANTY CARD ARY1094 Not Used
EXTERIOR SECTION
P6-1 NSP REAR CASE AMR3097 AMR3100
P7-25 AC INLET WITH FILTER AKP1190 AKP1180
P7-38 CONTROL NAME PLATE AAK2719 AAK2720
P7-39 TERMINAL COVER AMR3099 Not Used
P7-40 TERMINAL COVER(232C) ANG2294 Not Used
P8-3 FRONT CASE AMB2632 AMB2624
P6-7 NSP UPC CODE LABEL AAX2673 Not Used
P6-9 NSP NAME LABEL AAL2287 AAL2279
P6-16 TERMINAL LABEL R AAX2663 AAX2679
P6-10 TERMINAL LABEL L AAX2662 AAX2680
P6-20 NSP BOLT CAUTION LABEL AAX2656 AAX2681
NSP SERIAL SHEET Not Used AAX2609
PLUG AKM1160
2
