Pro Tools

AVoption|V10 and

Media Station|V10 Guide

Version 6.3 for HD Systems on Windows

Digidesign

2001 Junipero Serra Boulevard

Daly City, CA 94014-3886 USA

tel: 650·731·6300

fax: 650·731·6399

Technical Support (USA)

tel: 650·731·6100

fax: 650·731·6384

Product Information (USA)

tel: 650·731·6102

tel: 800·333·2137

International Ofﬁces

Visit the Digidesign Web site

for contact information

Web Site

www.digidesign.com

This guide is copyrighted ©2004 by Digidesign, a division of Avid Technology, Inc. (hereafter “Digidesign”), with all rights reserved. Under copyright laws, this guide may not be duplicated in whole or in part without the written consent of Digidesign.

DIGIDESIGN, AVID and PRO TOOLS are trademarks or registered trademarks of Digidesign and/or Avid Technology, Inc. All other trademarks are the property of their respective owners.

Product features, specifications, system requirements, and availability are subject to change without notice.

PN 910612411-00 REV A 03/04

Warnings and Cautions

• Never install equipment if it appears damaged.

• Disconnect the power cord before servicing unit.

• Only perform the services explicitly described in this document. For services or procedures not outlined in this document, speak with authorized Avid service personnel.

CLASS 1 LED PRODUCT

• Follow all warnings and cautions in the procedures.

• Operate the device within its marked electrical ratings and product usage instructions.

FCC Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canadian ICES-003

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Notice

Australia and New Zealand EMC Regulations

N1709

John Kells, Australian Operations Manager Avid Technology (Australia) Unit B 5 Skyline Place French Forest NSW 2086 Australia Phone: 61-2-8977-4800

Taiwan EMC Regulations

Taiwan EMC Regulations BSMI Class A EMC Warning

Declaration of Conformity

(According to ISO/IEC Guide 22 and EN 45014)

Application of Council Directives:

Standards to which Conformity is Declared:

Manufacturer’s Name:

European Contact: Nearest Avid Sales and Service Office or

Type of Equipment: Information Technology Equipment

Product Name: Products for the Windows NT, Windows 2000, or Windows XP Operating System: Avid Adrenaline

Base Model Numbers:

Product Options: All

73/23/EEC, 89/336/EEC.

EN60950:1999 Third Edition CISPR 22:1997 / EN55022:1994 + A1:1995 + A2:1997 Class A EN55024:1998/EN61000 — 3-2, 4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11

Avid Technology, Inc. 1925 Andover Street Tewksbury, MA 01876, USA

Avid Technology International B.V. Sandyford Business Center Unit 3, Dublin 18, Ireland

DNA, Avid DS Nitris DNA, Avid Equinox Break-Out-Box, Avid|DS, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock 2+, MediaDock LVD, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, NewsCutter, NewsCutter DV, NewsCutter XP, Pro Tools AVoption|V10, Symphony Products for the Mac OS X Operating System: Avid Adrenaline DNA, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock 2+, MediaDock LVD, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, Pro Tools AVoption|V10, Symphony Products for the UNIX Operating System: AirPlay, VideoSPACE Products for MediaNetwork and Workgroups: Avid ProEncode, Avid Unity MediaManager, Avid Unity MediaNetwork, Avid Unity TransferManager, LANserver, LANserver EX, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Nearchive, PortServer, Xdeck

None

(1) Products for the Windows NT, Windows 2000, or Windows XP Operating System: products were tested in a typical Avid Adrenaline DNA, Avid DS Nitris DNA, Avid Equinox Break-Out-Box, Avid|DS, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock 2+, MediaDock LVD, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, NewsCutter, NewsCutter DV, NewsCutter XP, Pro Tools AVoption|V10, or Symphony configuration. (2) Products for the Mac OS X Operating System: products were tested in a typical Avid Adrenaline DNA, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock 2+, MediaDock LVD, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, Pro Tools AVoption|V10, or Symphony configuration. (3) Products for the UNIX Operating System: products were tested in an AirPlay or VideoSPACE configuration. (4) Products for MediaNetwork and Workgroups: products were tested in a typical Avid ProEncode, Avid Unity MediaManager, Avid Unity MediaNetwork, Avid Unity TransferManager, LANserver, LANserver EX, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Nearchive, PortServer, or Xdeck configuration. I, the undersigned, hereby declare that the equipment specified above conforms to the above Directives and Standards. George R. Smith, Director of Hardware Engineering

Chapter 1. Introduction to Pro Tools AVoption|V10

AVoption|V10 Components

DigiTranslator 2.0 Integrated Option

MachineControl

Avid Unity MediaNetwork

Compatibility

Digidesign Registration

About the Pro Tools Guides

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2. AVoption|V10 Hardware Overview

AVoption|V10 Hardware Capabilities

AVoption|V10 Interface

Synchronization Hardware

Chapter 3. Installing AVoption|V10

Uninstalling Pro Tools Software

Installing Pro Tools Hardware

Installing AVoption|V10 Hardware

Installing Media Station|V10 Software

Installing Pro Tools Software

Installing AVoptionDNA Software Components

Starting Up Your System

Authorizing Media Station|V10

Authorizing DigiTranslator 2.0

Updating Firmware on Application Launch

Using NTSC and PAL

Setting Up Local Storage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Contents

vii

Chapter 4. Media Station|V10 Software

Avid Nomenclature

Starting a New Project with Media Station|V10

Capturing Audio and Video

Importing Non-OMFI Media Files

Preparing a Sequence for Export

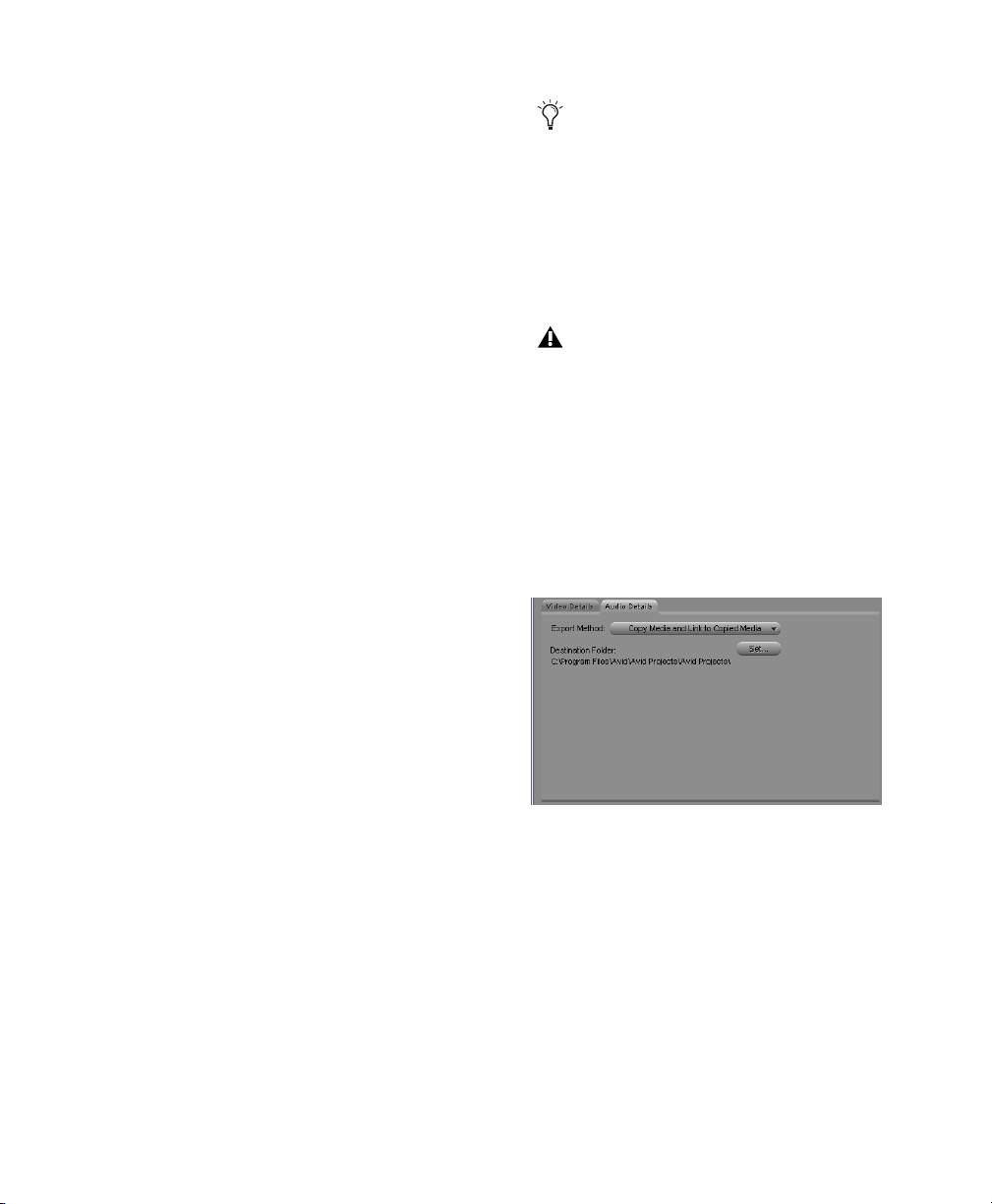

Exporting a Sequence

Import from Pro Tools

Recording Audio and Video to Tape

Exporting a Digital Movie

Deleting Clips, Sequences and Media

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 5. Pro Tools Movie Track

Avid Movie Track in Pro Tools

Movie Track Options

Exporting Files from Avid Programs

Adding Video Clips

Undo/Redo for Video Editing Commands

Movie Online

Movie Offline

Viewing Video Playback

Moving the Movie Track or Video Clips

Copying Video Clips

Clearing Selected Video Clips

Locking the Movie Track

QuickTime Movie Sync Offset

Scrub Movie Window

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Appendix A. 24fps Workflows

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Appendix B. PCI Slot Configurations for AVoption|V10

. . . . . . . . . . . . . . . . . . . . . . . . . 55

Appendix C. Video Buffer Underrun Errors

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Pro Tools AVoption|V10 and Media Station|V10 Guide

viii

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

chapter 1

Introduction to Pro Tools AVoption|V10

Pro Tools with AVoption|V10 combines the powerful audio post-production features of Pro Tools|HD with integrated support for import and playback of Avid video media. Avid Media Station|V10 software is included with AVoption|V10, providing video capture and reconform, AAF/OMF render and export of Avid sequences, and professional audio and video layback.

AVoption|V10 Components

AVoption|V10 includes the following:

• AVoption|V10 breakout box

• FireWire connector cable

•Two optical (ADAT lightpipe) cables

• AC Power cable

• Pro Tools Installer CD-ROM, including:

• Pro Tools TDM software

•AVoption|V10 software components

•Avid Media Station|V10 Installer CD-ROM

•Avid Media Station|V10 application key

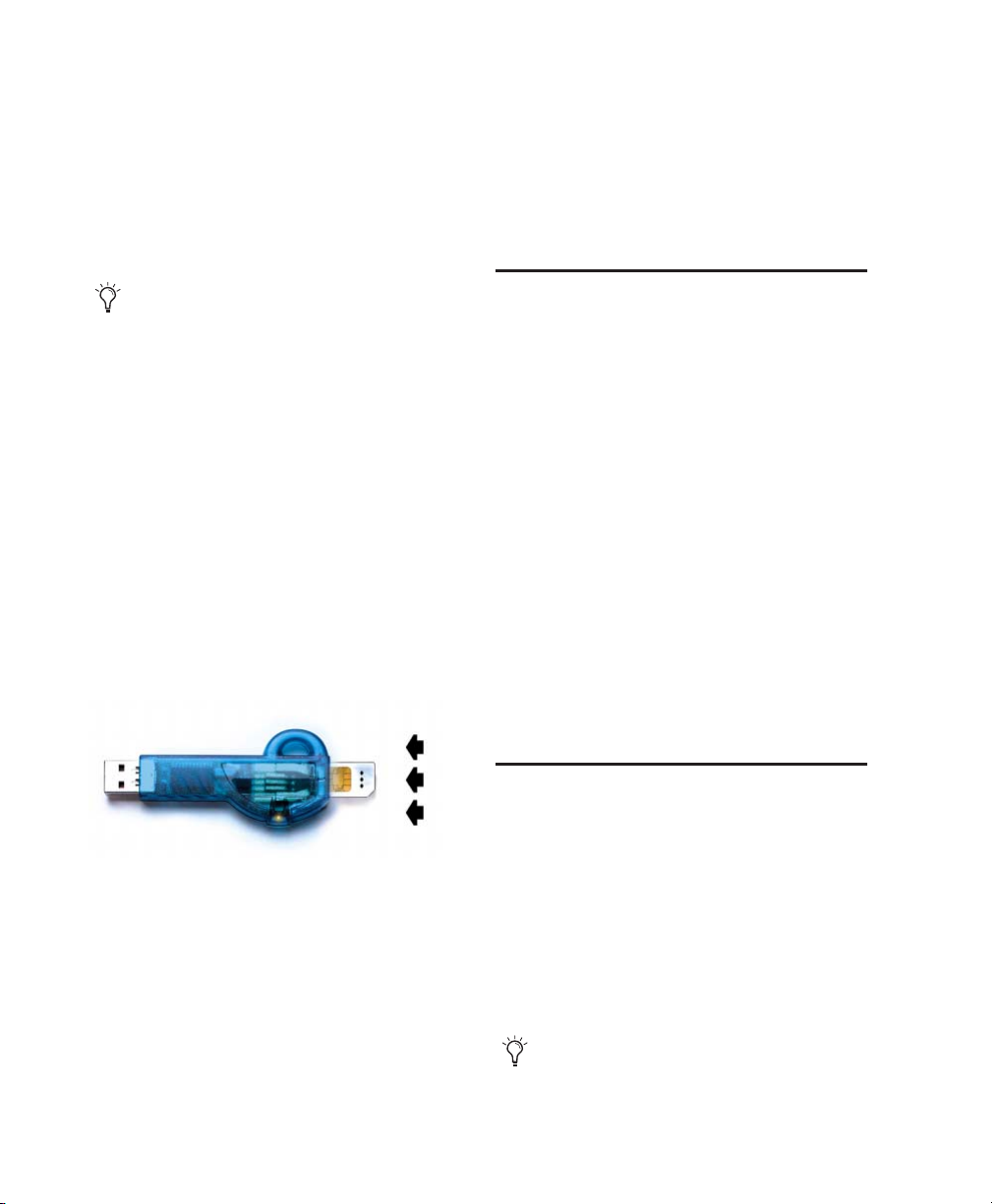

• DigiTranslator 2.0 iLok License Card

Pro Tools AVoption|V10 Capabilities

Pro Tools with AVoption|V10 lets you:

• Import and play back Avid video on the Pro Tools Movie track with near sample-accurate precision against audio tracks.

•Spot individual video clips to new locations in the Movie track.

•View video edits and clip deﬁnitions in the Movie track.

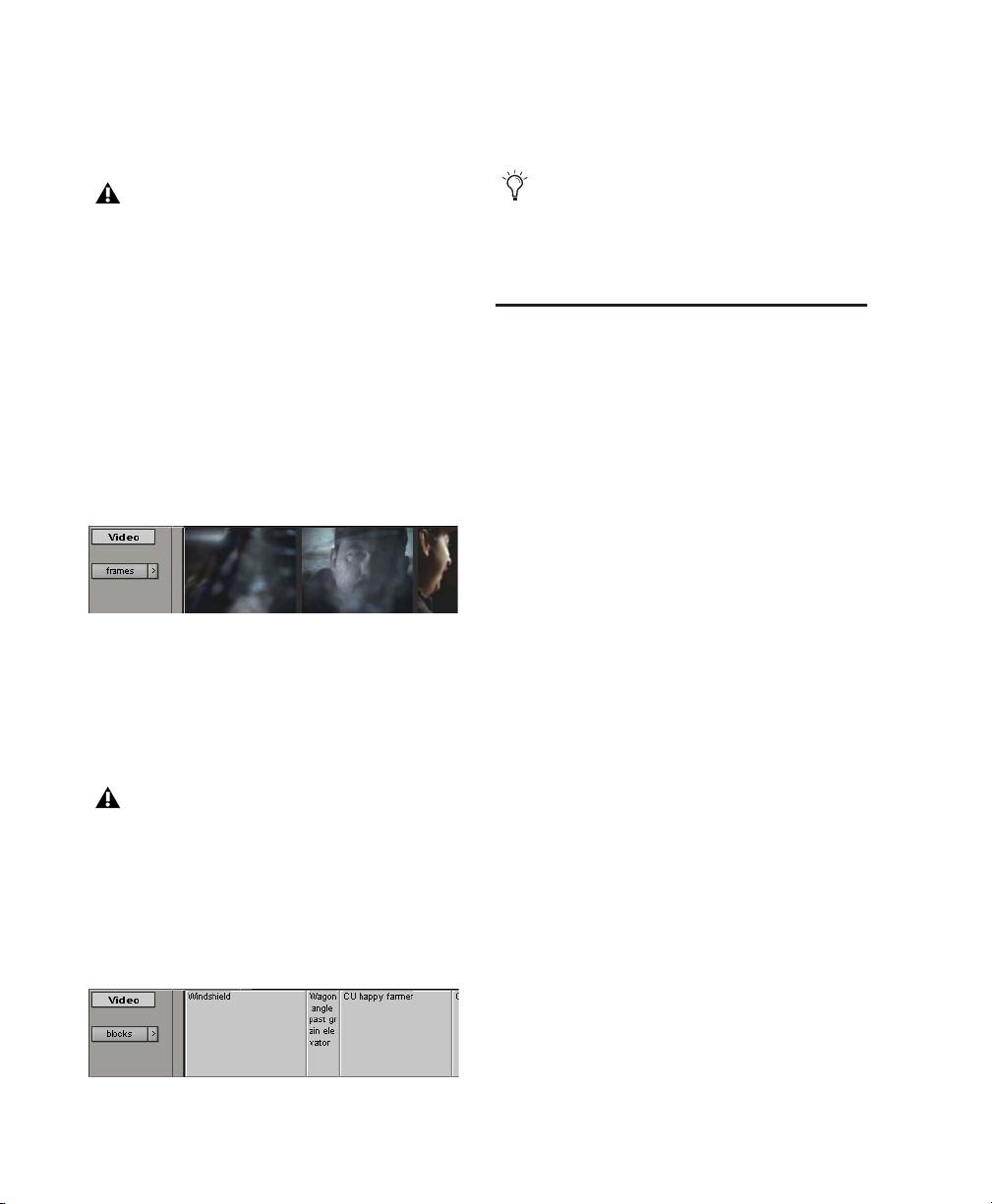

•View the Movie track as a series of picture frames.

• Play video on an external NTSC or PAL monitor.

• Import mixed video resolutions to the Movie track.

• Import and play back true 24P and 25P (Progressive Scan) picture media created in Avid video workstations.

Chapter 1: Introduction to Pro Tools AVoption|V10

Avid Media Station|V10 Capabilities

Avid Media Station|V10 software with AVoption|V10 lets you:

• Capture NTSC or PAL video.

• Import QuickTime clips as Avid video for easier handling.

• Import, batch digitize, and render Avid sequences, then export them as AAF sequences to Pro Tools.

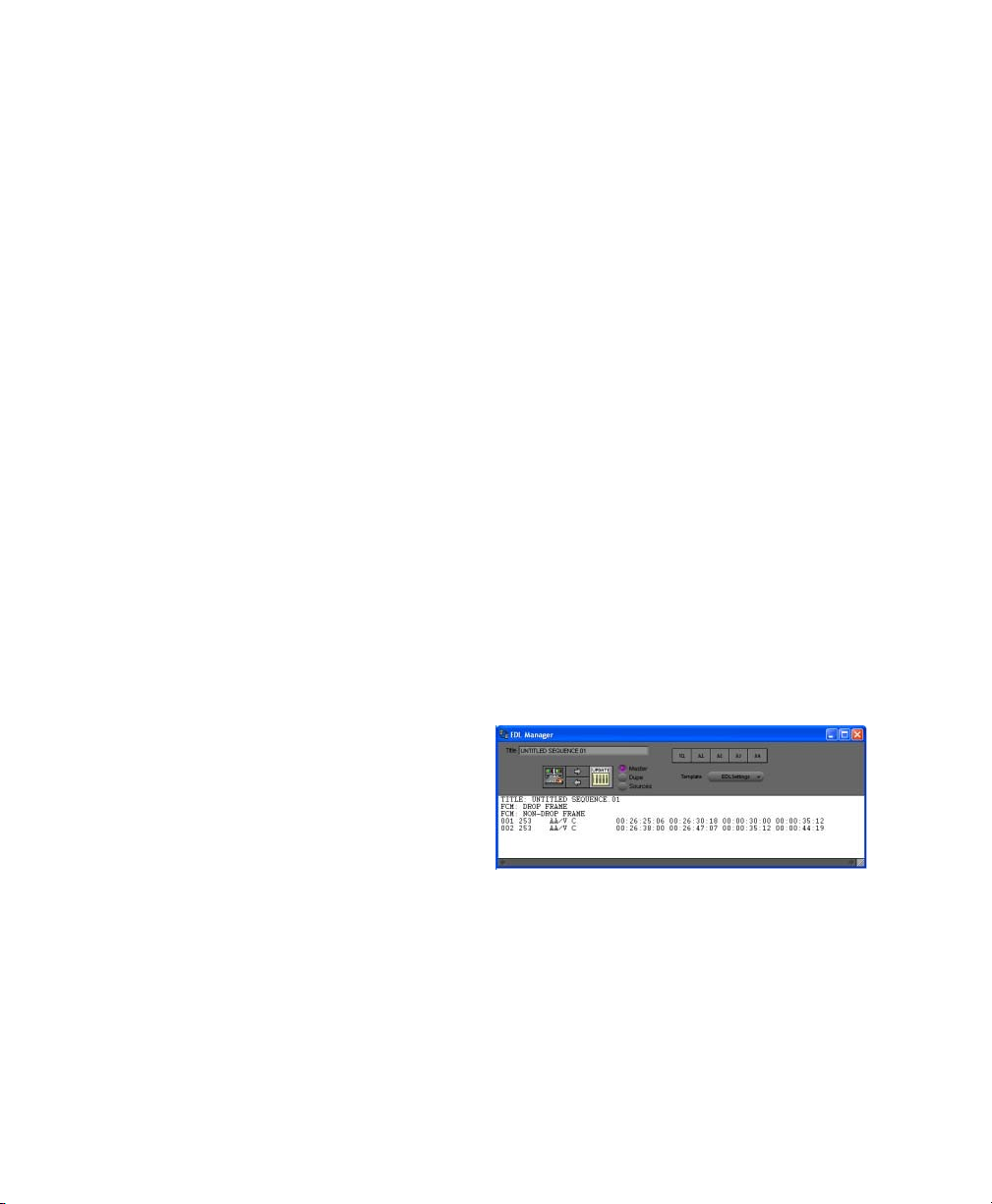

• Digitize audio and video from an EDL by creating an Avid sequence with Avid EDL Manager™.

• Lay back audio and video simultaneously with Digital Cut.

• Export audio and video sequences as QuickTime or other format digital ﬁles.

Pro Tools with AVoption|V10 does not support 24 or 23.976 fps video output. Though 24 and 23.976 fps video clips are supported, the actual output of Pro Tools is limited to NTSC (29.97 fps) and PAL (25 fps) standards. On playback, 24 fps clips are converted in software to these standards. This conversion can produce visible artifacts. Pro Tools video playback is intended for monitoring purposes only, and is not suitable for professional layback or broadcast, regardless of the resolution or frame rate of the video clip. Video output from Media Station|V10 software is professional quality.

Media Station|V10 is not compatible with Windows XP Hotfix - KB824141. If you use Microsoft Update, do not install this hofix. If it is already installed, remove it using the Add/Remove Programs Control Panel.

DigiTranslator 2.0 Integrated Option

DigiTranslator 2.0 is included with AVoption|V10. Use DigiTranslator to convert AAF and OMFI sequences into Pro Tools session ﬁles. You can also use it to export audio material from Pro Tools sessions to AAF sequences or OMFI sequences and ﬁles for import into other systems.

For more information, refer to the Digi-

Translator 2.0 Integrated Option Guide

MachineControl

You can use Digidesign’s MachineControl software to remotely control your external audio and video decks from Pro Tools. MachineControl is a Pro Tools software option that can be purchased separately.

For more information, see the MachineControl Guide.

Avid Unity MediaNetwork

Pro Tools with AVoption|V10 supports Avid Unity™ MediaNetwork. Avid Unity MediaNetwork provides integrated high-speed network storage systems for Avid and Pro Tools workstations.

For detailed information on configuring your Pro Tools system with AVoption|V10 as an Avid Unity MediaNetwork client, see the

Client Avid Unity™ MediaNetwork Guide

fer to the Avid Unity compatibility pages of the Digidesign Web site (www.digidesign.com/compato), as well as your Avid Unity MediaNetwork documentation.

Pro Tools

. Also, re-

Pro Tools AVoption|V10 and Media Station|V10 Guide

Compatibility

Digidesign can only assure compatibility and provide support for hardware and software it has tested and approved.

For a list of Digidesign hardware systems, Digidesign-qualified computers, operating systems, and third-party devices and software, refer to the latest compatibility information on our Web site (www.digidesign.com/compato).

On Windows systems, AVoption|V10 is only qualified with the Nvidia Quadro 4 980 XGL AGP monitor card, which requires Nvidia driver version 53.03. This driver is available for download from: http://www.nvidia.com/content/drivers/drivers.asp

Also, the NVIDIA Display Driver Service should be disabled. To disable this service, select START > MY COMPUTER > MANAGE > SERVICES. Right Click the NVidia service. Choose properties and disable.

System Requirements

•A Digidesign-qualiﬁed Pro Tools|HD system.

• SYNC I/O.

•Digidesign-qualiﬁed storage:

•SCSI: Pro Tools with AVoption|V10 requires separate SCSI drives for audio and video. A Digidesign-qualiﬁed dual-channel SCSI HBA (such as the Digidesign SCSI|128 or ATTO UL3D) is required. If your computer has built-in dual channel SCSI that has been qualiﬁed by Digidesign (such as the HP xw8000), a SCSI HBA is not required. The audio drives and the video drives should each be connected to separate SCSI channels. For more information, see “Setting Up Local Storage” on page 19.

For local storage, audio and video record and playback are supported with SCSI drives only. FireWire drives are not currently supported with AVoption|V10. See the Digidesign Web site (www.digidesign.com/compato) for the latest compatibility updates.

• Fibre Channel Host Bus Adapter (HBA) for Avid Unity™ MediaNetwork.

Chapter 1: Introduction to Pro Tools AVoption|V10

Digidesign Registration

The following symbols are used to highlight important information:

Make sure to complete and return the registration card included with AVoption|V10. Registered users will receive periodic software update and upgrade notices. Refer to the registration card for information on technical support.

About the Pro Tools Guides

In addition to the printed guides that came with your system, PDF versions of the Pro Tools guides are installed automatically with Pro Tools in the following directory: Program Files\Digidesign\Pro Tools\Documen tation. To view or print the PDF guides, install Acrobat Reader (included on the Pro Tools Installer CD-ROM).

Conventions Used in This Guide

Digidesign guides use the following conventions to indicate menu choices and key commands:

Convention Action

User Tips are helpful hints for getting the most from your system.

Important Notices include information that could affect your data or the performance of your system.

Shortcuts show you useful keyboard or mouse shortcuts.

Cross References point to related sections in other Digidesign guides.

File > Save Session Choose Save Session from

the File menu

Control+N Hold down the Control key

and press the N key

Control-click Hold down the Control key

and click the mouse button

Right-click (Windows) Click with the right mouse

button

Pro Tools AVoption|V10 and Media Station|V10 Guide

chapter 2

AVoption|V10 Hardware Overview

AVoption|V10 Hardware Capabilities

AVoption|V10 hardware:

• Receives composite, component, S-video, or SDI video signal.

• Digitizes incoming video using Media Station|V10 software.

• Outputs composite, component, S-video, and SDI video signals.

• Plays back all ABVB, JFIF, and IMX resolutions, interlaced and progressive scan, uncompressed JFIF, and DV25.

The oldest class of ABVB files (ABVB “MSM” files) are not supported in Pro Tools or Media Station|V10. These files were created with versions of Media Composer earlier than 7.0, and do not have the .omf extension.

At the time of this writing, IMX video files are supported in Media Station|V10, but not Pro Tools. Use Media Station|V10 to transcode these files to a format supported by Pro Tools. Check the Digidesign Web site (www.digidesign.com/compato) for updates on support for these formats.

Supported Video Resolutions

Pro Tools AVoption|V10 supports the following video resolutions for import, export, and playback:

• All Avid OMF video ﬁles

While Media Station|V10 supports all Avid OMF video files, Pro Tools does not support MXF or IMX media files at the time of this writing. Pro Tools also does not currently support NTSC 23.976p frame rate. For software updates, check the Digidesign Web site (www.digidesign.com/compato).

• DV Resolutions, DV 25 and DVC Pro 25, compressed with the Avid codec:

• DV25 411: DV25 interlaced scan at 4:1:1 sampling (for NTSC 30i and PAL 25i projects)

• DV25 420: DV25 interlaced scan at 4:2:0 sampling (for PAL 25i projects)

• DV25p 411: DV25 progressive scan at 4:1:1 sampling (for NTSC 23.976p and NTSC 24p projects)

•DV25p 420: DV25 progressive scan at 4:2:0 sampling (for PAL 25p and PAL 24p projects)

In Media Station|V10, when capturing from the AVoption|V10 DV input, resolution options for capture are limited to: 1:1, 15:1s, DV25 420, and DV25 411.

Chapter 2: AVoption|V10 Hardware Overview

Support for Mixed Video Resolutions

Pro Tools AVoption|V10 supports Avid video clips of mixed resolutions in the Movie track. For example, the Movie track can contain Avid DV25 and 15:1s clips. However, all clips must be Avid clips of the same frame rate. Mixed clips with different frame rates are not supported. Mixing Avid and QuickTime video clips is supported.

not

DV (Yellow)

Media Station|V10 software.

NTSC (Yellow)

selected.

PAL (Green)

lected.

Ref (Green)

locked to the incoming Reference signal.

Lights when DV input is selected in

Lights when an NTSC project is

Lights when a PAL project is se-

Lights when the AVoption|V10 is

AVoption|V10 Interface

The following sections describe the of functions of the AVoption|V10 breakout box.

AVoption|V10 Front Panel

The front panel of the AVoption|V10 (see Figure 1) has eleven indicators and a power switch. When the AVoption|V10 is powered on, the indicators turn on and off as it goes through a power-on self-test (POST).

The front panel of the AVoption|V10 breakout box provides the following LED indicators:

HD (Yellow)

SD (Green)

(SD) codec selected.

Is currently non-functional.

Lights when Standard Definition

Pull Down (Green)

lected in Media Station|V10 software. For indication of any pull-downs applied by Pro Tools, see the indicator light on the SYNC I/O.

LTC (Green)

to AVoption|V10.

44.1 (Yellow)

lected.

48 (Green)

lected.

96 (Green)

Lights when Pull Down is se-

Lights when LTC IN is being input

Lights when 44.1 kHz audio is se-

Lights when 48 kHz audio is se-

Is currently non-functional.

Power switch

Figure 1. AVoption|V10 breakout box front panel

Pro Tools AVoption|V10 and Media Station|V10 Guide

AVoption|V10 Back Panel

1 2 3 4 5 6

Figure 2. AVoption|V10 back panel

Table 1. Video I/O Identiﬁers

Number Label Function, Type of Connector, and Usage

1Video Reference (REF) Black burst or house synchronization input, BNC connector.

2 COMPONENT Y IN Video Y component input, BNC connector. Connects to ana-

11 14 16 20

Synchronizes the system with the global clock source provided by the house sync or black burst generator.

log video output of decks.

18171513

22 23

3 COMPONENT R-Y IN Video R-Y component input, BNC connector. Connects to

analog video output of decks.

4 COMPONENT B-Y IN Video B-Y component input, BNC connector. Connects to

analog video output of decks.

5 COMPOSITE IN Composite video input, BNC connector. Connects to analog

video output of decks.

6 S-VIDEO IN Super-video input, 4-pin connector. Connects to analog video

output of decks.

7 S-VIDEO OUT Super-video output, 4-pin connector. Connects to analog

video input of decks.

8 COMPONENT Y OUT Video Y component (Betacam) output, BNC connector. Con-

nects to analog video input of decks.

Chapter 2: AVoption|V10 Hardware Overview

Table 1. Video I/O Identiﬁers

Number Label Function, Type of Connector, and Usage

9 COMPONENT R-Y OUT Video R-Y component (Betacam) output, BNC connector.

Connects to analog video input of decks.

10 COMPONENT B-Y OUT Video B-Y component (Betacam) output, BNC connector.

Connects to analog video input of decks.

11 COMPOSITE OUT 1 Composite video output, BNC connector. Connects to analog

video input of decks or monitor.

12 COMPOSITE OUT 2 Composite video output, BNC connector. Connects to analog

video input of decks or monitor.

13 SDI IN Serial digital input, BNC connector. Connects to a serial dig-

ital output from a digital video source.

14 SDI OUT 1 Serial digital output number 1, BNC connector. Connects to

VTR input, a video monitor, or other serial digital device.

15 SDI OUT 2 Serial digital output number 2, BNC connector. Connects to

VTR input, a video monitor, or other serial digital device.

16 SDTI IN Not currently used.

17 SDTI OUT Not currently used.

18 1394 Host Connects to any available 1394 (FireWire) port on the CPU.

19 1394 DV Connects to the DV source deck.

20 LTC IN Receives LTC time code.

21 LTC OUT Sends LTC time code out (not used).

22 OPTICAL IN Connects to the Optical Out of the primary Pro Tools|HD

audio interface.

23 OPTICAL OUT Connects to the Optical In of the primary Pro Tools|HD audio

interface.

Pro Tools AVoption|V10 and Media Station|V10 Guide8

Video Connections

The following video input and output connections are available with the AVoption|V10:

• Inputs for composite, component (Y, R-Y, B-Y), S-Video, DV (1394), and SDI.

• Outputs for composite, component (Y, R-Y, B-Y), S-Video, DV (1394), and SDI.

•Video Ref input to allow the video to be locked to an external source such as house sync or a black burst generator.

All analog video outputs are active during capture and playback. A video monitor can be connected to any of the following video outputs on the AVoption|V10:

• Component

• Composite

• SDI

• S-Video

•DV

If you use the DV connection for a video monitor, the DV device may not be synchronized with playback.

Synchronization Hardware

Synchronization Peripheral

AVoption|V10 requires the Digidesign SYNC I/O for use with Pro Tools|HD systems.

Synchronization Source

For accurate synchronization during capture and playback, a common video reference is required:

• Black burst

• House Reference Synchronization source

• Local video source (such as the TBC video output of the machine)

When digitizing from a DV25 source, the video monitor will not display the output. The output is displayed on the computer monitor in Media Station|V10 instead. The video monitor will display the output when digitizing from any other source.

Chapter 2: AVoption|V10 Hardware Overview 9

Pro Tools AVoption|V10 and Media Station|V10 Guide10

chapter 3

Installing AVoption|V10

Pro Tools with AVoption|V10 and Media Station|V10 must be installed in the following order:

Uninstalling Pro Tools Software

1 Uninstall any previous version of Pro Tools

software, if present (any currently installed Pro Tools hardware does not need to be removed): See “Uninstalling Pro Tools Software” on page 11.

2 Install Pro Tools hardware (if necessary): See

“Installing Pro Tools Hardware” on page 12.

3 Install AVoption|V10 hardware: See “Install-

ing AVoption|V10 Hardware” on page 12.

4 Install Media Station|V10 software: See “In-

stalling Media Station|V10 Software” on page 15.

5 Install Pro Tools software: See “Installing

Pro Tools Software” on page 16.

6 Install AVoptionDNA software components:

See “Installing AVoptionDNA Software Components” on page 17.

7 Setup local storage (if necessary): See “Setting

Up Local Storage” on page 19.

If you are upgrading your Pro Tools system with AVoption|V10, you must first uninstall Pro Tools software before installing Media Station|V10 software. However, you do not need to remove your Pro Tools hardware.

To uninstall Pro Tools software:

1 Choose Start > Control Panel.

2 Launch Add or Remove Programs.

3 From the Currently Installed Programs list, se-

lect Digidesign Pro Tools TDM.

4 Click the Change/Remove button.

5 Follow the onscreen instructions to remove

Pro Tools.

Chapter 3: Installing AVoption|V10 11

Installing Pro Tools Hardware

If you do not already have a currently supported Pro Tools system installed, you must install your Pro Tools hardware. For detailed Pro Tools hardware installation information, see your Getting Started Guide.

Installing AVoption|V10 Hardware

To install AVoption|V10 hardware:

1 Connect the power cable for the AVop-

tion|V10 breakout box.

If you already have Pro Tools hardware installed, proceed by installing the AVoption|V10 hardware (see “Installing AVoption|V10 Hardware” on page 12).

Be sure to follow the correct PCI slot placement of your Pro Tools cards according to the information in Appendix B, “PCI Slot Configurations for AVoption|V10.”

For the latest information on supported computers and PCI slot configuration, be sure to check the AVoption|V10 compatibility pages on the Digidesign Web site (www.digidesign.com/compato).

The Pro Tools and AVoption|V10 hardware must be installed before installing Media Station|V10 software, Pro Tools software, and the AVoption|V10 software components.

2 Connect one end of the FireWire cable to the

Host port on the AVoption|V10 breakout box, and connect the other end to any an internal 1394 (FireWire) port on your computer.

The AVoption|V10 should be the only device attached to the FireWire bus. No other FireWire devices should be attached to the FireWire bus.

The internal FireWire (1394) bus shares one segment of the PCI bus. No other PCI cards may be installed on the same PCI bus segment as the AVoption|V10. The division of PCI bus segments between PCI slots varies with different models of computers, so it is critical to follow the card installation directions in Appendix B, “PCI Slot Configurations for AVoption|V10.”

Pro Tools AVoption|V10 and Media Station|V10 Guide12

Connecting Analog Video Input and Output

To connect the output of an analog video deck to the AVoption|V10:

■ Using a BNC cable, connect the component

output of the video deck to all of the following:

• COMPONENT Y IN on the AVoption|V10 breakout box.

• COMPONENT R-Y IN on the AVoption|V10 breakout box.

• COMPONENT B-Y IN on the AVoption|V10 breakout box.

– or –

■ Using a 4-pin connector, connect S-VIDEO

OUT on the AVoption|V10 breakout box to SVideo in of the video deck.

All analog video outputs are active during capture and playback.

Connecting Digital Video Input and Output

To connect the output of a serial digital video source to the AVoption|V10:

■ Using a BNC cable, connect the serial digital

output from a digital video source to SDI IN on the AVoption|V10 breakout box.

■ Using a BNC cable, connect the composite

output of the video deck to COMPOSITE IN on the AVoption|V10 breakout box.

– or –

■ Using a 4-pin connector, connect the s-video

output of the video deck to S-VIDEO IN on the AVoption|V10 breakout box.

To connect the analog video output from the AVoption|V10 to an analog video deck:

■ Using a BNC cable, connect all of the follow-

ing to the component input of the video deck:

• COMPONENT Y OUT on the AVoption|V10 breakout box.

• COMPONENT R-Y OUT on the AVoption|V10 breakout box.

• COMPONENT B-Y OUT on the AVoption|V10 breakout box.

– or –

■ Using a BNC cable, connect COMPOSITE

OUT 1 or 2 on the AVoption|V10 breakout box to the composite in of the video deck.

– or –

To connect the serial digital video output from the AVoption|V10 to a digital video deck:

■ Using a BNC cable, connect SDI OUT 1 or 2 on

the AVoption|V10 breakout box to the serial digital input of the video deck.

Connecting a DV Device

To connect a DV device to the AVoption|V10:

■ Connect one end of the FireWire (1394) cable

to the DV port on the AVoption|V10, and connect the other end to any available FireWire port on the DV Device.

All Firewire decks and cameras that are connected to AVoption|V10 must be powered on after powering on the AVoption|V10.

Connecting Optical for Audio

To be able to capture and play back audio with Media Station|V10 software, you will need to connect the OPTICAL In and Out of the AVoption|V10 to the Optical In and Out of the primary Pro Tools|HD audio interface.

Chapter 3: Installing AVoption|V10 13

To connect the AVoption|V10 to the primary Pro Tools|HD audio interface:

1 Using an optical cable, connect the OPTICAL

Out of the AVoption|V10 to the Optical In of the primary Pro Tools|HD audio interface.

2 Using an optical cable, connect the OPTICAL

In of the AVoption|V10 to the Optical Out of the primary Pro Tools|HD audio interface.

Be sure to use the ports marked “Optical” on your Pro Tools|HD audio interface. Do not connect to the ADAT In and Out on the audio interface.

Loop Sync In/Out

Loop Sync is the clock signal used to synchronize Pro Tools|HD-series audio interfaces. Connect Loop Sync In on the SYNC I/O to Loop Sync Out on the primary Pro Tools|HD audio interface. Connect Loop Sync Out on the SYNC I/O to Loop Sync In on the primary Pro Tools|HD audio interface. If you have multiple Pro Tools audio interfaces, connect Loop In on the SYNC I/O to Loop Out on the last Pro Tools interface.

from Loop Sync Out

(audio interface)

Connecting a SYNC I/O

The SYNC I/O is required for Pro Tools with AVoption|V10. Connect the house video reference to the Video Ref In port on the SYNC I/O, and connect the Loop Sync on the SYNC I/O to the corresponding Loop Sync on the primary Pro Tools|HD audio interface. For more information on configuring and using the SYNC I/O, see the SYNC I/O Guide.

Video Reference In

Connect a BNC cable to the Video Ref In port on the SYNC I/O and to a black burst (house video reference) generator or a standard video signal, for clock reference and window burn purposes. The Video Ref Out port must be terminated (using the 75-ohm terminator included with the SYNC I/O) or connected to another terminated video device (such as the AVoption|V10).

House Video Reference

INTERNALLY TERMINATED

AC 100-240V, 50-60HZ, .5A 30W

LOOP SYNC

9-PIN OUT 1

9-PIN OUT 2

OUT

to Loop Sync In

(audio interface)

SYNC I/O connection to a Pro Tools|HD audio interface

Connecting House Video Reference or Black Burst

In most AVoption|V10 setups, three black burst or house video reference (house sync) connections are required:

•To VIDEO REF IN on the SYNC I/O

•To a video input on your VTR (a video reference input if available)

•To the VIDEO REF connector on the AVoption|V10 (this connection can come from the Video Ref Out on the SYNC I/O)

Be sure to read the documentation for your black burst generator for more information.

OUT

VIDEO REF

HOST SERIAL

SYNC I/O video connections

Pro Tools AVoption|V10 and Media Station|V10 Guide14

VIDEO

MTC OUT

Connecting a VTR

A VTR can be used to provide video input to and record video output from AVoption|V10. In most situations, there are three connections you need to make:

1 Connect a black burst or house sync output to

a video input on your VTR (preferably a reference video input).

Installing Media Station|V10 Software

You must install Media Station|V10 software before installing Pro Tools software. If a current installation of Pro Tools software is present, you must uninstall it before installing Media Station|V10 software.

2 Connect the AVoption|V10 Composite IN,

Component IN, S-Video IN, or SDI IN connectors to the corresponding output or outputs on your VTR.

3 Connect the AVoption|V10 Composite OUT,

Component OUT, S-Video OUT, or SDI OUT connectors to the corresponding inputs on your VTR.

– or –

Connect the AVoption|V10 Composite OUT or Component OUT connectors to the corresponding input on an NTSC or PAL video monitor, then connect the outputs from this monitor to the corresponding inputs on your VTR.

Connecting an External Video Monitor

Connect an external NTSC or PAL video monitor to any of the Composite, Component, SVideo, or SDI outputs (see “Video Connections” on page 9).

To install Media Station|V10 software:

1 Be sure that the AVoption|V10 breakout box is

powered off or disconnected.

2 Start your computer and log on to Windows

with Administrator privileges.

3 When the Found New Hardware Wizard dia-

log appears (for your Pro Tools hardware and AVoption|V10 hardware), leave it open.

4 Insert the Avid Media Station|V10 Installer

CD-ROM in your computer’s CD-ROM drive.

5 Locate and launch the Media Station|V10

Setup.exe ﬁle.

6 Follow the onscreen instructions.

7 Wait for the installer to ﬁnish installing all

software components. When installation is complete, click Finish to restart your computer.

8 Power on the AVoption|V10 breakout box.

The New Hardware Wizard will appear. In the New Hardware Wizard, you will need to manually select the required ﬁles.

Using Centralized Video Switching and Routing

Many professional facilities have centralized video switching and routing systems. These systems can be used to route AVoption|V10 inputs and outputs to flexible input sources and output destinations.

9 Click the Have Disk button, and browse to

C:\Program Files\Avid\MediaStationV10\Supporting Files\WindowsXPDrivers\ﬂamethrower.inf.

10 Click Finish to complete the installation.

Chapter 3: Installing AVoption|V10 15

Media Station|V10 software will only run if:

•A compatible version of Pro Tools is installed

•A Pro Tools|HD card is installed

• The AVoption|V10 hardware is installed

Installing Pro Tools Software

To install Pro Tools TDM software:

1 Start Windows, logging in with Administrator

privileges. For details on Administrator privileges, refer to your Windows documentation.

2 Wait for the Found New Hardware Wizard di-

alog to appear and leave it open.

3 Insert the Pro Tools Installer CD-ROM for

Windows in your CD-ROM drive. Locate and open the Pro Tools Installer folder, and doubleclick the Setup icon.

4 Click Next to begin installation.

5 Select the install location. For maximum reli-

ability, install Product Name on your startup drive. Click Next.

8 Select your work environment. This loads an

initial set of Pro Tools Preferences that include some of the more popular settings for post production, audio, or audio with MIDI.

9 Click Next.

10 Select whether to install the Surround Mixer

plug-in. This plug-in is required for mixing, mastering, and monitoring in surround.

• Select “Yes – Monitor in Pro Tools Film Format” if your monitoring is conﬁgured for Film Format surround.

• Select “Yes – Monitor in ProControl (DTS Format)” if you are using a ProControl dedicated controller.

• Select “No – Stereo mixing only” if your monitoring is conﬁgured for Stereo.

11 After making a selection, click Next.

Wait for the installer to finish installing all software components, drivers, and PACE System files before proceeding to the next step.

12 If QuickTime is not already installed, you

will be prompted to install the Recommended QuickTime installer option. Follow the onscreen instructions to complete the QuickTime installation process.

13 When installation is complete, click Finish to

restart your computer.

6 Select Custom Install and enable the Digi-

Translator 2.0 Option. When choosing Custom Install, you can select from a list of components to install along with Pro Tools. Click the name of each component for a description of its contents.

7 Click Next.

Pro Tools AVoption|V10 and Media Station|V10 Guide16

Installing AVoptionDNA Software Components

Authorizing Media Station|V10

To install AVoptionDNA software components:

1 Start your computer and log on to Windows

with Administrator privileges.

2 Insert the Pro Tools TDM Installer CD-ROM in

your computer’s CD-ROM drive.

3 Locate and launch the AVoptionDNA

Setup.exe ﬁle.

4 Follow the onscreen instructions.

5 Wait for the installer to ﬁnish installing all

software components. When installation is complete, click Finish to restart your computer.

Starting Up Your System

To ensure that the components of your Pro Tools AVoption|V10 system communicate properly with each other, you need to start up your system in the correct order.

Start up your Pro Tools AVoption|V10 system in the following order:

1 Turn on the expansion chassis, if any.

Use the included Avid Application key (USB dongle) to authorize Avid Media Station|V10.

To authorize Media Station|V10 software:

■ Insert the Avid Application Key (USB dongle)

into an available USB port on your computer.

Authorizing DigiTranslator 2.0

DigiTranslator 2.0 is authorized using the iLok USB Smart Key (iLok) and License Card from PACE Anti-Piracy.

The iLok is similar to a dongle, but unlike a dongle, it is designed to securely authorize multiple software applications from a variety of software developers. This key can hold over 100 authorizations for all of your iLok-enabled software. Once an iLok is authorized for a given piece of software, you can use the iLok to authorize that software on any computer.

The iLok USB Smart Key is not supplied with AVoption|V10. One iLok is included with your Pro Tools|HD Core system.

If you have an expansion chassis and it is not powered on, your computer will not boot.

2 Turn on any external hard drives.

3 Turn on the SYNC I/O.

4 Turn on the Pro Tools|HD audio interfaces.

5 Turn on the AVoption|V10.

6 Turn on the DV camcorder or digital video

deck, if any.

7 Start up your computer.

License Cards are specific to each Pro Tools option or plug-in. You will receive the appropriate License Cards for the software options or plugins that you purchase. One DigiTranslator 2.0 iLok License Card is included with your AVoption|V10. License Cards have a small punch-out plastic chip called a GSM cutout.

Chapter 3: Installing AVoption|V10 17

To authorize the DigiTranslator 2.0 option with iLok:

1 Insert the iLok into an available USB port on

your computer.

2 Launch Pro Tools. You will be prompted to au-

thorize any installed unauthorized software options or plug-ins.

7 After the authorization has completed, re-

move the GSM cutout from the iLok. (If you have to remove the iLok from the computer to remove the cutout, be sure to re-insert the iLok in any available USB port on your computer when you are ﬁnished.)

If you are already using a demo version of the software option or plug-in, launch Pro Tools before you insert the iLok, then insert the iLok into any available USB port when prompted by Pro Tools.

3 Follow the onscreen instructions until you are

prompted to insert the License Card into the iLok.

4 Separate the GSM cutout from the larger pro-

tective card by pulling it up and out with your thumb. Do not force the cutout down with your ﬁnger.

5 Insert the GSM cutout into the iLok. Visually

verify that the metal portion of the cutout makes contact with the iLok’s metal card reader.

iLok with License Card

6 Follow the onscreen instructions to complete

the authorization process for the DigiTranslator

2.0 option.

Updating Firmware on Application Launch

On launch, Pro Tools checks that appropriate version of the firmware is installed on the AVoption|V10 breakout box. If the correct version of the firmware is not installed, Pro Tools automatically installs the correct version of the firmware. Once the update is complete, you will be prompted to quit Pro Tools and power-cycle the AVoption|V10 breakout box before the upgrade will take effect.

Media Station|V10 software also makes any necessary firmware updates to the AVoption|V10 breakout box on launch. If this occurs, you must quit Media Station|V10 and power-cycle the AVoption|V10 breakout box for any firmware updates to take effect.

Using NTSC and PAL

When switching between NTSC and PAL formats, settings must be changed in the Pro Tools Session Setup window:

•Select the correct frame rate from the Frame Rate pop-up menu (for example 25 fps or

29.97 fps).

• Set the SYNC I/O to the correct format (PAL or NTSC).

When a video clip is imported to the Movie track, Pro Tools sets the correct format (PAL or NTSC) on the SYNC I/O automatically.

Pro Tools AVoption|V10 and Media Station|V10 Guide18

If you import an existing video file to the Movie track, Pro Tools will warn you if the frame rate of the imported clip does not match the session’s current frame rate setting (NTSC or PAL). You will need to manually change the frame rate setting in the Pro Tools Session Setup window to match the frame rate of the imported video clip.

Setting Up Local Storage

For local storage, Pro Tools|HD with AVoption|V10 requires a Digidesign-qualified dualchannel SCSI HBA (host bus adapter) and Avid or Digidesign-qualified SCSI hard drives. Dedicate one SCSI channel to audio drives and one SCSI channel to video drives.

If you have a Digidesign-qualified computer with built-in SCSI (such as the HP xw8000), an additional SCSI HBA is not required.

For the most current storage requirements and compatibility information, see the Digidesign Web site at (www.digidesign.com/compato).

Installing the SCSI Host Bus Adapter (HBA)

To install a SCSI HBA:

1 Unplug and open your computer according to

the manufacturer’s instructions.

2 Release any static electricity by touching the

power supply, or another grounded item.

3 Remove the SCSI accelerator card from the

anti-static bag, being careful to handle it only by the edges.

4 Line up the SCSI accelerator card with the in-

stallation slot, and slide the card into place gently so the PCI connector is aligned with the PCI slot.

5 Press down ﬁrmly on the card with even pres-

sure. The connector should click into place in the PCI slot.

6 Fasten the card in place using the included

screw to attach the card bracket to the computer mounting bracket.

If you are using Avid Unity MediaNetwork rather than local storage, local storage is not required.

For information on configuring Pro Tools Client Avid Unity MediaNetwork, see the Pro Tools MediaNetwork Guide.

Chapter 3: Installing AVoption|V10 19

Updating the SCSI BIOS

If you are using an ATTO SCSI HBA card, you may need to update its SCSI BIOS. When starting your computer, you will see what version of the ATTO SCSI BIOS is installed on the SCSI card. If it is not version 1.68 or higher, you will need to ﬂash the SCSI BIOS with 1.68 or higher ATTO SCSI BIOS (ﬂash.bat).

Installing the Windows Device Driver

If you are using an ATTO SCSI HBA card, you will need to install its Windows device driver.

To install the ATTO Windows device driver:

1 Disconnect all hard drives from the SCSI HBA

card.

To update the BIOS on the ATTO SCSI card:

1 Insert a High Density PC formatted ﬂoppy

disk in your ﬂoppy drive (this needs to be a DOS boot disk).

2 Copy the DOS folder from the ATTO folder on

the Pro Tools Installer CD-ROM to the ﬂoppy disk.

3 Shut down your computer.

4 Disconnect all hard drives from the SCSI HBA

card.

5 Start your computer with the ﬂoppy disk in

the ﬂoppy drive.

6 From within DOS, CD to the DOS\UTILITY

folder and run ﬂash.bat.

7 When prompted, press Control+Z.

The SCSI BIOS will be updated. This may take a few minutes.

Do not interrupt this process or your system may be damaged.

8 Select Conﬁgure Adapter Channels.

2 Start your computer. Note the version of the

ATTO SCSI BIOS when booting. If it is version

1.68, proceed to the next step. If it is not version

1.68, you will need to ﬂash the ATTO SCSI BIOS

(see “Updating the SCSI BIOS” on page 20).

3 Insert the Pro Tools Installer CD-ROM in your

CD-ROM drive.

4 Locate and unzip the epci168 ﬁle (in the ATTO

folder).

5 Run the Setup.exe ﬁle from the unzipped

folder and follow the onscreen instructions. The Windows device drivers are automatically for both channels of the SCSI HBA.

6 When the installation is complete, reboot

your computer.

In the Windows Device Manager, both channels of the SCSI HBA will appear under SCSI and RAID controllers as “ExpressPCI Adapter - UL3D (Ultra3 Dual Channel).”

Once you have installed the SCSI HBA, its Windows device drivers, and restarted you computer, you can connect your SCSI hard drives.

9 Set Host Adapter BIOS to Scan Only.

10 Press the Esc key twice.

11 Select Save Parameters and Exit, and press

Enter.

For more information, see the flash.txt in the DOS\UTILITY.

Pro Tools AVoption|V10 and Media Station|V10 Guide20

Formatting Hard Drives

Format your hard drives as NTFS using Windows Disk Administrator. Striped drives are supported for video, but not for audio.

On Windows systems, audio drives must be formatted as “Basic” or Pro Tools won't recognize them as valid audio drives.

Video drives to be included in video stripe sets must be formatted as “Dynamic.” 1:1 video requires a 2-drive striped set.

For the latest information on supported storage configurations, be sure to check the AVoption|V10 compatibility pages on the Digidesign Web site (www.digidesign.com/compato).

Using Two Hard Drives

For scenarios that do not require a high audio track count or a very long video segment, you may use two hard drives.

In this scenario, one drive is used to record, import, and play back audio data, and the other is used to do the same for video.

Using More Than Two Hard Drives

To get the best possible performance from your Pro Tools|HD system with AVoption|V10, you should use more than two hard drives. In this scenario, you should use striped hard drives for video data. Striped volumes appear to Pro Tools as a single volume.

Striped drives are supported for video only. Striped drives are not supported for audio record and playback.

Audio Both Pro Tools and Media Station|V10 software can store audio data to multiple hard drives. You should allocate audio tracks to different hard drives manually. “Round robin” disk allocation is not recommended in a system that includes video drives. For more information, see the Pro Tools Reference Guide.

Video Media Station|V10 software can capture contiguous video to multiple hard disks. This is useful if the length of your video session exceeds the storage space available on a single drive. For example, 26 minutes of video material, using 3:1 compression, requires approximately

11.1 GB of storage space.

Complete storage requirements for different video resolutions are available on the Avid Web site (www.avid.com).

Striped Drive Requirements

(Video Storage Only)

Striped drives are configured so that multiple hard drives behave as if they are one hard drive. This makes higher data throughput possible. Requirements will vary depending on the drives. For example, the 5th-Generation DigiDrives™ (released November 2001) require 2-way striped drive sets when capturing or playing uncompressed (1:1) video. For earlier generations of drives, 4- way striped drives or greater (4 or more drives acting as one) are required when capturing or playing uncompressed (1:1) video; and 2way striped drives (2 drives acting as one) are required when capturing or playing 2:1 and 3:1 compressed video.

Chapter 3: Installing AVoption|V10 21

Formatting and Striping Media Drives

For the latest Drive Striping Configuration, go to the Knowledge Center on the Avid Web site, click the Documentation tab, and then click Drive Striping Tables.

Disk drives must be configured as Dynamic if you are striping drives.

To create a format and stripe drives for video media:

1 Start your system, and log in to an account

with administrative privileges.

2 Right-click the My Computer icon, and select

Manage. The Computer Management window opens.

3 Click the Disk Management folder.

For more information on the Computer Management window, click the Help icon in the toolbar of the Computer Management window.

4 Format hard drives intended for audio record

and playback as NTFS.

8 Follow the instructions in the Create Volume

Wizard to ﬁnish striping the drives using NTFS format.

5 To stripe drives for video record and playback,

make the ﬁrst drive a Dynamic drive by rightclicking the disk ID section of the disk in the Computer Management window and selecting Upgrade to, or Create Dynamic disk, depending upon the status of your disk.

When you select a disk in the Computer Management window, the white section of the disk changes to stripes, showing that the section has been selected.

6 Repeat the preceding step for the each drive

you want to stripe.

7 Right-click one of the Dynamic drives and se-

lect Action > Create Volume.

Pro Tools AVoption|V10 and Media Station|V10 Guide22

chapter 4

Media Station|V10 Software

This chapter documents basic Media Station|V10 workflows for Pro Tools with AVoption|V10. For more information about specific features and functions of Media Station|V10, search for the desired function in the Media Composer Adrenaline online help file by launching Media Station|V10 and selecting Help > Online Help, or by selecting Program Files > Avid > MediaStationV10 Help from the Windows Start menu. For more information about Avid media capture, layback, import, and export, see the Avid Media Composer Adrenaline In- put and Output Guide available from the Avid Web site (www.avid.com).

Avid Media Station|V10 software is designed especially for Pro Tools post-production workflows with AVoption|V10:

• Record audio and video directly from tape

• Import an EDL and batch digitize from tape

• Open and re-digitize an existing sequence from an Avid editing system (such as Media Composer Adrenaline)

• Render all effects

• Export an AAF sequence for import to Pro Tools

• Import an AAF exported from Pro Tools

• Lay back audio and video to tape

• Export audio and video sequences in digital format

Media Station|V10 software and Pro Tools cannot run simultaneously. Quit Pro Tools before launching Media Station|V10, and quit Media Station|V10 before launching Pro Tools.

Media Station|V10 provides the same digitizing and batch digitizing methods as all Avid video editing systems.

Media Station|V10 software can output all frame rates of NTSC and PAL, but cannot output an NTSC master from a PAL source, or output a PAL master from an NTSC source.

Chapter 4: Media Station|V10 Software 23

Avid Nomenclature

The following provides a brief glossary of Avid terms and, where applicable, their Pro Tools counterparts.

Media Files Media files contain data representing raw audio or video material. Every time you record a piece of video or audio material into an application, you are creating a media file containing media data. Media Station|V10 stores all media files in the OMFI MediaFiles folders on the volumes you designate.

Clip A Clip references one or more media files which play in synchronization, for instance a video file and its two audio tracks. Clips are stored in Bins.

SubClip A SubClip in Media Station|V10 is like a region in Pro Tools: It is a shorter version of the clip it was created from. Subclips are stored in Bins.

Sequence A Sequence is equivalent to a Pro Tools session: It is a collection of clips and sub-clips organized in a Timeline. Sequences are stored in Bins.

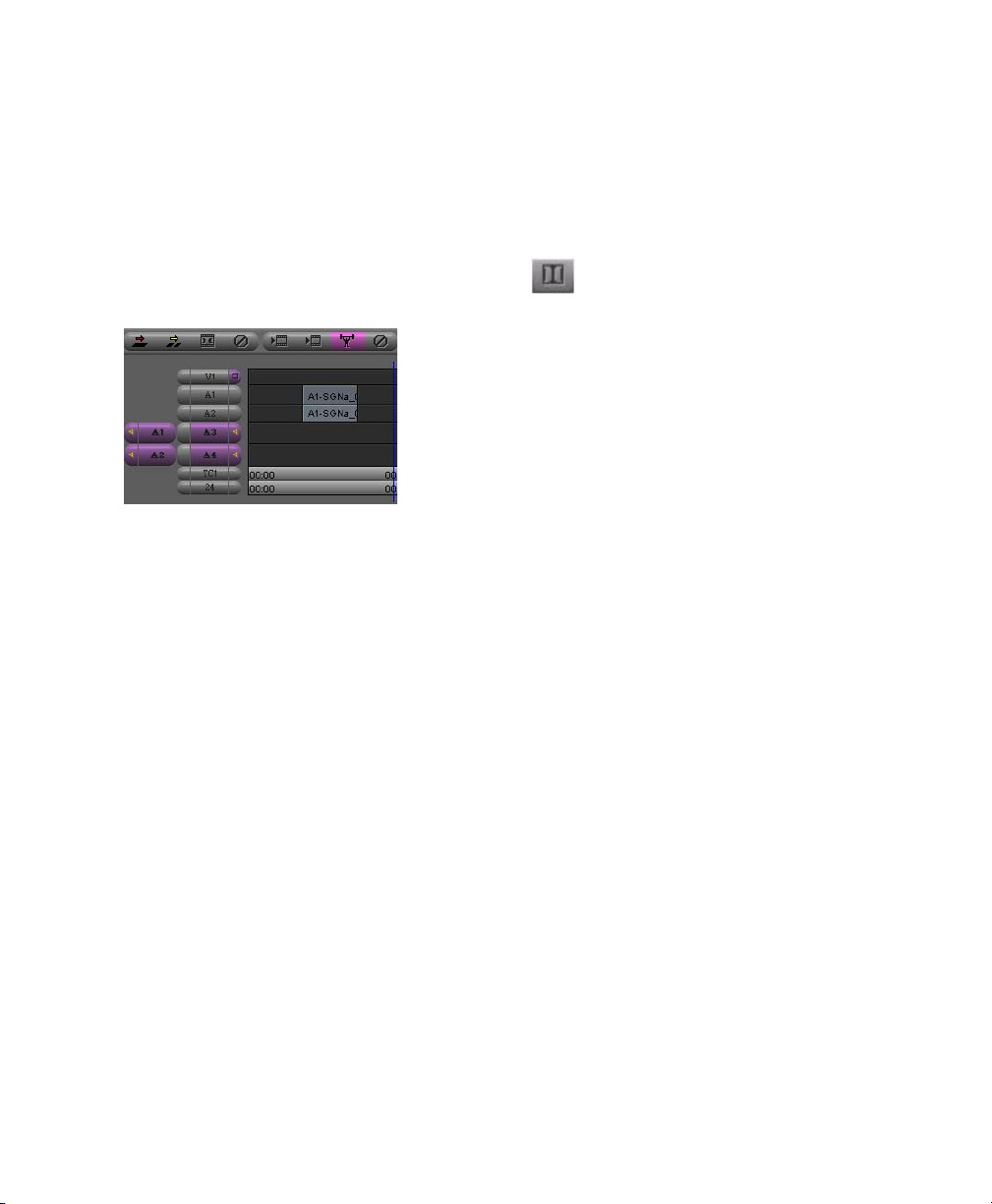

Timeline The Media Station|V10 Timeline shows the assorted audio and video elements arranged in a linear sequence, like in Pro Tools.

Source Monitor The Source Monitor is the Video window above the Timeline (on the left). Use the Source Monitor to select what will be added to the sequence in the Timeline

Record Monitor The Record Monitor is the Video window above the Timeline (on the right). Playback of the sequence in the Timeline is viewed in the Record Monitor.

Client Monitor The Client Monitor is the external video monitor connected to an analog video output of the AVoption|V10.

Bins Bins are like folders where you organize clips and sequences. Bins are stored in the individual project folders.

Projects Projects are where you organize a number of Bins. Bins can also be shared between projects.

In one project, you could create a new Bin to hold all of your video clips and a Bin to hold your sound effects, and a Bin for sequences. You could close that project, open a new project and open the audio Bin from the first project to use the same audio in a different sequence. Projects are stored in the Avid Projects folder in the MediaStationV10 folder.

Pro Tools AVoption|V10 and Media Station|V10 Guide24

Figure 3. Media Station|V10 Timeline (bottom), Source Monitor (top left), and Record Monitor (top right)

Chapter 4: Media Station|V10 Software 25

Starting a New Project with Media Station|V10

Before launching Media Station|V10 software, verify that Pro Tools is not running. Pro Tools and Media Station|V10 must not be running at the same time: you must exit Pro Tools before launching Media Station|V10, and you must exit Media Station|V10 before launching Pro Tools.

To start a new project, or select an existing project:

1 Launch the Avid Media Station|V10 software.

2 You will be prompted to create a new project

or select an existing project.

3 Select or create a new user proﬁle. Each user

can conﬁgure Media Station|V10 to suit their needs while allowing multiple users to use the same workstation.

4 Select the Shared option to open or create

projects which are accessible to any other users.

– or –

Select the Private option to open or create a session which only the current user can access.

5 To create a new project, click the New Project

button.

In the New Project dialog, name the project, select the format appropriate for your video monitor and desired frame rate, and click OK.

In Media Station|V10, 29.97fps is referred to as 30i. The “I” stands for interlaced, which is the standard format. “P” stands for progressive scan.

6 Select the desired Project and click OK.

The selected project will open with the Project window. The name of the project appears in the upper left-hand corner of the Project window.

Select Project dialog

In the Select Project dialog, make sure the Folder selected is \Program Files\ AvidMediaStationV10\Avid Projects. This is where your projects, bins, and sequences will be stored. Media files are stored separately.

Pro Tools AVoption|V10 and Media Station|V10 Guide26

To the right of the Project window is the first Bin for the Project.

To view the Bins in a Project:

■ Click the Bins tab in the Project window. Dou-

ble-click any listed Bin to view its contents

To view and edit Project Settings:

■ Click the Settings tab to view the Project set-

tings, including Audio and Export settings.

Conﬁguring Audio Settings

To conﬁgure the audio settings for a project:

1 Click the Settings tab in the Project window.

2 Double-click Audio Project in the Settings list.

3 Click the Main tab in the Audio Project Set-

tings window.

Audio Project Settings dialog, Main tab

4 Set the desired Sample Rate, Audio File For-

mat, and Sample Bit Depth. OMF WAVE (BWF) is the recommended Audio File Format because it provides the best interchange between systems.

Capturing Audio and Video

Manual Capture of Audio and Video

To capture audio and video from tape, verify that the following connections are made:

•Connect your video source to the appropriate inputs of your AVoption|V10. For more information about the video connections on the AVoption|V10 breakout box, see “Connecting Analog Video Input and Output” on page 13.

•Connect the audio source to the ﬁrst eight analog or any digital inputs of your primary Pro Tools audio interface. For more information on making audio connections, see your Getting Started guide and the guide for your Pro Tools audio interface.

•Connect the Optical In and Out of the primary audio interface to the Optical In and Out of the AVoption|V10. For more information about making audio connections between the AVoption|V10 breakout box and your Pro Tools audio interface, see “Connecting Optical for Audio” on page 13).

5 Verify other settings as desired. For most

projects, the default settings are recommended.

6 After conﬁguring the Audio Project Settings,

close the window.

Audio Project Settings are saved with the project. You will need to configure the Audio Project Settings for each new project.

Do not connect the Optical In and Out of the AVoption|V10 to the ADAT In and Out of the audio interface.

Chapter 4: Media Station|V10 Software 27

To capture audio and video:

1 Select Tools > Capture to open the Capture

Tool.

Avid Capture Tool

2 Make sure that all the reveal triangles on the

left side of the Capture Tool window are pointing down so that all of the controls are visible.

3 If necessary, click the Capture/Log Mode but-

ton (to the right of the Trash icon) in the Capture tool to select Capture mode (CAP).

4 Verify that the Toggle Source button (to the

right of the Capture/Log Mode button) does not have a circle/slash over it.

5 Below the Record button is a row of record en-

able buttons. V is for video, A1–A8 are for audio. Select the desired source tracks. TC is the timecode channel and should also be enabled.

6 Select the correct video and audio input

sources.

8 Select the resolution (RES) you would like to

capture. 1:1 is uncompressed and offers the best quality, but takes up the most storage space. 20:1 takes up the least amount of storage space, but is the lowest quality picture. Select the level of compression which is appropriate for your project. DV25 offers a good quality picture with a moderate level of compression. 10:1m and 4:1m are multi-cam resolutions and should not be used for Pro Tools.

When capturing from the AVoption|V10 DV input, resolution options for the capture are limited to: 1:1, 15:1s, DV25 420 and DV25 411.

9 Select the drives where you would like the au-

dio and video to be stored. The button on the left toggles between 1 and 2 drives. Since Pro Tools requires audio and video to be on separate drives, toggle this button so that 2 drives are showing and select the appropriate drives for audio and video. The available recording time for each drive is shown in the window on the right. The digitized ﬁles will be stored in a folder called “OMFI MediaFiles” on each of those drives.

10 Ensure that Delay Audio is set to 0 frames.

11 Insert the desired tape into the tape deck.

Media Station|V10 will present a list of tapes already associated with this project and ask you what tape you have inserted. Either select a tape name or create a new one and click OK.

12 To check your inputs, press play on the trans-

port controls. Video should appear in the Record monitor, as well as in your client monitor. Select Tools > Audio Tool to meter audio input levels. Adjust the output levels of your tape deck if necessary.

7 Select the Bin in which you would like the

captured clips to appear.

Pro Tools AVoption|V10 and Media Station|V10 Guide28

13 To Record, do one of the following:

• Queue the tape to where you would like to start and press the record button in the Capture Tool. Media Station|V10 will begin recording as soon as the tape comes up to speed.

• Or Play the tape and press the Record button when ready.

• Or Enter an in point in the top window to the right of the transport controls, then press the Record button. You can enter an in point either by typing directly in the window (you do not need to type colons or semi-colons), or by clicking the button to the left of the window at the desired location. The out point, duration, and markers can also be entered in these windows.

The flashing red light indicates recording is in progress.

During recording, video will appear out of synchronization with audio. However, audio and video will be synchronized during playback.

Re-digitizing an Existing Sequence

Media Station|V10 can open sequences created on other Avid editing systems (such as Media Composer Adrenaline). However, you may want to re-digitize some or all of the media files, either because some were missing, were the wrong resolution, or were corrupted.

To re-digitize either a sequence or individual clips:

1 Select Tools > Capture and verify the settings

as you would for manual capture (see “Manual Capture of Audio and Video” on page 27).

2 In the Bin, select the sequence or clips to re-

digitize.

3 Select Clip > Batch Capture.

4 The Batch Capture dialog will open.

14 Press the Record button again to stop.

15 Enter a clip name and comments. These can

be entered before recording is started, while recording, or by clicking on the clip’s name or comment ﬁeld in the Bin after recording has completed.

16 To view the captured clip, double-click it in

the Bin and it will open in a pop-up window. Click in the pop-up window so that it appears in the Client monitor then press the Space bar to play or pause, press the Home key to return to the start, or click above the pop-up window’s navigation controls to skip to a particular location.

Batch Capture dialog

Chapter 4: Media Station|V10 Software 29

5 Select or deselect the Ofﬂine Media Only op-

tion as desired. The result of the batch capture differs depending this setting, as well as any difference in resolution:

• If the Ofﬂine Media Only option is selected, only those ﬁles which are ofﬂine will be re-digitized.

• If the Ofﬂine Media Only option is not selected and the resolution settings in the capture tool are the same as the original ﬁles, the original ﬁles will be discarded and replaced by the new ﬁles.

• If the Ofﬂine Media Only option is not selected and the resolution is different from the original ﬁles, new media will be recorded at the new setting and the original ﬁles will be left intact. The new ﬁles will be substituted for the old ﬁles in the sequence.

6 Set the Handle Length. Handle length is the

amount of extra material recorded at the beginning and end of each clip. Setting an adequate handle length is especially useful if you need to trim an edit past the end of the deﬁned clip boundaries. If you add handles, new clips will be created in the Bin, even if using the same resolution as the original clips being re-digitized.

Digitizing from an EDL

Media Station|V10 includes Avid EDL Manager software, which lets you open and create an EDL, create a sequence from an EDL, and digitize the sequence.

To create a sequence from an EDL, and digitize the sequence:

1 While Media Station|V10 is still running,

launch EDL Manager from the Windows Start Menu (Start > All Programs > Avid > EDL Manager).

2 Open the EDL to be digitized:

• If the EDL resides on a standard disk, select File > Open in EDL Manager, and navigate to the desired EDL.

• If the EDL is saved on an RT-11 disk in a CMX, GVG, or high-density GVG (HDGVG) edit controller format, insert the RT-11 disk and select File > Read from RT11 Disk.

3 Click the left-pointing arrow in the EDL Man-

ger window. Media Station|V10 will become the active application.

7 Click OK.

Media Station|V10 will prompt you to insert the required tapes as needed and notify you when the capture is complete.

Pro Tools AVoption|V10 and Media Station|V10 Guide30

EDL Manager window

4 In Media Station|V10, select the Bin where

you would like to store the new sequence and click OK.

5 In Media Station|V10, select Tools > Capture

to open the Capture Tool. Verify the settings (input, resolution, and drive settings) for the clips to be digitized.

6 Select the sequence by clicking it in the Bin (it

will highlight).

7 Select Clip > Batch Capture.

Media Station|V10 will prompt you to insert the first tape for the batch capture.

For more information, select Help > EDL Manager Help. Also, see the Avid® EDL Manager User’s Guide available from the Avid Web site (www.avid.com).

Importing Non-OMFI Media Files

Media Station|V10 can import many different types of audio, video, and graphics files. On import, new OMFI media files are created and stored on the specified drives. You can select the desired video resolution in the Import dialog. Audio resolution is determined by the Audio Settings for the current project (see “Configuring Audio Settings” on page 27).

To import non-OMFI media ﬁles into Media Station|V10:

1 Select the Bin for the ﬁles to be imported.

2 Select File > Import. The Select ﬁles to Import

dialog opens. Locate and select the ﬁles to import (one or more ﬁles can be selected for import).

Select Files to Import dialog

3 Select the desired video resolution for selected

video ﬁles.

When importing QuickTime DV25, you can save time by importing it as DV25. Since both Media Station|V10 and Pro Tools with AVoption|V10 support mixed video resolutions in the Timeline, it doesn’t matter if the other video clips in your project are different formats (as long as they are the same frame rate).

4 Select the desired Audio Import Options.

Media Station|V10 supports audio files with mixed bit-depth and sample rates in the Timeline, but Pro Tools does not. If you are importing audio files which do not match the sample rate and bit-depth of the other audio files in your sequence, you can either convert them on import,

Chapter 4: Media Station|V10 Software 31

or wait to convert them on export to Pro Tools. It is recommended that you convert on import to Media Station|V10 to avoid making a third copy on export.

Preparing a Sequence for Export

To convert audio on import:

• Click the Options button in the Select Files to Import dialog.

• Click the Audio tab in the Import Settings–Current dialog.

• Select Convert source sample rate to project sample rate on import.

• Select Convert source sample bit-depth to project sample bit-depth on import.

• Select convert source sample rates with audio pull-up or pull-down to project sample rate on import. If you do not select this option, the imported audio will retain the original sample rate of the source ﬁle, but it will be marked in the Bin as a 48/44.1 khz ﬁle (depending on the Project sample rate) regardless of the actual sample rate of the ﬁle. If the sample rate of a ﬁle differs from the Project sample rate, the ﬁle will play back at a different speed and pitch.

•Click OK to close the Import Settings–Current dialog.

5 Select the drives to store the new media ﬁles.

Audio and video media must be stored on separate drives. Click the button to the left of the drive selector until there are separate selectors for audio and video.

6 Click Open.

Adding Captured Media Files to a Sequence

Before exporting captured audio and video from Media Station|V10 for import into Pro Tools, you must add them to a new or existing sequence. To do this you will need to:

•Set the default start time and timecode format for the sequence.

• Create a new sequence

– or –

• Open an existing sequence

• Add clips to the sequence

To set the default star t time and timecode format for a sequence:

1 In the Project window, click the Settings tab.

2 Double-click General from the Settings list.

The General Settings dialog opens.

3 In the Default Starting Timecode ﬁeld, enter

the default start time for your sequences, in hh:mm:ss:ff. Enter colons as separators for nondrop frame timecode. Enter semi-colons as separators for drop-frame timecode. All new sequences in the project will use this setting.

To create a new sequence:

1 Select the Bin to store the sequence.

The selected files are imported into the selected Bin.

Pro Tools AVoption|V10 and Media Station|V10 Guide32

2 Select Clip > New Sequence.

3 Select the sequence in the Bin and type a

name for the sequence.

To open an existing sequence:

1 If necessary, Select File > Open Bin to open the

Bin where the sequence is stored.

2 Double-click the desired sequence.

To add clips to a sequence:

1 Drag the desired sequence from the Bin and

drop onto the Record monitor. The sequence appears in the Timeline below the Source and Record Monitors. If the Timeline does not appear, select Tools > Timeline.

4 Verify that the Source Track Enable buttons

are properly aligned with the Timeline Track Enable buttons. To align the Source and Timeline tracks, click on Source track button and drag to the Timeline track button.

2 Drag the ﬁrst clip to the Source Monitor.

3 Select what to include in the sequence (this is

equivalent to creating a region in Pro Tools):

• Press the Spacebar to play or pause the clip.

• Press the Home key to go to the top.

• Press the End key to go to the end.

• Click and drag beneath the window to scrub.

• Press the Left and Right Arrow keys to nudge.

• Enable Caps Lock to hear audio while scrubbing.

• Click the Mark In button to set an in point.

Mark In button

• Click the Mark Out button to set an out point.

Mark Out button

If there is no in point or out point, the sequence will include everything after the cursor.

To include the whole clip in the sequence, press the Home key, which will place the cursor at the start of the clip.

Track Enable buttons

5 Click the Overwrite button (the red arrow), to

add the selected part of the clip to the sequence.

Overwrite button

6 To add another clip to the sequence, repeat

the preceding steps. Click in the Timeline and either press the End key to place the cursor at the end of the sequence, or place the cursor where you would like the new clip to start, then click the Overwrite or Splice-In button (the yellow arrow).

Splice-In button

Deleting Clips from a Sequence

To delete clips from a sequence:

1 In the Timeline, click the clip you want to de-

lete so that the cursor appears between its boundaries.

2 Click the Track Enable buttons on the left side

of the Timeline so that all audio and video tracks in the Timeline are selected (purple).

Chapter 4: Media Station|V10 Software 33

3 Above the Timeline, click the Mark In and

Mark Out buttons to set in and out points, or click the Mark Clip button to automatically highlight the clip.

To export a sequence using Avid Links:

1 Select the sequence to be exported in the Bin

(it will highlight and make the Bin the active window).

2 Select File > Avid Links > Digidesign Pro Tools

Mark Clip button

4 Click the Extract button (Scissors) to remove

the clip and slip the following clips to an earlier timecode location.

– or –

Click the Lift button to remove the clip and leave the following clips at their current timecode location.

5 Press Ctrl+Z or select Edit > Undo to undo

your last action.

Exporting a Sequence

From Media Station|V10, export the sequence as an AAF sequence for import into Pro Tools. There are two methods of exporting sequences for Pro Tools:

•Avid Links

• Export

Avid Links

Media Station|V10 sequences support multiple streams of video, real-time video effects, and mixed format audio. However, Pro Tools does not. Consequently, the sequence exported to Pro Tools must have only a single video stream, all video and audio effects must be rendered, and all audio files must be of the same sample rate and bit depth. The Avid Links method assures Pro Tools compatibility automatically.

3 Select the folder where you would like the ex-

ported sequence to be stored.

4 Enter a name for the sequence.

5 Click Save. Media Station|V10 automatically

exports the complete sequence as an AAF ﬁle, which can be imported into Pro Tools. All video effects are rendered on export and copies will be created for any audio ﬁles that require ﬁle format, sample rate, or bit depth conversion.

6 Once the export is complete, quit

Media Station|V10.

7 Launch Pro Tools and open the exported AAF

sequence.

8 When prompted, create a new Pro Tools ses-

sion with the same sample rate, bit-depth, and audio ﬁle format as the exported sequence.

9 The Import Session Data dialog will open.

Click OK and the AAF sequence will open as a new Pro Tools session.

For more information on opening and importing AAF sequences in Pro Tools, see the

DigiTranslator 2.0 Integrated Option Guide.

For more information on the Import Session dialog, see the

Pro Tools Reference Guide.

Manual Export

Manual export of an AAF sequence from Media Station|V10 is more involved than using Avid Links, but it provides more flexibility. You will need to render all video effects before exporting the sequence.

Pro Tools AVoption|V10 and Media Station|V10 Guide34

Render All Effects

Though it is not possible to add or edit video or audio effects in Media Station|V10, you may need to create an export from a sequence that was created on another Avid editing system. Before you can play or export the sequence, you must render all effects. Media Station|V10 can only render those effects which are currently installed. Media Station|V10 contains all of the standard Avid video effects. All third party effects must be rendered by the video editor before opening or importing into Media Station|V10.

For more information on rendering effects in Avid products, see the Avid Effects Guide.

To render all effects in Media Station|V10:

1 Drag the sequence to the Record Monitor. All

elements of the sequence can be viewed in the Timeline. Unrendered effects appear in the Timeline as small squares with blue or green dots. Rendered effects appear in the Timeline as a square with no colored dot.

2 If there are any audio effects to render, select

Tools > AudioSuite.

8 Select Clip > Render In/Out (if the command

appears grayed out, click in the Timeline again).

9 In the Render Effects dialog, select Effect

Source Drive. This will write the rendered effect to the same drive as the original ﬁles.

Render Effects dialog

This selection keeps audio files on audio drives and video files on video drives. If you select a particular drive, both the rendered audio and video files will be stored on the selected drive, which could cause playback errors.

10 Click OK.

11 To play the sequence with the rendered ef-

fects, press the Home key to move the cursor to the beginning of the sequence, then press the Spacebar to play.

3 Click the Track Enable buttons on the left side

of the Timeline so that all audio and video tracks in the Timeline are selected (purple).

4 Click anywhere in the Timeline, then press

the Home key. The cursor moves to the beginning of the Timeline.

5 Click the Mark In button to mark an in point

at the beginning of the sequence.

6 Press the End key to move the cursor to the

end of the sequence.

7 Click Mark Out button to set an out point at

the end of the sequence. The entire sequence should now be selected.

If you open a sequence that has a third-party video or audio effect that you cannot render, you can remove the effect by clicking on the effect in the Timeline so that the cursor is placed over the small effect box. Click the Track Enable button to the left of the Timeline so that the appropriate tracks are purple. Then click the Remove Effect button.

Remove Effect button

Chapter 4: Media Station|V10 Software 35

Exporting a Sequence

Once all effects have been rendered, export the sequence as an AAF sequence.

To manually export an AAF sequence:

1 Select the sequence in the Bin.

2 Select File > Export.

3 Type a name and select a location for the ex-

ported sequence.

4 Select Export to Pro Tools from the Export Set-

tings menu at the bottom of the Export As dialog.

5 Click the Options button to open the Export

to Pro Tools Settings dialog. Verify the settings:

• For Export As, select AAF.

• Select the Include All Video Tracks in Sequence option. All of the video tracks will be “ﬂattened” so that the exported sequence shows all video elements with only a single video stream.

• Deselect the Include All Audio Tracks in Sequence option if you do not want to export any audio.

6 Under the Video Details tab, select one of the

following from the Export Method pop-up menu:

Link to Current Media The Pro Tools session will link to the same video files as the current Media Station|V10 sequence. Use this setting if the video files are currently stored on a drive which is suitable for Pro Tools video playback.

Copy Media and Link to Copied Media New complete video files will be created on the designated drive.

Export Settings – Export To Pro Tools dialog, Video Details tab

Pro Tools AVoption|V10 and Media Station|V10 Guide36

Consolidate and Link to Consolidated Media Similar to Copy Media, but only the parts of the video clips which are actually used in the Timeline are copied. Use this setting to copy the video files to a drive which is suitable for Pro Tools video playback.

Do not use either Embed Media or Consolidate and Embed Media. Pro Tools does not support embedded video in either AAF or OMF sequences.

The following settings may also appear under the Video Details tab, depending on the selected export method:

Destination Folder Choose where to store copied video files.

Target Drive for Consolidate Choose the target drive for consolidated video. The new video files will be stored in the OMFI MediaFiles folder on that drive. You cannot save these export settings until you have highlighted a target drive. Striped drives appear in bold type.

Handle Length Extends the beginning and end of the consolidated file by the specified number of frames. This lets you trim edits later, though the sequence would need to be re-edited in Media Station|V10 (Pro Tools does not support trimming video regions, so you can save space and time by setting this to 0).

Render Video Effects Always select Render Video Effects. If you already manually rendered effects, selecting this option will not create new files. It is highly recommended that all effects be rendered manually before exporting the sequence (see “Render All Effects” on page 35).

If your Pro Tools system is running on a slower computer, you may be able to reduce some of the processing overhead by transcoding the video to 1:1. 1:1 video is uncompressed, and consequently it does not need to be decompressed before playing back. However, 1:1 video requires significant amounts of storage space.

Transcoding video during export may cause some rendered and unrendered video effects to not be included in the export. If transcoding video with effects is required, first transcode the files within the existing sequence, then render all of the effects, then perform the export, and finally, open the exported sequence to be sure that all required video effects appear correctly in the exported video.

Transcode Video To Use this only if you need to change the video resolution. Pro Tools supports most resolutions supported by Media Station|V10, and even supports mixed resolutions in the Pro Tools Timeline, so in most cases there is no need to spend extra time transcoding the video. However, if you have video of a resolution which is not currently supported by Pro Tools, use this setting to transcode it to a supported resolution.

Export Settings dialog, Audio Details tab

Chapter 4: Media Station|V10 Software 37

7 Under the Audio Details tab, select one of the

following from the Export Method pop-up menu:

Link to Current Media The Pro Tools session will link to the same audio files as the current Media Station|V10 sequence. Use this setting if the audio files are currently stored on a drive which is suitable for Pro Tools audio playback.

Copy Media and Link to Copied Media New complete audio files will be created on the designated drive.

Consolidate and Link to Consolidated Media Similar to Copy Media, but only the parts of the audio files which are actually used in the Timeline are copied. Use this setting to copy the audio files to a drive which is suitable for Pro Tools playback.

Do not use either Embed Media or Consolidate and Embed Media. Pro Tools does not support embedded audio in AAF sequences.

The following settings may also appear under the Audio Details tab, depending on the selected export method:

Render all audio effects Select the Render all audio effects option so that all audio effects are rendered before export. If you already manually rendered effects, selecting this option will not create new files. It is highly recommended that all effects be rendered manually before exporting the sequence (see “Render All Effects” on page 35).

Include Rendered Audio Effects Select the Include Rendered Audio Effects option, otherwise the exported sequence will include the original audio files without any AudioSuite effects from the original sequence, even if those effects were previously rendered.

Convert Audio Sample Rate/Bit Depth/File Format Select Project for any of these, and the cur-

rent Audio Project Setting will be used (see “Configuring Audio Settings” on page 27).

8 Click Save or Save As in the Export Settings di-

alog:

• Click Save to use the speciﬁed settings whenever Export to Pro Tools is selected from the Export Settings menu. These settings will also be used when selecting Avid Links > Digidesign Pro Tools.

• Click Save As to save these settings as a preset with a different name. These settings can then be recalled in the Export dialog. If you click Save As instead of Save, the Export to Pro Tools settings will not be changed.

9 Click Save in the Export As dialog. (The Export

Settings cannot be saved until you have highlighted a target drive for both audio and video.)

10 Once the export is complete, quit

Media Station|V10.

11 Launch Pro Tools and open the exported AAF

sequence.

12 When prompted, create a new Pro Tools ses-

sion with the same sample rate, bit-depth, and audio ﬁle format as the exported sequence.

13 The Import Session dialog will open. Click

OK and the AAF sequence will open as a new Pro Tools session.

For more information on opening and importing AAF sequences in Pro Tools, see the

DigiTranslator 2.0 Integrated Option Guide.

For more information on the Import Session dialog, see the

Pro Tools Reference Guide.

Pro Tools AVoption|V10 and Media Station|V10 Guide38

To export only part of a sequence:

1 Create a new sequence and drag it to the

Record monitor.

2 Drag your original sequence to the Source

monitor.

3 Mark the in and out points for the original se-

quence.

4 Click the Overwrite button.

5 Follow the preceding steps for exporting the

new sequence (see “Exporting a Sequence” on page 36).

Import from Pro Tools

Once you have finished working in Pro Tools, you may want to import mixed audio files or unmixed audio tracks into Media Station|V10. This will allow you to check that the AAF export is synchronized with the original picture, lay audio and video back to tape using Digital Cut, or export your sequence as a QuickTime, MPEG, or other format digital movie.

Media Station|V10 only recognizes OMFI media files which are stored in the OMFI MediaFiles folder. Once you have mixed audio in Pro Tools, either save or copy the files to the OMFI MediaFiles folder being used for Media Station|V10 audio.

To import a mix into Media Station|V10 and synchronize to the video sequence:

1 In Pro Tools, if you have mixed your audio to

new tracks, do the following:

• Select the mixed audio ﬁles in the Regions List and select Audio > Export Selected As Files.

Importing and Synchronizing a Mix

AAF and OMF sequences only maintain basic data about a session—what files are used at what time in what tracks, as well as some volume automation data. If you want to be sure that what you get in Media Station|V10 is what you heard in Pro Tools, you should either route and record your mix to new tracks in Pro Tools for export, or use Bounce to Disk.

For more information about exporting audio from Pro Tools as an AAF sequence or OMF media, see the DigiTranslator 2.0 Integrated Option Guide.

Export Selected as Files dialog

• In the Export Selected as Files dialog, enable the Publish as OMFI and Enforce Avid Compatibility options.

• Click the Choose button to select the OMFI MediaFiles folder you are using for Media Station|V10 audio as the Destination Directory.

• Clicking Export will open the Publishing Options window.

Chapter 4: Media Station|V10 Software 39

• In the Publishing Options dialog, enter the Pro Tools Comment and Clip Name, and select the Target Project Time Code Format. If you selected more than one region for export, the Clip Name ﬁeld will not be available and the names of the regions will be used for the exported ﬁles.

• Click OK to complete the export.

• Click OK to complete the export. Be sure to save the bounce in the OMFI MediaFiles folder that you are using for Media Station|V10 audio.

All audible audio in the selection will be exported to multi-mono OMF files.

3 Quit Pro Tools.

2 In Pro Tools, if you have prepared the session

for bouncing to disk, make the desired selection to bounce to disk, and do the following:

• Choose File > Bounce to Disk.

Bounce dialog

• Select the Publish as OMFI and Enforce Avid Compatibility options.

• Click Bounce to open the Publishing Options window.

• In the Publishing Options dialog, enter the Pro Tools Comment and Clip Name.

4 Launch Media Station|V10.

5 Select the Bin to import the ﬁles from

Pro Tools.

6 Choose Tools > Media Tool.

Media Tool Display window

7 Select Master Clip.

8 Select All Projects, unless you know the spe-

ciﬁc project you want to use.

9 Click OK.

10 From the Media Tool window, select the Ste-

reo (or multi-mono) Master Clip.

Publishing Options dialog

– or –

Pro Tools AVoption|V10 and Media Station|V10 Guide40

11 Drag the Master Clip to the Bin.

12 Close the Media Tool.

13 Drag the desired sequence to the Record

Monitor to see all elements in the Timeline.

14 Select Clip > New Audio Track to add audio

tracks to the sequence. This will leave the original audio tracks in place to compare synchronization. Add a new track for each channel of audio you want to add.

15 To the left of the Timeline, turn off the orig-

inal tracks by clicking the yellow speakers in the Track Enable button. The speaker icons for the new tracks will turn on (yellow).

Track Enable buttons

16 Disable the original audio tracks (gray) and

enable the new tracks (purple), by clicking the correct audio track buttons (A1–A24).

17 Drag the mix audio clip from the Bin to the

Source Monitor. New Track buttons for the source appear to the left of the Track buttons for the Timeline.

18 Click and drag from the ﬁrst Source Track

button to the track button for the ﬁrst new audio track. The Source Track button will move next to the Timeline track button indicating that the track is the destination for the track of the source material. Repeat this step for all source tracks.

19 Click in the Source Monitor and press the

Home key to move the cursor to the beginning of the clip, or place the cursor beneath the Source Monitor on the frame where you want the clip to start. Enable Caps Lock to hear audio as you scrub or nudge.

20 Click in the Timeline to place the cursor

where you would like the clip to start in the sequence, or press the Home key to move the cursor to the beginning of the sequence.

21 Click the Clear Both Marks button to remove

in and out points if present.

Clear Both Marks button

22 Click the Overwrite button to lay the audio

into the Timeline.

23 Select the Fast Menu from the lower left

hand corner of the Timeline and select Audio Data > Energy Plot to display audio waveforms in the Timeline. Verify that the new audio tracks appear synchronized with the originals.

24 Press the Home key to move the cursor to the

beginning of the sequence and press the Spacebar to play the sequence. The new audio should be synchronized with the video.

Importing and Synchronizing an AAF Audio Sequence

To deliver an un-mixed AAF sequence, use Media Station|V10 to verify that the exported sequence is synchronized with the original picture.

When exporting the AAF sequence from Pro Tools, consolidate audio files to the OMFI MediaFiles folder on the drive you are using to store audio for Media Station|V10.

To import an AAF sequence exported from Pro Tools into Media Station|V10:

1 Select the Bin where you would like to import

the sequence.

2 Select File > Import, and select AAF Files in the

Files of Type pull-down menu.

Chapter 4: Media Station|V10 Software 41

3 Navigate to the sequence to import.

4 Verify the correct drive is selected for audio.

5 Click Open. The new audio sequence appears

in the selected Bin, along with all related audio clips.

6 To check the contents of the imported audio

sequence and mark an In or Out Point, doubleclick the audio sequence in the Bin. The audio sequence will open in a pop-up monitor. Enable the Caps Lock key to be able to hear the audio. Place the cursor where you want the sequence to start or end and click the Mark In and Mark Out buttons to set In and Out Points.

7 Drag the original video sequence into the

Record Monitor, and select Clip > New Audio Track to add enough tracks for the imported audio sequence. If possible, leave the existing tracks in place to compare synchronization with the imported audio sequence. Click the Speaker icons in the track buttons to select which tracks will be monitored (yellow speakers) and click A1–A24 to deselect the original tracks.

8 Drag the imported audio sequence from the

Bin to the Source Monitor. Track buttons will appear for each audio track.

Recording Audio and Video to Tape

Pro Tools video playback is intended for monitoring purposes only, and is not suitable for professional layback or broadcast, regardless of the resolution or frame rate of the video. However, video output from Media Station|V10 is professional quality. Use Media Station|V10 when you need to output both audio and video to tape. To avoid dropped frames, it is always recommended that all effects be rendered before recording.

To record audio and video to tape from Media Station|V10:

1 Insert a video tape into your VTR.

2 Drag the desired sequence from the Bin to the

Record Monitor.

3 Mark In and Out points in the Timeline as de-

sired.

4 Select Output > Digital Cut. The Digital Cut

Tool opens.

9 Click and drag each source track button to the

Timeline track button where you want that track routed.

10 Click in the Source Monitor and type Home

so that the cursor is at the top of the sequence

11 Click in the Timeline to place the cursor

where you want the imported sequence to start, or press the Home key to place the cursor at the beginning of the sequence.

12 Click the Overwrite button to lay the im-

ported sequence into the Timeline

Pro Tools AVoption|V10 and Media Station|V10 Guide42

Digital Cut Tool

5 In the Track button on the far left, select the

top video track. Only the selected tracks and the video tracks below it will be recorded.

• Specify the Mark In Time to start recording at the address entered in the top window to the right of the transport controls.

6 Select the audio tracks. Only the selected

tracks will play.

7 Use the track buttons on the right to select

which tracks to record on the tape, audio and video.

8 Select the Entire Sequence option, unless you

only want to record from the In Point to the Out Point.

9 Select the Video Effect Safe Mode option. This

will warn you if any effects remain un-rendered.

10 If desired, select Digital Cut Native (DV25

only) to output a DV25-only sequence directly to a DV25 device without any loss due to compression and decompression.

11 Select Stop on Dropped Frames to stop the

tape if the audio and video did not record correctly.

12 Select the Add Black At Tail option.

13 Conﬁgure Deck Control as follows:

• Use Local mode to manually initiate record. This is useful if you are recording to a tape which does not have timecode.

•Use Remote mode to record to a tape that already has timecode. Media Station|V10 will start the deck and drop into record at the speciﬁed timecode.

• Specify the Sequence Time to start recording. For example, if the sequence starts at 1:00:00 in the Timeline, Media Station|V10 will start recording when the tape reaches 1:00:00.

• Specify the Record Deck Time to start recording wherever the deck is currently parked.

14 Click the yellow Preview button to check

that all of the desired tracks are playing and that the insert points on the tape are correct.

15 To record using Local mode, press play on

the deck. When ready, click the record button in the Digital Cut window.

– or –

To record using Remote mode, press Record in the Digital Cut window. Media Station|V10 will queue the tape, play, then drop in at the appropriate location.

Be sure to record at least a few seconds of black to the tape before performing a digital cut. This will guarantee that the video tape is correctly formatted when your digital cut starts

Exporting a Digital Movie

To export a sequence as a QuickTime, QuickTime Reference, or other type of digital movie:

1 Select the desired sequence in the Bin and

drag it to the Record Monitor.

2 Render all effects in the Timeline.

3 Select the Track Enable buttons for the video

and audio tracks to export.

4 Select File > Export.

5 Type a name and select the destination for the

export.

6 Select Fast-Export QuickTime from the Export

Settings pull-down menu.

7 Click Options and conﬁgure the settings as de-

sired.

Chapter 4: Media Station|V10 Software 43

8 Click Save or Save As.

9 In the Export As dialog, click Save.

Deleting Clips, Sequences and Media

To delete a clip, sequence, or media ﬁle from Media Station|V10:

1 Selecting the item to delete in the Bin.

2 Press the Delete key.

Use the Select Unreferenced Clips command in the menu at the bottom of the Bin to select all unreferenced clips in the Bin.

Pro Tools AVoption|V10 and Media Station|V10 Guide44

chapter 5

Pro Tools Movie Track

Pro Tools with AVoption|V10 can import ﬁles created in a compatible Avid video application (such as Media Station|V10) into the Pro Tools Movie track.

Media Station|V10 software and Pro Tools cannot run simultaneously. Quit Pro Tools before launching Media Station|V10, and quit Media Station|V10 before launching Pro Tools.

Avid Movie Track in Pro Tools

The Movie track holds the video clips you add into Pro Tools. A Pro Tools session can only contain one Movie track.

To create a new Movie track:

■ Choose Movie > New Avid Movie Track.

The new, empty Movie track appears in the Edit window.

Track Name

View Options

Movie track controls

Track Height

To name the Movie track:

1 Double-click the Track Name button to open

the Name and Comments dialog.

2 Type a name (and any optional comments),

then click OK.

To delete the Movie track:

1 Select the track by clicking the Track Name

button in the Edit window.

2 Choose File > Delete Selected Tracks.

To clear all video from the Movie track:

■ Choose Movie > Clear Movie Track.

You cannot change names of clips after they have been added to the Movie track. When added, clips retain the name they were given by the original Avid application.

Movie Track Options

The Movie track can be viewed in frames or in blocks. Frames view lets you see an overview of the actual video content in a session. Blocks view lets you see where clips begin and end, and the names of clips.

Chapter 5: Pro Tools Movie Track 45

To set the view for the Movie track:

■ On the Movie track, select Frames or Blocks

from the View Options pop-up menu.

When switching from Blocks mode to Frames mode during playback, the movie track will not update to displaying frames until playback is stopped.

In Blocks mode, you can place the cursor on the Movie track, then press Tab to move to the next video edit in the track.

With the Selector Tool, you can also doubleclick any segment to create a selection. This is helpful if you want to add an audio effect for the exact duration of a scene.

Frames

In Frames view, video data is displayed as pictures in the Movie track. These pictures are computed based on the video image, and scale according to your track zoom and height settings. They do not provide a frame-accurate reference, but allow you to easily find a scene or sequence in the Movie track.

Movie track in Frames mode

Frames do not display properly if you change zoom settings during playback. Black frames are drawn until playback is stopped. You should stop playback before changing zoom settings if you want to view frames.

If video pull-up or pull-down is enabled, frames do not change position.

Blocks

Blocks view displays the Movie track as blocks of compositional data. Blocks are outlined wherever clip boundaries exist.

Movie track in Blocks mode

Exporting Files from Avid Programs

Projects created on an Avid video authoring system, such as Media Station|V10, can be exported as AAF or OMFI 2.0 sequences and imported into Pro Tools with AVoption|V10. This exchange of data between applications is significantly faster and easier than other methods, such as laying off to tape and re-digitizing.

When an AAF or OMF sequence exported from an Avid workstation is imported into Pro Tools, the video track displays each of the video files as regions in the Edit window. Generally, these regions reflect the regions on the Avid timeline, unless you have an effect which spans more than one video clip.

All video effects, including fades, titles and multi-stream effects, must be rendered before they can be exported in an AAF sequence for import into Pro Tools. Rendering means that a media file called a “precompute” is created. This precompute is what is exported and what appears in the Pro Tools Edit window. For example, if there are three video clips in the Avid timeline and a title effect is laid across all three, the title would have to be rendered before export, creating a single precompute file. Then, instead of seeing the three original video clips in the Pro Tools Edit window, only the one precompute clip will be displayed.

Pro Tools AVoption|V10 and Media Station|V10 Guide46

AVoption|V10 does not require the entire sequence to be rendered into one continuous clip (often referred to as a “video mixdown”). AVoption|V10 can import and play sequences containing multiple single-stream clips.

Avid Multi-Cam Resolution Files

Pro Tools with AVoption|V10 supports all Avid Multi-Cam Resolution files for import and playback. Pro Tools will play the clip of an Avid Multi-Cam Resolution file that was being used as the active camera angle when the file was exported to AAF or OMF.

Adding Video Clips

Using the Add Avid Movie command, you can add several Avid video clips to a single Movie track in Pro Tools.

To add OMFI video to the Avid Movie track:

1 If the Pro Tools session does not already have

an Avid Movie Track, add one by choosing Movie > New Avid Movie Track.

2 Choose Movie > Add Movie, select the desired

Avid video ﬁle, and click OK.

3 In the Spot dialog that appears, specify the

SMPTE frame number for the start of the video clip.

4 Click OK when you are done.

Using the Import Movie command to import OMF video is not recommended because it clears the Movie track of its contents, replacing it with the imported video clip.

Undo/Redo for Video Editing Commands

If there are already clips on the Movie track and you add over them, the overwritten material will be removed from the Movie track. You can undo and restore the original clips. For more information, refer to “Undo/Redo for Video Editing Commands” on page 47.

Individual OMFI video and audio files can be added to your Pro Tools session just like other files. To open or export an OMF or AAF sequence, you must have the DigiTranslator 2.0 option installed. DigiTranslator 2.0 is included with AVoption|V10.

For more information, see the DigiTransla-

tor 2.0 Integrated Option Guide

You can undo or redo the single most recent video editing command, including Add Movie, Clear Selection, Copy Clip, Separate Video, and Move Video Clip. If there are already video clips on the Movie track, and you edit over them, the overwritten material is removed from the Movie track. You can undo the video editing command and restore the original clips.

Undo/Redo works only for the single most recent video editing command.

To undo the most recent video editing command:

■ Choose Movie > Undo.

– or –

To redo the command, choose Movie > Redo.

If you added or moved a clip over a pre-existing clip and consequently truncated it, Undo will also restore the trimmed clip to its original length.

Chapter 5: Pro Tools Movie Track 47

Movie Online

Viewing Video Playback

When the movie is online, the Movie track plays along with the audio session. The movie’s frame location is updated every time you place your cursor in a new location, and the Movie track scrubs along with the audio tracks. The movie is online by default.

Online Edit and Selection Behavior

When Pro Tools is in Grid mode or set for Loop Playback, and the movie is online, Pro Tools will always place your cursor or Edit selection on legal frame boundaries. If you make a selection that is outside of frame boundaries, or you place your cursor outside a frame boundary, Pro Tools will move your cursor to the nearest frame boundary and play.

Movie Ofﬂine

If you temporarily do not want to view the movie or have the movie frame location updated, you can take the movie offline.

This is useful if you are working with audio and do not need to see the video.

To take the movie ofﬂine:

■ Deselect Movie > Movie Online.

AVoption|V10 includes video outputs to connect an NTSC or PAL video reference monitor. You can connect a client monitor that has Component, Composite, S-Video, SDI, or DV video inputs. Full-screen video is displayed on the video reference monitor. For more information on connecting a video reference monitor, see “Connecting an External Video Monitor” on page 15.

Moving the Movie Track or Video Clips

In Pro Tools with AVoption|V10, you can spot the entire Movie track, or just a selected video clip, to a new SMPTE frame location. When you move the Movie track, the whole track or sequence is moved to the new frame location you specify. When you move a single video clip, it is moved to the new specified location within the Movie track.

If there are already clips on the Movie track, and you edit over them, the overwritten material will be removed from the Movie track.

You can undo Move Clip and restore the original clips.

“Undo/Redo for Video Editing Commands” on page 47.

For more information, see

To put the movie back online:

■ Select Movie > Movie Online.

The keyboard shortcut for Movie Online and Movie Offline is Shift+Ctrl+J.

Pro Tools AVoption|V10 and Media Station|V10 Guide48

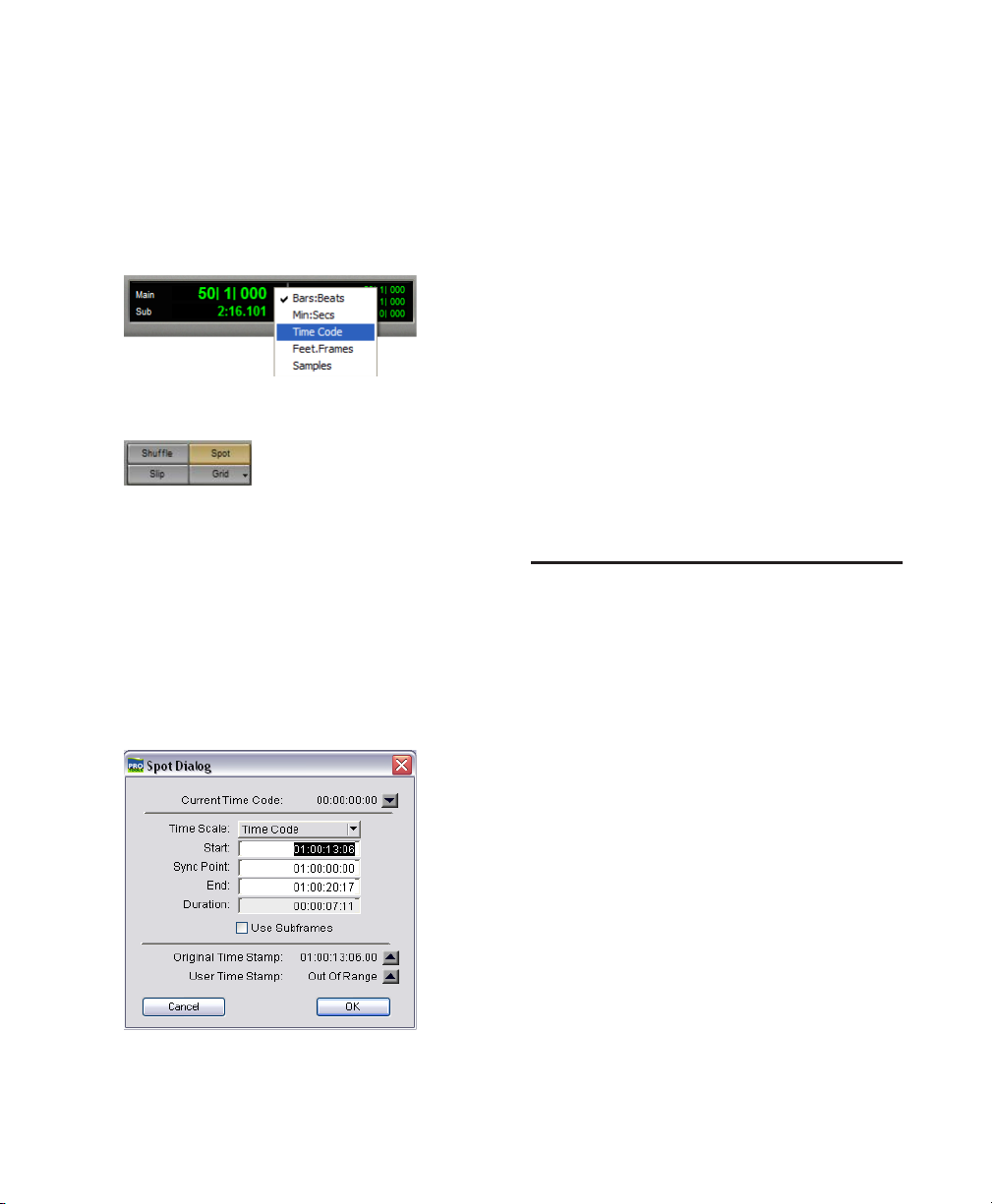

To spot the entire Movie track to a new frame location:

1 Select Display > Time Code.

– or –

Select Time Code from the Main Location Indicator pop-up menu.

2 Enable Spot mode by clicking the Spot button.

To spot a single video clip to a new frame location:

1 Select Display > Time Code.

– or –

Select Time Code from the Main Location Indicator pop-up menu.

2 Enable Spot mode by clicking the Spot button.

3 Select the clip you want to move on the Movie

track with the Grabber tool.

4 In the Spot dialog, specify a new SMPTE frame

number for the start of the clip. In this dialog, you can press Plus (+) or Minus (–) on the numeric keypad, enter a number, and press the Enter key to add or subtract that number of frames from the currently selected time ﬁeld.

3 Shift-click the Movie track with the Grabber

tool.

4 In the Spot dialog that appears, specify a new

SMPTE frame number for the start of the Movie track. In this dialog, you can press Plus (+) or Minus (–) on the numeric keypad, enter a number, and press the Enter key to add or subtract that number of frames from the currently selected time ﬁeld.

Spot dialog

5 Click OK when you are done.

Copying Video Clips

You can copy video clips to a new SMPTE frame location within the Movie track.

To copy a video clip to a new frame location:

1 Select Display > Time Code.

– or –

Select Time Code from the Main Location Indicator pop-up menu.

2 Enable Spot mode by clicking the Spot button.

3 Alt-click the clip on the Movie track with the

Grabber tool.

4 In the Spot dialog, specify a new SMPTE frame

Chapter 5: Pro Tools Movie Track 49

5 Click OK when you are done.

Clearing Selected Video Clips

You can clear material from the Movie track.

To clear a selection:

1 Using the Selector, click and drag in the Movie

track to select the material you want to clear. You can also double-click to select an entire existing video clip.

2 Choose Movie > Clear Selection.

Locking the Movie Track

If you want to permanently associate your video clips with a certain location on your Movie track, you can lock it in place so that it cannot be moved accidentally.

To lock or unlock the Movie track:

1 Using the Grabber, select the Movie track.

2 Choose Edit > Lock Region/Unlock Region.

You can also lock the Movie track by tripleclicking in the Movie track (to select all clips), and then pressing Ctrl+L.

When the Movie track is locked, a small lock icon appears in the track, indicating that the Movie track has been locked and cannot be moved. If you attempt to move a locked region, you will receive an error message.

Once a Movie track is locked, you cannot Add video clips to it without first unlocking it.

QuickTime Movie Sync Offset

There is a certain amount of latency inherent in the decompression process for video. Consequently, the video output needs to be advanced by a certain number of frames to give the video transcoder time to decompress each frame before it needs to be displayed. This offset is determined in the QuickTime Movie Sync Offset dialog. This only affects QuickTime Movie tracks. How much offset is required appears to depend on the decompression hardware, not the CPU, session load or source material.

Pro Tools with AVoption|V10 automatically compensates for the latency in playing back Avid video with the AVoption|V10.

Scrub Movie Window

Due to the latency inherent in the decompression process for video, it is not possible to accurately scrub the Movie track with an external reference monitor. When playing back, Pro Tools automatically compensates for this latency because play speed is predictable and consistent. However, the play speed when scrubbing is neither predictable nor consistent. The result is that as you scrub, the video display is not in sync with the cursor while scrubbing. When you stop on a particular frame, the display jumps to the cursor location.

Pro Tools with AVoption|V10 provides a Scrub window, which displays the video at quarterresolution, but accurately scrubs the video.When the Scrub window is open, video output alternates automatically between the Scrub window and the video reference monitor, depending on whether or not you are scrubbing.

Pro Tools AVoption|V10 and Media Station|V10 Guide50

When the Scrub Window is open, the video reference monitor is black. The Scrub window only opens when Pro Tools is in Scrub mode. When not in Scrub mode, the Scrub window disappears and video is routed to the video reference monitor.

To open the Scrub window:

■ Choose Movie > Scrub window.

The Scrub window is only available in Pro Tools with AVoption|V10 when there is Avid video in the Movie track. There is no Scrub window for QuickTime video.

To place and resize the Scrub window:

1 Stop playback.

2 Choose Movie > Set Scrub Window Size/Loca-

tion. The Scrub Movie window opens.

3 Place and resize the Scrub Movie window as

desired.

4 Close the Scrub Movie window.

Window placement and size are saved for the next time the window is opened. The window closes automatically if you start playback.

Chapter 5: Pro Tools Movie Track 51

Pro Tools AVoption|V10 and Media Station|V10 Guide52

appendix a

24fps Workﬂows

Audio Layback to Video

Although you cannot output 24P video to a video recorder with Pro Tools, you can “Punch Down” by adding audio that has been posted to a 24P video clip in Pro Tools to videotape that was created on another video system.

Pro Tools with AVoption|V10 does not support 24 or 23.976 fps video output. Though 24 and 23.976 fps video clips are supported, the actual output of Pro Tools is limited to NTSC (29.97 fps) and PAL (25 fps) standards. On playback, the 24 fps clips are converted in software to these standards. The conversion can produce visible artifacts. Therefore, Pro Tools video playback is intended for monitoring purposes only, and is not suitable for professional layback or broadcast, regardless of the resolution or frame rate of the video clip. Output from Media Station|V10 is professional quality.

Playing in Sync with 24 fps Video Tapes

To playback synchronized to a video transport playing at 24 fps:

1 In Pro Tools, open the Session Setup window

(Windows > Session Setup)

3 Slave Pro Tools to the video transport.

– or –

If the MachineControl option is installed, select the appropriate profile to control the video transport.

Playing in Sync with 29.97 fps (NTSC) Video Tapes

To play in sync with a 29.97 fps video created from a 24 fps source:

1 Slave Pro Tools to the VTR.

For more information on slaving Pro Tools to the VTR, see the Synchronization chapters of the

2 Choose Windows > Show Session Setup.

3 From the Frame Rate pop-up menu, select

29.97 FPS.

4 In Pro Tools, from the Audio Rate Pull

Up/Down pop-up menu, select 0.1% Down.

Audio pull-down is required when you are posting to a 29.97 fps video clip made from a 24 fps source. This is because the 24 fps source is also “pulled down” by the telecine process which produces the 29.97 fps tape.

Pro Tools Reference Guide.

2 Set the Frame Rate to 24 fps.

Appendix A: 24fps Workﬂows 53

24P Clips and Pull Down When the SYNC I/O is set to pull down, the playback of the 24P clip is pulled down along with the audio. This way, when laying back audio to an NTSC video tape running at 29.97 fps, the Pro Tools video display and the output of the video deck will remain in sync.

Playing in Sync with 25 fps (PAL) Video Tapes

To lay back a 24P session directly to a 25 fps (PAL) tape:

1 Select the Video Output from the Movie

track’s Track Options pop-up menu.

2 Choose Windows > Show Session Setup.

3 From the Frame Rate pop-up menu, select

25 FPS.

4 From the Audio Rate Pull Up/Down pop-up

menu, select 4.0% Up.

Pro Tools AVoption|V10 and Media Station|V10 Guide54

appendix b

PCI Slot Conﬁgurations for AVoption|V10

This appendix documents supported PCI slot configurations for Pro Tools|HD systems with AVoption|V10, with and without an expansion chassis.

Slot orders are labeled from top (starting with the monitor card) to bottom.

HP xw8000

Slot Card

CPU Slot 1 (AGP) Monitor card

CPU Slot 2 Do not use

CPU Slot 3 Do not use

CPU Slot 4 (133MHz 64-bit) HD Core card

CPU Slot 5 (100MHz 64-bit) HD Process/Accel card (if any)

CPU Slot 6 (100MHz 64-bit) HD Process/Accel card (if any)

or ATTO 3300 FibreChannel HBA card (if any)

Appendix B: PCI Slot Conﬁgurations for AVoption|V10 55

HP xw8000 with Magma 64-bit 7-Slot Expansion Chassis

Slot Card

CPU Slot 1 (AGP) Monitor card

CPU Slot 2 Do not use

CPU Slot 3 Do not use

CPU Slot 4 (133MHz 64-bit) Magma 64-bit HBA

CPU Slot 5 (100MHz 64-bit) Do not use

CPU Slot 6 (100MHz 64-bit) ATTO 3300FC or unused

Backplane Chassis Slot Chassis Controller card

Chassis Slot 1 HD Core card

Chassis Slots 2–7 HD Process/Accel cards (6 maximum)

Pro Tools AVoption|V10 and Media Station|V10 Guide56

Dell Precision 650

Slot Card

CPU Slot 1 (AGP) Monitor card

CPU Slot 2 (32-bit) Do not use

CPU Slot 3 (32-bit) Do not use

CPU Slot 4 (64-bit) HD Process/Accel card (if any)

CPU Slot 5 (64-bit) HD Core card

CPU Slot 6 (64-bit) UL3D SCSI HBA

Dell Precision 650 with Magma 64-bit 7-Slot Expansion Chassis

Slot Card

CPU Slot 1 (AGP) Monitor card

CPU Slot 2 (32-bit) Do not use

CPU Slot 3 (32-bit) Do not use

CPU Slot 4 (64-bit) Do not use

CPU Slot 5 (64-bit) Magma 64-bit HBA

CPU Slot 6 (64-bit) UL3D SCSI HBA

Backplane Chassis Slot Chassis Controller card

Chassis Slot 1 HD Core card

Chassis Slots 2–7 HD Process/Accel cards (6 maximum)

Appendix B: PCI Slot Conﬁgurations for AVoption|V10 57

Pro Tools AVoption|V10 and Media Station|V10 Guide58

appendix c

Video Buffer Underrun Errors

This appendix documents known video buffer underrun errors in Pro Tools with AVoption|V10.

The Video Engine (“DIO Video Engine”) can encounter three different types of buffer underrun errors.

“Video playback stopped due to a disk ﬁfo buffer underrun.”

Indicates a disk buffer underrun in which data could not be read from the hard drive fast enough to play video.

“Video playback stopped due to a software decompression buffer underrun.”

Indicates a software decompression buffer underrun in which there weren’t enough CPU cycles to decompress video fast enough to maintain play back.

“Video playback stopped due to a hardware or driver buffer underrun.”

Indicates a DIO buffer underrun in which the hardware or low level software could not keep up with the system load and needed to duplicate frames at the video output.

Appendix C: Video Buffer Underrun Errors 59

Pro Tools AVoption|V10 and Media Station|V10 Guide60

index

AAF sequence

exporting from Media Station|V10 36

Add Movie 47 analog video outputs 9 application key (USB dongle) 17 audio connections 14 audio interface

connecting to AVoption|V10 14

Australia EMC regulations iii authorization

DigiTranslator 2.0 17

Avid Links 34 Avid Media Station|V10

capabilities with AVoption|V10 2

Avid Multi-Cam Resolution files 47 Avid terms (glossary) 24 Avid Unity™ MediaNetwork 2

AVoption|V10 15

back panel 7 capabilities 1 capabilities with Pro Tools 1 components 1 connecting a DV device 13 connecting a SYNC I/O 14 connecting a VTR 15 connecting analog video 13 connecting audio (optical) 14 connecting black burst 14 connecting digital video 13 connecting house video reference 14 Declaration of Conformity iv front panel 6 hardware capabilities 5 installing a new system 12 PAL monitor 15 PCI slot configurations 55 post-production workflows 23 rear panel 7 reference video 15 starting up 17 striped drive requirements 21 system requirements 3 updating firmware 18 video connections 9

AVoptionDNA

installing software components 17

Bins 24 black burst 9, 14

connecting to AVoption|V10 14

Blocks view 46 buffer underrun errors 59

Index 61

centralized video

switching and routing for AVoption|V10 15

Client Monitor 24 Clip 24 compatibility 3 connecting

AVoption|V10

a VTR 15 house sync 14

Digidesign-qualified storage 3 Digital Cut 42 DigiTranslator 2.0

authorizing 17 installing 16

DigiTranslator 2.0 Integrated Option 2 disk allocation 21 dongle 17

Export to Pro Tools 36 exporting

overview 46

formatting hard drives 21 frame boundaries, adjusting to 48 Frames View 46 Frames view for Movie track 46

hard drives

formatting audio drives 21 formatting NTFS 21 formatting video drives 21 striped drives 21 using more than two 21 using two 21

house reference synchronization 9 house sync

connecting to AVoption|V10 14

house video reference 14

illegal frame boundaries 48 iLok 18 iLok USB Smart Key 17 Importing files

preparing 46

installation 11

AVoption|V10 hardware 12 AVoptionDNA software components 17 DigiTranslator 2.0 16 Media Station|V10 software 15 Pro Tools TDM software 16 Pro Tools 12

installing

AVoption|V10

new system 12 SCSI HBA 19

Layback 42 License Card 17 local storage 19 Loop Sync 14

Pro Tools AVoption|V10 and Media Station|V10 Guide62

MachineControl Option 2 media files 24 Media Station|V10

adding clips to a sequence 33 application key (USB dongle) 17 audio and video layback 42 audio settings 27 Avid Links 34 Bins 24 capturing audio and video from tape 27 Clip 24 configuring audio settings for a project 27 creating a new sequence 32 creating a sequence from an EDL 30 deleting a clip, sequence, or media file 44 deleting clips from a sequence 33 Digital Cut Tool 42 editing Project Settings 26 effects

rending 35 export an AAF sequence 36 Export to Pro Tools 36

Consolidate and Link to Consolidated Me-

dia (audio) 38

Consolidate and Link to Consolidated Me-

dia (video) 36 Convert Audio 38 Copy Media and Link to Copied Media (au-

dio) 38 Copy Media and Link to Copied Media (vid-

eo) 36 Handle Length (video) 37 Include Rendered Audio Effects 38 Link to Current Media (audio) 38 Link to Current Media (video) 36 Render all audio effects 38 Render Video Effects 37 Transcode Video To 37 Video Details tab 36

exporting a sequence 34

Avid Links 34 manual 34

exporting a sequence as a digital movie 43 exporting part of a sequence 39 importing an AAF sequence from Pro Tools 41 importing from Pro Tools 39 importing non-OMFI media files 31 installing software 15

opening a sequence 33 Projects 24 Record Monitor 24 recording audio and video to tape 42 re-digitizing a sequence 29 render effects 35 rending all effects 35 Sequence 24 sequence

adding clips 33 creating 32 deleting 44 deleting clips 33 export as AAF 36 exporting 34 exporting as a digital movie 43 exporting manually 34 exporting partial 39 exporting using Avid Links 34 opening 33 setting the default start time and time-

code format 32

setting the default start time and timecode

format 32 Source Monitor 24 starting a new project 26 SubClip 24 Timeline 24 viewing Bins in a Project 26 viewing Project Settings 26 workflows 23

monitors

connecting NTSC 15 connecting PAL 15

Movie Offline, working with 48 Movie Online, working with 48 Movie track 45

Frames view 46 viewing as blocks 46

New Zealand EMC regulations iii NTSC 15, 18

switching between NTSC and PAL 18

NTSC monitor 15

Index 63

Offline Movie 48 OMFI MediaFiles folder 24 Online Movie 48

QuickTime

exporting from Media Station|V10 43

QuickTime Movie Sync Offset 50

PACE Anti-Piracy 17 PAL 15, 18

switching between NTSC and PAL 18

PCI slot configurations 55 post-production workflows with AVoption|V10 23 Preferences 16 Preparing to Import Files 46 Pro Tools

Add Movie 47 clearing a video selection 50 clearing the Movie track 45 connecting a SYNC I/O 14 copying video to a new frame location 49 creating a Movie track 45 deleting the Movie track 45 installing 12 installing software 16 locking the Movie track 50 Loop Sync 14 Movie track 45

Blocks view 46 clearing a selection 50 clearing track 45 creating 45 deleting 45 Frames View 46 locking 50 moving 48 naming 45 setting the view 46 spotting to a new frame location 49

spotting video to a new frame location 49 moving the Movie track 48 naming the Movie track 45 QuickTime Movie Sync Offset 50 Scrub window 50 spotting the entire Movie track to a new frame

location 49 spotting video to a new frame location 49 video editing undo or redo 47 video playback 48 video scrubbing 50

Record Monitor 24 registration 4 Round Robin 21

SCSI HBA

installing for AVoption|V10 19

Sequence 24 Source Monitor 24 storage

using more than two hard drives 21 using two hard drives 21

storage requirements 19 striped drives 21 SubClip 24 switching and routing

centralized video for AVoption|V10 15

SYNC I/O 9, 14

Loop Sync 14 required for AVoption|V10 9 Video Reference In 14

synchronization 9

connecting black burst or house video

reference 14

Taiwan EMC regulations iii

Undo/Redo for Video Editing Commands 47

Pro Tools AVoption|V10 and Media Station|V10 Guide64

video

centralized video switching and routing 15 switching between NTSC and PAL 18

video clips

clearing selection 50 copying 49

video connections 13 video playback

from Pro Tools with AVoption|V10 48

Video Reference In 14 video resolutions

mixed resolutions 6 supported with Pro Tools 5

viewing blocks in the Movie track 46 VTR 15

connecting to AVoption|V10 15

Index 65

Pinnacle Systems Pro Tools AVoption V10 - 6.3 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

contents

Introduction to Pro Tools AVoption|V10

AVoption|V10 Components

Pro Tools AVoption|V10 Capabilities

Avid Media Station|V10 Capabilities

DigiTranslator 2.0 Integrated Option

MachineControl

Avid Unity MediaNetwork

Compatibility

System Requirements

Digidesign Registration

About the Pro Tools Guides

Conventions Used in This Guide

AVoption|V10 Hardware Overview

AVoption|V10 Hardware Capabilities

Supported Video Resolutions

Support for Mixed Video Resolutions

AVoption|V10 Interface

AVoption|V10 Front Panel

AVoption|V10 Back Panel

Video Connections

Synchronization Hardware

Synchronization Peripheral

Synchronization Source

Installing AVoption|V10

Uninstalling Pro Tools Software

Installing Pro Tools Hardware

Installing AVoption|V10 Hardware

Connecting Analog Video Input and Output

Connecting Digital Video Input and Output

Connecting a DV Device

Connecting Optical for Audio

Connecting a SYNC I/O

Connecting House Video Reference or Black Burst

Connecting a VTR

Installing Media Station|V10 Software

Connecting an External Video Monitor

Using Centralized Video Switching and Routing

Installing Pro Tools Software

Installing AVoptionDNA Software Components

Authorizing Media Station|V10

Starting Up Your System

Authorizing DigiTranslator 2.0

Updating Firmware on Application Launch

Using NTSC and PAL

Setting Up Local Storage

Installing the SCSI Host Bus Adapter (HBA)

Updating the SCSI BIOS

Installing the Windows Device Driver

Formatting Hard Drives

Using Two Hard Drives

Using More Than Two Hard Drives

Striped Drive Requirements

Formatting and Striping Media Drives

Media Station|V10 Software

Avid Nomenclature

Starting a New Project with Media Station|V10

Capturing Audio and Video

Manual Capture of Audio and Video

Re-digitizing an Existing Sequence

Digitizing from an EDL

Importing Non-OMFI Media Files

Preparing a Sequence for Export

Adding Captured Media Files to a Sequence

Deleting Clips from a Sequence

Exporting a Sequence

Avid Links

Manual Export

Render All Effects

Exporting a Sequence

Import from Pro Tools

Importing and Synchronizing a Mix

Importing and Synchronizing an AAF Audio Sequence

Recording Audio and Video to Tape

Exporting a Digital Movie

Deleting Clips, Sequences and Media
