Pinnacle Systems NEXIS - 6.0 Administrator’s Guide

Download

Avid® NEXIS

Administration Guide

Version 6.0

™

Legal Notices

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

This product is subject to the terms and conditions of a software license agreement provided with the software. The product may only be used in accordance with the license agreement.

This product may be protected by one or more U.S. and non-U.S patents. Details are available at www.avid.com/patents.

Part of the software embedded in this product is gSOAP software.

THE SOFTWARE IN THIS PRODUCT WAS IN PART PROVIDED BY GENIVIA INC AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This document is protected under copyright law. An authorized licensee of Avid NEXIS may reproduce this publication for the licensee’s own use in learning how to use the software. This document may not be reproduced or distributed, in whole or in part, for commercial purposes, such as selling copies of this document or providing support or educational services to others. This document is supplied as a guide for Avid NEXIS. Reasonable care has been taken in preparing the information it contains. However, this document may contain omissions, technical inaccuracies, or typographical errors. Avid Technology, Inc. does not accept responsibility of any kind for customers’ losses due to the use of this document. Product specifications are subject to change without notice.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:

This software is based in part on the work of the Independent JPEG Group.

This Software may contain components licensed under the following conditions:

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. This software is provided " as is" without express or implied warranty.

Permission to use, copy, modify, distribute, and sell this software for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of Daniel Dardailler not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Daniel Dardailler makes no representations about the suitability of this software for any purpose. It is provided " as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such software.

THIS SOFTWARE IS BEING PROVIDED " AS IS" , WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE AUTHOR NOR AT&T MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

This product includes software developed by the University of California, Berkeley and its contributors.

The following disclaimer is required by Paradigm Matrix:

Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:

“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code equivalent of “Install-It,” including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable for any damages resulting from reseller’s failure to perform reseller’s obligation; or any damages arising from use or operation of reseller’s products or the software; or any other damages, including but not limited to, incidental, direct, indirect, special or consequential Damages including lost profits, or damages resulting from loss of use or inability to use reseller’s products or the software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates has been advised, knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:

“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with respect to its merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by Videomedia, Inc. and V-LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this software will allow “frame accurate” editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source Code:

The following disclaimer is required by Interplay Entertainment Corp.:

The “Interplay” name is used with the permission of Interplay Entertainment Corp., which bears no responsibility for Avid products.

This product includes portions of the Alloy Look & Feel software from Incors GmbH.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

This product may include the JCifs library, for which the following notice applies:

Avid Interplay contains components licensed from LavanTech. These components may only be used as part of and in connection with Avid Interplay.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or “commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant Station, AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid DNxHD, Avid DS Assist Station, Avid Ignite, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid Remote Response, Avid Unity, Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Beat Detective, Beauty Without The Bandwidth, Beyond Reality, BF Essentials, Bomb Factory, Bruno, C|24, CaptureManager, ChromaCurve, ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer, Color Conductor, Command|24, Command|8, Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, D-Command, D-Control, Deko, DekoCast, D-Fi, D-fx, Digi 002, Digi 003, DigiBase, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise Reduction, Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital Choreography, Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, Do More, DPP-1, D-Show, DSP Manager, DS-StorageCalc, DV Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander, ExpertRender, Fader Pack, Fairchild, FastBreak, Fast Track, Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko, HD Core, HD Process, HDpack, Home-to-Hollywood, HYBRID, HyperSPACE, HyperSPACE HDCAM, iKnowledge, Image Independence, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, InGame, Instantwrite, Instinct, Intelligent Content Management, Intelligent Digital Actor Technology, IntelliRender, IntelliSat, Intelli-sat Broadcasting Recording Manager, InterFX, Interplay, inTONE, Intraframe, iS Expander, iS9, iS18, iS23, iS36, ISIS, IsoSync, LaunchPad, LeaderPlus, LFX, Lightning, Link & Sync, ListSync, LKT-200, Lo-Fi, MachineControl, Magic Mask, Make Anything Hollywood, make manage move | media, Marquee, MassivePack, Massive Pack Pro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMix, Media Reader, Media Recorder, MEDIArray, MediaServer, MediaShare, MetaFuze, MetaSync, MIDI I/O, Mix Rack, Moviestar, MultiShell, NaturalMatch, NewsCutter, NewsView, NewsVision, Nitris, NL3D, NLP, NSDOS, NSWIN, OMF, OMF Interchange, OMM, OnDVD, Open Media Framework, Open Media Management, Painterly Effects, Palladium, Personal Q, PET, Podcast Factory, PowerSwap, PRE, ProControl, ProEncode, Profiler, Pro Tools, Pro Tools|HD, Pro Tools LE, Pro Tools M-Powered, Pro Transfer, QuickPunch, QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape Saturation, Reprise, Res Rocket Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, ScriptSync, SecureProductionEnvironment, Serv|GT, Serv|LT, Shape-to-Shape, ShuttleCase, Sibelius, SimulPlay, SimulRecord, Slightly Rude Compressor, Smack!, Soft SampleCell, Soft-Clip Limiter, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte, SteadyGlide, Streamfactory, Streamgenie, StreamRAID, SubCap, Sundance, Sundance Digital, SurroundScope, Symphony, SYNC HD, SYNC I/O, Synchronic, SynchroScope, Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, TimeLiner, Titansync, Titan, TL Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities, tools for storytellers, Transit, TransJammer, Trillium Lane Labs, TruTouch, UnityRAID, Vari-Fi, Video the Web Way, VideoRAID, VideoSPACE, VTEM, Work-N-Play, Xdeck, X-Form, Xmon and XPAND! are either registered trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries.

iii

Apple, Macintosh, and Safari are either registered trademarks or trademarks of Apple Computer, Inc., registered in the U.S. and other countries. HP is a registered trademark of Hewlett-Packard Company. Intel is a registered trademark of Intel Corporation. Java is a trademark of Sun Microsystems in the United States and/or other countries. Kingston is a registered trademarks of Kingston Technology Corporation. All other marks may be the property of their respective titleholders. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks contained herein are the property of their respective owners.

Avid NEXIS Administration Guide • Created 5/13/16 • This document is distributed by Avid in online (electronic) form only, and is not available for purchase in printed form.

Using This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Who Should Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Symbols and Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing the Online Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Avid Training Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 1 Configuring the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Creating the Avid NEXIS File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Binding the Media Packs to the File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Configuring External Authentication of Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Receiving Notification of System Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Configuring the Notification Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Filtering the Error Notification Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Adding Contact and Email Address Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Changing the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Securing an Avid NEXIS Infrastructure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Changing the BMC Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2 Working with the Management Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Opening the Management Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Understanding the Management Console Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Status Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Status Console Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Navigation Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Main Tools Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Accessing Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Session Counter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Customizing the Management Console Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Moving Columns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Showing and Hiding Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sorting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Filtering the Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Updating the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Selecting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using Context Menus to Perform Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Guidelines for Names and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Management Console Preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Configuring Management Console Preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Configuring the Agent Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Chapter 3 Managing Storage Groups and Workspaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Managing Storage Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Storage Groups List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Creating a Storage Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adding Unassigned Media Packs to Storage Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Removing Media Packs from Storage Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Moving Media Packs Between Storage Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Displaying Storage Group and Media Pack Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Deleting Storage Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Managing Workspaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Workspaces List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Displaying Workspace Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Workspace Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Workspace Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Creating a Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Duplicating a Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Renaming a Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Resizing a Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Workspace Size Graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Setting Event Triggers for a Workspace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Deleting a Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Managing User Access Privileges for Workspaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Setting or Changing Workspace Access Privileges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Workspace Redistribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

About Configuration Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Redistribution Guidelines and Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Performing a Full Redistribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Suspending and Resuming Redistribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Monitoring Redistributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Redistribution Status Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Chapter 4 Managing Clients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Managing Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Users List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

User Details Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Creating Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Duplicating Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Changing User Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Deleting Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Disabling Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Displaying User Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Managing LDAP Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installing the LDAP Sync Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Opening the LDAP Sync Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Using the LDAP Sync Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Changing the Account Synchronizer Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

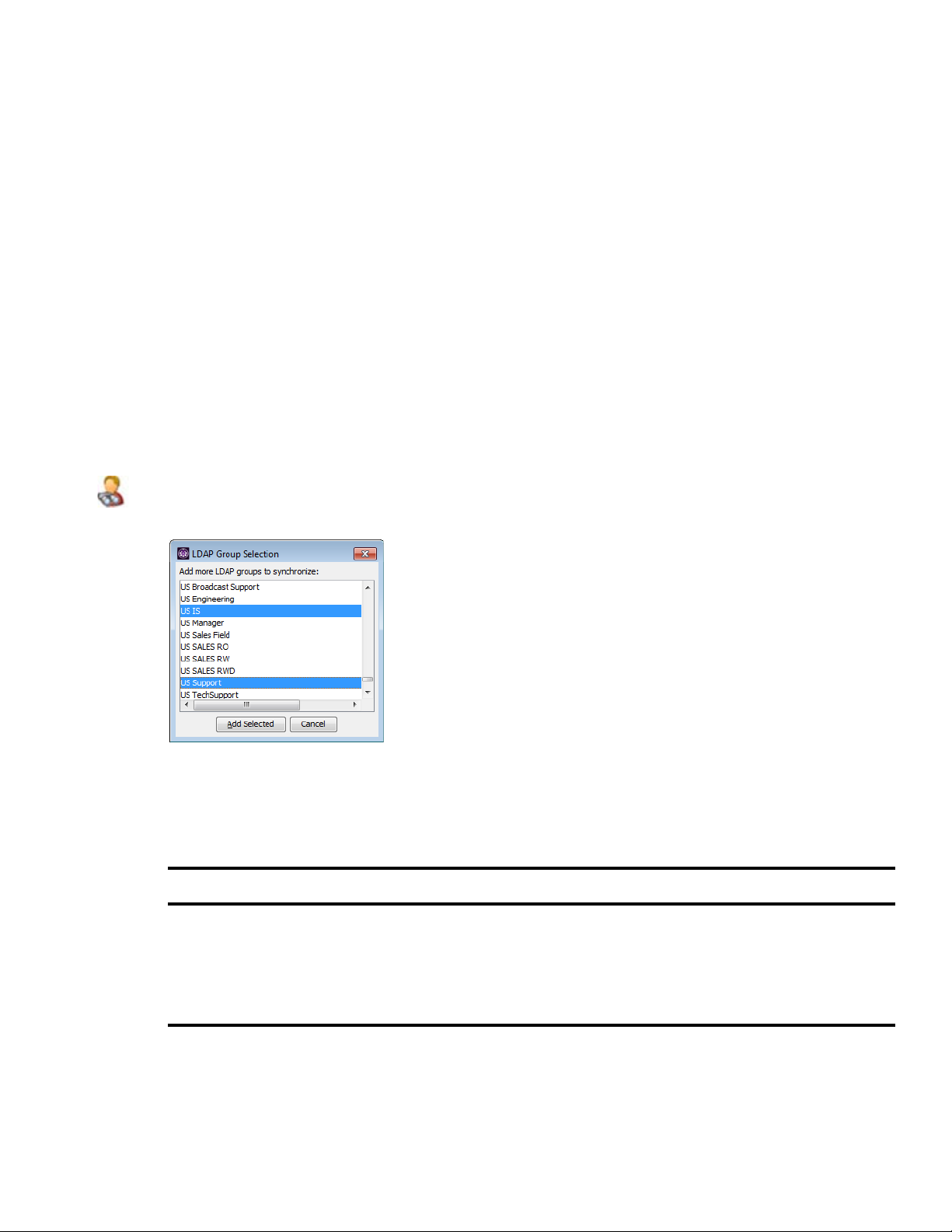

Synchronizing LDAP and Avid NEXIS Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Importing LDAP Users with Incorrectly Formatted LDAP UIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Disconnecting and Reconnecting the LDAP Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Managing Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Adding User Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Modifying User Group Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Deleting User Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Displaying User Group Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Managing Bandwidth Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Bandwidth Limits Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Displaying Bandwidth Limits Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Adding a Bandwidth Limit Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Changing a Bandwidth Limit Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Deleting a Bandwidth Limit Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Chapter 5 Managing Avid NEXIS Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Managing Engines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Engine List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Displaying Engine Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Engine and Storage Controller Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Upgrading an Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Removing Engines from the Engine List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Managing Storage Controllers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Storage Controllers List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Storage Controller Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Upgrading a Storage Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Managing Media Packs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

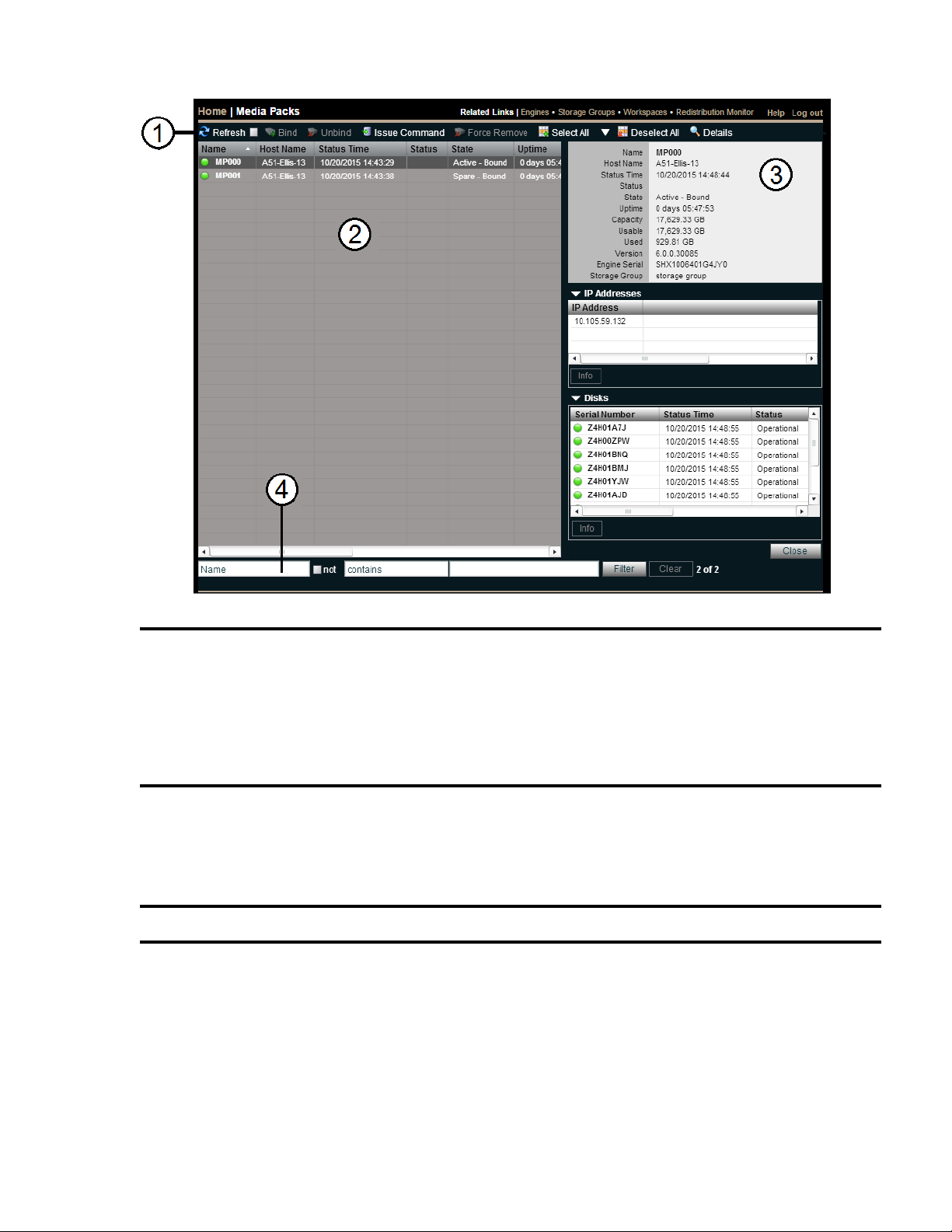

Media Packs List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Displaying Media Pack Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Media Pack Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Displaying Drive Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Disk Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

vii

Foreign Disk Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Unbinding Media Packs from the Avid NEXIS File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Clearing Network Degraded Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Removing Orphaned Media Packs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Cleaning Up Files (Manually Rectifying Files) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Chapter 6 Managing Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Monitoring System Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Connection Status Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Monitoring Client Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Client Bandwidth List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Scaling the Bandwidth List Graph Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Chapter 7 System Monitoring and Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Hardware Monitoring Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Displaying System Status History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Testing the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Displaying System Director Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Displaying System Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Displaying or Clearing the System Logs Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Displaying Administration Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Using the Administration Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Capturing System Information (Avid NEXIS Snapshots). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Creating, Displaying, and Deleting Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Working with Snapshot Archives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Avid NEXIS Toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Installing the Avid NEXIS Toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Opening the Avid NEXIS Toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Connection Analyzer Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Log Aggregator Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Using the Log Aggregator Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Displaying Aggregate Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Disk Analyzer Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Running Tests with the Disk Analyzer Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Updating the Disk Analyzer Tool Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Saving Disk Analyzer Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Media Pack Parameters Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Using the Media Pack Parameters Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Retrieving Media Pack Flag Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Media Pack Log Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Creating a Metadata Dump File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Restoring the File System (Support Use Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

viii

Chapter 8 Avid NEXIS Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Opening the Avid NEXIS Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Understanding the Agent Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

System Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Statistics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Tools Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Logging Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Changing the Storage System Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Changing the Hostname of the Storage Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Changing the Enclosure ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Configuring DNS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Setting the System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Changing the Agent Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Shutting Down the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Rerunning the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Using This Guide

The A vid® NEXIS™ software-defined storage system provides a high-performance di stributed file system that contains high-capacity shared media storage for workgroups of connected devices. This user’s guide describes how to connect your client system to the storage system, mount Workspaces, and configure your system for best performance.

Unless noted otherwise, the material in this documen t appli es to the Windows systems.The majority of screen shots in this document were captured on a Windows system, but the information applies to all operating systems. Where differences exist, information on the differences is provided.

The documentation describes the features and hardware of all models. Your system might not contain certain features and hardware that are covered in this guide.

Who Should Use This Guide

This guide is intended for users who need to manage the Avid NEXIS media network. You should have a basic understanding of how to use and manage the Windows operating system or the Mac OS X systems, and you should be familiar with basic workgroup and network concepts.

, Mac OS® X, and Linux operating

Symbols and Conventions

Avid documentation uses the following symbols and conventions:

Symbol or Convention Meaning or Action

> This symbol indicates menu commands (and subcommands) in the order you select them. For

(Windows), (Macintosh), or (Linux)

Bold font Bold font is primarily used in task instructions to identify user interface items and keyboard

A note provides important related information, reminders, recommendations, and strong suggestions.

A caution means that a specific action you take could cause harm to your computer or cause you to lose data.

A warning describes an action that could cause you physical harm. Follow the guidelines in this document or on the unit itself when handling electrical equipment.

example, File > Import means to open the File menu and then select the Import command. This symbol indicates a single-step procedure. Multiple arrows in a list indicate that you

perform one of the actions listed. This text indicates that the information applies only to the specified operating system, either

Windows, Macintosh OS X, or Linux.

sequences.

Italic font Italic font is used to emphasize certain words and to indicate variables.

Courier Bold font

Courier Bold font identifies text that you type.

Symbol or Convention Meaning or Action

Ctrl+key or mouse action Press and hold the first key while you press the last key or perform the mouse action. For

If You Need Help

If you are having trouble using your Avid product:

1. Retry the action, carefully following the instructions given for that task in this guide. It is especially important to check each step of your workflow.

2. Check the latest information that might have become available after the documentation was published.

Always check online for the most up-to-date release notes or ReadMe because the online version is updated whenever new information becomes available. To view the online versions, visit the Knowledge

Base at www.avid.com/support.

3. Check the documentation that came with your Avid appl ication or your hardware for maintenance or hardware-related issues.

4. Visit the online Knowledge Base a t www.avid.com/support. Online services are available 24 hours per day, 7 days per week. Search this online Knowledge Base to find answers, to view error messages, to access troubleshooting tips, to download upgrades, and to read or join online message-board discussions.

example, Command+Option+C or Ctrl+drag.

Accessing the Online Documentation

The Avid online documentation contains all the product documentation in PDF format. You can access the documentation from the Knowledge Base site specific to your release. Download and install Acrobat Reader before you access the PDF documentation.

Avid Training Services

Avid makes lifelong learning, career advancement, and personal development easy and convenient. Avid understands that the knowledge you need to differentiate yourself is always changing, and Avid continually updates course content and offers new training delivery methods that accomm odate your pressured and competitive work environment.

For information on courses/schedules, training centers, certifications, courseware, and books, please visit

www .avid.com/support and follow the Training links, or call Avid Sales at 800-949-AVID (800-949-2843).

1 Configuring the System

This chapter takes over from the final step in the Avid NEXIS Setup and Maintenance Guide and provides more detail for some of the steps in that guide.

To make the system fully usable to clients, do the following:

1. Create the Avid NEXIS file system

2. Bind Media Packs to the file system

3. Create one or more Storage Groups from the Media Packs

4. Create W orkspaces within the Storage Group or Groups (see “Managing Storage Groups and W orkspaces” on

page 27)

5. Create user or device accounts to allow clients to connect to the A vi d NEXIS. You can create user accounts on the Avid NEXIS itself, or configure an LDAP server to authenticate users.

6. Set up the notification service to send email to one or more accounts when a problem occurs.

Creating the Avid NEXIS File System

Creating a new file system is the first step to making the storage space usable after you install the Avid NEXIS software on a new Engine. It permanently deletes any existing file system. All users, groups, W orkspaces, Storage Groups and other objects are permanently deleted; all Media Packs are unbound; and all other settings, such as External Authentication and Notification Service, are cleared and must be reconfigured after the new file system is created.

In addition, the Administrator password (if changed) reverts to the default (no password).

To create a new file system:

1. In the Management Console, click System Settings. By default, the System Settings panel opens on the File System page.

2. Click Create Active File System.

3. Click Apply. A confirmation screen appears, asking you to confirm the operation, which will destroy all existing data (if

any) on the Avid NEXIS system, and create a new file system.

Confirmation Message to Create New File System

4. Click OK to continue. The Results panel displays progress messages. When the file system is created, you can bind the Media Packs,

create Storage Groups and Workspaces, create users, and configure external authentication and Event Notification as required.

Binding the Media Packs to the File System

After you have created an active file system, bind the Media Packs to it. Media Packs for all Engines in the shared storage system are shown on the Media Packs page.

To bind the Media Packs:

1. Click Media Packs in the Management Console.

2. Select one or more Media Packs in the list.

3. Click Bind.

4. Click Yes to confirm the request.

5. Click Refresh. When the Media Packs are bound, the status icon turns green, and you can create Storage Groups. See

“Managing Storage Groups and Workspaces” on page 27.

Configuring External Authentication of Users

External authentication lets you add users to the Avid NEXIS system who are already configured as LDAP accounts in your environment. When a remote LDAP user logs into the Avid NEXIS system, Avid NEXIS checks with an external LDAP server instead of the local user database t o authe nt icate the user . To enable LDAP users to access the Avid NEXIS system, configure the Avid NEXIS to use one to three external LDAP servers for authentication.

Configuring external authentication is optional, but recommended for large numbers of users. Otherwise you must create each user account individually; see “Managing Clients” on page 48. You can use both extern al authentication and accounts you create on the Avid NEXIS. The system supports up to 5640 user accounts.

T o use external authentic ation using LDAP, enable DNS. Specifically, the Avid NEXIS must be able to look up the LDAP server name and do a reverse lookup (resolving the IP address to a name, and vice versa). To enable DNS, see “Configuring DNS Service” on page 105.

For more information on working with LDAP users and groups, see “Managing LDAP Accounts” on page 54.

To configure external authentication:

1. From the Management Console home page, click External Authentication. The External Au the nt ica tio n too l op ens.

2. Click the Enable check box to select it. The Domain Name text box becomes active.

3. In the Domain Name text box, enter the domain name of the network to which the LDAP server belongs, including subdomain, if applicable.

A domain name has two p arts, sep arated by a period or dot: for e xample, avid.co m. The c ompany na me “avid” is

the assigned domain, and “com” is the top level domain, or TLD. A subdomain is a smaller unit within the company assigned domain, such as americas.avid.com.

Use the format subdomain.domain.tld; for example: americas.example.com

4. Click the check box to select Server 0. The Address text box becomes active.

5. In the Address text box, enter the fully-qualified domain name of the LDAP server.

A fully qualified domain name (FQDN) consists of the hostname, subdomain name (if applicable), and the domain

name.

Use the format servername.subdomain.domain.tld; for example:

server1.americas.example.com

6. (Option) Repeat steps 3 – 5 (using the “Server 1” and “Server 2” check boxes) to configure additional backup LDAP servers, if applicable.

All of the LDAP servers must be mirrors, and reside on the same subdomain/domain.

7. When finished, click Submit. The domain and LDAP server information is added to the Avid NEXIS database, and a confirmation message

is displayed in the Results area.

Receiving Notification of System Problems

The Notification Service tool lets you configure the Avid NEXIS system to notify you through email when problems occur. A service watches the system log and sends a concise summary of configured events to one or more email accounts. Configuring notification is optional but strongly recommended.

The Notification Service tool window is divided into the following sections:

• Configuration — Start and stop the Notification Service, and configure the Notification Service settings, described in the following table.

Option Type Description

SMTP Server text The IP address or host name of your SMTP server. SMTP Port text (numeric) The port number of your SMTP server. The default value (25) is appropriate

in most instances.

Poll Frequency (seconds) text (numeric) The frequency (in seconds) with which the notification service checks for

reportable events.

Email Address text The email address of the Avid NEXIS administrator or other primary contact

for the error notification service.

• Filters — Set and change the parameters that define when email notifications are sent to email recipients.

• Contacts — Add and change email recipients.

Configuring the Notification Service

To configure the Notification Service:

1. From the Management Console home page, click Notification Service, in the Advanced section.

The Notification Service tool opens.

2. Enter the IP address for your network’s SMTP (email) server.

3. Enter at least one email address that will receive the notifications.

4. (Option) To test the configuration settings, click Test.

The results of the service test are displayed in the Results area.

5. Click Save.

- A confirmation message is displayed in the Results area.

- If you started or stopped the Notification Service, the Service St ate wi ll cha nge to reflect t he new service

state.

6. (Option) Click Reset.

The changes for the configuration will be reset to the previously saved values.

Filtering the Error Notification Parameters

The Filters area of the Notification Service tool allows you to specify the type of error message that triggers an email notification and to set parameters for each type of error message—Error, Warning, and Information messages.

You can configure the Avid NEXIS to send notification emails for one or more of the following subsystem categories and the severity level that will trigger notification:

• Server Control — Reports messages about internal operations, including problems saving metadata to disk

• System Director — Reports messages about the Avid NEXIS file system, metadata, memory, system drives, and the System Director IP address and networking

• Avid NEXIS General — Reports messages about Workspaces (such as changing its size), password changes, Media Packs, and network communication errors detected by an Avid NEXIS component

• Storage Manager General — Reports messages about general Media Pack operations, such as initialization and status changes

To configure error notification parameters:

1. From the Management Console home page, click Notification Service, in the Advanced section.

The Notification Service tool opens.

2. Click Filters.

3. Click the check boxes corresponding to the error notificati ons you want to includ e or exclude. (A checked box includes that category, and a blank box excludes the category.)

4. Click Save. The settings are saved, and a confirmation message is displayed in the Results area.

Adding Contact and Email Address Information

Enter contact information for all the people you want to receive notification emails. There is no enforced limit to the number of contacts you can add.

To add contacts:

1. From the Management Console home page, click Notification Service, in the Advanced section. The Notification Service tool opens.

2. Click Contacts.

3. Click New. The Contact/Email field is displayed.

4. Type a user name into the first text box. This can be any name you want to assign to the user; it does not have to be the same as the email account

name.

5. Type a valid email address into the second text box.

6. (Optional) Click New to add more email contacts.

7. Click Save.

To remove a contact:

1. Click Delete next to the email contact entry. The contact is removed from the list.

2. Click Save.

Changing the Administrator Password

The Management Console Administrator password is blank by default. Avid highly recommends that you set an Administrator password when you configure t he Management Console for the first time.

See “Guidelines for Names and Passwords” on page 23 for valid password characters and the maximum length.

To change the Administrator password when you are already logged in:

1. From the Management Console home page, click Administrator Password, located in the Advanced section. The Administrator Password tool opens.

2. Type the current Administrator password in the Current Password field (blank by default).

3. Type the new Administrator password in the New Password field.

4. Type the new Administrator password again in the Verify Password field.

5. Click Change.

- The Administrator Password is changed to the new value.

- A confirmation message appears in the Results area.

To change the Administrator password if you have forgotten it:

1. Open a browser and enter the IP address of the Avid NEXIS system. The Management Console login page opens.

2. Log in using the user name Administrator and the Agent password (either password you changed it to).

3. Follow the steps in the previous procedure (changing the password when you are already logged in).

Securing an Avid NEXIS Infrastructure

The Avid NEXIS system has several passwords:

• The Administrator password, used when you log into the Management Console (by default, there is no password). You can change this at any time in the Management Console.

• The Agent password (by default, can change this at any time in the Agent.

se-admin

). This is also the password you use for initial system setup. You

se-admin

by default or the

For convenience, you can log in to either the Management Console or the Agent using the password for the other, in case you forget one.

• The password for the BMC (Baseboard Management Controller), which is a low-level process on the Storage Controller that manages the BIOS, MAC addresses, and other internal functions.

By default, the BMC password has been set at the factory to be the same as the default Agent password (

), but this could be a security concern in some environments. If necessary, you can change the BMC

admin

password.

Changing the BMC Password

If your lab environment or company requires it, you can change the BMC password to prevent unauthorized access to the hardware.

To change the BMC password:

1. Connect a computer or laptop to the Management Port on the Storage Controller, as shown:

2. Open a browser window and go to the address: controller.

169.254.10.250

se-

, which is the default IP add ress of the BMC

root

3. Log in using the user name

and the password

4. In the BMC interface, click the Configuration tab.

se-admin

5. Select Users from the pull-down menu.

6. Click Modify User.

7. Click the Change Password checkbox, enter a new password in the Password and Confirm Password fields, then click Modify.

8. Click OK.

9. Log out of the BMC interface.

2 Working with the Management Console

The Management Console is the primary interface to the Avid NEXIS system and allows you to perform administration functions.

When you access the Management Console, the Login page opens. Enter a user name and password to log in. If you type the wrong password, an error message appears and the Login dialog box reappears.

Initially, the Administrator password is blank by default. To set an administrator password, see “Changing the

Administrator Password” on page 8.

Standard Avid NEXIS client users can log in to the Management Console, but will have limited access to the Management Console interface. They can see certain information about the network through the Client Manager. For more information about the Client Manager, see the Avid NEXIS Client Help.

Opening the Management Console

The Management Console runs within one of the following qualified web browsers:

• Windows — Microsoft Internet Explorer, Mozilla Firefox

• OS X — Safari, Mozilla Firefox, Google Chrome

, Google® Chrome

™

• RedHat Linux — Mozilla Firefox, Google Chrome

Performing administrative functions in more than one instance of the Management Console at the same time can cause unexpected results.

To open the Management Console as Administrator:

1. Open your web browser and in the address bar enter either the:

t System Director Name (if DNS is configured; see “Configuring DNS Service” on page 105) t IP address of the System Director. (This is the IP address of the Storage Controller running the System

Director; whether in a single- or multi-Engine configuration or in a System Director Appliance.)

The Login dialog box for the Management Console opens. The “Username” field is automatically populated with the Administrator user name.

2. Type your password. For information on changing the administrator password, see “Changing the Administrator Password” on

page 8.

3. Click Login (arrow icon), or press Enter. The Management Console Home page opens.

To log out of the Management Console:

t Click Logout in the upper right corner of the screen.

Understanding the Management Console Interface

The Management Console, which you can access on the Engine or on any Ethernet-attached client, has a user interface where controls are grouped by function and are displayed by clicking the appropriate icons or text.

The Management Console requires Adobe kit, or download and install a newer version if available.

Flash® Player. Use the version included with the A vid NEXIS software

Callout Description

1 System Status Console — Provides a snapshot view of several aspects of the Avid NEXIS system. See “System

Status Console” on page 15.

2 Navigation toolbar — Access Management Console tools and navigation. See “Navigation Toolbar” on page 17. 3 Main tools panel — Click to go to the respective tool pages. See “Main Tools Panel” on page 17. 4 Help link — Provides pointers to the Avid NEXIS online documents. See “Accessing Help” on page 19. 5 Logout link — Ends the Management Console session and logs you out of the system. 6 System Identification — Displays the system model information, Storage System name, and version. 7 Session Counter — Displays how long the current session has been active. Counts down from 2 hours (2:00:00).

See “Session Counter” on page 19.

System Status Console

The System Status Console, located on the left side of the Management Console, contains several components that give you a snapshot view of the system. These allow you to access additional information about your system and to perform certain administrative tasks, such as monitoring and log gi ng.

Administrators can configure whether or not the System Status Console is visible on the login screen of the

Management Console, but you must log in to follow links from the tool bar screens (such as the log files).

The following figure shows the panels of the System Status Console separated slightly for clarity.

Callout Description

1 Current system status panel — LEDs for errors, warnings, info, and upgrade statuses will be lit to indicate the

presence of system events. Click a color to open the Status panel. See “System Status Console Panels” on

page 15.

For explanations of the hardware statuses shown in the status panel, see “Managing Avid NEXIS Hardware” on

page 67.

2 Status retrieval panel — The Management Console periodically retrieves system status information. The panel

displays the results and the time stamp of the retrieval operation. 3 System Status History panel — Displays the system events that have occurred since the System Director was

started, along with the date and time of the first logged event. Clicking this panel opens the System Status

History tool. For more information, see “Displaying System Status History” on page 86. 4 Storage capacity panel — Displays the total capacity of all bound Media Packs, capacity allocated to

Workspaces, and the amount of capacity used by data. 5 System Status Console panels — Click the panel headings to display the system information panel. For more

information, see “System Status Console Panels” on page 15.

System Status Console Panels

The System Status Console contains several panels that provide info rmation about different areas of the system operation. Click a panel title to expand and collapse the panel.

Panel Name Description

Status Console Panel—Provides a quick summary of the System Director status. If an event in the system log triggers a status to appear, a link is provided to the System Logs tool. For more information, see “Displaying or Clearing the System Logs Page” on page 88 and “Managing A vid

NEXIS Hardware” on page 67.

System Console Panel—Provides a summary of hardware, software, and networking information.

Performance Console Panel—Provides a summary of the number of messages per second,

number of open files, and the names of clients connected to the system. For more information, see

“Monitoring System Connection Status” on page 81.

Panel Name Description

Navigation Toolbar

The navigation toolbar provides several items to help you navigate through the Management Console interface.

Bandwidth Console Panel—Displays “Megabytes per second,” information on total and perclient bandwidth. For more information, see “Monitoring Client Bandwidth” on page 82.

Callout Description

1 Home link—You can click this link from any page to return to the Management Console Home screen 2 Current tool heading—Indicates the tool you are currently using 3 Related links section—Displays links to other Management Console tools relevant to the one you are currently

using

Main Tools Panel

The Management Console main panel is divided into the following sections:

• The System section, which contains the following tools:

Name Description

Workspaces Create, delete, duplicate, or change capacity of any Workspace and see all Workspace

details; see “Managing Workspaces” on page 33.

Name Description(Continued)

Users Create, delete, duplicate, or change W orkspace access for any User and see all User details;

see “Managing Users” on page 48.

Groups Create, duplicate, or change Workspace access for any User Group; modify User Group

members; and display all User Group details; see “Managing Groups” on page 60.

Bandwidth Limits Display and modify bandwidth for clients that are allowed to connect to the Avid NEXIS

system; see “Managing Bandwidth Limits” on page 64 for more information.

Installers Download installers for Avid NEXIS Clients, Avid NEXIS software for the Engine, Avid

NEXIS Tools, and Adobe Flash Player. For information on installing the Avid NEXIS Client software, see the Avid NEXIS Client

Manager Installation and User’ s Guide. For information on the Avid NEXIS Tools, see

“Avid NEXIS Toolbox” on page 91.

Engines Display details for Engines, reported serial number, status, uptime and more information;

see “Managing Engines” on page 67.

Storage Controllers Display details, upgrade, and clear status for Storage Controllers in the Engine; see

“Managing Storage Controllers” on page 70.

Media Packs Bind, unbind and see details for Media Packs; see “Managing Media Packs” on page 72. Storage Groups Create, delete, or modify Media Pack Media Packs of any Storage Group, and display

Storage Group details; see “Managing Storage Groups” on page 27.

• The Connect section, which contains the following tools:

Name Description

Connection Status Display any connected client; see “Monitoring System Connection Status” on page 81. Client Bandwidth Display read and write bandwidth of any connected client; see “Monitoring Client

Bandwidth” on page 82.

Reservations Display any current bandwidth reservation; see “Displaying Client Bandwidth

Reservations” on page 87.

• The Tools section, which contains the following tools:

Name Description

System Status History Display historical system status information; see “Displaying System Status History” on

page 86.

Network Utilities Allows you to retrieve a detailed look at the connected network, or run a ping or traceroute;

see “Testing the Network” on page 87. Redistribution Monitor Allows you to see details about redistribution; see “Workspace Redistribution” on page 42.

• The Logging section, which contains the following tools:

Name Description

System Director Information

System Logs Display all system messages, info, warnings, and errors at the application, system, and

Administration Logs Display current and archived Management Console logs; see “Displaying Administration

A vid NEXIS Snapshots Create a snapshot of the Avid NEXIS system for displaying or downloading; see “Capturing

Displays System Director information: System Director status and Avid NEXIS version, metadata, running processes, and Agent information, all on one screen; see “Displaying

System Director Information” on page 87.

security levels; see “Displaying or Clearing the System Logs Page” on page 88 .

Logs” on page 88.

System Information (Avid NEXIS Snapshots)” on page 89.

• The Advanced section, which contains the following tools:

Name Description

Preferences Change and save bandwidth, LCT threshold, device creation, disk error threshold, and other

preferences; see “Configuring Management Console Preferences” on page 25. External Authentication Configure external authentication servers; see “Configuring External Authentication of

Users” on page 4.

Notification Service Configure email notification on specific system events; see “Filtering the Error Notification

Parameters” on page 6.

Agent Settings Modify agent configuration options and trace settings; see “Configuring the Agent

System Settings Manage the Avid NEXIS file system; see “Creating the Avid NEXIS File System” on

Administrator Password Change the Management Console Administrator password; see “Changing the

Accessing Help

The Help menu, located in the upper right-hand corner of the Management Console window, provides a link to the Avid NEXIS ReadMe, which contains a link to the Knowledge Base page for your release. The Knowledge Base page contains PDFs for all the relevant documentation.

Session Counter

The user session will time out automatically after two hours of inactivity, after which you must log in again to continue working. The se ssion counter, located in the lower right corner of the Management Console , displays t he time remaining in the user session.

Settings” on page 25.

page 3.

Administrator Password” on page 8.

The counter is automatically reset to two hours when you click a link or perform an action such as adding or deleting a Workspace. You can also reset the counter manually by clicking it.

If you enable A uto refresh on a tool screen you wi ll no t automatically be logged out after two hours, as long as you stay on the page where Auto refresh is enabled, or navigate between tools as described in “Updating the

Display” on page 22. Clicking Home disables Auto refresh, and the session counter functionality (automatic

logout) resumes.

To manually reset the session counter:

t Click the session counter display.

The session timer is reset to two hours.

Customizing the Management Console Display

You can customize the Main di splay panel for any option by moving and hiding columns, and by sorting and filtering information.

Moving Columns

To move a column in the Main display panel:

t Click and drag any column to the position you want, and release the mouse button.

The column appears in the new position, and columns to the right are moved to make room.

Showing and Hiding Columns

When you open a Management Console tool (for example, the Storage Controllers tool), the Main display panel lists items in default columns. Depending on the option selected, there might be other headings available to see. You can select individual or multiple column headings to be displayed or hidden.

To show or hide columns:

t Select one of the options, right-click in the column heading row and select a heading you want to show or

hide. Displayed column headings are marked by a bullet symbol (•). You cannot hide the first column on the left o f

the Main display panel (usually the Name column).

Sorting Information

The Avid NEXIS Management Console interface allows you to sort information listed in the Main display panel, or in the Details panel. Sorting the information in columns arranges items in either numerical or alphabetical order. You can also perform a multilevel sort of the displayed information. Date fields are sorted numerically; most dates in the Management Console are displayed in MM/DD/YYYY format. Some date columns also include time values, in HH:MM:SS format.

On the System Status History and System Logs pages, dates are displayed in the format MM/DD/YY.

To sort information:

t Click the column heading for the column you want to sort.

The information is sorted in ascending order. To reverse the sort order, click the column heading again.

To perform a multilevel sort:

1. Click the column heading for the first column you want to sort. The items in the column are sorted in ascending order.

2. Click an additional column. The items in the second column are sorted in ascending order . The items in t he first column main tain their sort

order, but with a lower priority than the second sort.

3. (Option) Click multiple columns to add levels to the sort. To cancel a multilevel sort, click a column heading that has already been sorted.

Filtering the Display

You can limit the items listed in the Main display panel by setting Filter parameters at the bottom of the Management Console window. Filtering the display allows you to focus on only those items that you want to monitor. You can restore all items to the display by clearing the Filter parameters.

Callout Description

1 Category menu—Select the category to filter 2 “not” operator—Select to exclude items matching the filter rules from the search results 3 Condition menu—Select the filter condition 4 Search term field—Type the text or value to filter 5 Filter button—Perform the filter operation 6 Clear button—Clear the filter settings 7 Filter results counter—Displays the number of filtered results on the page, and in total

You cannot filter the display for Bandwidth, Connection Status, and Reservations (under the Connect heading).

To filter the display:

1. Select a category from the Category menu. The Category menu lists all of the column headings available for the selected Command menu option.

2. (Option) Select “not” to exclude the items matching the filter rules from the search results.

3. Click the Condition menu and select the filter condition you want to use.

4. In the Filter text box, type the text or value you want to use to filter the displ ay.

5. Click Filter. The Main display panel updates to display the filtered re sults. The Fil ter panel d isplays th e number of filtered

items displayed and the total number of items available for display.

To restore all items to the display:

t Click Clear.

The Main display panel updates to display all items.

Updating the Display

You can update onscreen information to reflect recent system changes by clicking Refresh. You can also use Auto refresh to automatically refresh information at timed intervals, and prevent your session from timing out.

This setting persists between tools when you navigate between them using the Related Links. The Auto-refresh

setting reverts to the default (disabled) between browser sessions (if you close then reopen the management Console) and if you click Home and then back into the tools.

To enable Auto refresh:

t Select the check box next to the Refresh.

Auto refresh mode is enabled, and the following message is displayed:

Auto refresh is enabled; session will not time out. To enable functionality, disable auto refresh.

While Auto refresh mode is enabled, other functions such as add, delete, and details are not available.

To disable Auto refresh:

t Deselect the check box next to the Refresh.

Auto refresh mode is disabled, and the confirmation message closes.

Selecting Items

You can select multiple items in most Management Console tool windows, as follows:

To Select This Do This

One item Click the item. Multiple, non-contiguous items Ctrl+click each item you want to select. Multiple, contiguous items Click the first item, then Shift+click on the last item.

The methods for selecting more than one item in a list are similar to those used in Windows Explorer or the Mac Finder.

Using Context Menus to Perform Actions

Most Management Console tool windows offer context menus you can use to perform commands on selected items.

To access context menus within the Management Console:

t Right-click (Windows and Linux) or Ctrl+click (Mac) selected items.

Guidelines for Names and Passwords

Follow these guidelines when creating object names or passwords in the Management Console:

• Names (Storage Groups, Users, Groups) can be a maximum of 31 ASCII characters in length.

• Workspace names can be up to 31 characters long, must use Unicode characters and cannot include a space.

• The Administrator and User passwords (for accessing the Management Console) can be a maximum of 15 ASCII characters long.

• The Agent password can be a maximum of 8 ASCII characters long.

• Do not include a space in any name fields.

• Do not use a period (.) as either the first or last character in the names you create.

• Do not use the following characters in any name fields :

Character Name Character Name

^ Circumflex accent | Vertical line \ Backslash [ Left square bracket / Forward slash ] Right square bracket

Character Name Character Name(Continued)

: Colon + Plus sign * Asterisk = Equals sign ? Question mark % Percent sign " Double quotation mark ; Semicolon < Less-than sign , Comma > Greater-than sign @ Commercial At symbol

The Management Console does not support displaying regional language characters.

For information on the System Director hostname and the Storage System Name, see “Avid NEXIS Agent” on

page 101.

Management Console Preferences

The Preferences tool allows you to set parameters that customize the basic functionality of the Avid NEXIS system:

• General Preferences—These control general system behaviors and are described in the following table.

• Logging Preferences—These control what types of logs are collected and the severity and verbosity of the event being logged. These are not described here; do not change these unless instructed to do so by Avid Customer Care.

General Preferences

Option Type Default Description

Total System Bandwidth (MB/sec)

Default Bandwidth for Auto Created Devices (MB/sec)

Force Manual Device Creation

Default LCT Threshold (ms)*

text (numeric)

check box Disabled If enabled, clients without an entry in the Bandwidth Limits list

text (numeric)

1000 MB/sec Total reservation bandwidth allowed by the system, in MB/sec.

When this value has been reached, Avid NEXIS will no longer accept bandwidth reservations from clients.

This value does not represent the actual bandwidth capabilities of

the Avid NEXIS system. For more information about Avid NEXIS bandwidth capabilities, see Avid Storage v6.0 Documentation.

0 Reservation bandwidth allowed for devices that are

automatically created at connection time. The default value (0) grants unlimited bandwidth.

are not allowed to connect. Manually create an entry for every client computer that is expected to connect to the Avid NEXIS system.

0 Defines the upper limit of the Long Command Time (LCT)

value, above which the Media Pack will report a Disk Degraded condition to the System Director.

The default value (0) sets the LCT threshold to the internal system default of 750ms.

Option Type Default Description(Continued)

Default Hard Disk Error Threshold*

History Data Collection check box Enabled When enabled (default), collects system history data every hour,

Auto-Rectify check box Disabled Automatically reconciles the actual amount of used space and

Show status prior to login check box Disabled When enabled, prevents anyone from seeing the Status Console

text (numeric)

0 Defines the upper limit for number of hard disk errors before

the Media Pack reports a Disk Failure condition to the System Director.

The default (0) uses the internal system value of 25 errors.

which is displayed in the System Status History panel (see

“Displaying System Status History” on page 86. If disabled (for

support use only), the system stops collecting new data, but existing data is retained.

the reported amount of used space on a system.Default value is disabled. Takes effect immediately with no restart required.

panel on the left side before they log in. Only administrators can change this setting. By default users can see the Status Console before logging in.

Configuring Management Console Preferences

To configure Management Console Preferences:

1. From the Management Console home page, click Preferences, located in th e Advanced section.

The Preferences tool opens.

2. Select your preferences.

3. (Option) To revert all options to the previously saved values, clic k Refresh.

4. Click Save Preferences to save your changes.

Configuring the Agent Settings

The Avid NEXIS Management Console includes several tools for displaying the System Agent statistics and configuration information, and for configurin g adv an ced opt ion s.

• Use the Options page to modify Agent configuration options such as timeouts and session settings.

• Use the Trace Setup page to configure trace settings for connections, HTTP requests, SSL callbacks, and threads.

These tools should not be used except under the advice and supervision of Avid Customer Care.

To configure the Agent settings:

t In the Management Console, click Agent Settings under the Advanced heading.

3 Managing Storage Groups and Workspaces

Storage Groups are collections of Media Packs that store media files accessible within a shared storage environment. Storage Groups give you flexibility in allocating storage cap acity among groups with different functional areas, workflow requirements, or as a means of mitigating the risk of various disk failure scenarios.

Workspaces are virtual volumes that ex ist on Storage Groups and can be resized dynamically. Workspaces allow you to subdivide the space in the Storage Groups to accommodate projects and users.

Managing Storage Groups

Storage Groups are collections of Media Packs, enabling you to create a large pool of storage. Within Storage Groups, you create Workspaces. Clients mount Workspaces to capture and edit media files.

Using a System Director that runs on an Engine (called an embedded System Director), you can have up to four Media Packs in a single Avid NEXIS shared storage system, in from one to four Storage Groups. Using a System Director Appliance, you can have up to 24 Media Packs in a single Avid NEXIS shared storage system, in from one to 24 Storage Groups.

To maximize the usefulness of the Media Pack storage, Avid recommends putting all the Media Packs into the same Storage Group. If you have Media Packs of different capacities, you can create separate Storage Groups to segregate them. If any Media Pack in a Storage Group is smaller than the others, then every Media Pack in the Storage Group is treated as the smallest size.

For example, if you create a Storage Group using a 20TB Media Pack and a 60TB Media Pack, the total Storage Group capacity is 40TB (2 x 20TB). You cannot take advantage of the extra capacity on the larger Media Pack. The following calculations describe the net space available when combining Media Packs of equal and different capacities.

• Two 20TB Media Packs = 40TB usable space

• One 20TB Media Pack plus one 40 TB M edia Pack = 40TB usable space (only 20TB of space from the 40TB Media Pack is usable)

• Two 40TB Media Packs = 80TB usable space

Similarly , make sure to use driv es of the same size. All drives in a Media Pack are treated as if they are the size of the smallest drive.

For example, if you have a Media Pack composed of ni ne 6TB dri ves and on e 2TB driv e, the total c apacity of th at Media Pack is 10 x 2TB, or 20TB. The other 4TB on each of the other nine drives is not usable due to the data striping algorithm Avid NEXIS uses.

If necessary , you can use a la rger capacity drive to replace a failed drive of a smaller capacity in a Media Pack, but the extra capacity of the larger drive is not used. You cannot use a smaller drive to replace a failed larger drive in a Media Pack. The Media Pack will not accept the drive.

T o get the best capacity and performance from your Avid NEXIS system, Avid strongly recommends always using the same capacity drives in a Media Pack, and creating Storage Groups with same capacity Media Packs. You can increase the amount of space in a Storage Group later, within some restrictions. For more information, see

“Adding Unassigned Media Packs to Storage Groups” on page 30.

The Storage Groups page of the Management Console allows you to create, delete, rename, and manage Storage Groups.

Callout Description

1 Action button toolbar—Perform actions on selected Storage Groups 2 Storage Groups list—Lists all configured Storage Groups and related information; see “Storage Groups List”

on page 28

3 Details panel—Detailed information on the selected Storage Groups; see “Displaying Storage Group and

Media Pack Details” on page 32

4 Media Packs list—Displays Media Packs belonging to the selected Storage Group 5 Filter panel—Filter the Storage Groups list display based on conditions you configure; see “Filtering the

Display” on page 21

Storage Groups List

The following table summarizes the information available in the Storage Groups list. This information is also displayed in the Details panel for a selected Storage Group.

Heading Description

Name Displays the name of the currently selected Storage Group Capacity Displays the total storage capacity of the selected Storage Group Effective Displays the effective (available) storage capacity of the selected Storage Group based on the

Media Pack protection types assigned to the current Workspaces in the group Used Displays the amount of storage space that currently contains user data Unused Displays the amount of storage space that currently contains no data in the Media Packs assigned to

the selected Storage Group Allocated Displays the amount of storage space assigned to Workspaces in the selected Storage Group Unallocated Displays the amount of storage space available to create more Workspaces in the selected

Storage Group Files Displays the number of files in all Workspaces in the selected Storage Group Directories Displays the number of directories in all Workspaces in the selected Storage Group

You can sort the information in the Storage Groups page by clicking any column heading. For more information on sorting items in columns, see “Sorting Information” on page 21.

Creating a Storage Group

Storage Groups comprise one or more Media Packs from one or more Engines. T o create a Storage Group, at least one Media Pack must be bound to the Avid NEXIS file system. See “Binding the Media Packs to the File Syst em”

on page 4.

The total capacity of the Storage Group is equal to the lowest common denominator of the size of the Media Packs you add to it; for example, a Storage Group with two 20TB Media Packs yields 40TB of space. But a Storage Group with one 20TB Medi a Pack and one 60TB Media Pack also yi elds 40TB of space. Ideally, add Media Packs of the same size to the Storage Group.

You can add larger Media Packs to an existing Storage Group later, and remove the smaller ones, to increase the overall capacity of a Storage Group. For more information, see “Adding Unassigned Media Packs to

Storage Groups” on page 30.

To create a Storage Group:

1. From the Management Console home page, click Storage Groups in the System section.

The Storage Groups page opens. If you have no Storage Groups yet, but at least one Media Pack is bound to the file system, the Create Storage Groups panel opens automatically.

2. Click New.

The Create Storage Group panel opens.

3. In the Name text box, type a name for the Storage Group.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

4. In the Media Packs panel, select the Media Packs you want to assign to the new Storage Group (up to four, if running an embedded System Director, or up to 24, if running a System Director Appliance).

5. (Option) Click Revert to undo any modifications made to the Storage Group information.

6. Click Apply to create a new Storage Group. If another Storage Group has the same name an error is displayed. The new Storage Group appears in the Storage Groups list , and the Create Storage Group dialog box refreshes

to show the Media Packs still available for additional Storage Groups.

7. Click Close.

Adding Unassigned Media Packs to Storage Groups

When you add Media Packs to an Engine that is not fully pop ulated, or add a new Engine to your Avid NEXIS system, you can either add the Media Packs to an existing Storage Group, or create a new one.

You can also serially replace smaller-capacity Media Packs in an existing Storage Group with larger-capacity Media Packs, until all the smaller Media Packs are removed, to increase the overall space available in the Storage Group. Until all the smaller Media Packs have been removed, the total Storage Group capa city remains a multiple of the lowest common denominator.

For example, consider a Storage Group containing four 20TB Media Packs. The total capacity is 80TB. If you add four 60TB Media Packs, the Storage Group capacity increases by the lowest common denominator, or 4 x 20TB, to a new total of 160TB. After you remove the four 20TB Media Packs and redistribution completes, the Storage Group can use the full capacity of the larger Media Packs: 4 x 60, or 240TB.

This allows you to increase the capacity of a Storage Group using the same number of Media Packs. Adding and removing Media Packs redistributes files in the Storage Group across all the remaining Media Packs.

For more information, see“Workspace Redistribution” on page 42.

To add Media Packs to a Storage Group:

1. From the Management Console home page, click Storage Groups in the System section.

2. In the Storage Groups list, select the Storage Group where you want to add Media Packs, and then do one o f the following:

t Click Details. t Double-click the Storage Group name.

The Details panel displays all the information on the selected Storage Group.

3. In the Media Packs panel, select the unassigned Media Packs you want to add to the Storage Group. A single Storage Group can contain up to four Media Packs, from any Engines.

4. Click Add to add the selected unassigned Media Packs to the Storage Group. The Storage Media Packs panel refreshes to display the selected Media Packs added to the Storage Group.

5. (Option) Click Revert to undo any modifications made to the Storage Group information.

6. Click Apply. The Media Packs are added to the Storage Group.

- The shared storage network performs a redistribution of any data on the Media Packs. The amount of

time required for the redistribution depends on the amount of data in the Storage Group.

- The configuration change counter for all affected Workspaces is incremented by one.

After 20 configuration changes, the system prompts you to perform a full redistribution. You can suspend and

resume the redistribution as needed. See “Suspending and Resuming Redistribution” on page 44.

Removing Media Packs from Storage Groups

You can remove a Media Pack from a Storage Group for several reasons:

• To add it to another Storage Group

• To remove it from the Engine

• T o replace it with a lar ger -capacity Media Pack (see “Adding Unassi gned Media Packs to Storage Groups” on

page 30)

If the Storage Group contains Workspaces, the Storage Group must have at least as much free space as the capacity of the Media Pack you want to remove, so the Workspaces can be redistributed (see “Workspace

Redistribution” on page 42).

You cannot remove Media Packs if the Storage Group will have less than either the used space or the allocated space. To make enough free space, you can delete files from the current Workspaces, or reduce or delete Workspaces themselves. See “Resizing a Workspace” on page 38 and “Deleting a Workspace” on page 40.

You cannot remove the last Media Pack from a Storage Group, but if no Workspaces exist, you can delete the Storage Group itself, which retu rns the Media Pack to the spare stat e.

Media Packs removed from the Storage Group are returned to the system’s pool of unassigned (spare) Media Packs.

If you remove a Media Pack during high client usage, it might reduce performance on your clients, possibly resulting in dropped frames, underruns, and failed captures. To avoid this, remove Media Packs during periods of light client activity. You can suspend and resume a redistribution as needed.

To remove Media Packs from a Storage Group:

1. From the Management Console home page, click Storage Groups in the System section.

The Storage Groups page opens.

2. In the Storage Groups list, select the Storage Group that contains the Media Packs you want to remove, and then do one of the following:

t Click Details. t Double-click the Storage Group name.

The Details panel displays all the information on the selected Storage Group.

3. In the Media Packs panel, select all the Media Packs yo u wan t to re mov e from the Storage Group.

4. Click Remove. The Media Packs panel refreshes and displays the selected Media Packs as Spare.

5. (Option) Click Revert to undo any modifications made to the Storage Group information.

6. Click Apply. The Media Packs are removed from the Storage Group. You can then unbind them from the Avid NEXIS file

system (see “Unbinding Media Packs from the Avid NEXIS File System” on page 78) or add them to a different Storage Group (see “Adding Unassigned Media Packs to Storage Groups” on page 30).

Moving Media Packs Between Storage Groups

To move a Media Pack from one Storage Group to another:

1. Remove the Media Pack from its current Storage Group. See Removing Media Packs from Storage Groups. The Storage Groups page opens.

2. Add the Media Pack to the new Storage Group. See Adding Unassigned Media Packs to Storage Groups.

Displaying Storage Group and Media Pack Details

The Details and Media Packs panels display info rma tion about the currently selected Storage Group and the Media Packs it contains, as seen by the System Director. Some of the information is embedded in the Media Pack, and other information is assigned to the Media Pack by the Avid NEXIS software.

To sort the information in the Media Packs panel, click any column headin g. For more information on sorting

items in columns, see “Sorting Information” on page 21.

To see information about a Storage Group:

t In the Storage Groups list, select a Storage Group.

The Storage Groups page displays all the information for the selected Storage Group. If the Details panel is not visible, click Details.

The Media Packs panel lists the Media Packs allocated to the currently selected Storage Group, as well as Media Packs available for allocation to the Storage Group.

For information about the Media Packs panel, see “Media Packs List” on page 73. Some columns are hidden by default (see “Showing and Hiding Columns” on page 20).

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Deleting Storage Groups

You can delete a Storage Group only if it is empty (does not contain Workspaces). If the Storage Group you want to delete contains Workspaces, see “Deleting a Workspace” on page 40.

To delete a Storage Group:

1. From the Management Console home page, click Storage Groups in the System section. The Storage Groups page opens.

2. In the Storage Groups list, select the Storage Group you want to delete.

3. Click Delete. A dialog box opens asking you to confirm the action.

4. Click Yes. The Storage Group is deleted.

After the Storage Group is deleted, all of the Media Packs previously in the Storage Group appear in the Media Packs panel as Spare.

Managing Workspaces

In addition to creating and deleting Workspaces, you can change the name, size, user access and pe rmi ssions, and event triggers.

Callout Description

1 Action button toolbar—Perform actions on selected Workspaces 2 Workspaces list—Lists all configured Workspaces and related information; see “Workspaces List” on page 34 3 Details panel—Detailed information on the selected Workspa ces; see “Displaying Workspace Details” on

page 34

4 Filter panel—Filter the Workspaces list display based on conditions you configure; see “Filtering the Display”

on page 21

Callout Description

5 User access panel—Displays users who have access to the selected Workspace and details about their access

privileges; see “Managing User Access Privileges for Workspaces” on page 41

Workspaces List

The Workspaces list displays all Workspaces, the Storage Groups they are in, and Workspa ce details.

Heading Description

Name Lists the names of all Workspaces in the selected Storage Groups Capacity Lists the total storage capacity of each Workspace Resize slider Displays a graphical representation of the used and available space for each Workspace

Maximum Lists the maximum amount of storage space available for the Workspace on the network Media Pack Protection Mode Displays the protection mode applied to the Workspaces Used Displays the amount of storage space currently in use in the Workspace % Used Displays the percentage (%) of Workspace capacity currently in use Reserved Displays the amount of storage space that has been reserved for use by the Workspace

(for more information, see “Using the Wo rkspace Size Graph” on page 39)

Unused Lists the amount of storage space that currently has no data written on it in each

Workspace

Space on Disk Lists the amount of disk space actually used by the data in the Workspace, accounting for

the Workspace protection mode and some overhead.

Status Displays the Workspace status, such as:

• Workspace is about to be deleted (“Delete pending”)

• Workspace is running out of space

• Workspace is full

• Rebuild pending

• Rebuild in process (shows percent done)

Config Changes Displays the number of changes to a Storage Group that involve moving data — for

example, the number of times a Media Pack has been added or removed Storage Group Displays the Storage Group that contains the Workspace Files Lists the total number of files stored in the Workspace

To sort the information in the Media Packs panel, click any column headin g. For more information on sorting

items in columns, see “Sorting Information” on page 21.

Displaying Workspace Details

To see detailed information about a Workspace:

t In the Workspaces list, either select a Workspace and click Details, or double-click a W o rkspa ce name.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel. The Details panel contains the same information as the Workspaces column list (except the Resize slider and the

Maximum storage space), and includes the following additional information:

Heading Description

Directories Displays the number of directories used by the selected Workspace Warning Event Trigger Displays the value in used percentage (%) or unused gigabytes (GB) of storage at which a

warning event is written to the Event Log

Error Event Trigger Displays the value in used percentage (%) or unused gigabytes (GB) of storage at which an

error event is written to the Event Log

The User Access panel lists all users and user groups and their access privileges. (For information on access privileges, see “Managing User Access Privileges for Workspaces” on page 41.)

Heading Description

Name Lists the names of the users and user groups on the network Type Displays the client category (user or user group) for each client in the Name list Access Lists the access privileges for each client in the Name list Effective Lists the effective access privileges for each client in the Name list Reason Lists the reason for any difference between the access privileges assigned to a user and the effective access

assigned to a user as a member of a user group

To sort the information in the User Access panel, click any column heading. For more information on sorting

items in columns, see “Sorting Information” on page 21.

Workspace Considerations

Before you create Workspaces:

• Consider how you want to allocate them. For example, yo u can allocate them to projects, groups, individual

clients, streaming bit rates, media types, media distributors, or a combination of these.

• Consider whether you want to apply access restrictions, and what type.

• Determine how much storage each Workspace requires and allocate space accordingly. This might be a

function of project size, number of clients, media duration, or media resolution.

• Determine the type of data protection you want to apply to the Workspace. See “Workspace Protection” on

page 36.

In a multiple Workspace configuration, consider reserving some space rather than assigning all of it immediately. Once space is allocated, it tends to be filled quickly and you might nee d space later to accommodate a new project or client or to extend or protect an existing Workspace. In these situations, it is easier to use space held in reserve than to take it away from an existing Workspace.

Workspace Protection

Workspaces serve different purposes, and might need different levels of protection against data loss when a drive in a Media Pack fails. Avid recommends protecting all your Workspaces whenever possible.

Choose from one of the following Media Pack protection modes when you create a Workspace:

• Two Disk Protection — Workspace data can tolerate the failure of two drives in the same Media Pack at the

same time. Offers the best protection but requires the most space in the Storage Group.

• One Disk Protection — Workspace data can tolerate the failure of one drive in the Media Pack. Offers some

protection, but requires timely replacement of failed drives.

• Unprotected — Workspace data is lost if a single drive in the Media Pack backing the Workspace fails. Uses

the least space in the Storage Group.

If you want to ensure protection of your files at all times, always choose a protection mode when creating new Workspaces (before any files are stored on the Workspace). You cannot change the protection mode later.

If a Storage Group contains Workspaces with different protection modes, when Media Pack drives fail, the Workspaces with one-disk protection are rebuilt at a higher priority than those with two-disk protection. After all one-disk protected Workspaces are rebuilt, the two-disk protected Workspace rebuilds begin. The Workspaces list displays the rebuild operations pending and in process (including p ercent done) for all Workspaces.

Creating a Workspace

You can create up to 1024 Workspaces on the Avid NEXIS system. Each Workspace can have unique access privileges, permissions, protection modes, and event triggers. At least one Storage Group must exist before you can create a Workspace; see “Creating a Storage Group” on page 29.

If no Workspaces exist, the Create Workspace dialog box opens by default when you select the Workspaces list.

To add a new Workspace:

1. From the Management Console home page, click Workspaces in the System section.

The Workspaces page opens.

2. Click New.

The Details panel opens.

3. In the Name text box, type a name for the Workspace.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

4. Choose a protection mode for the Workspace. Each Workspace in a Storage Group can use a different mode.

5. [Option] If you have multiple Storage Groups, click the Storage Group drop-down list and select the Storage Group in which you want to create the Workspace.

The Storage Group name appears in the Storage Group text box.

6. Type a size for the Workspace in the Capacity text box. The Capacity text box contains the default size (214.74 GB), and the maximum size is shown next to it.

The minimum Workspace size is 1.073 GB.

If all storage in the Storage Group is allocated to existing Workspaces, you can recapture some space by making an existing Workspace smaller. For more information, see “Resizing a Workspace” on page 38.

7. (Option) T o set a Warning event trigger, select the type of trigger from the drop-down list (either Used % > or Unused GB <), then type in a value.

8. (Option) To set an Error event trigger, select the type of trigger from the drop-down list (either Used % > or Unused GB <), then type in a value.

For more information, see “Setting Event Triggers for a Workspace” on page 39.

9. In the User Access pa nel, set the User and User Group access privil eges (for more information, see “Setting or

Changing Workspace Access Privileges” on page 41).

10. Click Apply.

The new Workspace appears in the Workspaces list, and the Create Workspace dialog box refreshes to allow you to create a new Workspace.

If a Workspace with the same name exists already, an error occurs.

11. If you are done creating Workspaces, click Close.

Duplicating a Workspace

When you duplicate a Workspace, the new Workspace inherits all the attributes of the original. You can change any of the attributes on the new Workspace except the protection mode. The new Workspace does not contain the data from the original.

The Storage Group must contain at least as much available space as the size of the Workspace you are

duplicating.

By default, the new Workspace inherits the name of the Workspace being duplicated, with a numeric suffix. For example, if the original Workspace is named Ingest, the duplicated Workspace is named Ingest1. You can change the name of the duplicated Workspace.

To duplicate a Workspace:

1. From the Management Console home page, click Workspaces in the System section. The Workspaces page opens.

2. Select the Workspace you want to duplicate.

3. Click Duplicate. The Duplicate Workspace dialog box opens.

4. (Option) You can change the name, size, event triggers, or user access, but not the Workspace protection mode.

5. Click Apply. The new Workspace appears in the Workspace list, and the Details panel is refreshed. If there is no room for a Workspace of the specified size, the Capacity field displays a red line and the Apply

button becomes inactive.

6. Click Close.

Renaming a Workspace

You can rename a Workspac e at any time, even when it is b eing used by client workstatio ns and mapped to a local drive or by letterless mapping (to a Universal Naming Convention path) on the client system. The only effect on users is that the Work space name will be different the next time they need to access it.

As a best practice, Avid recommends that users unmount the Workspace you want to rename before you proceed.

To rename a Workspace:

1. From the Management Console home page, click Workspaces in the System section. The Workspaces page opens.

2. In the Workspaces list, click the Workspace name you want to change.

3. If the Details panel is not visible, do one of the follo wing:

t Click Details. t Double-click the Workspace name.

The Workspaces Details panel displays all the information on the selected Workspace.

4. Type a new name in the Name text box.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

5. (Option) Click Revert to undo any modifications made to the Workspace information.

6. Click Apply.

Resizing a Workspace

You can change the size of a W orkspace at any time, exc ept you cannot make it smaller than the amount of in-use space, or less than the minimum size (1.073GB). If you have set event triggers on a Workspace, and you receive notification that a Workspace is running out of free space, you can increase its size.

Alternatively, you might need to make a Workspace smaller to create space in the Storage Group for other Workspaces or to reserve storage for future use. (You cannot reduce a Workspace to less than the amount of its inuse space.)

Y o u cannot make a Workspace lar ger than the maximum available space in the Storage Group, or smaller than the

amount of used space in the Workspace.

The Storage Group must contain at least as much available space as the amount by which you want to increase the Workspace. If not, add more Media Packs to the Storage Group first; see “Adding Unassigned Media Packs to

Storage Groups” on page 30.

To change the size of a Workspace:

1. From the Management Console home page, click Workspaces in the System section. The Workspaces page opens.

2. In the Workspaces list, select a Workspace.

3. Do one of the following: t Cl ick the handle of the Workspaces size graph, and drag it to resize the graphical display. The W orkspace

size listed in the Capacity text box changes as you drag the handle. See “Using the Workspace Si ze

Graph” on page 39.

t Click Details and type a new value for the Workspace size in the Capacity text box in the Workspace

Details panel.

4. Click Apply.

Using the Workspace Size Graph

r t

The Workspace Size graph provides a quick way to see and change how much storage capacity is currently allocated to each Workspace and how much of that storage space currently has data written on it. The graph represents the following:

• Workspace size—total disk space in the Storage Group allocated to each Workspace

• Used space—used disk space in the Workspace

• Unused space—unused disk space in the Workspace

• Maximum Workspace size—total of W orkspace size plus rema ining disk space in the Storage Group available for allocation to each Workspace

Callout Description

1 Decrease/Increase buttons—Increases or decreases the scale of the graph (zooms in or out) 2 Resize slider—Click and drag to increase or decrease the Workspace size; see “Resizing a Workspace” on

page 38

3 Used Space 4 Unused space 5 Maximum Workspace size—total of Workspace size plus space in the Storage Group still available for

allocation to each Workspace

Setting Event Triggers for a Workspace

You can set event triggers that will write events to the Event log when Workspace capacity (in gigabytes) is less than a specified value, or when used Workspace capacity exceeds a specified percentage. You can create triggers for both Warning and Error events:

• Warning events indicate that the amount of used or unused space in the Workspace is nearing a threshold that

you set, and you have time to take action (increase the size of the Workspace or change the event trigger) before it can cause problems.

• Error events indicate that the amount of used or unused space in the Workspace has already met the critical

threshold that you set. Take immediate action to correct the problem.

If you have email notifications enabled, you can receive email notifications when Workspace capacity events occur. For more information, see “Receiving Notification of System Problems” on page 5.

To set an event trigger:

1. In the Workspaces list, select the Workspace for which you want to set a trigger.

2. If the Details panel is not visible, do one of the follo wing:

t Click Details.

t Double-click the Workspace name.

3. (Option) Select one of the following from the Warning Event Trigger drop-down list:

t Unused GB < (Trigger a warning when unused capacity falls below the specified value, in gigabytes) t Used % > (Trigger a warning when used capacity exceeds the specified percentage value)

4. Type a value in the text field for the capacity at which you want the event to be triggered.

5. (Option) Select one of the following from the Error Event Trigger “used” list:

t Unused GB < (Trigger a warning when unused capacity falls below the specified value, in gigabytes) t Used % > (Trigger warning when used capacity exceeds the specified percentage value)

6. Type a value in the text field for the capacity at which you want the event to be triggered.

7. Click Apply.

8. Click Close.

Deleting a Workspace

You can delete W orkspaces (singly or in multip les) that are not currently bein g accessed by any clients, wheth er or not the Workspaces have media files stored on them.

Before deleting a Workspace, make sure that its media is moved, backed up, or no longer needed. Deleting a Workspace returns its capacity to the amount of available space in the Storage Group.

If you delete a Workspace that has been mapped to a local drive by a client, the client can no longer access that Workspace. Clients should unmap the deleted Workspace using the Avid Client Manager. For more information, see the Avid NEXIS Client Manager Installation and User’s Guide or the Client Manager Help.

Redistribution starts automatically when you delete a Workspace. During periods of high client usage, this might reduce client performance, resulting in dropped frames, underruns, and failed captures. If possible, delete Workspaces during periods of light client activity.

You can suspend and resume a redistribution as needed.

To delete a Workspace:

1. From the Management Console home page, click Workspaces in the System section.

The Workspaces page opens.

2. In the Workspaces list, select the Workspace you want to delete.

3. Click Delete.

A dialo g bo x opens, promp tin g you to co nfirm the ope rati on .

4. Click Yes.

The Workspace is deleted.

Managing User Access Privileges for Workspaces

You can set privileges for user and user group access to Workspaces:

• Read/Write—User (client) can read and write to the Workspace

• Read—User (client) can read only read from the Workspace

• None—User (client) cannot read, write, or mount the Workspace By default, new accounts do not have access privileges to Workspaces until an administrator assigns them (see

“Creating Users” on page 51). You can customize access for each client to every Workspace, if necessary.

You can control access either from the Workspace level (specifying the access to that Workspace for every user and group on the system)—or from the user or group level (granting access to a user or group for all or specific Workspaces, or preventing a user or a whole group of users from access ing one or more Worksp aces).

To modify an individual client’s or group’s access privileg es, see “Chan ging User De tai ls” on page 52. To control access to a Workspace for all users and groups, see “Setting or Changing Workspace Access Privileges” on

page 41.

You also can give users different access privileges from those given to the group to which they belong. The group’s privileges set the baseline for all group members, and you can tailor the privileges for specific members of that group.

For example, you can grant a group read/write access, then restrict some members to read-only or no access. Alternatively, you can give the group read-only (or no) access, but specify read or read-write access for some members of the group. This can be useful for projects that include users who need a variety of permissions.

Changes to Workspace privileges have the following effects:

Current Privilege New Privilege Effect

None Read or Read/Write Available immediately Read Read/Write Available immediately Read/Write Read Apply immediately. If a file is open for writing, client retains

write privilege until file is closed.

Read or Read/Write None If a client is already at the Workspace se lection sta g e when the

access privileges are removed, the Workspaces remain in the display. Future attempts to access the Workspaces will be unsuccessful.

Setting or Changing Workspace Access Privileges

You can set access privileges for users and user groups when the client accounts are created (see “Creating Users”

on page 51 and “Adding User Groups” on page 62), or later (see “Changing User Details” on page 52).

Alternatively you can set, modify, and monitor access privileges to Workspaces without having to modify individual client accounts.

Make sure all users have unmoun ted the Workspace before you change its access privileges.

To set or change user or user group access to a Workspace:

1. From the Management Console home page, click Workspaces in the System section.

The Workspaces page opens.

2. In the Workspaces list, select a Workspace.

3. If the Details panel is not visible, do one of the follo wing:

t Click Details. t Double-click the Workspace name.

The Workspaces Details panel displays all the information on the selected Workspace.

4. In the User Ac cess panel, sel ect a user or a user group. Ctrl+click (W i nd ows a nd Lin ux) or Cmd+click (Mac) to select multiple users and user groups. Click Select All to select all users and user groups.

5. Change the Workspace privilege.

6. (Option) Click Revert to undo any modifications made to the user access information.

7. Click Apply.

Workspace Redistribution

Redistribution is an operation that ensures all files in a Workspace are balanced evenly across the Media Packs in the Storage Group to provide optimal file system p erformance. Data chu nks are di stribute d across mult iple Media Packs to ensure redundancy and protect against data loss. Redistribution applies to all Workspaces in a Storage Group.

Operations that initiate redistribution of data include:

• Adding or removing Media Packs from a Storage Group

• Deleting Workspaces

About Configuration Changes

The configuration of a Storage Group is based on the Media Packs that make up that group. When you add or remove Media Packs from the Storage Group:

• A configuration change is made

• An incremental redistribution is performed to balance the files in the Storage Group across the Media Packs Deleting Workspaces results in a redistribution but does not cause a configuration change. You can see the number

of configuration changes that have been applied to a Workspace; see “Displaying Workspace Details” on page 34. After 20 configuration changes, the Workspaces page displays a warning to perform a full redistribution. You can

manually initiate a Full Redi stribution a t any time us ing the Workspaces page in the Management Console. If you do not do so, the system continues to function, but the affected Workspaces and the System Status Panel general status remain at Warning until a full redistribution is performed (see “Performing a Full Redistribution” on

page 43).

After 30 configuration changes without a full redistribution, the system will perform a full redistribution automatically. This could significantly reduce system performance until the redistribution operation has completed.

Redistribution Guidelines and Reference Information

• The Avid NEXIS supports add, remove, and full redistributions under load.

- A load condition exists wh en the Workspace has active clients (reading and writing to the Workspace).

- A no load conditi on exists when a Workspace is not mounted or has inactive clients (the Workspace might

be mounted but clients are not performing reads or writes).

• When redistributing under load, allow the redistribution to complete before initiating a second redistribution.

• System performance can degrade significantly during redistribution in a Storage Group with the maximum client count. Reducing the number of clients allows the active clients using the Storage Group to function normally, with successful playback and captures. Perform redistributions during periods of light client activity, or reduce the overall load if client performance degrades (for example, the client experiences dropped frames, underruns, and failed captures). Limitations on expected client performance during redistribution include the following:

- Reducing audio tracks from 8 to 4 during playback might be required during redistribution. (Normal

operation supports 2 streams of video 8 tracks of audio.)

- Reducing the number of video streams from 2 to 1 might be required during redistribution. (Normal

operation supports 2 streams of video.)

You can suspend and resume a redistribution as needed.

• The amount of time a redistribution takes depends on whether the Workspace is in a load or a no load condition, whether you are addi ng or removing a Media Pack, and h ow much data in the Storage Group must be redistributed.

• Redistributions are performed on 20 Workspaces at a time. If your Storage Group exceeds 20 Workspaces, the Workspace status shows “Redistribution In Process” for the first 20 Workspaces and “Redistribution Pending” for the rest of the Workspaces in that Storage Group. As Workspaces finish with the redistribution, the Workspaces with “Redistribution Pending” status start to redistribute until all the Workspaces in that Storage Group have finished the redistribution.

• Do not physically remove a Media Pack until it has been removed from the St orag e Group, the redistribution is complete, and it has been unbound.

If you physically remove a Media Pack from the shared storage network before redistribution is complete, or if you physically remove more than one Media Pack from a Storage Group before performing a redistribution, data loss can occur.

If you turn off any of the Engines before redistribution is complete, data loss can occur.

Performing a Full Redistribution

In addition to automatic redistribution operations (see “Workspace Redistribution” on page 42), you can also initiate redistribution manually; for example, to perform a full redistribution when the Config Changes count exceeds 20. (For information about Config Changes, see “Displaying Workspace Details” on page 34.)

When the Config Changes count reaches 20, a message warns you to perform a redistribution.

You can choose specific Workspaces to redistribute, or select one or more Workspaces from one or more Storage Groups, and redistribute all the Workspaces associated with those Storage Groups.

When redistributing files manually, redistribute all Workspaces in a Storage Group. Avid does not recommend performing a full redistribution on some Workspaces in a Storage Group but not on others.

To redistribute Workspaces manually:

1. From the Management Console home page, click Workspaces in the System section. The Workspaces page opens.

2. Do one of the following:

t Select a single or multiple Workspaces in the same Storage Group t Select multiple Workspaces from different Storage Groups

3. Click Advanced Commands. The Advanced Workspace Commands dialog box opens.

4. Do one of the following:

t To start redistribution for only the selected Workspaces, click Full Redistribution. t To start redistribution for all Workspaces in the Storage Groups of the selected Workspaces, click Full

Redistribution for All.

A confirmati on message box ope ns.

5. Click OK. Files are redistributed, and the count in the Config Changes column is reset to zero. The amount of time

required for the redistribution depends on the amount of d at a in the Workspaces.

6. If Media Packs have rebooted following the completion of a full redistribut ion, do the following: a. Click Advanced Commands.

The Advanced Workspace Commands dialog box opens.

b. Select Verify Redistribution, and then click Send.

Suspending and Resuming Redistribution

Under some conditions, you might have to suspend or resume an in-progress redistribution. You can do this with the Advanced Commands options available on the toolbar in the Workspaces page, which also lets you suspend or resume redistribution of all Workspaces associated with the same Storage Groups.

To suspend the redistribution on a Storage Group that has more than 20 Workspaces, suspend all the Workspaces

in that group.

Use of the Resume Redistribution and the Suspend Redistribution options can result in degraded system performance. Suspending redistributions can have serious consequences for the file system if not monitor ed closely. These two Advanced Commands options should be used by Avid Customer Care personnel or under Avid Customer Care direction.

You can also use the Advanced Commands to verify a redistribution. Verification makes sure that all bad blocks on the appropriate Media Packs have been deleted and that the redistribution has completed successfully. Use the Verify Redistribution command after you upgrade your Engine. In this case, Media Packs might report a “Repairing Mirrors” status on reboot; verifying the redistribution replays the redistribution operation using the current configuration and restores the status to normal.

Verification has minimal impact on performance and completes quickly.

To suspend a redistribution:

1. Open the Management Console. (For information on opening the Management Console, see “Opening the

Management Console” on page 13.)

2. Click Workspaces in the System Area. The Workspaces page opens.

3. Do one of the following:

t Select specific Workspaces, then click Advanced Commands. t Select a single Workspace, then click Advanced Commands. t Select one or more Workspaces from different Storage Groups, then click Advanced Commands.

The Advanced Workspace Commands dialog box opens.

4. Do one of the following: t Click Suspend Redistribution.

Only the selected Workspaces suspend redistribution.

t Click Suspend Redistribution for All.

Redistribution is suspended for all Workspaces associated with the Storage Groups of the Workspaces you selected.

A confirmati on message box ope ns.

5. Click Send.

When you manually suspend a redistribution, you must also manually resume it. Suspending redistributions should be considered temporary — do not leave Workspaces in the suspended state for extended periods of time.

To resume a redistribution:

1. Open the Management Console. (For information on opening the Management Console, see “Opening the

Management Console” on page 13.)

2. Click Workspaces in the System Area. The Workspaces page opens.

3. Do one of the following:

t Select specific Workspaces with suspended redistribution, then click Advanced Commands. t Select a single Workspace, then click Advanced Commands. t Select one or more Workspaces from different Storage Groups, then click Advanced Commands.

The Advanced Workspace Commands dialog box opens.

4. Do one of the following: t Click Resume Redistribution.

Only the selected Workspaces resume redistribution.

t Cl ick Resume Red ist ri bu tion for All.

Redistribution is resumed for all Workspaces associated with the Storage Groups of the Workspaces you selected.

A confirmati on message box ope ns.

5. Click Send.

To verify a redistribution:

1. Open the Management Console. (For information on opening the Management Console, see “Opening the

Management Console” on page 13.)

2. Click Workspaces in the System Area. The Workspaces page opens.

3. Select the Workspace where the redistribution has completed.

4. Click Advanced Commands. The Advanced Workspace Commands dialog box opens.

5. Select Verify Redistribution.

6. Click Send.

Monitoring Redistributions

You can display detailed information about the progress of redistributions in the Redistribution Monitor tool. The Redistribution Monitor tool displ ays a table listing the status of redist ributions, th e rate and remaining t ime of

the redistribution, and other information.

To display details about redistribution:

1. Do one of the following:

t If a redistribution is in process, click the Redistribution Monitor icon in the Status console. t In the Management Console, click Redistribution Monitor under the Tools heading. t From the Workspaces tool, the Media Packs tool, or the Storage Groups tool, click Redistribution

Monitor in the Related Links section. The Redistribution Monitor tool opens, displaying the information shown and described below. The Overview section displays the redistribution status, with the number of Workspaces in the process of

redistribution, and the number of Workspaces pending (yet to be redistributed). It shows a progress bar, the overall system rate (in GB/hr; the rate column in the table displays blocks per hour), the system time remaining for the redistribution to be complete (same as shown in the table), total GB done, and remaining GB.

Heading Description

Name Media Pack name Host Name Host name of the Storage Controller State The state of the Media Pack Status Redistribution status Progress When a redistribution is in under way, displays a progress bar and the percentage of redistribution

currently complete. Rate (blocks/hr) Estimated number of blocks that can be moved in one hour Time Remaining Estimated amount of time for the redistribution to complete, based on system load, amount of data,

and the rate. This is not a guarantee or promise of how long the redistribution will take. Blocks to Move T otal number of blocks still to be moved Blocks Moved Number of blocks that have been moved so far Status Time Time that the last status data was retrieved

Redistribution Status Definitions

The following table lists the Status Messages logged by the Sy stem Director Service during a redistribution, and a brief description of the error. Other Media Pack errors, not strictly related to redistribution, can also occur, interrupting redistribution or causing it to fail. See “Media Pack Status” on page 75.

Status Severity Comments

Initializing Redistribution

Redistributing Warning The Media Pack is evenly redistributing data across all the disks in the Storage

Stalled Redistribution

W arning The Media Pack is determining which blocks will be moved. The redistribution status

is displayed in the Redistribution Monitor page.

Group. The time it takes to redistribute the data depends on the amount of data in the Storage Group.

Warning The Media Pack is currently stalled while trying to move blocks to other Media

Packs. This might be a temporary condition; if it persists and the overall redistribution has been determined to be stalled contact Avid Customer Care.

4 Managing Clients

Create a client account for any client type (user, group, or device) that needs to access the Avid NEXIS shared storage network. Client accounts allow access from users, groups, and devices to the Workspaces on the Avid NEXIS system, and prevent unauthorized users from accessing other users’ data. When you create client accounts, you set basic client information, such as user names and passwords.

User accounts have administrative privilege levels, group membership types, and Workspace access. There can be more user accounts than connected clients. The Avid NEXIS system has a built-in user account named Guest, which you cannot rename or delete.

Each user and user group account has an associated privilege level that controls their access to files stored in the network.

Instead of (or in addition to) manually creating accounts, you can configure external authentication to allow LDAP users to connect to the Avid NEXIS. To import LDAP users, see “Managing LDAP Accounts” on page 54.

Users must have access to at least one Workspace before they can use the shared storage network.

The Avid NEXIS Management Console allows you to create client accounts for each client connected to the system, and maintains a record of all attached clients. The client accounts are listed in dialog boxes for each client type.

Some clients might not be able to connect to the shared storage network if the combined bandwidth requ ir ement of

connected components equals the system limit for bandwidth use. For information on monitoring bandwidth use, see “Monitoring Client Bandwidth” on page 82.

Managing Users

The Users page of the Management Console allows you to create, modify, and delete user accounts; assign users to specific groups; and manage access privileges for all users.

The default Administrator account is not considered a user, and is not shown in the Users panel. A user is an account that accesses the Avid NEXIS file system primarily through a client system. The Administrator account is not such a user. You cannot create a new user account with the name Administrator or administrator.

The Guest account is on every Avid NEXIS system by default, and has no password. Users who log in to the system with the Guest account do not see all the featu re s and fu nc tionality that an Administrator sees.

When you double-click a user (or select a user and click Details), a Details panel opens to the right of the main Users panel.

Callout Description

1 Action button toolbar—Perform actions on selected users 2 Users list—Lists all users and related information; see “Users List” on page 49 3 Details panel—Detailed information on the selected users; see “User Details Panel” on page 50 4 Group membership—Displays information about the group membership for the selected user; see “Creating

5 Workspace access—Displays information about the Workspace access for the selected user; see “Creating

6 Filter panel—Filter the user list display based on conditions you configure; see “Filtering the Display” on

Users List

The Users list panel displays the following information.

Heading Description

Name Lists the client name

Users” on page 51 and “Changing User Details” on page 52

page 21

Heading Description(Continued)

Flags Indicates the status of client privileges Bandwidth Displays the client’s bandwidth allocation.

To sort the information in the Users panel, click any column heading. For more information on sorting items in

columns, see “Sorting Information” on page 21.

User Details Panel

The User Details panel displays the foll owing information.

General Details

Heading Description

Name Lists the user name Password Lets you change the password (up to 15 ASCII characters) for the user to log in to

Verify Re-enter the new password to verify it

Setting a bandwidth limit on editing clients, such as Media Composer when the Avid NEXIS system is under load.

the system

, can decrease playback performance

Bandwidth (MB/sec) Lets you change the amount of bandwidth the account can use (default is 0, which

means unlimited bandwidth) User Flag: can resize When checked, allows the user to resize their Workspaces User Flag: remote LDAP user When checked, allows LDAP authentication and group privileges User Flag: disable user Disables the use r acc ount

Group Membership

Heading Description

Name Lists the names of available groups T y pe Lists the user’s membership status for each group (Member or Non-Member)

Workspace Access

Heading Description

Name Lists the names of available Workspaces Access Lists the user’s access privileges for the Workspace Effective Lists the effective access privileges for the selected user for the Workspace

Workspace Access

Heading Description(Continued)

Reason Lists the reason for any difference between the access privileges and the effective access

Creating Users

To create a user account:

1. From the Management Console home page, click Users in the System section.

The Users page opens.

2. Click New.

The Create User dialog box opens.

3. Enter a password for the user account, the amount o f sy stem ba nd wi dth the account can use, and set any user flags (for more information, see “User Details Panel” on page 50). The user password can be up to 15 ASCII characters long.

4. (Option) In the Group Membership list, select a group, and click Member to make the user a member in th e group.

By default, new users are listed as “Non-Member” in the Type category for each group. The Non-Member button is inactive until you assign the user a group membership.

assigned the selected user

The Group Membership list shows the user as a member of the group.

5. (Option) In the Workspace Access list, select one or more Workspaces and do one of the following: t Click Read to set read-only access for the user.

By default, access privileges for new users are listed as “None” in the Access category for each Workspace. The None button is inactive until you set the access. (For information on permissions for Workspace access in the network, see “Managing User Access Privileges for Workspaces” on page 41.)

t Click Read/Write to set both read and write access for the user.

The Workspace Access list shows the new user access privileges for the selected Workspace.

6. Click Apply.

7. Click Close to close the Create User dialog box and to return to the Users page. The new user appears in the Users list.

Duplicating Users

T o quickly create additional user accoun ts based on one you have already created and modified, you can duplicate the user. Duplicated users inherit the bandwidth allocation and access privileges of the accounts from which they were created.

To duplicate a user account:

1. In the Users list, select the user account you want to duplicate.

2. Click Duplicate. The Duplicate User dialog box opens.

3. (Option) Modify any of the attributes of the new user. For more information see “Changing User Details” on

page 52.

4. Click Apply to create a new user containing the attributes of the selected user. The duplicate user appears in the Users page, and the Duplicate User dialog box refreshes to allow you to

duplicate a new user. The new user account has a default name — user n, where n is an integer that is incremented each time you

click Apply to create another duplicate user account.

5. Click Close to close the Duplicate User dialog box and to return to the Users page.

Changing User Details

You can rename a user account and also change the password, allocated bandwidth, privileges (including disabling or re-enabling it), group memberships, and the Workspaces the user can access.

You can modify a user account at any time, even when it is being actively used in your work environment, but Avid recommends that users unmount a Workspace if you are changing their access to it.

You cannot rename or delete the default Guest account, but you can change the password (default is blank; no

password), its group membership and Workspace access, and the user flags.

To modify a user account:

1. From the User list, do one of the following:

t Select the user account you want to modify, and click Details. t Double-click the user name.

The Details panel displays information about the selected user account.

2. Modify the user options as required. For a list of options, see “Creating Users” on page 51.

3. Modify group membership for the user as required:

t Click Member to add the user to the group. t Click Non-Member to remove the user from the group.

4. Modify Workspace access for the user as required:

t Click None to remove Workspace access privileges for the user. t Click Read to set read-only Workspace access for the user. t Click Read/Write to set both read and write Workspace access for the user.

For information on permissions for Workspace access in the network, see “Managing User Access Privileges

for Workspaces” on page 41 and “Setting or Changing Workspace Access Privileges” on page 41.

5. (Option) Click Revert to undo any modifications made to the user information.

6. Click Apply.

Deleting Users

You can delete any user account except the default Guest user. If you want to keep an account but temporarily prevent its access to the shared storage network, see “Disabling Users” on page 53. Deleting a user that belongs to a group also removes that user name from the group list. If you remove all the users in a group, the group itself is not deleted.

If you delete the client account, its connection to the System Director is broken immediately and any mounted Workspaces are unmounted as soon as they are accessed.

To delete a user account:

1. Ensure that the client account to be deleted is not currently active.

2. From the Users list, select the user account you want to delete.

3. Click Delete. A dialo g bo x ope ns, promp tin g you to co nfirm that you wa nt to delete the client.

4. Click OK.

Disabling Users

You can remove a user temporarily from the Avid NEXIS shared storage network by disabling the account. This preserves the client accounts (they remain in the Users list) and allows you to restore their access to the system later.

To disable a user account:

1. Make sure that the client account to be disabled is not currently active.

2. From the Users list, select the client account you want to disable.

3. Do one of the following:

t Click Details. t Double-click the client name.

The Details panel displays information about the selected user.

4. Select the “disable user” check box.

5. (Option) Click Revert to undo any modifications made to the user information.

6. Click Apply.

7. Click Close to close the Details window.

Displaying User Details

The Details panel displays all information for the currently selected user.

To see information about a user:

t In the User list, click to select a user.

The Users page displays all the information for the selected user. If the Details panel is not visible, click Details.

To hide the User Details panel:

t Click the arrow next to the Details title bar.

To close the User Details panel:

t Click Close.

Managing LDAP Accounts

LDAP (Lightweight Directory Access Protocol) is an Internet protocol that some appli cat ions use to look up information — such as account information, user names, and groups — from a server. The LDAP Sync tool allows Avid NEXIS administrators to synchronize Avid NEXIS user accounts with existing LDAP user accounts and to create or modify a large number of users and groups within the Avid NEXIS system.

To use LDAP, you must have DNS configured. See “Configuring DNS Service” on page 105.

The LDAP Sync tool lets you:

• Display user accounts available within a given LDAP service but not in the Avid NEXIS system, and vice versa

• Add new groups and users to the Avid NEXIS system

• Grant user memberships to groups

• Remove user membership from a group in Avid NEXIS if the user no longer belongs to that group on the LDAP server

Users synchronized by the LDAP Sync tool will automatically be added as “Remote” users for authentication to the LDAP server.

The LDAP Sync Tool lets you search for groups and their users on an LDAP server, synchronize users and groups accounts by adding or removing users and groups from Avid NEXIS, generate a report of the account actio ns, and see a history of the synchronization activi ty. Configure a connection by entering the LDAP serv er’ s fully qualified name, port, and user distinguished name and password for authentication.

Users imported by the LDAP Sync Tool cannot log into the Avid NEXIS until it is configured for external

authentication. For more informa tio n, see “C onfiguring External Authenticatio n of Use r s” on pa ge 4. Avid NEXIS currently supports only Microsoft Active Directory, and might not be compatible with other LDAP

implementations.

Installing the LDAP Sync Tool

The LDAP Sync Tool is part of the Avid NEXIS software kit, but is not installed by default.

To install the LDAP Sync Tool:

1. In the Management Console, click Installers under the System heading.

2. In the Avid NEXIS Tools section, click the LDAP Sync Tool executable file appropriate for your operating system.

3. Save the executable file to your computer and install it.

Opening the LDAP Sync Tool

You can use the LDAP Sync Tool to configure LDAP connections. If you have not previously configured a connection, enter the connection name and other information specific to the particular LDAP server.

Contact your IT administrator to obtain your LDAP login information. Three failed connection attempts might result in your LDAP user account being disabled.

All connection information is stored locally for the connecting user’s account. To connect from a different

workstation or as another user, re-enter the Avid NEXIS and LDAP login informatio n.

Alternatively, you can configure external authentication on the Avid NEXIS to add the LDAP server. See

“Receiving Notification of System Problems” on page 5.

To open the LDAP Sync Tool:

1. Do one of the following:

t (Windows) From the Start menu select Avid > LDAPSyncTo ol > Avid LDAP Sync Tool. t (Mac) Select Applications > Avid NEXIS Tools > LDAP Sync Tool.

The Avid Login dialog box opens.

2. In the Hostname field, enter the host name of the System Director.

3. Enter the administrator password.

4. Click Connect. t If this is your first time using this tool and an LDAP server is configured, the LDAP Group Selection list

opens. See “Synchronizing LDAP and Avid NEXIS Accounts” on page 57.

t If this is your first time using this tool but no LDAP server is configured, the Connect to LDAP Server

dialog box opens. Enter the information for your LDAP server as shown below and click Connect.

t If the tool has been used before on this computer, the main window opens.

Using the LDAP Sync Tool

The Account Synchronizer is the main window of the Avid NEXIS LDAP Sync Tool. Use the Account Synchronizer to search the LDAP user accounts, synchronize (reconcile) user accounts by adding or removing users from the Avid NEXIS users list, generate a report of the account actions, and see a history of the accounts. You can also modify the display of the Account Synchronizer to filter out unneeded account information.

LDAP Sync Tool — Main Window (Account Synchronizer)

All LDAP r econciliation session data, suc h as r eports a nd history, are stored in the local user’s account. If you log

into another workstation and/or as a different user, th is information will not be available.

When you first connect to the Avid NEXIS and the LDAP server, the Account Synchronizer checks the users in the selected LDAP groups against the Avid NEXIS database and builds a set of actions to reconcile the two. The main window displays the complete set of groups, using buttons with colors and icons to indicate the reconciliation status of each group.

Icon Meaning

The group is in the LDAP database, but not in the Avid NEXIS system. The default action is to add the group and all users to the Avid NEXIS.

The group is in both LDAP and the Avid NEXIS system, but the users are different between the two:

• If the user is in LDAP but not the Avid NEXIS system, the user will be added to the Avid NEXIS system.

• If the user is in the Avid NEXIS system but not in LDAP, the user will be removed from the Avid NEXIS system.

The user will no longer share privileges with the group. The user will still be able to access the Avid NEXIS system, and

membership in other local or LDAP groups is unaffected.

The group is in both LDAP and the Avid NEXIS system, and all users are reconciled. No action is taken by default.

The user and/or group is in the Avid NEXIS system, but not LDAP.

By default, all users and groups in this entry will be permanently deleted. To prevent this, manually override the

default action before performing a Reconcile action.

The user is in an Avid NEXIS only group.

By default, all users and groups in this entry will be permanently deleted. To prevent this, manually override the

default action before performing a Reconcile action.

Click any button to see detailed information about the actions you can perform on users in each group.

Changing the Account Synchronizer Display

You can sort the columns in the display alphabetically, and add or remove LDAP groups from the Account Synchronizer display.

To sort columns:

t Click a column heading to sort the contents of the column alphabetically. Click the heading again to reverse

the sort.

To resize columns:

t Click and drag the divider between column headings.

Synchronizing LDAP and Avid NEXIS Accounts

Synchronizing the LDAP/Active Directory and Avid NEXIS user lists consists of the following steps:

• Selecting LDAP groups

• Specifying user-specific synchronization actions

• Performing the synchronization process

The synchronization process only reads the LDAP/Active Directory user list. The Avid NEXIS LDAP Sync Tool

will never alter the LDAP/Active Directory user list.

To add groups to the Account Synchronizer display:

1. Click Select Groups.

The LDAP Group Selection window opens.

On subsequent LDAP Sync Tool sessions, the main window will open after you log in and display the selected

groups from the last session.

2. Select the groups to be synchronized.

To Select This: Do This:

Single group Click the group name. Multiple non-contiguous groups CTRL-click each name to be selected. Multiple contiguous groups Click the first group name, then SHIFT-click the last group name. All groups Press CTRL-A.

3. Click Add Selected.

The LDAP Sync Tool builds a list of sync actions for the selected groups, and displays the selected groups in the main window.

4. (Option) To print a report of the account list and selections, click Print.

To remove groups from the Account Synchronizer display:

1. Select one or more rows and click Clear Selected to remove the row from the Group list. Ctrl+click

(Windows and Linux) or Cmd+click (Mac) or Shift+click to select multiple rows.

2. Click Clear All to remove all rows from the Group list.

To modify the default reconciliation actions for individual users:

1. Click the row in the Sync Status column for the appropriate group (each row in the Sync Status column is a button).

The Descriptive name window opens and displays the user names of all members of the group, as well as actions to be taken.

2. You can do the following: t To show all users, including those which are already reconciled, click Show All.

The “Show All” check box is disabled if a ll or no users in the gr o up ar e alr eady r econciled (all use rs ar e shown by

default).

t To override the default action, click the check box in the “Avid NEXIS Sync Action” column to deselect

it.

3. (Option) To print a report of the user list and selections, click Print.

4. Click Close to close the user selection window and return to the main window.

To synchronize LDAP/Active Directory and Avid NEXIS user databases:

t Click Synchronized Marked.

The LDAP Sync Tool performs the reconciliation actions, then displays the groups status in the main window.

To refresh selected entries:

1. Select one or more groups from the main window.

To Select This: Do This:

2. Click Reload All. Information about the selected groups is retrieved from th e LDAP server, reassessed, and displayed in the

main window.

To see and/or print the History log:

1. Click History. The Synchronization History window opens.

2. (Option) To print the History Log, click Print. The Print dialog opens.

3. (Option) To clear the History Log, click Delete History. The Delete History dialog box opens. Click Yes to delete the history.

4. To close the Synchronization History window, click Close.

To exit the LDAP Sync Tool

1. Do one of the following:

t Click File > Exit t Click Close Window in the upper right corner of the window.

A confirmati on windo w opens.

2. Click Yes. The application closes.

Importing LDAP Users with Incorrectly Formatted LDAP UIDs

When synchronizing users from the LDAP Synchronization Tool, the User ID (also known as the UID) must contain characters that Avid NEXIS allows for valid user names. The entry in the User ID column is used as the Avid NEXIS Username. User names and passwords must use only ASCII characters. See “Guidelines for Names

and Passwords” on page 23 for more information about valid and invalid characters.

If the User ID contains any invalid characters:

• The user will not be added to Avid NEXIS

• The synchronization for the group is aborted

• Any subsequent user accounts in the group are not reconciled

In such cases, do one of the following:

• Create the user in Avid NEXIS with a user name that does not contain these illegal characters, and manually add them to groups.

• Update the user entry in the LDAP database wi th a UID that contains n o illegal characters, then run the LDAP Sync Tool again to reconcile the users.

Disconnecting and Reconnecting the LDAP Servers

The connection status button icons indicate whether you are connected to the Avid NEXIS or LDAP servers:

Connected to Avid NEXIS

Disconnected from Avid NEXIS

Connected to LDAP server

Disconnected from LDAP server

You can use the connection status buttons to manually disconnect from and reconnect to the LDAP server. (If the connection to the Avid NEXIS is broken, close the LDAP Sync Tool, then restart it and log in again.) The button icons change depending on your current connection status.

You are disconnected from the Avid NEXIS or LDAP servers if their respective session time-out periods are

exceeded.

To disconnect from the LDAP server:

t Click LDAP.

The LDAP Sync Tool disconnects from the LDAP server, and the LDAP connection status button icon changes to Disconnected.

To connect (or reconnect) to the LDAP server:

1. Click LDAP.

The Connect to LDAP Server window appears.

The text fields will be filled in for you if you have previously logged into the LDAP server within the same session.

2. Click Connect.

The LDAP Sync Tool connects to the LDAP server and the Connection status icon changes to green (connected).

Managing Groups

Groups allow you to organize and manage users based on their common properties, such as by Workspace access, LDAP users, or other criteria.

Callout Description

1 Action button toolbar—Perform actions on selected user groups 2 Details panel—Detailed information on the selected user group; see page 61 3 User membership panel—Displays information about the membership for the selected user group; see “Adding

User Groups” on page 62 and “Modifying User Group Details” on page 62

4 User groups list—Lists all user groups and related information 5 Filter panel—Filter the user list display based on conditions you configure; see “Filtering the Display” on

page 21

6 Workspace access panel—Displays information about the Workspace access for the selected user group; see

“Adding User Groups” on page 62 and “Modifying User Group Details” on page 62

The Group Details panel displays the following information.

Panel Heading Description

Group Details Name Lists the user group name User Membership Name Lists the names of all users

Workspace Access Name Lists the names of available Workspaces

Adding User Groups

To add a group account:

1. From the Management Console home page, click Groups in the System section.

The Groups page opens.

2. Click New.

The Create Group dialog box opens.

3. Type a user group name in the Name text box.

Type Lists the user’s membership status for each user group (Member or Non-

Member)

Membership Count Lists the number of groups to which each user belongs (up to a maximum of 15)

Access Lists the access privileges for the selected user group

If a user group with the name already exists, an error message tells you to type a new name.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

4. (Option) In the User Membership list, select a user and click Member to make the user a member in the user

group. A user can belong to up to 15 user groups. By default, new users are listed as “Non-Member” in the Type category for each user group. As a result, the

Non-Member button is inactive until membership is set.

5. (Option) In the W orkspace Access list, select a Workspace or click Select All to select all Workspaces, and do

one of the following:

t Click Read to set read-only Workspace access for the user group. t Click Read/Write to set both read and write Workspace access for the user group.

By default, access privileges for new user groups are listed as “None” in the Access category for each Workspace. As a result, the None button is inactive until access is set. (For information on permissions for Workspace access in the network, see “Setting or Changing Workspace Access Privileges” on page 41.)

6. Click Apply.

7. Click Close to close the Create Group dialog box and to return to the Groups dialog box.

The new user group appears in the Groups list.

Modifying User Group Details

You can rename a user group account, change user membership, and modify Workspace access at any time, even when it is being actively used in your work environment.

To modify a user group account:

1. From the Groups list, do one of the following:

t Select the user group account you want to modify, and click Details. t Double-click the user group name.

The Details panel displays information about the selected user group account.

2. Modify the user group name as required. If a user group with the name already exists, an error message tells you to type a new name.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

3. Modify user membership for the user group as required:

t Click Member to make the user a member in the user group. t Click Non-Member to remove the user from the user group.

4. Modify Workspace access for the user group as required:

t Click None to remove Workspace access privileges for the user group. t Click Read to set read-only Workspace access for the user group. t Click Read/Write to set both read and write Workspace access for the user group.

For information on permissions for Workspace access in the network, see “Managing User Access Privileges

for Workspaces” on page 41 and “Setting or Changing Workspace Access Privileges” on page 41.

5. (Option) Click Revert to undo any modifications made to the client info rmation.

6. Click Apply.

Deleting User Groups

You can delete any user group account except the default Guest group (of which th e default user account , Guest, is a member). Deleting a group does not delete the user accounts who are members of the group.

To delete a user group account:

1. Ensure that the user group account to be deleted is not currently active.

2. From the Groups list, select the user group account you want to delete.

3. Click Delete. A dialo g bo x ope ns, promp tin g you to co nfirm that you re all y wan t to del ete the user gro u p.

4. Click OK.

Displaying User Group Details

The Details panel displays all information for the currently selected user group.

To see detailed information about a User group:

t In the Group list, click to select a user group.

The Groups page displays all the information for the selected user group. If the Details panel is not visible, click Details.

To hide the User Membership or Workspace Access panel:

t Click the arrow next to the Details title bar or the User Access title bar.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Managing Bandwidth Limits

The Bandwidth Limits panel lets you display and manage the bandwidth used by clients that can connect to the Avid NEXIS system. Some client applications try to use as much bandwi dth as possibl e, po tentially throttling other users of the system. To control this, you can modify the maximum amount of bandwidth a client can use.

Callout Description

1 Action button toolbar—Perform actions on selected Bandwidth Limit entries 2 List—Lists all client devices and related information; see “Bandwidth Limits Panel” on page 64 3 Details panel—Detailed information on the Bandwidth Limits; see “Displaying Bandwidth Limits Details” on

page 65

4 Filter panel—Filter the display based on options you configure; see “Filtering the Display” on page 21

Bandwidth Limits Panel

The Bandwidth Limits panel displays the following information.

Heading Description

Name Lists the client name Bandwidth Displays the current bandwidth for the client

You might need to set a bandwidth limit for a device such as an Avid AirSpeed server if it is consuming more

bandwidth than expected.

Bandwidth Mode Lists the mode used to allocate bandwidth (only Device Bandwidth is available) Description Displays the user-supplied device description, if any

Displaying Bandwidth Limits Details

The Bandwidth Limits Details panel displays the same information as the Bandwidth Limits list.

To see detailed information about a client or device:

t In the Bandwidth Limits list, double-click a name.

Adding a Bandwidth Limit Entry

Bandwidth limit entries are created in two ways: either manu ally (you create them) or aut omatically, when a client connects to the Avid NEXIS for the first time. You can prevent the automatic creation of entries in the Preferences page on the Management Console by selecting Force Manual Device Creation (see “Configuring

Management Console Preferences” on page 25).

For automatically created entries, the default bandwidth is determined by the Preferences page setting called Default Bandwidth for Auto Created Devices (MB/sec). The default value of zero (0) means the client has no limit (unlimited bandwidth).

To create a Bandwidth Limit specification for a client:

1. From the Management Console home page, click Bandwidth Limits in the System section. The Bandwidth Limits page opens.

2. Click New.

3. Type the name of the device in the Name text box. If a device with the same name already exists, an error message is displayed.

For information on valid and invalid characters, see “Gu idelines for Names and Passwords” on page 23.

4. (Option) Type a value in the Bandwidth text box to set the amount of read/write bandwidth (in MB/s) to allocate to the device. A value of 0 (zero) indicates that bandwidth will not be metered.

5. (Option) Type a description in the Description text box.

6. Click Apply. The Bandwidth Limits list refreshes and displays the new client.

7. Repeat steps 2 through 6 to add more clients.

8. When finished, click Close.

Changing a Bandwidth Limit Entry

You can rename an entry or change the allocated bandwidth or description at any time. Any changes take effect immediately, even if the user is connected.

To modify a Bandwidth Limit entry:

1. From the Bandwidth Limits list, select the entry to modify, and do one of the following:

t Click Details. t Double-click the name.

The Details panel displays information about the selected client.

2. Modify the options as required.

3. (Option) Click Revert to undo any modifications.

4. Click Apply.

Deleting a Bandwidth Limit Entry

You can delete a Bandwidth Limit entry for user-created clients or any entry you have modified.

To delete a Bandwidth Limit entry:

1. Make sure that the client account is not currently connected.

2. From the Bandwidth Limits list, select the entry to delete.

3. Click Delete. In the Delete Confirmation dialog box click Yes to confirm that you want to delete the entry.

4. Click OK. The entry is deleted and removed from the Bandwidth Limits list.

5 Managing Avid NEXIS Hardware

You perform all storage management operations from the Avid Management Console, which allows you to add, remove, configure, and manage your hardware.

For instructions on replacing failed hardware, see the Setup and Maintenance Guide for your hardware model.

For an overview of the Management Console and information about how to start the tool, see “Opening the

Management Console” on page 13.

Managing Engines

The Engines page of the Management Console allows you to see details and to monitor the status of all Engines connected to the shared storage network.

Engine List

The Engine list includes the following information.

Heading Description

Product Name Displays the model name of the Engine or System Director Appliance Product Part Number Displays the Avid part number for the Engine or System Director Appliance Enclosure ID Displays the number (from 00 - 99) assigned to the Engine. In a lab with many Avid NEXIS

systems, assigning an Enclosure ID can help you identify a particular Engine.

The Enclosure ID is displayed in the window on the left side of the Engine. Serial Number Serial number of the Engine Status Time The last time the System Director logged the status of the Engine Status Displays changes in the working status due to upgrade installation or failure. Available Lists the number of unbound Media Packs in each Engine Spare Lists the number of spare Media Packs in each Engine (the Media Pack is bound but not part of

a Storage Group) Active Lists the number of active Media Packs in each Engine Mode Indicates the function of the Engine, and can be one of the following values:

• Embedded — Running as the embedded System Director and providing storage

• External — Running as the System Director Appliance (does not provide storage)

• Expansion — Running as a storage Engine only

Displaying Engine Details

To see information about an Engine:

1. Do one of the following:

t Select an Engine and click Details. t Double-click an Engine name.

The Details panel displays all information for the Engine. The panel is divided into sections:

- Engine Details — displays the same information as in the Engine list

- Storage Controllers — displays information about the Storage Controllers in the Engine. Within this section you can select one or more controllers to upgrade, or open the Agent page relevant to the controllers by clicking Info.

- Media Packs— displays information also available in the Media Packs list. From this section you can select any number of Media Packs and open the Agent to the relevant page by clicking Info.

- Disks — displays information about the disks in the Engine. From this sec tion you can select o ne or more Media Packs and open the Agent to the relevant page by clicking Info.

You can sort the information in the details sections by clic king any column heading. Also see “Sorting

Information” on page 21.

You can see more detailed information on Engine components by using the Avid Agent tool. See “Avid NEXIS

Agent” on page 101.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Engine and Storage Controller Status

Engines or Storage Controllers can have one of the following status values, or no value (empty field). If the field is empty, the Engine or Storage Controller is operating normally.

Status Description

Installing The Avid NEXIS software is being installed Install failed The software installation failed. Contact Customer Care. Install waiting The installation is in progress Install needed A newer version of the Avid NEXIS software is available Install downloading The Avid NEXIS software kit is downloading from the Avid support site. Install Phase (1, 2, 3) The software installation is in the specified phase Invalid Configuration An unsupported Storage Controller is present in the Engine. Remove it and replace it

with a valid Storage Controller for the Engine type. For more information, see the Setup and Maintenance Guide for the Engine model.

Upgrading an Engine

When new releases of the Avid NEXIS software are available, you can upgrade the Avid NEXIS clients and Engines to take advantage of new features and bug fixes.

Typically, you upgrade the Avid NEXIS clients first, then upgrade the Avid NEXIS system. (For information on upgrading clients, see the Avid NEXIS Client Manager Installation and User’s Guide.)

You upgrade the system components through either the Management Console or the Agent, as follows:

System Component How to Upgrade

ISIS 1000, single-Engine system running v5.x Use the Agent ISIS 1000, multi-Engine system running v5.x Use the Agent for the Engine running the System Director,

then use the Management Console for the other Engines

To identify the System Director , see “Engine List” on page 67 Avid NEXIS, single Engine running v6.x Use the Agent Avid NEXIS, multiple Engines with embedded System

Director, running v6.x

System Director Appliance Use the Agent to upgrade the SDA, then use the Management

In a multi-Engine configuration, all the Engines (all Storage Controllers) and the System Director Appliance, if

applicable, must be running the same version before the system can resume normal operation. Upgrading an

Use the Agent for the Engine running the embedded System

Director, then use the Management Console for the other

Engines, if any. To identify the System Director, see “Engine

List” on page 67.

Console to upgrade the Engines

Engine or the System Director Appliance causes it to reboot; plan to do upgrades during a maintenance window with no client I/O occurring.

To upgrade through the Avid NEXIS Agent:

1. On your local computer, download the new software from Avid, using your support account .

2. Unzip the software on your computer.

3. In the Management Console, open the Engines page and identify the Engine running the System Director, or the System Director Appliance. Double-click the name to open its Details panel.

4. Double-click the Host Name to open the Agent for the System Director Engine or the System Director Appliance (for more information, see “Avid NEXIS Agent” on page 101).

5. In the Agent, click Install under the Configuration heading. t If the System Director is running on an Engine, confirm that the box next to Run System Director is

checked (to verify that this is the System Director Engine).

t On a System Director Appliance, this check box is not present.

6. Click Choose File and navigate to the location of the software kit contents that you just unzipped.

7. Click Submit. To complete the upgrade, the system will reboot. A message is displayed indicating the time remaining until

the system is again available. You can then log back in to the Agent or th e Mana geme nt Console and confirm the system is running the new version. The version information is visible at the bottom of the Management Console (see “Understanding the Management Console Interface” on page 14), and in the Agent (on the System tab under Versioning).

To upgrade through the Management Console:

1. In the Management Console, click Engines.

2. Select an Engine in the shared storage system (not the Engine running the System Director) and click Upgrade.

The Upgrade Storage Controllers dialog box opens. (Upgrading an Engine uses the same code path as upgrading the Storage Controller.)

3. Select the The Command text box displays the location of the upgrade installer.

Do not enter or change any text in the Command or Options fields except under the supervision of qualified Avid Customer Care personnel. Doing so can result in system degradation and data loss.

4. Click Upgrade. You can monitor the progress of the upgrade in the Details panel. To complete the upgrade, the system will

reboot. A message is displayed indicating the time remaining until the system is ag ain ava ilable. You ca n then log back in to the Management Console and confirm the system is running the new version. The version information is visible at the bottom of the Management Console (see “Understanding the

Management Console Interfac e” on pa ge 14), and in the Agent (on the System tab under Versioning).

5. Repeat this procedure until all Engines (and the System Director Appliance, if applicable) are upgraded and running the same software version.

AvidNEXISSetup_nnnnn.bin

file from the list in the right column.

Removing Engines from the Engine List

To replace an Engine, use the Management Console to remove the connection history of the inactive or inoperative Engine from the list in the Engines page. After the Engine is removed from the Avid NEXIS file system, you can physically remove it from the network.

Removing an Engine from an Avid NEXIS system requires that you delete any Worksp aces in the Storage Group supported by the Media Pack in the Engine. If the Storage Group co ntains multiple Media Packs (one from two or more Engines), delete all the Workspaces in that shared Storage Group before you can remove an Engine.

For information on removing Engines from the network, see the Avid NEXIS Setup and Maintenance Guide.

To remove an Engine from the Engine list:

1. In the Engine list, select the Engine to remove.

2. Click Remove Status. The Engine is removed from the Engine list.

If you remove a n active En gine by m istake, the System Director restores the Engine to the Engine list the next time

it polls the shared storage network (usually within 20 seconds).

Managing Storage Controllers

The Storage Controllers page of the Management Console allows you to see details and to monitor the status of all Storage Controllers connected to the shared storage network.

Storage Controllers List

The Storage Controllers list includes the following information:

Heading Description

Host Name The name of the Storage Controller

Status Time The date and time of the currently displayed information. To update the data, click Refresh. Status The Storage Controller status. Storage Controllers have the same status values as Engines; for

Avid NEXIS Version The Avid NEXIS version running on the Storage Controller BMC Version The BMC firmware version running on the Storage Controller Controller Serial Number The manufacturer serial number of the controller Engine Serial Number The serial number of the Engine that contains this Storage Controller Free Memory Displays the amount of memory not in use Total Memory Displays the total amount of available memory

If the System Director is running on this controller, the controller name is also the System

Director name.

more information, see “Engine and Storage Controller Status” on page 68.

Storage Controller Details

To see information about an Storage Controller:

1. Do one of the following:

t Select a Storage Controller and click Details. t Double-click the Storage Controller name.

The Details panel displays all information for the Storage Controller. The panel is divided into sections:

- Details — displays the same information as in the Storage Controller li st

- Media Packs— displays information also available in the Media Packs list. In this section you can select

one or more (or all) Media Packs and open the Agent to the relevant page by clicking Info.

- IP Addresses— displays the IP addresses assigned to the Storage Controller. You can select an IP address

and click Info to open the relevant Agent page.

You can sort the information in the Details panel by clicking any column heading. For more information on sorting items in columns, see “Sorting Information” on page 21.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Upgrading a Storage Controller

When new releases of the Avid NEXIS software are available, you can upgrade the Engine to take advantage of new features and bug fixes.

Typically, you upgrade the Avid NEXIS clients first, then upgrade the Avid NEXIS system. (For information on upgrading clients, see the Avid NEXIS Client Manager Installation and User’s Guide.)

In a multi-Engine configuration, the Storage Controllers in all Engines must be running the same version before

the system can resume normal operation. Upgrading the Storage Controller causes the system to reboot; plan to do upgrades during a maintenance window with no client I/O occurring.

To upgrade the Storage Controllers:

1. On your local computer, download the new software from the Avid support site, using your support account.

2. Unzip the software on your computer.

3. In the Management Console, click Storage Controllers.

4. Select the Storage Controller to upgrade.

5. Click Upgrade. The Upgrade Storage Controllers dialog box opens.

6. Select the upgrade installer from the list in the right column. The Command text box displays the location of the upgrade installer.

Do not enter any text in the Command or Options fields except under the supervision of qualified Avid support personnel. Doing so can result in system degradation and data loss.

7. Click Upgrade. You can monitor the progress of the upgrade in the Details panel. To complete the upgrade, the system will

Management Console Interfac e” on pa ge 14), and in the Agent (on the System tab under Versioning).

Managing Media Packs

The Media Packs tool coordinates and controls the activity of Media Packs and allows you to bind and unbind Media Packs and perform maintenance operations.

1 Action button toolbar — Perform actions on selected Media Packs 2 Media Packs list — Lists all configured Media Packs and related information; see “Media Packs List” on page 73 3 Details panel — Displays detailed information on the selected Media Packs; see “Displaying Media Pack Details” on

page 74

4 Filter panel — Filters the Media Packs list display based on conditions you configure; see “Filtering the Display” on

page 21

Media Packs List

The Media Packs list contains the following information. If you cannot see a column, it migh t be hid d en. See

“Showing and Hiding Columns” on page 20).

Heading Description

Name Displays the name (created automatically) of each Media Pack bound to the system Host Name Displays the name of the Storage Controller Status Time Lists the last time the System Director logged the Media Pack’s status Status Displays any change in the working status logged by the System Director (for a description of status

messages, see “Media Pack Status” on page 75)

State Displays the Media Pack state (Spare, Bound, Unbound)

Heading Description(Continued)

Uptime Displays the amount of time the Media Pack has been running (days:hours:min:sec) Capacity Displays the total capacity of the Media Pack Usable Displays the amount of storage space remaining Used Displays the amount of used space Engine Serial Displays the serial number of the Engine Storage Group Displays the Storage Group, if any, to which the Media Packs are allocated.

You can organize the information in the Media Packs list by showing additio nal columns or by sorting or filte ring

displayed items. For more information on modifying the display, see “Customizing the Management Console

Display” on page 20.

A colored icon precedes the name of each Media Pack, indicating its status, as follows:

Icon Color Description

White Media Pack is unbound (not linked to the Avid NEXIS file system) Green Media Pack is bound to the file system and operating normally Yellow Media Pack might be experiencing degraded performance Blue An installation or software upgrade is in progress, or the Media Pack is not bound Red Problem within the Media Pack, such as a disk failure

Displaying Media Pack Details

To see detailed information about a Media Pack:

1. In the Media Packs list, select a Media Pack.

2. Do one of the following:

t Click Details. t Double-click the Media Pack name.

The Details panel displays all the information for the sele cted Media Pack, such as t he Storage Controller that manages the Media Pack and details about its disks.

If a Media Pack contains a replacement drive of a different size, the actual disk size is shown in the Disks list in

the Details panel, but the Media Pack uses only the amount of space that equals the smaller disk sizes. You can replace a failed 2TB drive with a 6TB drive, but not vice versa.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Media Pack Status

The Status column in the Media Packs list reports the status of the Media Packs logged by the System Director. (The Status line in the Details panel reports the same information.) As long as the Media Pack maintains a working status, the Management Console shows no entries in the Status field. When a problem occurs or when the status of the Media Pack changes, the Management Console refreshes the display.

A Media Pack can have one of the following status values, in alphabetical order.

Status Description

Disk Failure The hard disk error threshold for a disk has been exceeded and the Media Pack has set the

Disk full One or more Media Packs in a Storage Group has reached its full capacity. Even if some of

Disk Performance Degraded Disk Performance Degraded, because either:

disk offline. The default threshold is 25 hard errors.

the Media Packs still have available space, the Storage Group is considered full as soon as one Media Pack is filled. As data is written and deleted, some Media Packs are filled before others. During redistribution, the data is redistributed evenly among the Media Packs.

• A disk has logged a Long Command Time. The Avid NEXIS system periodically clears this log. The Long Command Time counter is also cleared during a reboot.

• A disk has reached 75% of its hard error threshold. Reboot the Engine to clear the status.

Drive missing A drive is missing from the Media Pack Drive rebuilding The contents of a data drive are being rebuilt from the other drives in the Media Pack

Missing Disks - unbound The System Director starts a Storage Manager process for every Media Pack that the

Network degraded The IP interfaces on the Media Pack have failed or the Media Pack has experienced at

Offline A Media Pack was set offline by the system. Rectifying Files The Avid NEXIS system is cleaning up deleted files and verifying existing files on Media

Displaying Drive Details

You can display detailed information about the drives in a Media Pack, spare drives in the Engine (if applicable), and the system drives.

(after you replace a failed drive)

Engine can support. If the Engine is not fully populated, the Storage Managers report the missing Media Pack drives.

least a 10% error rate (usually due to lost packets), indicating a network communication problem (possibly a cable or switch issue).

Although the Media Pack is reporting and detecting the errors, it is usually not the Media Pack itself that is the problem. Each Media Pack has an associated Storage Manager that could be experiencing a problem.

Packs. This occurs every time the system restarts and every 10 days thereafter, and also when manually initiated. Each Media Pack staggers its process so that they do not run simultaneously.

To see detailed information about a Media Pack drive:

1. In the Media Packs list, select a Media Pack.

2. Do one of the following:

t Click Details. t Double-click the Media Pack name.

The Details panel displays all the information for the sele cted Media Pack, such as t he Storage Controller that manages the Media Pack and details about its disks.

If you replace a failed 2TB drive with a 6TB drive, the actual size is shown in the Disks list in the Details panel,

but the Media Pack treats it as another 2TB drive. You cannot replace a failed 6TB drive with a 2TB drive.

To see detailed information about a spare or system drive:

1. In the Engines list, select an Engine.

2. Do one of the following:

t Click Details. t Double-click the Engine name.

The Details panel displays all the information for the selected Engine, such as its Storage Controller, Media Packs, spare drives (if applicable) and system drives.

If you replace a drive with on e of a differ ent size, the actual di sk size is shown in the Disks list in the Details panel ,

but the Media Pack uses only the space equal to the other disks. You can replace a failed 2TB drive with a 6TB drive, but not vice versa.

To close the Details panel:

t Click Details in the toolbar, or click Close at the bottom of the Details panel.

Disk Status

The individual drives in a Media Pack and the system drives can have the following status val ue s:

Status Description

Capacity Insufficient (Applies to system drives only). The system drive is not the appropriate size for the Engine it is

Empty (Applies to system drives only). The system requires two blank metadata (system) drives. Insert

Failed The drive has failed and must be replaced. You cannot reuse it. See the Avid NEXIS Setup and

in. Replace the drive with one of the minimum required size.

More detailed information for this st ate is displa yed in the Agent. See “Advanced Tab” on

page 103.

another blank drive of the same capacity as the other one.

Maintenance Guide for your Avid NEXIS model for instructions on replacing a drive. You must replace a failed system drive with a drive of the same capacity.

Within a Media Pack, you can r eplace a smaller drive with a lar ger one (fo r example, use a 6TB

drive to replace a failed 2TB drive), but the Media Pack will use only 2TB of space on the drive. You cannot replace a larger drive with a smaller one in a Media Pack.

Status Description(Continued)

Failing (Applies to Media Pack drives only.) The drive is failing. Although there is no way to tell how

much time you have before the drive fails, this status alerts you to obtain a replacement drive as soon as possible. To check the performa nce of Media Pack drives, see “Statistics Tab” on

page 103.

Foreign For Media Pack drives, the drive possibly came from a different Engine. To use it, clear the

foreign drive configuration; see “Foreign Disk Error” on page 77.

For system drives, more detailed information for this state is displayed in the Agent. See

“Advanced Tab” on page 103.

Initializing The Engine is starting up (for example, after a reboot) and performing internal housekeeping.

For system drives, more detailed information for this state is displayed in the Agent. See

“Advanced Tab” on page 103.

Missing/Empty A drive is missing or the slot is empty. The serial number of any missing drive is displayed with

the status, to help you identify which drive is missing. You can put it into any empty slot.

For system drives, more detailed information for this state is displayed in the Agent. See

“Advanced Tab” on page 103.

Operational The drive is functioning normally. Partition Unsupported (Applies to system drives only). The drive is partitioned for a different Engine than the one it is

in, or some partitions are missing or the wrong size. Remove the drive and insert a blank drive or one partitioned correctly for this Engine.

More detailed information for this st ate is displa yed in the Agent. See “Advanced Tab” on

page 103.

Rebuilding The data on the drive is being rebuilt from the other drives in the Media Pack, or from the other

Spare The drive is a spare. To see all the drives in an Engine, see “Displaying Drive Details” on

Unsupported The drive was not purchased from Avid and cannot be used in the Engine.

Foreign Disk Error

The Foreign Disk message is displayed in the following cases:

• When a drive came from a different Media Pack (usually from a different Engine)

• When the drive has been out of the Engine for longer than five minutes, and replaced by a spare drive, then reinserted into the same Engine.

(If a drive is removed accidentally, the Media Pack requests its return for five minutes. If it is reinserted within those five minutes, the Media Pack resumes normal op eration. After five minutes, if it was replaced by a spare drive and then reinserted, it is marked Foreign. If a spare drive did not replace the removed drive, the removed drive can rejoin the Media Pack at any time.)

You cannot clear the foreign configuration on a system drive. If a system drive is reporting a status of foreign,

contact A vid Customer Care.

system drive. This status occurs after you replace a failed drive.

page 75.

More detailed information for this st ate is displa yed in the Agent. See “Advanced Tab” on

page 103.

If the drive has failed, you cannot reuse the drive even if you clear the configuration.

Clearing the foreign disk configuration deletes all data on the drive, and is a permanent operation. If you are using a drive that came from a different Media Pack, make sure the original Media Pack no longer needs it.

To replace media drives, see the Avid NEXIS Setup and Maintenance guide for your Avid NEXIS model.

To clear the Foreign Drive status:

1. Open the Agent.

2. Click Advanced, then Disks.

3. Select the drive, then click Clear Foreign Config.

4. A di alog box opens, warning that continuing with this op erati on will permanently destroy all data on the drive. Type the words

5. After the old configuration is cleared, the drive gets assigned to any Medi a Pack that needs one, or becomes a spare (if supported in this Engine type).

Destroy My Data

in the text field and click OK to continue.

Unbinding Media Packs from the Avid NEXIS File System

To move a Media Pack to a different Engine, you remove the Media Pack from its current Storage Group (if it belongs to one), and then unbind it on the current system. Then you can physically pull the drives and insert them into another Engine.

[SSENG-5728]You cannot unbind a Media Pack if it has any drive errors or is missing drives. Replace missing or

failed drives.

Removing a Media Pack starts a redistribution of all its data to other Media Packs in the same Storage Group. For more information, see “Removing Media Packs from Storage Groups” on page 31. When the Media Pack has been removed, its state changes to Spare - Bound.

All the Media Packs you want to unbind must be in the Spare state. A vid strongly recommends that you wait until any in-process redistributions are complete before unbinding Media

Packs. Redistribution can take a long time; use the Redistribution Monitor tool to track the progress and estimate the time remaining (see “Monitoring Redistributions” on page 46).

To unbind a Media Pack from the Avid NEXIS file system:

1. Select the Media Pack you want to unbind.

2. Click Unbind. A confirmation dialog appears.

3. Click Yes to confirm. The selected Media Pack is removed from the Avid NEXIS file system and its state changes to Unbound. You

can then physically remove the media drives from the Engine. When you insert them into a different Engine, they are reported as foreign; clear the Foreign Disk Error on each drive (see “Foreign Disk Error” on

page 77). The new Engine can then use them to create a new Media Pack.

Clearing Network Degraded Status Messages

Network Degraded status indicates that the Media Pack has detected a high number of errors (see “Media Pack

Status” on page 75). If correcting the problem does not clear the status messages, use the Issue Command button

to clear the messages and reset the error count.

Correct the cause of the Network Degraded status messages before you clear them from the Management Console.

To clear all Network Degraded messages in the Media Packs list:

1. Select one or more Media Packs from the Media Packs list. You can use the Shift and Control keys to select multiple items. For more information, see “Selecting Items”

on page 23.

2. Click Issue Command.

3. Click Clear Network Degraded, and then click Send.

Removing Orphaned Media Packs

Orphaned Media Packs are connected to a file system that is not currently in use, for example when a Media Pack is moved from one Avid NEXIS environment to another, or when you create a new active partition on a system that already includes bound Media Packs. The “Force Remove” command removes the file system binding from the Media Pack and makes it available for use in the current file system.

The Force-Remove command erases all data stored on the Media Packs. Do not remove orphaned Media Packs unless you are certain they contain no data you want to save.

To remove orphaned Media Packs:

1. From the Management Console home page, click Media Packs. The Media Packs tool opens.

2. Select the orphaned Media Pack.

3. Click Force Remove. A message warns you that removing Media Packs erases all data on the component.

4. Click Yes. The Force Removal Text Confirmation dialog box opens.

5. Type

Remove

The orphaned Media Pack is unbound from the Avid NEXIS file system and removed from the Orphaned Media Pack list.

in the text box, and then click Remove.

Cleaning Up Files (Manually Rectifying Files)

Media Packs periodically check the status of stored files, cleaning up deleted files and verifying existing files. This process, called “rectifying files,” occurs randomly and asynchronously during normal system operati on to minimize any potential decrease in system performance. The Status column in the Media Packs list indicates this operation.

Media Packs also rectify files when starting or restarting. When this happens, data stored on the Media Packs might not be in sync with the data in the file system itself. Also, if a client cannot communicate with the Media Pack, there can appear to be more data allocated to the Media Packs than the file system has allocated. To correct this, you can manually send the Media Pack a command to rectify its files.

To rectify files:

1. Select one or more Media Packs from the Media Packs list. Use the Shift and Control keys to select multiple items. For more information, see “Selecting Items” on

page 23.

2. Click Issue Command. The Issue Media Packs(s) Command dialog box opens.

3. Click Initiate Block Rectify, and then click Send. The system rectifies files on the selected Media Packs and changes the status in the Media Packs list to

Rectifying Files.

6 Managing Connections

This section describes how to monitor and manage connections to the Avid NEXIS shared storage network.

Monitoring System Connection Status

The Connection Status page allows you to see the status of all connections to the shared storage network. To open the Connection Status page: From the Management Console home page, click Connection Status in the Connect section.

Some clients might not be able to connect to the shared storage network if the combined bandwidth requ ir ement of

connected components equals the system limit for bandwidth use. For information on monitoring bandwidth use, see “Monitoring Client Bandwidth” on page 82.

Callout Description

1 Action button toolbar—Perform actions on selected components 2 Connections list—List connected components and related information; see “Connection Status Descriptions”

on page 81

Connection Status Descriptions

The Connection Status dialog box lists information about everything — both active and inactive — connected to the shared storage network. The following table describes the information displayed in the dialog box.

Heading Description

Name The name of the component

Heading Description(Continued)

ID An internal numeric identifier used by the System Director to represent the component; these

identifiers are assigned when a component first contacts the System Director OS The operating system running on the component Type The category or principal function of the component, such as Client or Storage Manager (every

Media Pack has an associated Storage Manager) License The number of licenses allotted to the component Messages/Second The number of messages per second being sent between the component and the system Last Seen For inactive components, displays the date and time when the component last sent its status to the

System Director; for active components, displays a zero (0) as the default value

For active components, displays the date and time when the component last sent its status to the

System Director.

The System Director removes information about components that have not been seen for a week,

unless the component’s bandwidth limit is configured to custom values or the Default Device

Bandwidth option in the Preferences dialog box is selected

To sort the information in the Connection Status dialog box, click any column heading. For more information on

sorting items in columns, see “Sorting Information” on page 21.

Monitoring Client Bandwidth

The Client Bandwidth page allows you to monitor system usage, including tot al system bandwidth use and bandwidth consumption of each connected system.

To open the Client Bandwidth page, on the Management Console home page, click Client Bandwidth in the Connect section.

The System Read Bandwidth and System Write Bandwidth rows in the Client Bandwidth page show total system read bandwidth (green bar) and total system write bandwidth (red bar).

Below the System Read Bandwidth and System Write Bandwidth rows is a list of all active system components showing their current activity and their system identification, as described in the following figure and table:

Callout Description

1 System bandwidth scale buttons—Increase or decrease the scale of the system bandwidth graph; see “Scaling

the Bandwidth List Graph Display” on page 84

2 System bandwidth read and write graphs—Graphic display of system read (green) and write (red) bandwidth;

see “Client Bandwidth List” on page 83

3 Device bandwidth scale buttons—Increase or decrease the scale of the device bandwidth graph; see “Scaling

the Bandwidth List Graph Display” on page 84

4 Device bandwidth read and write graphs—Graphic display of device read (green) and write (red) bandwidth;

see “Client Bandwidth List” on page 83

Client Bandwidth List

The following table describes the information displayed in the Client Bandwidth page.

Heading Description

System Read Bandwidth The value of the total system bandwidth currently in use for reading files System Write Bandwidth The value of the total system bandwidth currently in use for writing to files System Name The name of the system specified during the System Director configuration Read BW For the listed system components, the value of the bandwidth currently in use for reading

files

Write BW For the listed system components, the value of the bandwidth currently in use for writing to

files

Bandwidth For the listed system components, graphical display of bandwidth usage:

• Read (green bar)

• Write (red bar)

To sort the information in the Bandwidth Monitor list, click any column head ing. For more information on sorting

items in columns, see “Sorting Information” on page 21.

Scaling the Bandwidth List Graph Display

The Bandwidth Monitor list represents bandwidth consumption for the network and for individual system components in the form of horizontal bars in a graph display. You can adjust the scale of the graph to make it easier to monitor bandwidth information.

To decrease or increase the size of the graph view:

t Click the Decrease Size or Increase Size button.

7 System Monitoring and Diagnostics

The Avid NEXIS provides tools for logging, monitoring, and system diagnostics. The following table describes each tool and where to find it.

Tool Name What It Does Where to Find It

Hardware Monitoring Service Periodically polls critical system

components and reports status to the System Director

Displaying System Director Information

Displaying System Logs Displays all events initiated by the system,

Displaying Administration Logs Displays all the administrative actions

Capturing System Information (Avid NEXIS Snapshots)

Displaying System Status History Provides an interactive log of error and

Connection Analyzer Tool Provides a quick look at the connection

Log Aggregator Tool Collects a full set of event logs and system

Displays detailed information about the Avid NEXIS System Director

sortable by type

performed on the system, such as creating Storage Groups and W orkspaces, changing an object’s attributes, or deleting an object

Creates a snapshot of the current state of the Avid NEXIS system

warning events, capturing the state of the system at the time of the event

status of all Media Packs in the shared storage network

statistics, including Media Packs and the System Director

Runs in the background; in case of problems, hardware status is displayed in the System Status panel on the Management Console

Management Console -- Logging

Management Console -- Tools

Avid NEXIS Toolbox

Disk Analyzer Tool Runs basic disk performance tests on your

Media Packs

Media Pack Parameters Tool Sets and retrieves Media Pack logging and

redistribution flags

Media Pack Log Viewer Displays event information about Media

Packs

Avid NEXIS Toolbox

Hardware Monitoring Service

When the Hardware Monitoring service detects a hardware problem, it sends status to the System Director. The System Director displays this status on the Management Console. Errors and warnings are indicated in the System Status Console (see “System Status Console” on page 15). Expand the Status Console panel to see which component is causing the error or warning.

If the Management Console is not running, possibly due to a system error or unsupported hardware, the hardware status messages are displayed in the Agent.

The status messages describe system issues that might not be obvious because in most cases the Avid NEXIS system continues to function. Correct any issues as soon as possible so that a more serious failure does not occur.

Displaying System Status History

The System Status History page displays the past 5 days (96 hours) of system status information collected by the System Status Console. You can download the history as a zip file, and then send the file to Avid Customer Care for analysis.

To open the Status History page:

t From the Management Console Home page, click System Status History, in the Tools section.

The System Status History page opens to the day of the first logged syst em event.

To see information on a system event:

1. In the Hours column, click the hour with the colored icon corre spond ing to th e time and type of syste m even t you want to see.

The Seconds column opens.

2. In the Seconds column click the second with the colored icon corresponding to the time and type of system event you want to see.

A snapshot image of the System Status Console, taken at the time of the logg ed event, is displayed.

To clear Status History Event flag:

t Click Clear status history event flag.

The status event history panel indicator is cleared.

This command only clears the status event history indicator from the System Status Console. It does not remove

any status event history entries.

To download the status history:

t Click Download.

The status event history is saved to a file (named history.zip). When prompted to open or save the file, click Save. By default, the file is saved to the Downloads directory on the computer running the Management Console. You can then send it to Avid Customer Care.

Testing the Network

The Network Utilities page in the Management Console provides you with the following standard utility tests:

• Network Statistics—displays statistics for IPv4 and IPv6, TCP and UDP

• Ping—allows you to test the connection between a system in the shared storage network and the System Director

• Traceroute—allows you to verify the path between a system in the shared storage network and the System Director

You must have Administrator privileges to run the utility tests.

To open the Network Utilities page:

1. From the Management Console home page, click Network Utilities, in the Tools section.

The Network Utilities page opens.

2. Select Network Statistics, Ping, or Traceroute from the Command list.

3. Enter the network name or IP address (only for the ping and traceroute commands) of the target machine in the “Target name” field.

4. Click Submit to perform the command. The results of the command are shown in the Results area.

Displaying System Director Information

The System Director Information page in the Logging section displays detailed information about your System Director and network. You cannot edit the informa tio n d isp lay ed in th e Sy stem Director Information window, but you can change some Agent settings through either the Agent Settings page (see ) or the Avid NEXIS Agent (see

“Avid NEXIS Agent” on page 101).

To see System Director Information:

t From the Management Console home page, click System Director Information, in the Logging section.

The System Director Information page opens. The System Director Information includes:

- Server (System Director) status and Avid NEXIS software version

- Server (System Director) details, including the maximum all owed number of clients

- Metadata information, such as the creation time and how much is available and in use

- A list of the processes currently running on the system

- Agent environment, statistics, and configuration information (mostly for inte rnal an d Suppo rt use), so me

of which can be changed: see “Configuring the Agent Settings” on page 25.

Displaying System Logs

The System Logs page provides a complete view of the system-generated events. You can filter the log reports to display messages in a particular category (WARNI NG v s IN FO ), by date, by the subsystem or Storage Con tro lle r that generated the event, or by words in the messages themselves.

The logs provide detailed status information that is especially useful to Avid Customer Care personnel for monitoring system status during prolonged operations.

Displaying or Clearing the System Logs Page

Open the System Logs window to see and to clear event logs. Clearing the logs empties the log of all ev ent entries and resets the logging process.

To access System Logging functions:

1. From the Management Console home page, click System Logs, in the Loggi ng section. The System Logs page opens.

2. In the Select Log list, select a file to display. Your Avid Customer Care representative can guide you in selecting the file to view.

3. Click View. The selected log displays in the Logs panel.

To clear logs:

1. Click Clear.

2. Click OK. The event log for the selected category is cleared, and logging is reset to start recording new events.

Displaying Administration Logs

Administration logs list all the actions performed on the Avid NEXIS system by any user with administrative privileges. You can filter the log reports by type of event, time, the user who perfor med t he reported operation, or words in the messages themselves.

The logs provide an audit trail that is especially useful to Avid Customer Care personnel.

Using the Administration Logs

Administration Logs are records of Administrator actions reported by the Management Console, including informational messages (such as when upgrades occur), errors, and warnings. You can sort the log entries by column or filter them to show only a certain type of entry (for example, only errors). The log displays the following data for each event:

• Type — The categories are the following: Info, Error, Warning

•Time — The time of the logged event

• IP — The recorded IP address of the client or the System Director, depending on where the logged event happened

• User — Who initiated the event

• Message — Detailed information about the event

To see the Administration logs:

1. From the Management Console home page, click Administration Logs, located in the Logging section.

The Administration Logs page opens.

2. Do one of the following:

t Click View to see the Administration logs. t Click Download to download the Administration logs in Comma Separated Values (CSV) format.

3. (Option) To filter the log entries in the View Administration logs window: a. Type the appropriate keyword in a Filter text box. b. Press Enter. To see all log entries, clear the text box and press Enter.

4. (Option) To refine your filtering, enter keywords into multiple Filter text boxes.

5. If the log contains more entries than it displays, use the Navigation controls to move through the log.

Capturing System Information (Avid NEXIS Snapshots)

The Avid NEXIS Snapshots page lets you capture the current state of the system and store that information to display or download later. This information, coupled with the system logs collected by the Log Aggregator tool (see “Log Aggregator Tool” on page 93), can be used by Avid Customer Care personnel to diagnose and troubleshoot problems.

The following information is collected in an Avid NEXIS Snapshot:

• General information, such as the System Director (Storage Controller) name and the date the snapshot was collected, and the name of the zip file containing the snap sho t

• The system component information (in .csv and .zip files), including any current warnings or errors and their details

• System Director status and metadata

• All currently configured system preferences

Creating, Displaying, and Deleting Snapshots

Snapshot files are saved in folder named with the timestamp of the snapshot and the Storage System name — for example,

Click Download to save the file to a computer.

To create a snapshot:

1. From the Management Console home page, click Avid NEXIS Snapshots, in the Logging section.

2. Click New.

3. Enter a name for the snapshot or accept the default name (default) and click OK.

To see a snapshot:

1. By default, the most recent snapshot is displayed automatically. To see a different snapshot, select one from

2. Click View.

02-23-16 155950 brndx01

The Avid NEXIS Snapshots page opens.

The snapshot is created and the details are displayed in the Snapshots window.

the list.

The selected snapshot detail is displayed.

To delete a snapshot:

1. Select a snapshot from the list.

2. Click Delete.

A confirmation dialog window opens.

3. Click OK to confirm the deletion.

The selected snapshot is deleted.

To delete all snapshots:

1. Click Delete All.

A confirmation dialog window opens.

2. Click OK to confirm the deletion.

All snapshots are deleted.

Working with Snapshot Archives

When you create a snapshot, the Avid NEXIS Snapshots tool creates a folder which includes a compressed file containing all the collected information. You can combine snapshots into an archive to keep track of the system status — for example, you can archive snapshots weekly or monthly. The Snapshot tool compresses archives in a ZIP file (archivename.zip).

Archives are stored in folders named with the time stamp of the snapshot and the Storage System name — for example, snapshot folder.

02-23-16 162915 brndx01.zip

. The compressed archive uses the same file name format as the

You can download the archive in compressed form as a ZIP file by clicking Download.

To create a snapshot archive:

1. On the Snapshots page, click New next to Archives.

A confirmation dialog window opens.

2. Enter a name for the archive or accept the default name (default) and click OK.

3. Click OK to confirm building a new archive from all current snapshots.

The archive is created and listed in the Archives drop -down list. After you create an archive, the snapshots are no longer available to view and the message No Available Snapshots is displayed.

To delete a snapshot archive:

1. Select a snapshot archive from the list. (If no snapshot archives exist, the Avid NEXIS Snapshots page displays “No Available Archives.”)

2. Click Delete. A confirmation dialog appears.

3. Click OK to confirm the deletion. The selected archive is deleted.

To delete all archives:

1. Click Delete All. A confirmation dialog window opens.

2. Click OK to confirm the deletion. All archives are deleted.

Avid NEXIS Toolbox

The Avid NEXIS Toolbox is a collection of tools you can use to monitor and perform diagnostic operations on all your Avid NEXIS hardware. The Avid NEXIS Toolbox is included in the Avid NEXIS software kit, but is not installed automatically. You can install it from the Management Console Installers link.

Installing the Avid NEXIS Toolbox

To install the Toolbox:

1. In the Management Console, click Installers under the System heading.

2. In the Avid NEXISTools section, click the Toolbox file appropriate for your operati ng system.

3. Save the file to your computer and install it.

Opening the Avid NEXIS Toolbox

Make sure the Avid NEXIS Toolbox is installed; see Installing the Avid NEXIS Toolbox.

To open the Toolbox:

1. Do one of the following:

t (Windows) Select Start, then Avid, then Toolbox, then Avid NEXIS Toolbox. t (Mac) Select Applications, then Avid NEXISTools, then Avid NEXIS Toolbox. t (Linux) Select Applications, then Avid NEXISTools, then Avid NEXIS Toolbox.

If any site security warnings open, click Yes to accept the certificate. If you are not sure about the security requirements of your shared storage network, see your system administrator.

2. In the Login screen, enter the host name or IP address of your System Director (this might be filled in for you) and the Administrator password, then click OK.

The Avid NEXIS Toolbox opens.
