Pinnacle Systems M-Track 2X2M User Manual [es]

M -TRACK
C -SERIES
2X2M
User Guide
English ( 3 – 5 )
Guía del usuario
Guide d'utilisation
Français ( 9 – 11 )
Guida per l'uso
Italiano ( 12 – 14 )
Benutzerhandbuch
Deutsch ( 15 – 17 )
Appendix
English ( 18 )
r
User Guide (English)
Introduction
Box Contents
M-Track 2X2M USB-C-to-USB-C Cable USB-C-to-USB-A Cable
Support
For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit m-audio.com.
For additional product support, visit m-audio.com/support.
Quick Start
Windows users: Before connecting M-Track 2X2M to your computer, install the drivers:
1.! Go to m-audio.com/drivers and download the latest M-Track 2X2M driver for your operating system.
2.! Open the file you downloaded and double-click the driver installer file.
3.! Follow the on-screen instructions to install the drivers.
Note:
•! Remember to select M-Track 2X2M as your interface in the Preferences, Options, Device Setup, etc. in your digital audio workstation (DAW).
! Use the +48V (Phantom Power) Switch only if a microphone requires phantom power. Most dynamic microphones and ribbon microphones do not require phantom power, but most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power.
Connection Diagram
Items not listed under Introduction > Box Contents are sold separately.
External MIDI Devices
Software Download Cards User Guide Safety & Warranty Manual
Monitors
Headphones
Microphone
!
MIC/LINE
2X2M
M-TRACK
C -SERIES
Rear Panel
MIC/LINE
Front Panel
Guita
Computer
3
!
Features

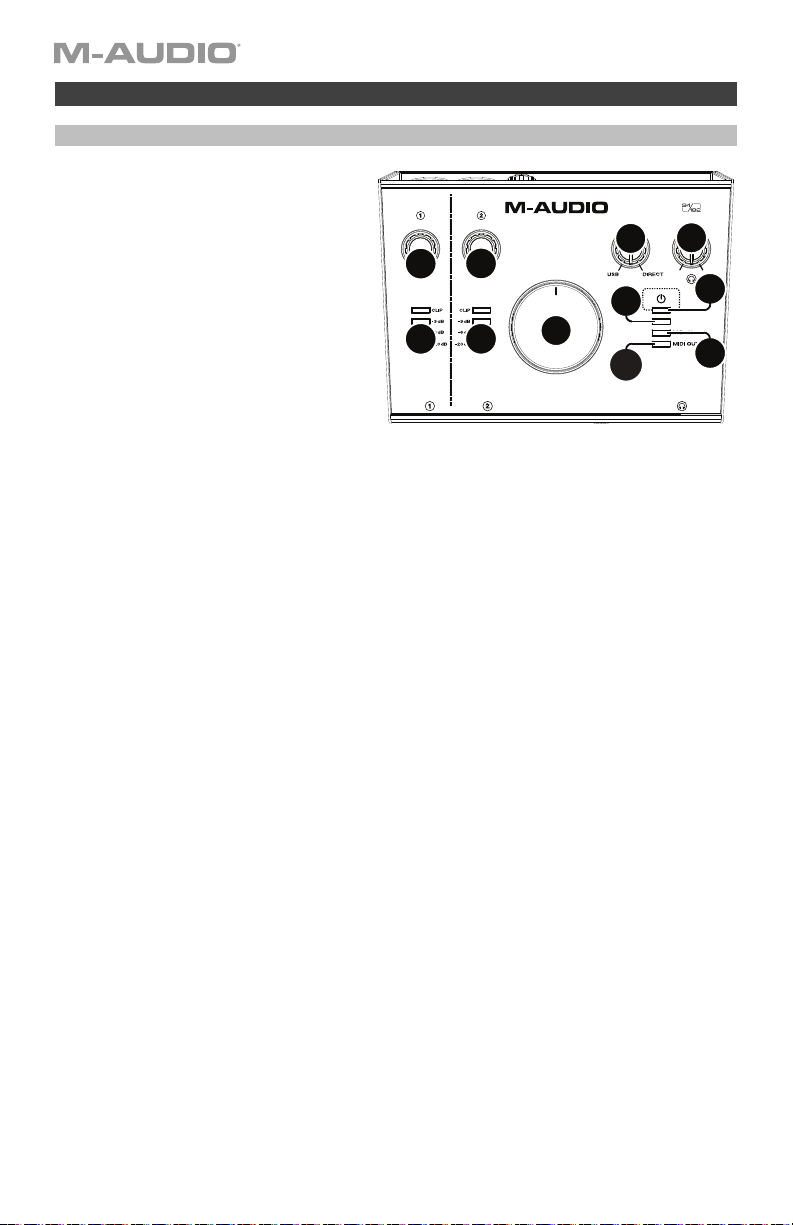

Top Panel
1.! Input Gain: Adjusts the input's gain level. Set this knob so the corresponding LED Meter (located below the knob) displays a "healthy" level during performance—but not so high that the meter "clips" or peaks, causing distortion in the audio.
2.! LED Meters: Indicates the input signal level from the
Combo Inputs or Instrument Inputs.
3.! USB / Direct Blend: Adjusts the mix of the audio signal from your inputs (Direct) and the audio output of your computer (USB) that will be sent to the Main Outputs and Headphone Output.
This knob is useful for dealing with “latency” when you are recording in your DAW. Latency is a delay in sound that may occur between the incoming sound (playing your instrument, singing, etc.) and outgoing sound (when you hear it in the DAW).
Latency is often the result of the “buffer size” setting, which is usually located in your DAW’s Preferences, Options, or Device Setup menu. Higher buffer sizes generally result in higher latency. In some cases, lower buffer size settings can consume a lot of your computer’s CPU and cause audio glitches. To prevent these audio glitches, you will need to use a higher buffer setting, and this may result in latency.
If you are experiencing latency when recording, adjust the knob towards the Direct position to increase the blend of unprocessed audio from your inputs directly to your Main Outputs and Headphone Output. This will let you hear the incoming audio from your inputs without latency while still being able to hear the audio from your DAW. When listening to the playback, adjust the knob all the way to the USB position.
If your computer is powerful enough, you may be able to set the buffer size setting in your DAW low enough such that you may never need to listen to the direct audio signal from your inputs. In this case, set the USB / Direct Blend knob all the way to the USB position to monitor only the audio output of your DAW.
4.! Headphone Level: Adjusts the output volume of the Headphone Output.
5.! Monitor Level: Adjusts the output volume of Main Outputs, which should be connected to your powered monitors or amplifier system.
6.! Power LED: Lights up when a valid USB connection has been established between your computer and M-Track 2X2M. Use this light to verify that M-Track 2X2M is receiving power and is ready to use.
7.! +48V (Phantom Power) LED: Lights up when phantom power is engaged.
8.! MIDI In LED: Flashes when MIDI data is received from an external MIDI controller.
9.! MIDI Out LED: Flashes when MIDI data is sent from your software to M-Track 2X2M’s
MIDI Out
.
INPUT INPUT
1
2
1
2
INSTRUMENT INSTRUMENT
5
M-TRACK
C -SERIES
2X2M
3
7
9
+48V
4
6
+48V
8
4

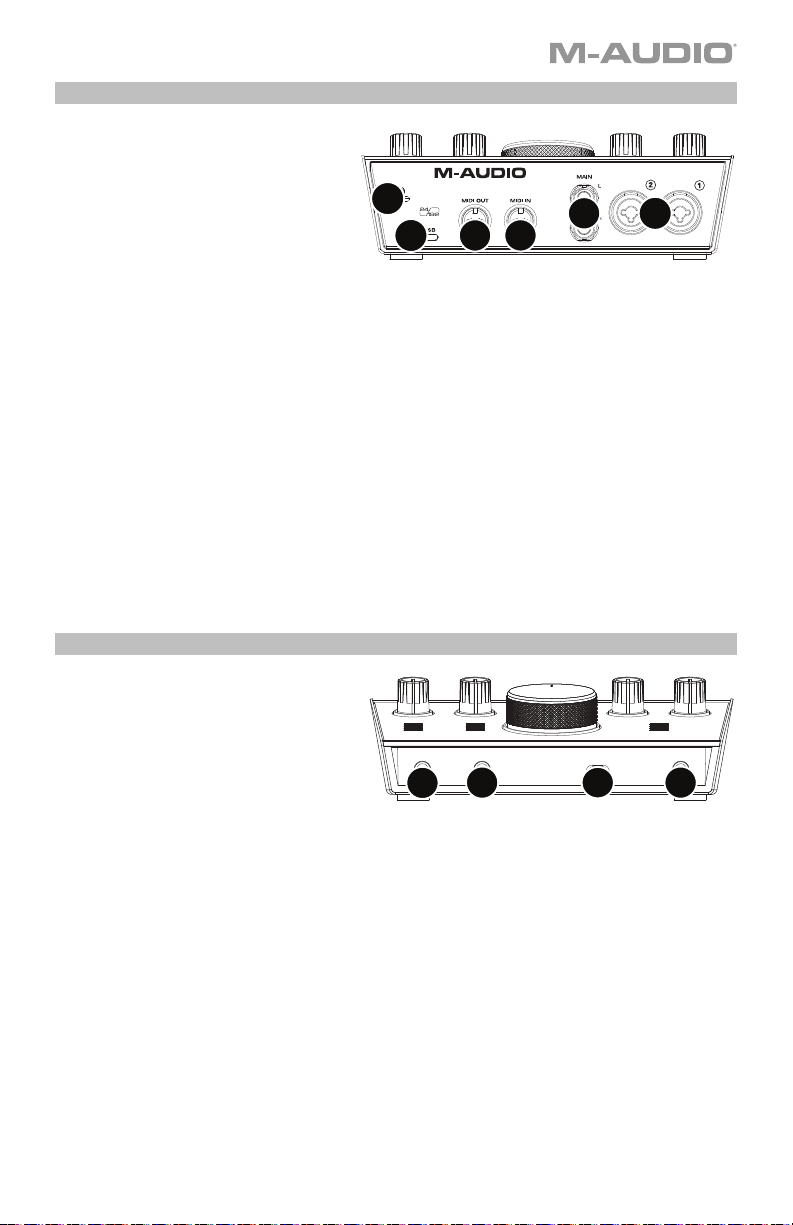

Rear Panel
1.! USB Port (Type C): This connection will allow you to send audio and MIDI data to and from a computer. Use the included USB-C-to-USB-C or USB­C-to-USB-A cables to connect the M-Track 2X2M to a computer. The M-Track 2X2M requires a USB 2.0 connection (or higher).
2.! Combo Inputs: Connect microphones, a guitar or bass with an active pickup, or line­level devices to these inputs. For microphones, use an XLR or 1/4” (6.35 mm) TRS cable. For a guitar or bass with an active pickup, use a standard 1/4” (6.35 mm) TS cable. For line-level signals, use a 1/4" (6.35 mm) TRS cable. View the input signal levels with the LED Meters.
3.! Main Outputs: Use standard 1/4" (6.35 mm) TRS cables to connect these outputs to your powered monitors, amplifier system, etc. The mix you hear from these output will be determined by the USB / Direct Blend knob. The level of these ouputs is controlled by the Monitor Level knob.
4.! MIDI In: Use a standard five-pin MIDI cable to connect this input to the MIDI Out of an external MIDI device.
5.! MIDI Out: Use a standard five-pin MIDI cable to connect this output to the MIDI In of an external MIDI device.
6.! Kensington Lock Slot: You can use this Kensington lock slot to secure M-Track 2X2M to a table or other surface.
6
1
M-TRACK
C -SERIES
5
2X2M
4
3
MIC/LINE
MIC/LINE
2
Front Panel
1.! Headphone Output: Connect 1/4" (6.35 mm) TRS headphones to this output. The mix you hear from this output will be determined by the USB / Direct Blend knob. The level of this output is controlled by the Headphone Level knob.
2.! Instrument Inputs: Connect a guitar with a passive pickup or other high-impedance signal to this input with a 1/4" (6.35 mm) TS cable. View the input signal levels with the
LED Meters. Note: Using an Instrument Input will mute the Combo Input on the corresponding
channel.
3.! +48V (Phantom Power) Switch: This switch activates and deactivates phantom power. When activated, phantom power supplies +48 volts to the Combo Inputs. Please note that most dynamic microphones and ribbon microphones do not require phantom power, while most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power.
3
12 2
!
5
!
Guía del usuario (Español)
Introducción
Contenido de la caja
M-Track 2X2M Cable USB-C-a-USB-C Cable USB-C-a-USB-A
Soporte
Para obtener la información más completa acerca de este product (los requisitos del sistema, compatibilidad, etc) y registro del producto, visite m-audio.com.
Para soporte adicional del producto, visite m-audio.com/support.
Instalación rápida
Usuarios de Windows: Antes de conectar el M-Track 2X2M a su computadora, instale los drivers:
1.! Vaya a m-audio.com/drivers y descargue el driver M-Track 2X2M más reciente para su sistema operativo.
2.! Abra el archivo que descargó y haga doble clic en el archivo instalador del driver.
3.! Siga las instrucciones de la pantalla para instalar los drivers.
Nota:
! Recuerde seleccionar M-Track 2X2M como su interfaz en las Preferences (Preferencias),
Options (Opciones), Device Setup (Configuración de dispositivo), etc. de su estación de audio
digital (DAW).
! Utilice el interruptor +48V (potencia fantasma) solamente si un micrófono requiere potencia
fantasma. Más dinámicos y de cinta micrófonos no requieren alimentación fantasma, mientras que la mayoría de los micrófonos de condensador la requieren. Consulte la documentación de su micrófono para averiguar si necesita alimentación fantasma.
Conexión rápida
Los elementos que no se enumeran en Introducción > Contenido de la caja se venden por separado.
Tarjetas de descarga de software Guía del usuario Manual sobre la seguridad y garantía
Dispositivos MIDI externo
Computadora
6
2X2M
M-TRACK
C -SERIES

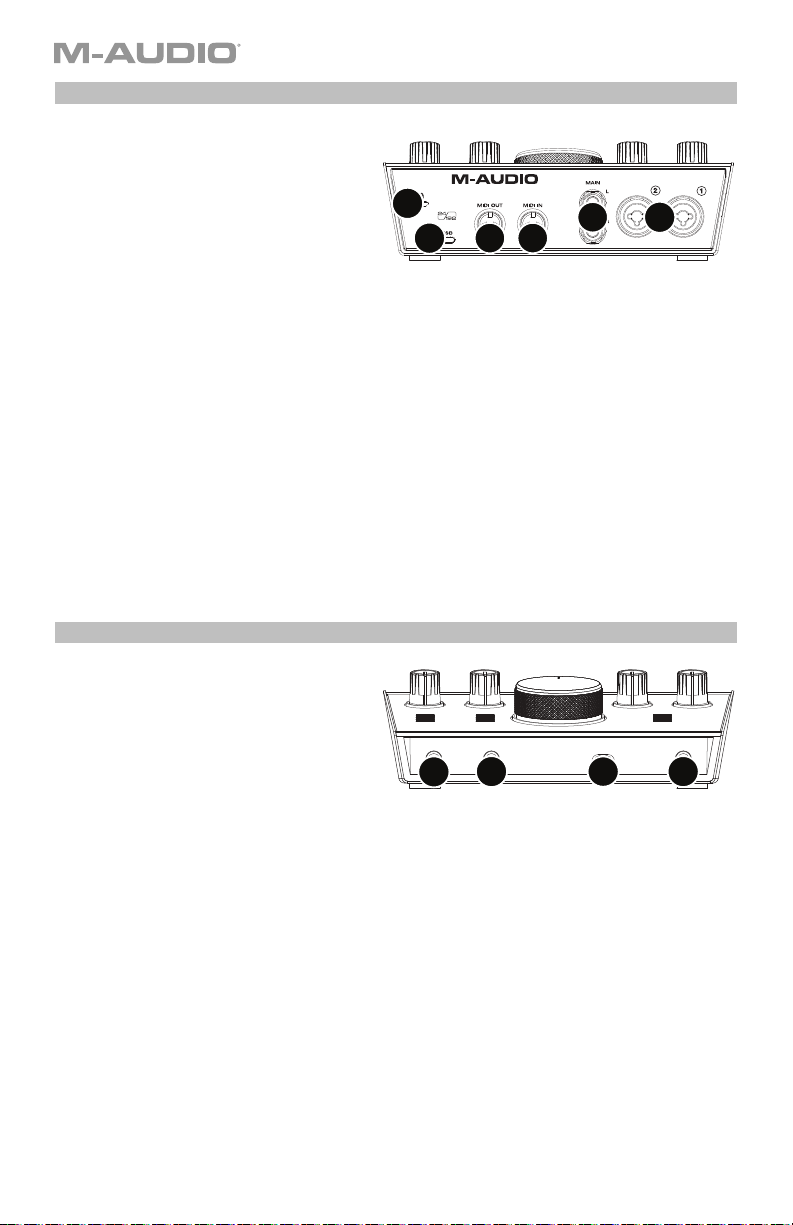

Panel trasero
Monitores alimentados
Micrófono
MIC/LINE
MIC/LINE
Auriculares
Panel frontal
Guitarra
