Avid MediaCentral Platform Services Installation and Configuration Guide • Created July 26, 2017 • This document is
distributed by Avid in online (electronic) form only, and is not available for purchase in printed form.
This document provides instructions for installing and configuring a new MediaCentral Platform
Services (MCS) server or cluster of servers. Avid recommends that you read all the information in
the Avid MediaCentral Platform Services ReadMe and thoroughly before installing or using the
corresponding software release.
If you are completing an installation in a virtual environment, begin the process by referencing the
Avid MediaCentral Platform Services Virtual Environment with VMware® Best Practices Guide. The
virtualization guide directs you back to this guide at the appropriate time in the install process.
To complete an upgrade from a previous version of MediaCentral Platform Services, see the
MediaCentral Platform Services Upgrade Guide or the Avid MediaCentral Platform Services
ReadMe.
The following documents are referenced in this guide:
•Avid MediaCentral Platform Services ReadMe – Read prior to completing any MCS installation
or upgrade
•MediaCentral Platform Services Concepts and Clustering Guide – A reference guide that
contains more detailed information on systems and topics included in this guide.
•Avid MediaCentral Platform Services Upgrade Guide – Reference if you are upgrading to MCS
v2.10 from an earlier release
•Avid Media | Index Configuration Guide – Reference if configuring Media Index
•Media |Distribute Installation and Configuration Guide – Reference if installing Media
Distribute
•Avid MediaCentral | UX Administration Guide – Contains administrative information for
MediaCentral UX.
•Avid MediaCentral Platform Services Hardware Guide - Provides detailed information on HP
and Dell servers.
•Avid MediaCentral Platform Services Virtual Environment with VMware® Best Practices Guide
- Provides detailed information on configuring a virtual MCS environment.
Important: See the following link on the Avid Knowledge Base for the latest updates to this guide
and all related documentation:
For a list products qualified for use with MCS v2.10, and the supported RHEL operating system, see
n
the Software Compatibility Matrix on the Avid Knowledge Base.
Important Terms
Revision History
Date RevisedChanges Made
July 28, 2017•Added note about a configuration option on some Dell PowerEdge servers that
might prevent the server from recognizing the USB Installation drive correctly. For
more information, see “Special Instructions for Dell Servers” on page 60.
•Two new options added to “Modifying application.properties” on page 246 for
MediaCentral v2.10.2 with Interplay MAM configurations.
•Corrected the process for adjusting the Default Search Type. For more
information, see “Modifying application.properties” on page 246.
•If integrating MediaCentral v2.10.2 with Maestro v7.4, you must select
TGA+alpha as the file format. For more information, see “Maestro UX Plug-In”
on page 176.
June 28, 2017The process to configure NTP has been altered. For more information, see
“Synchronizing the System Clock” on page 81.
Added a note related to an Unsupported Hardware message during the install of
RHEL. For more information, see “MCS Software Deployment” on page 64.
May 16, 2017Correction to the process for “Enabling Maestro Graphics in a Sequence” on
page 190.
April 27, 2017•The process for “Validating the FQDN for External Access” on page 163 now
March 30, 2017Initial v2.10.0 release
Important Terms
Throughout this document, “Avid MediaCentral Platform Services” is referred to as “MCS”. “Red
Hat Enterprise Linux” is referred to as “RHEL”.
The RHEL deployment used in an MCS environment is a command-line based operating system. The
installation process will require the editing of various system files. Although multiple text editors
exist, the tool used throughout this document is “vi”. If needed, a short introduction to vi is included
in the MediaCentral Platform Services Concepts and Clustering Guide.
includes an additional troubleshooting step for iOS devices using the
MediaCentral UX mobile app.
•Updated the output of the grep command after installation of the MAM Connector.
•Support for Windows Server 2012 R2 as a sharded MongoDB arbiter.
•Added a process to download and install the RHEL timezone update file. For more
information, see “RHEL Time Zone Update” on page 24.
•The processes to install, upgrade, and configure the Maestro UX Plug-In has
changed. For more information, see “Maestro UX Plug-In” on page 176.
c
If copying / pasting commands from this document into a command line interface such as
Putty, be sure to verify the command after pasting. It is possible that some characters might be
replaced during the paste process which can lead to a failed or problematic installation.
When working in Linux, this guide assumes the user is logged in as the “root” user. Perform all
commands and server configuration as the “root” user.
14
Technology Previews
This release of MediaCentral Platform Services might contain features that are included as a
“Technology Preview”. Features that fall under this category are clearly identified using the
Technology Preview terminology. All other features discussed in this document are fully
implemented and are not considered as a preview.
What is a Technology Preview?
Avid Technology defines a “Technology Preview” as a feature that is offered to customers for
experimentation with the understanding that Avid expects to fully implement the feature in a future
release. Technology Preview features are officially unsupported and potentially incomplete or
unsuitable for production systems. It is possible that due to unforeseen circumstances, the feature
will be altered or altogether removed from the shipping product. In the future, Technology Preview
features might be licensed and sold by Avid and use of the feature does not constitute receipt of a
permanent license.
Customer feedback regarding the technology preview is welcome. Customers may contact Avid
Customer Care to create support cases regarding the feature. However, cases specifically related to
the Technology Preview will not be escalated to critical status and might not be resolved.
Technology Previews
Symbols and Conventions
Avid documentation uses the following symbols and conventions:
Symbol or Convention Meaning or Action
A note provides important related information, reminders, recommendations, and
n
w
c
>This symbol indicates menu commands (and subcommands) in the order you
(Windows), (Windows
only), (Macintosh), or
(Macintosh only)
strong suggestions.
A warning describes an action that could cause you physical harm. Follow the
guidelines in this document or on the unit itself when handling electrical
equipment.
A caution means that a specific action you take could cause harm to your
computer or cause you to lose data.
select them. For example, File > Import means to open the File menu and then
select the Import command.
This symbol indicates a single-step procedure. Multiple arrows in a list indicate
that you perform one of the actions listed.
This text indicates that the information applies only to the specified operating
system, either Windows or Macintosh OS X.
Bold fontBold font is primarily used in task instructions to identify user interface items
and keyboard sequences.
Italic fontItalic font is used to emphasize certain words and to indicate variables.
Courier Bold font
Courier Bold font identifies text that you type.
15
Symbol or Convention Meaning or Action
Ctrl+key or mouse actionPress and hold the first key while you press the last key or perform the mouse
If You Need Help
If you are having trouble using your Avid product:
1. Retry the action, carefully following the instructions given for that task in this guide. It is
especially important to check each step of your workflow.
2. Check the latest information that might have become available after the documentation was
published. You should always check online for the most up-to-date release notes or ReadMe
because the online version is updated whenever new information becomes available. To view
these online versions, select ReadMe from the Help menu, or visit the Knowledge Base at
3. Check the documentation that came with your Avid application or your hardware for
maintenance or hardware-related issues.
4. Visit the online Avid Knowledge Base. Online services are available 24 hours per day, 7 days per
week. Search this online Knowledge Base to find answers, to view error messages, to access
troubleshooting tips, to download updates, and to read or join online message-board discussions.
If You Need Help
action. For example, Command+Option+C or Ctrl+drag.
Avid Training Services
Avid makes lifelong learning, career advancement, and personal development easy and convenient.
Avid understands that the knowledge you need to differentiate yourself is always changing, and Avid
continually updates course content and offers new training delivery methods that accommodate your
pressured and competitive work environment.
For information on courses/schedules, training centers, certifications, courseware, and books, please
visit www.avid.com/support and follow the Training links, or call Avid Sales at 800-949-AVID
(800-949-2843).
16
1Installation Prerequisites
Chapter Overview
The purpose of this chapter is to guide the preparation of all materials needed for the MCS
installation and to preconfigure all connected systems for integration with MCS.
The following table describes the topics covered in this chapter:
Step TaskTime Est
1Before You Beginvaries
A quick check to make sure you have everything in place for an efficient and successful
installation.
2Network Interface Cards and Network Connections15 min
Network connection information for various deployment options.
3Planning for the Mongo Arbiter5 min
In two-node cluster configurations, a 3rd system is required to serve as a Mongo tiebreaker.
4Accessing the MCS Server(s)1 min
Understanding how to connect to the MCS server(s).
5Obtaining the Softwarevaries
Where to find all the software necessary for the installation.
6Copying Software to the MCS Servervaries
This section provides links to processes to copy software to the server.
7Updating MediaCentral UX Licenses15 min
Licensing requirements for Interplay Production and iNEWS.
8Creating User Accounts10 min
Covers the creation of user accounts required by MCS.
9Adjusting Interplay Production Settings5 min
Information on adjusting settings required by MCS.
10Verifying the Interplay Production Media Indexer Configuration5 min
To avoid issues when testing the system, verify that the Media Indexer is configured.
11Adding the MediaCentral UX Version to Avid iNEWS5 min
Enables MediaCentral UX user to connect to iNEWS.
Step TaskTime Est
12Installing the MediaCentral Distribution Service10 min
Required for certain Interplay Production workflows.
13Creating the MCS Installation USB Drive45 min
In this procedure, you create the USB drive you will use to install the MCS software.
Before You Begin
A successful MCS installation begins with careful planning. Ensuring that you have identified all
prerequisites to the installation is very important. Examples:
•Networking: Define all IP addresses, host names, domain name, DNS, NTP, SNMP, etc.
Hostnames should comply with “RFC 952” and “RFC-1123” standards. Avid recommends keeping
n
host names under 15 characters to maintain backwards compatibility with older systems. The only
“special character” allowed in a hostname is a dash “ - ”. Underscores are not allowed.
For more information on RFC specifications, see https://ietf.org/rfc.html. For additional information
on host name restrictions in Microsoft Windows domains, see https://technet.microsoft.com/en-us/
library/cc959336.aspx.
Before You Begin
•Security and Port usage: Verify that all ports required for your installation are open between
switches and across firewalls.
For more information, see the Avid Networking Port Usage Guide on the Avid Knowledge Base.
•Cluster-specific information: Define additional IP addresses, virtual host name and e-mail
addresses to be used with the cluster. When defining a virtual host name, make sure to adhere to
the “RFC 952” and “RFC-1123” standards.
For more information see “Clustering” on page 120.
•Users: Identify users, user groups, and passwords (both local and domain users)
•Host Solutions: Identify what systems will connect to MCS. Once identified, it is also important
to verify that these systems are available and operating normally. Examples:
-Avid shared storage (Avid NEXIS, Avid | ISIS)
-Avid | iNEWS
-Interplay | Production
-Interplay | MAM
-Media Composer | Cloud
For Interplay | Production deployments, the following systems could also be required:
-Interplay | Production Services Automation and Interplay | Consolidate (Required for certain
Interplay | Delivery workflows. Media | Index is required for this functionality.)
-Interplay | Transcode (Required for Send To Playback workflows)
-Interplay | STP Encode (Required for Send To Playback of Long GOP media formats)
-Interplay | Transfer (Required for Send To Playback to 3rd party playback solutions)
18
Network Interface Cards and Network Connections
To assist in ensuring you have all the information you need prior to beginning the installation, Avid
provides a “Pre-Flight Checklist” available on the Documentation pages of the Avid Knowledge
Base. Avid recommends completing the Pre-Flight information to avoid delays during the installation
process.
While the installation procedures for MediaCentral UX, Media Composer Cloud and Interplay MAM
are very similar, the configuration steps are different. Any configuration differences between
MediaCentral UX and Media Composer Cloud will be identified in this document. For differences in
the Interplay MAM configuration process, refer to the Interplay | MAM Installation Manual.
MCS is available in single server and cluster configurations. A cluster is a group of MCS servers that
provide redundancy, load balancing, and scale. Each server in a cluster is called a “node”. During the
cluster configuration, one server is identified as the Master node. If you have multiple MCS servers
in a rack, the Master node is usually the top-most server in the rack.
If you are configuring a cluster, complete the BIOS and RAID Configuration, Software Installation,
and Configuring MediaCentral chapters concurrently on all cluster nodes. The Clustering chapter of
this guide must be completed on the Master node only, until otherwise instructed.
Network Interface Cards and Network Connections
Avid supports the on-board 1 Gb NIC for each of the HP DL360 Gen8 / Gen9 and Dell R620/R630
servers. However, certain workflows require the increased bandwidth of an add-in 10 Gb card. For
example, a 10 Gb connection is required for any MCS deployment that will use 100+ Mbps video
formats (e.g., AVC-I 100, DVCPro 100, DNxHD 145). 10 Gb connections may be desired for
additional bandwidth / playback streams
For more information on slot locations, see “Card Placement in MCS Servers” on page 239.
For more information on determining 1 Gb or 10 Gb connections as well as information on supported
network adapters, see the MediaCentral Platform Services Hardware Guide.
If you plan to configure more than one network adapter on the MCS server, you must manually
assign an adapter to RabbitMQ messaging service. For more information, see “Specifying the
RabbitMQ Network Adapter” on page 251.
The Zone in which the network connection is made must also be considered.
•Zone 1: Connected through a 1 Gb or 10 Gb port (direct connect). On an ISIS 7500, this is a
direct connection to an ISS switch. On an ISIS 5500, this is a direct connection to the back of the
ISIS 5500 chassis.
•Zone 2: Connected through a 1 Gb or 10 Gb port on an Avid qualified layer-2 switch (nonrouted).
•Zone 3: Connected to an Avid qualified layer-3 switch (routed) with known Quality of Service
(QoS); traffic routed to Avid shared storage (one hop) and (if applicable) load-balanced across
ISIS VLANs (approximately a 60/40 ratio).
All MediaCentral Platform Services servers in a cluster must be in the same subnet.
n
19
Zone Recommendations:
MediaCentral UX and Media Composer Cloud
In this workflow MCS decodes the source media format on Avid shared storage and streams images
and sound to the clients. This workflow requires MCS to connect to an Avid share storage system.
Zone 1, Zone 2, or Zone 3 (recommended) connections are supported.
Interplay MAM
In this workflow MCS provides playback of video assets registered as browse proxies by Interplay
MAM. The connection required depends on where the browse proxies are stored.
For non-Avid storage, the network connection is at the user’s discretion as long as it is a 1 Gb
connection or better.
For Avid shared storage, Zone 1, Zone 2, or Zone 3 (recommended) connections are supported.
Avid iNEWS
iNEWS-only deployments do not require a connection to a storage system as there is no video
playback component. The network connection is at the user’s discretion as long as it is a 1 Gb
connection or better.
Planning for the Mongo Arbiter
Remote Client Connections
MediaCentral UX web or mobile clients that connect through the public Internet require VPN access
into the server network. All connections pass through the VPN router/firewall through identified
ports. Once the data has passed into the “house network”, it is secured using the customer’s existing
network security infrastructure.
For more information on networking in an Avid environment, see “Network Requirements for ISIS
and Interplay PAM and MAM” located on the Avid Knowledge Base at: http://avid.force.com/pkb/
articles/en_US/compatibility/en244197
For information on port usage and network firewall information, see the Avid Networking Port Usage
Guide at: http://avid.force.com/pkb/articles/en_US/readme/Avid-Networking-Port-Usage-Guide
Planning for the Mongo Arbiter
MediaCentral v2.6 introduced a new Mongo database in a “sharded” configuration. In MCS cluster
and multi-zone configurations, multiple servers host a copy or “shard” of the Mongo database. If you
are running a local (non-multi-zone) Corosync cluster that consists of only two nodes, a 3rd instance
of Mongo must be configured to provide a tiebreaker vote in the event of a fail-over. This 3rd
instance or “arbiter” must be installed on another Linux server or a Windows-based system. If you
have a 2-node cluster, plan which system will host the Mongo arbiter.
For more information, see the Sharded MongoDB chapter as well as the “MongoDB” section of the
MediaCentral Platform Services Concepts and Clustering Guide.
If you are running a single-server, non-multi-zone system, no additional configuration steps for
n
sharded Mongo are required.
20
Accessing the MCS Server(s)
The initial configuration of the MCS server(s) must be completed using a directly connected monitor
and keyboard to the server, or through a KVM (keyboard, video and mouse) device.
Some KVMs present virtual USB devices to the operating system. These devices might be assigned a
n
device name (sda, sdb) by RHEL during the installation, which results in a failed installation.
Disable this option on your KVM if applicable
Once the initial configuration is complete, Avid recommends connecting to MCS indirectly through
SSH (Secure Shell). SSH is preferable for the following reasons:
•Allows for an expandable view of the RHEL interface (adjustable window size)
•Allows for multiple sessions to the host server or to multiple servers
•Allows for simplified copy/paste of commands between SSH windows
•Allows for logging of all session output
On Windows, PuTTY.exe is an example of a SSH client: http://www.chiark.greenend.org.uk/
~sgtatham/putty/download.html
At the appropriate point in the installation procedure, you will be given the option to switch from a
direct connection to an indirect connection.
Accessing the MCS Server(s)
Obtaining the Software
Multiple software packages are required to properly install and configure MCS. These include:
•(if applicable) Storage Controller Driver for the HP ProLiant Gen9 Server
•RHEL Time Zone Update
Due to licensing restrictions, Avid is unable to redistribute the RHEL installation media, security
n
updates or other RHEL software packages. Users must obtain this software directly from RedHat.
21
Red Hat Enterprise Linux (RHEL)
The RHEL installation image (.iso) file can be located at: http://www.redhat.com
Log in to your Red Hat Network account and download the DVD image (.iso) file.
At the time of this document’s publication, the RHEL 6.5 ISOs were available by choosing Red Hat
n
Enterprise Linux Server from the Red Hat Product Downloads page. Specify Red Hat Enterprise
Linux Server (product variant), 6.5 (version) and x86_64 (architecture). Download the Binary DVD
(rhel-server-6.5-x86_64-dvd.iso).
Obtaining the Software
c
MCS requires RHEL 6.5. Do not install any OS updates or patches unless specifically directed
to do so by Avid.
RHEL Security Updates
Red Hat has issued various security advisories for RHEL 6.5. Avid has tested and supports the
installation of specific patches for RHEL. For instructions and software download links, see the
“Security Updates” section in the Avid MediaCentral Platform Services ReadMe.
MCS Installation Packages
The MCS software packages are available from the Avid Download Center.
If you have not already created an Avid.com user account, you will need to do so now. This Master
n
Account enables you to sync your Avid Video Download and Avid Video Community accounts as well
as gain access to the Avid Support Center.
After you have logged into the Download Center, download the following:
•Avid MediaCentral Platform Services
This is the primary MCS installer package. All MCS installations require this software.
Avid often releases updates to MCS providing fixes and new features. Consult the ReadMe for
your version of software for patch availability and specific installation instructions.
•(if applicable) MediaCentral Distribution Service (MCDS)
MCDS is a service that resides on a Windows system that coordinates jobs with Avid Production
Services for send-to-playback operations. If your installation includes an STP workflow,
download this software.
•(if applicable) Avid MediaCentral UX Closed Captioning Service
Introduced with MCS v2.3, this service adds functionality to MediaCentral UX that enables new
closed captioning workflows.
•(if applicable) Interplay MAM Connector
The MAM Connector enables Interplay MAM workflows within MediaCentral UX. If your
installation includes MAM integration, download this software.
•(If applicable) Media Composer Cloud Plug-In
The Media Composer Cloud software is a plug-in for the Media Composer editor that enables
remote editing capabilities. If your installation includes a Cloud workflow, download this
software.
If any of these packages are not available through the Download Center, contact your Avid
n
representative to obtain the necessary software.
GlusterFS
GlusterFS is an open source software package that MCS uses to automate replication of the dedicated
media cache volumes (e.g. RAID 5) across all MCS servers in the cluster. Doing so increases the
speed at which clients can access the media on multiple cluster nodes.
Obtaining the Software
Media Distribute links production with distribution to web, mobile, and social media outlets by
orchestrating workflow and automating file preparation and transcoding. Media Distribute is not
publicly available on the Avid Download Center. If your installation includes a Distribute
workflow, contact your Avid representative for this software.
This feature enables new collaborative workflows in MediaCentral UX where an “Assignment”
becomes the core idea around which all elements are linked.
The Maestro UX plug-in enables a connection to the Maestro Asset database for integration with
Avid iNEWS and Interplay MAM workflows.
MediaCentral Platform Services v2.4.0 and later automatically installs the GlusterFS software as part
of the install (or upgrade) process. If you are deploying a clustered system, a separate download and
installation of the Gluster software is no longer required. If you are deploying a single server
configuration, the Gluster software is still installed on the server, but it is not activated or configured.
Storage Controller Driver for the HP ProLiant Gen9 Server
By default the HP ProLiant Gen9 server storage controller does not support RHEL 6.5. Manually
download the following RHEL driver update disk (.iso) to enable RHEL 6.5 support:
dd-hpsa-18216-x86_64.iso
The driver update disk is available directly from Red Hat, but driver details and a link to the correct
page can be found at the “HP Servers Support & Certification Matrices” technical exceptions page:
This procedure applies to the HP ProLiant Gen9 server only.
n
To download the driver disk:
1. Open a web browser and navigate to the “HP Servers Support & Certification Matrices technical
exceptions page.
2. Locate the link to Red Hat by searching for the words “DL360 Gen9” using the browser’s “find
on this page” feature.
3. Click on the RHEL6.5 x86_64 link.
You are redirected to the Red Hat web site.
4. Log in to your Red Hat Network account.
23
5. On the “Download Red Hat Enterprise Linux” page, locate the driver update disk (.iso):
dd-hpsa-18216-x86_64.iso
6. Click the “Download Now” button and save the ISO file to your computer.
You will use this driver update disk ISO file later when you create the MCS Installation USB
drive.
RHEL Time Zone Update
Avid deploys MediaCentral Platform Services on Red Hat Enterprise Linux v6.5 which was released
in November of 2013. Time Zone rules have changed in some countries since that version of RHEL
was released. To be sure that your servers can maintain time sync with an NTP server, download the
latest “tzdata” file from Red Hat.
To download the time zone update:
1. Open a web browser and access the RedHat website at: https://access.redhat.com/
2. Log in to your Red Hat Network account.
Copying Software to the MCS Server
3. Download the latest
You will be asked to install this file later in the installation process.
tzdata-<version>.el6.noarch.rpm
Copying Software to the MCS Server
At various times during the upgrade, you will need to copy software to the MCS server. This task can
be performed using one of two methods:
•Using an SFTP application on an external system
•Connecting a USB drive directly to the server
While the SFTP method may be preferred for ease of access, the USB method may be required for
some operations such as backing up MCS files during a system upgrade.
For details on each of these methods, see “Copying Software to the MCS Server” on page 232.
file.
24
Updating MediaCentral UX Licenses
Depending upon your deployment, one or more connected systems may need licenses installed or
updated to allow for integration with MCS.
•If connecting to Interplay Production, MediaCentral UX users will consume Interplay Client
licenses.
•If connecting to iNEWS, MediaCentral UX users will consume iNEWS Client licenses.
•If connecting to Interplay Production and iNEWS, MediaCentral UX users will consume both
Interplay and iNEWS Client licenses.
Interplay Production Licensing
When integrating with an Interplay Production system, MediaCentral UX validates client licenses
against the Interplay Engine. New MediaCentral systems are often bundled with additional client
licenses which must be added to the Interplay Engine database.
Interplay Production v3.3 introduced a software licensing option (no dongle). The following process
n
is correct for the original dongle licensing process. For software licensing procedures, see the
Interplay | Production Software Installation and Configuration Guide.
Updating MediaCentral UX Licenses
To add licenses to the Interplay Production Engine:
1. Launch the Interplay Administrator on the Interplay Engine. This can be found at: Start > Avid >
Avid Interplay Access Utilities > Avid Interplay Administrator.
2. Sign in using Interplay Production’s Administrator credentials.
3. From the main menu, select Server > Licenses.
4. Click the Import License button.
5. Navigate to the location of the license file (often provided on a USB drive).
6. Select the license file and click Open.
You should receive a message indicating that the license was successfully activated.
7. Log out of the Interplay Administrator and close the application.
For additional information on the Interplay Administrator, see the Interplay | Engine and Interplay | Archive Engine Administration Guide.
25
iNEWS Licensing
When integrating with an Avid iNEWS system, MediaCentral UX validates client licenses against
the iNEWS server(s). New MediaCentral systems are often bundled with additional client licenses
which must be added to the Avid iNEWS database. For more information on adding licenses to the
iNEWS database, see “Avid iNEWS Integration” on page 268.
Interplay MAM Licensing
In Interplay Production and iNEWS workflows, users sign into MediaCentral UX and a license is
verified with one or both of the back-end systems. In Interplay MAM workflows, MediaCentral UX
users use a different licensing process. The system administrator assigns users to a MAM-only role
(associated with a base license by default) through the MediaCentral UX User layout. This grants the
user access to the Layouts associated with Interplay MAM.
Creating User Accounts
Creating User Accounts
This section will cover the creation of user accounts for use with:
•Avid iNEWS User
•Interplay Production User
•Avid Shared Storage User
•Interplay MAM User
•Media Composer Cloud User
Create any user accounts applicable to your installation.
Avid iNEWS User
When integrating with iNEWS, the MCS Administrator requires access to the iNEWS database. This
can be accomplished by creating a custom user account (superuser rights not required) or by
associating the Administrator with an existing iNEWS account.
Decide upon the name and password for this user now. Suggested user name: MCSAdmin
For instructions on creating a custom iNEWS user account for MediaCentral UX, see the Avid iNEWS Setup and Configuration Guide.
26
Interplay Production User
When integrating with Interplay Production, MediaCentral UX requires credentials to access the
Interplay Production database. This user should have Read/Write privileges to the entire database (at
minimum). For consistency purposes, this user and password should be the same as the user you
create on the Avid shared system.
Decide upon the name and password for this user now. Suggested user name: MCSAdmin
To create the Interplay Production user:
1. Launch the Interplay Administrator on the Interplay Engine. This can be found at: Start > Avid >
Avid Interplay Access Utilities > Avid Interplay Administrator.
2. Sign in using Interplay Production’s Administrator credentials.
3. From the main menu, select User Management > User Management.
4. If multiple User Groups are created, highlight the User Group on the left under which you want
to create your new user. Example: Administrators
5. Click the Create User button at the top of the window.
6. Enter a name and password.
7. Verify that the MediaCentral UX Admin user has at least Read/Write access to the entire
database. Administrator-level access is not required, but recommended.
Creating User Accounts
8. Click Apply.
9. Log out of the Interplay Administrator and close the application.
For additional information on users creation in Interplay Production, see the Interplay | Engine and Interplay | Archive Engine Administration Guide.
Avid Shared Storage User
When integrating with Interplay Production, MediaCentral UX requires credentials to access the
media on the Avid shared storage system to enable playback and allow for the creation of voice-over
media. For consistency purposes, this user and password should be the same as the user you create on
the Interplay Production system.
Decide upon the name and password for this user now. Suggested user name: MCSAdmin
To create the Avid shared storage user:
1. Launch the Management Console page by opening a web browser and navigating to one of the
following:
tAvid NEXIS: http://<System Director hostname>
tISIS 2500 or ISIS 5500: http://<System Director hostname>
tISIS 7500: https://<System Director hostname>:5015
In a fail-over configuration, use the virtual System Director hostname. Alternatively, the IP address
n
of the System Director (or virtual System Director) can also be used.
2. Sign in using the Administrator credentials.
3. From the main menu, select System > Users.
27
Creating User Accounts
4. Click the New button to create a new user.
5. Give the user a Name and Password.
The above image taken from the Management Console of an Avid ISIS system. Avid NEXIS does not include the
option to Modify Protection.
6. Under Workspace Access, assign privileges to all indexed workspaces. At minimum, the user
needs Read access to all workspaces indexed by the Interplay Media Indexer and Read/Write
access to the workspace where voice-overs will be recorded (workspace defined in the Interplay
Administrator> Application Database Settings).
7. Click Apply to create the user account.
8. Close the Management Console.
If you are connecting to multiple Avid shared storage systems, ensure the same user/password is
n
created on each system.
For additional information on users creation in Interplay Production, see the Avid NEXIS
Administration Guide or Avid | ISIS Administration Guide.
Interplay MAM User
If you are integrating with MCS as a player for an Interplay MAM system, a specialized user must be
created within the MCS user database.
Decide upon the name of this custom user now. Suggested user name: MAMuser
For details on creating this user, see “Configuring MCS for Interplay MAM” on page 114.
When installing Interplay MAM, a special user account is created for the MAM Control Center. The
user must be a member of the “MAM Administrators” group for MAM Control Center. This means
you must have a Windows account on Interplay MAM side that is in your Windows “MAM
Administrators” group which can be used by MediaCentral for the MAM connection. If you plan to
install the MAM Connector software for MediaCentral UX, the MAM Control Center credentials are
used in the System Settings.
For details on the MAM Connector System Settings, see “MAM Connector” on page 205.
For more information on this user and setting, see the Avid MediaCentral | UX Administration Guide.
28
Media Composer Cloud User
When integrating with Media Composer Cloud, you must create a custom user account in the
Interplay Administrator (“MediaCentral Platform Services Settings” or “Application Database
Settings” in v3.5 and earlier) and in the MediaCentral UX System Settings (MCPS > Player tab). The
user name and password must match in both locations.
When added to the MediaCentral UX System Settings, this account is automatically added as an
MCS user and assigned a special “Playback-Only Client” user role. This will appear in the Users
Layout under Users > Unassigned > Playback-Only.
Rules regarding the specialized user account:
•This must be a unique user created solely for this purpose. Do not use the same user you created
to sign into Interplay Production or Avid shared storage.
•Do not use an account that already exists as a Central User. It must be a new user.
•This user should not be created as an Interplay Production or an shared storage user.
•Remember that MCS runs on Linux. Both passwords and user accounts are case sensitive.
Decide upon the name of this custom user now. Suggested user name: cloud
Adjusting Interplay Production Settings
For more information, see the Media Composer | Cloud Installation and Configuration Guide.
Adjusting Interplay Production Settings
When integrating with Interplay Production, MCS checks with the Interplay Production Engine for
various settings. This section is particularly important for sites requiring STP workflows or
integrations with Media Composer Cloud.
Avid supports configuring one Avid MediaCentral Platform Services system (single-server or cluster)
with one Avid Interplay Production database. Configuring multiple MediaCentral systems to connect
to a single Interplay Production database is not supported. To connect multiple instances of
MediaCentral and Interplay Production together, configure the MediaCentral system for a multi-zone
environment. For more information on configuring multi-zone, see the chapter for “Multi-Zone” on
page 215.
To configure the Interplay Production settings:
1. Launch the Interplay Administrator on the Interplay Engine. This can be found at: Start > Avid >
Avid Interplay Access Utilities > Avid Interplay Administrator
2. Sign in using Interplay Production’s Administrator credentials.
3. From the main menu, select Application Settings > Application Database Settings and adjust the
following:
a.Format – Video Format: This setting determines the default video format for sequences
created in MediaCentral UX. You must select a specific video format from the menu or leave
the default selection of “Any”. If “Any” is selected, MediaCentral UX determines the video
format of the sequence by using the format of the first clip that the user adds to the timeline.
b.Audio – General Settings: Ensure that a Media Creation Workspace has been assigned. If
this value is empty, voice-over recording in MediaCentral UX will fail.
4. Click Apply.
29
Adjusting Interplay Production Settings
5. From the main menu, select Site Settings > MediaCentral Platform Services Settings.
In versions of Interplay Production v3.5 and earlier, these settings are located under the Application
n
Database Settings category.
Configure the following settings as they apply to your installation:
a.ACS Bus Service: This feature is used in conjunction with Media Index configurations. For
more information, see the Avid Media | Index Configuration Guide.
b.MediaCentral Playback Service (Cloud workflow only):
-Hostname: Enter the host name of the MCS server. In the case of a cluster, enter the
virtual host name assigned to the cluster.
-Username / Password: Specify a custom user name and password that will be used to
connect Cloud users to the MediaCentral UX player. This same user / password must be
entered in the MediaCentral UX System Settings under the MCPS > Player tab. This
must be a unique user created solely for this purpose.
c.MediaCentral | UX Messaging: This setting enables a messaging workflow between
MediaCentral UX and Media Composer. Enter the host name of the MCS server in the form
of a URL. In the case of a cluster, enter the virtual host name assigned to the cluster.
6. Click the Apply Changes button for any settings that were adjusted.
7. If you are integrating with Media Composer Cloud, you should also configure the Application
Settings > Media Composer | Cloud Settings. See the Media Composer | Cloud Installation and Configuration Guide for additional details.
8. From the main menu, select Site Settings > Interplay Transfer Settings. MediaCentral polls this
setting for available Transfer Engines and AirSpeed servers when creating STP profiles.
30
Verifying the Interplay Production Media Indexer Configuration
9. Click Apply.
Verifying the Interplay Production Media Indexer
Configuration
MCS v2.5 and later obtains the Media Indexer configuration information directly from the “Server
Hostname Settings” in the Interplay Administrator tool. Ensure that the “MI Connection URL” is
populated with all Interplay Media Indexer servers and that “Check Media Indexer” returns with no
errors. If the settings have not been configured correctly, MediaCentral UX will not be able to load or
play assets from Interplay Production. Dynamic Relink functionality within MediaCentral also
depends on this setting.
For more information on configuring the Server Hostname Settings, see “Setting Server Hostnames
and the Workgroup Name” in the Interplay Engine and Interplay Archive Engine Administration Guide.
Adding the MediaCentral UX Version to Avid iNEWS
Before connecting MediaCentral UX to iNEWS, the MediaCentral UX Client version must be added
to the iNEWS SYSTEM.CLIENT.VERSIONS file.
Refer to the Avid MediaCentral Platform Services ReadMe for the correct version number for your
installation.
See the Avid iNEWS Integration chapter for instructions on adding the version number to iNEWS.
31
Installing the MediaCentral Distribution Service
Installing the MediaCentral Distribution Service
The MediaCentral Distribution Service (MCDS) is a lightweight application required for Send to
Playback (STP) operations. It analyzes the STP request and determines if additional actions are
required before sending the media to the playback device (AirSpeed, Transfer Engine, other). An
Interplay Transcode provider is required for STP operations requiring audio mixdowns (stereo audio
tracks) or video mixdowns (sequences with dissolves). An Interplay STP Encode provider is required
when using Long GOP media. For more information on workflows that include MCDS, see the Avid Interplay Engine and Avid Interplay Archive Engine Administration Guide.
MCDS is not used if you are sending an asset directly to Transcode or Delivery. MCDS is not used in
iNEWS-only configurations.
The following guidelines apply to installing MCDS:
•Supported on Windows 7 64-bit and Windows Server 2012.
-If you are running Windows Server 2012, you must install the Windows Desktop Experience
feature. For more information and installation procedures, see the Interplay Production Dell and HP Server Support guide on the Avid Knowledge Base.
-If you are running Windows 7 N, Windows Media Player must be manually installed. For
more information on “N” versions of Windows, see: http://windows.microsoft.com/en-us/
windows7/products/what-is-windows-7-n-edition
•Requires a minimum of 512MB of RAM and approximately 380MB of hard drive space on the
host server.
•Ensure that all enabled network adapters on both the system hosting the MCDS and the Interplay
Production Services Engine are fully routable to each other.
•Can be installed on a server hosting other services or applications, such as the Interplay
Production Services Engine, Interplay Transcode, Interplay Transfer Engine, etc.
•Must be installed on a system that has the Avid shared storage client software installed.
•Must not be installed on an Interplay Production Engine or Interplay Archive Engine.
•As of Interplay Production 3.2, MCDS should not be installed on a Media Indexer server as the
two systems risk sharing network port 8443.
For redundancy purposes, MCDS can be installed on two systems. Installing a second instance of
MCDS does not provide load-balancing functionality. You will configure MediaCentral UX to find
the installed instance(s) of MCDS later in this document.
In MediaCentral UX 1.x, the MCDS service used port 8080 for normal http communication. In
MediaCentral UX v2.0 / MCDS v3.1, the port changed to 8890. This change allows MCDS to be
installed on the same server as the Production Services Engine (if desired). Port 8443 is used for http
security protocol.
Versions of MCDS prior to v3.3 required the Interplay Service Framework (32 or 64bit) software to
be installed on the system hosting MCDS. As of v3.3, this is no longer a requirement.
MCDS v3.3 and earlier cannot be installed on Interplay Production Transcode or STP Encode
servers. This limitation no longer applies to MCDS v3.4 and later.
For additional information on MCDS version compatibility, see the Avid Knowledge Base: http://
1. Launch the MCDS installer on your desired system.
2. Proceed through the installation and accept the defaults.
You may be asked to install prerequisite requirements such as Microsoft Visual C++.
3. Once the installation is complete, use Windows Computer Management to verify that the “Avid
Interplay Central Distribution Service” is “Started” and the Startup Type is configured as
“Automatic”.
4. If desired, repeat the process on a second system to create a redundant instance of the service.
Creating the MCS Installation USB Drive
The MCS installation is initiated from a bootable USB drive that contains the OS (Red Hat Enterprise
Linux) and the MCS software. The following are required to complete this procedure:
Avid has been informed of problems using USB drives from some vendors. If the server does not boot
n
from the USB drive, or fails to complete the boot, try using a drive from another vendor or a drive
with a larger capacity (32GB).
The BIOS on some systems do not recognize USB 3.0 drives correctly which results in the inability to
n
boot from them. Avid recommends using a USB 2.0 drive for this process.
This procedure uses an application called “ISO to USB” to create a bootable USB drive containing
the required RHEL operating system and MCS files. Do not simply drag and drop installation files
onto the USB drive as this will not create the correct file structure needed to successfully install
MCS.
Since “ISO to USB” creates a bootable drive, Avid recommends only connecting the USB drive you
n
plan to use to the Windows system. If you have more than one USB drive connected to the system,
make sure you choose the correct drive when performing this procedure.
See one of the following two processes, depending on your hardware platform:
•“Preparing the Installation Drive for the HP ProLiant Gen9” on page 33
•“Preparing the Installation Drive for HP Gen8 and Dell Servers” on page 36
Preparing the Installation Drive for the HP ProLiant Gen9
The procedure for creating the MCS installation drive on a ProLiant Gen9 server differs from that of
other installations. Make sure you follow the customized instructions for your server type.
This section contains three procedures:
•Preparing the MCS Installation USB Drive
•Copying the Storage Controller Driver to the USB Drive
33
Creating the MCS Installation USB Drive
To prepare the MCS Installation USB Drive:
1. Sign into a Windows system.
2. Connect the USB drive to the Windows system and give it a few moments to be recognized.
3. Use Windows Disk Management to format the USB drive as a FAT32 volume.
4. Extract the contents of the MediaCentral_Services_<version>_Linux.zip file to the desktop (or
your preferred destination directory).
5. Open the newly created MediaCentral_Services_<version>_Linux folder.
6. Double-click iso2usb.exe to launch the application.
7. Choose the Diskimage radio button then navigate to the RHEL image (.iso) file (named rhelserver-6.5-x86_64-dvd.iso or similar).
Make sure the RHEL image (.iso) file is accessible locally (preferable) or over the network from your
n
computer.
8. In the “Additional Files” field, navigate to the MediaCentral_Services_<version>_Linux folder
and click the “Select Folder” button.
9. Use the table below to verify that the Hard Disk Name and USB Device Name fields are correct
for your deployment.
RAID 1
RAID Configuration
RAID 1 and RAID 5sdasdbsdc
RAID 1 onlysdasdb
(“Hard Disk Name”) RAID 5
USB
(“USB Device Name”)
For example, for a system deploying both RAID 1 and RAID 5 volumes, enter the following
values in the dialog:
-Hard Disk Name: sda
-USB Device Name: sdc
34
Creating the MCS Installation USB Drive
For those familiar with earlier HP servers, the HP ProLiant Gen9 server identifies the RAID 1, RAID
n
5, and the USB drive with different device names.
If the drive names are not configured properly in the kickstart file, you could encounter errors in the
n
deployment process. Example: “Error Partitioning: Could not allocate requested partitions: not
enough free space on disks.”
10. Verify the USB Drive letter or use the pull-down menu to select a new drive letter.
11. Click OK in the main dialog.
12. A process begins to copy the RHEL image (.iso) file and the MCS installation files to the USB
drive.
This process takes 10-20 minutes. Once complete, the USB drive has everything it needs to
complete the RHEL and MCS installation.
Copying the RHEL image (.iso) file to the USB drive is a one-time process. To install MCS on more
n
than one server, or to re-install MCS, you do not need to repeat these steps.
13. Click Exit to close the application.
To copy the Gen9 storage controller driver to the USB drive:
1. If you have not already obtained the RAID controller drive, see “Storage Controller Driver for
the HP ProLiant Gen9 Server” on page 23 for location and download instructions.
2. With the Installation USB drive still plugged in to the Windows laptop or desktop, copy the
RAID controller driver ISO to the root directory on the drive:
dd-hpsa-18216-x86_64.iso
3. Rename the ISO:
-Old Name: dd-hpsa-18216-x86_64.iso
-New Name: z_dd-hpsa-18216-x86_64.iso
Renaming the driver ISO is essential, since the installation script attempts to mount the first ISO
it finds as the RHEL ISO. If you do not rename it, the installation will fail.
35
Creating the MCS Installation USB Drive
Preparing the Installation Drive for HP Gen8 and Dell Servers
Follow this procedure only if you are installing MCS software components on supported HP Gen8 or
Dell servers.
To prepare the MCS Installation USB Drive:
1. Sign into a Windows system.
2. Connect the USB drive to the Windows system and give it a few moments to be recognized.
3. Use Windows Disk Management to format the USB drive as a FAT32 volume.
4. Extract the contents of the MediaCentral_Services_<version>_Linux.zip file to the desktop (or
your preferred destination directory).
5. Open the newly created MediaCentral_Services_<version>_Linux folder.
6. Double-click iso2usb.exe to launch the application.
7. Choose the Diskimage radio button then navigate to the RHEL image (.iso) file (named rhelserver-6.5-x86_64-dvd.iso or similar).
Make sure the RHEL image (.iso) file is accessible locally (preferable) or over the network from your
n
computer.
8. In the “Additional Files” field navigate to the MediaCentral_Services_<version>_Linux folder
and click the “Select Folder” button.
9. Verify the Hard Disk Name and USB Device Name fields are as follows:
-Hard Disk Name: sdb
-USB Device Name: sda
If the drive names are not configured properly in the kickstart file, you could encounter errors in the
n
deployment process. Example: “Error Partitioning: Could not allocate requested partitions: not
enough free space on disks.”
10. Verify the USB Drive letter or use the pull-down menu to select a new drive letter.
36
Creating the MCS Installation USB Drive
11. Click OK in the main dialog.
12. A process begins to copy the RHEL image (.iso) file and the MCS installation files to the USB
drive.
This process takes 10-20 minutes. Once complete, the USB drive has everything it needs to
complete the RHEL and MCS installation.
Copying the RHEL image (.iso) file to the USB drive is a one-time process. To install MCS on more
n
than one server, or to re-install MCS, you do not need to repeat these steps.
37
2BIOS and RAID Configuration
Chapter Overview
The purpose of this chapter is to prepare the server hardware for the installation of RHEL and MCS.
The following table describes the topics covered in this chapter:
Step TaskTime Est.
1Changing BIOS Settings15 min
Each of the supported server types require adjustments to the system BIOS. This section
covers:
•HP ProLiant DL360 Gen9
•HP ProLiant DL360p Gen8
•Dell PowerEdge R620 / R630
2Configuring the Onboard RAIDvaries
Each of the supported server types features different methods for creating and working
with the onboard RAID controllers. This section covers:
•HP ProLiant DL360 Gen9
•HP ProLiant DL360p Gen8
•Dell PowerEdge R620 / R630
Changing BIOS Settings
This section provides information on the BIOS settings for the following Avid qualified servers:
•Configuring the BIOS on the HP ProLiant DL360 Gen9
•Configuring the BIOS on the HP ProLiant DL360p Gen8
•Configuring the BIOS on the Dell PowerEdge R620 / R630
Servers are frequently shipped with BIOS settings configured for a power-saving mode. MCS makes
intensive use of the server’s CPUs and memory, especially when under heavy load. Configuring the
server to operate at maximum performance will ensure operational efficiency.
To ensure the smooth installation of RHEL and MCS, the system clock must be set within the BIOS.
When configuring an MCS cluster, setting the system clocks accurately is particularly important.
Configuring the BIOS on the HP ProLiant DL360 Gen9
To configure the BIOS on the HP Gen9 server:
1. Power up the server.
2. When the console displays the option to enter the “System Utilities” menu, press F9.
Changing BIOS Settings
The BIOS responds by highlighting the F9 icon at the bottom of the screen as depicted below:
3. Select the System Configuration menu item and press Enter.
39
Changing BIOS Settings
4. Select the BIOS/Platform Configuration (RBSU) menu item and press Enter.
5. Select the Boot Options menu item and press Enter.
6. Select the Boot Mode menu item and press Enter.
You may see a warning message (shown below) indicating that Boot Mode changes will require
a reboot. Press Enter to acknowledge this message.
40
Changing BIOS Settings
7. A smaller selection box will appear. Select the Legacy BIOS Mode menu item and press Enter.
8. Press ESC to navigate back to the BIOS/Platform Configuration (RBSU) screen.
9. Select the Power Management menu item and press Enter.
10. Press Enter to select HP Power Profile.
41
Changing BIOS Settings
11. A smaller selection box will appear. Select Maximum Performance and press Enter.
12. Press ESC to navigate back to the BIOS/Platform Configuration (RBSU) screen.
13. Select the Date and Time menu item and press Enter.
14. Set the date (mm-dd-yyyy) and time (hh:mm:ss).
15. Press ESC to navigate back to the BIOS/Platform Configuration (RBSU) screen.
42
Changing BIOS Settings
16. Depending on the options selected at time of purchase, Gen9 HP can be equipped with a 1 GB
flash memory partition embedded on the motherboard. During the kickstart assisted USB
installation, this partition presents itself as an additional internal HD which causes the process to
fail. Disable the Embedded User Partition to avoid problems during the installation.
a.Select System Options from the BIOS/Platform Configuration (RBSU) screen.
b.Select the USB Options menu item and press Enter.
c.Select the Embedded User Partition menu item and press Enter.
d.Verify that the option is configured for Disabled (default).
17. Press F10 to save.
18. Press ESC to navigate back to the System Configuration screen.
If prompted, select “Y” to save changes and exit.
19. Press ESC to navigate back to the System Utilities screen.
20. Select Reboot the System and press Enter.
The server reboots with new options.
Proceed to “Configuring the Onboard RAID” on page 47.
Configuring the BIOS on the HP ProLiant DL360p Gen8
To configure the BIOS on the HP Gen8 server:
1. Power up the server.
2. When the console displays the option to enter the “System Utilities” menu, press F9. The BIOS
responds by highlighting the F9 button at the bottom of the screen.
The ROM-Based Setup Utility appears after a few moments.
43
Changing BIOS Settings
3. Select Power Management Options and press Enter.
Power Management options are displayed.
4. Choose HP Power Profile.
Power Profile options are displayed.
5. Choose Maximum Performance.
You are returned to the Power Management options menu.
6. Press Esc to return to main menu.
7. Select Date and Time and press Enter.
Date and Time options are displayed.
8. Set the date (mm-dd-yyyy) and time (hh:mm:ss).
9. Press Enter to save the changes and return to the Setup Utility menu.
10. Exit the Setup utility. Press Esc and F10 to save.
The server reboots with new options.
Proceed to “Configuring the Onboard RAID” on page 47.
Configuring the BIOS on the Dell PowerEdge R620 / R630
This process includes steps to ensure your MCS Installation USB drive is first in the boot order. Prior
to beginning this process, ensure your MCS Installation drive is available.
For instructions on creating the boot drive, see “Preparing the Installation Drive for HP Gen8 and
Dell Servers” on page 36.
44
To configure the BIOS on the Dell PowerEdge server:
1. Connect your MCS Installation USB drive to one of the Dell’s USB ports.
2. Power up the server.
3. Press F2 to enter the BIOS.
4. Select System BIOS.
5. Select System Profile Settings.
Changing BIOS Settings
6. Select the Performance profile from the pull-down menu and click Back.
There are three “Performance” profiles. Once of them specifically says “Performance” and not
n
“Performance Per Watt.”
7. Select System BIOS Settings.
8. Select Boot Settings.
9. Select BIOS Boot Settings.
10. Select Hard-Disk Drive Sequence.
11. In the Change Order window, use the + or – keys to move the USB boot drive to the top of the list
and click OK.
45
12. Click Back to exit the page and to exit the System BIOS Settings page.
13. Select Miscellaneous Settings.
Changing BIOS Settings
14. Change the System Time and System Date by highlighting the appropriate field and pressing
Enter.
15. A window will appear with pull-down menu options. Click OK when done.
16. You are asked to confirm the changes.
A “Success” dialog indicates the settings were saved.
17. Click Back and Finish to return to the main System Setup screen.
When ordering a Dell server, an ”Internal SD Card Port” is an optional component. This device will
n
appear to Linux as a media device and it will automatically be assigned a device name. This can
interfere with the RHEL / MCS deployment. If you have an “Internal SD Card Port”, temporarily
disable it in the BIOS: System BIOS > Integrated Devices > Internal SD Card Port > Off. The device
can be re-enabled once you have completed the MCS installation.
Proceed to “Configuring the Onboard RAID” on page 47.
46
Configuring the Onboard RAID
This section provides information on the RAID configuration for the following Avid qualified
servers:
•HP ProLiant DL360 Gen9 RAID Configuration
•HP ProLiant DL360p Gen8 RAID Configuration
•Dell PowerEdge R620 / R630 RAID Configuration
RAID 1: All MCS implementations require a RAID 1 (mirror) for the system (OS) drive. This RAID
provides redundancy in the event of HD failure.
RAID 5: Certain deployments also require additional disks configured as a RAID 5 (data striping
with parity blocks) for caching file data. This RAID provides redundancy and increased
performance.
For more information on RAID configurations, see the MediaCentral Platform Services Concepts and Clustering Guide.
HP ProLiant DL360 Gen9 RAID Configuration
Configuring the Onboard RAID
n
c
In this step you configure two of the HD drives in the server enclosure as a RAID Level 1 – a
mirrored RAID – where the RHEL and MCS software will be installed. This is done using the Option
ROM Configuration for Arrays utility, in the HP server’s BIOS.
If applicable, configure the remaining HD drives in the server enclosure as a RAID Level 5. In a
RAID 5 data is automatically distributed across all the disks in the RAID for increased performance
and redundancy. This is done using the Option ROM Configuration for Arrays utility, in the HP
server’s BIOS.
This document provides instructions for creating a media cache volume as a RAID 5 using multiple
disks in the server enclosure. However, other configurations are possible, including two drives in a
RAID 1 configuration, or a single drive. For details, see the MediaCentral Platform Services
Hardware Guide.
If the list of available disks does not appear as expected, it may be that a RAID has already been
created. Deleting a RAID destroys all the data it contains, so verify it is safe to do so first.
The RAID configuration process will immediately transition into the Red Hat / MCS
installation. It is recommended that you connect your MCS Installation USB drive to the server
at this time.
To configure the HP ProLiant DL360 Gen9 RAID 1:
1. Reboot the server and press F10 to select Intelligent Provisioning.
2. Select Perform Maintenance.
47
Configuring the Onboard RAID
3. Select HP Smart Storage Administrator (SSA).
4. At the “Welcome to HP Smart Storage Administrator” screen, select Smart Array P840 from
left side menu.
5. Select Create Array under “Actions”.
48
6. Select both 500GB Drives then select Create Array.
Configuring the Onboard RAID
7. Verify the following are selected: RAID 1, 256 KiB / 256 KiB Stripe Size, 32 Sectors, Maximum
Size, Caching Enabled.
8. Click Create Logical Drive.
9. You will receive a message indicating the “Logical Drive was successfully created.” Click Finish
to complete the RAID 1 creation process.
Do not press the Escape key to exit, since this reboots the server.
n
49
Configuring the Onboard RAID
To configure the HP ProLiant DL360 Gen9 RAID 5:
1. This process assumes you are continuing from the RAID 1 creation process.
Select Create Array under “Actions”.
2. Select all eight 450GB Drives then select Create Array.
3. Verify the following are selected: RAID 5, 256 KiB / 1.7 MiB Stripe Size, 32 Sectors, Maximum
Size, Caching Enabled.
4. Click Create Logical Drive.
5. You will receive a message indicating the “Logical Drive was successfully created.” Click Finish
to complete the RAID 5 creation process.
6. Click the “X” (top right) to exit. Confirm the exit by clicking “OK” when prompted.
7. Click the “Power” button (top right) to exit. Select “Reboot” when prompted.
Proceed to“Software Installation” on page 58 to continue the installation.
50
HP ProLiant DL360p Gen8 RAID Configuration
In this step you configure two of the HD drives in the server enclosure as a RAID Level 1 – a
mirrored RAID – where the RHEL and MCS software will be installed. This is done using the Option
ROM Configuration for Arrays utility, in the HP server’s BIOS.
If applicable, configure the remaining HD drives in the server enclosure as a RAID Level 5. In a
RAID 5, data is automatically distributed across all the disks in the RAID for increased performance
and redundancy. This is done using the Option ROM Configuration for Arrays utility, in the HP
server’s BIOS.
This document provides instructions for creating a media cache volume as a RAID 5 using multiple
disks in the server enclosure. However, other configurations are possible, including two drives in a
RAID 1 configuration, or a single drive. For details, see the MediaCentral Platform Services
Hardware Guide.
If the list of available disks does not appear as expected, it may be that a RAID has already been
n
created. Deleting a RAID destroys all the data it contains, so verify it is safe to do so first.
Configuring the Onboard RAID
c
The RAID configuration process will immediately transition into the Red Hat / MCS
installation. It is recommended that you connect your MCS Installation USB drive to the server
at this time.
To configure the HP ProLiant DL360p Gen8 RAID 1:
1. Reboot the server and press any key (spacebar recommended) when prompted to display the HP
ProLiant “Option ROM” messages.
Do not press F9 or F11. Press any key other than F9 or F11 (spacebar recommended).
n
Detailed messages now appear as the server boots up.
51
Configuring the Onboard RAID
2. As soon as you see the prompt to “Press <F8> to run the Option ROM Configuration for Arrays
Utility”, press F8.
The prompt to press F8 can flash by quite quickly. If you miss it, reboot and try again.
n
3. From the Main Menu, select Create Logical Drive.
52
Configuring the Onboard RAID
4. Select the two HD drives that will serve as the Operating System RAID 1 pair in the “Available
Physical Drives” section of the screen. In most cases, these drive are populated in the first two
bays (Box 1, Bay 1 and Bay 2).

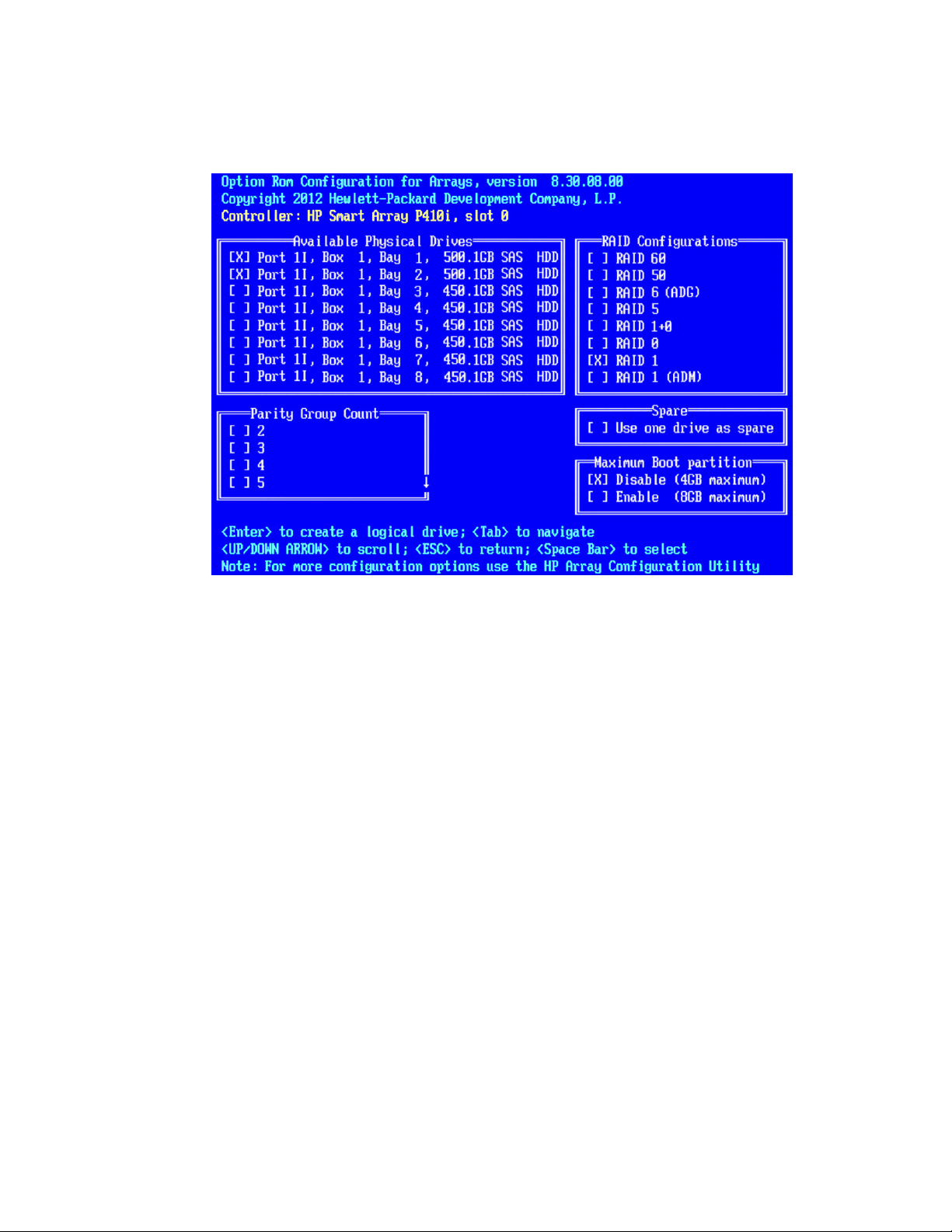

Notice that the two drives dedicated to the OS in the image above are 500 GB, 7200 RPM whereas
n
the drives that will serve as the RAID 5 are 450 GB, 10K RPM.
5. Deselect all the other available HD drives (if any).
6. Ensure RAID 1 is selected in the “RAID Configurations” section.
In older firmware versions, the choice presented may be RAID 1+0. Since you are only using two HD
n
drives, this is identical to a RAID 1.
7. Ensure Disable (4GB maximum) is selected in the “Maximum Boot partition” section.
8. Ensure nothing is selected in the “Parity Group Count” section.
9. Ensure nothing is selected in the “Spare” section.
10. Press Enter to create the logical drive.
A message appears summarizing the RAID 1 setup.
11. Press F8 to save the configuration.
A message appears confirming the configuration has been saved.
12. Press Enter to finalize the RAID 1 setup.
53
Configuring the Onboard RAID
To configure the HP ProLiant DL360p Gen8 RAID 5:
1. This process assumes you are continuing from the RAID 1 creation process.
From the Main Menu, select Create Logical Drive.
2. Select the drives to be included in the RAID 5 in the “Available Physical Drives” section.
In a typical configuration, Box 1, Bays 3-8 are selected.
3. Ensure RAID 5 is selected in the “RAID Configurations” section.
4. Ensure Disable (4GB maximum) is selected in the “Maximum Boot partition” section.
5. Ensure nothing is selected in the “Parity Group Count” section.
6. Ensure nothing is selected in the “Spare” section.
7. Press Enter to create the logical drive.
A message appears summarizing the RAID 5 setup.
8. Press F8 to save the configuration.
A message appears confirming the configuration has been saved.
9. Press Enter to finalize the RAID 5.
10. Press ESC to reboot the system.
Proceed to“Software Installation” on page 58 to continue the installation.
54
Dell PowerEdge R620 / R630 RAID Configuration
The Dell R620 / R630 servers ship with preconfigured RAID 1 and RAID 5 arrays. In this step you
verify the RAID configuration through the BIOS. Later you will use RHEL to ensure the RAID
arrays are cleared of existing data.
Two of the HD drives in the server are configured as a RAID Level 1 – a mirrored RAID – where the
RHEL and MCS software will be installed.
If applicable, the remaining drives in the server enclosure will be configured as a RAID Level 5. In a
RAID 5 data is automatically distributed across all the disks in the RAID for increased performance
and redundancy.
This document provides instructions for creating a media cache volume as a RAID 5 using multiple
n
disks in the server enclosure. However, other configurations are possible, including two drives in a
RAID 1 configuration, or a single drive. For details, see the MediaCentral Platform Services
Hardware Guide.
Configuring the Onboard RAID
c
The RAID configuration process will immediately transition into the Red Hat / MCS
installation. If you do not already have the MCS Installation USB drive connected, connect it to
the server at this time.
To verify the PowerEdge Dell R620 / 630 RAID Configuration:
1. (if necessary) Reboot the server and press F2 to enter the BIOS.
2. From the main System Setup screen, select Device Settings.
3. From the Device Settings menu, select Integrated RAID Controller Configuration Utility.
4. From the Configuration Options menu, select Virtual Disk Management.
55
Configuring the Onboard RAID
5. From the Virtual Disk Management menu, select View Disk Properties.
This window lists the configured RAID Groups on the server. You should see both a RAID 1 set
and a RAID 5 set.
If the preconfigured RAID arrays do not exist, see “Working with the Dell RAID Controller” on
n
page 237 for information on creating the RAID.
6. From the Configuration Options menu, select Controller Management.
7. From the Controller Management menu, select Change Controller Properties.
56
Configuring the Onboard RAID

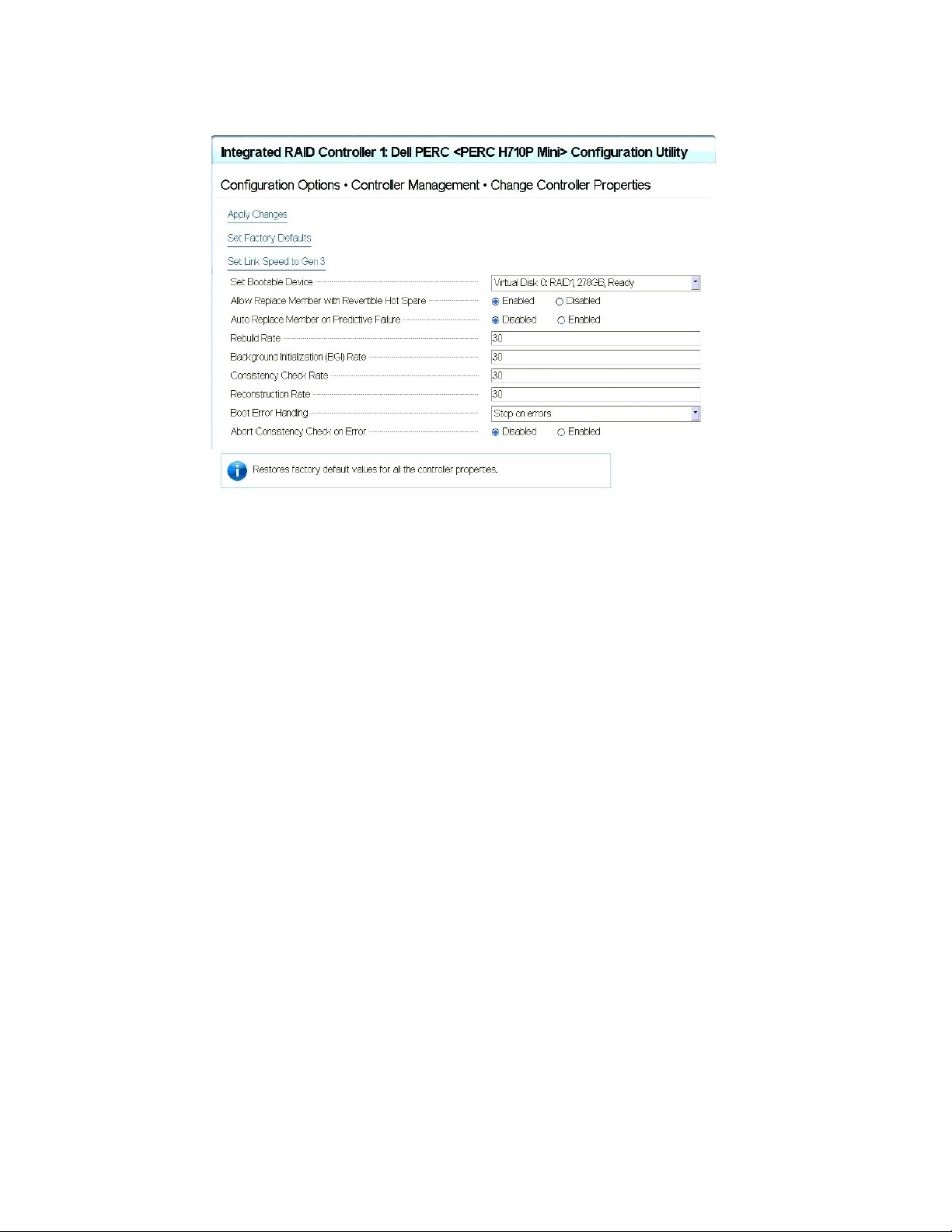

8. Ensure the Set Bootable Device pull-down menu is configured for Virtual Disk 0: RAID 1.
9. Return to the main System Setup screen.
10. Click Finish to reboot the system.
Proceed to“Software Installation” on page 58 to continue the installation.
57
3Software Installation
Chapter Overview
The purpose of this chapter is to assist you with the installation and configuration of the system
software.
How to proceed:
•If you are installing MCS on a Dell server, additional steps are required during the server
imaging process. Proceed to “Special Instructions for Dell Servers” on page 60 to continue.
•If you are installing MCS on an HP server, proceed directly to “MCS Software Deployment” on
page 64.
Both processes use the MCS Installation USB drive to install RedHat and MediaCentral Platform
n
Services. Earlier in this document, you were instructed to create the USB installation drive using
specific drive names (sda, sdb, sdc). If your server includes any devices that could identified by
RHEL as a volume such as an optical drive or an SD card slot, these devices must be disabled
through the system BIOS prior to the software installation. Failure to do so could result in errors
during the deployment process, such as: “Error Partitioning: Could not allocate requested
partitions: not enough free space on disks.”
For details on upgrading from an earlier software release, see the Avid MediaCentral Platform
Services Upgrade Guide and the Avid MediaCentral Platform Services ReadMe available on the Avid
Knowledge Base.
The following table describes the topics covered in this chapter:
Step TaskTime Est.
1Special Instructions for Dell Servers10 min
Covers the deletion of any existing partitions on the Dell RAID arrays prior to the
installation of RHEL and MCS.
2MCS Software Deployment30 min
Covers the actual installation of RHEL and MCS.
3Booting RHEL for the First Time5 min
Covers keyboard layout configuration and a process for changing the default ‘root’ user
password.
4Network Configuration30 min
Guides you through the configuration of all network-related settings.
4Configuring Access for External Systems30 min
A configuration file must be added to allow access of external systems.
Chapter Overview
Step TaskTime Est.
5Configuring Date and Time Settings15 min
Configuration of Date, Time, Time Zone and NTP settings.
6Creating the File Cache on the RAID15 min
If a RAID 5 array is used, this step finalizes the creation of the RAID 5.
7Enabling / Disabling 3G and Edge Streams2 min
Instructions for enabling / disabling 3G and Edge streams.
8Copying Software to the MCS Servervaries
While RHEL and MCS software is installed by the MCS Installation USB drive,
additional software might be required.
9Installing Security Updates15 min
Information regarding Security Updates for RHEL.
10Installing Software Patches15 min
A reminder to install available software patches.
11Upgrading the Avid Shared Storage Client Software10 min
In the event than an updated version of the Avid shared storage client software is
required for your environment, client upgrade instructions have been provided.
59
Special Instructions for Dell Servers
Dell servers are generally shipped with preconfigured RAID 1 and RAID 5 arrays. These RAID sets
include partitions that can interfere with the kickstart assisted software deployment. The partitions
must be deleted prior to starting the installation.
Deleting and recreating the RAID sets using the DELL BIOS utility does not erase data, nor does it
delete existing partitions. That is, deleting a RAID does not delete the partition table — unless you
initialize the disk at the same time. However, initializing the disk is a slow process.
In this procedure, you boot from the MCS Installation USB Drive and launch a RHEL “rescue”
session in order to examine the current system partitions and delete them.
The USB ports on some Dell servers share support for standard USB devices as well as features
n
related to iDRAC (integrated Dell Remote Access Controller). If your MCS Installation USB Drive is
not recognized by the Dell server, you might need to adjust iDRAC settings through the system’s
BIOS. Access the iDRAC settings on system boot, and adjust the USB Management Port Mode from
Automatic to “Standard OS Use”. If the drive is still not recognized, you can also review the USB
settings in the “System BIOS Settings - Integrated Devices” menu.
If you are still having issues accessing the USB boot device, see “Troubleshooting a USB device” in
the Dell PowerEdge R630Owner's Manual or recreate the USB drive and pay special attention to the
steps in “Creating the MCS Installation USB Drive” on page 33.
Special Instructions for Dell Servers
If you are installing MCS on an HP server, proceed to “MCS Software Deployment” on page 64.
To format the disk partitions on the Dell server:
1. Boot from the MCS Installation USB drive.
2. At the RHEL Welcome screen, select “Rescue Installed System”.
3. When prompted choose the language and keyboard.
60
Special Instructions for Dell Servers
4. Choose “Hard drive” as the rescue method. For the purposes of booting from a RHEL image, the
USB drive is considered a hard drive.
5. Select the “/dev/sda1” partition (the USB drive). Leave the “Directory holding image” field
blank.
6. Select “No” in the Setup Networking window; as networking is not needed at this time.
61
7. Select “Skip” in the Rescue window.
8. At the next screen, choose “shell Start shell” and select Ok.
Special Instructions for Dell Servers
9. At the system prompt, use the RHEL fdisk utility to examine the current partitions:
fdisk -cul
This command will display the available disks and partitions on the system. Use Shift-Pg Up and
Shift-Pg Down to view the entire output, since scroll bars will not be present in the rescue shell.
In this case “sda” should be the USB boot drive, “sdb” should be the RAID 1 volume and “sdc”
should be the RAID 5 volume.
The following example shows information for “sdb” with three partitions (sdb1, sdb2, sdb3):
Disk /dev/sdb: 500.1 GB, 500074307584 bytes
255 heads, 63 sectors/track, 60797 cylinders, total 97670732 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xc755f5b0
Device Boot Start End Blocks Id System
/dev/sdb1 * 2048 1026047 512000 83 Linux
/dev/sdb2 1026048 42051583 20512768 8e Linux LVM
/dev/sdb3 42051584 976707583 467328000 8e Linux LVM
62
Special Instructions for Dell Servers
Additional entries for the file system (sdb4, sdb5) could be possible. For example:
Disk /dev/sdb: 598.9 GB, 598879502336 bytes
255 heads, 63 sectors/track, 72809 cylinders, total 11696828 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x930a8a0e
Device Boot Start End Blocks Id System
/dev/sdb1 * 2048 1026047 512000 83 Linux
/dev/sdb2 1026048 2050047 512000 83 Linux
/dev/sdb3 2050048 43075583 20512768 8e Linux LVM
/dev/sdb4 43075584 1169686527 563305472 5 Extended
/dev/sdb5 43077632 1169686527 563304448 8e Linux LVM
You will need to delete the any partitions on the RAID 1 volume and the RAID 5 volume (if
applicable). This process will assume “sdb” is the RAID 1 and “sdc” is the RAID 5.
10. Use the RHEL fdisk utility to select the sdb volume:
fdisk /dev/sdb
11. Type: p to print the current filesystem partition table. This will show you a similar output as the
fdisk –cul command you used earlier.
d
12. Type:
13. You will be prompted to specify the partition to delete. For example:
Partition number (1-4): 1
to begin deleting the partitions.
1
14. Repeat the above two steps to delete the remaining “sdb” partitions.
p
15. Once complete, type
to print the partition table again. An empty partition table should look like
the following:
Device Boot Start End Blocks Id System
16. Type: w to write the changes to the partition table and exit the utility.
17. If you have a RAID 5 volume, repeat this process by specifying the RAID 5 “sdc” partition:
fdisk /dev/sdc
18. Repeat the above steps and type w to write the changes to the partition table and exit the utility.
19. Verify that the partitions on sdb and sdc (if applicable) were successfully removed using the
RHEL fdisk utility:
fdisk -cul
20. Reboot the server by selecting CTRL-ALT-DEL. You will again boot from the USB Installation
drive. The correct partitions and filesystems will be created automatically during the installation.
Proceed to “MCS Software Deployment” on page 64.
63
MCS Software Deployment
This process will install both RHEL and MCS from the MCS Installation USB drive.
To install RHEL and MCS from the USB installation drive:
1. Ensure the MCS Installation USB drive is connected to the server and either boot or reboot the
server if it is already powered-on.
For HP installs, an error message may appear: “[Firmware Bug]: the BIOS has corrupted hw-PMU
n
resources”. This error can be ignored.
If you are installing MCS on an HP ProLiant Gen9 server and you get a black screen on boot, you
n
might need to alter a particular BIOS setting. Select Advanced Options > Video Options from the
system’s BIOS/Platform Configuration (RBSU) menu and change the embedded video connection
setting from “auto” to “always on”.
2. Wait for the RHEL Welcome screen to appear.
MCS Software Deployment
n
c
It has been reported that under some circumstances the installation bypasses the RHEL Welcome
screen. This will not affect the install process. The correct installation choice is always selected by
default.
HP and Dell servers equipped with newer Intel processors might produce an “Unsupported
Hardware Detected” message during the hardware detection phase of the RHEL install. Avid
has performed additional testing to verify that although RedHat v6.5 does not specially support
these processors, there is no negative impact on MediaCentral or system functionality. If you
see this message, click OK to continue.
3. If you are installing on an HP ProLiant Gen9 server, install the RHEL driver to enable RHEL
support for the storage controller before proceeding:
a.Press the Esc key to open the RHEL boot shell.
b.At the boot shell, type the following:
linux dd
64
MCS Software Deployment

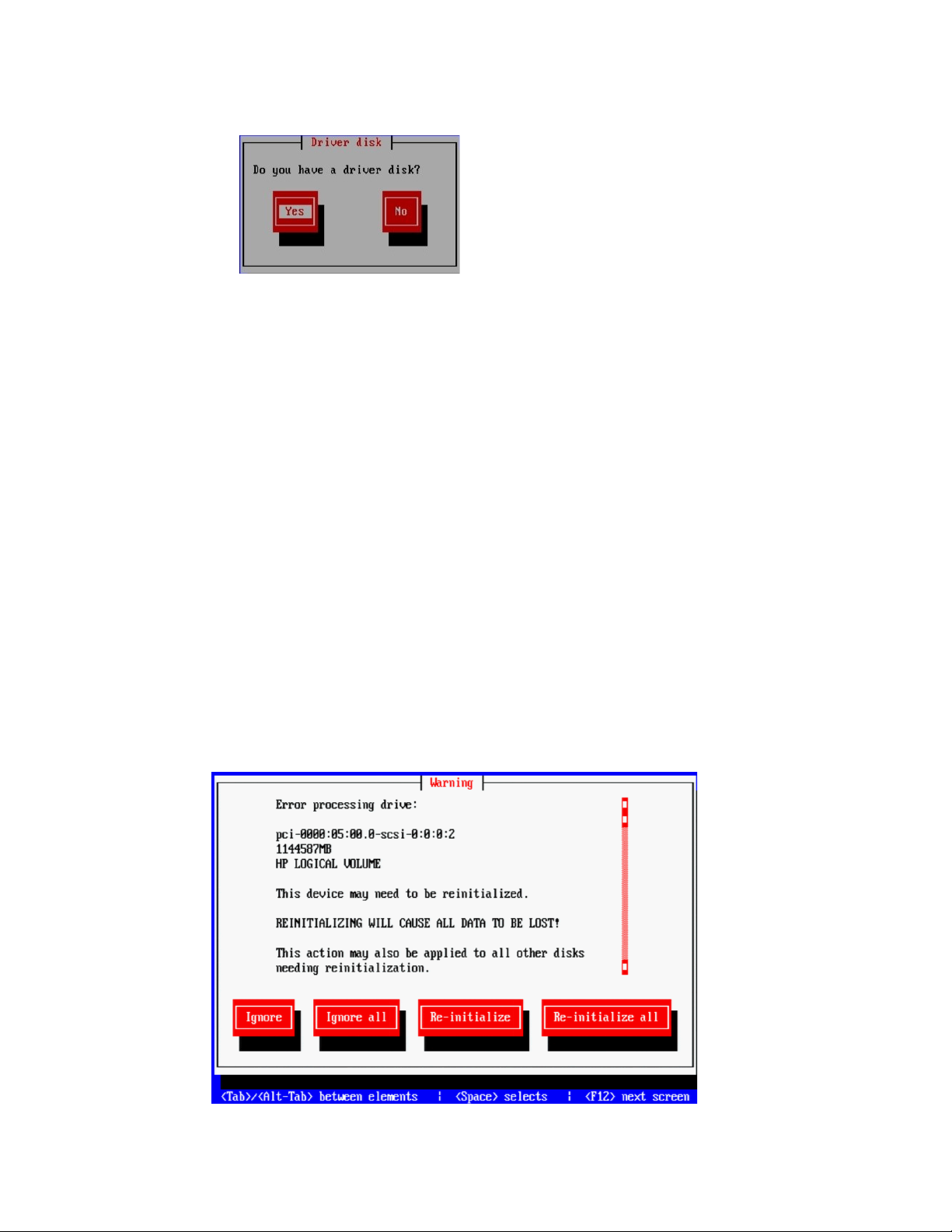

c.In the dialog that appears, confirm that you have a driver disk.
d.The installer may prompt you to specify the location of the update. Select the device name
indicating the MCS Installation USB drive (e.g sda). Similarly specify the partition on the
device (e.g. sda1).
e.Select the driver and select OK:
z_dd-hpsa-18216-x86_64.iso
f.When prompted for more drivers, select No.
The driver is updated, and the installation process continues as described below.
4. Select “Install Red Hat with ICS” to install a new MCS and press Enter.
If you are upgrading your system, do not use the “Upgrade” option. For upgrade instructions, see
n
the “MediaCentral Platform Services Upgrade Guide”.
The RHEL and MCS packages are installed—this takes about 20 minutes.
If you see an “
program could not locate the kickstart file on the “sda” partition. Linux might automatically
assign the sda partition to an SD card slot or a KVM with “virtual media” capability. To resolve
the issue, temporarily disable the device that is using the sda partition name. If you are accessing
the server through a KVM, unplug the KVM and connect an external monitor and USB keyboard
directly to the server.
5. If you just created the RAIDs a warning screen appears indicating a device (i.e. the RAIDs)
needs to be reinitialized. This is normal. Select Re-Initialize All.
Unable to download kickstart file
” message, it means that the installation
65
Booting RHEL for the First Time
6. When the installation process is complete, you are prompted to reboot. DO NOT REBOOT
before removing the MCS Installation USB drive.
If you reboot without removing the USB drive the server will reboot from the USB drive again
and re-launch the installer.
If you pressed Enter by mistake, remove the USB drive as quickly as possible (before the system boots
n
up again). If this is not possible, you might need to perform the installation again.
7. Once the MCS Installation USB drive is removed, press Enter to reboot the server.
Booting RHEL for the First Time
Like many operating systems, when you boot RHEL for the first time, you will be asked to provide
some basic information. A “first boot” of RHEL causes the Text Mode Setup Utility screen to appear,
providing access to system configuration menus.
If needed, the setup utility can be access from Linux at any time by typing:
Verifying the Keyboard configuration
Some MCS software components depend on the language for RHEL being set to English. This is
done automatically by the MCS installation scripts. Do not change the input language afterwards.
Selecting a language for the keyboard is different from the language selected for RHEL. While
selecting a different language for the keyboard is supported, the RHEL language must remain as
English.
setup
66
Booting RHEL for the First Time
To adjust the input language:
1. From the Choose a Tool menu, arrow down to select “Keyboard Configuration” and press Enter.
2. In the Keyboard Selection menu, use the arrows to select the appropriate language for your
keyboard.
3. Press the Tab key to focus on the OK button and press Enter.
4. Press the Tab key to focus on the Quit button and press Enter.
Changing the root Password
The RHEL installation script configures a default password for the root user (the Linux user with
administrator privileges). For security reasons, it is strongly suggested that you change the password
for the root user at the earliest opportunity.
To change the root password:
1. Log in a the Linux prompt
Default user name: root
Default password: Avid123
2. While logged in as the root user type the Linux change password command:
passwd
3. Follow the prompts to change the password.
If you do not enter a strong password, RedHat will warn you that the password is bad. This could
be because you have entered a password based on a word in the dictionary. While this warning
can be ignored, Avid suggests using strong passwords.
67
Network Configuration
MCS servers support both static and dynamic (DHCP) IP addressing. Static addressing is the Avid
recommended method for any MCS server and is a requirement for any MCS cluster deployment.
Normally, on a server with multiple network interfaces (i.e. Ethernet connectors), each interface has
its own IP address. However, MCS servers in Interplay MAM can benefit from port bonding (a.k.a.
teaming), in which several network interfaces appear as a single IP address. Port bonding is
supported in MCS for MAM deployments only. For more information, see “Port Bonding for
Interplay MAM” on page 264.
Under the Linux operating system, every physical network connector, called an interface in Linux,
has a name. By default, when installing RHEL, the installer scans the NIC cards in the machine and
labels the interfaces it finds, in the order it finds them.
•HP Servers: Each interface in an HP server is labeled “ethx”, where ‘x’ is an incremental number
starting with zero. Example: eth0, eth1, eth2 and so on. This naming convention is true for both
onboard and add-in (PCIe) network adapters.
•Dell Onboard: The Dell onboard interfaces are similar to the HP in that each interface is labeled
as “emx”, where ‘x’ is an incremental number starting with one. Example: em1, em2, em3 and
so on. This naming convention only applies to the onboard 1 Gb interfaces.
Network Configuration
•Dell PCIe Slots: The PCIe slots in a Dell are labeled as “p1p1” (slot 1) and “p2p1” (slot 2). If
This installation guide will use “eth0 as the default example for many commands. If you are using a
n
Dell server, make sure to substitute “eth0”with the correct interface name for your deployment. In
general on a Dell, these should be “em1” or “p1p1”.
To obtain a list of the NICs installed in your system, enter the following in a Linux command prompt:
n
lspci | grep net
Verify DNS
The Avid MCS implementation on RHEL is not configured to automatically register in DNS. Work
with your on-site IT Department to manually enter each MCS server in both Forward and Reverse
DNS.
If you will be configuring an MCS cluster, the cluster’s virtual IP and hostname should also be
entered in DNS.
you are using a 10 Gb network adapter in the Dell, it will be assigned one of these labels;
depending upon where you added the card (either slot is acceptable).
From a Windows system, the “nslookup” command can be used in a command prompt to check the
DNS records directly.
68
Identifying NIC Interfaces and Connecting the Network Cable
RHEL provides a simple means for visually identifying the NIC ports on a server, whether they are
active or not. The
ethtool
amount of time.
To visually identify a NIC interface:
1. Use the Linux ethtool command, identify your primary network interface by causing it to blink
for 60 seconds:
ethtool --identify <interface name> 60
Where <interface name> is the name of the interface you want to identify.
-For HP servers, this is: eth0
-For Dell servers using a 1 Gb connection, this is: em1
-For Dell servers using a 10 Gb connection, this is: p1p1 or p2p1
command can be used to cause ports to blink for a pre-determined
Network Configuration
Example:
ethtool -–identify eth0 60
Note the use of the double-dash in the identify command. In Linux, single dashes verses doubledashes distinguish options from arguments. A double-dash often precedes a word (i.e. human
readable) option.
2. Connect your network cable at this time.
a.If you are on a Dell server, connect your network cable to the interface that flashed for
“em1”, “p1p1” or “p2p1”.
Skip to “Configuring the Hostname and Static Network Route” on page 72.
b.If you are on an HP server and will be connecting through a 1 Gb connection to a supported
onboard NIC, connect your network cable to the interface that flashed for “eth0”.
Skip to “Configuring the Hostname and Static Network Route” on page 72.
c.If you are on an HP server and will be connecting through 10 Gb connection, connect the
fibre cable to the PCIe card.
Proceed to “(HP Only) Verifying the NIC Interface Name” on page 69.
d.If you are on an HP server and will be connecting through a 1 Gb connection to an add-in 1
Gb NIC, “eth0” may or may not have flashed on that card. If the above command made
“eth0” flash on the add-in card, connect your cable to the port that flashed. If the above
command made “eth0” flash on the onboard adapter, connect the network cable to the first
port (far left) of the add-in card and repeat the identify command to determine the name of
the port you are connected to (you will need this information in the following step).
Proceed to “(HP Only) Verifying the NIC Interface Name” on page 69.
3. If needed, repeat the above to identify additional ports.
(HP Only) Verifying the NIC Interface Name
In an HP server, Avid assumes that interface “eth0” will be used. Since all interfaces in an HP server
are named “ethx”, additional steps need to be taken to ensure “eth0” is used.
To verify the NIC interface name:
1. Enter the RHEL Configuration screen by typing the following at the command prompt:
setup
69
Network Configuration
2. From the Choose a Tool menu, select Network Configuration and press Enter.
3. From the Network Configuration menu, select Device Configuration and press Enter.
A list of NIC cards contained in the server enclosure appears.
4. Make note of the name associated with your interface. If necessary, use the arrow keys to move
up and down the list.
In the above example, a 10 Gb card has been placed in the server. It is currently assigned “eth4”,
but we will want to change that to “eth0”.
5. Note the name assigned to the interface of interest (e.g. eth0, eth1, ethn).
6. Perform the actions required at each menu (Cancel, Quit, Exit, etc.) to return to the Linux
prompt.
(HP Only) Swapping NIC Interface Names
If your interface of interest was not already named “eth0”, you must rename it. You must also rename
the NIC interface currently using the name “eth0”.
To rename the network interface:
1. Edit the network script where persistent names are assigned to network interfaces:
vi /etc/udev/rules.d/70-persistent-net.rules
A server with just one installed NIC card does not have a 70-persistent-net.rules file by default. If the
n
file is missing for any reason, it can be created using the following command:
udevadm trigger --subsystem-match=net
The contents of the file might look similar to the following:
Note that in this example, a 10Gb Myricom card has been added to the system and has been
designated as “eth4”. In this scenario, you must swap the names for “eth0” and “eth4” so that the
Myricom board is used as the primary network adapter.
2. Identify the lines in the file that correspond to the interface you want to name eth0 and the one
already using the name.
Use the arrow keys on the keyboard to navigate the file.
3. Press the A key to begin editing the file.
4. Change NAME="ethX" (e.g. eth1, eth2, etc.) to the following:
NAME="eth0"
5. Locate the line corresponding to the interface that was assigned to “eth0” and rename it:
NAME="ethX"
Where “X” is the number you removed in step 4 (e.g. eth1, eth2, etc.); that is, swap the names.
6. Save and exit the vi session. Press
and type:
:wq
<ESC>
(HP Only) Removing the MAC Address Hardware References
In addition to renaming the network interfaces, you must also remove the hardware references –
generally known as MAC addresses – from the affected NIC interface configuration files.
For each card where you renamed a network interface, edit the corresponding interface configuration
file and remove the hardware identifier. If you do not, Linux will override your changes and reassign
the original interface names on the next system reboot (or restart the Linux network services).
To remove the MAC address:
1. Using the Linux text editor, vi, open the interface configuration file for one of the renamed
interfaces (e.g. ifcfg-eth0):
vi /etc/sysconfig/network-scripts/ifcfg-eth0
In Linux, each network interface has its own configuration file.
2. Locate the line containing the hardware identifier. It has the following form:
HWADDR = 00:00:00:00:00:00
3. Position the cursor on the HWADDR line and press “dd” to remove it. That is tap the lower case
letter D twice.
4. Save and exit the vi session. Press
and type:
:wq
<ESC>
5. Repeat the above steps for the other NIC interface you renamed (e.g. ethX).
71
6. Once you have finished removing the hardware references for both the renamed NIC interfaces,
reboot the server to restart the network services and make the effects permanent:
reboot
The MAC addresses refresh automatically after the reboot.
7. Once the system has rebooted, log back into RHEL.
Changing the contents of the /etc/udev/rules.d file requires a reboot rather than simply restarting
n
network service.
Configuring the Hostname and Static Network Route
This process assumes that the configuration of a static IP address is desired.
To configure the system hostname and IP address:
1. Enter the RHEL Configuration screens by typing the following at the command prompt:
setup
2. From the Choose a Tool menu, select Network Configuration and press Enter.
3. From the Network Configuration menu, select Device Configuration and press Enter.
A list of network interfaces appears.
Network Configuration
4. Use the arrow keys to locate the primary interface (eth0, em1 or p1p1) and press Enter to view its
details.
If you configured port bonding for an Interplay MAM integration, your primary interface may be
n
called “bond0”. For more information on port bonding, see “Port Bonding for Interplay MAM” on
page 264.
72
Network Configuration
5. The software installs with a default Static IP of 127.0.0.2 and a default Netmask of 255.0.0.0.
Replace the following fields with customized values for your site:
-Static IP address
-Netmask (Subnet)
-Default gateway IP
-Primary DNS server
-Secondary DNS server (if applicable)
c
All MCS servers in a cluster must be in the same subnet.
6. Arrow or Tab down to the OK button and press Enter.
You are returned to the list of network interfaces.
7. Select Save and press Enter.
8. From the Choose a Tool menu, select DNS Configuration and press Enter.
9. Enter the following information for the DNS Configuration:
-Hostname
Specify the short hostname only (e.g. wavd-mcs01) and not the fully qualified domain name
(FQDN) (e.g. wavd-mcs01.wavd.com) in this field.
Hostnames should comply with “RFC 952” and “RFC-1123” standards. Avid recommends keeping
n
host names under 15 characters to maintain backwards compatibility with older systems. The only
“special character” allowed in a hostname is a dash “ - ”. Underscores are not allowed.
For more information on RFC specifications, see https://ietf.org/rfc.html. For additional information
on host name restrictions in Microsoft Windows domains, see https://technet.microsoft.com/en-us/
library/cc959336.aspx.
-Primary DNS server
-Secondary DNS server (if applicable)
-Tertiary DNS server (if applicable)
-DNS search path
10. Select Save & Quit. Press Enter.
11. Select Quit. Press Enter.
73
Verifying the hosts File Contents
The hosts file is used by the operating system to map hostnames to IP addresses. It allows network
transactions on the computer to resolve the right targets on the network when the instructions carry a
“people-friendly” hostname (e.g. wavd-mcs01) rather than an IP address (e.g. 192.xxx.xxx.xxx.xxx).
Querying and waiting for a response from a DNS server can be slow due to network latency. The
hosts file assists in quickly resolving hostnames to IPs which is particularly important for clustered
configurations.
By default the hosts file on a computer resolves the machine’s own IP address to localhost. In this
step, you verify the content of the hosts file, and remove any extra entries, if present. In addition,
since the active hosts file can be reset to its default configuration when a server fails or is rebooted
you also verify the system default hosts file.
To configure the local hosts file:
1. Using the Linux vi editor, open the active hosts (/etc/hosts) file for editing:
vi /etc/hosts
It should look similar to the following:
Network Configuration
127.0.0.1
::1
localhost
localhost
localhost.localdomain
localhost.localdomain
localhost4
localhost6
localhost4.localdomain4
localhost6.localdomain6
In this example, the default IP address of 127.0.0.1 is mapped to various forms of localhost, for
both ipv4 and ipv6 systems.
In some cases, the entries include an explicit call-out of the computer’s own host name (e.g.
wavd-mcs01):
127.0.0.1
::1
In a cluster the explicit call-out of the computer’s own host name is particularly problematic. If this
n
entry remains unaltered, another node querying “wavd-mcs01” for its IP address would receive
localhost
localhost
localhost.localdomain
localhost.localdomain
localhost4
localhost6
localhost4.localdomain4
localhost6.localdomain6
wavd-mcs01
wavd-mcs01
“127.0.0.1” in response. The querying node would send messages to itself instead of to the real
“wavd-mcs01”, and clustering would not function normally.
If the computer’s host name (e.g. wavd-mcs01) is present in either line, remove the entry:
127.0.0.1
::1
localhost
localhost
localhost.localdomain
localhost.localdomain
localhost4
localhost6
localhost4.localdomain4
localhost6.localdomain6
2. If you are configuring an MCS cluster, add the IP addresses, FQDN and hostnames of each of the
cluster nodes and the virtual cluster.
74
Network Configuration
For a four node cluster, for example, you would add five lines similar to the following:
127.0.0.1
::1
192.168.10.50
192.168.10.51
192.168.10.52
192.168.10.53
192.168.10.54
localhost
localhost
wavd-mcs.wavd.com
wavd-mcs01.wavd.com
wavd-mcs02.wavd.com
wavd-mcs03.wavd.com
wavd-mcs04.wavd.com
localhost.localdomain
localhost.localdomain
wavd-mcs
wavd-mcs01
wavd-mcs02
wavd-mcs03
wavd-mcs04
localhost4
localhost6
localhost4.localdomain4
localhost6.localdomain6
When adding the node data, make sure to enter the IP address, FQDN and short hostname – in
that order. If you enter the information in the wrong order, the Linux “hostname” and “hostname
-f” commands could reply with invalid responses.
It is a good idea to declare the nodes in the hosts file in order of latency, ascending. Run a ping
n
command to each node and add the lines to the file in order of the ping return. For example, if node2 returns a ping after 30ms and node-3 after 20ms, put in the line for node-3 before node-2.
3. Save and exit the vi session. Press
and type:
:wq
<ESC>
4. If you made changes, verify that the system default hosts file reflects the changes.
If necessary, vi can be used to edit the file to match the changes you made to the master hosts file.
Verifying the Contents of resolv.conf and nsswitch.conf
The
resolv.conf
Setup Utility.
Avid adjusts the nsswitch.conf file to instruct RHEL to prefer the local hosts file over DNS. In cluster
configurations, this ensures that there is no latency when attempting to discover the cluster nodes.
Before enabling the network interface, it is best practice to verify that the information contained in
these files is correct.
To verify the resolv.conf file:
1. Use the Linux cat command to display the contents of the (resolv.conf) file and verify its
contents:
cat /etc/resolv.conf
The DNS servers and DNS search path should be present in the file.
If necessary, the vi editor can be used to add one or more additional search domains. The search
list is limited to six domains with a total of 256 characters. The file should look something like:
nameserver <IP address of server1>
nameserver <IP address of server2>
search domain1.com domain2.com
file contains the DNS and domain information that you entered through the Linux
(Primary DNS server)
(Secondary DNS server)
(multiple domain names separated by a single space or tab
can be entered)
75
Network Configuration
2. Delete any backup resolver configuration (resolv.conf.save) file that might have been
automatically created by the OS:
rm /etc/resolv.conf.save
If you do not delete the
n
To verify the nsswitch.conf file:
.save
file, Linux will overwrite the changes you just made on the next reboot.
1. Review the contents of the nsswitch.conf file using the cat command:
cat /etc/nsswitch.conf | grep hosts
The system outputs the lines containing the string “hosts”, similar to the following:
#hosts: db files nisplus nis dns
hosts: files dns
In the second line, ensure that the word “files” comes before the word “dns”.
2. If “files” does not appear before “dns”, use the vi editor to reverse the priority order.
Ensuring the NIC Interface Comes Up at System Startup
In this step, you must verify that the primary network interface is configured to be enabled when the
system boots.
To verify the network interface boot setting:
1. Using the Linux vi editor, open the eth0 interface configuration file for editing:
vi /etc/sysconfig/network-scripts/ifcfg-eth0
If you are on a Dell server, remember to substitute “em1”, “p1p1” for “eth0”.
n
2. When you open the file for editing, it should look something like this:
3. Ensure that the ONBOOT entry is set to “yes”. If it is not, the interface will not be active after
rebooting the server.
4. Save and exit the vi session. Press
and type:
:wq
<ESC>
5. Reboot the MCS server:
reboot
76
You are asked to reboot at this time to ensure that all networking changes are active and the system
n
comes up as expected. If you do not reboot, some of the steps in the next procedure will fail.
6. Once the system has rebooted, log back into RHEL.
Verifying Hostname, Network and DNS Connectivity
Before continuing, take a moment to verify that the server’s hostname responds as expected and that
network connectivity is now established.
To verify the hostname:
1. Verify the short hostname. In the RHEL command prompt, type:
hostname
The short hostname (e.g. wavd-mcs01) should be printed to the screen.
2. Verify the fully qualified domain name (FQDN). In the RHEL command prompt, type:
hostname -f
The fully qualified hostname (e.g. wavd-mcs01.wavd.com) must be printed to the screen. If the
command replies with the short hostname, there is a configuration error.
If you do not receive the expected output, verify your hosts file and the resolv.conf file.
n
To verify network connectivity:
Network Configuration
1. Use the ping command to verify connectivity to your network gateway address:
ping -c 4 <gateway IP address>
“ping” is the command. “-c 4” is the count of how many times the ping command is issued. If
you do not specify a count, ping will continue forever. In that event, press CTRL-C to stop the
ping. For example:
[root@wavd-mcs01 ~]# ping -c 4 192.168.10.1
PING 192.168.10.1 (192.168.10.1) 56(84) bytes of data.
64 bytes from 192.168.10.1: icmp_seq=1 ttl=255 time=0.362 ms
64 bytes from 192.168.10.1: icmp_seq=2 ttl=255 time=0.330 ms
64 bytes from 192.168.10.1: icmp_seq=3 ttl=255 time=0.302 ms
64 bytes from 192.168.10.1: icmp_seq=4 ttl=255 time=0.804 ms
2. Now use the ping command to test the connection to host servers in your network. Examples of
host servers could be: Interplay Production Engines, Avid System Directors, iNEWS servers, etc.
This not only tests the connection to the host server, but also verifies DNS.
ping –c 4 <hostname>
3. Repeat the ping test; this time by pinging the host servers by IP address.
Now that you have configured and verified the connection to the network, you can now switch to
using an indirect method for configuring the server. For more information refer back to “Accessing
the MCS Server(s)” on page 21.
77
Configuring Access for External Systems
Configuring Access for External Systems
External systems such as Interplay Production and Interplay MAM that have installed the Avid
Connectivity Toolkit must be added to a configuration file on the MCS server. This configuration file
builds a “whitelist” of systems allowed to connect to the MediaCentral BAL (Bus Access Layer) for
enhanced security. Any system running the Avid Connectivity Toolkit that is not included in this file
might encounter errors when connecting to the Bus.
To enable access for external systems:
1. Using the Linux text editor, vi, open the configuration file for editing:
vi /etc/sysconfig/avid-acs-gateway
2. Locate the following line in the configuration file:
-Interplay Production: Enter the IP address of any system that has the Avid Connectivity
Toolkit installed. The Toolkit is shipped with the Interplay Production software package and
requires a separate installation. The Toolkit is not automatically installed.
c
-Interplay MAM: Enter the IP addresses of all MAM servers that are to be connected to
Notice the required quotation marks that enclose the string. The 127.0.0.1/25 entry is a reference
to the local MCS server.
Do not remove 127.0.0.1/25 from the configuration. This address is required for MediaCentral
Platform Services to operate.
If you have a group of IP addresses that need to connect to MCS, a range can be substituted for a
list of individual IP addresses. When specifying a range of addresses, you must add a netmask
after the IP range. In the following example, the single server at 192.168.50.98 and all IP
addresses in the 192.168.100.x range are allowed to connect to MCS:
Do not remove the 127.0.0.1/25 address from this line. This address is required for
MediaCentral Platform Services to operate.
e.Save and exit the vi session. Press <ESC> and type:
f.Restart the avid-acs-gateway service to enable the change:
service avid-acs-gateway restart
If you are altering the gateway configuration file on a fully configured MediaCentral cluster,
restart the cluster resource associated with the avid-acs-gateway service. Only complete this
step once, after having updated the file on both the master and slave nodes. The following
command can be issued from any cluster node:
crm resource restart AvidGatewayEverywhere
The Cluster Resource Monitor can be used to review the status of the cluster and clear any
fail-counts.
Configuring Date and Time Settings
Ensuring that the date, time and time zone are correct on each MCS server is critical to a successful
implementation. This process will walk you through configuring the above values as well as setting a
Network Time Protocol (NTP) source for continued time synchronization.
If you do not have an NTP server already configured, see your local IT Department about creating
one prior to continuing with this process. Maintaining time synchronization between MCS servers
and host systems (Avid shared storage, Interplay Production, etc) is critical. Maintaining time
synchronization between nodes in an MCS cluster configuration is particularly critical.
:wq
Installing the RHEL Time Zone Update
In the Installation Prerequisites chapter, you were asked to download a RHEL Time Zone Update file.
Prior to configuring the local time zone and NTP server settings, install the update file.
To install the update file:
1. Copy the update file to the server.
For more information, see “Copying Software to the MCS Server” on page 232.
79
2. Install the update using the following command:
Configuring Date and Time Settings
rpm -Uvh tzdata-<version>.noarch.rpm
Setting the Time Zone
When using the MCS Installation USB drive to install RHEL, the kickstart file automatically sets the
time zone to America/New_York. If this zone is not correct for your configuration, you must
complete this process. If you are already in this time zone, you can skip to the process for Syncing
the System Clock.
To adjust the timezone:
1. Verify the current time zone by viewing the contents of the Linux “clock” file:
cat /etc/sysconfig/clock
2. List the contents of the directory containing RHEL time zone information:
ls /usr/share/zoneinfo
A list of time zone regions is presented. For example, US time zones are located in /usr/share/
zoneinfo/US (standard US time zones), European time zones are located in /usr/share/zoneinfo/
Europe, and so on...
3. List the contents of the directory that are specific to your location:
ls /usr/share/zoneinfo/<location>
For example:
ls /usr/share/zoneinfo/US
4. Make note of the time zone name that relates to your installation location.
5. Edit the clock file to reflect the correct time zone for your installation:
vi /etc/sysconfig/clock
Example: Replace
6. Save and exit the vi session. Press
zone="America/New_York"
<ESC>
and type:
with
zone="US/Pacific"
:wq
7. Create the symbolic link RHEL needs to make use of the new time zone information:
Creating a symbolic link is more robust than copying. For example, the files in /usr/share/zoneinfo
n
contain daylight saving time (DST) information. A symbolic link allows your system to automatically
<yourzone>
is the path you entered in the clock file (e.g. US/Pacific).
accommodate changes to DST practices that might arise in the future. Such changes would be
propagated through RHEL updates to the /usr/share/zoneinfo files.
8. Verify the settings using the date command:
date
The local time and time zone should now be shown.
80
Synchronizing the System Clock
In this step you set the Network Time Protocol (NTP) daemon to automatically synchronize the
system clock with an NTP time server every 30 minutes. This is done by creating a job for the Linux
cron utility. The cron job runs the NTP daemon, ntpd.
Setting up ntpd to run as a service at startup is also a possibility. However, some consider it a
n
security risk to run ntpd in “continuous” mode. The technique shown here keeps the system clock
synchronized while minimizing risk by causing ntpd to exit after it fetches the correct time.
To synchronize the system clock:
1. Verify the current date and time with the Linux date command:
date
2. This process will verify connectivity to the NTP server. Change the date and time so that the
clock is 10 minutes behind the correct time of day.
date MMDDHHmmYYYY
Avid suggests creating a 10 minute offset. If you create an offset of more than 17 minutes, Linux sees
n
this as a more serious problem and may not update the clock.
3. Check the status of the ntpd service:
Configuring Date and Time Settings
service ntpd status
If the service is running, stop the service:
service ntpd stop
4. Next, you alter the configuration of the service so that it does not auto-start after a reboot of the
server:
chkconfig ntpd off
5. Verify that the NTP server of interest is reachable by querying it:
ntpdate -q <ntp_server_address>
Example output:
server 192.168.10.25, stratum 3, offset 468.746036, delay 0.02585
1 Jan 13:05:00 ntpdate[7554]: step time server 192.168.10.25 offset
468.746036 sec
6. Edit the NTP configuration (ntp.conf) file:
vi /etc/ntp.conf
7. Scroll down to the section of the file that details the NTP servers and place a ‘#’ symbol in front
of any existing NTP servers to comment them out. For example:
# server 0.rhel.pool.ntp.org
# server 1.rhel.pool.ntp.org
# server 2.rhel.pool.ntp.org
8. Update the file with the NTP information for your configuration. Updated example:
# server 0.rhel.pool.ntp.org
# server 1.rhel.pool.ntp.org
# server 2.rhel.pool.ntp.org
server 192.168.10.25 prefer
server 192.168.10.26
81
Configuring Date and Time Settings
If you are configuring two or three NTP servers, add the “prefer” option to the first NTP server.
This configures the first server as the primary and eliminates the possibility of the client
fluctuating between time sources. If the primary NTP server is offline, the next NTP server in the
list is used. If you are using four or more time servers, do not use the “prefer” option.
The use of the “iburst” option is not recommended. This feature produces very rapid time shifts and
n
can lead to synchronization problems.
<ESC>
9. Save and exit the vi session. Press
and type:
:wq
10. Set up a cron job by creating a new file containing instructions for cron:
vi /etc/cron.d/ntpd
11. Add the following text which includes the instructions for the cron job:
“0,30” is a comma-separated list (i.e. run at 0 minutes and 30 minutes).
“*” is a special list indicating every value in the list (i.e. every hour, every day of the month,
every month, every day of week).
The values in the cron command represent the following:
MinutesHourDay of Month MonthDay of Week
Variable(0-59)(0-23)(1-31)(1-12 or Jan-Dec) (0-6 or Sun-Sat)
Avid’s Use 0,30****
-The job is /usr/sbin/ntpd
-The -q switch tells ntpd to exit after it sets the system clock
-The -u switch tells Linux to run the job as user ntp, in user group ntp
-The “>/dev/null 2>&1” portion of the command instructs cron to cancel the auto-generated
e-mail each time the job runs
12. Save and exit the vi session. Press
and type:
:wq
<ESC>
13. Configure the permissions of the ntpd file to ensure proper operation:
chmod 644 /etc/cron.d/ntpd
14. Once again, verify the current date and time:
date
The current time should be 10 minutes behind the correct time.
15. Update the system clock now by querying the NTP server with the NTP daemon:
/usr/sbin/ntpd -q -u ntp:ntp
The system responds with a message similar to the following:
ntpd: time set +570.677029s
16. Finally, use the
date
command to verify that the time has been updated.
82
Creating the File Cache on the RAID
If your configuration does not include a RAID 5, continue to one of the following (as appropriate for
your installation):
•Configuring MCS for MediaCentral UX and Media Composer Cloud
•Configuring MCS for Interplay MAM
In an earlier step you might have created a RAID 5 for the cache using the “arrays” utility built-in to
the server’s BIOS. In this step you will partition the RAID, create a logical volume for the RAID and
mount the MCS cache on it.
Partitioning the RAID
In this procedure you partition the RAID and write the new partition table entry to disk using the
GNU parted disk partitioning utility.
The enclosure contains two devices of interest, the system disk (/dev/sda) and the RAID (/dev/sdb).
Partitioning the system disk was performed automatically by the RHEL installer. You only need to
partition the RAID, as indicated in this section.
Creating the File Cache on the RAID
Starting with RHEL 6.3, Red Hat creates a GPT volume when the MCS installation scripts initialize
n
the cache volume during OS installation. GPT volumes must be handled using the GNU parted utility
(rather than the Linux fdisk utility).
To partition the RAID:
1. Use the GNU parted utility to ensure the RAID 5 HD device exists:
parted -l
Note that the command take a lower-case “L” (not a numerical “one”).
n
Information regarding the systems drives and partitions is displayed. If you have a RAID 5 array,
it should be presented as “sdb” as in the example below:
Model: HP LOGICAL VOLUME (scsi)
Disk /dev/sdb: 2500GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Number Start End Size File system Name Flags
Take note of the Partition Table type. It will be listed as either “
2. If the Partition Table for your RAID volume (sdb) is configured for “msdos”, you will need to
convert it to “gpt”. If sdb is already formatted for “gpt”, you can skip this step.
a.Enter the parted utility, specifying the volume you wish to work with (sdb):
msdos
” or “
gpt
”.
parted /dev/sdb
The parted welcome screen appears and your user prompt changes from # to (
b.Convert the volume to use a “gpt” partition table:
mklabel gpt
83
parted
).
Creating the File Cache on the RAID
c.You are asked to confirm that you wish to change the existing disk label:
Warning: The existing disk label on /dev/sdb will be destroyed and all
data on this disk will be lost. Do you want to continue? Yes/No?
Type:
Yes
d.You are returned to the (
A final message indicates that the
parted
) prompt. Type
/etc/fstab
quit
to exit the utility.
file might need to be updated. No action is
required by you at this time.
3. Find the free space on the /dev/sdb device:
parted /dev/sdb p free
Information similar to the following is displayed:
Model: HP LOGICAL VOLUME (scsi)
Disk /dev/sdb: 2500GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Number Start End Size File system Name Flags
17.4kB 2500GB 2500GB Free Space
4. Create a primary partition on the RAID 5 using all the available space (2500 GB in the sample
output provided above):
parted -a optimal /dev/sdb mkpart primary ext2 0% 2500GB
The system might respond with the following message:
Information: You may need to update /etc/fstab
The message can be ignored. You will update fstab when you create the logical volume and
mount the cache for the new partition.
5. Set sdb partition “1” to type “logical volume”, and its state to “on”:
parted /dev/sdb set 1 lvm on
6. Run the parted utility again to list your changes:
parted -l
Model: HP LOGICAL VOLUME (scsi)
Disk /dev/sdb: 2500GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Number Start End Size File system Name Flags
1 17.4kB 2500GB 2500GB primary lvm
Notice in the above output the partition now has a partition number, is the primary partition, and
has a logical volume flag. You create the file system in the next step.
If a non-writeable partition is detected, such as a disc located in an optical drive, the following
n
message will appear:
Warning: Unable to open /dev/sr0 read-write (Read-only file system).
/dev/sr0 has been opened read-only.
Error: Invalid partition table - recursive partition on /dev/sr0.
Ignore/Cancel?
Investigate the warning if warranted and type “I” to continue.
84
Creating the File Cache on the RAID
Creating the Logical Volume, Filesystem and Mounting the Cache
In this procedure you work with the newly partitioned RAID 5 using the Linux Logical Volume
Manager (LVM). The hierarchy of volumes in Linux is as follows: physical volume, volume group
and logical volume.
To create the logical volume and mount the cache:
1. Create the physical volume:
pvcreate --metadatasize=64k /dev/sdb1
Note the name of the physical volume (/dev/sdb1) takes a 1 (one).
LVM feedback indicates the successful creation of the physical volume.
2. Create a volume group, vg_ics_cache, containing the physical volume /dev/sdb1:
vgcreate -s 256k -M 2 vg_ics_cache /dev/sdb1
LVM feedback indicates the successful creation of the volume group.
3. Before creating the logical volume, obtain a value for the volume group’s physical extents:
vgdisplay vg_ics_cache
A list of properties for the volume groups appear, including the physical extents (Free PE).
Physical extents are the chunks of disk space that make up a logical volume.
Sample output is shown below:
--- Volume group -- VG Name vg_ics_cache
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 2
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 1
Open LV 1
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.09 TiB
PE Size 256.00 KiB
Total PE 4578332
Alloc PE / Size 0 / 0
Free PE / Size 4578332 / 1.09 TiB
VG UUID cyWpGZ-s3PG-8UqH-4TBl-rvBA-33oJ-3uZt0u
Use the “Free PE” value to create a logical volume occupying the entire volume group (below).
4. Create the logical volume, lv_ics_cache, containing the volume group vg_ics_cache:
This automates the mapping of the logical volume to a file system directory (/cache in this case).
<ESC>
8. Save and exit the vi session. Press
and type:
:wq
9. Mount the volume:
mount /dev/mapper/vg_ics_cache-lv_ics_cache /cache
Alternately, since you added an entry to fstab, you ought to be able to mount the cache as
follows:
mount /cache
If you receive an error indicating the mount point /cache does not exist, create the cache manually
n
mkdir /cache
(
) and issue the mount command again.
10. Verify that /cache has been mounted correctly:
df -h
The following information is displayed about the cache: size, used, available, user % and mount
point (mounted on), similar to the following:
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_ics_cache-lv_ics_cache 29G 585M 27G 3% /cache
11. Verify that /cache has the correct ownership and read-write-exec settings:
ls -la /cache
Information is displayed about the cache ownership, similar to the following:
drwxr-xr-x 5 maxmin maxmin 4096 Oct 16 10:02 .
12. If the ownership is of /cache is not set to user maxmin, change its ownership:
chown maxmin:maxmin /cache
13. If the /cache directory does not have its read-write-exec settings are not rwx for owner, group,
other, change the permissions:
chmod 0777 /cache
86
Enabling / Disabling 3G and Edge Streams
14. Create the following two cache directories:
mkdir /cache/download
mkdir /cache/fl_cache
15. Change their ownership to user maxmin:
chown maxmin:maxmin /cache/download
chown maxmin:maxmin /cache/fl_cache
16. Change their permissions:
chmod -R 02777 /cache/download
chmod -R 02777 /cache/fl_cache
17. Verify that /cache and its subdirectories now have the correct ownership, read-write-exec
settings, and setgid special permission:
ls -la /cache
Updated information is displayed, which ought to be similar to the following:
drwxrwxrwx 5 maxmin maxmin 4096 Mar 22 10:04 .
User maxmin owns the MCS process that writes to the cache. Avid processes will create
n
subdirectories in /cache, on an as-needed basis.
Enabling / Disabling 3G and Edge Streams
By default, MCS servers encode assets in three different media streams (Wi-Fi, 3G, and Edge) for
playback on mobile devices. If your facility intends to connect mobile devices through Wi-Fi only, it
is recommended that you disable the 3G and Edge streams, to improve the encoding capacity of the
MCS server. If your facility does not intend to connect any mobile devices to the MediaCentral
system, this file does not require editing. Mobile media formats are only created if a device running
the MediaCentral UX Mobile application connects and attempts to play media.
To Disable 3G and or Edge Streams:
1. Use the Linux vi editor to edit the following file:
vi /usr/maxt/maxedit/share/MPEGPresets/MPEG2TS.mpegpreset
2. In each of the [Edge] and [3G] areas, set the active parameter to
<ESC>
3. Save and exit the vi session. Press
To re-enable 3G or Edge, edit the file and reset the “active” value to 1.
and type:
:wq
active=0
.
Upgrading the Avid Shared Storage Client Software
MediaCentral Platform Services includes a copy of both the Avid ISIS Client and the Avid NEXIS
Client software. The ISIS Client is installed by default through the MCS installation process. The
NEXIS Client is bundled with the MCS software for convenience, but is not actively installed. Verify
the version of the Avid NEXIS or Avid ISIS client required for your environment and upgrade the
client software if necessary.
For version compatibility information, see the “Compatibility Matrix: Interplay Production and
MediaCentral” on the Avid Knowledge Base.
87
Upgrading the Avid Shared Storage Client Software
To upgrade the shared storage client:
1. Prior to upgrading the shared storage client, you must first stop the ICPS back-end services that
use the storage client:
tFor a single server, use the following command:
service avid-all stop
tIf you are referring to this process to upgrade the shared storage client on an established
MCS cluster configuration, issue the following command from any node to stop the cluster
resource that manages the service:
crm resource stop AvidAllEverywhere
2. Navigate to the location of the bundled shared storage client software:
cd /opt/avid/Packages
3. Use the following command to upgrade the shared storage client:
rpm -Uvh AvidNEXISClient-<version>.el6.x86_64.rpm
You do not need to uninstall any previous version of the client software. The installer
automatically replaces the version of the client already installed on the system.
If you are referring to this process to upgrade the shared storage client on an established MCS
cluster configuration, repeat this step on all cluster nodes.
4. Once the client is installed, restart the avid-all service:
tFor a single server, use the following command:
service avid-all start
tIf you are referring to this process to upgrade the shared storage client on an established
MCS cluster configuration, issue the following command from any node to stop the cluster
resource that manages the service:
crm resource start AvidAllEverywhere
Upgrading the client on a cluster might introduce resource fail-counts. Use the Cluster Resource
n
Monitor,
crm resource cleanup <rsc> [<node>]
crm_mon
, to verify the status of the cluster and if necessary, clear the fail-counts with the
command.
5. Verify the version number of the updated client software:
rpm -qa | egrep -i 'isis|nexis'
This command returns all installed packages with either ISIS or NEXIS in the name.
If for any reason you need to revert to the original ISIS client, see “Downgrading the Avid Shared
Storage Client” on page 258 for complete instructions.
88
Copying Software to the MCS Server
Now that the basic RHEL installation is complete, you might need to copy additional software to the
MCS server. Common software includes:
•RHEL Security Patches
•MCS Software Updates
•Additional packages such as the Closed Captioning Service or the MAM Connector
For more information, see “Copying Software to the MCS Server” on page 232.
Installing Security Updates
Once you have installed the operating system, consult the “Security Updates” section of the Avid
MediaCentral Platform Services ReadMe to resolve any outstanding RHEL security vulnerabilities.
While some security updates are recommended, others are required to be installed on the MCS
servers.
Copying Software to the MCS Server
Once the security patches have been installed, users can run the
verify the installation. To run the script, type the following command:
avid-security-check
Review the output and resolve any updates that are listed as FAILED, as shown in the following
example:
Avid releases patches for MCS on a regular basis to assist in addressing customer issues and feature
requests. Refer to the Avid MediaCentral Platform Services ReadMe for information on current
patches and install any available patches at this time.
avid-security-check
script to
89
4Configuring MediaCentral
Chapter Overview
Now that you have installed and configured the operating system, you are ready to configure the
software and settings specific to MediaCentral.
c
If you are running a cluster, complete the steps in this chapter on the master node only (unless
instructed otherwise). Settings will be replicated to the other nodes during the cluster
configuration process.
This chapter is divided into two main sections. Proceed to the section appropriate for your
installation:
•Updating the MediaCentral UX Configuration
This section includes information on multiple workflows such as iNEWS, Interplay Production,
Media Composer Could, Send To Playback, etc. Read and apply the sections appropriate for
your installation.
•Configuring MCS for Interplay MAM
This section includes the steps required to configure MediaCentral Platform Services for
integration with Interplay MAM.
The following table lists the topics that cover the configuration of MCS for MediaCentral UX and
Media Composer Cloud:
Step TaskTime Est.
1Updating the MediaCentral UX Configuration2 min
Covers use of the Configurator Tool.
2Signing into MediaCentral UX5 min
This section details the process for signing in to MediaCentral UX for the first time.
3Changing the Administrator Password2 min
For security it is recommended you change the administrator password.
4Creating a Second Administrator User5 min
Helps to ensure you do not get locked out of the interface.
5Configuring System Settingsvaries
Covers the configuration of the MediaCentral System Settings.
6Enabling Asset Watermarkingvaries
Optionally add a custom watermark to the player for asset protection.
Chapter Overview
Step TaskTime Est.
7Verifying the System Settingsvaries
A process for testing the configured settings.
8Configuring Send To Playback Settings5 min
Configure settings for STP workflows.
9Importing Domain Users5 min
Covers the process of importing Windows Domain Users.
10Creating Local Users and Assigning Rolesvaries
Information on creating local users and role assignments.
11Continuing the Installation1 min
Suggestions for additional steps to continue your installation.
The following table lists the topics that cover the configuration of MCS for Interplay MAM:
Step TaskTime Est.
1Configuring MCS for Interplay MAM5 min
Introduction to MCS for MAM and prerequisites.
2Mounting MAM Storage5 min
Information related to the process for mounting MAM storage volumes.
3Configuring the ACS Gateway Access Port5 min
Verify the setting on the MAM server that enables access to the avid-acs-gateway.
3Configuring the MediaCentral User Interface5 min
Verify the enabled components of the configurator.
4Creating the MAM System User5 min
Create the specialized user to be used with MediaCentral.
5Configuring the MCS Player5 min
Updating the Player Site Setting within MediaCentral UX.
6Enabling Remote Playback10 min
Description and process for enabling the alternate Remote Playback workflow.
7Continuing the Installation1 min
Suggestions for additional steps to continue your installation.
91
Updating the MediaCentral UX Configuration
Updating the MediaCentral UX Configuration
By default, MediaCentral enables functionality for MCPS Settings, iNEWS and Interplay |
Production workflows. Additional features such as Media Distribute can be added to the system
through the MediaCentral UX Configurator Tool. Features that are not required for your installation
should be disabled. If you are configuring a cluster, this step only needs to be completed on the
master and slave nodes. However, it is good practice to run the configurator on all nodes. At this
point in the installation, this step can be completed on all nodes concurrently.
To verify or alter MediaCentral functionality:
1. Start the configurator by typing the following at the Linux prompt:
/opt/avid/avid-interplay-central/configurator
The configuration UI appears.
Additional plug-ins such as Media | Distribute appear in the Configurator only if the features have
n
been installed on the system (through a separate install process).
2. Select the appropriate application profile settings.
The following table outlines typical settings by deployment type:
Interplay
Messaging MCPS Settings iNEWS
MediaCentral (default settings)(optional)ONONON
Interplay Production Only(optional)ONOFFON
iNEWS Only(optional)OFFONOFF
Media Composer Cloud(optional)ONOFFON
Interplay MAM(optional)ONOFFOFF
-Messaging: Enables or disables the Messages pane for all layouts.
-MCPS Settings: Toggles the MCPS group in the System Settings layout. This group
provides access to the Load Balancer, Playback Services and Player settings details pages.
-iNEWS: Toggles the iNEWS settings group.
-Interplay Production: Toggles the Interplay Production settings group.
Production
For example, administrators creating an iNEWS-only deployment without video playback would
enable iNEWS and disable MCPS Settings and Interplay Production. Messaging is optional.
92
3. Use the Up and Down arrow keys to move between the options, Left and Right arrow keys to
move between OK and Cancel, SPACEBAR to toggle the asterisks, and press Enter to confirm.
-Asterisk = enabled
-No Asterisk = disabled
Now when you access MediaCentral UX, the UI will be correctly configured for your
deployment.
For more information, see “Working with the MediaCentral UX Configurator” on page 254.
n
Signing into MediaCentral UX
MCS servers are configured using the MediaCentral UX System Settings. This process is completed
through the use of a web browser such as Google Chrome.
If you are configuring a cluster, you configure the MediaCentral UX System Settings once on the
n
master node only. Do not configure these settings on slave or load balancing nodes. The other nodes
inherit settings from the master through the clustering mechanisms. Complete all remaining sections of this chapter on the Master node only.
To sign into MediaCentral UX:
Signing into MediaCentral UX
1. Launch a supported web browser or use the MediaCentral UX Desktop application to access
MediaCentral UX.
Supported browsers include: Google Chrome or Safari (on Mac OS).
2. Enter the URL of the MCS server in the address bar:
https://<hostname>
Where <hostname> is the Fully Qualified Domain Name (FQDN) of the MCS server.
The MediaCentral UX sign-in screen appears.
In place of the sign-in screen, you might see a warning indicating the connection is not private.
The warning relates to SSL certificates.
93
Signing into MediaCentral UX
For the purposes of installing and configuring MediaCentral UX, ignore the warning by clicking
the Advanced link and then clicking the Proceed to <MediaCentral URL> (unsafe) link.
In older versions of Chrome (previous to release 37), the following warning is shown instead:
In the above case, click the Proceed Anyway button.
For information on configuring a trusted certificate, see the following article on the Avid Knowledge
3. Enter the Administrator user and password to access MediaCentral UX:
-User name: Administrator
-Default Password: Avid123
4. The first time any user signs in, the Avid Software License Agreement is presented.
Click the Accept License Agreement button to proceed.
5. Enter your account information. When you sign in to MediaCentral for the first time you are
prompted to enter your user credentials for iNEWS, Interplay Production, or both. Sign in
options depend on the features selected in the MediaCentral UX Configurator.
If you created custom iNEWS and Interplay Production credentials (e.g. MCSAdmin), enter that
information at this time. Otherwise, leave the defaults (Administrator / Avid123).
If the security settings for one of these systems is inaccurate, you will see a warning message that
n
states that the application is unable to authorize the sign-in name or password. This will be the case
for any iNEWS credentials entered, since you have not yet specified the iNEWS server to be used. If
you receive a warning, click the link provided and verify your security settings.
94
6. Click the “Continue to MediaCentral UX” button.
Signing into MediaCentral UX
7. If you are accessing MediaCentral UX through Chrome or Safari, you might be asked if you
want to “Send notifications”. This is related to the Desktop Notifications feature introduced in
MCS v2.4. Select either the Allow or Block option when presented with this message.
If desired, this feature can be disabled. For detailed instructions, see “Modifying
application.properties” on page 246.
For more information on the Desktop Notifications feature, see the Avid MediaCentral | UX
User’s Guide.
8. If you are accessing MediaCentral UX through Chrome v44 or earlier and you enabled iNEWS
in the MediaCentral Configurator tool, the first time you sign in to MediaCentral a dialog box
asks if you want to use MOS plug-ins:
Selecting “Yes” enables the “MOS enabled” check box in the user settings and prompt you to
install the container needed for Active X controls.
Selecting “No” does not enable the MOS check box or prompt you to install any additional
software. The MOS check box can be enabled manually in the user’s settings at any time.
MOS plug-ins require additional software as described in “Avid MediaCentral | UX Desktop” on
page 298.
95
Changing the Administrator Password
Active X controls and MOS plug-ins are not supported in the Safari browser or in Chrome v45 or
n
later. If you are running MCS v2.7 or later with Chrome v45 or later, you will not receive this dialog
box. If you are running Chrome v44 or earlier, MOS options are still available.
If you are using Chrome and require continued use of MOS plug-ins, see “Avid MediaCentral | UX
Mobile Application” on page 292 for an alternative method of connecting to MediaCentral UX.
Changing the Administrator Password
For security reasons, it is strongly suggested that you change the password for the Administrator user
account.
To change the Administrator password:
1. While logged in as the Administrator, select Users from the Layout selector.
2. Expand the list of Administrators in the User Tree and locate the Administrator user.
3. Double-click on the Administrator account. Details will appear on the right.
4. Click the Change Password button in the Details pane, and enter a new password for the
Administrator user.
MediaCentral v2.1 introduced strong password enforcement. This feature was made optional in v2.2;
n
however the default is to have strong passwords enabled. For more information on this feature and a
process for “Turning Off Secure Password Requirements”, see the Avid MediaCentral | UX
Administration Guide.
5. Click OK update the password information.
A message appears indicating that the password was successfully changed.
96
Creating a Second Administrator User
Creating a Second Administrator User
In the event that you are locked out of MediaCentral for any reason, it is wise to create a second
Administrator-level user.
To create a backup administrator acount:
1. While in the Users Layout, highlight the Administrators group in the User Tree.
2. Click the Create User button under the User Tree tab.
3. In the Details pane, assign a User Name.
4. Enter a Password and confirm the password.
5. Deselect the check box for “User must change password at next sign-in.”
6. Click the Save button in the bottom-right corner of the window.
The user account is created.
Configuring System Settings
Much of the configuration of MediaCentral is completed through the System Settings. Proceed
through the following sections and configure settings applicable to your configuration. For more
information, see the Avid MediaCentral | UX Administration Guide.
If you are configuring a cluster, you configure the MediaCentral UX System Settings once on the
n
master node only. Do not configure these settings on slave or load balancing nodes. The other nodes
inherit settings from the master through the clustering mechanisms.
To access the System Settings, select “System Settings” from the Layout selector in the top-right
corner of the interface. This layout will only appear if you are logged in as a user with Administrator
rights.
This image shows the default list of System Settings. As features are added to the system, the list
n
might include additional line items such as Media Distribute, Maestro, and others.
97
General Settings
This section configures general settings related to the overall operation of MediaCentral UX.
Although “General” is not the first item in the list of settings, configure the settings as outlined in this
document, starting with the General category.
To configure the General settings:
1. In the Settings pane, select General.
2. System ID: Every MCS system can be identified with a System ID provided by Avid at point of
sale. This ID can be used to access Avid Customer Care for systems with valid support contracts.
Once entered, the ID is stored with the ACS bus configuration information. The System ID is
displayed when you invoke the
About within the MediaCentral UX user interface.
If you cannot locate your System ID, contact your Avid representative.
n
3. Search Pane: Specify the maximum number of assets to be displayed in a search. The default
value of this field is 50.
4. Session Timeout: Specify the number of minutes of inactivity before the user’s session is
disconnected. The range of this value is between 10 minutes and 1440 minutes (24 hours). The
default value of this field is 30 minutes. As of MediaCentral v2.1.0, this feature can be enabled
or disabled.
ics_version
Configuring System Settings
command from Linux or when you select Home >
5. Time Zone: Use the pull-down menu to select a default time zone for the local MediaCentral
system. This information is used to properly display assets when doing searches outside of the
local system. Examples:
-US/Eastern
-Europe/London
-Asia/Hong_Kong
6. Date Format: Use the pull-down menu to select a default date format for the local MediaCentral
system. This information is used to properly display assets when doing searches outside of the
local system. Options:
-DD.MM.YYYY hh:mm:ss
-DD/MM/YYYY hh:mm:ss
-YYYY-MM-DD hh:mm:ss
-MM/DD/YYYY hh:mm:ss
7. Click Apply to save your changes.
iNEWS Settings
This section configures settings related to Avid iNEWS. ICS v1.0 – v1.4 supported connection to
only one iNEWS system. iNEWS Community support was added in ICS v1.5 with up to 24
members. iNEWS V3.7 and iNEWS V4.7 expanded support to 50 community members which is
supported with ICS v1.8 and later.
98
To configure the iNEWS settings:
1. In the Settings pane, select iNEWS.
2. System ID: Enter the System ID for your iNEWS system.
Configuring System Settings
This information can be found on the iNEWS server(s) in the
iNEWS system consists of multiple servers for load balancing and fail-over, using the System ID
ensures that MediaCentral connects to iNEWS properly.
iNEWS servers will often include a “–a” or “–b” suffix in their hostname. Do not include these
suffixes when entering the System ID information. Ensure that all MediaCentral servers can
resolve the hostnames and IP addresses of all iNEWS servers through DNS.
3. Timing: This value specifies how the iNEWS timing field is updated when you associate a
sequence with a story.
4. Tape ID: When you associate a sequence with a story, this iNEWS field name is associated with
the sequence’s Tape-ID field
Example iNEWS field: video-id
5. Pagination: The maximum number of items listed in the Queue/Story pane or the Project/Story
pane. To view more items beyond the number displayed, click the Show More Results button.
The range is 5 to 255 items. The default value of this field is 50.
6. Click Apply to save your changes.
Interplay Production Settings
This section configures settings related to Interplay Production. Avid supports connecting
MediaCentral to only one Interplay Production system per MCS installation.
/site/system
file. If your
To configure the Interplay Production settings:
1. In the Settings pane, select Interplay | Production.
2. Interplay | Production Server: Enter the (short) hostname or virtual hostname of the Interplay
Production Engine. An IP address is also acceptable here. Do not use a Fully Qualified Domain
Name (FQDN) in this field.
3. MCDS Service URL: Enter the URL of the server or servers hosting the MediaCentral
Distribution Service. You can enter a hostname or IP address for the server. The standard port
number used by this service is 8443. If you have installed multiple copies of MCDS, list each
URL separated by a comma and a space. Multiple instances of MCDS provide fail-over
capability, but not load balancing.
Example: https://wavd-tc01:8443
4. Location for Script Sequence:
a.In the Path field, specify a folder in the Interplay Production database where script
sequences will be stored. The correct path format does not include a leading slash.
Example: Projects/iNEWS or iNEWS/Scripts
b.Select whether you want sub-folders in the parent folder to be created by Queue name, Date,
or Story name.
5. Assets Pane: Sets the max number of Interplay assets to display at one time. This value can range
between 5 and 1000. The default value for this field is 50.
6. Click Apply to save your changes.
99
Messages & Sharing
These settings enable messages delivered through the messaging service to be forwarded to user’s
individual email accounts. These settings have nothing to do with emails sent from the MCS cluster
or other Linux processes. Only messages created in the Messaging pane are forwarded.
To configure the Messages & Sharing settings:
1. In the Settings pane, select Messages & Sharing.
2. Message Archiving: Configure the number of days to retain active messages. Messages older
than this will be archived. The default value of this field is 7.
For instructions on retrieving archived messages, see the Avid MediaCentral | UX Administration
n
Guide.
3. Email Forwarding: If email forwarding is desired, enable the check box for this option. Consult
with your in-house IT Department for this information.
a.SMTP server hostname: Enter an SMTP server hostname.
Example: webmail.wavd.com
b.Port: Enter a communication port. The default port is 25.
c.User name: Enter a username in the form of an e-mail address.
Configuring System Settings
Example: admin@wavd.com
d.Password: Enter the password for the associated user account.
e.Use SSL (Secure Sockets Layer): Select this check box if required by IT.
f.Ignore TLS (Transport Layer Security): Select this check box if required by IT.
4. Email Options: This feature allows the Administrator to customize the content of messages
forwarded to the user’s e-mail.
a.If a user sends a message with a media asset, enabling the “Don’t include asset” check box
eliminates the inclusion of a link to that asset. This is useful if the site’s default web browser
is not supported by MediaCentral UX (such as Internet Explorer).
b.If desired, enter a customized message header.
c.If desired, enter a customized message footer.
5. Once you have configured the email forwarding fields, verify functionality by entering a
recipient email and clicking Validate.
If the e-mail is not received, verify with your IT Department that ICMP traffic is allowed through
n
appropriate firewalls and network switches.
6. Click Apply to save your changes.
100
