Getting Started
Mbox® 2 Pro
Copyright
© 2007 Digidesign, a division of Avid Technology, Inc. All rights reserved. This guide may not be duplicated in whole or in part without the express written consent of Digidesign.
Avid, Digidesign, Mbox , Control|24, Pro Tools LE, and Pro Tools are either trademarks or registered trademarks of Avid Technology, Inc. in the US and other countries. All other trademarks contained herein are the property of their respective owners.
Product features, specifications, system requirements, and availability are subject to change without notice.
PN 9320-55987-00 REV A 1/07
Communications and Safety Regulation Information
Compliance Statement This model Digidesign Mbox 2 Pro complies with the following standards regulating interference and EMC:
• FCC Part 15 Class B
• EN 55022 Class B
• EN 55204 Class B
• AS/NZS 3548 Class B
• CISPR 22 Class B
Radio and Television Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
DECLARATION OF CONFORMITY
We Digidesign,
2001 Junipero Serra Boulevard, Suite 200
Daly City, CA 94014 USA
tel: 650-731-6300
declare under our sole responsibility that the product
Mbox 2 Pro
complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
• Reorient or locate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Mbox 2 Pro
Any modifications to the unit, unless expressly approved by Digidesign, could void the user's authority to operate the equipment.
Canadian Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-
003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Australian Compliance
European Compliance
Safety Statement
This equipment has been tested to comply with USA and Canadian safety certification in accordance with the specifications of UL Standards: UL60065 7th /IEC 60065 7th and Canadian CAN/CSA C22.2 60065:03. Digidesign Inc., has been authorized to apply the appropriate UL & CUL mark on its compliant equipment.
Warning
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use caution when replacing the Lithium battery in the FOH
Rack unit. There is danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

contents

Chapter 1. Installation QuickStart
Windows Installation Overview
Mac Installation Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 2. Welcome to Mbox 2 Pro
Mbox 2 Pro Package
Mbox 2 Pro Features
Pro Tools LE Capabilities
System Requirements
Digidesign Registration
About the Pro Tools Guides
About www.digidesign.com
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 3. Windows Configuration
Installation Overview
Windows System Optimization
Installing Pro Tools LE and Connecting Mbox 2 Pro
Launching Pro Tools LE
Configuring Pro Tools LE
Additional Software on the Pro Tools Installer Disc
Removing Pro Tools LE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 4. Mac Configuration
Installation Overview
Mac System Optimization
Installing Pro Tools LE
Connecting Mbox 2 Pro to the Computer
Launching Pro Tools LE
Configuring Pro Tools LE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contents
v
Additional Software on the Pro Tools Installer Disc
Removing Pro Tools
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Chapter 5. Hardware Overview
Mbox 2 Pro Front Panel Features
Mbox 2 Pro Back Panel Features
Chapter 6. Making Hardware Connections
Connecting Headphones
Connecting a Sound System
Connecting Audio Inputs
Connecting a Microphone
Connecting Instruments to the Mbox 2 Pro
MIDI Connections
Word Clock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Chapter 7. Common Tasks with Pro Tools LE
Recording a Pro Tools Session
Importing Audio from a CD
Creating an Audio CD from a Pro Tools Session
Recording MIDI in a Pro Tools Session
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Appendix A. Configuring MIDI Studio Setup (Windows Only)
MIDI Studio Setup
MIDI Patch Name Support
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
. . . . . . . . . . . . . . . . . . . . 57
Appendix B. Configuring AMS (Mac OS X Only)
Audio MIDI Setup
MIDI Patch Name Support
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Appendix C. Hard Drive Configuration and Maintenance
Avoid Recording to the System Drive
Supported Drive Formats and Drive Types
Formatting an Audio Drive
Partitioning Drives
Mbox 2 Pro Getting Started
vi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
. . . . . . . . . . . . . . . . . . . . . . . . 65
Defragmenting an Audio Drive
Using Mac Drives on Windows Systems
Hard Disk Storage Space
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Appendix D. Troubleshooting
Backing Up Your Work
Common Issues
Performance Factors
Before You Call Digidesign Technical Support
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Contents
vii
Mbox 2 Pro Getting Started
viii
chapter 1

Installation QuickStart

Windows Installation Overview

(Windows Systems Only)
Installing Pro Tools LE™ for Mbox® 2 Pro on a Windows computer includes the following steps:
1
“Windows System Optimization” on page 9
2
“Installing Pro Tools LE and Connecting
Mbox 2 Pro” on page 12.
3
“Launching Pro Tools LE” on page 14.
4
“Configuring Pro Tools LE” on page 14.
5
“Making Hardware Connections” on page 37.

Mac Installation Overview

(Mac OS X Systems Only)
Installation of Pro Tools LE for Mbox 2 Pro on a Mac includes the following steps:
1
“Mac System Optimization” on page 21.
2
“Connecting Mbox 2 Pro to the Computer”
on page 23.
3
“Installing Pro Tools LE” on page 23.
4
“Launching Pro Tools LE” on page 24.
5
“Making Hardware Connections” on page 37.
Chapter 1: Installation QuickStart
1
Mbox 2 Pro Getting Started
2
chapter 2

Welcome to Mbox 2 Pro

Welcome to the Mbox® 2 Pro portable Pro Tools
Mbox 2 Pro provides your Firewire-equipped computer with four channels of analog audio input, six channels of analog audio output, two channels of digital audio input and output, MIDI In and Out ports, two channels of analog monitor output, and two headphone outputs with front panel level control. Mbox 2 Pro pro­vides professional-quality mic preamps and 24­bit analog-to-digital and digital-to-analog con­verters.
®
micro-studio from Digidesign®.

Mbox 2 Pro Package

The Mbox 2 Pro package includes the following:
• Mbox 2 Pro desktop audio interface and power adapter
• Pro Tools Installer disc containing Pro Tools LE™ software, DigiRack RTAS (Real­Time AudioSuite) and AudioSuite plug-ins, optional software, and electronic PDF guides
• This
Getting Started Guide
tion, configuration, and common tasks for your Pro Tools system.
• Firewire connector cable (six-pin 1394)
• Power supply
• Digidesign Registration Information Card
, covering installa-
Chapter 2: Welcome to Mbox 2 Pro
3

Mbox 2 Pro Features

The Mbox 2 Pro provides the following:

Audio Inputs and Outputs

Mbox 2 Pro lets your Pro Tools LE sessions uti­lize up to six discrete channels of input and up to eight discrete channels of output, using the following analog and digital I/O:
Analog Inputs
• Two channels of analog audio input with microphone preamps and switchable 48V phantom power. These analog input jacks include one XLR/TRS combo connector on the back panel, and two 1/4-inch DI con­nectors with switchable Mic and DI source selection and LEDs on the front panel. A –20 dB pad is also available separately on each analog input channel
• Two additional channels of analog audio input for Line and Phono sources (RIAA)
Analog Outputs
• Two 1/4-inch TRS analog Monitor outputs
• Four additional 1/4-inch balanced analog line outputs
• Two additional channels of unbalanced outputs on a single 1/4-inch TRS connector
Digital I/O
• Two channels of S/PDIF digital input and out­put. S/PDIF inputs are available independent of, and in addition to, analog inputs 1–4 when clocking to S/PDIF. S/PDIF outputs are always available in Pro Tools
Capabilities and Specifications
• 24-bit A/D and D/A converters, supporting sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
• Low latency analog record monitoring
• Two 1/4-inch (TRS) stereo headphone outputs (A and B) with adjustable level controls. Head­phones B can mirror A (output channels 1–2) or be switched to output channels 3–4

Pro Tools LE Capabilities

Pro Tools LE on Windows or Mac provides the following capabilities with Mbox 2 Pro:
• Playback of up to 32 mono (or 16 stereo) digital audio tracks, or a combination of playing back and recording up to 32 mono (or 16 stereo) digital audio tracks, depend­ing on your computer’s capabilities
• Up to 128 audio tracks (with 32 voiceable tracks maximum), 128 Auxiliary Input tracks, 64 Master Fader tracks, 256 MIDI tracks, and 32 Instrument tracks per ses­sion
• 16-bit or 24-bit audio resolution, at sample rates up to 96 kHz
• Nondestructive, random-access editing and mix automation
• Audio processing with up to 5 RTAS plug­ins per track, depending on your com­puter’s capabilities
• Up to 5 hardware inserts per track
• Up to 10 sends per track
• Up to 32 internal mix busses

MIDI

• One MIDI In and one MIDI Out port, provid­ing 16 MIDI input channels and 16 MIDI out­put channels
Mbox 2 Pro Getting Started
4
Pro Tools LE uses your computer’s CPU to mix and process audio tracks (host process­ing). Computers with faster clock speeds yield higher track counts and more plug-in processing.

System Requirements

Mbox 2 Pro can be used with a Digidesign-qual­ified Windows or Mac computer.
For complete system requirements, visit the Digidesign website (www.digidesign.com).
Compatibility Information
Digidesign can only assure compatibility and provide support for hardware and software it has tested and approved.
For a list of Digidesign-qualified computers, op­erating systems, hard drives, and third-party de­vices, visit the Digidesign website (www.digidesign.com).

Hard Drive Requirements

For optimal audio recording and playback, all Pro Tools systems require one or more Digi­design-qualified drives.
For a list of Digidesign-qualified hard drives, visit the Digidesign website (www.digidesign.com).
If you are using an ATA/IDE or FireWire hard drive, initialize your drive with Windows Disk Management (Windows) or the Disk Utility ap­plication included with Apple System software (Mac).
For more information, see Appendix C, “Hard Drive Configuration and Mainte­nance.”

MIDI Requirements

Mbox 2 Pro includes one MIDI In port and one MIDI Out port, providing 16 channels of MIDI input and 16 channels of MIDI output.
If you require additional MIDI ports, add a MIDI interface to your system. USB MIDI interfaces work effectively with Pro Tools systems on Win­dows or Mac. Serial MIDI interfaces are sup­ported on Windows systems only.
Only USB MIDI interfaces are compatible with Pro Tools systems for Mac OS X. Modem-to-serial port adapters and serial MIDI devices are not supported.
For a list of supported adapters, visit the Digi­design website (www.digidesign.com).
Avoid Recording to the System Drive
Recording to your system drive is not recom­mended. Recording and playback on a system drive may result in lower track counts and fewer plug-ins.
Digidesign does not recommend recording to the system drive. Record to a system drive only when necessary.

Digidesign Registration

Review the enclosed Digidesign Registration In­formation Card and follow the instructions on it to quickly register your purchase online. Regis­tering your purchase is the only way you can be eligible to receive complimentary technical sup­port and future upgrade offers. It is one of the most important steps you can take as a new user.
Chapter 2: Welcome to Mbox 2 Pro 5

About the Pro Tools Guides

This Getting Started guide explains how to in­stall Pro Tools LE software, make basic connec­tions to your Mbox 2 Pro interface (to get sound in and out of your interface), and do common tasks (such as recording in Pro Tools).
In addition to any printed guides or documenta­tion included with your system, PDF versions of Pro Tools guides and Read Mes are installed au­tomatically with Pro Tools.
The main guides (such as the Pro Tools Reference Guide and the Pro Tools Menus Guide) are accessi- ble from the Pro Tools Help menu.
Pro Tools Reference Guide explains Pro Tools software in detail.
Pro Tools Menus Guide covers all the Pro Tools on-screen menus.
DigiRack Plug-Ins Guide explains how to use the RTAS and AudioSuite plug-ins included with Pro Tools.
Digidesign Plug-Ins Guide explains how to use optional Digidesign plug-ins.
Pro Tools Shortcuts lists keyboard and Right­click shortcuts for Pro Tools.
These guides and other guides are installed on your startup drive during installation. To view or print PDF guides, you can use Adobe Reader or Apple Preview (Mac only).

Conventions Used in This Guide

Digidesign guides use the following conven­tions to indicate menu choices and key com­mands:
:
Convention Action
File > Save Choose Save from the File
menu
Control+N Hold down the Control key
and press the N key
Control-click Hold down the Control key
and click the mouse button
Right-click Click with the right mouse
button
The following symbols are used to highlight im­portant information:
User Tips are helpful hints for getting the most from your Pro Tools system.
Important Notices include information that could affect your data or the performance of your system.
Shortcuts show you useful keyboard or mouse shortcuts.
Cross References point to related sections in other guides.
Printed copies of the Pro Tools Reference Guide and other guides in the Pro Tools guide set can be purchased separately from the DigiStore (www.digidesign.com).
Mbox 2 Pro Getting Started6

About www.digidesign.com

The Digidesign website (www.digidesign.com) is your best source for information to help you get the most out of your Pro Tools system. The following are just a few of the services and fea­tures available.
Registration Register your purchase online. See the enclosed Digidesign Registration Informa­tion Card for instructions.
Support Contact Digidesign Technical Support or Customer Service; download software up­dates and the latest online manuals; browse the Compatibility documents for system require­ments; search the online Answerbase; join the worldwide Pro Tools community on the Digi­design User Conference.
Training and Education Become a certified Pro Tools Operator or Expert; study on your own using courses available online, or find out how you can learn in a classroom setting at a certified Pro Tools Training Center.
Products and Developers Learn about Digidesign products; download demo software; learn about our Development Partners and their plug-ins, applications, and hardware.
News and Events Get the latest news from Digi­design; sign up for a Pro Tools demo.
To learn more about these and other resources available from Digidesign, visit the Digidesign website (www.digidesign.com).
Chapter 2: Welcome to Mbox 2 Pro 7
Mbox 2 Pro Getting Started8
chapter 3
Windows Configuration
This chapter contains information for Windows systems only. If you are installing Pro Tools on a Mac computer, see Chapter 4, “Mac Configura­tion.”
Before installing this version of Pro Tools, refer to the Read Me information included on the Pro Tools Installer disc.

Installation Overview

Installing the Mbox 2 Pro on a Windows com­puter includes the following steps:
1 “Windows System Optimization” on page 9.
2 “Installing Pro Tools LE and Connecting
Mbox 2 Pro” on page 12.

Windows System Optimization

Before configuring your computer, make sure you are logged in as an Administrator for the ac­count where you want to install Pro Tools. For details on Administrator privileges, refer to your Windows documentation.

Required Optimizations

To ensure optimum performance with Pro Tools LE, configure the following settings before you install Pro Tools hardware and soft­ware.
When you are finished changing Windows system settings, restart your computer.
3 “Launching Pro Tools LE” on page 14.
4 “Configuring Pro Tools LE” on page 14.
5 Making audio and MIDI connections to the
Mbox 2 Pro. (See Chapter 6, “Making Hardware Connections” for details.)
Chapter 3: Windows Configuration 9
Enabling DMA
Enabling your computer's DMA (Direct Memory Access) frees up CPU bandwidth so the com­puter can do other Pro Tools tasks.
In most cases the DMA option will already be set correctly, as Windows XP detects and activates DMA mode by default.
To enable DMA for any IDE hard drives:
1 Choose Start > Control Panel.
2 In Classic View, double-click System.
3 Click the Hardware tab.
4 Under Device Manager, choose Device Man-
ager.
5 In the Device Manager window, double-click
IDE ATA/ATAPI controllers, then double-click the Primary IDE Channel for your IDE hard drive.
6 Click the Advanced Settings tab.
To configure Windows Power Management:
1 Choose Start > Control Panel.
2 Double-click Power Options.
3 Click the Power Schemes tab.
4 From the Power Schemes pop-up menu, select
Always On.
5 Click OK.
This sets System Standby, System Hibernate, and “Turn off hard disks” to Never.
On AMD processors, be sure to check and disable Cool N’Quiet in the System BIOS (in the Cool & Quiet Configuration section). Refer to the manufacturer’s documentation for instructions on disabling this power op­tion, if necessary.
Disabling ClearType Font Smoothing
When using Pro Tools, the Effects “Clear Type” setting must be disabled.
7 For each device, set the Transfer Mode to
“DMA if available,” and click OK.
8 Repeat steps 5–7 for any additional IDE Chan-
nels.
9 Close the Computer Management window.
Disabling System Standby and Power Management
When using Pro Tools, the Windows System Standby power scheme must be set to Always On. This helps prevent long record or playback passes from stopping due to system resources powering down.
Sleep (or hibernate) settings are supported when using Mbox 2 Pro and the Windows System Audio drivers with an application other than Pro Tools LE.
Mbox 2 Pro Getting Started10
To disable ClearType font smoothing:
1 Choose Start > Control Panel.
2 Double-click Display.
3 Click the Appearance tab.
4 Click Effects.
5 Deselect “Use the following method to
smooth edges of screen fonts.”
6 Click OK to save your settings and close the
Effects dialog.
7 Click OK.
8 Restart the computer.

Recommended Optimizations

Pro Tools can also be affected by other software and hardware drivers installed on your com­puter. It is recommended (but not required) that you do the following:
• Avoid running any unneeded programs at the same time as Pro Tools.
• Turn off any software utilities that run in the background, such as Windows Messen­ger, calendars, and disk maintenance pro­grams.
• Turn off any nonessential FireWire devices while running Pro Tools.
• If your video display card supports it, en­able Bus Mastering in the manufacturer’s Control Panel. Refer to the manufacturer’s instructions for details.

Optional Optimizations

The following system optimizations may help Pro Tools perform better on some systems. It is recommended that you only try these optimiza­tions if necessary, as they may disable or ad­versely affect the functionality of other pro­grams on your system.
4 Under the General tab, choose “Do not use
this device (disable)” from the Device Usage pop-up menu, and click OK.
5 Close the Computer Management window.
Adjusting Processor Scheduling
To Adjust Processor Scheduling Performance:
1 Choose Start > Control Panel.
2 In Classic View, double-click System.
3 Click the Advanced tab.
4 Under the Performance section, click the Set-
tings button.
5 In the Performance Options window, click the
Advanced tab.
6 Under the Processor scheduling section, select
the Background Services option.
7 Under the Memory Usage section, select the
System cache option.
8 Click OK to close the Performance Options
window.
9 Click OK to close the System Properties win-
dow.
Disabling Network Cards
If applicable, disable any networking cards (other than a FireWire card that you might use to connect an external drive to your system).
To disable a network card:
1 Right-click My Computer and choose Man-
age.
2 Under System Tools, select Device Manager.
3 In the Device Manager window, double-click
Network adapters, then double-click the Net­work Adapter card you want to disable.
10 Restart the computer for the changes to take
effect.
Chapter 3: Windows Configuration 11
Disabling Hyper-Threading
Pro Tools LE takes advantage of the added pro­cessing power of computers that have multiple processors, or that feature multi-core processing or Hyper-Threading, for RTAS processing.
However, if you set the number of processors available for RTAS processing to 1 (in the Pro Tools Playback Engine dialog), some com­puters with hyperthreading capability may ex­perience decreased performance.
If this occurs, you can increase the number of RTAS processors in the Playback Engine dialog, or you can disable Hyper-Threading on the com­puter.
Refer to your computer’s documentation for steps on how to enter the computer’s BIOS and disable Hyper-Threading.
Disabling System Startup Items
To Disable System Startup Items:
1 From the Start menu, choose Run.
2 Type “msconfig” and click OK. The System
Configuration Utility opens.
3 Under the General tab, choose Selective
Startup.
4 Deselect Load Startup Items and click OK.
5 Click Restart to restart the computer.
6 After restarting, the computer displays a Sys-
tem Configuration message. Check to see if Pro Tools performance has increased before you deselect the “Don't show this message again” option. If performance has not changed, run “msconfig” and return your computer Selective Startup back to Normal Startup. Alternatively, try disabling Startup items and non-essential processes individually.
The fewer items in use by your computer, the more resources are available for Pro Tools. Some startup applications may be consuming unnec­essary CPU resources, and should be turned off.
If you disable any of the following startup items, do so carefully:
• Portable media serial number (required for applications that utilize a copy protection key)
• Plug and play
• Event log
• Cryptographic services
• DHCP Client, TCP/IP Net BIOS, and other networking-related items (unless the com­puter has no network or internet connec­tion, in which case these items can be disabled)
Mbox 2 Pro Getting Started12

Installing Pro Tools LE and Connecting Mbox 2 Pro

Windows will display several messages during installation that can be ignored, in­cluding multiple “Found New Hardware” dialogs and “A Problem Occurred During Hardware Installation.”
To install Pro Tools LE and Mbox 2 Pro:
1 Start Windows, logging in with Administrator
privileges. For details on Administrator privi­leges, refer to your Windows documentation.
2 Connect one end of the included Firewire ca-
ble to one of the Firewire ports on Mbox 2 Pro.
3 Connect the other end of the cable to any
available Firewire (6-pin 1394) port on your computer. Wait for the Found New Hardware Wizard dialog to appear and leave it open: Do not click Next.
Throughout the installation, you should ig­nore all Found New Hardware Wizard dia­logs. Do not click Next.
4 Insert the Pro Tools LE Installer disc for Win-
dows in your CD/DVD drive.
5 On the Installer disc, locate and open the
Pro Tools Installer folder.
6 Double-click the Setup icon.
7 Follow the on-screen instructions to proceed
with installation.
8 Select the install location. For maximum reli-
ability, install Pro Tools on your startup drive.
9 Click Next.
MP3 Export Option The MP3 Export Option lets
you export MP3 files from Pro Tools. This op­tion is purchased separately.
12 Click Next.
13 Click Install.
Windows will display several messages during installation that can be ignored, in­cluding multiple “Found New Hardware” dialogs and “A Problem Occurred During Hardware Installation.”
If you get a warning dialog about the driver not passing Windows Logo testing, click Continue Anyway.
14 Wait for the installer to finish installing all
software components, drivers, and PACE System files before proceeding to the next step.
15 When installation is complete, click Finish.
10 Select the Pro Tools application for installa-
tion.
11 You can also select from a list of optional
items to install along with Pro Tools.
Mac HFS+ Disk Support Option This option lets your Pro Tools system read, write, record, and play back using Mac-formatted HFS+ disks. HFS+ disks are commonly referred to as Mac OS Ex­tended disks.
DigiTranslator DigiTranslator™ is a software op­tion for Pro Tools that lets you convert and ex­change OMF and AAF sequences and MXF files directly in the Pro Tools application. This op­tion is purchased separately.
Command|8 Controller and Driver The Com­mand|8 Driver is required if you are using the Digidesign Command|8 control surface.

Installing QuickTime

QuickTime is required for Pro Tools if you plan to include movie files, or import MP3 or MP4 (AAC) files in your sessions. QuickTime for Win­dows XP is available as a free download from the Apple website (www.apple.com).
For information on which version of Quick­Time is compatible with your version of Pro Tools, visit the compatibility pages of the Digidesign website (www.digidesign.com).
To install QuickTime:
1 Visit www.apple.com and go to the Quick-
Time page.
2 Download the QuickTime installer applica-
tion to your computer.
Chapter 3: Windows Configuration 13
3 Double-click the QuickTime installer applica-
tion and follow the on-screen installation in­structions.
4 Restart your computer.
The Pro Tools Installer disc includes addi­tional software for your system. For more information, see “Additional Software on the Pro Tools Installer Disc” on page 18.

Launching Pro Tools LE

When launching Pro Tools LE the first time, you are prompted to enter an authorization code.
To authorize Pro Tools LE software:
1 Double-click the Pro Tools LE shortcut on
your desktop (or the application icon in the Pro Tools folder inside the Digidesign folder).
2 Enter the authorization code in the dialog
(making sure to type it exactly as printed, and observing any spaces and capitalization), then click Validate.
Hardware Buffer Size
The Hardware Buffer Size (H/W Buffer Size) con­trols the size of the buffer used to handle host processing tasks such as Real-Time AudioSuite (RTAS) plug-ins. The H/W Buffer setting can also be used to manage monitoring latency.
Lower Hardware Buffer Size settings reduce
monitoring latency, and are useful when you are recording live input.
Higher Hardware Buffer Size settings allow for
more audio processing and effects, and are use­ful when you are mixing and using more RTAS plug-ins.
In addition to causing slower screen re­sponse and monitoring latency, higher Hardware Buffer Size settings can increase the latency caused by RTAS plug-ins, and affect the accuracy of plug-in automation, mute data, and MIDI track timing.
To change the Hardware Buffer Size:
1 Choose Setup > Playback Engine.
Your authorization code is located on the inside front cover of this guide.
Configuring Pro Tools LE

Pro Tools System Settings

Pro Tools LE lets you adjust the performance of your system by changing system settings that af­fect its capacity for processing, playback, and re­cording.
In most cases, the default settings for your sys­tem provide optimum performance, but you may want to adjust them to accommodate large or processing-intensive Pro Tools sessions.
Mbox 2 Pro Getting Started14
Playback Engine dialog for Mbox 2
2 From the H/W Buffer Size pop-up menu, select
the audio buffer size, in samples.
3 Click OK.
RTAS Processors
CPU Usage Limit
The RTAS Processors setting determines the number of processors in your computer allo­cated for RTAS plug-in processing.
With computers that have multiple processors, or that feature multi-core processing or hyper­threading, this setting lets you enable multi-pro­cessor support for RTAS processes. Used in com­bination with the CPU Usage Limit setting, the RTAS Processors setting lets you control the way RTAS processing and other Pro Tools tasks are carried out by the system.
A higher number of processors reserves more
CPU processing capacity for RTAS plug-in pro­cessing. This is useful for sessions with large number of RTAS plug-ins.
A lower number of processors leaves more
CPU processing capacity for automation, screen redraws, and video playback in Pro Tools, or for other application running at the same time as Pro Tools.
To set the number of RTAS Processors:
1 Choose Setup > Playback Engine.
2 From the RTAS Processors pop-up menu, select
the number of available processors you want to allocate for RTAS plug-in processing.
The CPU Usage Limit controls the percentage of CPU resources allocated to Pro Tools host pro­cessing tasks. Used in combination with the RTAS Processors setting, the CPU Usage Limit setting lets you control the way Pro Tools tasks are carried out by the system.
Lower CPU Usage Limit settings limit the ef-
fect of Pro Tools processing on other CPU-inten­sive tasks, such as screen redraws, and are useful when you are experiencing slow system re­sponse, or when running other applications at the same time as Pro Tools.
Higher CPU Usage Limit settings allocate
more processing power to Pro Tools, and are useful for playing back large sessions or using more real-time plug-ins.
The maximum available CPU Usage Limit de­pends on the number of processors in your com­puter and on the number of processors you specify with the RTAS Processor setting. This value can be up 99 percent for single-processor computers or 90 percent for multi-processor computers.
Increasing the CPU Usage Limit may slow down screen response on slower computers.
3 Click OK.
If using a single processor computer, be sure to check the section “Disabling Hyper­Threading” on page 12 for tips on maximiz­ing performance.
Chapter 3: Windows Configuration 15
To change the CPU Usage Limit:
1 Choose Setup > Playback Engine.
2 From the CPU Usage Limit pop-up menu, se-
lect the percentage of CPU processing you want to allocate to Pro Tools.
3 Click OK.
128 samples (which ever is greater). If you are on an older, slower computer, you may not want to enable this option since doing so can adversely affect performance.
The Minimize Additional I/O Latency option is only available if the Ignore Errors During Play­back/Record option is enabled.
RTAS Engine (RTAS Error Suppression)
The RTAS Engine options determine RTAS error reporting during playback and recording. This is especially useful when working with instrument plug-ins.
You should only enable RTAS error suppression if you are experiencing frequent RTAS errors that are interrupting your creative workflow. When RTAS error suppression is enabled, you can experience a degradation of audio quality. However, this may be acceptable in order to avoid interrupting playback and recording when working with instrument plug-ins. Be sure to disable RTAS error suppression when you need to ensure the highest possible audio qual­ity, such as for a final mix.
There are two RTAS Engine options:
Ignore Errors During Playback/Record When en­abled, Pro Tools continues to play and record even if the RTAS processing requirements ex­ceed the selected CPU Usage Limit. This can re­sult in pops and clicks in the audio, but does not stop the transport.
To enable RTAS error suppression:
1 Choose Setup > Playback Engine.
2 Select Ignore Errors During Playback/Record.
3 If available, you can also select Minimize Ad-
ditional I/O Latency.
4 Click OK.
DAE Playback Buffer Size
The DAE Playback Buffer Size determines the amount of memory DAE allocates for disk buff­ers. The optimum DAE Playback Buffer Size for most disk operations is Level 2.
DAE Playback Buffer Size settings lower than
Level 2 may improve playback and recording initiation speed, but may make it difficult to play or record tracks reliably with sessions con­taining a large number of tracks or a high den­sity of edits, or with systems that have slower or heavily fragmented hard drives.
Minimize Additional I/O Latency When enabled, any additional latency due to suppressing RTAS errors during playback and record is minimized to 128 samples. Suppressing RTAS errors re­quires at least 128 samples of additional buffer­ing on some systems. If this option is disabled, the buffer is half the H/W Buffer Size, or at least
Mbox 2 Pro Getting Started16
DAE Playback Buffer Size settings higher than
Level 2 will allow for a higher density of edits in a session or a higher track count when using slower hard drives. However, a higher setting can also cause a time lag to occur when starting playback or recording, or longer audible time lag while editing during playback.
Using a larger DAE Playback Buffer Size leaves less system memory for other tasks. The default setting of Level 2 is recom­mended unless you are encountering -9073 (“Disk too slow or fragmented”) errors.
To change the DAE Playback Buffer Size:
1 Choose Setup > Playback Engine.
To change the default Sample Rate:
1 Choose Setup > Hardware.
Hardware Setup dialog for Mbox 2 Pro
2 Select the sample rate from the Sample Rate
pop-up menu.
3 Click OK.
2 From the DAE Playback Buffer pop-up menu,
select a buffer size.
3 Click OK.

Pro Tools Hardware Settings

Pro Tools lets you set the default sample rate and clock source for your system, as well as a range of controls specific to each type of audio interface.
Default Sample Rate
The Sample Rate setting appears as the default sample rate when you create a new session. (This setting is available in the Hardware Setup dialog only when no session is open.)
You can change the sample rate when creat­ing a new Pro Tools session by selecting a different sample rate in the New Session dialog. (Refer to
Guide for details.)
the Pro Tools Reference
Clock Source
The Pro Tools Hardware Setup dialog lets you se­lect the Clock Source for the system.
Internal Use this setting if you are recording an­alog signals directly into Mbox 2 Pro. When set to internal, Mbox 2 Pro provides four channels of input (analog only).
S/PDIF Use this setting to record or listen to Mbox 2 Pro S/PDIF inputs connected to an ex­ternal digital device. This setting will synchro­nize Pro Tools to that digital device.
S/PDIF input is only available when S/PDIF is the Clock Source.
Word Clock Use this setting to clock Pro Tools LE to a Word clock source connected to the Mbox 2 Pro Word Clock In port.
To select the Clock Source:
1 Choose Setup > Hardware.
2 Choose the clock source from the Clock
Source pop-up menu.
Chapter 3: Windows Configuration 17
3 Click OK.
Your digital input device must be connected and powered on for Pro Tools to synchro­nize to it. If your input device is not powered on, leave the Clock Source set to Internal.
Configuring I/O Setup

MIDI Studio Setup

(Optional)
If you plan to use any MIDI devices with Pro Tools, configure your MIDI setup with MIDI Studio Setup. See Appendix A, “Configuring MIDI Studio Setup (Windows Only)” for details.
Using the I/O Setup dialog, you can label Pro Tools LE input, output, insert, and bus sig- nal paths. The I/O Setup dialog provides a graph­ical representation of the inputs, outputs, and signal routing of the Mbox 2.
Pro Tools LE has default I/O Setup settings that will get you started. Use the I/O Setup dialog only if you want to rename the default I/O paths.
To rename I/O paths in I/O Setup:
1 Choose Setup > I/O.
I/O Setup dialog for Mbox 2 Pro
2 Click the Input, Output, Insert, or Bus tab to
display the corresponding connections.
Backing Up Your System Configuration
After configuring your system and Pro Tools, you should save an image of your system drive using a backup utility such as Norton Ghost. By doing this, you can quickly restore your system configuration and settings if you encounter any problems.

Additional Software on the Pro Tools Installer Disc

The Pro Tools Installer disc provides additional software for your system, including audio driv­ers (for playing other audio applications through your Digidesign hardware) and a Pro Tools demo session.
Refer to your Pro Tools Installer disc for ad­ditional software and installers.
3 To change the name of a path or subpath,
double-click directly on the Path Name, type a new name for the path, and press Enter.
4 Click OK.
See the Pro Tools Reference Guide (or choose Help > Pro Tools Reference Guide) for more information on renaming I/O paths.
Mbox 2 Pro Getting Started18

Windows Audio Drivers

Standalone Windows Audio Drivers
The Mbox 2 Pro ASIO Driver and DirectSound Window System Audio Driver let you use your Digidesign Mbox 2 Pro hardware interface with third-party applications that support the ASIO Driver or DirectSound Driver standard.
The Mbox 2 Pro ASIO Driver and DirectSound Driver for Mbox 2 Pro are automatically in­stalled when you install Pro Tools.
Mbox 2 Pro ASIO Driver
The Mbox 2 Pro ASIO (Audio Sound Input Out­put) Driver is a single-client multichannel sound driver that allows third-party audio pro­grams that support the ASIO Driver standard to record and play back through Mbox 2 Pro.
For detailed information on configuring the Digidesign ASIO Driver, see the Windows Audio Drivers Guide.
DirectSound Windows System Audio Driver
The DirectSound Windows System Audio Driver is a multi-client, multichannel sound driver that allows third-party audio programs that support the DirectSound standard to play back and record through Mbox 2 Pro.
For detailed information on configuring the Digidesign DirectSound Driver, see the Windows Audio Drivers Guide.
Digidesign Windows Audio Drivers can be in­stalled on Windows systems that do not have Pro Tools software installed. Use the standalone version of the Digidesign Windows Audio Driv­ers installer (Digidesign Audio Drivers Setup.exe), which is available on the Pro Tools Installer disc.
For information on installing and configur­ing the standalone version of the Digidesign Windows Audio Drivers, see the Windows Audio Drivers Guide.

Pro Tools Demo Session

The Pro Tools LE Installer disc includes a demo session that you can use to verify that your sys­tem is working.
Before installing the demo session to your audio drive, make sure the drive is config­ured as described in “Formatting an Audio Drive” on page 66.
To install the demo session:
1 Insert the Pro Tools LE Installer disc into your
CD/DVD drive.
2 From your CD/DVD drive, locate and open
the Additional Files/Pro Tools LE Demo Session Installer folder.
3 Double-click Setup.exe.
4 Select your audio drive as the install location
and click Install.
5 When installation is complete, click OK.
Chapter 3: Windows Configuration 19

Removing Pro Tools LE

If you need to remove Pro Tools LE software from your computer, you can use the Add or Re­move Programs command.
To remove Pro Tools from your computer:
1 Choose Start > Control Panel.
2 Double-click Add or Remove Programs.
3 From the Currently Installed Programs list, se-
lect Digidesign Pro Tools LE.
4 Click the Change/Remove button.
5 Follow the on-screen instructions to remove
Pro Tools LE.
Mbox 2 Pro Getting Started20
chapter 4
Mac Configuration
This chapter contains information for Mac sys­tems only. If you are installing Pro Tools on a Windows computer, see Chapter 3, “Windows Configuration.”
Before installing this version of Pro Tools, refer to the Read Me information included on the Pro Tools Installer disc.

Installation Overview

Mac System Optimization

To ensure optimum performance with Pro Tools, configure your computer before in­stalling Pro Tools hardware and software.
Before configuring your computer, make sure you are logged in as an Administrator for the ac­count where you want to install Pro Tools. For details on Administrator privileges in Mac OS X, refer to your Apple OS X documentation.
Installation of the Mbox 2 Pro on a Mac in­cludes the following steps:
1 “Mac System Optimization” on page 21.
2 “Installing Pro Tools LE” on page 23.
3 “Connecting Mbox 2 Pro to the Computer”
on page 23.
4 “Launching Pro Tools LE” on page 24.
5 “Configuring Pro Tools LE” on page 24.
6 Making audio connections to the Mbox 2.
(See Chapter 6, “Making Hardware Connec­tions” for details.)
Do not use the Mac OS X automatic Soft­ware Update feature, as it may upgrade your system to a version of Mac OS that has not yet been qualified for Pro Tools. For de­tails on qualified versions of Mac OS, visit the Digidesign website (www.digidesign.com).

Turning Off Software Update

To turn off the Software Update feature:
1 Choose System Preferences from the Apple
menu and click Software Update.
2 Click Update Software and deselect Check for
Updates.
Chapter 4: Mac Configuration 21

Turning Off Energy Saver

Disabling the Spotlight Shortcuts

To turn off the Energy Saver feature:
1 Choose System Preferences from the Apple
menu and click Energy Saver.
2 Click Sleep and do the following:
• Set the computer sleep setting to Never.
• Set the display sleep setting to Never.
• Deselect “Put the hard disk(s) to sleep when possible” option.

Setting Processor Performance

(Mac G5 Computers Only)
To set the Processor Performance:
1 Choose System Preferences from the Apple
menu and click Energy Saver.
2 Click Options and set Processor Performance
to Highest.

Disabling Spotlight Indexing

The Mac OS X Spotlight feature indexes files and folders in the background, affecting system per­formance. It is recommended that you disable Spotlight indexing before using Pro Tools.
To disable Spotlight indexing:
1 Choose System Preferences from the Apple
menu and click Spotlight.
2 In the Spotlight window, click Privacy.
3 To prevent indexing of a drive, drag its icon
from the desktop into the list.
The Mac OS X Spotlight feature uses the same key commands Pro Tools uses to start recording (Command+Spacebar), and to record online (Command+Option+Spacebar). If you want to retain use of these key commands in Pro Tools, these shortcuts must be disabled.
To disable the Spotlight keyboard shortcut:
1 Choose System Preferences from the Apple
menu and click Spotlight.
2 Deselect “Spotlight menu keyboard shortcut”
and “Spotlight window keyboard shortcut.”

Disabling the Dashboard Shortcut

The Mac OS X Dashboard feature uses the same key command Pro Tools uses to start recording (F12). If you want to retain use of this key com­mand in Pro Tools, this shortcut must be dis­abled.
To disable the Dashboard keyboard shortcut:
1 Choose System Preferences from the Apple
menu and click Dashboard and Exposé.
2 Set the Dashboard keyboard shortcut to “–” to
disable the shortcut.

Enabling Journaling for Audio Drives

If you plan to use an audio drive that you used with a previous version of Pro Tools for Mac, en­able journaling.
To enable journaling:
1 Launch the Disk Utility application, located in
Applications/Utilities.
2 Select the volume in the left column of the
Disk Utility window.
3 Click Enable Journaling in the toolbar.
Mbox 2 Pro Getting Started22

Installing Pro Tools LE

After the Apple System software settings are con­figured, you are ready to install Pro Tools LE.
10 If prompted, enter your Administrator pass-
word and click OK to authenticate the installa­tion.
11 Follow the remaining on-screen instructions.
To install Pro Tools LE on Mac OS X:
1 Make sure you are logged in as an Administra-
tor for the account where you want to install Pro Tools. For details on Administrator privi­leges in Mac OS X, refer to your Apple Mac OS X documentation.
2 Insert the Pro Tools LE Installer disc in your
CD/DVD drive.
3 On the Installer disc, locate and double-click
“Install Pro Tools.”
4 Follow the on-screen instructions to proceed
with installation.
5 Select the install location. For maximum reli-
ability, install Pro Tools on your startup drive.
6 Click Continue.
7 Select the Pro Tools application for installa-
tion.
8 You can also select from a list of optional
items to install along with Pro Tools:
DigiTranslator DigiTranslator™ is a software op­tion for Pro Tools that lets you convert and ex­change OMF and AAF sequences and MXF files directly in the Pro Tools application. This op­tion is purchased separately.
12 When installation is complete, click Restart.
The Pro Tools Installer disc includes addi­tional software for your system. For more information, see “Additional Software on the Pro Tools Installer Disc” on page 28.

Connecting Mbox 2 Pro to the Computer

Before launching Pro Tools LE software, con­nect Mbox 2 Pro to your computer.
To connect Mbox 2 Pro to your computer:
1 Connect the small end of the included
Firewire cable to the FireWire port on Mbox 2 Pro.
2 With your computer on, connect the other
end of the cable to any available FireWire port on your computer.
MIDI I/O Driver The MIDI I/O Driver is required if you are using the Digidesign MIDI I/O.
MP3 Export Option The MP3 Export Option lets you export MP3 files from Pro Tools. This op­tion is purchased separately.
9 Click Install.
Chapter 4: Mac Configuration 23

Launching Pro Tools LE

When launching Pro Tools LE the first time, you are prompted to enter an authorization code to validate your software.
To authorize Pro Tools LE software:
1 Click the Pro Tools LE icon in the Dock (or
double-click the application icon in the Pro Tools folder inside the Digidesign folder).
2 Enter the authorization code in the dialog
when prompted (making sure to type it exactly as printed, and observing any spaces and capi­talization), then click Validate.
Your authorization code is located on the inside front cover of this guide.
Configuring Pro Tools LE

Pro Tools System Settings

Lower Hardware Buffer Size settings reduce
monitoring latency, and are useful when you are recording live input.
Higher Hardware Buffer Size settings allow for
more audio processing and effects, and are use­ful when you are mixing and using more RTAS plug-ins.
In addition to causing slower screen re­sponse and monitoring latency, higher Hardware Buffer Size settings can increase the latency caused by RTAS plug-ins, and affect the accuracy of plug-in automation, mute data, and MIDI track timing.
To change the Hardware Buffer Size:
1 Choose Setup > Playback Engine.
Pro Tools LE lets you adjust the performance of your system by changing system settings that af­fect its capacity for processing, playback, and re­cording.
In most cases, the default settings for your sys­tem provide optimum performance, but you may want to adjust them to accommodate large or processing-intensive Pro Tools sessions.
Hardware Buffer Size
The Hardware Buffer Size (H/W Buffer Size) con­trols the size of the buffer used to handle host processing tasks such as Real-Time AudioSuite (RTAS) plug-ins. The H/W Buffer setting can also be used to manage monitoring latency.
Mbox 2 Pro Getting Started24
Playback Engine dialog for Mbox 2 Pro
2 From the H/W Buffer Size pop-up menu, select
the audio buffer size, in samples.
3 Click OK.
RTAS Processors
CPU Usage Limit
The RTAS Processors setting determines the number of processors in your computer allo­cated for RTAS plug-in processing.
With computers that have multiple processors, or that feature multi-core processing or hyper­threading, this setting lets you enable multi-pro­cessor support for RTAS processes. Used in com­bination with the CPU Usage Limit setting, the RTAS Processors setting lets you control the way RTAS processing and other Pro Tools tasks are carried out by the system.
A higher number of processors reserves more
CPU processing capacity for RTAS plug-in pro­cessing. This is useful for sessions with large number of RTAS plug-ins.
A lower number of processors leaves more
CPU processing capacity for automation, screen redraws, and video playback in Pro Tools, or for other application running at the same time as Pro Tools.
To set the number of RTAS Processors:
1 Choose Setup > Playback Engine.
2 From the RTAS Processors pop-up menu, select
the number of available processors you want to allocate for RTAS plug-in processing.
3 Click OK.
The CPU Usage Limit controls the percentage of CPU resources allocated to Pro Tools host pro­cessing tasks. Used in combination with the RTAS Processors setting, the CPU Usage Limit setting lets you control the way Pro Tools tasks are carried out by the system.
Lower CPU Usage Limit settings limit the ef-
fect of Pro Tools processing on other CPU-inten­sive tasks, such as screen redraws, and are useful when you are experiencing slow system re­sponse, or when running other applications at the same time as Pro Tools.
Higher CPU Usage Limit settings allocate
more processing power to Pro Tools, and are useful for playing back large sessions or using more real-time plug-ins.
The maximum available CPU Usage Limit de­pends on the number of processors in your com­puter and on the number of processors you specify with the RTAS Processor setting. This value can be up 99 percent for single-processor computers or 90 percent for multi-processor computers.
Increasing the CPU Usage Limit may slow down screen response on slower computers.
To change the CPU Usage Limit:
1 Choose Setup > Playback Engine.
2 From the CPU Usage Limit pop-up menu, se-
lect the percentage of CPU processing you want to allocate to Pro Tools.
3 Click OK.
Chapter 4: Mac Configuration 25
RTAS Engine (RTAS Error Suppression)
The RTAS Engine options determine RTAS error reporting during playback and recording. This is especially useful when working with instrument plug-ins.
You should only enable RTAS error suppression if you are experiencing frequent RTAS errors that are interrupting your creative workflow. When RTAS error suppression is enabled, you can experience a degradation of audio quality. However, this may be acceptable in order to avoid interrupting playback and recording when working with instrument plug-ins. Be sure to disable RTAS error suppression when you need to ensure the highest possible audio qual­ity, such as for a final mix.
There are two RTAS Engine options:
Ignore Errors During Playback/Record When en­abled, Pro Tools continues to play and record even if the RTAS processing requirements ex­ceed the selected CPU Usage Limit. This can re­sult in pops and clicks in the audio, but does not stop the transport.
Minimize Additional I/O Latency When enabled, any additional latency due to suppressing RTAS errors during playback and record is minimized to 128 samples. Suppressing RTAS errors re­quires at least 128 samples of additional buffer­ing on some systems. If this option is disabled, the buffer is half the H/W Buffer Size, or at least 128 samples (which ever is greater). If you are on an older, slower computer, you may not want to enable this option since doing so can adversely affect performance.
The Minimize Additional I/O Latency option is only available if the Ignore Errors During Play­back/Record option is enabled.
To enable RTAS error suppression:
1 Choose Setup > Playback Engine.
2 Select Ignore Errors During Playback/Record.
3 If available, you can also select Minimize Ad-
ditional I/O Latency.
4 Click OK.
DAE Playback Buffer Size
The DAE Playback Buffer Size determines the amount of memory DAE allocates for disk buff­ers. The optimum DAE Playback Buffer Size for most disk operations is Level 2.
DAE Playback Buffer Size settings lower than
Level 2 may improve playback and recording initiation speed, but may make it difficult to play or record tracks reliably with sessions con­taining a large number of tracks or a high den­sity of edits, or with systems that have slower or heavily fragmented hard drives.
DAE Playback Buffer Size settings higher than
Level 2 will allow for a higher density of edits in a session or a higher track count when using slower hard drives. However, a higher setting can also cause a time lag to occur when starting playback or recording, or longer audible time lag while editing during playback.
Using a larger DAE Playback Buffer Size leaves less system memory for other tasks. The default setting of Level 2 is recom­mended unless you are encountering -9073 (“Disk too slow or fragmented”) errors.
To change the DAE Playback Buffer Size:
1 Choose Setup > Playback Engine.
2 From the DAE Playback Buffer pop-up menu,
select a buffer size.
3 Click OK.
Mbox 2 Pro Getting Started26

Pro Tools Hardware Settings

Clock Source
Pro Tools lets you set the default sample rate and clock source for your system.
Default Sample Rate
The Sample Rate setting appears as the default sample rate when you create a new session. (This setting is available in the Hardware Setup dialog only when no session is open.)
You can change the sample rate when creat­ing a new Pro Tools session by selecting a different sample rate in the New Session dialog. (See
on page 49.)
To change the default sample rate:
1 Make sure that no Pro Tools session is open.
2 Choose Setup > Hardware.
“Recording a Pro Tools Session”
The Pro Tools Hardware Setup dialog lets you se­lect the Clock Source for the system.
Internal Use this setting if you are recording an­alog signals directly into Mbox 2 Pro. When set to internal, Mbox 2 Pro provides four channels of input (analog only).
S/PDIF Use this setting to record or listen to Mbox 2 Pro S/PDIF inputs connected to an ex­ternal digital device. This setting will synchro­nize Pro Tools to that digital device.
S/PDIF input is only available when S/PDIF is the Clock Source.
Word Clock Use this setting to clock Pro Tools LE to a Word clock source connected to the Mbox 2 Pro Word Clock In port.
To select the Clock Source:
1 Choose Setup > Hardware.
2 Choose the clock source from the Clock
Source pop-up menu.
Hardware Setup dialog box for Mbox 2 Pro
3 Select the sample rate from the Sample Rate
pop-up menu.
4 Click OK.
3 Click OK.
Your digital input device must be connected and powered on for Pro Tools to synchro­nize to it. If your input device is not powered on, leave the Clock Source set to Internal.
Chapter 4: Mac Configuration 27
Configuring I/O Setup
Using the I/O Setup dialog, you can label Pro Tools LE input, output, insert, and bus sig- nal paths. The I/O Setup dialog provides a graph­ical representation of the inputs, outputs, and signal routing of the Mbox 2 Pro.
Pro Tools LE has default I/O Setup settings that will get you started. Use the I/O Setup dialog only if you want to rename the default I/O paths.
Audio MIDI Setup (AMS)
(Optional)
If you plan to use any MIDI devices with Pro Tools LE, configure your MIDI setup with the Apple Audio MIDI Setup (AMS) utility. See Appendix B, “Configuring AMS (Mac OS X Only)” for details.
Backing Up Your System Configuration
To rename I/O paths in I/O Setup:
1 Choose Setup > I/O.
I/O Setup dialog for Mbox 2 Pro
2 Click the Input, Output, Insert, or Bus tab to
display the corresponding connections.
3 To change the name of a path or subpath,
double-click directly on the Path Name, type a new name for the path, and press Return.
4 Click OK.
T
See the Pro Tools Reference Guide (or choose Help > Pro Tools Reference Guide) for more information on renaming I/O paths.
After configuring your system and Pro Tools, you should save an image of your system drive using a backup utility such as Bombich Carbon Copy Cloner. By doing this, you can quickly re­store your system configuration and settings if you encounter any problems.

Additional Software on the Pro Tools Installer Disc

The Pro Tools Installer disc provides additional software for your system, including audio driv­ers (for playing other audio applications through your Digidesign hardware) and a Pro Tools demo session.
Check your Pro Tools Installer disc for addi­tional software and installers.

Mbox 2 Pro CoreAudio Driver

The Mbox 2 Pro CoreAudio Driver is a multi-cli­ent, multichannel sound driver that allows CoreAudio-compatible applications to record and play back through Digidesign hardware.
Mbox 2 Pro Getting Started28
The Mbox 2 Pro CoreAudio Driver is installed automatically when you install Pro Tools.

Removing Pro Tools

For information on configuring the Mbox 2 Pro CoreAudio Driver, see the
Drivers guide
.
CoreAudio
Standalone Mbox 2 Pro CoreAudio Driver
The Mbox 2 Pro CoreAudio Driver can be in­stalled as a standalone driver on Mac systems that do not have Pro Tools software installed. The standalone version of this driver is available on the Pro Tools Installer disc (in the Additional Files Folder).
For information on installing and configur­ing the standalone version of the Mbox 2 Pro CoreAudio Driver, see the CoreAudio Drivers Guide.

Pro Tools Demo Session

The Pro Tools Installer disc includes a separate demo session installer. You can use this session to verify that your system is working.
To install the demo session:
1 Insert the Pro Tools LE Installer disc in your
CD/DVD drive. Locate and double-click the demo session installer icon.
2 Select your audio drive as the install location
and click Install.
3 When installation is complete, click Quit.
If you need to remove Pro Tools software from your computer, use the Uninstaller application.
To remove Pro Tools from your computer:
1 Make sure you are logged in as an Administra-
tor for the account where Pro Tools is installed.
For details on Administrator privileges in Mac OS X, refer to your Apple OS X docu­mentation.
2 Go to Applications/Digidesign/Pro Tools/
Pro Tools Utilities and double-click the “Uninstall Pro Tools” file.
3 Click Continue to proceed with the uninstall.
4 Choose the type of uninstall you want to per-
form:
Safe Uninstall Leaves certain plug-ins and sys­tem files needed for compatibility with some Avid products.
Clean Uninstall Removes all Pro Tools files, in­cluding system files, Digidesign plug-ins, and MIDI patch names.
5 Click Uninstall.
6 Enter your Administrator password and click
OK.
7 Click Finish to close the Installer window.
Chapter 4: Mac Configuration 29
Mbox 2 Pro Getting Started30
chapter 5

Hardware Overview

Mbox 2 Pro Front Panel Features

The Mbox 2 Pro front panel has the following features:
Ext Clock LED

MIDI Activity LED

Power
LED
Headphones level
(A, B)
Headphone Outputs
(A and B)
3–4 Switch and LED
(Headphone B)
Monitor
Level
Peak LED
48V
Switch and LED
Figure 1. Mbox 2 Pro front panel

Power LED

The Power LED indicates that the Mbox 2 Pro is powered on.

Ext (External) Clock LED

The External Clock LED lights to indicate that either S/PDIF or Word clock is the current Pro Tools clock source. When unlit, this LED in­dicates Internal clock.
Peak LED
Input 2
Gain
Pad
DI/Mic 2 LEDs
Source selector
Aux In (3–4)
Source
selector
and
Gain
LED
Input 1
Source
Gain
Peak LED
Input 1 DI Input 2 DI
selector
Pad
DI/Mic 1 LEDs
MIDI Activity LED
This LED lights to indicate Mbox 2 Pro is receiv­ing or sending MIDI.
Chapter 5: Hardware Overview 31

Headphone Outputs

48V Switch and LED

Mbox 2 Pro provides two 1/4-inch, stereo head­phone outputs, A and B, each with its own level control. Headphones mirror the Monitor out­puts, by default (usually your main Pro Tools Analog 1–2 outputs). Headphone B can also be configured for discrete monitoring of Pro Tools outputs 3–4 (Analog 3–4) using the 3–4 switch.

Headphone Level

The headphone knobs adjust the output level of their corresponding Headphone output (A or B).

3–4 Switch and LED

The 3–4 switch toggles Headphone B output be­tween the main outputs (1–2), and output chan­nels 3–4. When this switch is in its “out” posi­tion, Headphone B mirrors Headphone A output and the 3–4 LED is off. When this switch is in its “in” position, Headphone B monitors Pro Tools output channels 3–4.

Monitor Level

The Monitor knob adjusts the output level of the Mon Out ports. In Pro Tools, this will be the signal routed to Analog outputs 1–2.
Phantom power is activated by the switch la­beled 48V on the front panel of Mbox 2 Pro. The LED, when lit, indicates that 48V phantom power is active on both Mic/Line inputs. These inputs provide phantom power for micro­phones that require it to operate.
About Phantom Power
Dynamic microphones (such as a Shure SM57) do not require phantom power to operate, but are not harmed by it. Most condenser micro­phones (like an AKG C3000) do require phan­tom power to operate.
Although phantom power can be used safely with most microphones, it is possible to damage some ribbon microphones with it. Always turn off phantom power and wait at least ten seconds before connecting or disconnecting a ribbon microphone.
If you are not sure about the phantom power re­quirements for your microphone, consult your microphone’s documentation or contact the manufacturer.
Mbox 2 Pro Getting Started32

Gain Controls

Peak LEDs

These knobs adjust the input gain levels of their corresponding input (Input 1, Input 2, or Aux In).

DI Inputs

Front panel DI connectors are provided for in­put channels 1 and 2, to connect electric guitar, electric bass, and similar instruments.

DI/Mic Source Selectors and LEDs

The Source Select switches for Input 1 and Input 2 select either the Mic or DI inputs for each channel. The DI and Mic LEDs indicate the cur­rent source input.
The Aux In Source select switch selects the Aux Line inputs, or Phono inputs.
For more information, see “Connecting Audio Inputs” on page 39.
Input 1, 2 and the Aux Input have Peak LEDs that also function as signal meters. They light green at –60 dBFS, yellow at –6 dBFS, and red at 0 dBFS (peak).

Pad Switches and LEDs

The Pad switches engage a –20 dB pad on their corresponding input channels. When engaged, the Pad LEDs light.
Chapter 5: Hardware Overview 33

Mbox 2 Pro Back Panel Features

Figure 2 identifies each port on the Mbox 2 Pro back panel.
Inputs 1 and 2
Mic/Line 2
Mic/Line 1
Aux In (3–4)
Phono In L/R
Line In L/R
Monitor outputs
(1–2) (1–4)
Line
outputs
S/PDIF digital I/O
Line Out
(5–6)
Footswitch

MIDI I/O

Ground post
Figure 2. Mbox 2 Pro back panel
The Mbox 2 Pro back panel has the following features:

DC Power

This port supplies power to Mbox 2 Pro using the included power supply. Though external power is not always required, you should use ex­ternal power if your 1394 bus is unable to pro­vide enough power, or if you need to conserve battery power in a portable computer.

FireWire (1394) Port

This standard FireWire 1394 connector is used to connect your computer to Mbox 2 Pro. One 6-pin FireWire cable is included with Mbox 2 Pro. The Mbox 2 Pro can be powered solely through its 1394 connection to your com­puter, or using an external power supply (in­cluded with your system).
Word clock In/Out
Firewire
Power
4-Pin FireWire Cable
Mbox 2 Pro includes a 6-pin to 6-pin FireWire cable. Some Windows laptops include a 4-pin FireWire port. To use Mbox 2 Pro with these computers, a 4-pin to 6-pin cable is required. Purchase this cable (model #CS625) through your authorized Digidesign dealer or online through the DigiStore (www.digidesign.com).
This cable can also be purchased at com­puter supply stores. Maximum supported cable length for FireWire (IEEE-1394) is 14 feet (4.3 meters).
MIDI I/O
The MIDI In and MIDI Out ports are standard 5­pin MIDI ports, each providing 16 channels of MIDI input and output.
Mbox 2 Pro Getting Started34

Word Clock

The Word Clock In and Out ports let you con­nect BNC cables to synchronize Pro Tools to in­coming 1x Word clock, and synchronize other devices to Pro Tools-generated Word clock.
In use, the S/PDIF input channels are available in addition to the four channels of analog audio input when S/PDIF is selected as the Pro Tools Clock Source. This lets Mbox 2 Pro be used as a 6-in/8-out digital audio interface for Pro Tools LE.
Line Outputs (1–4)
These outputs let you send discrete Pro Tools outputs to external headphone or cue systems, remote speakers and similar devices. Line out­puts 1–4 accept balanced TRS, or unbalanced TS, 1/4-inch cables.
Line Out (5–6)
This connector accepts a 1/4-inch cable, to sup­ply two channels of unbalanced output to an additional analog device. (Line Out 5 = Tip; Line Out 6 = Ring.)

Footswitch

The Footswitch input is a 1/4-inch TS input. At the present time, this connector is inactive and should not be used.

S/PDIF Digital I/O

The S/PDIF in and out ports are unbalanced two­conductor phono (RCA) connectors that utilize a full 24-bit, two-channel digital data stream.
The S/PDIF output channels are always avail­able, in all clock modes.

Mon Out (Monitor Output)

These outputs support balanced TRS, or unbal­anced TS, 1/4-inch connections. To monitor your mix, these outputs can be connected to a mixing board, directly to a monitoring system such as a stereo power amp, or another stereo destination.
The Mon Out Left and Right play the audio that is routed to analog outputs 1 and 2 from within Pro Tools, respectively. These analog outputs feature 24-bit digital-to-analog converters.

Aux In (Line and Phono Inputs)

The Aux In section provides two pairs of inputs for different types of equipment. The Aux In Line L and R inputs are 1/4-inch, balanced TRS connectors. The Phono inputs are unbalanced, coaxial RCA connectors.

Grounding Post

The Sony/Phillips Digital Interface Format (S/PDIF) is used in many professional and con­sumer CD recorders and DAT recorders. To avoid RF interference, use 75-ohm coaxial cable for S/PDIF transfers and keep the cable length to a maximum of 10 meters.
The Grounding Post is for grounding turntables and other types of DJ equipment to Mbox 2 Pro.
Chapter 5: Hardware Overview 35

Mic/Line 1 and 2

Each analog source input channel (Input 1 and Input 2) provides Mic (XLR) and Line (TRS) in­put on combination jacks. On the front panel, the input signal is adjusted by the Gain control for each channel and the source (Mic/Line, or DI) is chosen using the Source selectors.
Source 2 is at the far left (when looking at the back panel), and Source 1 is to its right. The back panel inputs for Source 1 and Source 2 are lo­cated such that they are directly in line with their associated input controls on the front panel. This lets you locate input jacks more eas­ily when viewing from the front of the unit.
Mbox 2 Pro Getting Started36
chapter 6

Making Hardware Connections

To hear audio recorded into a Pro Tools session, you will need to connect headphones or an ex­ternal sound system (such as powered monitors or a home stereo) to Mbox 2 Pro. Sound from Mbox 2 Pro cannot be played through your computer’s speakers or your computer’s sound output.

Connecting Headphones

On the front panel of the Mbox 2 Pro are two 1/4-inch headphone connectors, each with an associated level control, labelled A and B. Con­nect up to two sets of headphones for mixing and tracking.
Headphone level (A, B)
1/4-inch Headphone jacks (A, B)
Headphone jacks and controls on front of Mbox 2 Pro
Headphone A monitors the Pro Tools main mix outputs (usually output channels 1–2).
3–4 (Headphone B)
By default, Headphone B output mirrors the Pro Tools channel 1–2 output being heard in the Headphone A output. Whenever a discrete cue mix is required for overdubbing, Headphone B output can be switched to monitor output chan­nels 3–4.
Do not use the front panel headphone out­puts for anything but headphones. If you use a headphone distribution amp or cue system, use any of the six available Line Out channels on the back panel. See “Addi­tional Analog Outputs” on page 38.
To connect headphones for mix monitoring:
Connect headphones with a 1/4-inch stereo
connector (or adapter) to the Headphone A jack.
To connect headphones for selectable monitoring:
Connect headphones with a 1/4-inch stereo
connector (or adapter) to the Headphone B jack.
To monitor channels 3–4 in Headphone B:
Press the 3–4 switch so that it is engaged (“in”
position).
See the
Pro Tools Reference Guide for infor-
mation on using signal routing, sends and bussing to create cue mixes.
Chapter 6: Making Hardware Connections 37

Connecting a Sound System

The main monitor outputs on the back of the Mbox 2 Pro (Mon Out L and R) support 1/4-inch plugs. These connections can be balanced, TRS (Tip, Ring, Sleeve) style connectors, or unbal­anced connectors. To listen to your Pro Tools session, these outputs can be connected to any amplification system: powered speakers, a home stereo system, or an audio mixer.
When connecting to a stereo system, connect the left channel (often the white plug) to Mon Out Left, and the right channel (often the red plug) to Mon Out Right.
Monitor Out
Monitor Out connectors on Mbox 2 Pro (back panel)
Home stereo systems often use RCA connec­tors. You can use an adaptor or a special ca­ble to convert from the TRS or TS connectors used by Mbox 2 Pro to the RCA connectors on your home stereo.
To connect a sound system:
Using 1/4-inch cables, connect the Mon Out L
and Mon Out R on the back panel to the inputs of your power amplifier, self-powered monitors, or other monitoring system.

Additional Analog Outputs

Mbox 2 Pro provides a total of six analog output channels in addition to the primary Monitor outputs. These include Line Out 1–4, and Line Out 5–6.
Line Out 1–4
Line Out 5–6
Additional outputs on Mbox 2 Pro (back panel)
Line Out 1–4
Line Outputs 1–4 can be connected to any de­vice that has analog inputs. Use these four bal­anced 1/4-inch TRS outputs to feed analog de­vices such as headphone amps or cue systems for discrete headphone mixes, samplers, or a secondary recorder.
Line Out 5–6
Line Out 5–6 provides an additional pair of ana­log output channels. Use this unbalanced 1/4­inch stereo connector to supply two channels of analog output. (Line Out 5 = Tip, Line Out 6 = Ring).
To connect additional Mbox 2 Pro outputs:
1 Using 1/4-inch TRS cables, connect any of the
Line Out (1–4) connectors on the back panel to the inputs of your external devices.
2 Using a 1/4-inch TRS stereo cable, connect the
Line Output (5–6) output on the back panel to the inputs of your external device.
See the Pro Tools Reference Guide for infor­mation on signal routing, sends and bussing.
Mbox 2 Pro Getting Started38
Connecting a Digital Deck
Mic/Line In
If you have a CD, DVD, DAT or other device that accepts S/PDIF connections, connect it to the S/PDIF In and S/PDIF Out RCA ports on the back of Mbox 2 Pro.
When recording from Pro Tools to a digital device, make sure the Pro Tools Clock Source setting is set correctly. For more in­formation, see “Digital Input and Output” on page 44.

Connecting Audio Inputs

This section describes the analog inputs avail­able on Mbox 2 Pro. For information about con­necting specific audio sources, see “Connecting a Microphone” on page 40, and “Connecting Instruments to the Mbox 2 Pro” on page 42.

Overview of Analog Inputs

Mbox 2 Pro provides a total of four channels of analog input. On the Mbox 2 Pro, these are la­belled Inputs 1 and 2, and Aux In L-R.
Input 1 Aux In Input 2
Each Mic/Line In section on the back panel pro­vides combination jacks that accept XLR or TRS connectors for Inputs 1 and 2.
XLR For XLR microphone cables.
Line For 1/4-inch Tip-Ring-Sleeve (TRS) cables
from keyboards, mixers, and other line sources.
If you are using a microphone with a 1/4-inch connector, use the front panel DI inputs.
DI 1 and DI 2
Input 1 and 2 also provide a front panel DI in­put.
DI For 1/4-inch Tip-Sleeve cables from guitar, bass, microphones, or similar sources.
DI 1 DI 2
Input 1 and 2 front panel DI connectors
Inputs on back of Mbox 2 Pro
Inputs 1 and 2
Inputs 1 and 2 each provide back panel Mic/Line In 1 and 2 connectors as well as front panel DI connectors (TS). These inputs appear as Analog In (1–2) in Pro Tools.
Aux In
Aux In connectors are provided for Line and Phono sources. These inputs appear as Analog In (3–4) in Pro Tools:
Line L and R For 1/4-inch Tip-Sleeve cables from guitar, bass, microphones, or similar sources.
Phono L and R For RCA cables from turntables, mixers, or similar sources.
Chapter 6: Making Hardware Connections 39

Connecting a Microphone

There are several ways to use Mbox 2 with a mi­crophone, depending on the type of micro­phone and cable you use.

Mic Cables and Connectors

There are several ways to use Mbox 2 Pro with a microphone, depending on the type of micro­phone and cable you use.
Some microphone cables use an XLR connector to attach a microphone to an input; other mi­crophones use a 1/4-inch connector.
If you have a choice, use an XLR connector to connect the microphone to the Mbox 2 Pro to yield better results.
Most condenser microphones (such as an AKG C3000) require phantom power to operate. Dy- namic microphones (such as a Shure SM57) do not require phantom power to operate, but are not harmed by it.
Although phantom power can be used safely with most microphones, it is possible to damage some ribbon microphones with it. Always turn off phantom power and wait at least ten seconds before connecting a ribbon microphone.
The Mbox 2 Pro can only supply power through a microphone cable with XLR connectors. If you are not sure about the phantom power require­ments for your microphone, refer to your micro­phone’s documentation or contact the manu­facturer.
XLR connector
1/4-inch connector
XLR and 1/4-inch connectors

Phantom Power

Some microphones require power to operate. This power, called phantom power, is supplied ei­ther by a battery in the microphone, or through an audio interface (such as Mbox 2 Pro) that can supply power through the microphone cable.

Using a Mic that Has an XLR Connector

To use a microphone that has an XLR connector:
1 Plug your microphone cable into one of the
Mic/Line inputs on the back of Mbox 2 Pro.
Input 1 Mic input
XLR connector plugged into Input 1
Mbox 2 Pro Getting Started40
2 Set the input Source to Mic (microphone) by
pressing the Mic/DI Source selector on the front of Mbox 2 Pro until the Mic LED is lit.
5 On the front of the Mbox 2 Pro, carefully turn
the Input 1 Gain control to the right to increase the input level of your microphone signal.
Mic/DI
Source selector
Mic
DI
LED
LED
Input 1 Source selector and LEDs
3 If your microphone requires phantom power,
make sure the microphone is connected, then press the Phantom Power switch (labeled 48V) on the front of the Mbox 2 Pro. This switch sends 48V to both XLR mic inputs. The 48V LED on the front of the Mbox 2 Pro will light when phantom power is being supplied.
6 If the incoming signal is too loud, press the
Pad switch to engage the –20 dB pad.
Pad
Input 1 Pad
48V (Phantom Power)
Phantom Power switch
4 On the front of the Mbox 2 Pro, turn the
Monitor control to the desired level.
Monitor control Gain
Monitor control and Gain knob for Input 1
Chapter 6: Making Hardware Connections 41

Using a Mic that Has a 1/4-Inch Connector

To use a microphone that has a 1/4-inch TS (Tip-Sleeve) connector:
1 Connect the 1/4-inch cable from your micro-
phone to the front panel Input 1 DI input.

Connecting Instruments to the Mbox 2 Pro

Mbox 2 Pro provides three input types (DI, Line and Aux In) that correspond to the different sig­nal strengths output by different types of instru­ments and other equipment.
Input 1
Connecting a 1/4-inch microphone cable to the Input 1 DI connector
2 Set the source to DI by pressing the input
channel Source selector until the DI LED is lit.
Mic/DI selector
Input 1 selector switch and DI LED
3 On the front of the Mbox 2 Pro, carefully turn
the Gain control to the right to increase the in­put level of your microphone signal.
4 If the incoming signal is too loud, press the
Pad switch to engage the –20 dB pad.
DI Input (Front Panel) Instruments such as elec­tric guitar or electric bass that usually have a lower level of output than line level instruments use the front panel DI (“Direct Inject”) input.
Line Inputs (Back Panel) Line level devices, in­cluding electronic audio sources such as mixers, samplers, keyboards, turntables, and synthesiz­ers use the back panel Line input.
Aux In (Back Panel) Line in L and R for addi­tional line level devices, plus Phono L and R in­puts for turntables/preamps, DJ mixers, and similar devices. The 1/4-inch TS Line L and R in­puts accept balanced or unbalanced connec­tions. The RCA inputs are fully RIAA compliant, and Mbox 2 Pro also provides a grounding post for devices that require such a connection. You can connect devices to both pairs of Aux In in­puts and then choose between them using the front panel Source selector switch.

Connecting Electric Guitar or Bass

To use a guitar with Mbox 2 Pro:
1 On the front of the Mbox 2 Pro, plug your gui-
tar cable into one of the DI inputs.
Input 1 DI
Connecting guitar to the Input 1 DI connector
Mbox 2 Pro Getting Started42
2 On the front of the Mbox 2 Pro, set the source
to DI by pressing the Mic/DI switch until the DI LED is lit.
3 On the front of the Mbox 2 Pro, carefully turn
the Gain control to the right to increase the in­put level of your guitar.
When you record a guitar (or any mono in­strument that uses only one source input), you will hear the sound in only one side of the stereo field. Pushing the “mono” button on the front of the Mbox 2 Pro brings the sound from one side of the stereo field to both sides. The Mono switch does not affect the audio being recorded. It only affects how you hear your input to the Mbox 2 Pro.

Connecting Keyboards and Mixers

To use a keyboard or mixer with Mbox 2 Pro:
1 Plug your keyboard, mixer, or other audio
source into either the Input 1 or Input 2 Line (TRS) inputs on your Mbox 2 Pro. If your source is stereo (such as a stereo keyboard or the stereo output from a mixer), connect the left channel (often the white plug) to Input 1, and right channel (often the red plug) to Input 2.
To use Aux In (3–4) Line inputs:
1 Plug your keyboard, mixer or other line level
device into the Aux In Line inputs (L and R).
2 On the front panel of Mbox 2 Pro, press the
Aux In Source select switch as needed so the Phono LED is off (unlit). The switch should be in its “out” position.

Connecting DJ Equipment

To use the Phono inputs:
1 Plug your turntable, mixer, or similar outputs
into the Aux In Phono inputs (L and R).
2 If appropriate, connect your turntable to the
Mbox 2 Pro grounding post. This is necessary with some preamps and other DJ equipment to help keep the signals free of (unwanted) hum and buzz.
3 On the front panel of Mbox 2 Pro, press the
Aux In Source select switch as needed so the Phono LED is on (lit). The switch should be in its “in” position.
2 Set your instrument’s volume to its optimal
level. For example, the optimal level for most keyboards is between 80% and 100% of maxi­mum volume.
3 On the front of the Mbox 2 Pro, carefully turn
the Gain control to the right to increase the in­put level of your keyboard.
Chapter 6: Making Hardware Connections 43

Digital Input and Output

Using S/PDIF Input
Mbox 2 Pro provides two channels of S/PDIF digital input and output on the back panel. This lets you record signals from digital devices into Pro Tools, and send digital audio from Pro Tools to other digital devices.
S/PDIF
In
Out
S/PDIF connectors on Mbox 2 Pro
Connecting Digital Devices
To connect Mbox 2 Pro to an external digital device:
1 Using RCA (coaxial) cables, connect the
Mbox 2 Pro S/PDIF In to the S/PDIF output of the device.
2 Connect the Mbox 2 Pro S/PDIF Out to the
S/PDIF input of the external device.
3 Be sure to read the next section for important
information.
This section describes the steps you must take once you have finished installing and launching Pro Tools LE to enable the S/PDIF ports for digi­tal input.
Refer to this section whenever you plan to use S/PDIF input on Mbox 2 Pro.
The following requirement only applies to using S/PDIF input to record or monitor dig­ital signals through Pro Tools LE and Mbox 2 Pro.
In order to record or listen to a digital device connected to the Mbox 2 Pro S/PDIF In connec­tor, you must do the following to configure the Pro Tools Clock Source:
To enable the S/PDIF inputs on Mbox 2 Pro:
1 Make sure your have connected the external
digital device to the correct Mbox 2 Pro S/PDIF connector (In and Out).
2 Make sure the external device is powered on,
that it is set to the correct sample rate, and that it is configured to provide S/PDIF clock (if rele­vant to your device).
3 Launch Pro Tools LE.
4 Choose Hardware > Setup.
5 Click the Clock Source pop-up menu and
choose “S/PDIF.”
Clock Source
Enabling S/PDIF Input in the Hardware Setup dialog
Mbox 2 Pro Getting Started44
Once enabled in the Hardware Setup dialog, the S/PDIF inputs become active and will pass audio to Mbox 2 Pro.
2 Connect the MIDI IN of your MIDI device or
controller to the MIDI OUT port on the back of Mbox 2 Pro.
Setting the Clock Source to S/PDIF is the only way to utilize S/PDIF input. Doing so lets you record or monitor up to six discrete input chan­nels (the four analog input channels, plus the two channels of S/PDIF input).
Selecting any other Clock Source (Internal, or Word Clock) disables S/PDIF input. S/PDIF output remains available.

MIDI Connections

The two MIDI ports on Mbox 2 Pro let you take advantage of all the MIDI features of Pro Tools LE, including recording and editing MIDI tracks.
If you need additional MIDI ports you can add a compatible MIDI interface. USB MIDI interfaces work effectively with Pro Tools systems on Win­dows or Mac. Serial MIDI interfaces are sup­ported on Windows systems only.
Only USB MIDI interfaces are compatible with Pro Tools systems for Mac OS X. Mo­dem-to-serial port adapters and serial MIDI devices are not supported.
MIDI
In Out
MIDI connections to Mbox 2 Pro
MIDI is not audio. To hear the output of your MIDI devices within Pro Tools, you must route the audio output of your MIDI device into your Mbox 2 Pro audio inputs, and monitor or record the audio into your session as explained in “Connecting Audio Inputs” on page 39. For a primer on MIDI and how to include it in your sessions, see Chapter 7, “Common Tasks with Pro Tools LE.”
See also Appendix A, “Configuring MIDI Studio Setup (Windows Only)” or Appendix B, “Configuring AMS (Mac OS X Only)” for information on configuring your MIDI studio for use with Pro Tools.
To connect MIDI devices to Mbox 2 Pro:
1 Connect the MIDI OUT of your MIDI device
or controller to the MIDI IN port on the back of Mbox 2 Pro.
Chapter 6: Making Hardware Connections 45

Word Clock

Mbox 2 Pro provides Word Clock In and Out connectors on the back panel that let you syn­chronize, or “clock” Pro Tools LE and Mbox 2 Pro to industry standard Word clock. Word clock is used to synchronize a wide range of devices such as non-linear video systems and other types of equipment typically found in pro­fessional audio facilities.
With both Word clock input and output, your Mbox 2 Pro-equipped Pro Tools LE system can act as Word clock “slave” or “master.”
Do not confuse Word clock and other forms of “clock reference” with time code and other forms of “positional reference.” For an overview of synchronization terminology and concepts, see the guide.
To connect Word clock to Mbox 2 Pro:
Using high-quality, 75 ohm BNC cables (not
included) connect the Mbox 2 Pro Word Clock In and Out connectors to the appropriate ports on the other Word clock-capable devices in your studio.
Pro Tools Reference

Using Word Clock with Pro Tools LE

Pro Tools LE with Mbox 2 Pro can act as Word clock master, or as a slave to Word clock sup­plied by an external device.
Pro Tools LE as Word Clock Master
Mbox 2 Pro Word clock output is always active, letting Pro Tools supply Word clock to any con­nected devices that support standard Word clock.
To use Pro Tools LE as Word clock master:
1 Make sure all connections are correct between
Mbox 2 Pro and your external devices.
2 Configure all external devices to slave to the
Word clock coming from Mbox 2 Pro. (Be sure to verify sample rate settings, termination require­ments and other internal settings for the device; refer to the manufacturer’s documentation if you need more information on the particular re­quirements for your other equipment.)
3 Launch Pro Tools.
4 Choose Hardware > Setup.
5 Click the Clock Source pop-up menu and
choose Internal.
Mbox 2 Pro Getting Started46
Pro Tools LE as Word Clock Slave
In order to slave Pro Tools to an external Word clock source, you must configure Word clock as the Pro Tools Clock source, as follows:
To configure Pro Tools LE with Mbox 2 Pro as a Word clock slave:
1 Make sure all Word clock and audio connec-
tions are correct as described earlier in this sec­tion.
2 Make sure the external Word clock source is
powered on, and configured to output 1x Word clock. (Be sure to verify any required termina­tion; refer to the manufacturer’s documentation if you need more information on the particular requirements for your device.)
3 Launch Pro Tools.
4 Choose Hardware > Setup.
5 Click the Clock Source pop-up menu and
choose Word Clock.
S/PDIF digital input is not available when the Pro Tools Clock source is set to Word clock or Internal. To use S/PDIF input, S/PDIF must be the Pro Tools Clock source. For more information, see “Digital Input and Output” on page 44.
Chapter 6: Making Hardware Connections 47
Mbox 2 Pro Getting Started48
chapter 7

Common Tasks with Pro Tools LE

This chapter is designed to give new users spe­cific methods for accomplishing common tasks with your Pro Tools system.
For the most complete information on using Pro Tools, see the Pro Tools Reference Guide.
You can view an electronic PDF version of the
Reference Guide by choosing it from the
Pro Tools Help menu.
This chapter uses analog inputs in its exam­ples of common tasks. To record digitally through the Mbox 2 Pro S/PDIF input, the steps are basically the same with the follow­ing important exception: S/PDIF must be enabled as the Pro Tools Clock Source in the Hardware Setup dialog. For more informa­tion, see “Digital Input and Output” on page 44.

Recording a Pro Tools Session

Before you record with Pro Tools LE, you first create a Pro Tools session, then prepare an audio track for recording.
To create a Pro Tools session:
1 Verify the connections between your
Mbox 2 Pro and your instrument or micro­phone.
For connection information, see Chapter 6, “Making Hardware Connections.”
2 Launch Pro Tools.
3 Choose File > New Session.
4 In the New Session dialog, set the session pa-
rameters as needed, or leave them at their de­fault settings. (For details on New Session settings, see the Pro Tools Reference Guide.)
New Session dialog
5 Choose the audio drive where you want to
save your session.
6 Type a name for your session.
7 Click Save.
Chapter 7: Common Tasks with Pro Tools LE 49

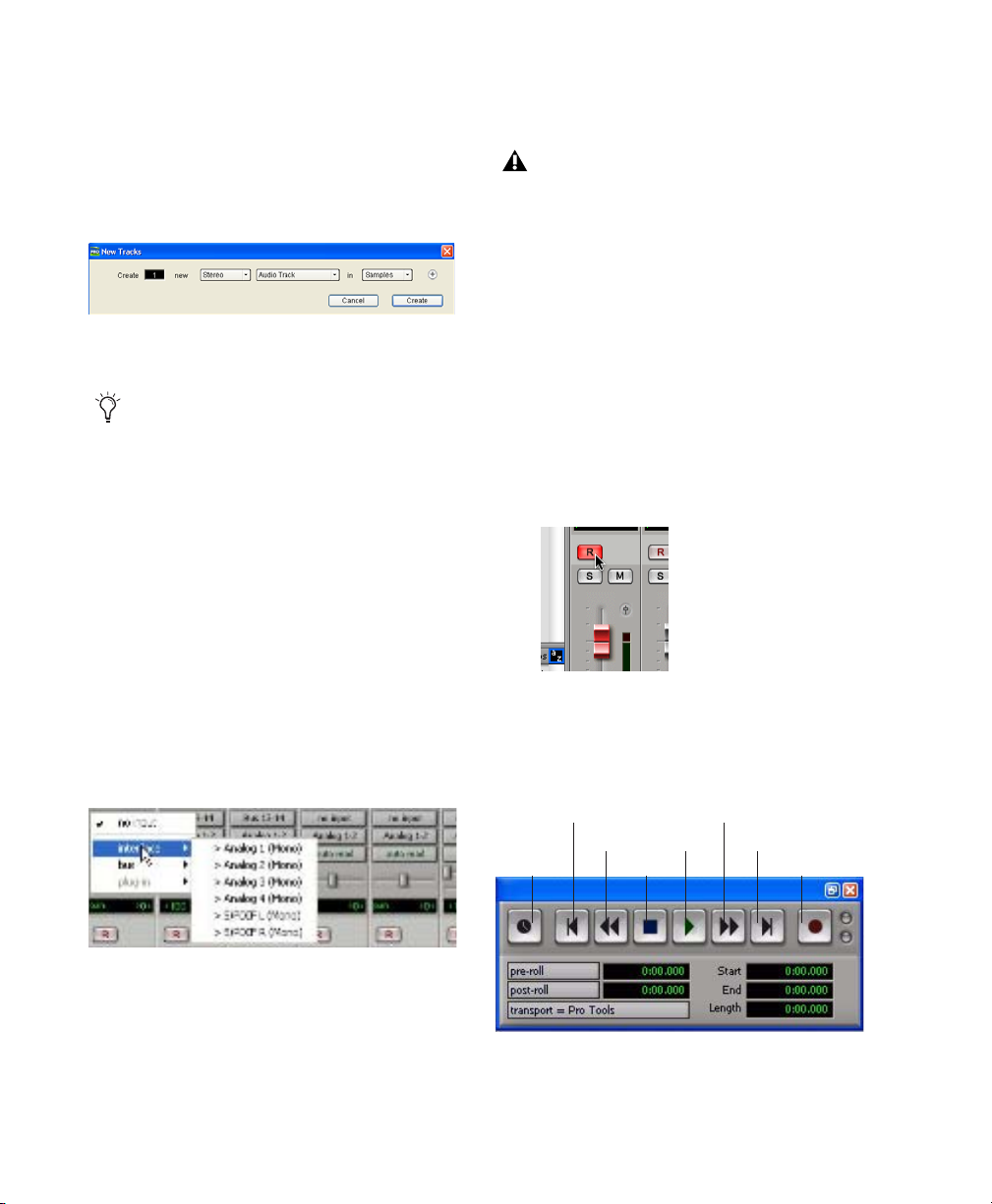

To prepare an audio track for recording:
1 Choose Track > New.
2 Specify 1 Mono Audio Track in Samples, if
your source is mono, or 1 Stereo Audio Track in Samples, if your source is stereo.
Creating a new Stereo audio track
3 Click Create.
A mono instrument uses one input on the Mbox 2 Pro, and a stereo instrument uses two. Creating a stereo track in Pro Tools will not make a mono instrument into a ste­reo instrument. If a mono instrument is re­corded on a stereo track, one of the sides of the stereo track will show no signal.
4 Make sure the Mix window is open by choos-
ing Window > Mix.
5 In the Mix window, click the Audio Input Path
selector on the new track.
6 From the pop-up menu, select the interface in-
put you want to record. For example, select Analog 1 if your audio source is plugged into an Input 1 connector on the Mbox 2 Pro.
8 Use the Gain controls to maximize the signal
going into Pro Tools while avoiding clipping.
Clipping occurs when you feed a signal to an audio device that is louder than the circuitry can accept. To avoid clipping, adjust the out­put volume of the source device, then adjust the Mbox 2 Pro Gain control. Adjust these two levels so that the input Peak LEDs on the front panel do not light red. (One Peak LED is provided on the front panel for each input; Peak LEDs light green when the input signal is roughly –60 dBFS, light yellow at –6 dBFS, and will turn red to indicate the input signal is at –0 dBFS (also known as “full code”).
To record an audio track:
1 Click the track’s Record Enable button.
Record enabling a track in the Mix window
2 Choose Window > Transport to display the
Transport window. Click Return to Zero to go to the beginning of the session.
Online
Return to Zero
Rewind
Stop
Fast Forward
Go to EndPlay
Record
Routing an input to a mono track
7 Play the instrument or sound source at the
volume you will record.
Mbox 2 Pro Getting Started50
Transport window
3 Click Record in the Transport window to arm
Pro Tools for recording. The Record button flashes red to indicate that Pro Tools is ready to record.
4 When you are ready to start recording, click
Play or press the Spacebar.
5 Record your performance.
6 Click Stop in the Transport window or press
the Spacebar when you are finished recording.
To play back a recorded track:
1 If the track’s Record Enable button is lit, click
on it to take it out of Record mode.
2 Click Play in the Transport window or press
the Spacebar to start playback.
3 Click Stop in the Transport window or press
the Spacebar to stop playback.

Importing Audio from a CD

To import audio from a compact disc:
1 Put the source CD into your computer’s
CD/DVD drive.
2 In Pro Tools, open the Workspace browser by
choosing Window > Workspace. The Workspace browser is a window where you can find, audi­tion, and manage your audio files.
Opening the Workspace browser
3 In the Workspace browser, click the Audio CD
icon to show the files on the CD.
4 Click the speaker icon in the Waveform col-
umn to audition the audio file. Press the Space­bar to stop playback.
Auditioning an audio file in the Workspace browser
Chapter 7: Common Tasks with Pro Tools LE 51
5 Drag the audio file from the Workspace
browser to the Track List in the Edit window to import the file to a new audio track.
Dragging an audio file from the Workspace browser to the Edit window Track List
To play back the new track:
1 In the Transport window, click Return to Zero
to go to the beginning of the track.
2 Click Play in the Transport window to begin
playback.
3 Click Stop in the Transport window or press
the Spacebar to stop playback.
If you are bouncing to 16-bit (CD resolution), you should use a dither plug-in on the main out­put. (For details, see the Pro Tools Reference Guide.)
To bounce audio to disk:
1 After you have finished recording and mixing
a session in Pro Tools, select the length of the session in the timeline ruler (or on a track), plus an additional amount of time to avoid cutting off any reverb tails that might continue past the end of the last region.
Session audio selected and ready to bounce
2 Choose File > Bounce to > Disk.

Creating an Audio CD from a Pro Tools Session

Pro Tools does not create audio CDs directly, but you can create stereo audio files from your Pro Tools sessions that can be used by most CD burning software.

Bouncing Audio to Disk

Use the Pro Tools Bounce to Disk feature to combine all your audible tracks into a single “master” audio file. After the new audio file has been bounced to disk, you can burn it to a CD.
Mbox 2 Pro Getting Started52
Choosing Bounce to Disk from the File menu
3 In the Bounce Options dialog, choose
Analog 1–2 as the Bounce Source.
4 Choose WAV (BWF) for the File Type.
5 Choose Stereo Interleaved for the Format.
10 Click Save.
6 Choose 16 for the Resolution and 44100 for
the Sample Rate.
7 If you are changing the sample rate of the
bounced file, choose a Conversion Quality set­ting. (For details, see the Pro Tools Reference Guide.)
8 Choose “Convert after Bounce,” and click
Bounce.
Pro Tools begins bouncing to disk. Pro Tools bounces are done in real time, so you hear audio playback of your mix during the bounce process (though you cannot adjust it).
.
Bouncing to Disk dialog

Burning a CD

After the bounce is completed, you will have an audio file that is ready for burning onto a CD. Quit Pro Tools and launch any common CD burning application to burn your bounced mix to CD.
Bounce options for creating CD burnable tracks
9 In the Bounce dialog, give the bounce tracks a
name and choose where they should be saved.
Entering a name for the bounced file
Make certain that you configure your CD burning application to create an audio CD rather than a data CD.
Chapter 7: Common Tasks with Pro Tools LE 53

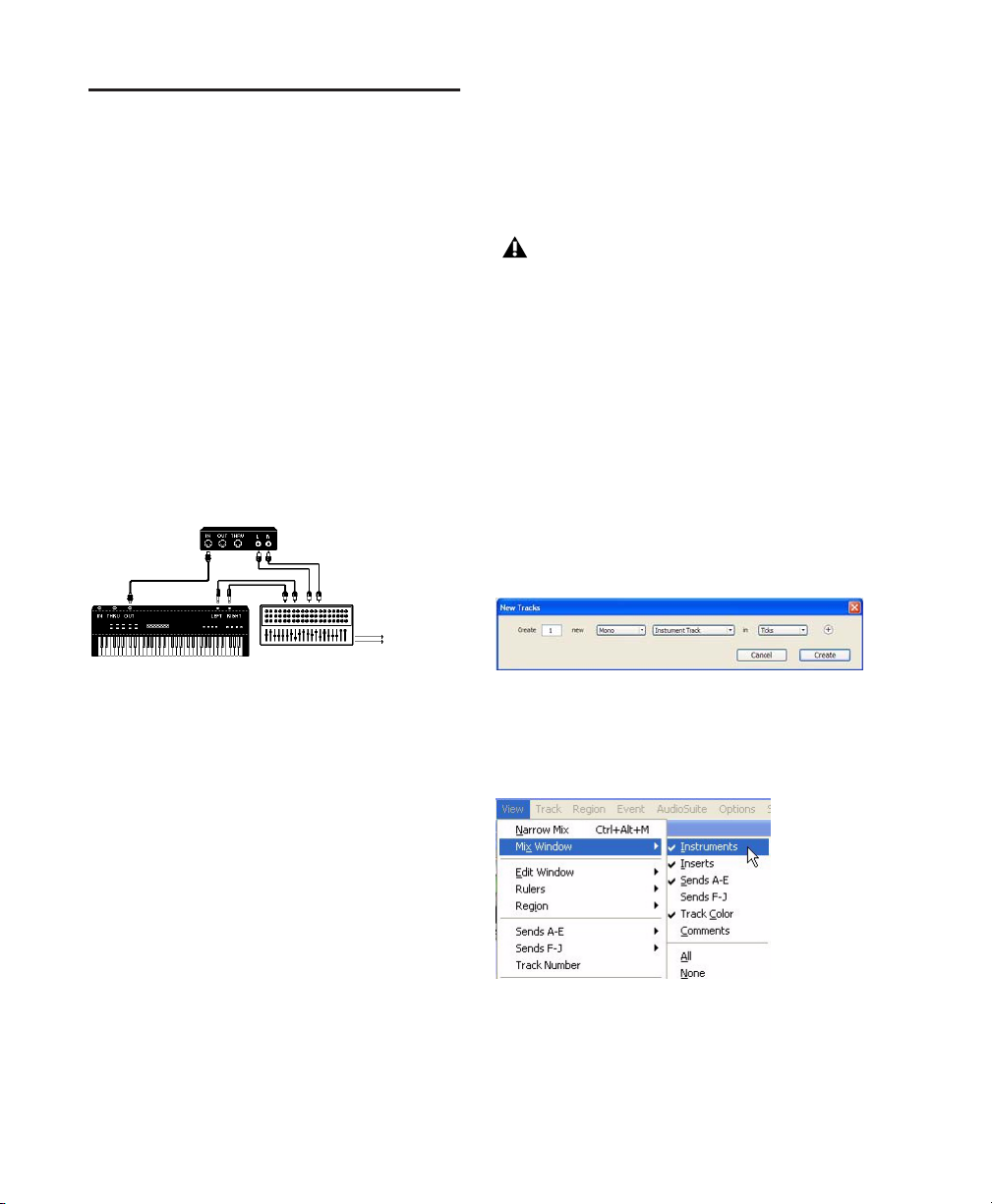

Recording MIDI in a Pro Tools Session

What is MIDI?

MIDI (Musical Instrument Digital Interface) data is not audio, and has no sound. MIDI is a way for musical devices to communicate. MIDI is data that can trigger a MIDI device (such as a keyboard or software synthesizer).
In order to create or play a MIDI recording, you must have a MIDI controller or sound module (real or virtual) connected to the computer through a MIDI interface. Audio from your MIDI instrument can be monitored through the audio interface or sent to an external mixer.
MIDI sound module
MIDI
Audio

Recording MIDI on an Instrument Track

Pro Tools Instrument tracks provide both MIDI and audio capabilities, so you can record MIDI and monitor audio from software and hardware instruments.
To record or playback tracks using MIDI data, your Pro Tools system must be config­ured for MIDI. See Appendix A, “Configuring MIDI Studio Setup (Windows Only)” or Appendix B, “Configuring AMS (Mac OS X Only).”
To create an Instrument track and configure it for recording:
1 Choose Setup > MIDI > Input Devices and
make sure your input device is selected in the MIDI Input Enable window, and click OK.
2 Choose Track > New and specify 1 Mono In-
strument Track, then click Create.
MIDI keyboard (controller)
Signal paths for MIDI instruments
Mbox 2 Pro Getting Started54
Mixer
To amplifier
Creating a new Mono Instrument track
3 Select View > Mix Window > Instruments to
display the MIDI controls for the Instrument track.
Showing the Instrument View in the Mix window
4 At the top of the Instrument track in the Mix
window, click the track’s MIDI Input selector and assign the device and channel to be re­corded, or leave it set to All.
MIDI Input selector
MIDI Input selector in an Instrument track
5 Do one of the following, depending on the
type of instrument you are using:
• If you are using an instrument plug-in, click an Insert selector and insert the plug­in on the Instrument track. The track’s MIDI output is automatically assigned to the instrument plug-in.
MIDI Output selector in an Instrument track
If your connected MIDI device does not ap­pear, check that you have configured your computer and its MIDI settings. For more information, refer to Appendix A, “Config­uring MIDI Studio Setup (Windows Only)” or Appendix B, “Configuring AMS (Mac OS X Only).”
6 If you are using an external MIDI device and
have connected its audio output to your audio interface for monitoring in Pro Tools, click the Input selector of the Instrument track and choose the corresponding audio input. (This step is not necessary if you are using an instru­ment plug-in.)
Inserting an instrument plug-in on an Instrument track
• If you are using an external MIDI device, click the track’s MIDI Output selector (at the top of the Instrument track) and assign the device and channel to receive the MIDI output (the choices will vary depending on the device).
Choosing an audio input for an Instrument track
Chapter 7: Common Tasks with Pro Tools LE 55
7 In the Mix Window, click the track’s Record
Enable button to enable the Instrument track for MIDI recording.
Track Record Enable button
Enabling an Instrument track for MIDI recording
8 Make sure Options > MIDI Thru is selected.
9 Play some notes on your MIDI controller and
look for the track’s MIDI Velocity meter to move. Remember, MIDI is not audio, and the MIDI Velocity meter is not registering sound output, but MIDI activity.
3 Click Record in the Transport window.
Return to Zero
Online
Transport window
4 Click Play in the Transport window or press
Rewind
Stop
Fast Forward
Go to EndPlay
Record
the Spacebar to begin recording.
5 Play your MIDI controller or input device.
MIDI Velocity meter
MIDI meter in Instrument track showing MIDI activity
10 Adjust the audio output level of the Instru-
ment track with its Volume fader.
Volume fader
Adjusting the Volume fader on an Instrument track
To record MIDI on the Instrument track:
1 Verify that the Instrument track you want to
record to is record-enabled and receiving MIDI.
2 In the Transport window, click Return to Zero
to start recording from the beginning of the ses­sion. You can also record to a selection in a track or from the cursor location in the Edit window.
6 When you have finished recording, click Stop
in the Transport window, or press the Spacebar. The newly recorded MIDI data appears as a MIDI region on the track in the Edit window, as well as in the Region List.
MIDI data in an Instrument track
To play back recorded MIDI data:
1 Click the track’s Record Enable button to take
the Instrument track out of Record mode.
2 In the Transport window, click Return to Zero
to play back from the beginning of the track.
3 Click Play in the Transport window to begin
playback. The recorded MIDI data plays back through the track’s assigned instrument and channel.
Mbox 2 Pro Getting Started56
appendix a
Configuring MIDI Studio Setup (Windows Only)

MIDI Studio Setup

MIDI Studio Setup (MSS) lets you configure the MIDI controllers and sound modules that are connected to your system, and control the rout­ing of MIDI data between your MIDI equipment and Pro Tools.
MSS automatically finds MIDI interfaces, and lets you specify a custom name for each of the MIDI ports within the MIDI Studio Setup docu­ment.
MSS also supports XML-based patch file names for storing and importing patch names for your external MIDI devices.
Entire MIDI Studio Setup configurations created within MSS can be imported and exported.

MIDI Studio Setup Window

The MIDI Studio Setup window is organized into three sections. Interface controls are at the top of the window. All the currently defined in­struments are displayed in the Instrument Name list on the left side of the window. A de­tailed view of MIDI parameters is shown in the Properties section on the right.
MIDI Studio Setup window
Interface Controls
Create This button adds a new instrument to the Instrument Name list.
Delete This button deletes the instrument or in­struments selected in the Instrument Name list.
Import This button lets you import an existing MIDI Studio Setup file.
Appendix A: Configuring MIDI Studio Setup (Windows Only) 57
Export This button lets you export the current MIDI Studio Setup file.
Show Duplicate Emulated Ports When this op­tion is selected and you are using a MIDI inter­face that supports timestamping (such as MIDI I/O), in addition to the MIDI ports on Mbox 2 Pro, the MIDI Studio setup window shows both the DirectMusic time-stamped out­put ports, and non-stamped duplicate emulated output ports.
Some MIDI Interfaces will not properly load or unload their drivers unless you quit and re-launch Pro Tools. Check the documenta­tion that came with your MIDI interface for more information.
When a previously defined instrument is se­lected in the Instrument list, the Properties sec­tion changes to reflect the properties of the se­lected instrument.
To define an instrument with MIDI Studio Setup:
1 Choose Setup > MIDI > MIDI Studio.
2 Click Create.
3 In the Instrument Name field, type the name
of your instrument, and press Enter.
If you do not enter an instrument name, the Instrument Name field will automatically inherit information from the Manufacturer and Model pop-up menu.
Instrument List
The Instrument list contains all the currently defined instruments. Selecting an instrument in the list displays that instrument’s properties in the Properties section of the window.
Properties Section
The Properties section lets you edit information for new instruments, or instrument currently se­lected in the Instrument list.

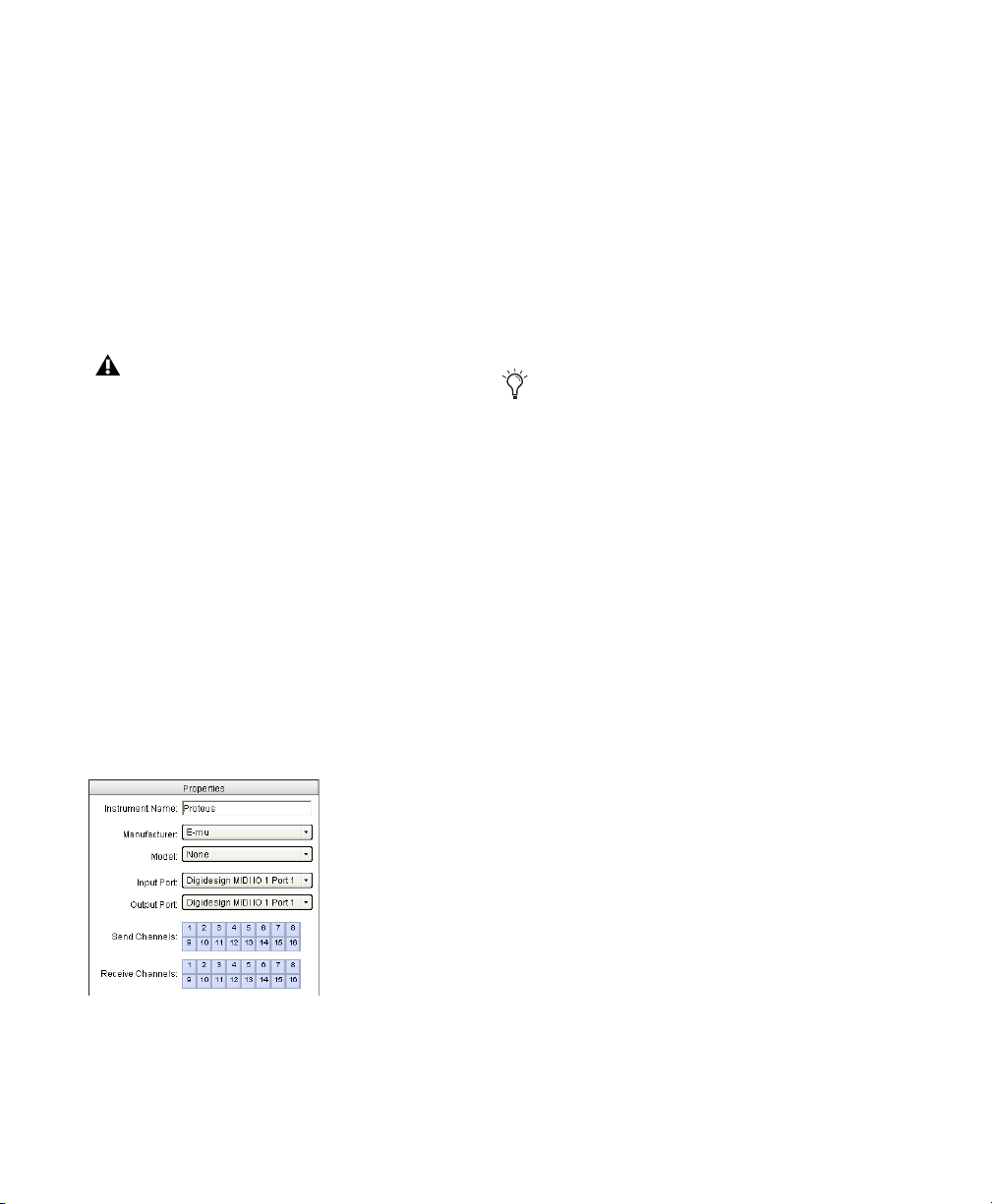

MIDI Studio Setup Properties section
4 Set a manufacturer and model for the new de-
vice from the corresponding pop-up menus. If the Manufacturer and Model pop-up menus do not provide a name for your particular device, choose None.
5 From the Input pop-up menu, choose the in-
put port on your MIDI interface that is con­nected to the MIDI Out of your instrument.
6 From the Output pop-up menu, choose the
output port on your MIDI interface that is con­nected to the MIDI In of your instrument.
7 Enable the appropriate MIDI channels (1–16)
for the Send Channels and Receive Channels options (These determine which channels send and receive MIDI.)
Instrument Name
The Instrument Name field shows the user-de­finable instrument name for the currently se­lected instrument.
Mbox 2 Pro Getting Started58
Manufacturer
Send Channels
The Manufacturer pop-up menu provides a list of MIDI equipment manufacturers. This list is derived from the XML-based MIDI device files.
For more information, see “MIDI Patch Name Support” on page 59.
Model
The Model pop-up menu provides a list of MIDI devices, filtered by the manufacturer name. This list is derived from the XML-based MIDI device files provided with your Pro Tools installation.
For more information, see “MIDI Patch Name Support” on page 59.
Input Port
The Input Port pop-up menu displays a list of available MIDI interface input ports. Inputs will include Mbox 2 Pro and any additional MIDI in­terfaces enabled on your system. The MIDI in­terface port that is set and displayed here is the port through which MIDI data is sent from the external MIDI device specified in the Instru­ment Name field into your MIDI interface.
If you set the input port to None, the defined instrument will not appear as a choice in a MIDI Input selector.
Output Port
The Send Channels grid sets the send channels for the MIDI device specified in the Instrument Name field.
Receive Channels
The Receive Channels grid sets the receive chan­nels for the MIDI device specified in the Instru­ment Name field.

MIDI Patch Name Support

Pro Tools supports XML (Extensible Markup Language) for storing and importing patch names for your external MIDI devices. Pro Tools installs MIDI patch name files (.midnam) for the factory default patch names of many common MIDI devices. These files reside in directories, sorted by manufacturer, in Program Files\ Common Files\Digidesign\MIDI Patch Names\ Digidesign.
To import MIDI patch names into Pro Tools:
1 Verify the MIDI Device name in the MIDI Stu-
dio Setup window (see “MIDI Studio Setup” on page 57).
2 Verify the MIDI track’s output is correctly as-
signed to the MIDI device.
The Output Port pop-up menu displays a list of available MIDI interface output ports. The port set and displayed here is the port through which MIDI data is sent from your MIDI interface to the MIDI device specified in the Instrument Name field.
If you set the output port to None, the de­fined instrument will not appear as a choice in a MIDI Output selector.
Appendix A: Configuring MIDI Studio Setup (Windows Only) 59
3 Click the MIDI track’s Patch Select button.
Patch Select button
Patch Select button, Edit window
Patch Select button
6 Click Open.
The Patch Select dialog is populated with patch names and the Patch Name Bank pop-up menu appears in the upper left hand corner of the win­dow.
Patch Select button, Mix window
4 In the Patch Select dialog, click the Change
button.
Change button
Patch Select dialog
5 In the Open dialog, navigate to Program
Files\Common Files\Digidesign\MIDI Patch Names\Digidesign\<name of manufacturer>, and select the MIDI Patch Name file (.midnam) for the MIDI device.
Patch Select dialog with patch names
Once patch names have been imported into Pro Tools, they are available for that MIDI de­vice in all sessions.
To clear patch names:
In the Patch Select dialog, click the Clear but-
ton, and click Done.
MIDI patch name files (.midnam) can be edited in any text editor, or you can use third party patch librarian and editor soft­ware to create your own custom patch names.
Mbox 2 Pro Getting Started60
appendix b
Configuring AMS (Mac OS X Only)
2 Click MIDI Devices. AMS scans your system

Audio MIDI Setup

Pro Tools recognizes the ports on your MIDI in­terface as generic ports. With Mac OS X, you use Apple’s Audio MIDI Setup (AMS) utility to iden­tify external MIDI devices connected to your MIDI interface and configure your MIDI studio for use with Pro Tools.
This chapter shows examples of AMS using Mbox 2. The instructions for Mbox 2 Pro are identical to those presented here.
To configure your MIDI studio in AMS:
1 Do one of the following:
• Launch Audio MIDI Setup (located in Ap­plications/Utilities).
– or –
• In Pro Tools, choose Setup > MIDI > MIDI Studio.
for connected MIDI interfaces. If your MIDI in­terface is properly connected, it appears in the window with each of its ports numbered.
Audio MIDI Setup (MIDI Devices)
3 For any MIDI devices connected to the MIDI
interface, click Add Device. A new external de­vice icon with the default MIDI keyboard image will appear.
4 Drag the new device icon to a convenient lo-
cation within the window.
Appendix B: Configuring AMS (Mac OS X Only) 61
5 Connect the MIDI device to the MIDI inter-
face by clicking the arrow for the appropriate output port of the device and dragging a con­nection or “cable” to the input arrow of the cor­responding port of the MIDI interface.

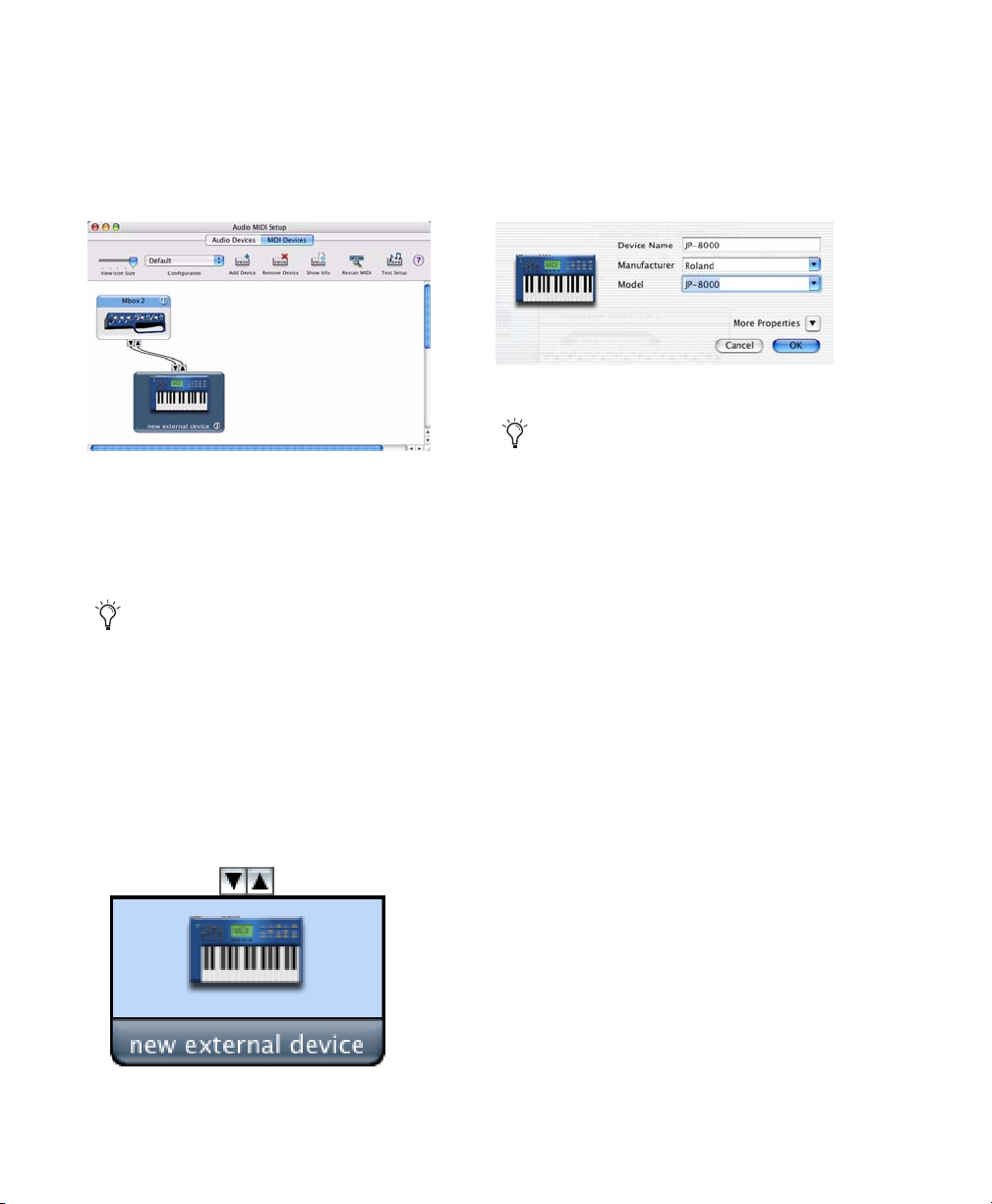

Making MIDI input and output connections
6 Click the arrow for the appropriate input port
of the device and drag a cable to the output ar­row of the corresponding port of the MIDI inter­face.
To remove a connection, select the cable and press Delete. To delete all connections, click Clear Cables.
7 Repeat steps 3–6 for each MIDI device in your
MIDI setup.
2 Select a manufacturer and model for the new
device from the corresponding pop-up menus. (If the Manufacturer and Model pop-up menus do not provide a name for your particular de­vice, you can type a name.)
Naming a new MIDI device
For Manufacturer and Model names, AMS refers to one or more files with the suffix “.middev” in the directory Root/Library/ Audio/MIDI Devices. Pro Tools installs a file that contains information for many commercially available MIDI devices, named “Digidesign Device List.middev.” If the Manufacturer or Model names for any of your external MIDI devices is not available in the AMS Manufacturer and Model pop­up menus, you can add them by editing the .middev file in any text editor (such as TextEdit).
To configure an external MIDI device:
1 Select the external device icon and click Show
Info (or double-click the new device icon).
External Device Icon
Mbox 2 Pro Getting Started62
3 Click the More Properties arrow to expand the
dialog, then enable the appropriate MIDI chan­nels (1–16) for the Transmits and Receives op­tions. (These determine which channels the device will use to send and receive MIDI.)
Enabling MIDI channels
4 Click the device image. The window expands
to show images for various MIDI devices (such as keyboards, modules, interfaces, and mixers). Select an icon for your device.
Selecting a device icon
To use your own custom icons, you can place TIFF image files in /Library/ Audio/MIDI Devices/Generic/Images, and they will appear as choices in the AMS device window.
5 Click OK.
The device names you enter appear as MIDI in­put and output choices in Pro Tools.
Appendix B: Configuring AMS (Mac OS X Only) 63

MIDI Patch Name Support

Pro Tools supports XML (Extensible Markup Language) for storing and importing patch names for your external MIDI devices. Pro Tools installs MIDI patch name files (.midnam) for the factory default patch names of many common MIDI devices. These files reside in directories, sorted by manufacturer, in /Library/Audio/MIDI Patch Names/Digidesign.
To import MIDI patch names into Pro Tools:
1 Verify the MIDI Device name in the Audio
MIDI Setup window (see “Audio MIDI Setup” on page 61).
2 Verify the MIDI track’s output is correctly as-
signed to the MIDI device.
3 Click the MIDI track’s Patch Select button.
Patch Select button
4 In the Patch Select dialog, click the Change
button.
Change button
Patch Select dialog
5 In the Open dialog, navigate to /Library/Au-
dio/MIDI Patch Names/Digidesign/<name of manufacturer>, and select the MIDI Patch Name file (.midnam) for the MIDI device.
6 Click Open.
The Patch Select dialog is populated with patch names and the Patch Name Bank pop-up menu appears in the upper left hand corner of the win­dow.
Once patch names have been imported into Pro Tools, they are available for that MIDI de­vice in all sessions.
Patch Select button, Edit window
Patch Select button
Patch Select button, Mix window
Mbox 2 Pro Getting Started64
To clear patch names:
In the Patch Select dialog, click the Clear but-
ton, and click Done.
MIDI patch name files (.midnam) can be edited in any text editor, or you can use third party patch librarian and editor soft­ware to create your own custom patch names.
appendix c
Hard Drive Configuration and Maintenance
It is recommended that you start with a newly formatted external or secondary internal audio drive. You should also periodically defragment your audio drive to ensure continued system performance.

Supported Drive Formats and Drive Types

Drive Formats

Always back up any important data on your drive before formatting it, as it will erase all data on the drive.

Avoid Recording to the System Drive

Recording to your system drive is not recom­mended. Recording and playback on a system drive may result in lower track counts or fewer plug-ins.
Windows Windows XP systems should use drives formatted as NTFS or FAT32 (NTFS preferred).
Windows systems can also support Mac drives formatted with HFS+ system (also commonly referred to as Mac OS Extended). Refer to the Pro Tools Reference Guide for more information.
Mac Mac systems should use drives formatted with HFS+ or HFS file system only.
HFS drives are supported as Transfer drives only.
Hard drive performance depends on factors in­cluding system configuration, number of tracks, session sample rate, density of edits, and the use of crossfades and other processes such as Beat Detective in a session.
For complete hard drive requirements, see the Digidesign website (www.digidesign.com).
Appendix C: Hard Drive Configuration and Maintenance 65

SCSI Hard Drives

Digidesign recommends qualified SCSI hard drives and a qualified SCSI host bus adapter (HBA) card or (on Windows systems) a qualified built-in SCSI HBA connector on the mother­board.
For complete information on track count and the supported number and configuration of SCSI drives, visit the Digidesign website (www.digidesign.com).

FireWire Hard Drives

Digidesign recommends qualified FireWire drives and (on Windows systems) a qualified FireWire host adapter.
For complete information on track count and the supported number and configuration of FireWire drives, visit the Digidesign website (www.digidesign.com).

IDE/ATA/SATA Hard Drives

Formatting an Audio Drive

Formatting Windows Audio Drives

(Windows Only)
For optimal performance, audio drives should be formatted as FAT32 or NTFS.
To format an audio drive:
1 Right-click My Computer and choose Man-
age.
2 Under Storage, choose Disk Management.
A qualified internal IDE/ATA/SATA drive may be used as a dedicated audio drive.
For complete information on track count with internal drives, refer to the Digidesign website (www.digidesign.com).
Mbox 2 Pro Getting Started Guide66
Disk Management window (Windows XP)
3 If the volume is “Healthy,” do the following:
Healthy volumes are volumes that have pre­viously been partitioned and formatted.
• In the Disk Management window, right­click the hard drive you will use for audio and choose Format.
• In the Format window, name the volume.
• Choose a file system. For optimum perfor­mance, audio drives should be formatted as NTFS. (FAT32 is also supported.)
Windows Disk Management can only cre­ate FAT32 volumes 32 GB or smaller. To create FAT32 volumes greater than 32 GB (up to 2 TB). use a third part utility (such as Swiss Knife or Partition Magic).
• Select “Perform a quick format.”
• Make sure “Enable file and folder compres­sion” is not selected.
• Set the Allocation unit size to Default.
• Click OK.
4 If the volume is “Unallocated,” do the follow-
ing:
• In the Disk Management window, right­click the hard drive you will use for audio and choose New Partition.
• In the New Partition Wizard window, click Next.
• When prompted, select the partition type.
Digidesign recommends using Primary par­titions, instead of Extended partitions.
• Follow the on-screen instructions to select a partition size and other partition settings.
• When prompted, choose a file system. For optimum performance, audio drives should be formatted as NTFS. (FAT32 is also supported.)
Windows Disk Management can only cre­ate FAT32 volumes 32 GB or smaller. To create FAT32 volumes greater than 32 GB (up to 2 TB). use a third part utility (such as Swiss Knife or Partition Magic).
Pro Tools only supports Basic drive types. Do not convert the drive to a Dynamic type.
• Select “Perform a quick format.”
• Make sure “Enable file and folder compres­sion” is not selected.
• Set the Allocation unit size to Default.
• Click OK.
Pro Tools only supports Basic drive types. Do not convert the drive to a Dynamic type.
Appendix C: Hard Drive Configuration and Maintenance 67

Formatting Mac Audio Drives

(Mac Only)
For optimum performance, audio drives should be formatted as Mac OS Extended (Journaled).
To format an audio drive:
1 Launch the Disk Utility application, located in
Applications/Utilities.

Partitioning Drives

Partitioning creates a logical volume or volumes on a physical drive, almost as if you were creat­ing virtual hard drives. Partitions can then be formatted with the appropriate file system (NTFS or FAT32 for Windows, HFS+ for Mac).
FAT32 drive partitions have a limit of 2 terabytes (2000 gigabytes), whereas NTFS drive partition sizes are almost limitless.
Windows XP allows drives formatted with the NTFS or FAT32 file systems to be seen as whole volumes. Single Pro Tools audio files cannot exceed 2048 MB in size.
Mac OS allows drives larger than 4096 MB to be seen as whole volumes. Drives must be initialized with a disk utility that recog­nizes the 2 terabyte limit. Single Pro Tools audio files cannot exceed 2048 MB in size.
Disk Utility (Mac OS X)
2 Click the Erase tab.
3 Select the drive you want to initialize in the
column on the left side of the window.
4 Choose the Mac OS Extended (Journaled) for-
mat.
Do not choose the “Case-Sensitive” format option. Pro Tools will not operate properly with case-sensitive formatted drives.
5 Type a name for the new volume.
6 If you plan to connect the drive to a Mac OS 9
computer, select Install Mac OS 9 Drivers.
7 Click Erase.
The drive appears on the Desktop with the new volume name.
Mbox 2 Pro Getting Started Guide68

Seek Times on Partitioned Drives

Seek times are actually faster on partitioned drives (assuming that reads and writes are per­formed on a single partition), since the heads only have to seek within the partition bound­aries, rather than the whole capacity of the drive.
Smaller partitions perform faster than larger par­titions, but this comes at the expense of contig­uous storage space. When you partition a drive, you will need to find the compromise that best suits your performance and storage require­ments.
Avoid distributing audio files within a ses­sion over different partitions on the same drive since this will adversely affect drive performance.

Defragmenting an Audio Drive

Mac Systems

When working with larger files (such as video), you can limit fragmentation by backing up your important files to another disk, erasing the files from the original hard disk, then copying the files back, instead of doing a defragmentation.

Window Systems

Periodically defragment audio drives to maintain system performance.
For maximum recording and playback effi­ciency, data should be written to your hard drive in a contiguous fashion—minimizing the seek requirements to play back the data. Unfor­tunately, your computer can’t always store the sound files in this way and must write to disk wherever it can find space.
In multitrack recording, audio tracks are written in discrete files, spaced evenly across the disk. While fragmentation of individual files may be zero, the tracks may be far enough apart that playback will still be very seek-intensive. Also, the remaining free space on the disk will be dis­contiguous, increasing the likelihood of file fragmentation on subsequent record passes.
Optimizing (Defragmenting) Drives
To prevent fragmentation, you can optimize your drive, which rearranges your files into a contiguous format. Most optimizing software lets you run a check on a drive to find out the percentage of fragmentation. If your drive shows moderate to heavy fragmentation, you should consider optimizing it.
If you use your system for intensive editing, or if you frequently delete audio or fade files from your hard drive, you may need to optimize your drives on a weekly basis, or even every few days, since it doesn’t take long for even a large hard drive to become fragmented.
Backing Up Data Before Optimizing
Since your files will be rewritten by the optimi­zation process, always make a backup copy of the data on your hard drive before you optimize it. You should also use a hard drive utility to find and repair any problems before optimizing data or re-initializing your drives. If there is any damage to your hard drive's directories prior to optimizing, serious data loss may result.
Increased fragmentation increases the chance of disk errors, which can interfere with playback of audio, and result in performance errors.
On Windows, to avoid fragmentation, for­mat drives with higher cluster sizes (such as 32K).
Appendix C: Hard Drive Configuration and Maintenance 69
Defragmenting Windows Audio Drives
To defragment an audio drive (Windows):
1 Right-click My Computer and choose Man-
age.
2 Under Storage, choose Disk Defragmenter.
3 In the Disk Defragmenter window, choose the
drive you want to defragment
4 Click the Defragment button and follow the
on-screen instructions.
When defragmenting is complete, close the Computer Management Window.

Using Mac Drives on Windows Systems

Pro Tools for Windows lets you record and play back sessions directly from a Mac-formatted (HFS+) drive connected to a Windows system. This functionality requires that all Mac session and audio files be stored on Mac-formatted drives.
During Pro Tools installation, make sure to se­lect the Mac HFS+ Disk Support option. This op­tion lets your Pro Tools system read, write, record, and play back using Mac-formatted HFS+ disks.
For information on using the Mac HFS+ Disk Support option, see the Mac HFS+ Disk Support Option Guide.
For information on sharing sessions be­tween Mac and Windows systems, see the Pro Tools Reference Guide.

Formatting and Maintaining HFS+ Drives

To format and partition any drives as HFS+, con­nect the drives to a Mac computer and use the Apple OS X Disk Utility.
Mbox 2 Pro Getting Started Guide70

Hard Disk Storage Space

Mono audio tracks recorded with 16-bit resolution at 44.1 kHz (CD quality) require approximately 5 MB of hard disk space per minute. The same tracks recorded with 24-bit resolution require about
7.5 MB per minute.
Stereo audio tracks recorded with 16-bit resolution at 44.1 kHz (CD quality) require approximately 10 MB of hard disk space per minute. The same tracks recorded with 24-bit resolution require about 15 MB per minute.
Table 4 lists the required disk space for certain track numbers and track lengths, to help you estimate your hard disk usage.
Table 4. Required hard drive space for audio tracks (44.1 kHz and 48 kHz sessions shown)
Number of Tracks and Length 16-bit at
44.1 kHz
1 mono track, 1 minute 5 MB 5.5 MB 7.5 MB 8.2 MB
16-bit at
48 kHz
24-bit at
44.1 kHz
24-bit at
48 kHz
1 stereo track (or two mono tracks), 5 minutes
1 stereo track (or two mono tracks), 60 minutes
24 mono tracks, 5 minutes 600 MB 662 MB 900 MB 991 MB
24 mono tracks, 60 minutes 7 GB 7.8 GB 10.5 GB 11.6 GB
32 mono tracks, 5 minutes 800 MB 883 MB 1.2 GB 1.3 GB
32 mono tracks, 60 minutes 9.4 GB 10.4 GB 14 GB 15.4 GB
50 MB 55 MB 75 MB 83 MB
600 MB 662 MB 900 MB 991 MB
Appendix C: Hard Drive Configuration and Maintenance 71
Mbox 2 Pro Getting Started Guide72

Appendix D: Troubleshooting

Backing Up Your Work

It is highly recommended that you back up your work on a regular basis, and especially before making changes to your system configuration.

Backing Up Your Session Data

Back up your session and audio data frequently. There are a variety of media that are suited to back up projects of various sizes, from auto­mated tape backup systems to high-capacity op­tical drives, or to CD burners.
The best way to back up an entire session is to use the Save Copy In command. This command lets you save the session file and all of its associ­ated files to a new location.
You can also use the Auto Save Backup fea­ture (in the Operation Preferences page) to have Pro Tools automatically save backups of the session file while you work.
Backing Up Your System Configuration
After configuring your system and Pro Tools, you should save an image of your system drive using a backup utility such as Norton Ghost (Windows) or Bombich Carbon Copy Cloner (Mac). By doing this, you can quickly restore your system configuration and settings if you encounter any problems.

Common Issues

Pro Tools Won’t Launch

Problem
When you double-click the Pro Tools applica­tion or a Pro Tools session file, Pro Tools doesn’t launch, or displays an error message.
Possible Solutions
Check to be sure your computer has the re-
quired amount of RAM to launch Pro Tools. Re­fer to the latest compatibility information on the Digidesign website (www.digidesign.com).
Try a complete restart. Turn off your audio in-
terfaces, computer peripherals and your com­puter, and then turn them on again in the proper sequence.
If you tried to launch Pro Tools by double-
clicking a Pro Tools session file, do the follow­ing:
• Close any error message.
• Double-click the Pro Tools application.
• In Pro Tools, choose File > Open Session to open the session.
Reinstall the Pro Tools application, using the
Pro Tools Installer disc. See your Getting Started Guide or Pro Tools Upgrading Guide for installa-
tion instructions.
Appendix D: Troubleshooting 73

Audio Interface Is Not Recognized

Problem

Before You Call Digidesign Technical Support

When you launch Pro Tools it does not recog­nize an audio interface, or a connected audio in­terface is not available.
Possible Solutions
For the following possible solutions, refer to your Getting Started Guide.
Turn off your computer and check to be sure
your cables are properly and securely connected to your computer and to your audio interface.
Verify that your Hardware Setup dialog set-
tings are correct.

Performance Factors

There are several conditions that may adversely affect the performance of Pro Tools. These in­clude:
Network Connections Close any network con­nections unless you are using them for network interchange of audio data.
Background Applications Any software utilities that run in the background or generate disk ac­tivity, such as virus protection, disk optimiza­tion, or file savers, should be turned off or re­moved.
Screen Savers Screen saver software should be completely disabled on your computer before running Pro Tools.

Register Your System

Register your purchase immediately after re­viewing the Digidesign Registration Informa­tion Card included with every Pro Tools system. Registering your purchase is the only way you become eligible to receive complimentary tech­nical support and future upgrade offers. Regis­tering is one of the most important steps to complete as a new user.

Use Digidesign Resources

In addition to the printed and PDF versions of Pro Tools guides, your system includes the fol­lowing sources of information:
Read Me Files These contain late-breaking in­formation and known issues pertaining to Pro Tools software and hardware configura­tions. Read Me files are installed in Documenta­tion folder when you install Pro Tools.
Answerbase This is a database of common prob­lems and DAE errors, and their solutions based on the latest information from Digidesign Tech­nical Support. This database is installed in the Digidesign folder when you install Pro Tools. Answerbase is also available on the Digidesign website (www.digidesign.com).
Website (www.digidesign.com) This is your your best online source for information to help you get the most out of your Pro Tools system.
Power Saver Features Some automatic power saver features, such as those that spin down the system hard drive, can affect Pro Tools perfor­mance. These features should be turned off.
Mbox 2 Pro Getting Started74

Gather Important Information

Digidesign wants to help you resolve problems as quickly and efficiently as possible. If you have the following information handy when you contact Technical Support, it will make the diag­nosis of your problem easier. Take a few minutes to collect the following basic information:
System Information
Computer
• Make, model, processor speed
• Amount of system RAM
• Operating system (version of Windows or Mac OS)
• Any Drivers, Disk Utilities, or other system­related applications you may have installed
Digidesign Hardware
• Type of cards, interfaces, or peripherals
Other Hardware
Refer to the manufacturer’s documentation for operational details.
The most common hardware additions include:
• 1394 (FireWire) cards for Windows systems (manufacturer, model)
• Video Capture cards (manufacturer, model)
To verify that your hardware is qualified for use with your Pro Tools system, refer to the latest compatibility information on the Digidesign website (www.digidesign.com).
Other Software
If you are using other audio or video applica­tions, refer to the manufacturer’s documenta­tion for operational details.
Make note of any other software that was run­ning when a problem occurred.
Hard Drives
• Make, Model
• Drive size (GB)
• Drive speed (RPM)
• Drive type (SCSI, FireWire, IDE/ATA)
• Utility used to format the drive
• Number and size of partitions on the drive
Digidesign Software
• Pro Tools software version
• Plug-in versions
• Other Digidesign software
• Additional plug-ins from Digidesign Devel­opment Partners
Diagnostic Information
Note any DAE errors or other error codes you en­counter. Additonally, note the ability to repro­duce the problem under different conditions, for example, with another session, or after changing settings (such as the Hardware Buffer Size).
Appendix D: Troubleshooting 75
Mbox 2 Pro Getting Started76

index

A
ASIO driver (Windows) 19 audio drivers
ASIO driver (Windows) 19 CoreAudio driver (Mac) 28
Audio MIDI Setup (AMS) (Macintosh) 61 authorizing Pro Tools LE
Mac 24 Windows 14
C
Clock Source 17, 27
Internal setting 17, 27 S/PDIF (digital) setting 17, 27
connecting Mbox 2
Mac 23 Windows 12
CoreAudio driver (Mac) 28 CPU Usage Limit 15, 25
D
DAE Playback Buffer Size 16, 26 drive formatting
Mac 68 Windows 67
drive maintenance 65 drive requirements 5
E
Ext Clock LED 31
F
FireWire
cable types 34
FireWire requirements 66
G
gain
headphones 32 input 33
H
hard drives
drive formats 65 FireWire requirements 66 formatting 67, 68 formatting (Mac) 68 IDE/ATA requirements 66 maintenance 65, 69 optimizing 69 partitioning 68 requirements 5 SCSI requirements 66 space requirements 71
Hardware Buffer Size 14, 24 headphones
gain control 32 outputs A and B 32
I
I/O Setup
Mac 28 Windows 18
IDE/ATA requirements 66 indicators
peak level 33 phantom power 32
input and output connectors 35 inputs
digital 35 gain 33
installing Pro Tools LE
Mac 23 Windows 12
Index 77
installing QuickTime (Windows) 13
K
key commands 6
M
Mbox 2
back panel 34 connecting (Mac) 23 connecting (Windows) 12 features 4 front panel 31
MIDI
connections 45 requirements 5 setup (Macintosh) 61 setup (Windows) 57
MIDI Input Selector 55 MIDI Studio Setup (MSS) (Windows) 57
N
network connections 74
O
optimizing hard drives 69 outputs
digital 35 Monitor outputs 35
P
partitioning hard drives 68 Patch Select dialog
Macintosh 64 Windows 60
peak indicators 33 phantom power 41
indicator 32 when to use 32, 40
Power LED 31 power management settings
Mac 22 Windows 10
Pro Tools
demo session 29 removing 29
Pro Tools LE
capabilities 4 configuration (Mac) 24 configuration (Windows) 14 installing (Mac) 23 installing (Windows) 12
Q
QuickTime
installing (Windows) 13
R
removing Pro Tools 29 RTAS Processors setting 15, 25
S
S/PDIF 35 Sample Rate 17, 27 screen savers 74 SCSI requirements 66 sources
digital 35 selecting 33
Stereo Width control 43 system optimization
Mac 21, 22 Windows 9, 10, 11, 12
system settings
Clock Source 17, 27 CPU Usage Limit 15, 25 DAE Playback Buffer Size 16, 26 Hardware Buffer Size 14, 24 I/O Setup 18, 28 RTAS Processors 15, 25 Sample Rate 17, 27
T
technical support
product registration required 74
TRS 39
Mbox 2 Pro Getting Started78
www.digidesign.com
DIGIDESIGN
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA Tel: 650.731.6300 Fax: 650.731.6399
TECHNICAL SUPPORT (USA)
Tel: 650.731.6100 Fax: 650.731.6384
PRODUCT INFORMATION (USA)
Tel: 800.333.2137
INTERNATIONAL OFFICES
Visit the Digidesign website for contact information
Loading...
