Pinnacle Systems ISIS 7000 - 2.3 Setup Guide

Avid® ISIS® 7000

Setup Guide

Legal Notices

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

This product is subject to the terms and conditions of a software license agreement provided with the software. The product may only be used in accordance with the license agreement.

Avid ISIS products or portions thereof are protected by one or more of the following United States Patents: 6,374,336; 6,415,373; 6,449,688; 6,760,808; 6,785,768; 7,111,115; 7,487,309; 7,660,947. Other patents are pending.

Avid products or portions thereof are protected by one or more of the following European Patents: 1040419; 1770508. Other patents are pending.

Part of the software embedded in this product is gSOAP software.

THE SOFTWARE IN THIS PRODUCT WAS IN PART PROVIDED BY GENIVIA INC AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This document is protected under copyright law. An authorized licensee of Avid ISIS 7000 may reproduce this publication for the licensee’s own use in learning how to use the software. This document may not be reproduced or distributed, in whole or in part, for commercial purposes, such as selling copies of this document or providing support or educational services to others. This document is supplied as a guide for Avid ISIS 7000. Reasonable care has been taken in preparing the information it contains. However, this document may contain omissions, technical inaccuracies, or typographical errors. Avid Technology, Inc. does not accept responsibility of any kind for customers’ losses due to the use of this document. Product specifications are subject to change without notice.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:

This software is based in part on the work of the Independent JPEG Group.

This Software may contain components licensed under the following conditions:

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. This software is provided "as is" without express or implied warranty.

Permission to use, copy, modify, distribute, and sell this software for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of Daniel Dardailler not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Daniel Dardailler makes no representations about the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such software.

THIS SOFTWARE IS BEING PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE AUTHOR NOR AT&T MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

This product includes software developed by the University of California, Berkeley and its contributors.

The following disclaimer is required by Paradigm Matrix:

Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:

“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code equivalent of “Install-It,” including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable for any damages resulting from reseller’s failure to perform reseller’s obligation; or any damages arising from use or operation of reseller’s products or the software; or any other damages, including but not limited to, incidental, direct, indirect, special or consequential Damages including lost profits, or damages resulting from loss of use or inability to use reseller’s products or the software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates has been advised, knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:

“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with respect to its merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by Videomedia, Inc. and V-LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this software will allow “frame accurate” editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source Code:

The following disclaimer is required by Interplay Entertainment Corp.:

The “Interplay” name is used with the permission of Interplay Entertainment Corp., which bears no responsibility for Avid products.

This product includes portions of the Alloy Look & Feel software from Incors GmbH.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

This product may include the JCifs library, for which the following notice applies:

Avid Interplay contains components licensed from LavanTech. These components may only be used as part of and in connection with Avid Interplay.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or “commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant Station, AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid DNxHD, Avid DS Assist Station, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid Remote Response, Avid Unity, Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Axiom, Beat Detective, Beauty Without The Bandwidth, Beyond Reality, BF Essentials, Bomb Factory, Boom, Bruno, C|24, CaptureManager, ChromaCurve, ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer, Color Conductor, Command|24, Command|8, Conectiv, Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, Dazzle, Dazzle Digital Video Creator, D-Command, D-Control, Deko, DekoCast, D-Fi, D-fx, Digi 003, DigiBase, DigiDelivery, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise Reduction, Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital Choreography, Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, DPP-1, D-Show, DSP Manager, DS-StorageCalc, DV Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander, ExpertRender, Fader Pack, Fairchild, FastBreak, Fast Track, Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko, HD Core, HD Process, HDPack, Home-to-Hollywood, HYBRID, HyperControl, HyperSPACE, HyperSPACE HDCAM, iKnowledge, Image Independence, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, Instantwrite, Instinct, Intelligent Content Management, Intelligent Digital Actor Technology, IntelliRender, Intelli-Sat, Intelli-sat Broadcasting Recording Manager, InterFX, Interplay, inTONE, Intraframe, iS Expander, ISIS, IsoSync, iS9, iS18, iS23, iS36, ISIS, IsoSync, KeyRig, KeyStudio, LaunchPad, LeaderPlus, LFX, Lightning, Link & Sync, ListSync, LKT-200, Lo-Fi, Luna, MachineControl, Magic Mask, Make Anything Hollywood, make manage move | media, Marquee, MassivePack, Massive Pack Pro, M-Audio, M-Audio Micro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMatch, MediaMix, Media Reader, Media Recorder, MEDIArray, MediaServer, MediaShare, MetaFuze, MetaSync, MicroTrack, MIDI I/O, Midiman, Mix Rack, MixLab, Moviebox, Moviestar, MultiShell, NaturalMatch, NewsCutter, NewsView, Nitris, NL3D, NLP, Nova, NRV-10 interFX, NSDOS, NSWIN, Octane, OMF, OMF Interchange, OMM, OnDVD, Open Media Framework, Open Media Management, Ozone, Ozonic, Painterly Effects, Palladium, Personal Q, PET, Pinnacle, Pinnacle DistanTV, Pinnacle GenieBox, Pinnacle HomeMusic, Pinnacle MediaSuite, Pinnacle Mobile Media, Pinnacle Scorefitter, Pinnacle Studio, Pinnacle Studio MovieBoard, Pinnacle Systems, Pinnacle VideoSpin, Podcast Factory, PowerSwap, PRE, ProControl, ProEncode, Profiler, Pro Tools LE, Pro Tools M-Powered, Pro Transfer, Pro Tools, QuickPunch, QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape Saturation, Reprise, Res Rocket Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, Scorefitter, ScriptSync, SecureProductionEnvironment, Serv|LT, Serv|GT, Session, Shape-to-Shape, ShuttleCase, Sibelius, SIDON, SimulPlay, SimulRecord, Slightly Rude Compressor, Smack!, Soft SampleCell, Soft-Clip Limiter, Solaris, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte, SteadyGlide, Streamfactory, Streamgenie, StreamRAID, Strike, Structure, Studiophile, SubCap, Sundance Digital, Sundance, SurroundScope, Symphony, SYNC HD, Synchronic, SynchroScope, SYNC I/O, Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, Titansync, Titan, TL Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities, tools for storytellers, Torq, Torq Xponent, Transfuser, Transit, TransJammer, Trigger Finger, Trillium Lane Labs, TruTouch, UnityRAID, Vari-Fi, Velvet, Video the Web Way, VideoRAID, VideoSPACE, VideoSpin, VTEM, Work-N-Play, Xdeck, X-Form, Xmon, XPAND!, Xponent, X-Session, and X-Session Pro are either registered trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries.

Apple, Macintosh, and Safari are either registered trademarks or trademarks of Apple Computer, Inc., registered in the U.S. and other countries. HP is a registered trademark of Hewlett-Packard Company. Intel is a registered trademark of Intel Corporation. Java is a trademark of Sun Microsystems in the United States and/or other countries. Kingston is a registered trademarks of Kingston Technology Corporation. All other marks may be the property of their respective titleholders. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks contained herein are the property of their respective owners.

Avid ISIS 7000 Setup Guide •0130-30227-01 Rev. C• January 2011 • Created 1/14/11

Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

If You Need Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessing the Online Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Avid Training Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Hardware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

New System Director and Engine Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Switch and ISB Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Recreating a File Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 1 Avid ISIS 7000 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Hardware Overview and Naming Convention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

System Director. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

System Director Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

System Director Rear Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Second System Director. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Engine Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Engine Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Integrated Ethernet Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Storage Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Storage Group Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Network Zone Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Zone 1 Clients (Direct Connected). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Zone 2 Clients (Indirect Connect) Configuration . . . . . . . . . . . . . . . . . . . . . . . . 35

Zone 1 and Zone 2 Clients Mixed Configuration . . . . . . . . . . . . . . . . . . . . . . . . 37

Zone 3 and Zone 4 Client Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Link Aggregation Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Supported Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Connecting the Engine CX-4 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Removing the Avid Engine Interconnect Cable. . . . . . . . . . . . . . . . . . . . . . . . . 42

10-Gb Link Aggregation Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Supported in Link Aggregation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Recommended Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Supported Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Other Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter 2 Connecting the ISIS Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Rack-Mounting the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Rack-Mounting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Installing Rack-Mount Rails and Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Installing System Director and an Avid ISIS Engine . . . . . . . . . . . . . . . . . . . . . 51

Mounting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Installing Blades and Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Installing IXS and ISS Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Connecting the Application Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Connecting Power to Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Three 20-Amp V AC Circuits for Three Engines . . . . . . . . . . . . . . . . . . . . . . . . 57

Three 20-Amp V AC Circuits for Two Engines . . . . . . . . . . . . . . . . . . . . . . . . . 58

Two 20-Amp V AC Circuits for Two Engines. . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Turning System On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Connecting an Engine with v2.x Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Engine Configuration v2.x Hardware Guidelines. . . . . . . . . . . . . . . . . . . . . . . . 61

Setting-Up Network Addresses In the Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Two-Engine Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Three- to Twelve-Engine Stacking Summary With v2.x Switches. . . . . . . . . . . 65

Three- to Twelve-Engine Connections With v2.x Switches . . . . . . . . . . . . . . . 66

Hi-Gig Link Aggregation Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Chapter 3 Installing Software and Configuring 10-Gb Link Aggregation . . . . . . . 73

IP Addressing Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Configuration Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Loading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Installing the Application Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Creating a Active partition on the System Director. . . . . . . . . . . . . . . . . . . . . . . 81

Installing Software on the Engines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Engine Does Not Appear in Add Chassis List . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Check Switch IP Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Java Runtime Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Loading Client Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Installing Macintosh Client Software Using Safari . . . . . . . . . . . . . . . . . . . . . . . 89

Loading and Configuring Client software for Zone 3 Clients . . . . . . . . . . . . . . . 89

Avid Interplay Authentication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Configuring a 10-Gb Link Aggregation Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Chapter 4 Configuring the System for Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

System Director Failover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Enabling a System Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Adding a System Director to an Existing File System. . . . . . . . . . . . . . . . . . . . . . . . 97

Setting IP Addresses for Crossover Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Stop the Active System Director and Set Up the Failover Connection. . . . . . . . 97

Binding Order for Health Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Creating New Standby File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Restarting Existing System Director. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Stopping and Restarting System Directors During Failover . . . . . . . . . . . . . . . . . . 103

Creating Failover with Two New Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Setting IP Addresses for Crossover Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Configuring Failover Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Creating New File Systems on the Active and Standby System Directors . . . . . . . 108

Chapter 5 Status LEDs and Stacking Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

LED Locations and Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

LED Summaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Recovering from Stacking Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Set One Switch Back to Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Rebuilding the Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Appendix A Avid ISIS 7000 Upgrade Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Health Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Intel Network Driver and BIOS Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Application Key Driver Update on the System Director. . . . . . . . . . . . . . . . . . 126

Record IP Addresses on the System Director. . . . . . . . . . . . . . . . . . . . . . . . . 128

System Director Intel Pro Driver Configuration Update. . . . . . . . . . . . . . . . . . 128

Enabling Windows Updates on 64-Bit System Directors. . . . . . . . . . . . . . . . . 132

Post Upgrade System Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Preupgrade Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Zone 2 Switch Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

System Director Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

ISIS Engine/Switch Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

On Site Spares . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Spares Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Switch Hardware Revision Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Appendix B Avid ISIS Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Overview and Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Functional Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Software Component Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Software Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

FTP Server Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Install Control Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Monitoring Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Running the Avid ISIS Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Appendix C Configuring Switch Redundancy for Workgroup Servers . . . . . . . . . . 149

Media Browse and CountDown Failover Process . . . . . . . . . . . . . . . . . . . . . . . . . 149

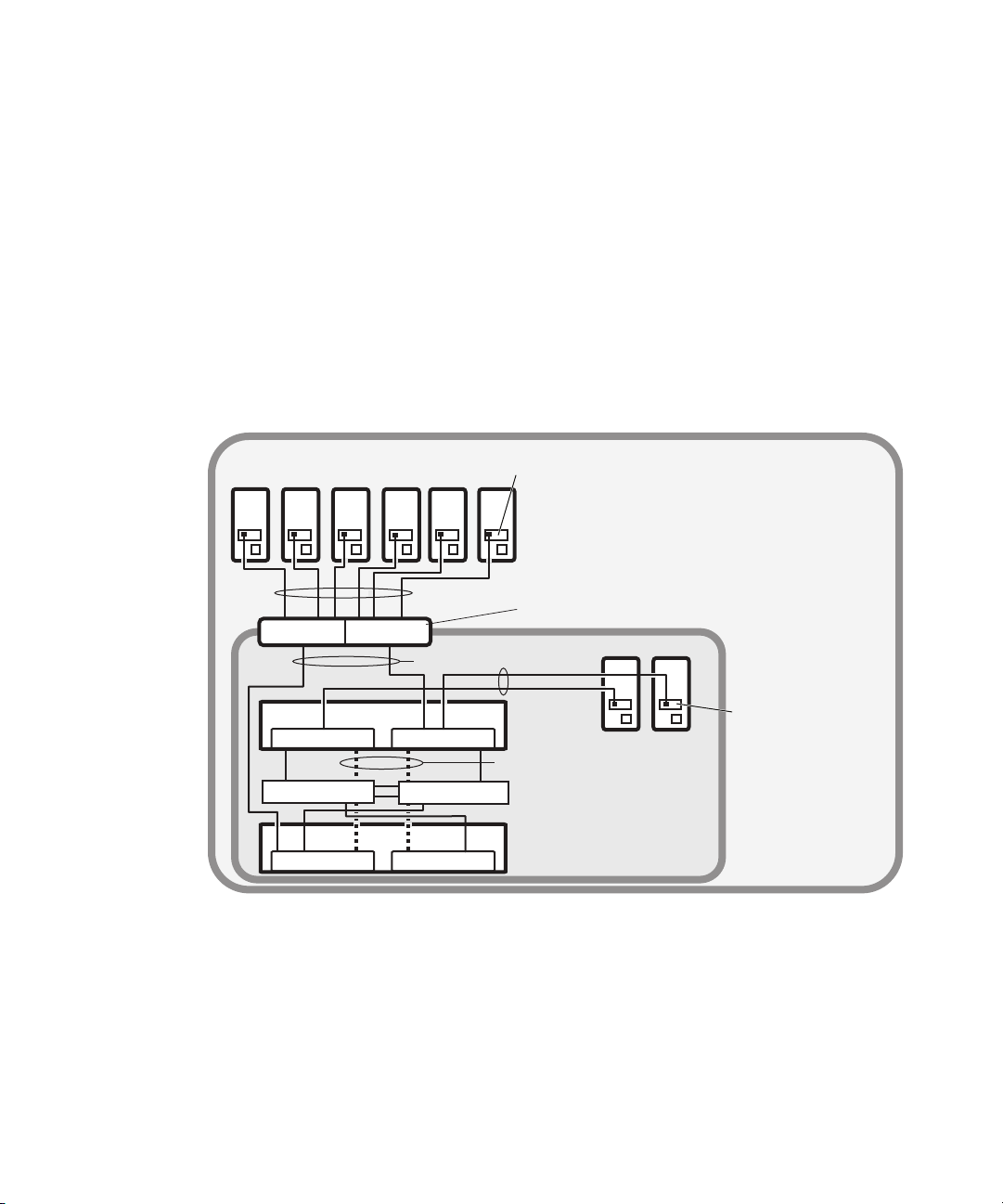

Configuration Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Network Teaming Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Appendix D Avid ISIS Recommended Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 157

Minimum Storage Space Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Daily Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Weekly Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Monthly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Redistribution Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Available Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Client Manager Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Status Indicators and Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Complete Server Room Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Appendix E Adding and Replacing Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Adding Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Switch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Adding an Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Engine Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Replacing the System Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Appendix F Using the Product Recovery DVD for 64-bit System Directors . . . . . . 171

Reinstalling the Windows 2003 Storage Server Operating System . . . . . . . . . . . . 171

Configuring the System Director Using Windows 2003 Storage Server Setup. . . . 173

Appendix G Safety and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Warnings and Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Class A Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Canadian Notice (Avis Canadien). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Class A Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

LED Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

European Union Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Disposal of Waste Equipment by Users in the European Union. . . . . . . . . . . . . . . 182

Argentina Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Australia and New Zealand EMC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Japan EMC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Korean EMC Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Taiwan EMC Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Chapter Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Using This Guide

The Avid ISIS® media network provides a high-performance distributed file system that contains high-capacity shared media storage for workgroups of connected Avid workstations.

This document describes the features for all Avid ISIS 7000 shared storage networks.

Therefore, your system might not contain certain features that are covered in the documentation.

Symbols and Conventions

Avid documentation uses the following symbols and conventions:

Symbol or Convention Meaning or Action

A note provides important related information, reminders, recommendations, and strong suggestions.

A caution means that a specific action you take could cause harm to your computer or cause you to lose data.

A warning describes an action that could cause you physical harm. Follow the guidelines in this document or on the unit itself when handling electrical equipment.

editing

> This symbol indicates menu commands (and subcommands) in the

order you select them. For example, File > Import means to open the File menu and then select the Import command.

This symbol indicates a single-step procedure. Multiple arrows in a list indicate that you perform one of the actions listed.

(Windows), (Windows only), (Macintosh), or (Macintosh only)

Bold font Bold font is primarily used in task instructions to identify user interface

Italic font Italic font is used to emphasize certain words and to indicate variables.

This text indicates that the information applies only to the specified operating system, either Windows or Macintosh OS X.

items and keyboard sequences.

Symbol or Convention Meaning or Action

Courier Bold font

Ctrl+key or mouse action Press and hold the first key while you press the last key or perform the

If You Need Help

If you are having trouble using your Avid product:

1. Retry the action, carefully following the instructions given for that task in this guide. It is especially important to check each step of your workflow.

2. Check the latest information that might have become available after the documentation was published.

New information would be found in the ReadMe file supplied on your Avid installation DVD or USB as a PDF document and is also available online.

You should always check online for the most up-to-date release notes or ReadMe because the online version is updated whenever new information becomes available. To view the online versions, visit the Knowledge Base at

www.avid.com/US/support.

3. Check the documentation that came with your Avid application or your hardware for maintenance or hardware-related issues.

4. Visit the online Knowledge Base at www.avid.com/US/support. Online services are available 24 hours per day, 7 days per week. Search this online Knowledge Base to find answers, to view error messages, to access troubleshooting tips, to download updates, and to read or join online message-board discussions.

Courier Bold font identifies text that you type.

mouse action. For example, Command+Option+C or Ctrl+drag.

Accessing the Online Documentation

The Avid ISIS online documentation contains all the product documentation in PDF format. You can access the documentation in the top-level AvidUnityISISDocumentation folder on the Avid ISIS installer DVD or USB.

The documentation describes the features and hardware of all models. Therefore, your

system might not contain certain features and hardware that are covered in the documentation.

To access the online documentation from the installer DVD-ROM:

1. Insert the Avid ISIS installer DVD-ROM into the drive.

2. Navigate to the [drive]:\.AvidUnityISISDocumentation folder, and double-click the PDF file for the document you want to view.

Avid Training Services

Avid makes lifelong learning, career advancement, and personal development easy and convenient. Avid understands that the knowledge you need to differentiate yourself is always changing, and Avid continually updates course content and offers new training delivery methods that accommodate your pressured and competitive work environment.

For information on courses/schedules, training centers, certifications, courseware, and books, please visit www.avid.com/support and follow the Training links, or call Avid Sales at 800-949-AVID (800-949-2843).

Avid Software and Hardware Install

Checklist

The following checklists summarizes the major steps for upgrading your software and hardware. These checklists are for experienced administrators that acts as a reminder of the tasks that need to be done in each upgrade. If you are not experienced with Avid ISIS, you should read this entire book first before installing or configuring the Avid ISIS.

Each Avid ISIS release could have different upgrade requirements, you must read the upgrade details in the ReadMe for each software release.

For detailed instructions on performing upgrades, see “Avid ISIS 7000 Upgrade Guidelines”

on page 117.

Software Upgrade

This section list the components and procedures to follow when performing a software upgrade from Avid ISIS v1.4 and later to the current release. This does not include adding hardware. In Avid ISIS v2.1.1 and later, Avid ISIS clients need to be upgraded before you upgrade the infrastructure. This is necessary because ISIS client software before v2.1.1 is not supported in the ISIS v2.1.1 infrastructure. Although, v2.1.1 client software is supported in v1.4 and later infrastructures. Once the clients have been upgraded, you can upgrade Avid ISIS v2.1.1 infrastructure.

If you are upgrading from a version earlier than Avid ISIS v1.4, you must first upgrade to

Avid ISIS v1.4 before upgrading to v2.1.1, For instructions, see the v1.4 documentation.

The clients are defined as follows:

• Avid editing applications

• Interplay Assist and Instinct

• Interplay Access

• Avid Approved Applications Initiative such as Pro Tools and Final Cut Pro

The infrastructure is defined as follows:

• System Director — System Director software and upgrade Storage Blades (ISBs) and Switch Blades (ISS/ISXs) in the Avid ISIS engines to the v2.1.1 firmware

• Interplay servers — Interplay Engine, Interplay Media Indexer, Interplay Transfer, and CaptureManager

• Capture devices — AirSpeed, AirSpeed Multi Stream, and Avid Interplay Low-Res Encoder

Use the following checklist for a software upgrade:

Avid ISIS Software Upgrade

Complete To be done



Upgrade your Avid ISIS Clients, see “Loading Client Software” on page 87. Before installing the new client software, save the client settings and preferences.

Depending on your Avid ISIS version, different Preferences settings are saved when upgrading. For more information on what is saved per version, see the Avid ISIS 7000 ReadMe.

Perform a Failover first to make sure both subnetworks are functioning and have updated metadata.

Shut down the Standby System Director Service first, then shut down the Active System Director Service.

This checklist assumes you have two System Directors. Completely update one

of the System Directors (allowing it to become the Active after it restarts), then repeat the procedure on the second System Director (allowing it to become the Standby). If you do not have two System Directors, you need only install the software once.

Uninstall the Avid ISIS System Director software using the Windows Control Panel > Add or Remove Programs.

Uninstall the “AvidUnityISISInstallers” using the Windows Control Panel > Add or Remove Programs.

If you do not uninstall the old Avid ISIS Installers, the old installers remain in

the list with the new installers. Only the latest client software installers should be available from the ISIS Management Console.



Check ReadMe to see if your Java Runtime is at the supported version for the new software and update as necessary. You might need to update the Adobe software and Intel

network interface driver as well.

Flash®

Avid ISIS Software Upgrade

Complete To be done

Hardware Upgrade



Install your Avid ISIS software on the System Director, see “Loading the Software”

on page 77 and “Software Upgrade” on page 119.

Copy your Avid ISIS client installers on your System Director, see “Loading Client

Software” on page 87.

Upgrade all your ISBs, ISSs, and IXSs. Using the ISIS Management Console, select all the ISBs and click Upgrade Storage Blades and then select all your ISSs and IXSs and click Upgrade Switch Blades. You do not need to wait for the ISBs to be finished. ISBs, ISSs, and IXSs can be upgrading at the same time. For more information, see

“Installing Software on the Engines” on page 82.

Watch the upgrade in the Monitoring tool.

ISIS v2.0 — wait until every ISS is at the “Install Waiting” state and then power down all the Avid ISIS engines.

Power on the Avid ISIS engines in 1 minute intervals starting with the chassis that has the IXSs. This reduces stress on the stack.

After the Avid ISIS engines restart, the ISSs continue with the install (no additional user intervention is necessary).

For information on the Monitoring tool, see the Avid ISIS 7000 Administration Guide.

Make the newly upgraded System Director your Active System Director.

Perform these same procedures on the Standby System Director.

Hardware Upgrade

The firmware in the Avid ISIS hardware (ISBs and ISSs) is updated during the software upgrade. The firmware is updated using the ISIS Management Console. You select all the ISBs and click Upgrade Storage Blades and then select all your ISSs and click Upgrade Switch Blades. ISBs and ISSs can be upgrading at the same time. For more information, see

“Installing Software on the Engines” on page 82.

If adding an engine to an existing system, see “Adding an Engine” on page 164.

New System Director and Engine Installation

Use the following checklist when setting up an Avid ISIS for the first time:

Avid ISIS New Installation

Complete To be done



Determine Network Address Scheme

Configure SD IP Addresses, see “IP Addressing Overview” on page 73.

• ISIS Left

• ISIS Right

• Management Port

In the 64-bit System Director, you need to change your default Internet Explorer 7 Security and Advance tab settings:

Click Tools > Internet Options and change the Security to the following:

• Internet - Medium

• Trusted - Low Click the Advanced tab and change the following:

• Phishing Filter - Disabled

• Use SSL 2.0 - Enabled (checked)

• Use TLS 1.0 - Disabled (unchecked)

Install System Director and Installers, see “Software Installation” on page 77.

Create File Systems, see the Avid ISIS 7000 Administration Guide.

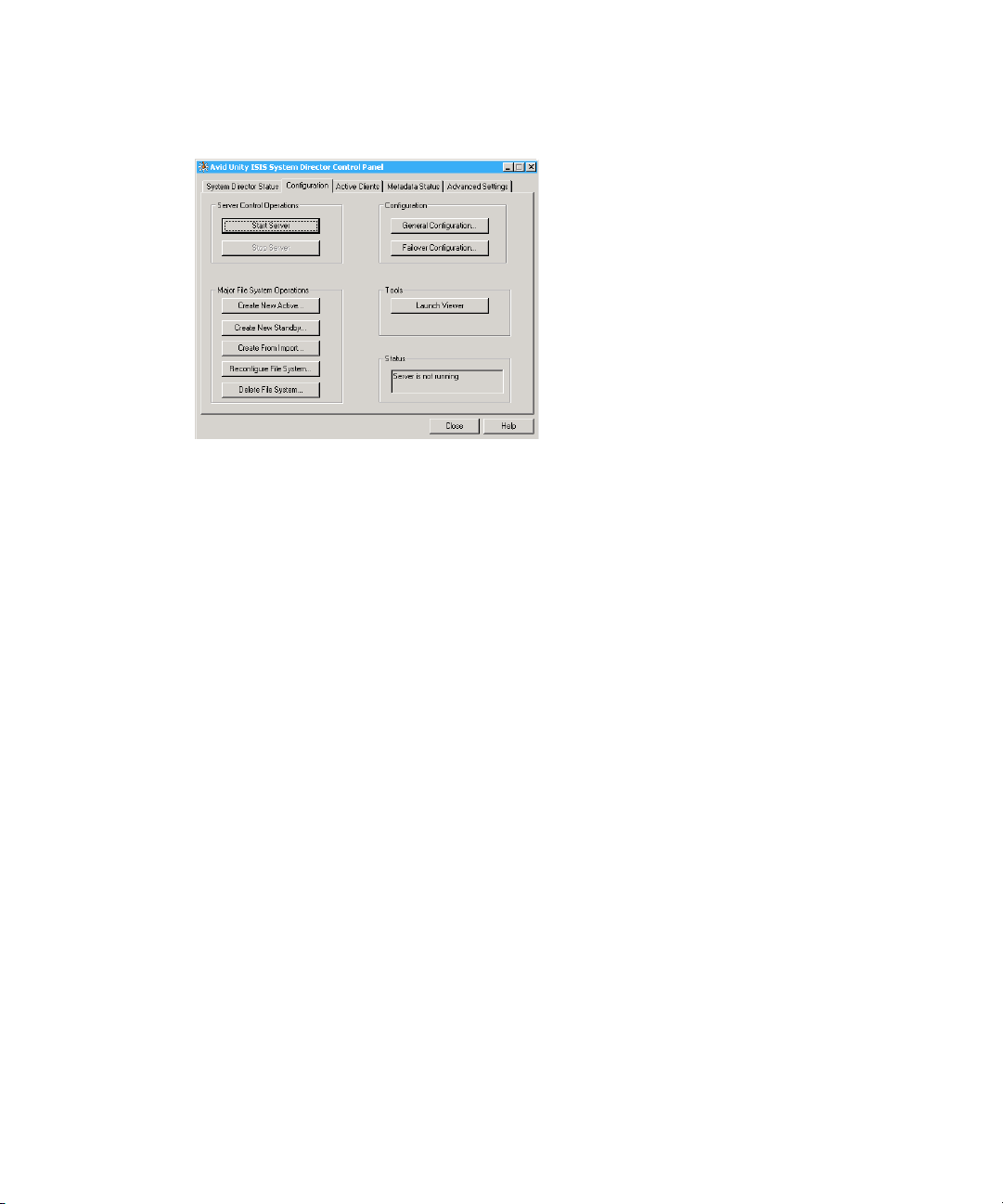

• Open System Director Control Panel

• Click “Stop System Director”

• Go to “Configuration” tab

• Click “Create New Active”



Configure the first Engine (IP Addresses), see the Avid ISIS 7000 Administration Guide.

• Start ISS Agent via Management port

• Under System > Basic set IP Address

Connect the System Director to Engine number1, see “Connecting an Engine with

v2.x Hardware” on page 60.

Avid ISIS New Installation

Complete To be done

Switch and ISB Upgrade Utility



Add Additional engine, see “Adding an Engine” on page 164.

Upgrade ISB and ISS, see “Installing Software on the Engines” on page 82.

Add Storage Elements, see the Avid ISIS 7000 Administration Guide.

Create Storage Groups, see the Avid ISIS 7000 Administration Guide.

Create Workspaces, see the Avid ISIS 7000 Administration Guide.

Create Users, see the Avid ISIS 7000 Administration Guide.

Switch and ISB Upgrade Utility

The Switch and ISB Upgrade Utility is a stand-alone application that allows field engineers to perform switch and ISB upgrades from a laptop connected to Avid ISIS through the management port, and monitor the upgrade progress. This utility does not replace the current upgrade process. Its primary function is for upgrading a switch or a pair of switches that is incompatible with an existing stacked network. Insertion of these switches into the network before the upgrade could disrupt or compromise the network’s operation.

The typical procedure for loading the firmware on switches consists of selecting them with the Avid ISIS Management Console and initiating an automated upgrade. This process is very useful when upgrading a new or very interoperable Avid ISIS switch stack, see

“Installing Software on the Engines” on page 82.

To start the utility, insert the Avid ISIS installer DVD into a laptop’s DVD drive and double-click AvidUtilityISISTool.msi located in the following location.

DVD drive:\ISISUtilities

For Instructions on using the utility, see “Avid ISIS Upgrade Utility” on page 143.

Recreating a File Systems

Deleting and creating a new file system is not common but if it is needed, this checklist provides the order and tasks to be completed. All of the tasks listed in this checklist are described in the Avid ISIS 7000 Administration Guide.

Use the following checklist when deleting and recreating a new file system:

Deleting and Creating a File System

Complete To be done



Delete all files in all Workspace

Delete Workspaces

Delete Storage Group

Remove Storage Elements

Delete / Create New Active

1 Avid ISIS 7000 System Overview

The Avid ISIS® system enables multiple clients to capture, play, and edit video and audio media. This chapter provides an overview of the Avid ISIS 7000 system and the basic function of each Avid hardware component within the system.

This guide describes how to connect cables between components that create a basic system and then how to connect more than one basic system together to create a larger, redundant system.

For a explanation of what you need to do to prepare your site for installation of a Avid ISIS

system, see the Avid Products and Network Site Preparation Guide on the Avid Knowledge Base or included in the documentation folder on the top level of the Avid ISIS installer software installer kit.

Hardware Overview and Naming Convention

Each system component has a specific Avid name that define their function. It is important that you are familiar with these terms while using the documentation. The following table, used in conjunction with the figure that follows the table, provides the actual nomenclature and the terms used in this guide to describe that nomenclature:

Product Nomenclature

Product name Term used and description

Avid ISIS shared storage network System or shared network storage environment

The Avid ISIS consist of the hardware, Avid software, and other hardware supplied by the customer, such as external Ethernet

switches.

1 Avid ISIS 7000 System Overview

Product Nomenclature (Continued)

Product name Term used and description

Avid ISIS client Client, defined as a user’s workstation or server with

Avid ISIS client software that allows that system to mount workspaces

Avid ISIS storage blade (labeled i500, i1000, i2000)

Avid ISIS Integrated Ethernet switch blade ISIS Integrated Switch (ISS)

Avid ISIS Expansion Integrated Ethernet switch blade

Integrated power supply and cooling fans Power supplies

Avid ISIS engine Called Chassis in the software interface

ISIS Storage Blade (ISB) This hot swappable sled is accessible from the front

of the ISIS engine and contains two SATA drives.

This hot swappable switch is accessible from the rear of the ISIS engine and connects 1 Gb and 10 Gb clients. The ISS2000 indicates second generation hardware; first generation hardware is labeled ISS1000.

ISIS Expansion Switch (IXS) This hot swappable switch is accessible from the

rear of the ISIS engine is used to stack multiple ISIS engines. The IXS2000 indicates second generation hardware; first generation hardware is labeled IXS1000.

Three hot swappable power supplies are accessible from the rear of the ISIS engine.Two power supplies is required to power the ISIS engines.

Contains the ISBs, ISSs, IXSs, power supplies, and an internal midplane.

Avid ISIS System Director (Active and standby)

System Director, a server connected to the ISIS engine to manage the data and portions of the metadata

Although there are many components in Avid ISIS shared storage network, the basic components needed to create the system are a System Director, an engine containing ISIS Integrated Switch (ISS), ISIS Expansion Switch (IXS), ISIS Storage Blades (ISB), and one or more clients.

Hardware Overview and Naming Convention

The second generation ISIS switches are branded with an ISX2000 and ISS2000 silk-screen. These switches cannot be mixed in ISIS engines with earlier versions of the switches (labeled ISX1000 and ISS1000). If your ISX and ISS switches are not labeled, consider them the earlier versions.

You cannot mix new switches (labeled ISX2000 and ISS2000) with original switch hardware (labeled ISX1000 and ISS1000). All switches in the engine, and engines in the stack must be from the same generation of hardware.

The Avid ISIS documentation refers to ISX2000 and ISS2000 switches as v2.x hardware and ISX1000 and ISS1000 switches as v1.x hardware.

Basic Avid ISIS 7000 Shared Storage Network Hardware

Rear view

Power supply

ISIS Integrated Expansion Switch (IXS)

ISIS Storage Blade (ISB)

ISIS Integrated Switch (ISS)

System Director front view

Front view

Engine

The following sections explain these components and some basic client configurations:

• System Director

• Engine

• Client

• Storage Configurations

• Network Zone Configurations

• Supported Cabling

1 Avid ISIS 7000 System Overview

System Director

The System Director is 2U in size (see “System Director Front Panel” on page 25) and manages the metadata by storing directory information and file attributes. The System Director does not store the data used by share clients (for example media files), these data files are stored on the ISBs within the engine.

The System Director password is preset to is-admin. Not not to be confused with the System

Director Web Page Administrator user whose default password is blank.

You can have two System Directors configured in a redundant configuration, one Active the other Standby. If the Active System Director goes down, the Standby System Director takes over. You need at least one System Director to run the Avid ISIS system.

System Directors, workgroup servers, and clients must all be synchronized with a common time-of-day. For information on setting the Network Time Protocol (NTP), see “Setting-Up

Network Addresses In the Stack” on page 61.

The System Director provides a location to coordinate file access modes (read/write), file locking, range locking, performance data collection, logging, file lookup, and directory change tracking for client systems. Examples of what the System Director is able to provide to a client or storage element are:

• Identity of all storage elements connected to the system

• Information about the ISS and IXS modules in the configuration.

• List of workspaces to include name and their unique ID number

• List of users and groups within the system

• Identity of all System Directors in the system (if you have more than one System Director)

System Director Front Panel

The following figure shows the front view and control panel of the System Director.

System Director Front View

System Director

DEF

DVD/CD-ROM

RAID disk (ID 1)

System disk (ID 0)

Control panel

The following table describes the control panel shown in the previous figure.

System Director Control Panel

Letter Description Letter Description

A Power/Sleep button G System ID LED (blue, a second system

ID LED is on the rear)

B Network port 2 activity LED H System ID button (System ID LED

blinks when pressed)

C Network port 1 activity LED I System reset button

D Power/Sleep LED J USB 2.0 connector

E System status LED K Recessed non-maskable interrupt

(NMI) button (need small tool to press)

F Internal drive activity LED L Video connector

1 Avid ISIS 7000 System Overview

Dual NIC Ethernet adapter board

Power supplies

Primary power supply on bottom

Slots not used

Serial A to F/C switch if needed

Mouse

Keyboard

RJ 45 to serial B

1 Gig Enet

Video

USB

System Director Rear Connections

The following figure shows the rear panel of the System Director and the function of each connection.

System Director Rear View

Second System Director

You can purchase a second System Director and configure it on the same subnets as the original System Director. This provides a redundant System Director that is in constant contact with the original System Director. The second System Director automatically takes over if the original System Director fails (called failover).

For true redundancy it is recommended that you connect the second System Director to a different engine than the first System Director.

Engine

The engine contains the ISBs, ISSs, IXSs, power supplies, and an internal midplane. The engine stores the data created and shared by the clients. The data is passed in and out of the engine through the switches.

The engine contains:

• ISBs can support either 250 GB, 500 GB, or 1 terabytes (TB) drives, with two drives in

• An ISS provides connections for clients via 1000BASE-T Ethernet ports. A 10-Gb

• An IXS used when you have more than two engines (need an IXS for each subnet),

Engine

each ISB. The size of the drives are identified by the label on the front of the ISB (i500, i1000, or i2000, respectively). As technology advances, the storage capacity of the drives could increase, allowing the total storage per ISB/engine to increase.

Ethernet port using SFP+ transceivers connects clients or serves as an uplink port. There is an engine interconnect port and a management port for configuration. See “Integrated

Ethernet Switches” on page 29.

allowing you to connect multiple engines providing up to 384 TB of storage, or 192 TB of mirrored storage. See “Integrated Ethernet Switches” on page 29.

Engine Front View

The front of the engine allows access to the 16 ISBs. The first is in the upper left portion of the front and the last ISB is in the lower right.

First ISB

Fifth ISB

Each ISB can be removed and replaced separately with the power on.

If you replace an ISB with power on, the LEDs in all of the ISBs go off momentarily. This

does not represent a problem. All functions are still active and working properly.

1 Avid ISIS 7000 System Overview

Power supplies

IXS moduleISS module

1234 5678

12 345 6

7 8 9 10 11

Engine Rear View

The following figure shows the rear of the engine in a configuration that contains the following:

• Three power supplies (with fans)

• Integrated Switch blade (ISS)

• Integrated Expansion Switch blade (IXS)

In a basic configuration containing two engines, each of the engines contains two ISS

modules. The IXS module is used with an ISS module in an engine only when the configuration goes beyond two engines.

Power Supplies

The power supplies are powered on when the power cord is plugged in; they do not have power switches. The power supplies not only provide power, but they also contain fans that cool the system. The system only needs two of three power supplies to supply the needed power to function properly. You can remove and replace a power supply temporarily while the system is running if one fails.

You should leave the failing power supply in place until you replace the failing power supply. Replace the power supply as soon as possible to maintain the proper airflow. Do not remove the failing supply until immediately before you replace it.

Only trained Avid technicians should remove and replace the power supply while the system is running. Since power to the system is still applied internally to the midplane you must always keep your hands external to the engine when a power supply is missing from the engine.

Integrated Ethernet Switches

High speed engine interconnect (Hi-Gig)

Link

Activity

Management connection

Link

Activity

10-Gb connection

1-Gb connections

Status

123 4 5678

ACT LINK

10 GIG

The two integrated Ethernet switches, ISS and IXS, serve different purposes and contain different types of connections. You must have at least two switches in each engine for the system to operate.

ISS Module

The connections on the ISS module are used for the following:

• Management connection — used to configure the Avid ISIS 7000 engine hardware during installation. This information is used by Avid representatives to originally configure your system before turning it over to you.

• 1-Gb (RJ-45 cable) — direct connect for clients and the System Directors.

• High speed engine interconnect (CX-4 cable) — proprietary Avid bus that connects switch blades between engines allowing subnets to connect between the engines.

• 10-Gb XFP or SFP+ MSA form factor transceiver (for Optical cable) — used for a 10-Gb connection to a switch or 10-Gb Ethernet clients.

Engine

Only an Avid recommended SFP+ transceiver should be used in the 10-Gb XFP connection, and only Avid trained representatives should remove and replace the XFP transceiver. Currently supported XFP are the Picolight XFP and Foundry

IXS Module

The IXS is needed only if you are connecting three or more engines. When connecting three or more engines, two IXS modules are installed in one engine. The IXS offers the following connections:

• Management connection — used to configure the switch during installation and monitor switch functions.

• High speed engine interconnect (Hi-Gig) — proprietary Avid interconnection that stacks the switches to create one large virtual switch.

XFP.

1 Avid ISIS 7000 System Overview

1 2 3 4 5 6

7 8 9

Activity

Link

Management connection

In a basic configuration containing one or two engines, each of the engines contains two ISS

modules. The IXS module is used with an ISS module in an engine only when the configuration goes beyond two engines.

Storage Configurations

A maximum of twelve Avid ISIS Engines can be stacked and populated with either 250 GB, 500 GB, or 1 terabytes (TB) SATA drives. A fully populated Avid ISIS system with 1 TB drives provides up to 384 terabytes (TB) of storage, or 192 TB of mirrored storage.

You can have mixed ISB drive sizes in an engine (250 GB, 500 GB, and 1 TB drives). You can even mix the different size ISBs in a Storage Group. Although, the larger ISBs in the mixed Storage Group only use the amount of storage that is available in the smaller ISBs.

Storage Group Size

Storage elements are combined to create Storage Groups in the ISIS file system. These Storage Groups can be configured to either operate using 512 KB (default) or 256 KB chunk sizes. Earlier Avid ISIS releases used 256 KB chunk sizes. For more information about setting the chunk size, see the Avid ISIS 7000 Administration Guide.

Engine interconnections

Avid ISIS 7000 switch hardware shipped with v1.x (ISS1000 and IXS1000) does not support

512 KB chunk sizes. If you have Avid ISIS 7000 v2.x software running on v1.x switches, you must select the 256KB chunk size when adding storage elements to the file system to create Storage Groups.

You cannot change the chunk size of a Storage Group once the Storage Group has been created. To change the chunk size of an existing Storage Group, you must delete the Storage Group and create a new Storage Group with the desired chunk size. The chunk size selection is only available when adding the storage elements.

When you delete Storage Groups all data on that Storage Group is lost.

Moving Workspaces Between Storage Groups

You can move workspaces between Storage Groups that use the same chunk sizes. Workspaces cannot be moved between Storage Groups of different chunk sizes (256 KB and 512 KB chunk sizes),

A Tech Alert has been written describing the process for moving data from a 256 KB chunk size workspace to a 512 KB chunk size workspace. Search the Avid Knowledge Base at

www.avid.com/onlinesupport/ for Avid ISIS v2.x Moving Workspaces using RichCopy in the

Avid ISIS Tech Alerts.

Clients should not access workspaces that are in the process of being moved when it is a

256 KB chunk size workspace being moved into a Storage Group with a 512 KB chunk size. Avid recommends that clients unmount these workspaces until the move is complete to avoid an unintentional access. Once the move begins, it cannot be cancelled.

Adding an ISB to the File System

If you add an ISB (displays as an available storage element) to your file system, make sure you match the chunk size of the new storage element to the chunk size of the existing storage group. New storage elements are added with a default chunk size of 512 KB. You cannot mix chunk sizes within a Storage Group. To change the chunk size of an ISB, you must remove the new storage element from the file system and add the storage element again choosing the correct chunk size.

Client

Chunk Size Support With ISB

All ISBs (i500, i1000, and i2000) support the 512 KB chunk size. Although you must have the new v2.x switch hardware (ISS2000 and IXS2000) to use the 512 KB chunk size.

Client

A client uses services provided by the Avid ISIS architecture. The client system, using a 1 Gb or 10 Gb Ethernet connection, communicates with the ISBs through the ISS to create, modify, and read files stored in the actual ISB. Avid ISIS 7000 supports up to 330 clients (150 active clients), each using dual-stream video and up to 8 tracks of audio.

A client uses mechanisms specific to the operating system to display, create, and delete files within the Avid ISIS shared storage network system. For example, when viewed from a Windows operating system, the system sees a server containing many shares that are mapped to drive letters.

1 Avid ISIS 7000 System Overview

Network Zone Configurations

All clients in the shared storage network are classified by zones, depending on how they connect to the network. The following list defines the clients in each network layer by their zone classification:

A System Director must be attached to both subnets, but can only be attached once to each

subnet.

• Zone 1 Client — Connected to ISIS VLANs via an ISS 1 Gb or 10 GB port (direct connect)

• Zone 2 Client — Connected to ISIS VLANs via a 1 Gb or 10 Gb port on an Avid qualified layer-2 switch (non-routed)

• Zone 3 Client — Connected to an Avid qualified layer-3 switch (routed) with known Quality of Service (QoS); traffic routed to ISIS (one hop) and load-balanced across ISIS VLANs (approximately a 60/40 ratio)

• Zone 4 Client — Connected to the house network using an edge or a core switch with unknown QoS; traffic routed to Avid ISIS (measured by the number of hops) and load-balanced across ISIS VLANs (approximately a 60/40 ratio)

Clients which can connect to one zone can run in any lower-numbered zone — for example,

a Zone 3 client can also run as a Zone 2 or Zone 1 client.

Support for different client and device types vary by zone:

• Zone 1 — AirSpeed playout, Transfer Manager

• Zone 2 — AirSpeed ingest, editors, MediaManager, Interplay

• Zone 3 — MediaManager Select, Instinct, Assist, certain editors (for example, Avid NewsCutter); typical formats include DV25, DV50/IMX-50, MPEG-2 proxy (2 Mb/s)

• Zone 4 — MediaManager Select, Instinct, Assist; typical formats include DV25, MPEG-2 proxy (2 Mb/s)

The following four examples show different types of Avid ISIS 7000 configurations.

Zone 1 Clients (Direct Connected)

Zone 1

Chassis interconnect

10 GB ethernet

ISS

ISSISS

Engine

Intel Pro 1000 MT/PT board

Client systems

in Zone 1

1 GB ethernet

10 GB ethernet

10 GB board

System Director

Any client that is connected directly to an ISIS is considered a Zone 1 or direct connected client. Each Integrated Switch Blade has a total of eight, 1 Gb Ethernet ports and one 10 Gb Ethernet port. A single engine has the capacity to support 18 clients or servers, subtracting any ports that are to be used by the System Director(s). The following table defines the total number of 1 Gb ports in Zone 1 based on what is available by the number of engines and System Directors in the configuration. In addition, each ISS2000 provides a 10 Gb Ethernet port connection for one 10 Gb client.

Connect TransferManagers and AirSpeed servers to Zone 1 or Zone 2.

A Zone 1 (direct connect) configuration consists of a group of clients connected directly to the 1-Gb and 10-Gb connections of the ISS in the engine. The System Director also connects to both subnets via both ISS modules using a 1-Gb port.

Avid ISIS 7000 Zone 1 Network Configuration

Network Zone Configurations

1 Avid ISIS 7000 System Overview

ISS1000 and IXS1000 Switches ISS2000 and IXS2000 Switches

1 Gb Ports in Zone 1

Number of ISIS Engines

One System Director

Two System Directors (failover)

One System Director

Two System Directors (failover)

114121412

230283028

330

30a 28a

446444644

562606260

678767876

794929492

8 110 108 110 108

9 110

108b 126 124

10 126 124 142 140

11 142 140 158 156

12 158 156 174 172

a. This is due to the use of IXS switches instead of an ISSs. b. This is due to the use of two more IXS1000 switches instead of an ISS.

Zone 2 Clients (Indirect Connect) Configuration

VLAN 10 VLAN 20

10 GB ethernet

Chassis interconnect

ISS

Engine

Zone 1

Zone 2

Intel Pro 1000 MT/PT board

Client system

in Zone 1

1 GB ethernet

External Switch with two 10-Gb Ports

System Director

Intel Pro 1000 MT/PT board

Client systems

in Zone 2

1 GB ethernet

ISSISS

There is support for external switches connected through the 10-Gb port on each ISS. Clients that are connected to an external switch are referred to as Zone 2 clients. For a list of supported switches, search the online Knowledge Base at www.avid.com/onlinesupport.

A Zone 2 (indirect connect) configuration consists of group of clients connected to an Ethernet switch with a 10-Gb port connected to an ISS located in the engine. The System Director also connects to both subnets via both ISS modules using a 1-Gb port. Depending upon the switch configuration, each client shown connected to the external switch is connected to one of the two subnets through one of the two 10-Gb connections.

Avid ISIS 7000 Zone 2 Network Configuration

Network Zone Configurations

As an example, the Foundry FES-X424 switch (see following illustration) is configured for three VLANs with Gigabit (Gb) Ethernet ports 1 to 12 and 10-Gb Ethernet port 25 reserved for VLAN 10 (default ISIS VLAN configuration). Gigabit Ethernet ports 13 to 23 and 10-Gb port 26 are reserved for VLAN 20 (default ISIS VLAN configuration) and Gb port 24 is reserved for the switch’s default VLAN. The 10-Gb ports connected to the ISIS are also serving as uplinks to the ISIS for clients on either VLAN. Each VLAN on the Foundry FES-X424 switch is connected to the appropriate VLAN in the shared storage network using the 10-Gb port.

1 Avid ISIS 7000 System Overview

Foundry FES-X424 Switch

10-Gb ports

Ports 1 - 12 Ports 13 - 24

Por t 2 5 Por t 26

1-Gb ports

Por t 2 4

Each VLAN on the switch is allowed to support up to 12 connections but the size of the Storage Groups and engine determine the overall client count. Changing the switch configuration to increase the number of clients on a single VLAN is not supported and can result in unpredictable system performance. Client count can be scaled according to the number of available FES-X424 switches.

The following table provides possibilities of Zone 2 client counts based on the number of ISIS engine and Foundry FES-X424 switches. For each engine listed in the table, there is an associated Foundry FES-X424. The exception is with three engines, in which the IXS does not provide additional ports.

Available Zone 2 Ports

Number of Engines FES-X424 Switch Count External Switch Ports

11 23

22 46

32 46

43 69

a. This is due to the use of an IXS board instead of an ISS.

The previous table does not reflect the use of Zone 1 Clients (Direct Connect), which at a

minimum could consist of one System Director, AirSpeed devices, and TransferManagers. Mixing Zone 1 and Zone 2 clients in an ISIS shared storage network is discussed in the next section.

There is no current support for an external switch to be connected with the use of a 1Gb connection as performance for multiple clients cannot be guaranteed over a single 1Gb connection.

Zone 1 and Zone 2 Clients Mixed Configuration

VLAN 10 VLAN 20

10 GB ethernet

Zone 1

Zone 2

Intel Pro 1000 MT/PT board

Client systems

in Zone 1

1 GB ethernet

External Switch with two 10-Gb Ports

Intel Pro 1000 MT/PT board

Client systems

in Zone 2

1 GB ethernet

Chassis interconnect

ISS

Engine

System Director

ISSISS

System Director

connections

1 GB ethernet

The number of ports available on the ISS (Zone 1) makes it necessary to add another layer of clients through a qualified network switch to create a (Zone 2) in the ISIS shared storage network.

A mixed configuration (Zone 1 and Zone 2) consists of clients connected directly and indirectly through ports on the engine’s ISS. Also shown are two System Directors that connect to the engine via two separate ISS 1-Gb ports for use as a redundant System Director in case of a failure. Both System Directors also connect to each other through the onboard Ethernet connections to monitor if one of the System Director fails.

Avid ISIS 7000 Zone 1 and Zone 2 Mixed Network Configuration

Network Zone Configurations

Zone 3 and Zone 4 Client Configuration

Although it is not shown in the previous diagram, to ensure high availability, whenever possible, the System Directors should be connected to two different subnets through two different engines.

A Zone 3 (indirect connect) configuration consist of a group of clients connected to an Avid qualified layer-3 switch (routed) with known Quality of Service (QoS); traffic routed to ISIS (one hop) and load-balanced across ISIS VLANs (approximately a 60/40 ratio)

1 Avid ISIS 7000 System Overview

Zone 4

Zone 3

Edge switch

1 GB Ethernet

Zone 3 clients routed VLAN 40

Zone 4 clients

corporate network

VLAN 10 VLAN 20

10 GB ethernet

Zone 1

Intel Pro 1000 MT/PT board

Client systems

in Zone 1

1 GB ethernet

External Switch with two 10-Gb Ports

Chassis interconnect

ISS

Engine

System Director

ISSISS

System Director

connections

1 GB ethernet

Zone 2

House switch

Avid Production Network (Zone 1 and 2)

One to four links, VLAN 30

Intel Pro 1000 MT/PT board

Client systems

in Zone 2

1 GB ethernet

1 GB Ethernet

A Zone 4 (indirect connect) configuration consists of group of clients using an edge or a house Ethernet switch with unknown QoS; traffic routed to Avid ISIS (measured by the number of hops) and load-balanced across ISIS VLANs (approximately a 60/40 ratio)

This switch is normally connected to a house switch that has uplinks to the Avid Production Network through an Ethernet switch that contains a 10-Gb port connected to an ISS located in the engine. The System Director connects to the both subnets via both ISS modules using a 1-Gb port.

Avid ISIS 7000 Zone 3 and Zone 4 Network Configuration

Link Aggregation Support

A link aggregation configuration supports Zone 2, Zone 3, and Zone 4 clients.

Supported Cabling

Avid supports the following cable types for connecting a Avid ISIS system.

If you need run your cable greater distances, call Avid Customer Support for supported

cable and accessory information.

Supported Cables

Supported Cabling

Cable Connection Type Function

Avid engine Interconnect CX-4 cable. Only available from Avid.

Ethernet network cable, CAT5e, CAT6, or CAT6a

Connect engines. See Removing

the Avid Engine Interconnect Cable for proper removal.

Connects: Ethernet Avid ISIS clients System Directors and clients to

1 Gb ports on an ISS Avid Interplay servers to shared

storage networks Avid AirSpeed capture and

playback servers to shared storage networks

Avid ISIS 7000 management port to laptop

Connector Style and Maximum Cable Length

CX-4 connector There are three supported lengths at this time: 1, 3, and 5 meters

RJ45 connector 100 Meters; If using CAT5e the cable must be

rated for 350 MHz for maximum length. The minimum GigE cable length for Avid network

products is 6 feet or 2 meter.

1 Avid ISIS 7000 System Overview

Supported Cables (Continued)

Cable Connection Type Function

Optical cables Connects:

10-Gb port of switch to optical 10-Gb port on the Avid ISIS engine.

ISS 10-Gb optical port to switch port

ISS 10-Gb optical port to 10-Gb Ethernet Client

10-Gb Client to 10 Gb Switch port

10-Gb Ethernet switch to 10-Gb Ethernet Switch

Connector Style and Maximum Cable Length

The maximum length for 10 Gb Ethernet cable is defined by the core diameter (measured in microns) and modal bandwidth (in units of MHz*km).

Avid supports multi-mode fiber cable using 850 nm transceivers (short distances). Specifications for these cables can be found in the ISO 11801 structured cabling document.

MMF 62.5 micron cable Modal Bandwidth of:

(Overfilled Launch (OFL) Bandwidth, typical of OM1 cable)

• 160 MHz*km at 26 meters

• 200 MHz*km at 33 meters

MMF 50 micron cable Modal Bandwidth of:

• 500 MHz*km at 82 meters (Overfilled Launch Bandwidth, typical of OM2 cable)

• 2000 MHz*km at 300 meters (Effective Modal Bandwidth, typical of OM3 cable)

Avid supports single-mode fiber cable using 1310 nm transceivers (long distances):

• SMF ITU G.652.A/B 9 micron cable up to 10 km

When connecting to the 10 Gb port of the ISS module, it is important to follow two rules:

• Ensure that the cable has the required modal bandwidth for the distance of the run.

• Make sure that all multimode cables between an ISS port and the other end of the cable run are of the same diameter (for example, 50/125 um or 62.5/125 um).

Single mode transceivers are Class 1 laser product per IEC 60825-1 Amendment 2(2001) and IEC

60825-2 1997. Operating this product in a manner inconsistent with intended usage and specification may result in hazardous radiation exposure.

Supported Cables (Continued)

Cable disconnect

Supported Cabling

Cable Connection Type Function

Avid ISIS X2 optical transceivers

Avid ISIS XFP optical transceivers

Transceiver used in:

Cisco

4948 and 4900M

Transceiver used in: Foundry FESX424 and

ISIS ISS1000

Avid ISIS SFP+ optical transceivers

Transceiver used in: ISIS ISS2000

Connector Style and Maximum Cable Length

SC connector X2 = Cisco X2-10GB-SR for MMF

X2 = Cisco X2-10GB-LR for SMF

LC connector XFP = 10G-XFP-SR for MMF

XFP = 10G-XFP-LR for SMF XFP = Foundry 10G-XFP-SR

or Picolight XXL-SC-S45-21 for MMF XFP = Foundry 10G-XFP-LR

or Bookham 10G-BASE-LR for SMF

LC connector

• SFP+ short range (SR) Picolight PLRXPL-SC-S43-21-N

or Finisar FTLX8571D3BCL or Avago AFBR-700SDZ for MMF

• SFP+ long range (LR) Finisar FTLX1471D3BCL for SMF

Avago AFCT-701SDZL for SMF JDSU JSH-01LWAA1 for SMF

Connecting the Engine CX-4 Cable

To connect the cable:

t Place it in the connector at the rear of the system.

You hear a snap, and the cable is connected.

1 Avid ISIS 7000 System Overview

Pull back on blue cable release

Push cable or metal towards engine

Bottom hand pushing cable

Damage can occur when disconnecting the Avid engine Interconnect cable from the switch board if not done properly.

Care should be taken to reduce strain on the ISS switch blades by organizing and dressing

the ethernet cables and CX-4 cables. When dressing the cables do not block removable switch and power components.

Removing the Avid Engine Interconnect Cable

The following explanation and illustration explain how to properly remove the engine interconnect cable.

If you attempt disconnect the cable by pulling the blue cable release towards you and pulling the cable out from the connector at the same time you can cause the cable and or connector to be damaged.

To remove the Avid Engine Interconnect Cable from the Rear Connector:

1. While the cable is in the connector, use your bottom hand to grab the cable (or the metal portion of the connector) and push the cable (or metal portion of the cable) towards the connector at the rear of the engine.

2. While keeping the pressure towards the engine connector using the cable (or the metal portion of the connector), use the top hand to pull the blue portion of the cable directly back. This dislodges the connection of the cable from the connector.

3. Pull back with both hands to remove the cable.

10-Gb Link Aggregation Overview

The 10-Gb Link Aggregation functionality supported by the Avid ISIS 7000 software is described in the following sections. For a procedure on creating a Link Aggregation Group, see “Configuring a 10-Gb Link Aggregation Group” on page 91. When configuring a Hi-Gb link aggregation for ten- and twelve-engines, see “Hi-Gig Link Aggregation Group” on page

72.

Link aggregation is a method of combining physical network links into a single logical link for increased bandwidth. With Link aggregation, your are able to increase the capacity and availability of the communication channel between devices (both switches and clients) using existing Ethernet technologies. Two or more 10-Gb Ethernet connections can be combined to increase the bandwidth capability and to create resilient and redundant links. Link aggregation is sometimes known as “Trunking.”

Link aggregation also provides load balancing across several links in a link aggregation so that no single link is overwhelmed.

You must disable link aggregation before creating or modifying your Avid ISIS stack. After

your stack has been created, reconfigure your Link Aggregation Groups.

Supported Cabling

Supported in Link Aggregation

Avid ISIS 7000 supports 10-Gb link aggregation (between the ISS and the Avid Production Network switch) and Hi-Gig link aggregation (between two IXS). Avid ISIS software supports the link aggregation standard clause 43 of 802.3-2005 (also known as 802.3ad).

Number of Groups Supported

A link aggregation group refers to a number of links that combine together to form a single link aggregation. The number of link aggregation groups supported in Avid ISIS 7000 is five.

Number of Members Supported

A link aggregation group can have a maximum of eight members. This means no more than eight 10-Gb links can be combined into one link aggregation group per VLAN. The minimum number of link aggregation members in a group is 2.

For performance reasons, Avid recommends that you maintain an even number of link aggregation members. So for an eight engine stack, you can have a link aggregation group with two, four, and six members. For a ten or twelve engine stack, there can be two, four, six, and eight members in a link aggregation group.

If a member is already part of a link aggregation group, it cannot be part of another link

aggregation group. You also cannot create a link aggregation group with a single member.

1 Avid ISIS 7000 System Overview

Load Balancing

The software balances the load across multiple 10-Gb aggregated links based on source and destination IP addresses.

Failover

If a 10-Gb trunk link fails, the software load balances the traffic among the remaining trunk links. For example in a four-way 10-Gb trunk if a single 10-Gb link fails, the traffic is load balanced among the remaining three links. This also means that the average traffic distribution increases from 25% with the four links, to 33% in the three links. Therefore, it is strongly advised that network planners setup the trunks to handle the additional load if a link or a set of links should fail in a trunk configuration. The traffic automatically re-balances the load when a trunk link returns.

Warning messages are sent to ISIS Management Console notifying you that a 10-Gb aggregation link status has changed. Switch diagnostics also provides errors when you have a failed link in a trunk.

The engine menu within the ISIS Management Console flashes a yellow warning triangle notifying you that a 10-Gb Link Aggregation link has changed. The specific engine displays a yellow warning circle, and the Switch Blade Status displays “1 Error(s).” Details on the engine switch displays a status of “Link Warning.” You can then open the Switch Agent page via the “info” button on the engines details page, and look at the Port Status page to verify the 10-Gb Link Status.

This failover feature functionality can be disable in switch agent page.

Recommended Topologies

For the best performance in stacks with two IXSs, the link aggregation members need to be evenly distributed between the ISSs that are connected to each IXS. For example, with a four link group; two are connected to ISSs that are connected to IXS A, and the other two links are connected to ISSs that are connected to IXS B.

Supported Functionality

From the Link Aggregation menu in the switch agent, you can:

• View current settings — This displays the current link aggregation configurations, showing all currently configured groups. The user may also modify a group or delete a group from this page.

• Create a new link aggregation group — This allows you to define a new link aggregation group.

• Enable or disable link aggregation configuration — This allows you to disable or enable the current link aggregation configuration. The configuration is preserved.

• Restart the link aggregation configuration — This allows you to request that the stack restart its link aggregation configuration. This removes and rebuilds the link aggregation groups as defined in the current configuration.

• Delete the link aggregation configuration — This disables link aggregation and removes any existing link aggregation configuration. The configuration is not recoverable. This can be used to set link aggregation settings back to factory defaults.

Other Functionality

Supported Cabling

• Every time a switch is introduced to the stack (by connecting the stacking cable) or removed from the stack (by disconnecting the stacking cable), the link aggregation software clears the link aggregation information from the switches and re-programs them again.

• If the switches are being programmed with link aggregation information for the first time, link aggregation needs to be enabled. This is done by clicking on “Enable or Disable link aggregation configuration.”

1 Avid ISIS 7000 System Overview

2 Connecting the ISIS Equipment

This chapter explains how to rackmount and connect the system hardware. To do this, a system installation check list is provided to help you perform the installation in the correct order. The installation check list continues past the information in this chapter and points you to the correct area in this document or the ReadMe file to continue the installation.

This chapter contains the following information:

• Rack-Mounting the Equipment

• Installing Blades and Power Supplies

• Connecting Power to Equipment

• Connecting the Application Key

• Connecting an Engine with v2.x Hardware

For information on connecting and configuring two System Directors for failover, see

“Configuring the System for Failover” on page 95.

Rack-Mounting the Equipment

This chapter describes how to install and connect the System Director and other workgroup hardware.

Information concerning power, airflow, and dimensions are explained completely in the Avid Products and Network Site Preparation Guide located on the documentation DVD. You should understand the basic power configurations explained in “Connecting

Power to Equipment” on page 56.

Before you start the procedures in this chapter, you should be familiar the previous chapters in this document.

2 Connecting the ISIS Equipment

Rack-Mounting Examples

Avid supports more than one Avid ISIS rack configuration. You should have discussed the layout for your system with an Avid representative prior to purchase.

The following examples show a few of the supported rack configurations.

Single Rack - Two Engines - One System Director

System Director

Engines

Single Rack - Four Engines - One System Director

21345678

MGMT

A T S

S UT

21345678

MGMT

T A T S

21345678

MGMT

A TS

S U T

21 345678

MGMT

A TSSU

21345678

MGMT

ATSSU

21 345678

MGMT

S U T A T S

Engines

System Director

Switch

IXS

12 34 5 6

7 8 9 10 11

12 34 5 6

7 8 9 10 11

Rack-Mounting the Equipment

2 Connecting the ISIS Equipment

Dual Rack - Four Engines - Failover System

12 345 6

7 891011

U T A T

21 345678

MGMT

Rack 1

12 345 6

7 8 9 10 11

S UT

A TS

21345678

MGMT

Switch

T A TSSU

21345678

MGMT

T A TSSU

21345678

MGMT

Installing Rack-Mount Rails and Brackets

Rack 2

T A T

21345678

MGMT

T A T

21345678

MGMT

System Directors

Engines

All Avid ISIS rack-mount components are supplied with either mounting rails or brackets. You should follow the manufacturer’s installation instructions supplied with each component to correctly attach the rails or brackets to the rack rails.

Where necessary, this guide supplies specific rack-mount rail or bracket installation

instructions. These instructions supersede the manufacturer’s instructions.

Installing System Director and an Avid ISIS Engine

The System Director and storage elements are placed into a rack for easy access to the cables, connectors, and drives. The following list provides recommendations you should take into account prior to rack-mounting Avid ISIS equipment:

• The heaviest equipment should go at the bottom of the rack, for example, the Avid ISIS engine.

• Lighter equipment goes towards the middle and top of the rack, for example, System Directors, a Keyboard, monitor, and mouse assembly (KMM), with Ethernet switches at the top of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting the equipment in the rack.

• Avid recommends that you leave a 1U or .5U space between each piece of equipment mounted in the racks. This allows for better airflow and cable access, and helps stop vibration in any equipment being transferred to spaces above and below.

• Avid recommends that you leave an 8 to 12 inch space at the bottom of the rack. This allows for better airflow and lowers the possibility of dust or dirt being picked up by the devices.

• If you have a redundant configuration, you might place equipment in different racks. Place the System Director and Failover System Director in different racks, separate the storage elements between racks, place redundant Ethernet switches in different racks, and have the power from each rack connected to different circuits.

Rack-Mounting the Equipment

• For normal operation, you’ll need to maintain approximately 2 feet (0.6 meters) of open space in front of and behind the rack. This allows free access to the components in the rack for operating changes or adjustments. For service, you need approximately 3 feet (1 meter) of open space in front of the rack and 2 feet (0.6 meters) of open space behind the rack. This allows for the removal of any component that needs to be replaced.

For more information related to rack mounting a Avid ISIS system, see the Avid Products and

Network Site Preparation Guide online on the Avid Knowledge Base or the online file on your Avid ISIS software DVD.

Mounting the Engine

Lifting the engine with the blades and power supplies installed can cause an injury. The engine must have the blades and power supplies removed prior to lifting. Avid recommends that two people be used whenever lifting the empty engine.

2 Connecting the ISIS Equipment

To mount the engine into the rack:

1. Screw the brackets to the rear of the rack as shown in the following figure.

Rear

2. Make sure that the blades and power supplies are not in the engine.

3. Using two people, lift the engine and place the rear of the engine onto the brackets as shown in the following figure.

4. Screw the engine to the front of the rack through the ears of the engine as shown in the preceding figure.

Installing Blades and Power Supplies

Once the engine has been mounted you can install the power supplies and blades.

Only trained Avid technicians should remove and replace the power supply when power is applied to the system. Since power to the system is still on, you must always keep your hands external to the engine when a power supply is missing from the engine.

To place the power supplies and blades into the engine:

1. Unpack each ISB and turn it so you can properly read the Avid name.

2. Pull open the plastic handle (with drive size label) on the front of the ISB.

3. Place the ISB into the slot and slowly push the ISB completely into the slot.

4. Push the plastic handle (with drive size label) closed, to lock the ISB into the slot.

5. Repeat step 1 through step 4 until all blades are installed.

6. Carefully unpack each power supply.

Avid recommends that two persons be used to install the power supplies. You could be injured if you dropped a power supply on any part of your body.

2 Connecting the ISIS Equipment

Screws

7. Place the power supply into the engine as shown in the following figure and slowly push the power supply into the slot.

8. Turn the screws until tight.

9. Repeat step 6 through step 8 until all power supplies are installed.

Installing IXS and ISS Switches

The location of the ISS and IXS switches in the stack are very important. If you have only one or two engines you should only be installing ISS switches into the engines, see

“Two-Engine Stacking” on page 64.

If you have more than two engines, you need to install two IXSs in the first engine at the top of the stack, depending on your the version of the hardware, the following is needed:

• You need two IXS2000s in three- to twelve-engine configurations with v2.x hardware, see “Three- to Twelve-Engine Stacking Summary With v2.x Switches” on page 65.

• If you are installing a system with with v1.x hardware, see the v2.1.1 (or earlier) Avid ISIS Setup Guide for detailed procedures.

To install your IXS or ISS:

1. Unpack the switch and insert the switch edges into the internal engine slides.

2. Carefully push the switch into the midplane of the engine until the connection is made.

3. Tighten the thumbscrew on each side of the switch.

IXS

Thumbscrews

Connecting the Application Key

Before you start the System Director, you need to connect the Avid ISIS system USB application key (also called a dongle). The USB application key determines how many Avid ISIS 7000 clients can simultaneously use your system.

Connecting the Application Key

Do not lose the USB application key. Your Avid ISIS system does not function without it. If you lose the USB application key, you must purchase another one from Avid to use your Avid ISIS system software.

To connect the application key to your Avid ISIS system:

1. Locate the USB application key in your Avid ISIS system kit.

2. Attach the USB application key to one of the rear USB ports of the System Director; see

“System Director Rear Connections” on page 26.

Do not use the built-in USB connector on the front of the System Director.

2 Connecting the ISIS Equipment

Connecting Power to Equipment

The Avid ISIS 7000 hardware includes three power supplies using an N+1 configuration for redundancy. The three power supplies “load share” to allow the balanced distribution of V ac power into each Avid ISIS 7000 engine. Usually, a minimum of two of the three power supplies must be operational at one time for the engine to function properly. The fans in each power supply cool the supply and provides airflow for the engine. If a power supply fails, leave it in place until you have a replacement.

Each power supply is rated at 5 amps of current capacity at 120 Vac. You can have up to one power supply from each of the three engines on one 20-amp circuit. This allows the system to continue running if one of the three power supplies fails, with the two remaining load-sharing power supplies drawing slightly less than 10 amps.

Each System Director has up to two power supplies rated at 5.8 amps each. Each System

Director includes two power supplies. Use one 20-amp circuit for each System Director.

An engine can operate on two power supplies for a period of time to allow you to protect data. The following illustration shows an example of how the power should be connected to protect data.

Do not connect the power cords to the engines until instructed to do so in “Setting-Up

Network Addresses In the Stack” on page 61.

Use this section to determine how you should connect power to the engines. Place the power cords into the engines when you place them into the rack as explained in

“Rack-Mounting the Equipment” on page 47, but do not plug them into the outlets

until told to do so later in the document.

See the following sections:

• Three 20-Amp V AC Circuits for Three Engines

• Three 20-Amp V AC Circuits for Two Engines

• Two 20-Amp V AC Circuits for Two Engines

Three 20-Amp V AC Circuits for Three Engines

When you are using three 20-amp circuits for three engines, they are configured as follows:

Basic Power Connection for Three ISIS Engines

Connecting Power to Equipment

System Director

20 Amp

BCA

Engine

BCA

Engine

BCA

Engine

20 Amp20 Amp

20 Amp

2 Connecting the ISIS Equipment

Three 20-Amp V AC Circuits for Two Engines

When using three 20-amp circuits for the engine, they are configured as follows:

First Example of Power Connection for Two ISIS Engines

System Director

BCA

Engine

BCA

Engine

20 Amp 20 Amp 20 Amp

The 20-amp circuits shown for the System Directors should remain the same for both the

three and two 20-amp circuit examples.

20 Amp

Two 20-Amp V AC Circuits for Two Engines

Connecting Power to Equipment

The following configuration is not recommended by Avid, but some locations might need to connect in this manner.

When using two 20-amp circuits for the engine, they are configured as follows:

Second Example of Power Connection for Two ISIS Engines

System Director

BCA

Engine

BCA

Engine

20 Amp 20 Amp

20 Amp

The 20-amp circuits shown for the System Directors should remain the same for both the

three and two 20-amp circuit examples.

Turning System On and Off

To turn the system on or off, use the following procedures. Do not turn off the Avid ISIS components until they have completely powered on.

To turn your system on:

1. Turn on your engines one at a time by plugging at least two power cords into two power supplies at the same time. Plug the third power cord into the third power supply soon after the first two powers supplies have been given V ac power. Allow enough time for all lights on the front panel to turn Green.

2. Turn on the System Directors and to start the Avid ISIS system.

3. Clients should restart there systems and use the Client Manager software to log on and mount workspaces.

2 Connecting the ISIS Equipment

To turn your system off:

1. Exit the Client Manager on all clients.

2. Stop the secondary System Director using the System Director Control Panel if you are set up for failover.

3. Stop the Active System Director using the System Director Control Panel.

4. Turn off the System Directors.

5. Turn off the engines one at a time by unplugging the three power cords for each engine.

Connecting an Engine with v2.x Hardware

The process of connecting the engines to the Avid ISIS network is a two step process. First you logically configure the addresses for the engine, then you physically make the connection to complete the process. If you need to install software, see “Installing Software

and Configuring 10-Gb Link Aggregation” on page 73.

The engines are powered on when two or three power supplies are plugged into an V ac power source. When the engines are on, and the interconnect cables are attached, the network tries to identify the new connection before it should. Do not connect the interconnect cables until told to do so in the procedures.

The 64-bit System Directors introduce in Avid ISIS 7000 v2.0 can be used with v2.x and v1.x generation switches in the engines. The two v2.x switches are branded with an IXS2000 and ISS2000 silk-screen. The v2.x switches cannot be mixed in ISIS engines with earlier versions (v1.x) of the switches (labeled IXS1000 and ISS1000). All the switches in the engines need to be of the same generation. For instruction on connecting v1.x hardware, see the v2.1.1 (or earlier) Avid ISIS Setup Guide for detailed procedures.

You cannot mix new switches (labeled IXS2000 and ISS2000) with original switch hardware (labeled ISX1000 and ISS1000). All switches in the engine, and engines in the stack must be from the same generation of hardware.

You will need the following:

• Windows computer (laptop or System Director)

• CAT5e or CAT6 Ethernet cable to run between the Windows computer and the Management port of the ISS or IXS

• Two or more engine interconnect cables (when using more than one engine)

• System Director DVD/CD ROM

Connecting an Engine with v2.x Hardware

Engine Configuration v2.x Hardware Guidelines

Although there are a few ways to physically connect and enable the engines, Avid recommends the process described in this section for consistency and dependability. In smaller configurations different switch blades are used:

• ISS — Only the ISS blades are used when you are connecting two engines.

• IXS — When connecting three to twelve engines, two IXS2000 blades are used in the first engine (one for each subnet) to connect the next eleven engines.

Engine configurations are described in the following sections:

• “Two-Engine Stacking” on page 64.

• “Three- to Twelve-Engine Stacking Summary With v2.x Switches” on page 65

You must disable link aggregation before creating or modifying your Avid ISIS stack. After

your stack has been created, reconfigure your link aggregation.

Use the following list to help you when you connect the System Director, laptop for configuration, and clients to the Avid ISIS 7000 system.

• A laptop (or any computer running a Windows operating system) is used in the following examples for configuring the engine at the beginning of the installation or for maintenance by an Avid representative. You can use the 1-Gb connection on the System Director for configuring the engine at the beginning if needed, but do not leave it connected or use it for a maintenance connection.

• All clients connected to the switches on the left side of the engine are connected to one subnet, while clients connected to the switches on right side of the box are connected to the second subnet.

• When you are connecting the System Director to the ISS module using the dual port Ethernet board, Avid recommends that you connect the left port to the left side of the engine and the right port to the right side of the engine. Where the left side corresponds to the VLAN 10 subnet and right side corresponds to the VLAN 20 subnet. However, it also functions properly the other way.

You should rename the left side, to “Left Side, VLAN 10” and the right side, to “Right Side, VLAN 20” in the Network Properties of your System Director.

Setting-Up Network Addresses In the Stack

Regardless of the number of engines you are planning in your Avid ISIS stack. The following procedure describes how to configure the first engine.

2 Connecting the ISIS Equipment

To configure the engine:

1. Connect the power cords that are connected to the System Director to the Vac circuit and turn on the System Director.

The System Director password is preset to is-admin. Not not to be confused with the System

Director Web Page Administrator user whose default password is blank.

2. Connect the power cords from at least two of the engine’s power supplies to Vac circuit at the same time. Then connect the third power supply.

It should take about 2 minutes for the engines to reach ready status. Wait for all the LEDS on the engine to be green.

3. Power on all the engines in the stack.

Power cords are plugged into the engines early in the process to speed up the installation

time. Engines can take a minute or two to become ready. If the engines are ready when it is time to add them to the stack, the installation takes less time. Do not plug the interconnect cables into the engines until instructed to do so.

4. Using a laptop (or computer running a Windows operating system), assign a static IP address of management port of left switch.

192.168.0.100

to the network adapter (NIC) and attach it to the

5. Open a browser and navigate to the Switch Agent Web page via the following address:

https://192.168.0.10:5015

6. You are asked for the default password. Type The Avid ISIS 7000 Integrated Switch Blade Window appears.

7. Type the following into the Chassis Configuration window:

- Starting IP addresses. Enter the IP addresses for both subnets, see “IP Addressing

Overview” on page 73.

- Subnet mask

- Ending IP address should be the last address of the engine in the system. Remember

that each engine has 17 IP addresses on each side, for a total of 34. Set the ending address high enough to cover the last engine and any possible near term future needs.

If you are going to be using a Zone 3 environment you must set the default gateway addresses for both sides of the engine. These addresses must come from the site’s IS department.

Make sure there are no DHCP servers connected to the network segments that assign

addresses in the Avid ISIS range.

se-admin

Connecting an Engine with v2.x Hardware

- Date, Time, and Time Zone or Enable network time protocol If your network has a network time protocol (NTP) server, you can enter the IP

address of that server in the Chassis Configuration window. NTP Server 1 is for the primary NTP server and if you have a secondary NTP server, enter the secondary IP address in NTP Server 2.

Once the NTP is configured on a switch, the information propagates to all the other switches

automatically. The time is also automatically synchronized onto the storage blades after the NTP is configured on the switch.

8. Click Submit. A Dialog box might appear with an informational warning and can be disregarded. The

first engine is now properly addressed.

2 Connecting the ISIS Equipment

Two-Engine Stacking

To stack two engines:

1. Complete the procedure “Setting-Up Network Addresses In the Stack” on page 61.

2. Open a left-side Switch Web page.

3. Go to System > Configuration > Add/Remove chassis.

4. Click Add and wait for the progress bar to complete.

5. Connect the interconnect cable from the left side of the stack to the new engine. The switch then picks up the addresses and stacking information.

Wait 5 minutes and refresh the page.

6. Verify that the serial number of the second engine is now in the Add a chassis list.

7. Attach the right interconnect cable.

8. Assign appropriate static IP address to the left and right network ports of the System Director.

9. Attach the System Director to the left and right switches and verify that all four switches can be pinged on their client IP address.

The following example shows the physical connections between two engines, a System Director, and clients. These are direct connections to the client system and not connected through switches. For a procedure of this connection, see “Setting-Up

Network Addresses In the Stack” on page 61.

Two-Engine Connections

To client - RJ45 connector, CAT 5e or CAT 6

Inter-engine connection CX-4 connector Avid interconnect cable

Connecting an Engine with v2.x Hardware

edis thgiRedis tfeL

RJ 45 connector CAT 5e or CAT 6

US T

21345678

MGMT

US T

21345678

MGMT

System Director or laptop for configuring only

US T A T

21345678

MGMT

US T

21 345678

MGMT

Connection 1

Three- to Twelve-Engine Stacking Summary With v2.x Switches

When connecting three- to twelve-engines, connect and add the switches to the VLAN 10 subnet (left side) first and then connect the engines to the VLAN 20 (right side) subnet. When accessing the Agent Web pages for the engines, use your laptop through the Management port or the Switch Agent Web through the Avid ISIS 7000 software on your System Director. Information on installing the software on the system Director is described in “Software Installation” on page 77.

ISS

2 Connecting the ISIS Equipment

IXS module

11 Engine interconnections

Management connection

12 345 6

7 8 9 10 11

1 2 3 4 5 6

7 8 9 10

10 1111

12 345 6

7 8 9 10 11

In three- to twelve-engine configurations with ISX2000 switches, two IXSs are installed in the first engine, see “Three- to Twelve-Engine Connections With v2.x Switches” on page 66. The IXS2000 ports 1 through 11 are referred to from left to right as shown in the following figure.

IXS2000 Engine Port Numbering

Avid strongly recommends you keep your engines and IP addresses in order in conjunction with the order of the ports used on the IXSs. When the IP address of the engines are in order with how they are mounted in the rack, support personnel can better identify the connections and components in the network. For an overview of the recommended IP addressing, see “IP

Addressing Overview” on page 73.

Three- to Twelve-Engine Connections With v2.x Switches

The following procedure describes cabling up to twelve engines and might not represent your actual rack configuration. The cabling is the same when using IXSs regardless of the number of engines in your configuration.

To connect the VLAN 10 subnet (left side):

1. Loosen the thumb screws on all the right side switches (IXS and ISS) and pull the right side switches out about an inch of all the engines (so they are not electrically connected in the engine).

2. Connect the power cords from at least two of the engine’s power supplies to Vac circuit at the same time. Then connect the third power supply.

It should take about 2 minutes for the engines to reach ready status. Wait for all the LEDS on the engine to be green.

Connecting an Engine with v2.x Hardware

3. Power on all the engines in the stack.

Power cords are plugged into the engines early in the process to speed up the installation

4. Using a laptop (or computer running a Windows operating system), assign a static IP address of management port of left IXS.

5. Open a browser and navigate to the Switch Agent Web page via the following address:

https://192.168.0.10:5015

192.168.0.100

to the network adapter (NIC) and attach it to the

6. You are asked for the default password. Type The Avid ISIS 7000 Integrated Switch Blade Window appears.

7. Type the following into the Chassis Configuration window:

- Starting IP addresses. Enter the IP addresses for both subnets, see “IP Addressing

Overview” on page 73.

- Subnet mask

- Ending IP address should be the last address of the engine in the system. Remember

that each engine has 17 IP addresses on each side, for a total of 34. Set the ending address high enough to cover the last engine and any possible near term future needs.

If you are going to be using a Zone 3 environment you must set the default gateway addresses for both sides of the engine. These addresses must come from the site’s IS department.

Make sure there are no DHCP servers connected to the network segments that assign

addresses in the Avid ISIS range.

- Date, Time, and Time Zone or Enable network time protocol

If your network has a network time protocol (NTP) server, you can enter the IP address of that server in the Chassis Configuration window. NTP Server 1 is for the primary NTP server and if you have a secondary NTP server, enter the secondary IP address in NTP Server 2.

se-admin

Once the NTP is configured on a switch, the information propagates to all the other switches

automatically. The time is also automatically synchronized onto the storage blades after the NTP is configured on the switch.

2 Connecting the ISIS Equipment

8. Click Submit. A Dialog box might appear with an informational warning and can be disregarded. The

first engine is now properly addressed.

9. Click Add/Remove Chassis to go to the Add a Chassis page.

Connecting an Engine with v2.x Hardware

Add

10. Click Add and wait for the progress bar to complete.

2 Connecting the ISIS Equipment

1 2 3 4 5 6

7 8 9 10

10 1111

Third engine

Fourth engine

Fifth engine

Sixth engine

Seventh engine

Second engine

Eighth engine

Ninth engine

Tenth engine

Eleventh engine

Twelfth engine

12 345 6

7 8 9 10 11

12 345 6

7 8 9 10 11

21345678

MGMT

21345678

MGMT

11. Immediately attach an interconnect cable from port 1 of the left IXS to the left ISS interconnect port of the second engine.

Left Subnet Twelve-Engine Connections

It is not mandatory that you connect each engine to the exact ports shown in the illustration. The order of the ports and engines shown was suggested just to keep the stack logically organized.

12. Verify that the switch was added to the stack successfully. The serial number of the new engine appears in the Add/Remove Chassis list after a few

moments when the switch is successfully added. If the new engine does not appear in the list (times out), see “Engine Does Not Appear in Add Chassis List” on page 85. You can also navigate to the Tools tab and verify that IXS can ping the added switch via the expected client IP address.

13. Repeat steps 9 through 11 until eleven engines are connected. Connect the third engine to port 2, fourth engine to port 3, and so on, until all engines are connected to ports 1 through 11 on left subnet (VLAN 10).

Connecting an Engine with v2.x Hardware

1 2 3 4 5 6

7 8 9

14. Attach the System Director to client port and assign an appropriate IP address for the left subnet. Verify that you can ping all the switches in the left stack at the expected IP addresses.

15. Continue with the following procedure to connect VLAN 20 (right side).

To connect the VLAN 20 subnet (right side)

1. Insert right IXS (right-side switch in the top engine) and tighten the thumb screws. The IXS switch starts when inserted, allow the switch 2 minutes to power on and enter a

ready state.

2. Insert the right side ISSs that you intend on connecting to right IXS subnet and tighten the thumb screws.

Allow the switches 2 minutes to power on and enter a ready state.

3. Connect the second engine to port 1, third engine to port 2, and so on, until all engines are connected to ports 1 through 11 on right subnet (VLAN 20).

Do not click “Add” from any IXS Agent Web page.

Right Subnet Twelve-Engine Connections

Third engine

Second engine

Eighth engine

Fifth engine

Fourth engine

Ninth engine

12 345 6

7 891011

S U AT T

21345678

MGMT

Sixth engine

Tenth engine

Eleventh engine

12 345 6

S U T A T

MGMT

Seventh engine

Twelfth engine

7 8 9 10 11

21345678

2 Connecting the ISIS Equipment

4. Attach the System Director to client port and assign an appropriate IP address for the right subnet. Verify that you can ping all the switches in the right stack at the expected IP addresses.

All switches in the stack (left and right sides) should now be pingable from the System Director.

Hi-Gig Link Aggregation Group

Two interconnect cables and Link Aggregation are used to increase the bandwidth between the IXS’s. However, both interconnect cables must not be connected until Hi-Gig Link Aggregation is Enabled. Link Aggregation must be enabled for both sides of the network in order for clients on both sides to perform I/O operations.

If Hi-Gig Link Aggregation is not enabled, and two interconnect cables are used to connect the IXS’s, then traffic loops and stacking problems occur.

To enable link aggregation:

1. Go to any left subnet Switch Agent Web page. Notice on the left hand column of the System page there is an option Hi Gig Link

Aggregation with an Enable/Disable radio button.

2. Click Enable/Disable.

3. Click the radio button to Enable Hi Gig Link Aggregation.

4. Click submit, the IXS’s restart.

5. After the IXS has restarted, check that Hi Gig is “on” in the Hi Gig Link Aggregation column of the System page > Switch Agent > Management Domain.

6. Connect a stacking cable from one IXS port to an IXS port on another Engine.

Currently only Port 6 and Port 7 on v1.x hardware can be used for Hi-Gig Link Aggregation. Do not use any other stack ports to connect the IXS’s to each other.

3 Installing Software and Configuring

10-Gb Link Aggregation

This chapter describes how to connect and configure the System Director and other Avid ISIS hardware. Since the number of different configurations are endless, it uses a configuration with four engines and one System Director as an example.

If you have questions, please call your Avid representative or your local ACSR.

Before you start the procedures in this chapter, you should be familiar with the information in previous chapters and the Avid Products and Network Site Preparation Guide.

This chapter contains the following sections:

• IP Addressing Overview

• Configuration Overview

• Software Installation

• Avid Interplay Authentication

• Configuring a 10-Gb Link Aggregation Group

IP Addressing Overview

Before you attempt to define a total IP addressing scheme for your system and configure the static internal IP addresses of the engine, you should have a solid understanding of how the addresses are assigned within the engine and how the IP addresses increment between engines.

192.168.10.10 and 192.168.20.10, subnet 10 and subnet 20, are used by Avid as examples

throughout this document, your site might require different addresses. Consult with your site’s networking managers for site specific requirements. Unless specified, you can change the addresses used in the following example to suit your needs. However, whichever static IP addresses are assigned within the engine, they must not be assigned by a DHCP server to any other device within the Network.

3 Installing Software and Configuring 10-Gb Link Aggregation

raeRtnorF

Upper left

Lower right

Right side (default subnet 20)

Left side (default subnet 10)

Management Port

The IXS shown is only used when three or more engines are connected.

1234 5678

12 345 6

7 891011

The following figure shows the front and rear view of a engine. Use the following two figures and bulleted list to understand how static IP addresses are assigned to each engine.

Front and Rear of a Engine

The following list describes what needs to be accomplished to assign IP addresses to engines. You should understand the assignment of IP addresses completely before you perform the actual configuration.

Do not attempt to assign addresses to the engine using this list. This provides an overview,

not a step-by-step procedure.

• Connect Port 1 of the System Director or a port on a laptop to the Management Port of the ISS in the bottom engine of the rack using a CAT5 E, CAT6 cable or better. See the previous figure.

• You are now talking to the Management Port on an isolated network interface on the ISS using the default IP address of 192.168.0.10. This IP address is used on every the Management Port on the ISS and expansion switch blade. The address is not on the local 10 or 20 subnets Ethernet bus and is never used to transfer actual data.

IP Addressing Overview

When you assign subnet addresses internally and have more than one engine, all ISSs and

IXSs on the left side of the rear of the engine are on one subnet, while all ISSs and IXSs on the right side of the rear of the engine are on the other subnet.

See the following illustration for a pictorial view of address assignments described in the following bullet.

• Then two static IP addresses are assigned to the upper left-most ISB slot in the engine when looking at the engine from the front. The addresses are 192.168.10.10 on subnet 10 and 192.168.20.10 on subnet 20. You are assigning the address to the slot, not the blade. The ISB can be physically moved, but the IP address remains with the slot.

• As the slots go sequentially from top left to right, over a row and starting at the left again, each slot is assigned a static IP address that is incremented by one until you reach the right-most bottom slot that contains addresses of 192.168.10.25 and 192.168.20.25.

• At this point, each ISS or IXS is assigned a base address. One ISS is assigned a subnet 10 address of 192.168.10.26 and the other a subnet 20 address of 192.168.20.26 (unless the you want to change the IP scheme or subnet mask). Now each side of the engine is assigned 17 addresses on each network for a total of 34 addresses per engine.

• You then increment the subnet 10 and subnet 20 addresses by one and assign them to the switch blades in the next engine.

• The ISB slots and switches are again incremented.

3 Installing Software and Configuring 10-Gb Link Aggregation

Static Engine Internal IP Address Assignments

First engine

Subnet 20Subnet 10

edalb hctiws/noisnapxEedalb hctiws/noisnapxE

Second engine

Expansion/switch blade

Configuration Overview

Your System Director and engines should be rack mounted with the interconnect cables connected to the left side of your stack as previously described before continuing.

You now need to do the following:

1. Configure the engine by assigning IP addresses to the engine. This provides each ISS, IXS, and ISB with the needed IP addresses to connect to the clients and System Director, see “Setting-Up Network Addresses In the Stack” on page 61.

The ghost image on the System Directors does not set the IP addresses of the two onboard

NICs or the dual NICs card on the PCI bus; the system is set for DHCP.

2. Load the System Director software. This software is used to create a file system on the System Director, bind the ISBs to the software on the System Director, create Storage groups, and administer the Avid ISIS system. See “Loading the Software” on page 77.

3. Perform administrative functions: bind ISBs (storage elements), create storage groups, and do other administrative functions. See “Creating a Active partition on the System

Director” on page 81.

4. Load the client software; see “Loading Client Software” on page 87.

Configuration Overview

Software Installation

Make sure you have the application key installed, see “Connecting the Application Key” on

page 55. Your System Director and engines should be cabled and attached to both internal

subnets similar to the “Setting-Up Network Addresses In the Stack” on page 61.

Loading the Software

To load the Avid ISIS software:

1. Log in to the Avid ISIS 7000 as Administrator (default password:

2. Insert the Avid ISIS software DVD into the System Director DVD drive. The DVD automatically starts and opens a dialog box opens.

The Avid ISIS 7000 product documentation is in PDF format. You can access the

documentation in the AvidISISDocumentation folder on the Avid ISIS installer kit. You need to download and install Acrobat Reader on your Avid ISIS 7000 before you can access the PDF documentation.

is-admin

3 Installing Software and Configuring 10-Gb Link Aggregation

3. (Option) The Avid ISIS 7000 software kit is also available on the Avid Download Center (www.avid.com/support/downloadcenter). Uncompress (unzip) the downloaded software kit in the new folder on the Avid ISIS 7000 system.

4. Double-click the Autorun.exe file in the software kit. The installer splash screen appears.

Avid highly recommends that you click the ReadMe link. This displays the ReadMe file that

provides the latest information regarding the Avid ISIS 7000 system. You must have Adobe Reader installed to view the PDF.

Software Installation

The following table describes the installer options and their functions.

Installer Dialog Box

Selection Function

Package Selection Select the ISIS 7000 software kit from the “Select Software Package” menu.

• ISIS 7000 — Selects the ISIS 7000 software kit. Select this menu item to install the Avid ISIS 7000 software on the System Director. This software cannot be installed on the same server as the File Gateways software.

• File Gateway — Selects the Avid ISIS File Gateway software kit. Select this menu item to install the Avid ISIS File Gateway software. This software cannot be installed on the same server as the System Director software. If setting up the File Gateway, see the Avid ISIS File Gateway Setup and User’s Guide.

Software Installation

System Director Software

Click the “This Avid ISIS 7000 Engine is the System Director” checkbox if you have one enclosure or have multiple enclosures but want this enclosure to be the System Director which includes the software that runs the Management Console and tracks the metadata stored in all the data drives.

• System Director Software — Installs the System Director software used to run the data drives and creates the file system for the data drives. It also provides the ISIS Management Console and error logging. The installer detects the operating system (Windows 32-bit and 64-bit) and installs the appropriate software and creates the file system used by the engines; it also provides the ISIS Management Console and error logging.

Also installed on the System Director are the client installers and the Storage Blade (ISB) and switch (ISS and ISX) firmware. You need to load the switch and ISB firmware on the engines before clients can use the Avid ISIS System. See

“Installing Software on the Engines” on page 82.

• ISIS Client Installers — Installs the “client installers” on the System Director. Clients can then install the latest software on the clients from the System Director Management Console window. These installers are accessed when you click the Installers icon in the Management Console.

• ISIS Blade Installers — (System Director only) Installs software to support Simple Network Management Protocol (SNMP). It is used with network management to monitor network-attached devices for conditions that warrant administrative attention. These SNMP monitoring agents are used with an OpenNMS user interface to support the Avid System Monitor.

Resources

Contact Displays the Avid corporate address and contact information.

Avid’s Website This link brings you to the Avid web site (www.avid.com). If you do not have internet

access on the computer running this software installation, Page not found is displayed.

3 Installing Software and Configuring 10-Gb Link Aggregation

Installer Dialog Box (Continued)

Selection Function

ReadMe Avid recommends that you read all the information in the ReadMe file thoroughly

before installing software or attempting to use the Avid ISIS system. This ReadMe provides information that is not in the other Avid ISIS documentation.

Search the Avid Knowledge Base for the most up-to-date ReadMe file, which

contains the latest information that might have become available after the documentation was published. To view the online version, visit the Knowledge Base at www.avid.com/readme.

The document provides hardware and software requirements, a limitations and known issues, and other important information. You can access the documentation in the top-level AvidISISDocumentation folder on the Avid ISIS installer kit.

Documentation This is a link that brings you directly to the AvidISISDocumentation folder on the Avid

ISIS installer kit. This folder can be wherever the installer files have been saved. This folder has all of the Guides that are included with the release.

Browse Content This is a link that brings you directly to the Avid ISIS installer kit. From here you can

access all the files included in the kit. The links accesses the software kit wherever the installer folder has been saved.

You can use the Browse Content link to load the appropriate client software

from the software kit on the client. You can find the client installer in the \AvidISISClientInstallers folder.

Create Recovery USB Drive

5. Select ISIS 7000 from the “Select Software Package” menu.

6. Click Apply.

7. Follow the screen prompts accepting the defaults and License agreement.

8. Once the installation is complete, click Finish.

This link opens a tool that helps you create a Product Recovery USB Flash Drive. This feature is planned for a future release.

The File Gateway selection is used when loading the Avid File Gateway server. The File Gateway software cannot be installed on the same server as the System Director software.

Installing the Application Key

Blue Active Mode

You need to have the Application Key installed to make an Active partition.

To install the application key (dongle):

1. Locate the application key in the Avid ISIS kit.

2. Install the application key into one of the USB ports on the System Director. For an exact locations, see “System Director Front Panel” on page 25 or “System Director Rear

Connections” on page 26.

Make sure the application key is seated completely in the port.

If you have multiple Avid ISIS Engines, the application key must be plugged into the Engine

that is running the System Director software. Clients cannot access the Avid ISIS software if the application key is plugged into the Engine-only system.

Creating a Active partition on the System Director

On new installations you must initialize your system by creating a Active partition on the System Director.

Software Installation

To create a Active partition:

1. Click Start > Programs > Avid Unity System Director and select System Director Control Panel. The Active Mode displays as blue in the Avid ISIS System Director Control Panel window.

3 Installing Software and Configuring 10-Gb Link Aggregation

2. Click the Configuration tab.

3. Click Stop Server

When you click Create New Active, this action results in the loss of all media assets on the system. This is a non recoverable action and extreme caution should be exercised when this command is invoked.

4. Click Create New Active. The server automatically restarts when complete.

5. If you are not placed in the Status Tab, click System Director Status. The Standby Mode has changed to Active Mode and the light is Green.

Installing Software on the Engines

After you have loaded new software on the System Director you need to upgrade the software on the engines. You can use Web Administrator from anywhere to perform the following functions, but you usually do it from the System Director:

• Upgrade the ISS and IXS with the proper/latest software

• Upgrade the ISBs with the proper/latest software

• Create Workspaces

To upgrade the software:

1. Go to https://IP address of System Director (or virtual name):5015.

2. Log into the System Director.

The default Administrator password is blank.

The ISIS Management Console opens.

Upgrade Switch Blades

Upgrade Storage Blades

Software Installation

3. Click Chassis.

4. Select the chassis you want to upgrade in the Chassis list.

5. Click Upgrade Switches.

3 Installing Software and Configuring 10-Gb Link Aggregation

Upgrade .tgz file

Upgrade

Upgrading switches takes approximately 25 minutes for the original ISIS switches and

10 minutes for the v2.x switch hardware (ISS2000 and IXS2000). You should upgrade switches on all your engines at the same time.

After all the Switch Blades are updated, upgrade the Storage Blades.

6. Click Upgrade Blades. The Upgrade Storage Blades window opens.

7. Select the upgrade file, and click Upgrade. Each Storage Blade takes approximately 10 minutes.

8. Select the engine and click Details.

Select an engineRefresh DetailsSystem Overview Toolbar

Software Installation

The Status for the upgrade is shown in the Details pain at the right of the window. Click the Refresh button whenever you want the updated upgrade Status. When the Status is empty, the upgrade is complete.

Other ways to view the installation status is to use the Monitor Tool, the color indicator in

the System Overview Toolbar, and the Storage Blade Status column. Select the Engine Summary in the left pane for each engine and click the Upgrade button to see the install status graphically displayed.

9. Repeat the Software upgrade process for each Storage Blade.

Engine Does Not Appear in Add Chassis List

If the engine did not appear in the Add/Remove page, you must stop and troubleshoot the problem. Once the engine appears in the list, continue adding any additional engines. Perform the following steps one at a time and wait for the Add Chassis process to time-out before trying the next step.

3 Installing Software and Configuring 10-Gb Link Aggregation

To troubleshoot why an engine did not appear in Add/Remove page:

1. Reseat the interconnect cables; both sides of the interconnect should have a green solid link light when powered on. If not:

a. Remove the cable. b. Click Add chassis. c. Replace cable.

2. Reseat the ISS that is being added: a. Remove the ISS. b. Click Add chassis. c. Reseat ISS.

3. Try a different IXS port: a. Disconnect interconnect cable from IXS port. b. Click Add chassis. c. Attach interconnect to a new port on the IXS.

4. Try a different a new interconnect cable: a. Disconnect interconnect cable. b. Click Add chassis. c. Replace interconnect cable.

Check Switch IP Address

Telnet to the newly added switch at the expected IP address.

If the switch cannot be reached, try the following:

1. On the IXS Switch Agent, view “System Overview.”

2. Click on the link for the newly added chassis. If Peth0-IP is not correct, Set switch back to the default.

If the IP address is correct, proceed to the next step.

3. Check the State Machines in “System Overview” under “Stack Port Status.” The state for the newly connect port should eventually become “SW_PORT_STACKED.” If it does not, try the following:

a. Reseat the interconnect cable. b. Restart the newly connected switch. c. Restart the IXS.

Java Runtime Environment

The Avid ISIS Management Console and Avid ISIS Client Manager requires version 6 (build

1.6) or higher of the Java Runtime Environment (JRE). Avid provides a qualified version of JRE for Windows systems on the Avid ISIS software DVD in the [DVD drive]:\Tools_3rdParty\Java folder.

For clients using a Macintosh system, download the Java software from the Apple (www.apple.com) or use the Apple Software Update.

Loading Client Software

You can load the Client software in several ways:

• You can take the software kit to each client separately and load it from the DVD.

• You can store the client software somewhere on the corporate network and allow everyone who needs the software to gain access to it and load it.

• You can use the a Browser to reach the ISIS Management Console and load it from the System Director because it was loaded during the previous installation of the Client Installers.

Software Installation

Web site

Keep in mind the following when connecting Avid ISIS clients.

• When installing Avid ISIS client software on Windows systems, make sure you are up-to-date with your Windows critical updates.

• Zone 1 clients must use 1 Gb connections to the ISS. The ISS does not negotiate at any rate below 1 Gb. If 100 BASE-T connections are needed, connect the clients or server to external switches configured for Zone 2, 3, or 4.

Connect TransferManagers and AirSpeed servers to Zone 1 or Zone 2.

To install the client software using a browser:

1. Start your browser application.

2. Run your Windows Update and accept all “High-priority Updates.”

If while installing the client software on a Windows 2000 client, an error message informs

you that a required DLL is missing, locate and install Windows msi 3.1 on your system.

3. Go to https://IP address of System Director (or virtual name):5015. The ISIS Management Console opens.

4. Type your Administrator’s password.

3 Installing Software and Configuring 10-Gb Link Aggregation

5. Click Administration. An Installer Downloads screen opens.

6. Click the appropriate ISISClient installer. The installer might ask if you want to save or run the installation software; either is

acceptable.

Win32 client installers

Flash executable

7. (Option) During a Windows installation a question appears asking who the software is for; select “Everyone.”

8. Click the appropriate Flash executable.

9. Restart the client system when asked. The client software is installed.

Software Installation

Installing Macintosh Client Software Using Safari

When installing the Avid ISIS software on a Macintosh client using the Safari browser; Safari completes the download, mounts the disk image, and starts the installer. Be aware that other browser applications do not automatically mount the disk image. After the software is successfully installed, dismount the installer volume:

To dismount the Avid ISIS installer volume on a Macintosh client:

1. Locate the mounted volumes listed in the left pane of the Finder window.

2. Select the volume that contains “AvidUnityISIS” in the name.

3. Click the eject button that appears to the right of the volume name.

Loading and Configuring Client software for Zone 3 Clients

Loading clients software for Zone 3 clients is similar to Zone 1 or Zone 2 clients. After loading the software for Zone 3 clients you need to perform some special configuration functions.

To load and configure Zone 3 and Zone 4 clients do the following:

1. Load the client software as explained in “Loading Client Software” on page 87.

2. Do one of the following: t (Windows) If the Client Manager icon is not available in the Windows taskbar,

select Start > All Programs > AvidUnityISIS > ClientManager.

t (Windows) Click the Client Manager icon in the Windows taskbar. t (Windows) Right-click the Client Manager icon and select Unity ISIS Client

Manager.

t (Macintosh) Double-click the Client Manager alias icon on the desktop, or

double-click the Client Manager alias icon in the dock.

t (Macintosh) If the Client Manager alias icon is not available, select Go >

Applications, and then double-click the AvidUnityISIS folder. In this folder, double-click the UnityClientManager file.

3 Installing Software and Configuring 10-Gb Link Aggregation

Connections list

Preferences

Workspaces list

The ISIS Client Manager opens.

3. Click the Preferences button and the Client Manager Preferences Window opens.

Add button

Remove button Clear button

Remote Hosts list

4. Click Remote Host.

5. Click Add. A dialog box appears.

6. Type the name or IP address of the System Director (never type the Virtual addresses) and click OK.

You must add the computer name for both System Directors if you have two.

7. Click Apply and close the Window.

Avid Interplay Authentication

Avid Interplay Authentication requires the Avid ISIS System Director to use a virtual name. The System Director’s virtual name must not match the actual host name and must be entered in the General Configuration Options dialog box even if your Avid ISIS system configuration only has one System Director. For instructions on adding the virtual name, search the Avid ISIS 7000 Administration Guide for General Configuration Options.

Avid Interplay Authentication

Configuring a 10-Gb Link Aggregation Group

The 10-Gb link aggregation connection is done using the 10-Gb port on the ISS. You can make a 10-Gb link aggregation connection on the left, right or both subnets. The number of 10-Gb links you can create, depends on the number of 10-Gb ports available on your zone switch (Avid Production Network switch). The following procedure describes the process. For an overview of 10-Gb link aggregation, see “10-Gb Link Aggregation Overview” on

page 43. When configuring a Hi-Gb link aggregation for ten- and twelve-engines, see “Hi-Gig Link Aggregation Group” on page 72.

To create a 10-Gb link aggregation:

1. Configure your Avid Production Network switch for your 10-Gb link aggregation connections.

This process is not described in Avid documentation, see the documentation that comes with your switch. For additional information on configuring qualified switches, search the Knowledge Base for the Avid ISIS Ethernet Switch Reference Guide.

Avid Production Network switches need to be configured for Source Destination IP

addresses in terms of link aggregation load balancing. This is the default both in Avid ISIS switches and the Avid Production Network switches that have been qualified, no other load balancing configurations are supported.

3 Installing Software and Configuring 10-Gb Link Aggregation

If you connect the 10-Gb link cables before you have configure the link aggregation in the ISIS Management Console, you will create network loops.

2. Open the Switch Blade Agent (see the Avid ISIS 7000 Administration Guide). Click Switch Blade in the Management Console and double-click on the Switch Blade

to open he switch agent page. The default password is

3. Click the System tab if it is not already selected. The System window opens.

se-admin

4. In the 10 Gb Link Aggregation area, click “Create new group.” The agent displays information for the type of group and network. A maximum of eight

10-Gb links can be in a group.

5. Select either the Left (VLAN 10) or Right (VLAN 20) in the Network area of the window and click Continue.

The ISSs on either the left or right side of the stack are listed.

6. Select the serial number of the ISS you want to use for your new link aggregation group and click Continue.

A minimum of two ports must be selected.

Configuring a 10-Gb Link Aggregation Group

If you make a mistake on your link aggregation group, click “Delete configuration” and

select Left, Right, or Both to remove the link aggregation configuration.

Do not click Restart in the 10 Gb Link Aggregation area unless instructed to do so by an Avid representative.

7. Click Enable/Disable. The top of the window displays the current 10-Gb link aggregation status.

8. Select Left, Right, or Both, and Enable, and then click Submit to enable the link aggregation that you just created.

9. (Option) Repeat step 3 through step 8 to create a link aggregation for the other side. Link aggregation groups are created on the left and right sides individually. You can

have a link aggregation just on one side if you want.

10. Connect the interconnect cable between the 10-Gb ports on the ISS switch you have configured.

Engines

ISS

12 345 6

7 891011

SUT

A T

21345678

MGMT

A TSSUT

21345678

MGMT

12 345 6

7 8 9 10 11

S U T A T

21345678

MGMT

S U T A T

21345678

MGMT

10-Gb link aggregation ports

3 Installing Software and Configuring 10-Gb Link Aggregation

4 Configuring the System for Failover

This chapter explains how to enable the software for the two System Director failover systems and how to connect and configure 10-Gb link Aggregation.

System Director Failover

When using two System Directors, one is referred to as Active System Director and the other one is the Standby System Director. The File System on the Standby System Director is kept up-to-date with the Active System Director. If the Active System Director fails, a failover function switches to the Standby System Director to continue seamless operation. In an attempt to keep the procedure easy to use, we use the following nomenclature:

• When adding a new System Director to an existing Avid ISIS system or creating a failover system configuration, the original System Director is called the existing System Director and the new System Director is called new.

• When installing two new System Directors to create a failover system configuration, one System Director is called Active and the other Standby.

You can encounter two scenarios when enabling failover systems:

• Creating failover by adding a System Director to an existing System. See “Adding a

System Director to an Existing File System” on page 97.

• Creating failover on two new System Directors. See “Creating Failover with Two New

Systems” on page 104.

Each System Director must connect to right and left sides of the engine to allow both of the System Directors to reach the two internal subnets. Connect the two System Directions under the following conditions:

• After you have physically configured the system and loaded the Avid ISIS software on both System Directors.

• When the server software is Off on both systems.

• The connect the Ethernet port of the Active System Director to connection 1 on the left side of the engine (from the rear). The connect the Ethernet port of the Standby System Director to connection 1 on the right side of the engine (from the rear).

4 Configuring the System for Failover

Enabling a System Director

To enable a failover system for Avid ISIS:

1. Connect two System Directors (using straight or crossover cable) as shown in the following figure.

MGMT

STATUS

TUS A

MGMT

21 345678

MGMT

STATUS

US T

21345678

MGMT

STA

2. Enable the software on both systems, see “Configuring the System for Failover” on

page 95.

The configuration information for the notification service (SMTP information, contacts, and

filters) is stored in the registry on the System Director. This information is not currently replicated to the failover System Director and must be entered manually on both System Directors. For information on setting up the notification service, see Setting up Error Notification in the Avid ISIS 7000 Administration Guide.

Adding a System Director to an Existing File System

When you already have one System Director in use and you need to add a System Director to create a failover system, you have five basic functions to perform. See the following sections:

• “Setting IP Addresses for Crossover Link” on page 97.

• “Stop the Active System Director and Set Up the Failover Connection” on page 97

• “Configuring Failover Settings” on page 105

• “Creating New Standby File System” on page 102

• “Restarting Existing System Director” on page 102

Setting IP Addresses for Crossover Link

Avid recommends the System Director IP addresses for failover configurations that are listed below. If you use different addresses, be sure to note them and have them available before proceeding. You set the IP addresses in the Network Connections dialog box, which you access from the Windows Control Panel. For information on setting Windows IP addresses, see the documentation that came with your operating system.

To set IP addresses:

1. Go to Start > Control Panel > Network Connections for each System Director.

2. Set the Existing System Directors to the following TCP/IP addresses for ports 1 and 2:

- Onboard Ethernet port 1 (ETH1) - 192.168.1.1 netmask 255.255.255.0

- Onboard Ethernet port 2 (ETH2) - 192.168.2.1 netmask 255.255.255.0

3. Set the New System Directors to the following TCP/IP addresses for ports 1 and 2:

- Onboard Ethernet port 1 (ETH1) - 192.168.1.2 netmask 255.255.255.0

- Onboard Ethernet port 2 (ETH2) - 192.168.2.2 netmask 255.255.255.0

Stop the Active System Director and Set Up the Failover Connection

Make sure all Clients are notified that you are stopping the System Director.

To stop the existing System Director and set up the failover connection:

1. From the existing System Director, select Start > Avid Unity System Director > System Director Control Panel.

4 Configuring the System for Failover

2. Click the System Director Status Tab.

3. Click Stop System Director.

4. Click the Configuration Tab.

5. Click Failover Configuration. The System Director Failover Configuration dialog box opens.

Enable Redundant Operation

6. Select “Enable redundant operation.”

Adding a System Director to an Existing File System

7. Type a name in the Virtual System Director Name text box.

The same virtual name must be assigned to both System Directors.

8. In the Local Machine area leave the Monitor port set to 5000. If you have another application that uses port 5000, change the Monitor port to an available port number. This port number must be the same on both the existing and the new System Directors.

9. Do one of the following:

t When you have completed step 8 on the Existing System Director, go to step 10. t When you have completed step 8 on the New System Director, go to step 15.

If you have a MediaManager attached to the system and you are adding a second system to

create a failover system, it is important that you maintain the same server name and virtual name as used previously to maintain database integrity. For example, prior to installation of a New server, the actual and virtual server name was set to “SD.” Avid recommends that the virtual server name for both servers be set to “SD2” and that the actual machine name be changed from “SD2” to something like “SD2SERVER.”

10. Set the Local Machine First Path IP address to local IP 1: 192.168.1.1.

11. Set the Local Machine Second Path IP address to local IP 2: 192.168.2.1.

12. Set the Remote Machine First Path IP address to: 192.168.1.2.

13. Set the Remote Machine Second Path IP address to: 192.168.2.2. The Existing System Director has now been configured. The next step must be

performed on the New System Director.

14. Repeat steps 10 through 13 on the New System Director.

15. Set the Local Machine First Path IP address to local IP 1: 192.168.1.2.

16. Set the Local Machine Second Path IP address to local IP 2: 192.168.2.2.

17. Set the Remote Machine First Path IP address to: 192.168.1.1.

18. Set the Remote Machine Second Path IP address to: 192.168.2.1.

19. Validate the crossover connections by clicking Validate Send on one system and Validate Receive on the other.

4 Configuring the System for Failover

Green

20. On the Sending System Director, you see the Red Box turn Green for each connection.

The numbers in the Packets Received boxes indicate the number of packets received from the first System Director On the Receiving System Director you see the packets received number incrementing for each connection.

100

Packets received

21. On each system, click Exit.

Pinnacle Systems ISIS 7000 - 2.3 Setup Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Using This Guide
