Pinion Atom ND Instruction Book

INSTRUCTION BOOK

ATOM ND

Issued by:

PINION WATCH COMPANY LTD

– OXFORDSHIRE, ENGLAND

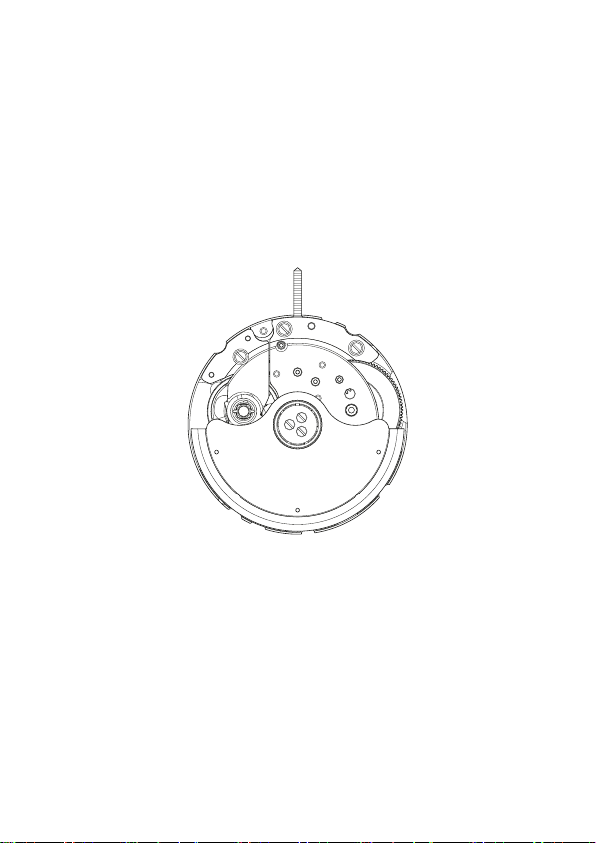

JAPAN

T

W

E

N

T

MIYOTA CO.

.

S

L

E

W

Y

E

-

J

F

O

4

U

2

R

Model: Atom ND

Limited production run 30 pieces

PINIONWATCHES.COM

Version 1.0 - September 2018

Instructions

1 2 3

Follow the instructions to operate your watch.
Please ensure you do not try to set the time in wet or humid
conditions and you push the crown back into correct position
once you have completed your adjustments.

Position 1

1

This watch has a push down crown and will wind
itself automatically when worn. If you haven’t worn
the watch for a while, it is recommended to wind
the watch by turning the crown clockwise for 40
times / 40 seconds times prior to wearing.

Position 2

2

Position (2) is not used for this watch as there is no
date display, but the crown seing is still
operational. Please ensure that you only use
positions (1) for winding and (3) for seing the
time. Once you have set the time, ensure that the
crown is fully pushed back into position (1).

Position 3

3

Pulling the crown into the position (3) will stop the
seconds hand so that time can be set by moving
the crown counter-clockwise will adjust the hands.

Watch care

Your watch has been engineered to be highly robust and
with the correct care will last for many years.

Please ensure that you follow the tips below when caring
for your watch.

Cleaning

To clean your watch case and sapphire crystal use water with
mild soap and a so cloth.

Water resistance

Ensure the crown is pushed in all the way before any contact
with water. Do not pull the crown out when the watch is
submerged in water or if you are in a very humid
environment.

Sea water

If your watch has been in sea water, then aerwards, wash
the watch with fresh water.

Shock resistance

The watch and movement has been engineered to be robust,
however try and avoid any heavy shocks to the watch, this
includes wearing the watch during activities such as golf
which can damage the automatic winding mechanism.

Magnetic fields

Avoid placing the watch near items which may contain
magnetic fields (such as loudspeakers) as this may cause the
watch to run incorrectly and require it to be demagnetized.

Two year warranty

Your watch is warranted by Pinion Watch Company Ltd for a
period of twenty four (24) months from the date of purchase.

The warranty covers material and manufacturing defects
which may exist at the time of purchase, and during the
warranty period, you have the right to have any defect
repaired free of charge.

The warranty does not cover:

- Normal wear and tear and aging (e.g. any colour change,
or scratches made to any parts of the watch).

- Any damage from accidents, abnormal use or incorrect use
of the watch. This includes damage to the movement.

- The watch being opened, altered or repaired by a
non-authourised person.

For all enquires regarding your watch then please email
Pinion at: [email protected]

Or call on [phone] to arrange for your
watch to be inspected.

Technical specications

Movement

Automatic Japanese made Miyota 9015. 24 Jewels.
Frequency: 28,800 vibrations per hour. 42 hour power
reserve.

Functions

Time in hours, minutes, seconds.
Hacking seconds feature.

Case

41mm in diameter (excluding crown) strap lug width
20mm. Steel engraved screw down case-back with
watch serial number engraving. Steel crown at 3H.

Crystal

Sapphire crystal with anti-reflective coating (Inside).

Dial

Painted dial with main numerals filled with Swiss
Superluminova® coating (C1-GL).

Hands

Coated brass hands with Swiss
Superluminova® coating (hour, minutes, seconds).

Water resistance

10ATM (100 metres).

Strap

Hand made 20mm leather strap with a stainless steel
pin buckle.

Servicing

It is recommended you service your Pinion watch every
3-5 years to ensure that essential maintenance can be
carried out and that any worn parts such as gaskets (to
retain water resistance) can be replaced.

Contact details for servicing

To contact us, send an email to:
[email protected]

For telephone enquiries please call:
[phone]
(Between 09:00 and 18:00 GMT)

Follow Pinion online

Facebook /pinionwatches

Instagram /pinionwatches

Twier /pinionwatches
