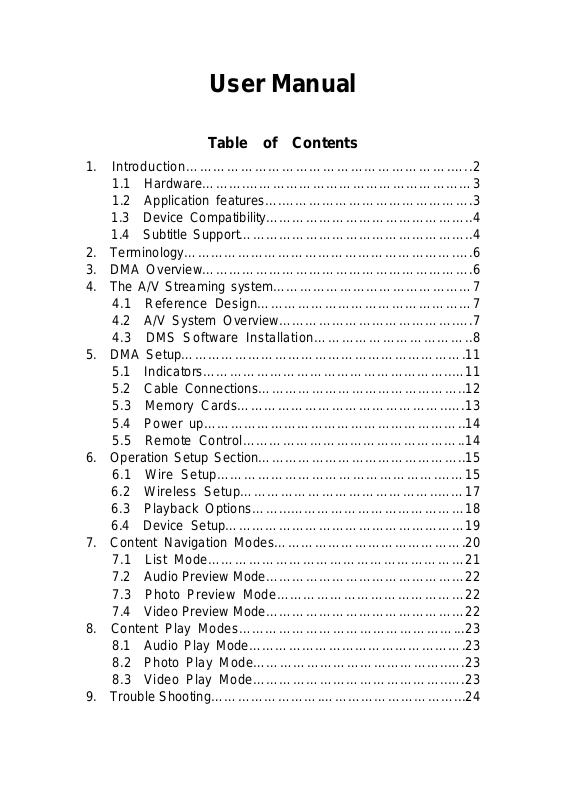

User Manual
Table of Contents
1. Introduction………………………………………………….…..2
1.1 Hardware……….……………………………………………3
1.2 Application features….…………………………………….3
1.3 Device Compatibility………………………………………..4
1.4 Subtitle Support……………………………………………..4
2. Terminology…………………………………………………….….6
3. DMA Overview…………………………………………………….6
4. The A/V Streaming system………………………………………7
4.1 Reference Design…………………………………………7
4.2 A/V System Overview………………………………….….7
4.3 DMS Software Installation……………………………..8
5. DMA Setup……………………………………………………….11
5.1 Indicators………………………………………………..…11
5.2 Cable Connections………………………………………..12
5.3 Memory Cards………………………………………..….13
5.4 Power up…………………………………………………..14
5.5 Remote Control…………………………………………..14
6. Operation Setup Section………………………………………..15
6.1 Wire Setup………………………………………….……15
6.2 Wireless Setup……………………………………..……17
6.3 Playback Options……...…………………………………18
6.4 Device Setup………………………………………………19
7. Content Navigation Modes…………………………………….20
7.1 List Mode…………………………………………………21
7.2 Audio Preview Mode………………………………………22
7.3 Photo Preview Mode……………………………………22
7.4 Video Preview Mode………………………………………22
8. Content Play Modes…………………………………………...23
8.1 Audio Play Mode………………………………………….23
8.2 Photo Play Mode……………………………………..….23
8.3 Video Play Mode……………………………………..….23
9. Trouble Shooting…………………….…………………………...24
1. Introduction
Watch downloaded movies: Download and store movies on
your PC then watch them on your TV from the comfort of
your living room couch. No need to burn movies from your
hard disk to CD or DVD,just the ease and convenience of
wireless access with fingertip control.You can playback
movies from online movie services and evenstream movies
from the Internet. The Wireless Multimedia player supports
MPEG1, MPEG2, MPEG4, DivX and Xvid video formats.
Enjoy PC music anywhere at home: Stream music files
from your PC and listen to them in high quality in any room
on your audio system. Keep your music collection stored on
your PC's hard disk. Use your remote control to select
songs according to artist, album or genre. You can play
songs from online music services, and even listen to
Internet Radio without a PC. The Wireless Multimedia
player supports WMA, MP3 and AAC-MPEG4 music
formats, and so you have access to all your downloaded
songs.
Share your digital photos: Relax on the couch and look at
your holiday photos with the whole family or friends. Simply
store your photo collections centrally on a PC and enjoy
them anytime on your TV. If you have a high-definition TV
input on an LCD or plasma TV, your digital photos will be
brought to life!
Smart and simple: The Wireless Multimedia player is easily
installed, thanks to a user-friendly step-by-step approach.
All the steps needed to install it are displayed on your TV
screen.
Wireless convenience: You can access multimedia content
from other PCs in your house. The media manager works
on most PCs, including older types. So with just one
Wireless Media player you can access content on several
PCs, and there's no need to copy files across. The 2.4 GHz
wireless link between the Multimedia player and the PC
means you don't have to lay cables or drill holes through
walls.
1.1 Hardware
1.1.1 External Interfaces
• Ethernet (10/100)
• 802.11g WiFi
• USB2.0 FS HOST
• Flash card reader MS/SD/MMC/CF
• AV outputs
1.1.2 Video
• Composite (yellow RCA)
• SCART interface.
• Y/PbPr/YCbCr
1.1.3 Audio
• L/R Stereo (RW RCAx2)
• Digital audio out (Optical output)
1.1.4 IR input (remote control)
1.2 Application Features
1.2.1 "Browse for” and play back content stored on PCs or other
DLNA server devices on the network, or from local media"
• Network content browsing dependent on DLNA media server's
"presentation" of the available content
• Local content browsing (Thumb drive, Flash cards) based on simple
hierarchical folder organization (file system)
• Built in radiotime internet radio and flickr photo share website.
1.2.2 Trick mode support
• Multi speed FF/FR/Skip ahead/Skip back
• Pause/Play/Stop
• Zoom/Rotate on photos
1.2.3 File Search
1.2.4 Photo Slideshow
1.2.5 Music+Photo Slideshow
Device setup
- Control over most aspects of device operation
- Accessed through "Setup" button on remote control
- Networking
• Simple, intuitive - "leads" user through initial connect process
• Prioritizes on Wired; if no Wired, then attempts to connect via Wireless
• Automatically identifies and auto prompts user on SSID select and
security key entry when connecting to a secure network
• Networking
• Display
- 4:3 or 16:9 format
- PAL or NTSC
- 480i/480p output
• Three display/viewing modes:
- Preview Mode.
• Video – highlighted video file in list plays in preview window.
• Photo – highlighted photo file in list displays in preview window, along
with basic file information.
• Music – highlighted music file in list plays, with ID3 tag info displayed
in preview window.
- List Mode
- Thumbnail Mode
1.3 Device Compatibility
1.3.1 Display resolution
- Standard Definition AV processing and output (480i/480p)
- NTSC or PAL
1.3.2 File format support
- Files can be from USB, Flash cards, or over the network. Only caveat
is some network media servers limit what file types they make
available.
- Video
• MPEG1/MPEG2/MPEG4(SP)/MPEG4(ASP)/ MJPEG
• DIVX(3.x,3.x,5.x,6.0)/XVID(include GMC and QPEL)
- Audio
• PCM/WAV/MP3/AAC
- Pictures
• JPEG (max. 5120x3840)
• BMP/TIF/GIF/PNG(limited size)
1.3.3 DLNA Media Player
- Network Protocols
• TCP/IP stack
• HTTP streaming
• UPnP
• IP Addressing
* DHCP
* Static IP
* Auto IP
• DLNA v1.0 player/control point
* Works with DLNA-compliant Media Servers
* Tested with Microsoft WMP11, WMP10+WMC2.0, Philips PMM, and
TwonkyVision
* Can interoperate with up to 8 servers at the same time
1.3.4 Networks
- 802.11 WiFi
• .11g or Super .11g (can optionally support 802.11a)
• WEP or WPA2 security
- 802.3 Ethernet
• Supports 10/100 connectivity to either 10 Mbit or 100 Mbit networks
1.4 Subtitle Support
1.4.1 DMATool use guide:
1. Run DMATOOL.EXE
2. Click MENU subtitle, click SUBMENU select(or PRESS Ctrl+O),the "Select
Subtitle file" window will be show.
3. Click open button. show "open file" dialog
4. select single subtitle file
5. The list1 will be show the selected files. Press >> to confirm selected item.
6. Press Coverter button
.
7.The subtitle file will be converter to AVI file.
For example: Movie001.srt to Movie001_srt..avi
1.4.2 Windows Media Player11 setup:
1.Click Menu Library, click SUBMENU Add to Library.
2.Then click Advanced Option.
Click Here
3.Set “skip files small than” as 0 KB
4.Click OK to quite.
1.4.2 DMA unit operation:
1. Select subtitle file
Movie001_SRT.avi
?
2.Press Subtitle key to make sure subtitle file be selected.
3.Select vedio file(MOVIE001.avi) to play.
4.OK!
2. Terminology
A/V Audio/Visual
EN Ethernet
EN cable 10/100BaseT En patch cable(straight through type)
MAC The unique 12 character hexadecimal address of an
EN device
NC No Connection
O/S Operating System
PC Pentium based Personal Computer running XP O/S
PCA Printed Circuit Assembly
PCB Print Circuit Board
R/C Remote Control (infrared)
RGW Router Gateware
WiFi 802.11a/b/g/n Wireless Ethernet
3. DMA Overview
Front View:
Side View:
Back View
4. The A/V Streaming System
4.1 Reference Design
The reference system includes the following components:
DMP Unit
Remote Control with 2 AAA battery
12V DC Power Adapter
Wifi Mini PCI card
Built in Wifi antenna
AV cable
4.2 A/V System Overview
The typical A/V Streaming system requires the following
equipment:
802.11b/g compatible wireless router with10/100 Ethernetport(s)
A PC running XP Home or Professional Operating system
Microsoft Digital Media Server (DMS) software installed on the PC
NTSC or PAL Display/TV with Composite video inputs
Typical Digital Media Player System
¾ Hint:Using a wireless connection for both the DMA and the
Server PC doubles the media data traffic over the connection.
While this rate is achievable with 802.11b/g technology in
ideal conditions, it can cause undesirable interrruptions in
some movie viewing situations. To avoid this, use a wired
network connection between the Server PC and the wireless
RGW. Alternatively, a wireless 802.11 AD HOC connection
can be set up directly between the PC and the DMA.
4.3 DMS Software Installation
Your PC requires software to act as a media server using UPnP protocols.
Many other DLNA compliant UPnP Media Server software products are
Supported. Follow the installation directions provided with that software.
Note:The OS version of computer must be windows XP SP2 or
above.
4.3.1 Download and install Windows Media player 11
IMPORTANT: The DMA uses your wireless network and Windows Media player 11 to
access the pictures on your computer. If you do not have Windows Media player 11 on
your computer, or you have an earlier version, the software CD packed with your DMA
automatically lets you install Media player 11.
Begin the download. You must be connected to the Internet.
If you already have Windows Media player 11, or higher, on your computer. Go to set up
media sharing.
[1] Let me install Windows Media player now
[2] Your browser opens and you are automatically connected to the Microsoft
Windows Media player download page.
[3] Click Download NOW.
Do not close the Windows Media player installer window during the installation.
TIP—if an error screen appears, click OK on the error, then click Cancel on the Digital
Picture Frame Installer screen. Restart the installation by ejecting the CD and reloading it.
Continue with the download of Windows Media player 11.
3
[4] Click Run to start the download.
The download usually takes less than a minute with high-speed Internet access.
Dial-upconnections take longer.
A progress screen appears as the installation files are downloaded to your computer.
TIP—if the progress screen does not appear, click Click here if your download did not
begin
[5] Click Run again.
A progress screen appears as the installation files are extracted on your computer.
[6] In the Validate your copy of Windows screen, click to confirm that you have a
valid copy of Microsoft Windows operating system.
[7] In the Thank you screen, click I accept to accept the supplemental license for
Windows Media player 11.
The installation begins. A progress screen appears and monitors the installation. The
Windows Media player 11 Welcome screen opens.
4
5
4.3.2 Set up Windows Media player 11
Windows Media player is installed! Now choose your settings.
[1] On the Welcome screen, select Custom Settings .
We strongly recommend that you select Custom Settings If you choose Express settings,
the setup will take significantly longer (up to an hour).
[2] Click Next.
[3] In the following setup screens (Select Privacy Options; Customize the
Installation Options; Select the Default Music and Video Player ), we recommend that you
accept all options as they are presented, and then click Next.
[4] If the Choose an Online Store screen appears select, Don’t set up a store now.
We strongly recommend that you. Do not choose to set up a store now. If you do, the
setup will take significantly longer (up to an hour).
[5] Click Finish.
A progress screen monitors the setup. When the setup is complete, Windows
Media player 11 opens and displays available media files.
4.3.3 Share media in Windows Media player 11
Set up Media Sharing so your frame and Windows Media player recognize each other.
[1] Open Windows Media player 11 (if you already had Windows Media player 11
Installed and bypassed the installation.
[2] Click the Library button in the top menu bar.
[3] Select Media share from the drop-down menu.
[4] In the Media Sharing screen, select Share my media.
[5] Click OK .
DMA SERVER
5. DMA Setup
5.1 Indicators
5.2 Cable connection
5.2.1 Connect TV
5.2.2 Connect Audio System
5.2.3 Plug Adapter
5.3 Memory cards
Memory Card Support – Many popular memory cards are
supported:
y CF - Compact Flash I and II Type
y SD(TM) - Secure Digital Card
y MS - Memory Stick(R)
y MS Pro - Memory Stick PRO(R)
y MMC - Multimedia Card(TM)
You will find that most cameras have CF, SD, MS or MMC formats.
SD slot CF slot
MS/MS Pro/SD/MMC COMPACT Flash (Type I & Type II)
Content can be audio, photo or video, and will appear in the Media Sources list
once the memory card is inserted and recognized.
Networks
Computer01:Owener
SERVER
CF Card
USB DEVICE
Item 0 Media Sources
5.4 Power up
Connect the DMA power adapter. Power on the display, and point the remote
control towards the front panel of the DMA unit and press the POWER button
on the R/C. When on servers are available or set up, the display will appear as
follows:
Networks
Computer01:Owener
SERVER
Computer02
Item 0 Media Sources
To set up the network connection, refer to the Network Connection Setup
section.
The DMA unit provides memory card support. If a memory card with content is
installed, it will be identified in the Media Sources display.
5.5 DMA Remote
The DMP Remote control (R/C) uses infrared so it must be aimed toward the
front of the DMP enclosure. The remote has the following keys and functions
for navigating the Setup interface
To use the remote control unit to operate the DMA
player, insert two batteries (size AAA) making
sure that the + and – ends of the batteries are
matched to the +/– marks printed inside the
battery compartment.
ITEM KEY ID DESCRIPTION ITEM KEY ID DESCRIPTION
1 POWER Power device on/off 15 AUDIO
2 Digits
3 VOL- Decrease volume 17 ROTATE Rotate the photo display
4 UP Cursor up/ move up one entry 18 ZOOM Zoom video or photo
5
6 LEFT
7 PREV Go to previous file 21 REV Fast reverse
8 NEXT Go to next file 22 FWD Fast forward
9 DEFAULT
10 HOME Return to main menu 24 RIGHT
11 REPEAT Select repeat mode 25 STOP Stop playing
12 M-SLIDE Enable slide show mode 26 OK
13 SLOW
14 RESUME
PLAY/PAUS
E
0-9:Press to enter number
directly
Play or pause a file 19 SETUP Enter SETUP menu
Cursor left/ Skip up one page
or top of top page
Restore setup setting as
default setting.
Press SLOW during playback
to obtain a slow motion
playback
Remember where you stopped
viewing a media file and press
the key to resume play at that
point
16 SUBTITLE
20 DISPLAY Toggle time counter on/off
23 DOWN Cursor down/ move down one entry
27 VOL+ Increase volume
28 MUTE Mute volume
Toggles between available audio
languages
This button toggles between available
subtitle languages
Cursor right/ Skip down one page or
bottom of last page
Confirms selection of an item in the
menu
6. Operation Setup Section
6.1 Wired Setup
If you are using a wired network connection, and your network router system is
set for DHCP mode, there is no need to change any Network Settings. If using
Static IP mode, press SETUP key on the remote control to navigate to the
Setup Main Menu screen.
Exit Setup
Playback Options
Select Network
Network Setup
Device Setup
Device Status
Press the Down Arrow key to highlight the Wired Network line and press
OK.
Cancel
Referesh
Wired Network
Defaut
Server02
Server03
The following screen indicates the current IP settings. To change these
settings, select the TCP/IP Button:
Wired Network
IP onfiguration: Automatic [DHCP/Auto IP]
IP Address: 192.168.0.4
TCP/IP
OK
Once connected, available server(s) active on the network will be displayed
below the “Networks” line on the Media Sources page.
Networks
Computer01:Owener
SERVER
Computer02
Item 0 Media Sources
NOTE: Some servers require newly discovered DMA devices on the network
to be authorized. Check the server software interface on the PC to make sure
the new DMA device has been properly authorized.
6.2 Wireless setup
To setup a wireless network connection, from the Network Setup screen
select the Wireless Type A or B/G by moving the cursor down to the desired
Wireless network type and press OK:
The DMA will search for available advertised Network names and
display the mass own. Move the cursor highlight down to the desired Network
name and press OK:
Cancel
Wired Network
List Wireless B/G Networks
List Wireless A Networks
Cancel
Referesh
Wired Network
Defaut
Server02
Server03
Note: The previously used network will appear at the top of the list.
y
If the selected wireless network has security enabled the Pass- phrase
entry screen will popup where you may enter the pass- phrase. Alternatively,
selecting the SECURITY button will bring up the Pass -phrase entry screen.
Enter the Pass -phrase character string and highlight OK button and press OK
key.
Enter WPA Passphrase
PASSWORD
Shift OK
Erase Cancel
Default
Secure wireless infrastructure network [WPA TKIP]
802.11b/g channel 4
I
P onfiguration: Automatic [DHCP/Auto IP]
IP Address: 192.168.3.114
TCP/IP
6.3 Playback Options
Exit Setup
Playback Options
Select Network
Network Setup
Device Setup
Device Status
Music Playback Mode
There are four available settings: ①Play Folder ②Play Single ③Repeat
Folder ④Repeat Single
Video Playback Mode
There are four available settings: ①Play Folder ②Play Single ③Repeat
Folder ④Repeat Single
Back
Music Playback Mode Play Folder
Video Playback Mode Play Single
Slideshow Playback Mode Play Folder
Slideshow Transition Cross Mode
Slideshow Interval 3 seconds
OKSecurit
Slideshow Playback Mode
There are two available settings: ①Play Folder ②Repeat Folder
Slideshow Transition
This unit is setting the JPEG file slide show mode, as shown below: ①Full
Screen ②Top to Bottom ③ Bottom toTop ④T/B to Center ⑤Center toT/B
⑥Blind: Top to Bottom ⑦Left to Right ⑧Right to Left ⑨L/R to Center ⑩
Center to L/R ⑪Implode ⑫Blind Left to Right ⑬Cross Fade ⑭Random
Slideshow Interval
This unit is setting interval time among the showing picture to next picture on
slide show mode, as shown below: ①1 Second ②3 Seconds ③5 Seconds
④10 Seconds ⑤Manual Transition
6.4 Device Setup
Exit Setup
Playback Options
Select Network
Network Setup
Device Setup
Device Status
TV Type
There are three available settings: ①Mutisync ②NTSC ③PAL
TV Display
There are three available settings: ①4:3 Full Screen ②4:3 Letter Box ③
16:9 (HDTV)
Video Output
There are two available settings: ①YCbCr ②SCART-RGB
SPDIF Output
There are three available settings: ①Off ②SPDIF/RAW ③SPDIF/PCM
> SPDIF/RAW:
Set to this selection will output the raw bit stream signal of Dolby
optical jack. In order to enjoy Dolby
must be connected to the digital-input jack of a Dolby
or processor.
®
Digital DTS media files, this unit’s digital output jack
®
Digital or DTS compatible receiver
Back
TV Type NTSC
TV Display 16:9(HDTV)
Video Output SCART-RGB
SPDIF Output Off
Screen Save 3 seconds
Font Size Normal
Restore Factory Defaults
®
Digital or DTS from the
> SPDIF/PCM:
\
PCM stands for Pulse Code Modulation and is digital audio. Connecting this unit to an
amplifier with a built-in D/A converter can play the same digital audio format media files.
Additionally , 2-channel anal ogue audio will output from the audio output jacks of a mplifier.
Screen Saver
There are four available settings: ①Never ②3 Minutes ③5 Minutes ④15
Minutes
Font Size
There are two available settings: ①Normal ②Small (HDTV)
Restore Factory Defaults
When you select this item and press OK key, then all the initial settings will be
restored to the factory default settings.
7. Content Navigation Modes
Once a content source is selected, the directory format presented is
determined by that source. Use the remote control (R/C) cursor keys to
navigate through the content directories. The content can be displayed in List
Mode, List/ Preview Mode or Thumbnail mode. These display form at modes
are selectable by pressing the DISPLAY key.
Preview Mode LIST MODE Thumbnail Mode
SELECT FOLDER：
PREVIEW MODE：
Back
Music
Video
Pictures
Playlists
LIST MODE：
THUMBNAIL MODE:
Who’s Got My Back?
Yesterday Once More
The Earth
Music01
Music02
Where are you
Say You Say ME
Item 14 …Media Connect\Music
Back
Date：2006/10/05
All Pictures
Item0 …Media Connect\Music\All Pictures
The R/C key functions for content navigation vary slightly depending on the display
mode: List mode, Audio Preview, Photo Preview and Video modes. The R/C functions
for each of these modes are shown in the following sections.
7.1 List Mode
R/C key Function:
Who’s Got My Back?
Yesterday Once More
The Earth
Music01
Music02
Where are you
Say You Say ME
The Day You Went Away
Item 14 …Dows Media Connect\Music\All Music
ITEM KEY ID DESCRIPTION ITEM KEY ID DESCRIPTION
1 POWER Power device on/off 15 AUDIO
2 Digits 16 SUBTITLE
3 VOL- Decrease volume 17 ROTATE
4 UP Cursor up/ Go to previous file 18 ZOOM
5
6 LEFT
7 PREV
8 NEXT Go to next file 22 FWD Fast forward
9 DEFAULT
10 HOME Return to main menu 24 RIGHT
11 REPEAT Select repeat mode 25 STOP Stop playing
12 M-SLIDE Enable slide show mode 26 OK
PLAY/PAUS
E
Play or pause a file 19 SETUP Enter SETUP menu
Skip up one page and select
bottom item of this page
Back to top of first page( BACK
Position)
Restore setup setting as
default setting.
20 DISPLAY Toggle time counter on/off
21 REV Fast reverse
23 DOWN Cursor down/ Go to next file
Skip down one page and select top item
of this page
Confirms selection of an item in the
menu or Play the file
13 SLOW 27 VOL+ Increase volume
14 RESUME 28 MUTE Mute volume
\
7.2 Audio Preview Mode
7.3 Photo Preview Mode
Who’s Got My Back?
Yesterday Once More
The Earth
Music01
Music02
Where are you
Say You Say ME
The Day You Went Away
Item 14 … MeDows dia Connect\Music\All Music
Artist: Paul Simon
Album:
Track: 06
7.4 Video Preview Mode
Item 14 …Media Connect\Music\All Pictures
Video01
AV 20050601
Movie02
file 2006-08-2
file 2006-08-05
Die Hard
Transformers
The power of ring
Item 14 …Media Connect
Date：2006/10/05
0:48
Music\All Video
8. Content Play Modes
The R/C key functions vary slightly depending on which play mode is active.
These R/C functions are shown below in each of the play modes: Audio, Photo
and Video play modes.
8.1 Audio Play Mode
Use UP/DOWN/LEFT/RIGHT key select music flie, then press
PLAY/PAUSE or OK key to play the music file.
Artist: Bon Jovl
Album: Crush
Track: 01 Year: 2000
Item 132 EQ: standard 0:05
8.2 Photo Play Mode
Use UP/DOWN/LEFT/RIGHT key select JPEG flie, then press
PLAY/PAUSE or OK key to show the photo on the TV screen.
NOTE: To play music with photo slide show, Browse into the desired audio
folder and press the M-Slide key to toggle MUSIC SLIDE SHOW feature on
and off. The photo zoom mode is disabled when music-slide show is active.
8.3 Video Play Mode
Use UP/DOWN/LEFT/RIGHT key select Video flie, then press
PLAY/PAUSE or OK key to Play the Video file.
Recommend: Each movie each folder in PC, pls. go to folder view in
DMA to see the movie
9. Trouble shooting (FAQs)
For more information on setting up and using the wireless features of your
DMA, visit
Frequently asked questions
1. I already have Windows Media player on my computer. Do I have to
install it again?
You must have Windows Media player 11, or greater, so your DMA can
access the pictures on your computer.
Check your Windows Media player version number. (Right-click in the top
menu bar, then select >help:about Windows Media Player.) If your version is
earlier than 11, upgrade to version 11.
2. I lost my Internet connection in the middle of my setup. What should I do?
Reconnect to the Internet and repeat the installation and setup, starting on
3. I lost my wireless connection in the middle of the setup. What should I
do?
Make sure your wireless connection is live and repeat up, starting on
4. I can’t find my network. Why?
Is your network set up to broadcast SSID? If so, you must enter your
wireless network information manually. The person who set up your network
can help you with this information.
Does your network have security enabled (WEP or WPA)? If so, follow the
instructions on Page 16.
5. I can’t find my network computer. Why?
Make sure your router and your computer are on.
Make sure your computer is on your wireless network. See the
documentation that came with your router and your computer.
Is Media sharing enabled in Windows Media player 11? See Page 8.
Is your DMA allowed to share content with your computer? See Page 9.
6. If PC can’t find the DMA?
Maybe your firewall or windows setting problem, Please do as below step:
Click Start, Run “services.msc”, you will see below:
y HTTP SSL change to start, automatic
y SSDP DISCOVERY SERVICE change to start, automatic
y Universal Plug and Play change to start, automatic
y Windows media player Network Sharing Service change to start &
automatic, then restart the computer
2. I didn’t connect to my network the first time I turned on my DMA. Can I do
it now?
Yes, you can.
Press Home on the remote control, then select Settings>network>Nomal>
Enable/disable connections>enable.
3. No reaction to the supplied remote control.
Connect the power adapter to the power supply.
Point the remote control at the product.
Insert the batteries correctly. Insert new batteries in the remote control.
4. No vedio signal on the TV screen.
Turn the TV on.
Set the TV to the correct external input.
Set the video output connection on the rear of the product to the correct
position and restart the product.
Make sure that the TV supports the video signal of the product. Press the
Default key on the supplied remote control to restore the video output signal
to the factory default values.
5. No sound signal from loudspeaker of audio system or TV.
Turn the audio system on.
Set the audio system to the correct external input.
Increase the volume level of audio system.
Check whether the volume of product is set to “0”. Check whether the AV
cable is porperly connected to the port. Check whether the media file is
damaged.
6. Cannot find the wired network.
Turn the other wired network devices on.
Use a straight nework cable(Ethernet, UTP5e) to make a connection from the
product to the wired network.
Loading...
