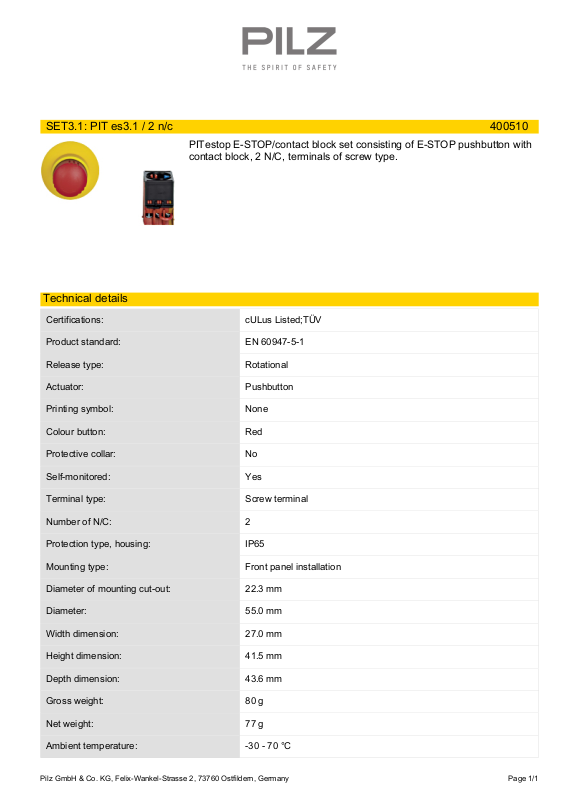

Pilz 400510 Data Sheet

SET3.1: PIT es3.1 / 2 n/c 400510

PITestop E-STOP/contact block set consisting of E-STOP pushbutton with
contact block, 2 N/C, terminals of screw type.

Technical details

Certifications: cULus Listed;TÜV

Product standard: EN 60947-5-1

Release type: Rotational

Actuator: Pushbutton

Printing symbol: None

Colour button: Red

Protective collar: No

Self-monitored: Yes

Terminal type: Screw terminal

Number of N/C: 2

Protection type, housing: IP65

Mounting type: Front panel installation

Diameter of mounting cut-out: 22.3 mm

Diameter: 55.0 mm

Width dimension: 27.0 mm

Height dimension: 41.5 mm

Depth dimension: 43.6 mm

Gross weight: 80 g

Net weight: 77 g

Ambient temperature: -30 - 70 °C

Pilz GmbH & Co. KG, Felix-Wankel-Strasse 2, 73760 Ostfildern, Germany Page1/1
