Wingspan: 88 in

Win garea: 1479.8 sp in Length: 78.8 in Engine: 50CC

Assembly Manual for

Decath lon 107”Decath lon 107” --180”180”

INTRODUCTION

Thank you for purchasing our Decath lo n p lan e. At Pilot we st r ive to build the best performing Quick Buil d ARF aircraft available t oday .

The D ecat h lo n i s man uf act u r ed using advanced building techniques for maximum strength and lightest weight. The kit features many premium light weight carbon fiber components, hardware, genu ine Oraco ver(U ltraco te) coverin g, laser cut wood, and the best ad hesives. The Decat hlon ’s light weigh t allo ws opt imum flig ht performance from exciting aerobat i cs or just r elax i ng .

At Pi lo t we make ever y effort to provide the highest quality products and customer service. Our goal is a happy customer having a wonderful time assemblin g and f lyin g Pi lo t mo del aircraft.

More information on website

www.pilotwww.pilot--rc.comrc.com

WARRANTYWARRANTY

■

All Pilot-RC products are guaranteed against

defects for 30 days of receiving your airplane. This warranty is limited to construction or production defects in both material and workmanship , it does not cover any component parts damaged through use or modification .

■

The m anufacture cannot supervise the assem bly, operation or maintenance, and is not responsible for radio malfunctions. Please ensure your radio system is in good condition. We are not respon s i ble for any

accident or damage while using this product. It is

impossible to determine for certain whether crash damage was the result of improper installation of our products, a radio system failure, or pilot error. Model airplane owners use our products at their own risk.

■

Pilot-RC will not be liable for any costs, unless agreed and proved beyond doubt the failure was due to faulty m aterials or fabrication. Any agreed cost will not exceed the cost of the airframe and not include engine, radio equipment or third party claims.

■

Should you wish to return a product or receive replacement parts, all shipping cost must be paid by the customer.

ATTENTIONATTENTION

Email: pilot-rc@139.com , info@pilot-rc.com Ce l lphone:+86 760 88781293 FAX: + 86 760 88780293 Addre ss: N o.34,Che ngnan Er Roa d , Zhongs han city, 528400, Gua ngdong Province, Chin a

■

Do not regard this plane as a toy!

■

To ensure safety, please read the instruction

manual thoroughly before assembly.

■

Building and operating an RC Plane of this nature requires previous experience and com petence to an experienced level. This plane is not for a beginner!

■

If you are in doubt have an experienced pilot at hand. Diligent practicing and correct guidance is essential, accidents can cause bodily harm and property damage.

■

Seek assistance from an experi en ced person or

airplane model clubs in assembly, operation and maintenance to ensure successful training.

■

Fly only in a registered RC model club

airfield

that is approved by your local Academy of

Model A eron au ti cs (AM A

Pilot - RC has the right to revise the plane, the instr uct i ons and the lim ited warrant y wi t hout

notice. If you have any problem s and questions

please contact Pilot –RC at:

Introduction………………….………..….…….………… Warranty…………………….……..….…. . ……………….. Attention…………….…………. . …. ……. . ………………. . Fuselage

Rudder Assembly

Rudde r C ont ro l Hor ns………..…….…... …………….

Tail Wheel In stallation …………..…….......................

Landing Gear Assembly .

Main Landin g Gear Installat ion………….…..………. Pants Installation…………..….……………………….

Servos

Wing Servo Assembly

Servo Arm Installation………….….………………….

Aileron Con trol Horn s………….……….……………..

Servo Inst allation …….…………..……………………

Rudder S e r v o A ssembly

Servo Tray Ins tallation….…….….......………………

Servo Inst allation ……….….……...………………….

Elevator Servo Assembly

Servo A rm Installation………….…………………….

Elevator Con trol Horn s……………....….……………

Servo Inst allation ……………….....………………….

Engine installation

Firewall Assembly……….…….....…………………. .

Engi ne A ssem bly……….…..……..…………………. Throttle Servo Assembly….….…... ……. ……………

Ignitio n Modul e ………….…….………………………

Ha tch A nd Fue l T a nk………….….……....…………..

Final Assembly

Switch Assembly………….….……....……………….

Wing A ss embl y………….….……....…………………

Elevator Assembly……………….….……....………..

CG And Control Throws……………………………… Flight Preparation…...…………….….…..…………..

Led Option…..………….….……....………………….

INDEX

2 3 4

17 19

6 8

10 11

13 14 15

23 24 25

31 32

34 37

39 42

Fuselage

Rudder Assembly

Rudder Control H orn

1. Tear off the cover on th e h orns an d lo ck i ng pl a te s .

2. S lic e coverin g over fac tor y in s tal led slots. Press control horn into position. Trace around the locking plate with a knife and re mo ve the co ver ing.

3. Sc uff the middle of horns w it h a piece of sand paper for good glue bond. Wipe of f sa nding dust pr ior to gluing.

Rudder Assembly

4. Apply the 30 minutes epoxy inside the pre-cut slot, and coat the horn with epoxy as shown.

Make sure the horn is perpendicular to the rudde r.

5. Slide the horn into slots with lo ck i ng mo unt pl a t e s. Wipe away excess glue with rubbing alcohol.

Tail W heel Installat ion

Tail w he e l

1. D r aw a c enter line with a fi ne line mar ker as s hown.

3. Install the blind nuts through the open in g in th e r ear of th e fusel ag e. Mount the tail wheel assembly using blue Loctite on the threads screws.

2. L ocate and drill holes in the tail wheel mounting block as shown.

Tail w he e l

5. Drill a 1mm hole in the bottom of the r udde r and mount s teeri ng spri ng with a wood screw as shown. Cut off excess wire from the spring.

4. Install the hatch over the opening in the rear of fuse with 3 scr ews in accordance with the pre-drilled holes

Ensure the spring is under slight tension.

Main Landing Gear Installa t ion

Landing Gear Assembly

NOTE: The main landing mounting direction.

Taper to rear

Straight edge t o front

Landing Gear Assembly

2. Ins tall the l a ndi ng ge a r ax l e s w i th lock nut.

4. In st all wheel s and wheel col lars usingBlue Loctite on the set screws.

3. Tighten the lock nut against the landing gear strut making sure the flat sides of the axle bolt vertical with ground.

1. Install the landing gear with the

bolts and locking nuts. Do not over tighten the hardware.

Landing Gear Assembly

1. Level the fuselage and place the wheel p an ts over t h e wh eels. Th e cu t out in the w he e l pant is cut to fit the hex n ut on the axle. Ch eck for proper clearan ce over the wh eels and th at wheel p an ts ar e level with t he fuselage.

2. Drill the holes for t he moun tin g bol ts a nd i nst a l l the blind nuts .

3. Finish the wheel pant m ounting with the bolts and use Blue Loctite on the threads.

Wheel pant installation

Wing servos

Wing Servo Assembly

Minimum serv o specs:

Servo A rm Instal lation

1. Turn on your transmitter and make sure servos are centered before putting on servo arms.

2. Locate and drill 2mm holes into nylon servo arm to attach the included fiberglass servo arms.

3. Mount the screws and nuts.

180 in. oz / Metal Gear / Digital

Use a drop of CA glue on ea ch nut.

Use a few drops of CA to h old arm in place for drilling.

Aileron Control Horns

1. Tear off the cover on th e h orns an d lo ck i ng pl a te s

2. S lic e coverin g over fac tor y installed slots. Press cont rol horn into pos itio n. T r ac e aro und the loc king plat e wi th a kn ife an d remove t h e covering.

3. Scuff th e hor ns with a pi ece of sand paper for good glue bond. W ipe off sanding dust prior to gluing.

Wing Servos

4. Apply the 30 minute epoxy inside the pre-cut slot for horn and coat the horn with epoxy as shown.

5. Slide the horn with locking plate into place. Wipe away excess epoxy with rubbing alcohol. Note: Some tr i mming of the horn might be required for the horn to fit flush.

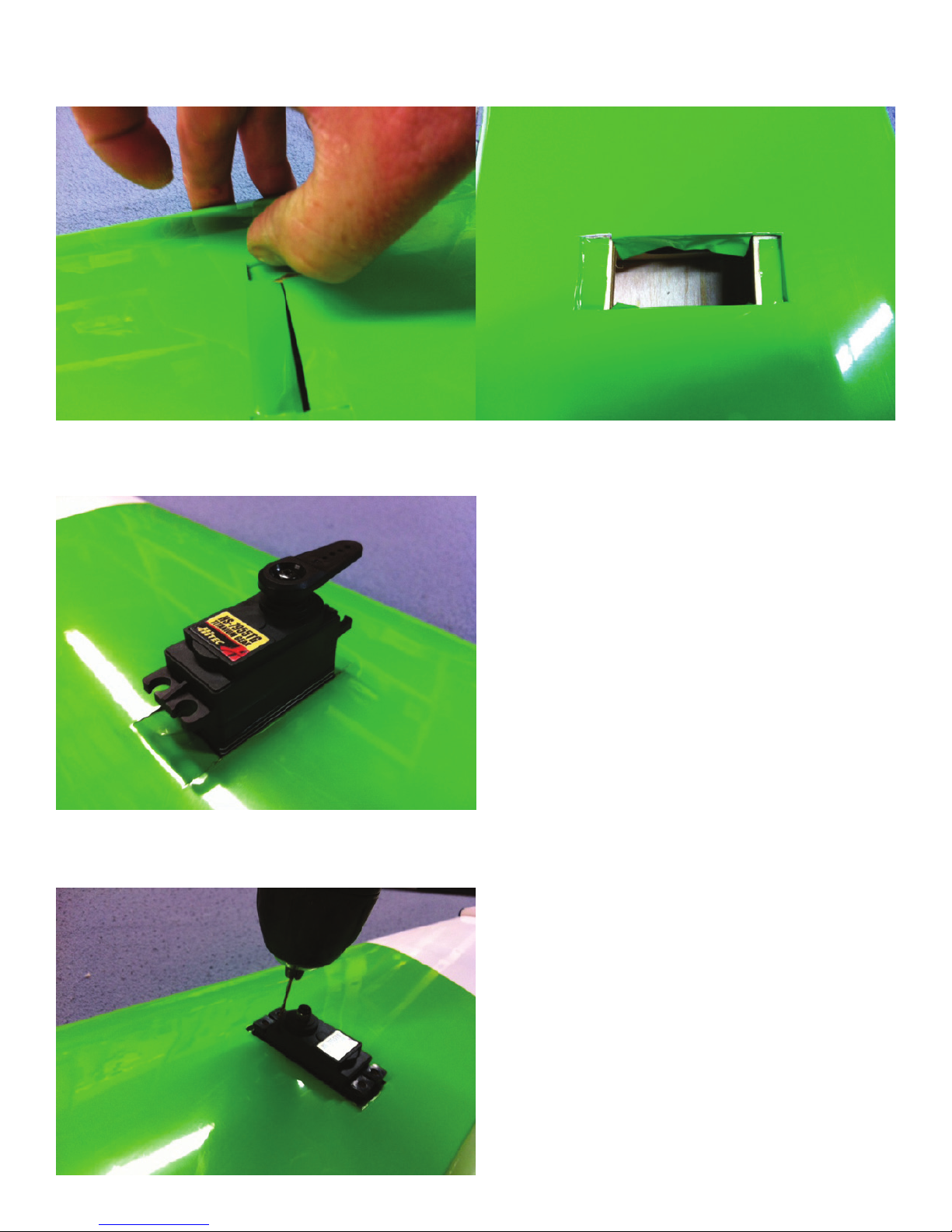

Servo Installat io n

Wing Servos

2. Add a servo extension to each aileron servo. Install connector safety clip to as sh own to connection.

3. Locate servo cut outs a nd r e mo ve th e coverin g with a kni fe. Tape t h e servo lead securely to the p ull-string.

4. Pull the extension lead through to

the root of the wing.

5. Use a 1mm drill bit to drill for the

servo moun ting screws. Install servo with output shaft toward the leadin g edge of the wing.

Wing servos

6. Install the servo arm faci ng outboard toward the wing tip. Adjust pushro d le ngth so the serv o ar m is at 90 degrees and aileron panel in neutr a l position.

Rudder servo Assembly

Rudder servo installation

The rudder servo can be mounted forw a r d in the cabi n us i ng ca bl e s or mounted in the tail using a push rod.

(A)

(B)

7. Repeat steps for the other aileron

and f la ps.

Pick the rudder servo mounting

location based on CG needs.

(B)

Rudder Servo Assembly

1. Turn on your transmitter and make sure servos are centered before installing t he r udde r s e r vo arm.

2. Drill holes with a 2 mm bit for hardware.

A drop of CA glue

her e on nuts.

3. Mount the screws and nuts.

Minimum serv o specs:

180 in. oz. / Metal Gear / Digital

Hold with tape or a few

drops of CA to the

edge s.

2. Install the rudder servo arm with

cable attach points aft.

Rudder Servo Assembly

The rudder cables and couplers come factory installed as shown.

Rudder Servo (A)

1. Drill 1mm holes and mount the rudder servo with the output shaft facing forward.

3. Tape the rudder to the vertical fin in the neutral position to help

with the rigging.

4. Mount the cables with the pre-

installed ball link cable ends to the rudder servo arm . Cut the covering in the tail to expose cable exit sl ots. Run the cables out the slots. Make sure the cables cross in the middle.

5. Install ball link to rudder control horn temporarily.

6. Pr i o r to conne ct i ng rudder ca ble to the ball link, slide a section of heat shri nk tubing a nd coppe r tubing. Run cable as shown looping around tubing . Remove excess slack from ca ble and c r imp with diagonal plier s .

Rudder Servo Assembly

5. The flat surface of the ball link gets screwed against the servo arm.

7. This is wh at a completed cable sh oul d look l ike. Cu t off exces s c abl e after crimping. Repeat process for oppo s i te r udde r ca bl e .

9. Adjust the rudder cable threaded

fair leads to obtain appropriate cable tensions. Remove tape that was holding rudder straight.

10..

Rudder Servo Assembly

8. Shri nk t he he a t shri nki ng tube ov e r the crimp for a clean appearance.

10. Tighten jam nut to lock ball link in position and permanently install ball link to rudder horn.

Rudder Servo Assembly

Rudder Servo Plan B

1. The process for the rudder servo

installation is the same p r ocess as for the ai l e ro ns.

Elevator Ser vo Assembly

Minimum serv o specs:

1. Turn on your transmitter and make sure servos are centered before putting on servo arms.

2. Ensure the servo arm is 90 degrees wit h ser vo as sh own. Then mark and drill holes with 2mm bit.

3. Mount the screws and nuts.

180 in. oz / Metal Gear / Digital

Use a drop of CA glue on ea ch nut.

Servo A rm Instal lation

Use a few drops of CA

to hold arm in place for

drilling.

Elevator Control Horns

1. Tear off the cover on th e h orns an d lo ck i ng pl a te s

2. Slice covering over factory installed slots. Press control horn into position. Trace around the locking plate with a

knife and remove the covering.

3. Scuff the horns with a piece of sand paper for good glue bond. Wipe off sanding dust prior to gluing.

Elevator Ser vo Assembly

4. Apply 30 minute s e po xy inside the pre- cut slot for hor n, and coat the horn with epoxy as shown.

Servo Installat io n

Elevator Ser vo Assembly

1. Connect the servo extension to the servo and install safety clip.

5. Slide the horn with locking plate into place. Wipe away excess epoxy with rubbing alcohol.

3. Use 1m m bit to drill the mounting holes. Install th e servos with the ou t put shaft facing forward.

2. Snake the elevator servo leads int o the fusel a ge using t he fa c to r y i nstalle d pull string. (same proc ess as ailer ons)

4. Cut the covering on the pre-drilled hol e for stab mo unt i ng. Ins e r t c a r bon spars and slide horizo ntal stab into position.

Elevator Ser vo Assembly

5. Install the stab with mounting bolts and washers. Apply Loctite to threads before installation.

6. Ins tall the servo arm facing d own. Adjust pushrod length so the elevator is neutral and the servo horn is at 90 degrees.

Elevator Ser vo Assembly

7. Repeat steps for the other elevator servo.

Engine installat ion

move

1. Using a template, locate, drill, and install the engine centered to the firewall.

2. Fit the firewall with the attached engine into the motor box (without glue). Install the engine cowl over the engine. Install the spinner bulkhead onto the engine and center the spinner bulkhead with the cowl.

3. Remove cowl and mount fire wall at present location. Drill 3mm mounting holes for hardware through the motor box into aluminum angle brackets.

File photo

4. Glue the firewall at that location with 30 minute epoxy. Triangle stock is included to reinforce firewall.

File photo

Engine Installat io n

Engine Assembly

Note: Use B l ue L octite on final

installation of engine mounting screws.

Throttle servo Installati on

A dr op of glue on nut

5. Finish the servo installation with two additional mounting screws.

Throttle Servo Insta llation

1. Install the throttle servo in the

included mounting tray. Mount the tray in the engine box behind the fire wall. Make pushrod path is in a straight line for a precise throttle linkage connection. Epoxy and screw the tray in place.

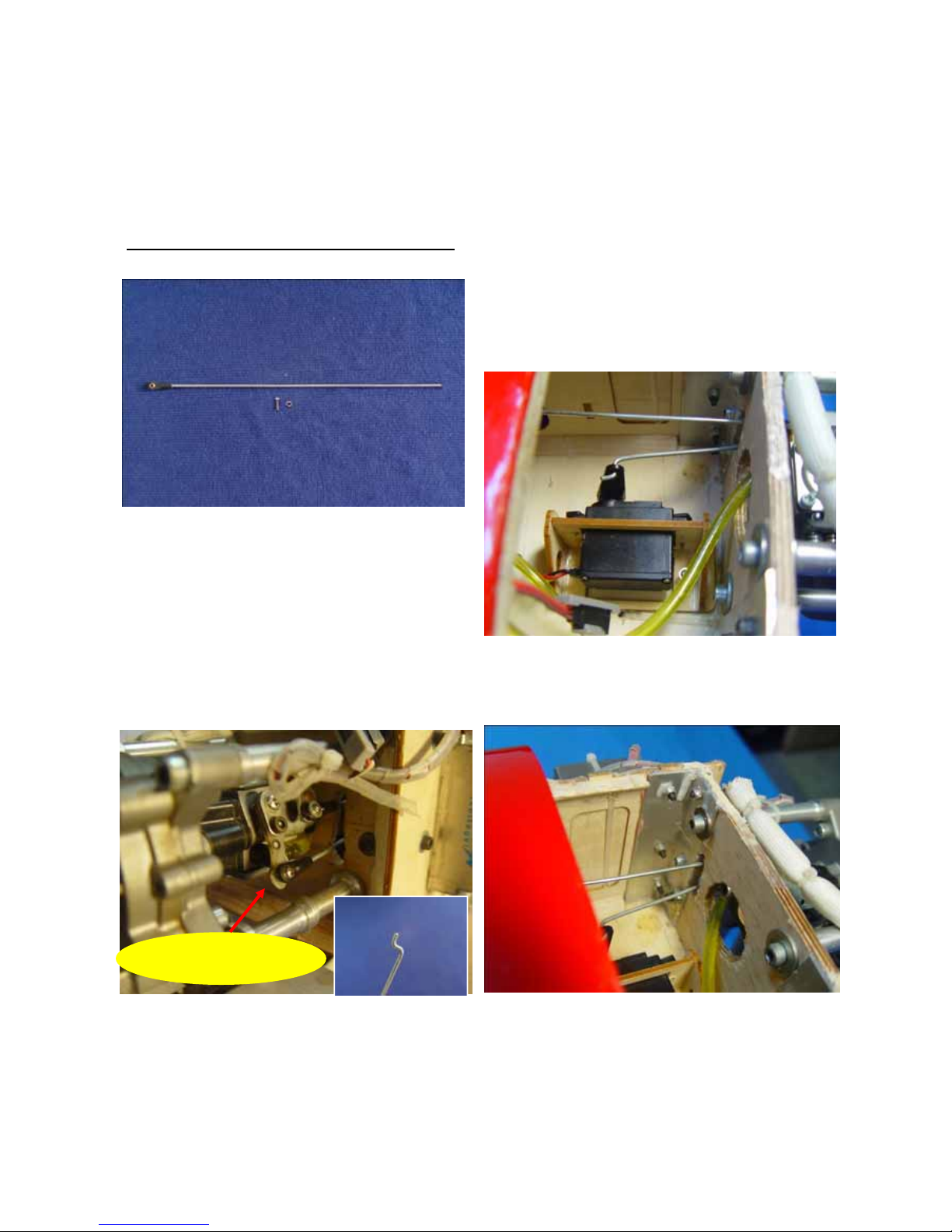

2. Make a hole for push rod path with a Dremel tool. Measure and bend to a

sharp “Z” bend as shown. Cut off extra length wire. Mount the throttle pushrod ball end to the throttle arm and “Z” bend to the servo arm.

Ignition Module

1. Atta ch foam rubber to the bot to m of ignition with double sided tape and install spiral wrap cover to ignit ion lead as shown.

2. Stick t he ignit i on to the ou tside of the engine bo x wi th doubl e side d t a pe . All ow room for spark plug lead s and wire connect ion s. Drill holes in m ot or box for zip ties and secure module with ties.

3. The ignition battery installs the

same manor except under the engine

box. Lock the connectors with the

provided safety clip to prevent vibration from loosening connections.

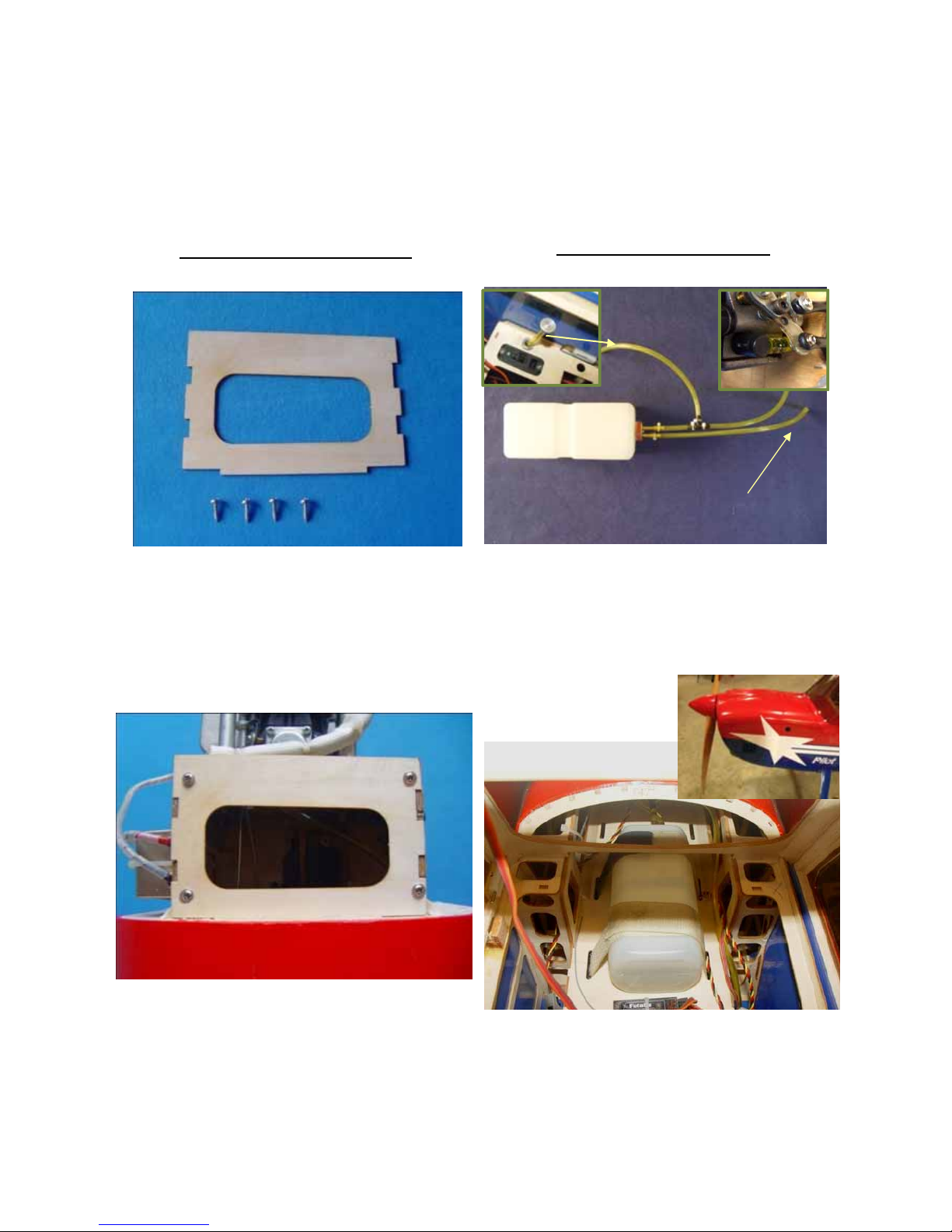

Engine Box Hatch

Epoxy the hatc h i n plac e and i ns ta l l self -ta pping screws.

Fuel Tank And Dot

Mount the fuel tank with Velcro straps.

There is a factory laser cut hole for the fueling dot aft of the engine cowl on the left hand side of the fuselage. Secure all fuel lines connections with

zip ties.

Hatch and fuel tank

Fuel line

Fuel Fill Line

Cowl As se mbly

Cowl Assembly

1. Use a Dremel cutting tool to rough cu t t h e cowl for cl earan ce for t h e exhaust system and for additional coolin g . The air exit h ole m u s t b e larg er in diameter then the air in let for sufficient cooling. Remove any

rough edges with sandpaper.

Note : Av oi d sharp corners to prevent stress cra cking from vibrat ion.

Extend a ball driver tool by cutting standard ball driver in half and adding a section of copper tubing a small hea t shr i nk t ubi ng.

2. Install the plastic cool i ng air deflector(only offer for 107-122” decath lon) to the inside of the cowl. Secure with thick CA or silicone. Some tri mming might be nec essa ry fo r clearance with the engine.

No te : An ex te nded Alle n w r e nch is

needed to reach the hardware to

remove and install the cowl.

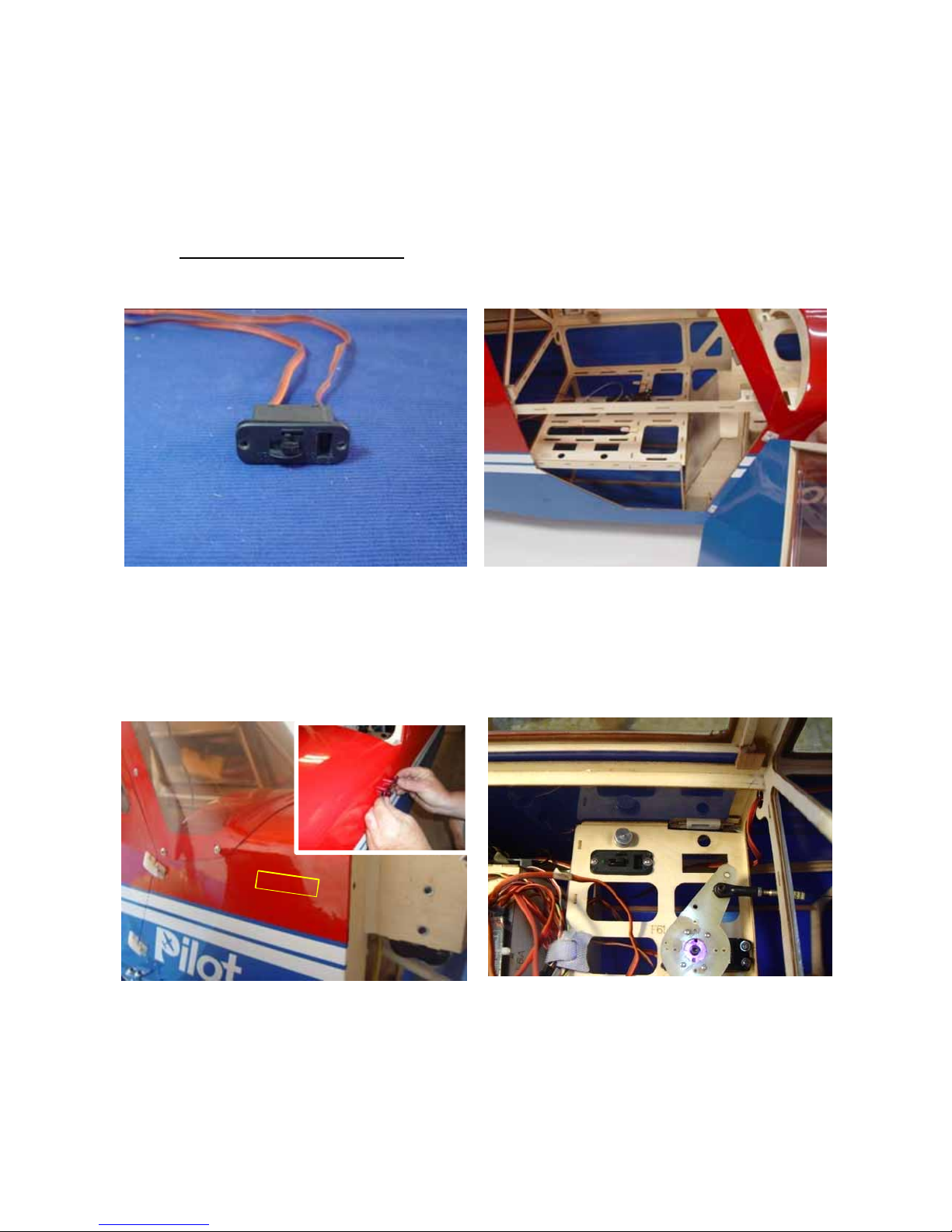

Sw it c h Assemb ly

Note: Factory installed laser cut switch

mounting holes are located under the covering on eit her side of the fus el age for your convenience.

2. Finish the mounting the switch with screws and nuts.

1. Openi ng the cabi n door e xpo se s tw o additional pre cut switch locations in the

servo mounting plate.

Final Assembly

Wing Assembly

Short side

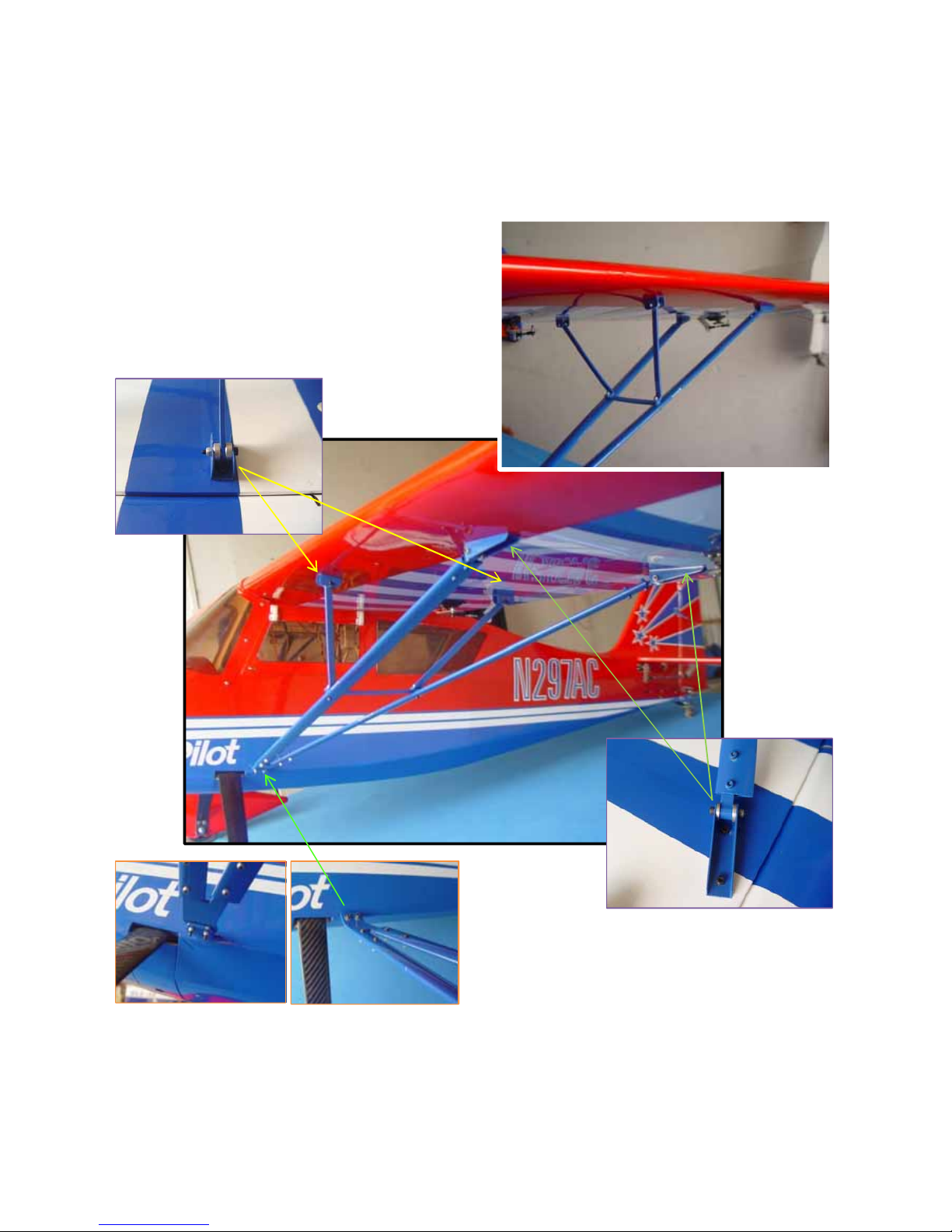

1. Install the brackets a t mounti ng loca tions under side of wing. Use Loctite on threads.

Wing brackets

2. Layout, identify, and assemble lift strut components. Do not fully tighten hardware at this time.

Wing Assembly

Use the included spacers and mount the lift struts to the wing. Thin s pacer s are for

the out board brackets and thi ck spacers for the inboard brackets. Leave hardware

lose. Install wings on fuselage and make sure every thing is aligned. Tighten all hardware.

Elevator Assembly

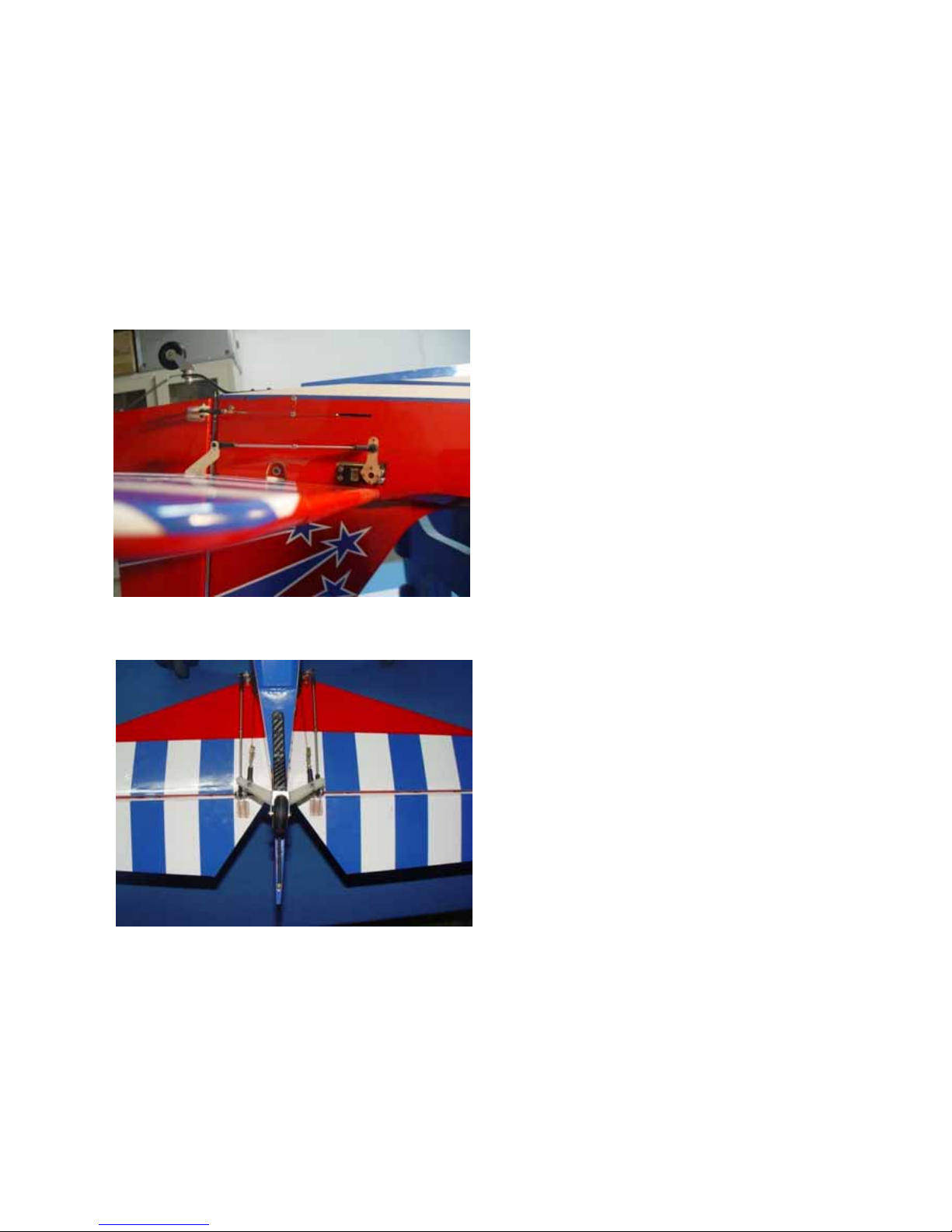

1. Install the aluminum brackets onto the tail for the wire bracing. There are a total of seven brackets for the tail assembly. There are four identical brackets that are for the horizontal stabilizer, two with steeper bands that are for the vertical stabilizer, and a double sided bracket that mounts on the aft screw of the tail wheel bracket under the fuselage.

2. Attach the nylon clevises and threaded cable ends to the metal tail brackets. Install the included cables and crimp into position. Balance

cable tensions.

Elevator Assembly

Note: make

sure cable

tensions are

balanced to

prevent

warping.

CG And Control Throws

■ After you have a few flights under

you belt you can change control deflections based on personal preferen c e as well as adj u st th e CG bac k i n 1/4" int e r vals .

Elevat or: 40 D egree s on High ra te

12 Degrees on Low rate

Aileron: 30 Degree s on High ra te

12 Degrees on Low rate

Rudder: 45 D e gr e es on High r a te

40 Degrees on Low rate

Throttle: Adjust idle –full

■ Set exponential up to

app roximat ely 40 % on you r elevator to make great landings on low rates and 70% e xpone nti a l on Hi gh Ra te .

The First Flight set up

Center Of Gravity

Avoid adding weight to your Decathlon for CG purposes. Position the batteries wh er e requ i red in order to correctly balance your model. Moun t b att eries on a bed of foam an d secure with Nylon ties or Velcro straps.

The center of g r avity is near to the wing tube .For more plane pl ease r efer to the CG list

Center of gravity

EXTRA-300/330 73’’ 154mm/6.06inch EXTRA-300/330 88’’ 170mm/6.7inch

EXTRA-300/330 107’’ 211mm/8.3inch EXTRA-300/330 122’’ 236mm/9.3inch

EXTRA-260 73’’ 140mm/5.51 inch EXTRA-260 87’’ 170mm/6.7inch EXTRA-260 106’’ 202mm/7.95inch EXTRA-260 122’’ 248mm/9.8inch

The CG list of Pilot-RC products

YAK-54 73’’ 156 mm/6.1inch YAK-54 87’’ 183 mm/7.2inch YAK-54 107’’ 225 mm/8.9inch YAK-54 121’’ 266 mm/10.5inch YAK-54 129’’ 273 mm/10.7inch YAK-54 148’’ 314 mm/12.4inch

Edge-540 87’’ 136mm/5.35inch Edge-540 107’’ 141mm/5.6inch

Sbach 342 73’’ 145mm/5.7inch Sbach 342 87’’ 173mm/6.8inch Sbach 342 107’’ 234mm/9.2inch Sbach 342 122’’ 269mm/10.6inch

Sbach 342 148’’ 305mm/12 inch

Edge-540 122’’ 166mm/6.5inch

YAK-54 180’’ 401 mm/15.8inch

This re c o m m endati o n balanc e point i s fo r

your first flight.TheCG can be moved

around to fit your personal taste.

CG locationPLANE

The location of CG has been marked inside plane as show. Usually it is near the wing tube.

Edge-540 73’’ 116mm/4.5inch

YAK-54 53’’ 126mm/5.0 inch

Sbach 342 53’’ 116mm/4.6inch

YAKM55 73” 165mm/6.5inch YAKM55 88’’ 216 mm/8.5inch YAKM55 107’’ 267 mm/10.5inch

YAKM55 122’’ 287mm/11.3inch

DECATHLON 107” 133mm/5.2inch DECATHLON 122’’ 145 mm/5.7inch DECATHLON 150’’ 182 mm/7.2inch

DECATHLON 180’’ 217 mm/8.5inch

Columbia 400 128’’ 136mm/5.35inch Columbia 400 150’’ 141mm/5.6inch

■ Mak e s u r e you h ave t h e r igh t model pr ogr am m ed int o your

transmitter.

■ Chec k th e dir ec t ion of each c on tr ol s u r f ac e bef or e fl igh t .

■ R em em ber s om et hi n g wron g on th e gr ou nd, n ever impr oves

in the air.

■ Do a ran ge c h ec k of th e radi o s yst em w it h the en gin e

running and chec k with.

■ Mon it or bat t er y vol t age aft er each fl igh t in case on e s er vo i s

draining your battery.

■ Rech ec k al l sc r ew s, h or n s and li n k ages for slop aft er your

maiden fight and always check for damage in the event of a rough landing.

■ Have an experience d pilot perform the maiden flight i f you

have any dou bts in your skills.

■ Take a break aft er you fi r s t fl i ght and l et t he adr enal i n e bu r n

off by br aggi ng to your fel l ow m em ber s h ow good i t f li es .

■ Fl y c on s er vat i vely you r firs t fe w f l i gh t s .

■ Lis ten t o you r engi ne r un and h ave an obs erver wit h you to

rem em ber w h at you t al k ed abou t du r i n g th e fl i gh t and enc as e you get in t o t r ou ble.

■ Always balance you r pr ops, vibration is a killer.

■ Remem ber n ose h eavy air plan es f ly all the ti me, t ail heavy

air plan es fl y only on c e. B e on t h e CG!

■ Fly 3 D two mi s t akes h i gh in the begi n ni n g an d n ot c l os e to

people, ot h er pl an es, or th e r u n way.

■ Bei n g a cen t er of th e r u n way h og does n ot en dear you t o

fellow modelers.

Flight Prepar ation

■ Check with the engine manufactur er’s for rec ommended r unning

tem per at u r e an d m ake s u r e t h at it is not excee de d.

■ Pilot -R C doesn' t ac cept r espon sibility for any damage f rom

im pr oper en gin e c ool in g.

LED Assembly option

LED Assembly

Pilot-RC Optional LED lighting kit.

Some soldering is required.

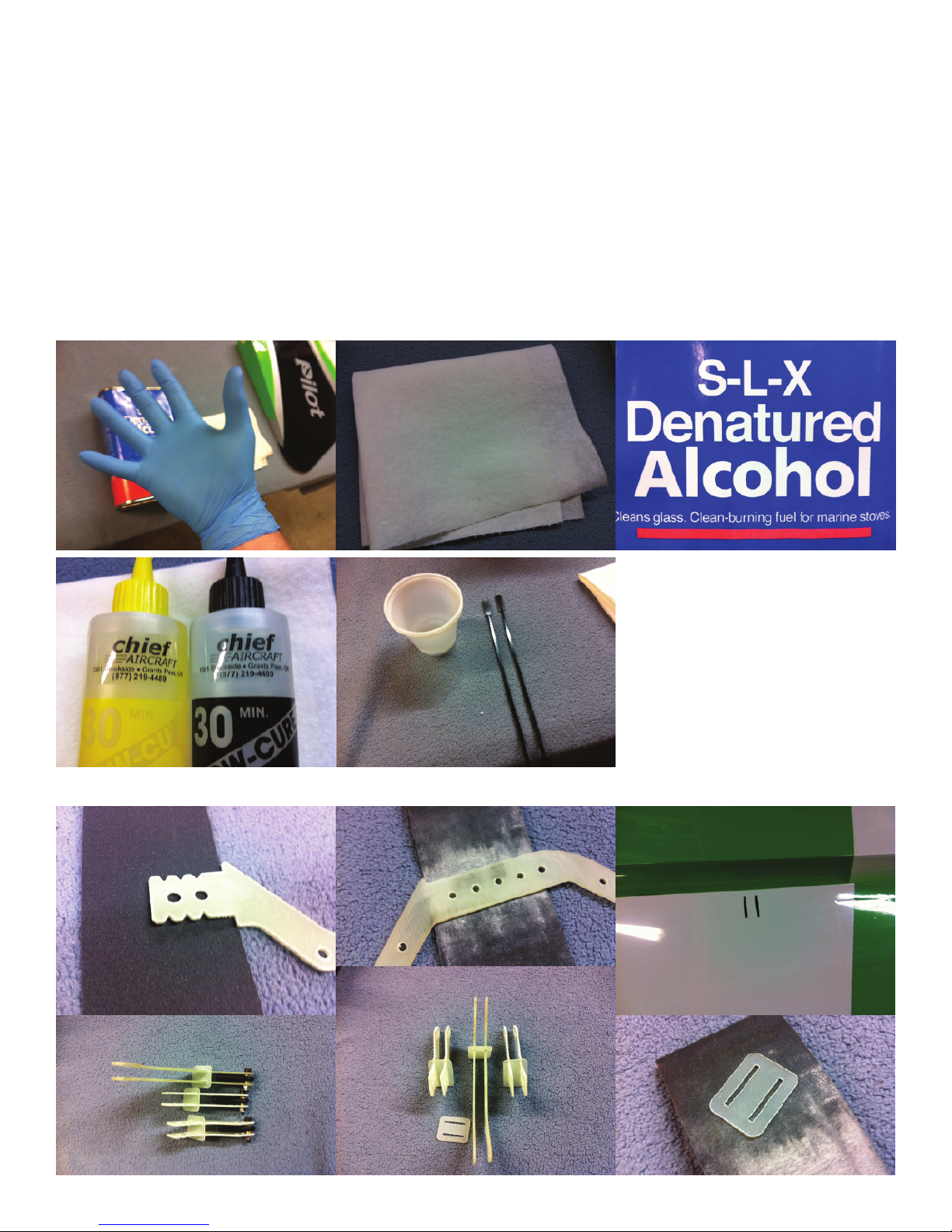

Pilot RC Control Horn Installation

(50cc and larger have dual control horns & 30cc Aircra have a single control horn)

• Rubber/Latex Gloves.

• Epoxy (30 Minute or Stronger)

• Epoxy Mixing Cups

• Epoxy Mixing Sticks (Any mixing stick that will t into the slot)

• Denatured Alcohol or Acetone.

• Paper Towels

• Sand Paper

• X-Acto Knife

• Dremel and Small Drill Bit (Optional and Not Always Needed)

en Prepare your parts..

en you will need to test t your parts together before gluing in place. Please note that sometimes the slots need to be cleaned out a little bit and can be done with a dremel and a small drill bit or an x-acto knife.

Force your epoxy into the slots. Also apply a thin layer of epoxy on the control horn and bottom of the guide plate.

Install your horns. Make sure to clean o any epoxy that comes out from under the plate with a paper towel and alcohol.

Pilot RC

Wing & Elevator Servo Installation

You will need:

• Hobby Iron

• X-Acto Knife

• in CA “Super Glue”

• Drill and Drill Bit

First nd the servo mounting hole and iron around to assure that the covering is stuck to the surrounding wood.

en cut like this or to your preference.

en press and iron excess covering down into the servo slot.

Now you can pre t the servo.

Make sure your grommets are installed and drill the holes for the servo screws.

Now apply a small amount of the CA to the already drilled servo screw holes and if needed run your extension wire through. (Don’t forget the safety clip!!)

Now you can install the servo with your choice of screws and attach the linkage.

Final adjustment of turnbuckles and it ready for servo adjustment.

Pilot RC Optional Rudder

Installation for 50-150cc Aircraft

Shorten the rudder wire so that it will not pierce the covering at the top of the rudder and leave about 3/4” hanging out the bottom. Bend the bottom at a 90 degree angle, and then trace around the wire (See Photos). You then carve out a channel for the wire to t into, it only needs to be a deep as the wire is thick.

e Tail wheel bracket will lock it in to place. Make sure it overhangs the slot when you install the TW bracket.

Center of gravity

The CG list of Pilot-RC products

This recommendation balance point is for

your first flight.The CG can be moved

around to fit your personal taste.

CG locationPLANE

DECATHLON 107” 133mm/5.2inch DECATHLON 122’’ 145 mm/5.7inch DE

ATHLON 150’’ 182 mm/7.2inch

’’

Edge-540 87’’ 136mm/5.35inch Edge-540 107’’ 141mm/5.6inch Edge-540 122’’ 166mm/6.5inch

Edge-540 73’’ 116mm/4.5inch

YAK-54 53’’ 126mm/5.0 inch

YAKM55 73” 165mm/6.5inch YAKM55 88’’ 216 mm/8.5inch YAKM55 107’’ 267 mm/10.5inch

YAKM55 122’’ 287mm/11.3inch

CO50 8/c

DECATHLON 180’’ 217 mm/8.5inch

Columbia 400 128’’ 136mm/5.35inch Columbia 400 150’’ 141mm/5.6inch

EXTRA-300/330 73’’ 154mm/6.06inch

EXTRA

260 73

140mm/5.51 inch

EXTRA-260 87’’ 170mm/6.7inch EXTRA-260 106’’ 202mm/7.95inch EXTRA-260 122’’ 248mm/9.8inch

YAK

-54 73

156 mm/6.1inch

YAK-54 87’’ 183 mm/7.2inch YAK-54 107’’ 225 mm/8.9inch YAK-54 121’’ 266 mm/10.5inch YAK-54 129’’ 273 mm/10.7inch YAK-54 148’’ 314 mm/12.4inch YAK-54 180’’ 401 mm/15.8inch

EXTRA-300/330 88’’

170mm/6.7inch

EXTRA-300/330 107’’ 211mm/8.3inch EXTRA-300/330 122’’ 236mm/9.3inch

Sbach 342 73’’ 145mm/5.7inch Sbach 342 87’’ 173mm/6.8inch Sbach 342 107’’ 234mm/9.2inch

’’

The location of CG has been marked inside plane as show.

Sbach 342 53’’ 132mm/5.2inch

Sbach 342 122

269mm/10.6inch

Sbach 342 148’’ 305mm/12 inch

Usually it is near the wing tube.

Pilot RC Decathlon Assembly Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
