Pilot Communications 30cc Assembly Manual

www.pilotwww.pilot--rc.comrc.com

Wingspan: 88 in

Wingarea: 1479.8 sp in
Length: 78.8 in
Engine: 50CC

Assembly Manual For

1

INTRODUCTION

Thank you for purchasing

our new 50cc Yak-54. we strive

to achieve the real Quick

Builded and ARF aircraf .

It just requires the least

amout of assembly of any kit

that almost finished in

factory.T o obtain the perfect

performence,both the design

and manufacturing have been

taken care with the highest

quality from any

hardware,covering ,wood and

glue in the construction as

well.By optimal weight and

reliable construction,you will

find this plane is really ideal

for 3D - Freestyle and

aerobatic.

So we hope every effort and

service we offer will make you
feel easy and have a wonderful
time in the pleasure of flying in

3D space.

More information on website

www .pilotwww .pilot--rc.comrc.com

2

WARRANTYWARRANTY

■

All Pilot-RC products are guaranteed against

defects for 30 days of receiving your airplane. This
warranty is limited to construction or productions
defects in both material and workmanship , doesn't
cover any component parts damaged by use or
modification .

■

The manufacture can't supervise the assembly
,operation and maintenance ,and can't ensure your
radio system is in good condition. T herefore ,we are

not responsible for any damage occurring during
the use of a radio controlled model. It is impossible

to determine for certain wehther crash damage was
the result of a radio systerm failure or pilot error ev en
improper installation of our products.Model airplane
owner is using it on his own responsibility.

■

In no event should Pilot-RC accept the liability
exceeds the original cost of the airframe (not include
engine and radio system).

■

No matter what reason you wish to return this
airplane , all shipping cost will be paid by costumer.If
some parts require replacement from us ,the original
parts’ return is at costumer' expense.

3

ATTENTIONATTENTION

■

You should not regard this plane as toy!

■

To ensure safety,please read the instruction

manual thoroughly before assembly .

■

Building and operating model plane require
diligent practicing and correct guidance. Any
neglect,carelessness and missing experience can
cause serious bodily harm and property damage.

■

Seek the assistant of a experienced person or

airplane model clubs in assembly ,operation and
maintenance to ensure quick and successful learning

■

Fly only in proven model airfield

that AMA

(Academy of Model Areonautics) approved

Pilot-RC has the right to change to this plane
,instruction and limited warranty without notice.
If you h av e any problems and qu estio ns ,please
contact pilot –RC

Email: [email protected] , [email protected]
Cellphone:[phone]
FAX: [phone]
Address: No.34, Chengnan Er Road , Zhongshan city, 528400, Guangdong
Province, China

4

Introduction

………………….………..….…….….

Warranty …………………….……..….…..…….
Attention …………….…………..….……..…….

Fuselage Unit

Rudder Assembly

Rudder Control Horns ………..…….…...……..

Tail Wheel Installation …………..……..........

Landing Gear Assembly .

Main Landing Gear Installation ………….…..…….
Pants Installation …………..….………

Servo Unit

Wing Servo Assembly

Servo Arm Installation ………….….……….

Aileron Control Horns ………….……….…..

Servo Installation …….…………..……

Rudder Servo Assembly

Servo Tray Installation ….…….….......……..

Servo Installation ……….….……...……

Elevator Servo Assembl y

Servo Arm Installation ………….…………….

Elevator Control Horns ……………....….……

Servo Installation ……………….....………

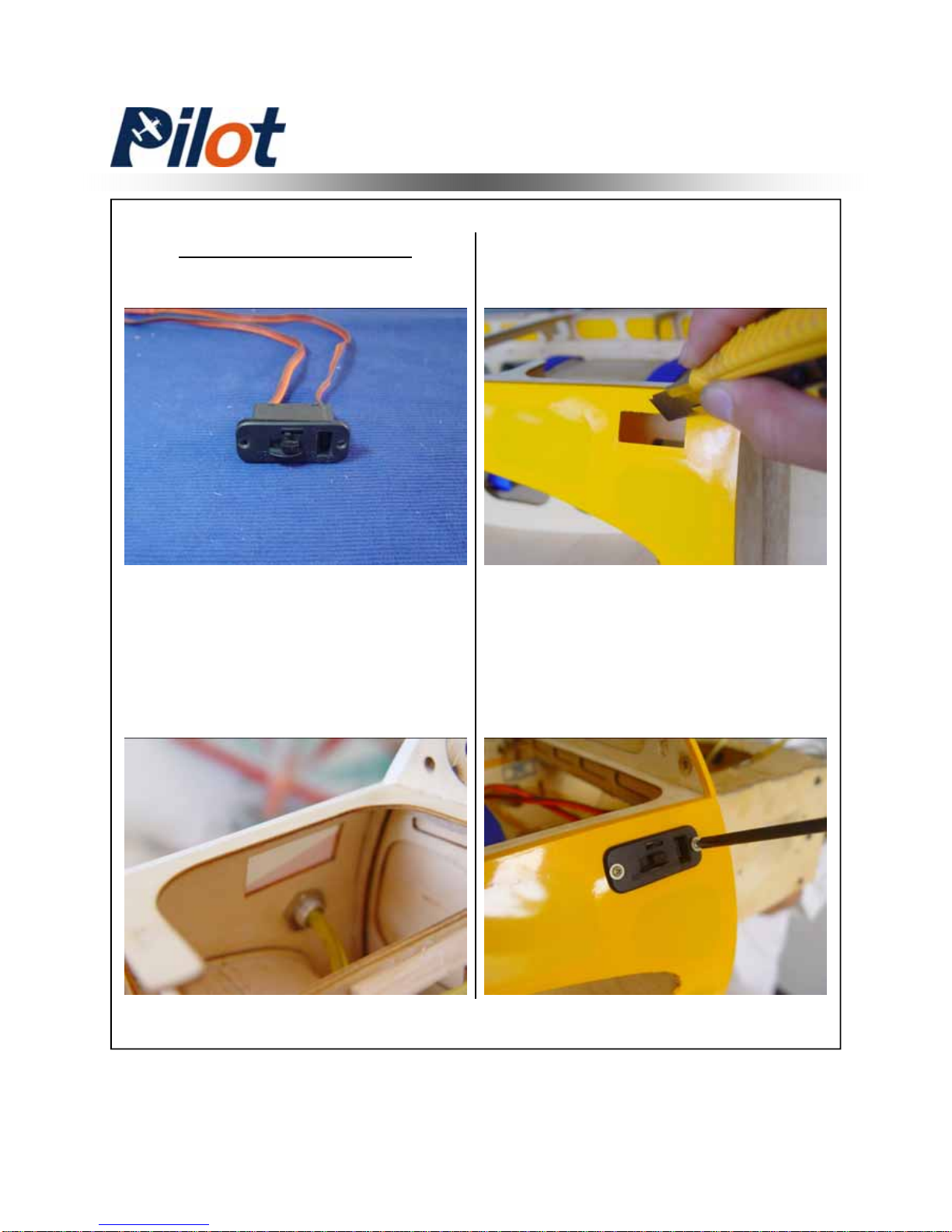

Switch Assembly ………….……….....………

Engine Unit

EngineAssembly ……….…..……..……

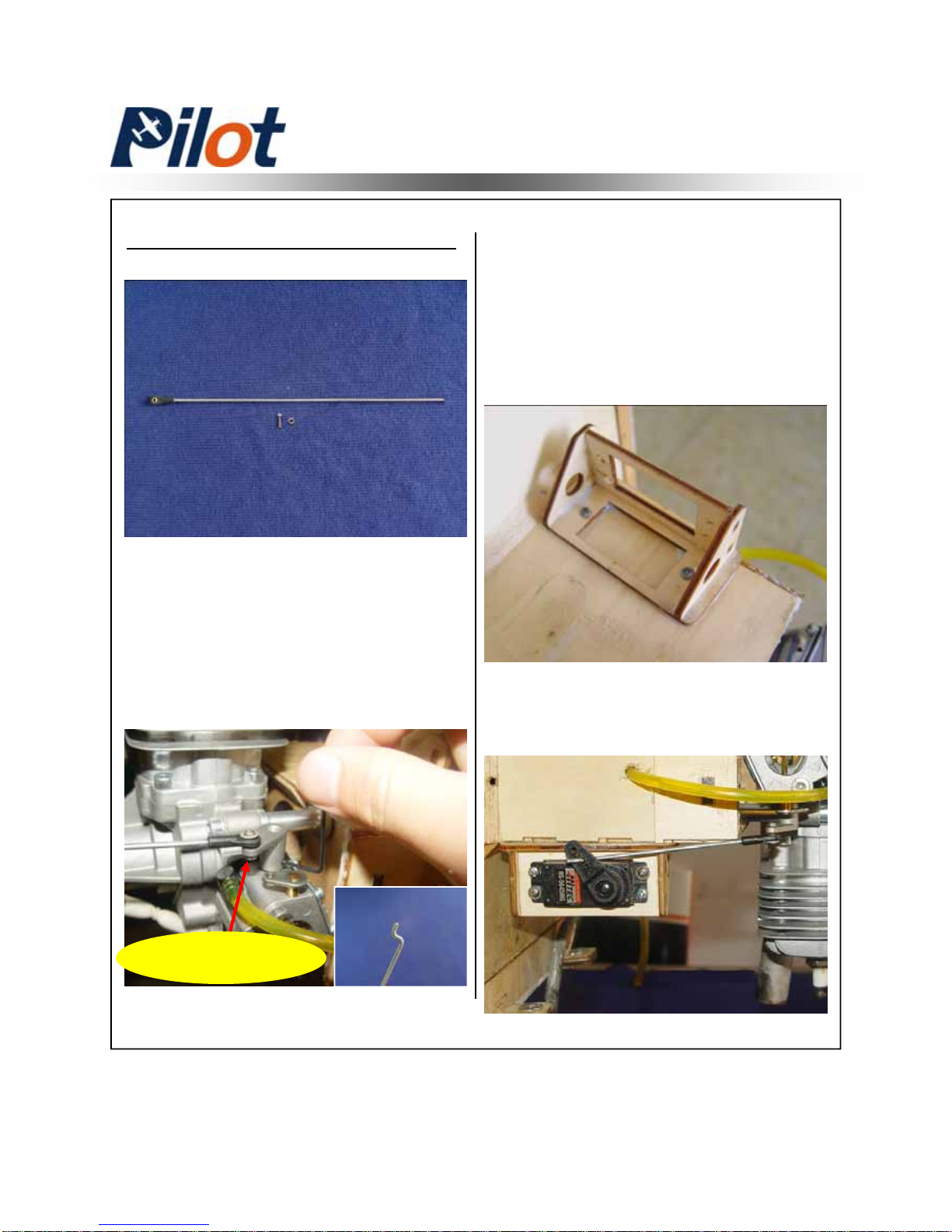

Throttle Servo As sembly ….….…...…….……

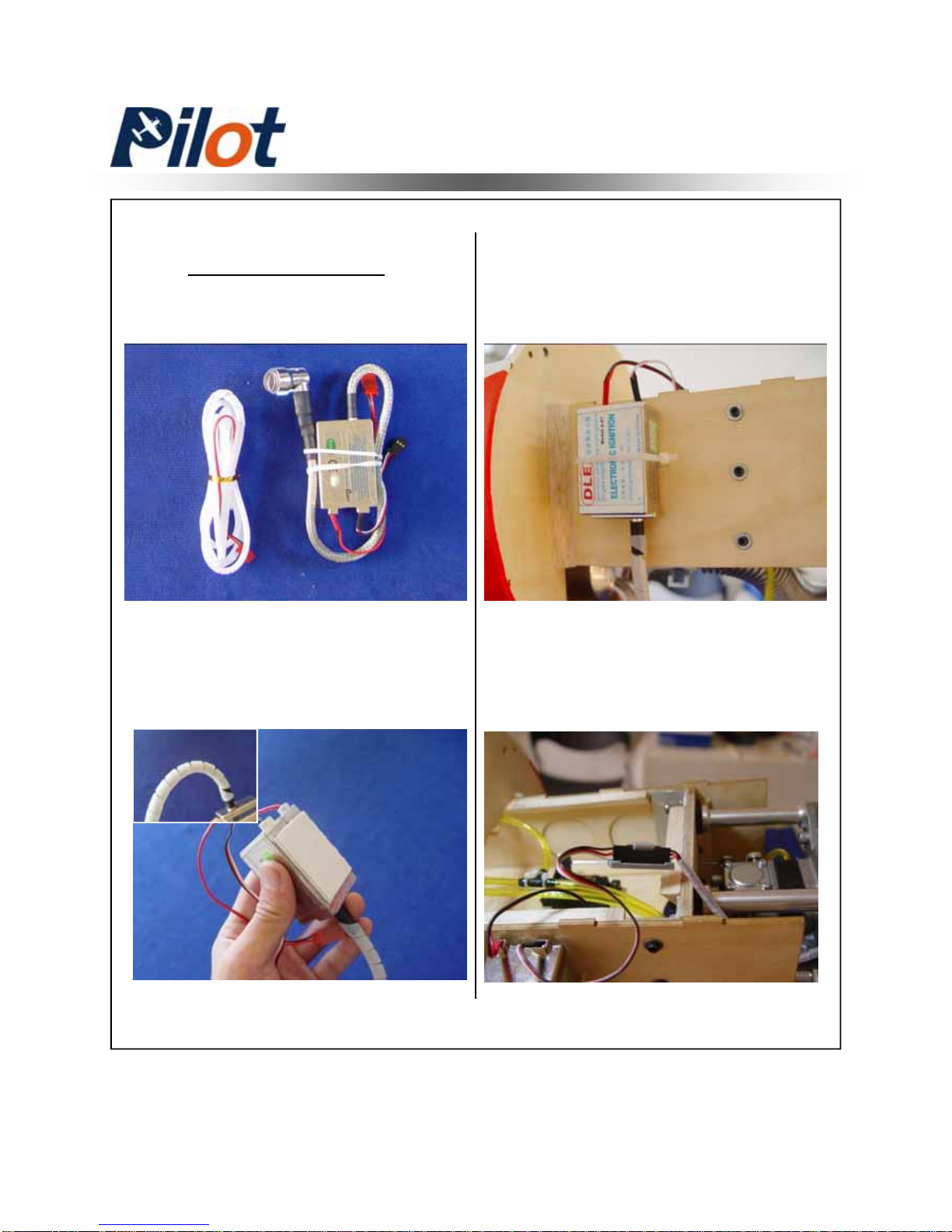

Ignition Module ………….…….……….

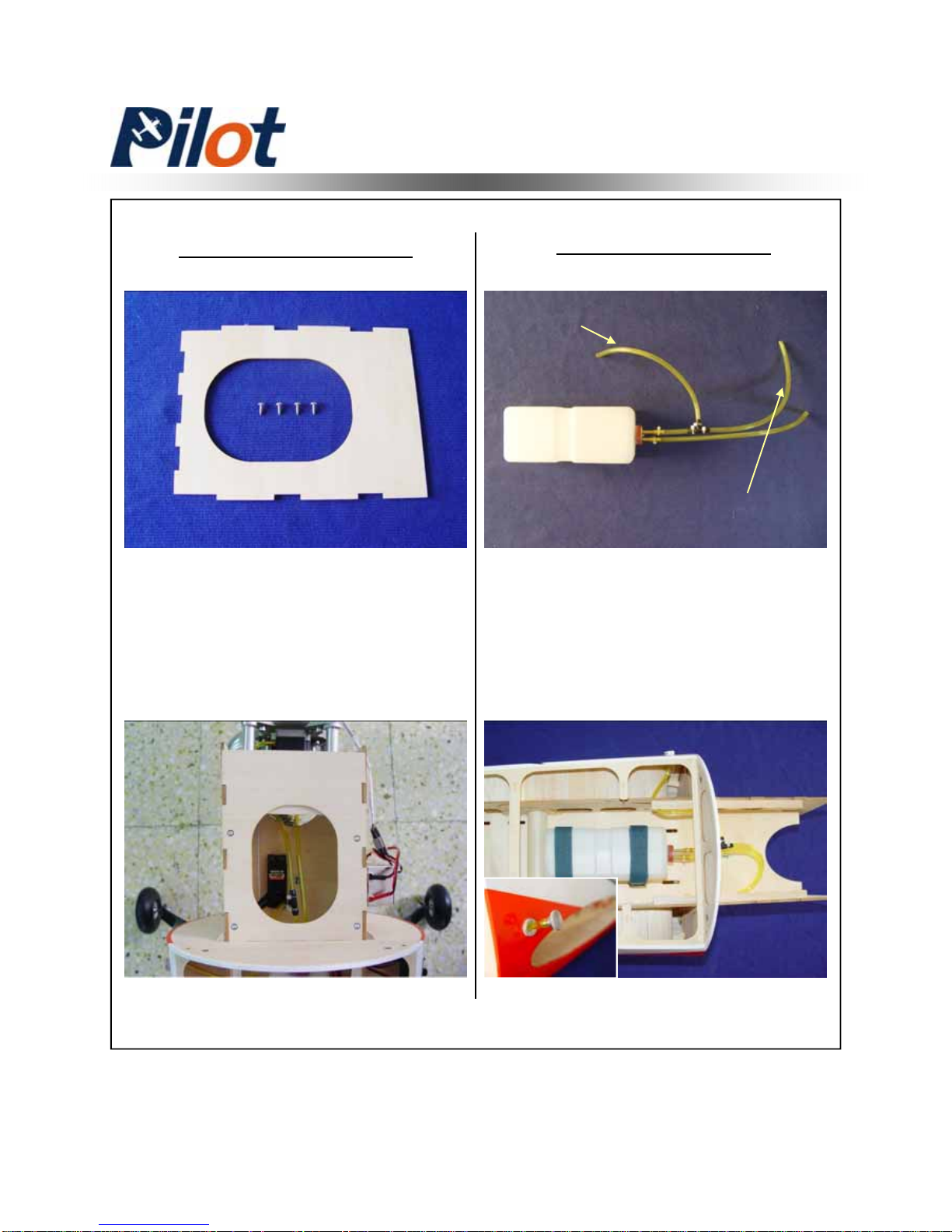

Hatch And Fule Tank ………….….……....……

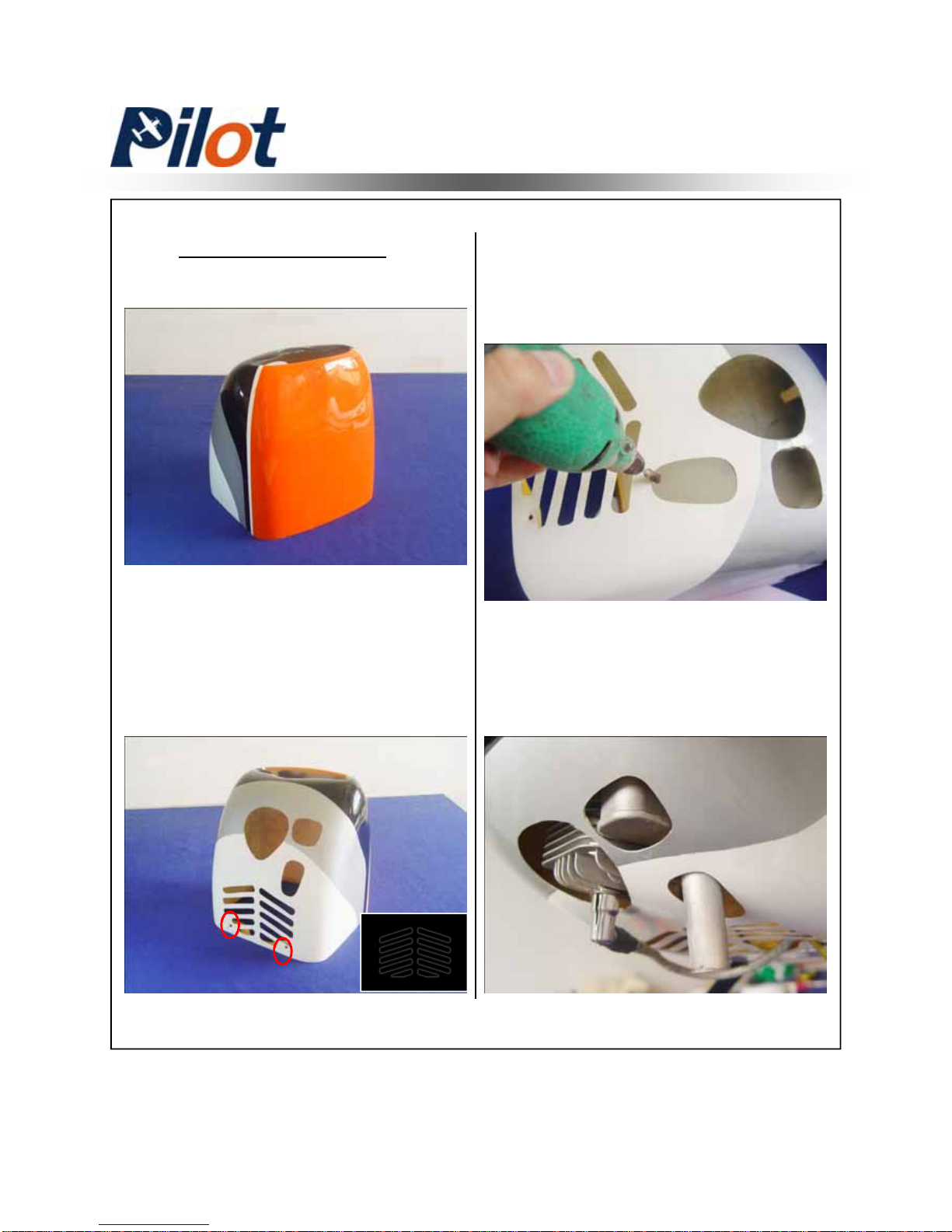

Crowl Assembly …………………......……

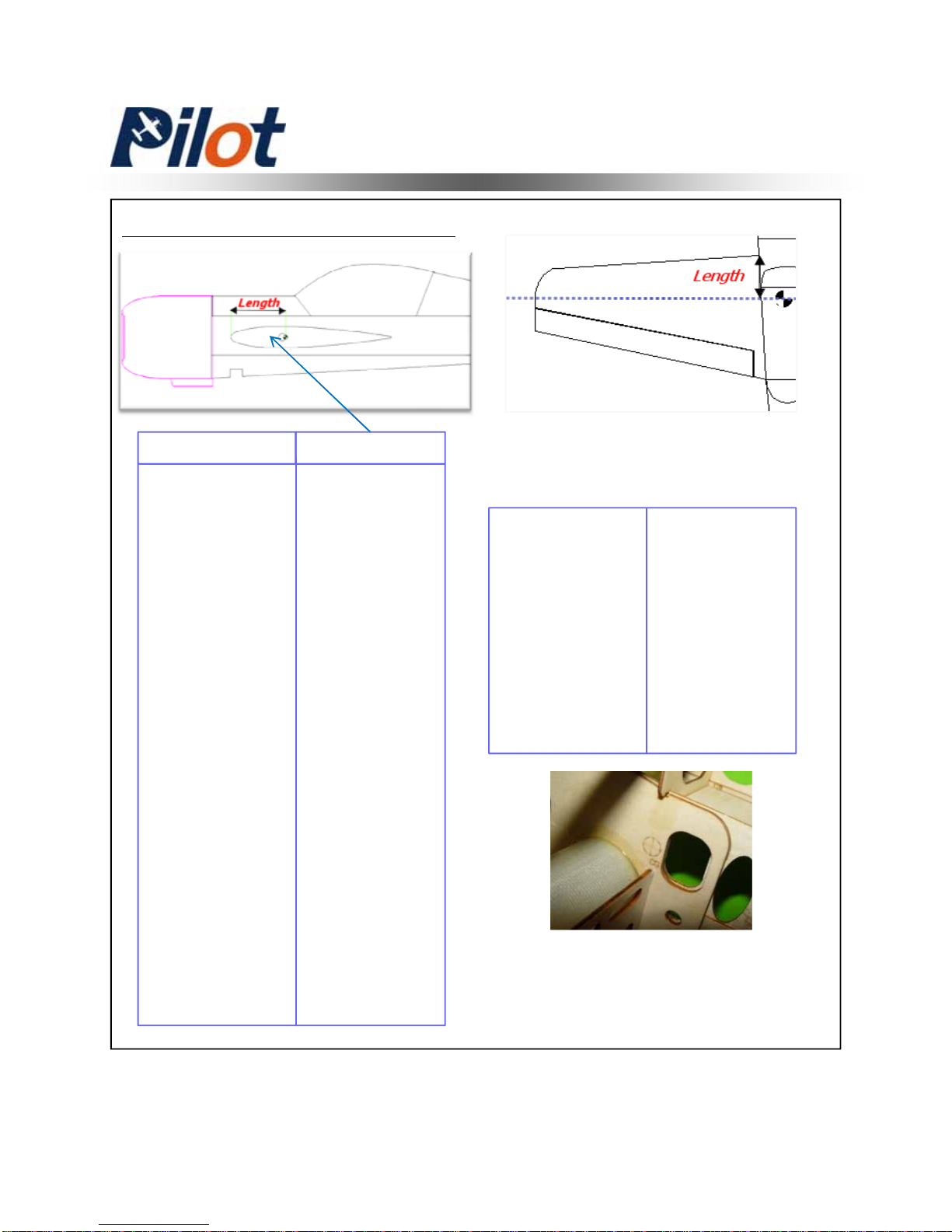

CG And Control Throws …………………………..
Flight Preperation …...…………….….…..……

INDEX

1
2
3

17

16

5
7

8

10

12
13

21
22

25

26
27

29

28

30
32

35

20

11

5

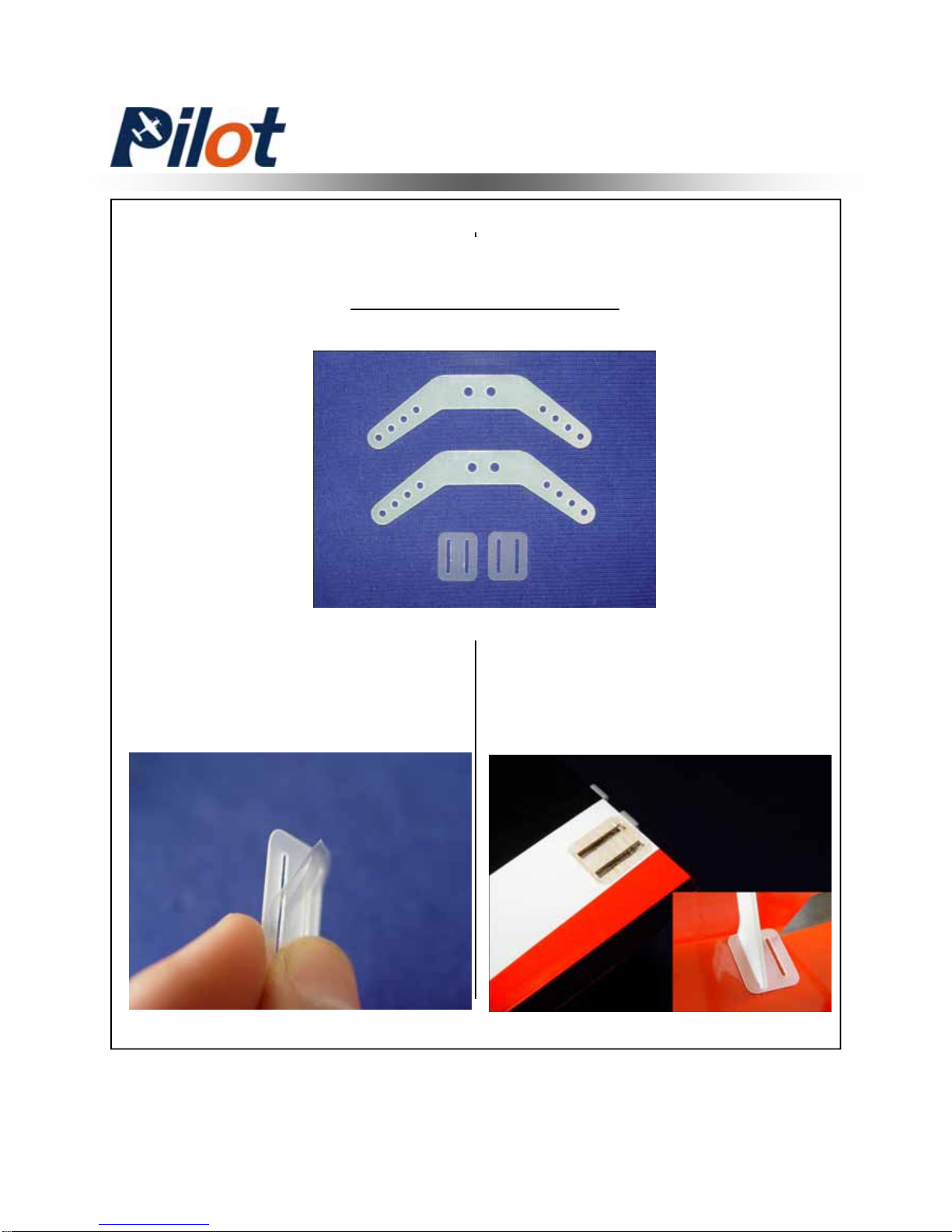

Rudder Assemby

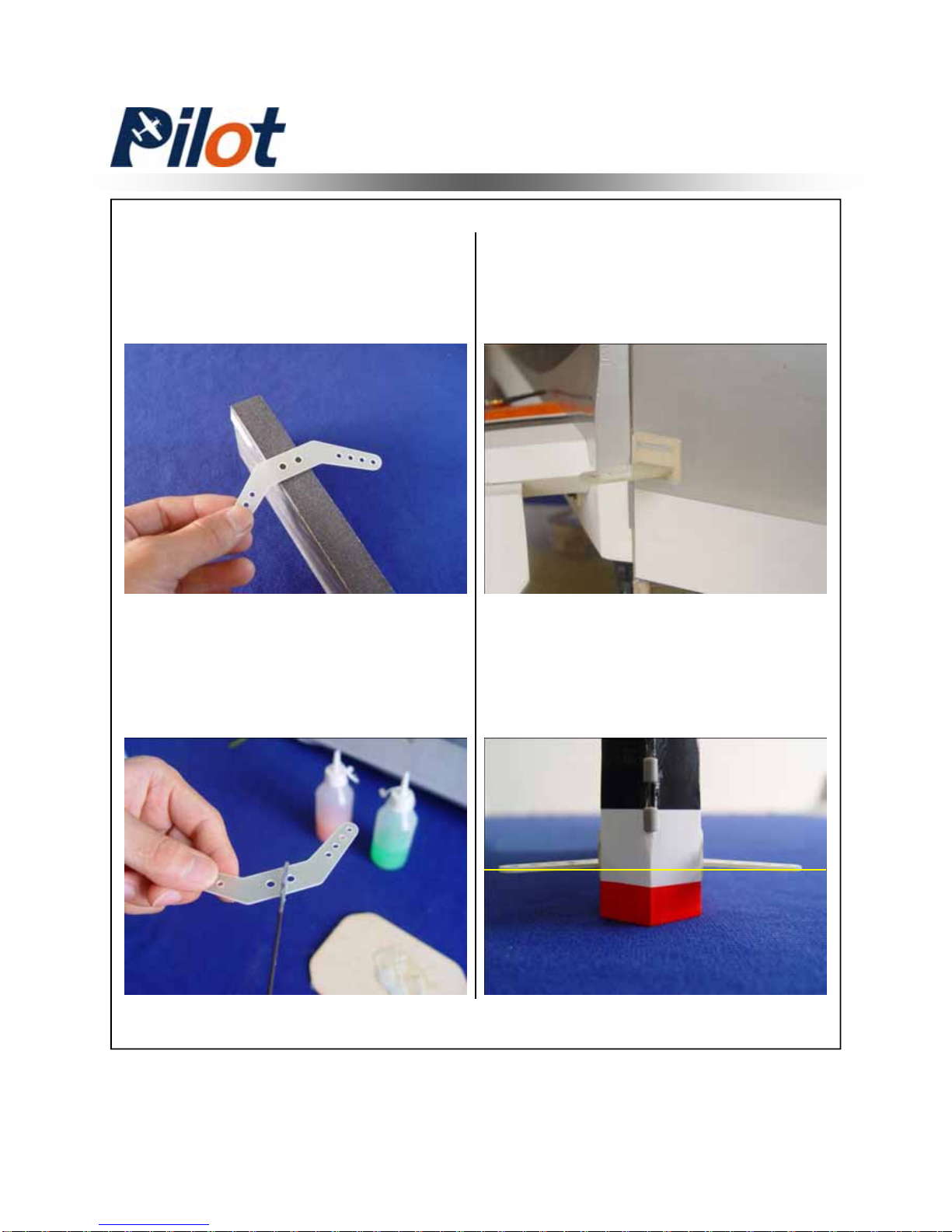

Rudder Control Horn

1. Tear off the cover on the horns
and locking plates

2. Trace around the locking plate
with kinfe and cut off the cover
below.Then the pre-cut sl ots appear

Fuselage Unit

6

Rudder Assembly

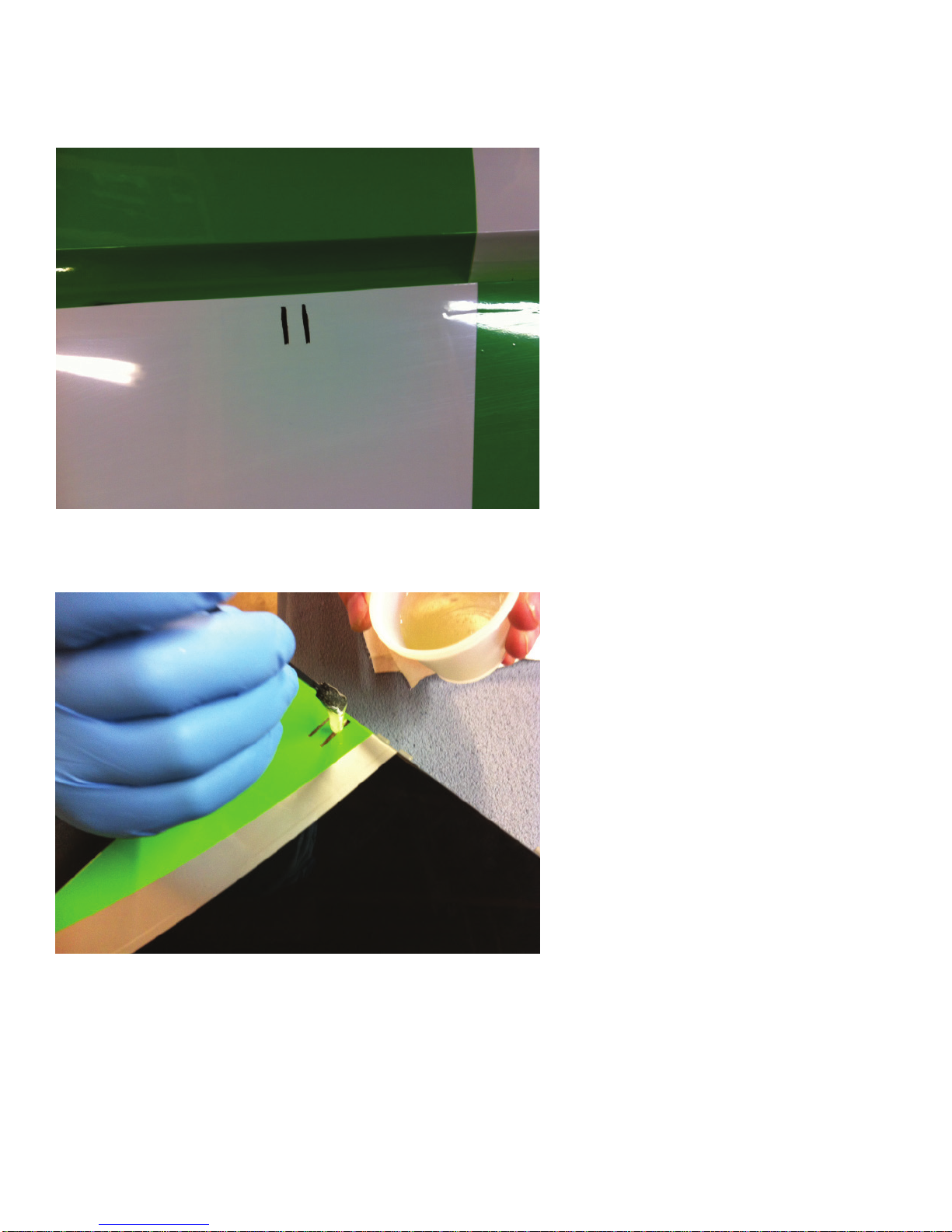

3. Scuff the middle of horns with a
piece of sand paper for good glue
bond.Then clean up the surface

4. Apply the 30 minutes epoxy
inside the pre-cut slot, and coat the
horn with epoxy as shown

6. Make sure the horn li ne up with
ground and align the both side
before epoxy has cured

5. Slid the horns into slots slightly,
mount the locking plates in place.Wipe
away excess glue with rubbing alcohol

7

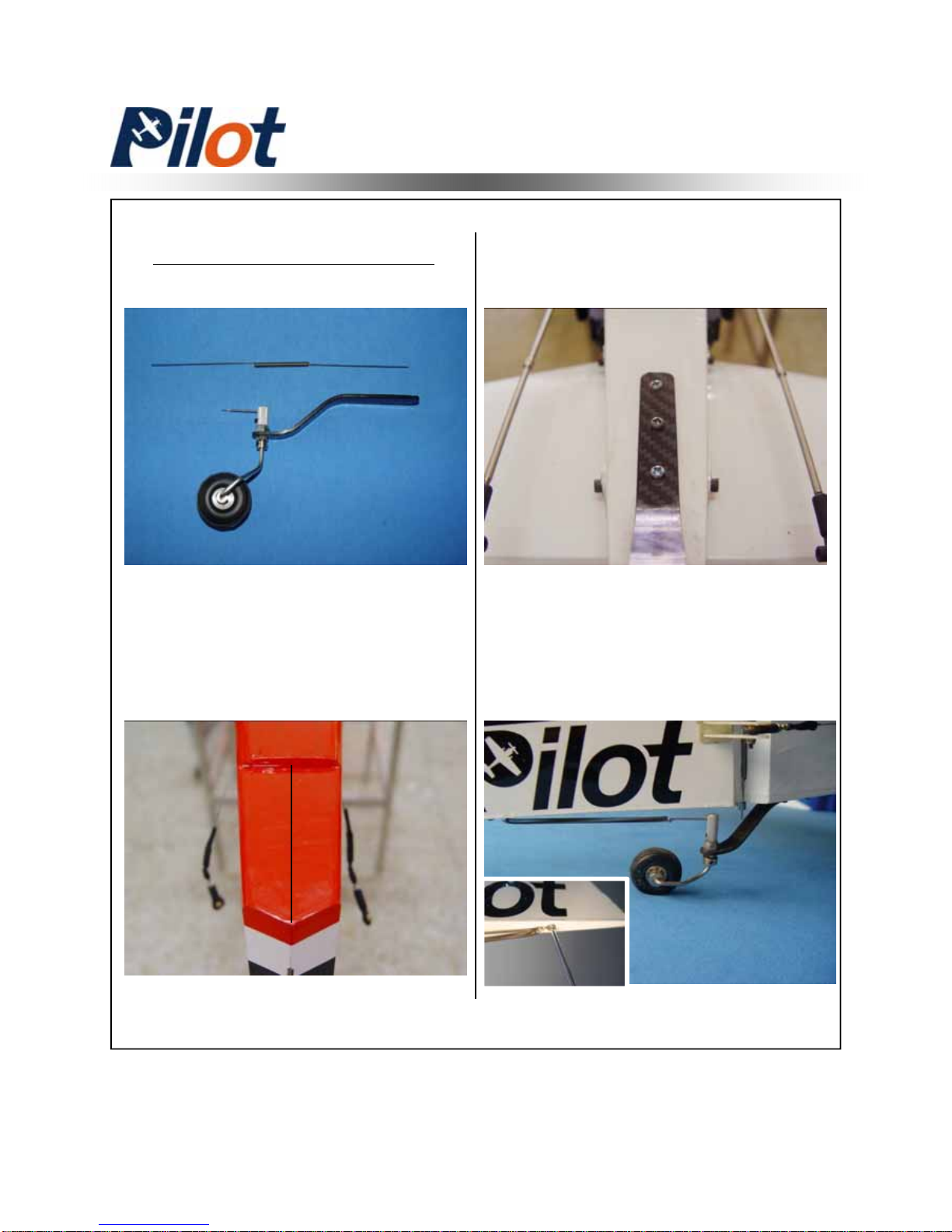

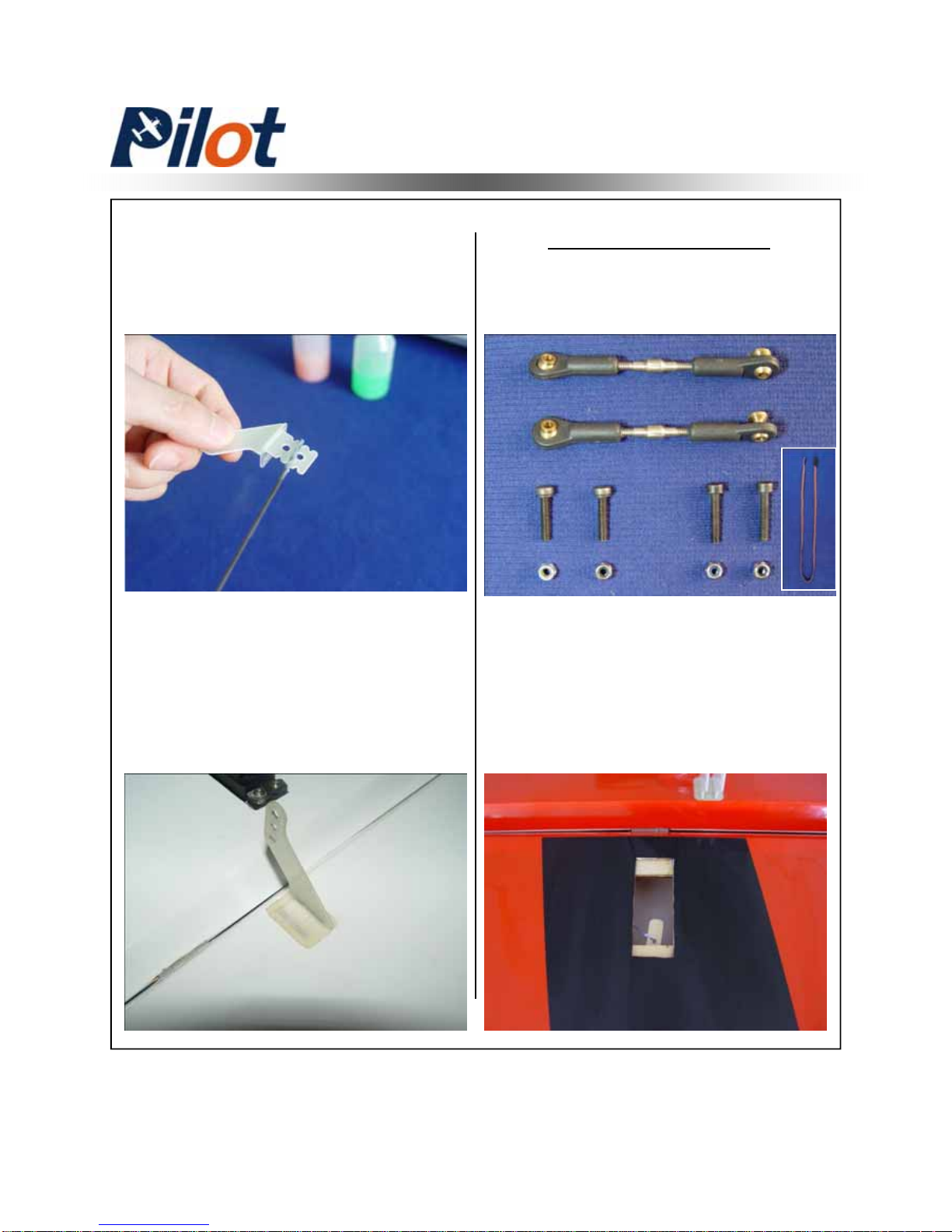

Tail Wheel Installation

Rudder Assembly

1. Draw a center line with a pencil
as shown

3. Drill hole 1mm bit and mount
spring on the buttom of rudder with
self-tapping screws as shown.Cut
away excess wire. Ensure spring

have pulled tightly

2. Mount self-tapping screws on the
tail wheel mounting block with the
bracket taped on place

8

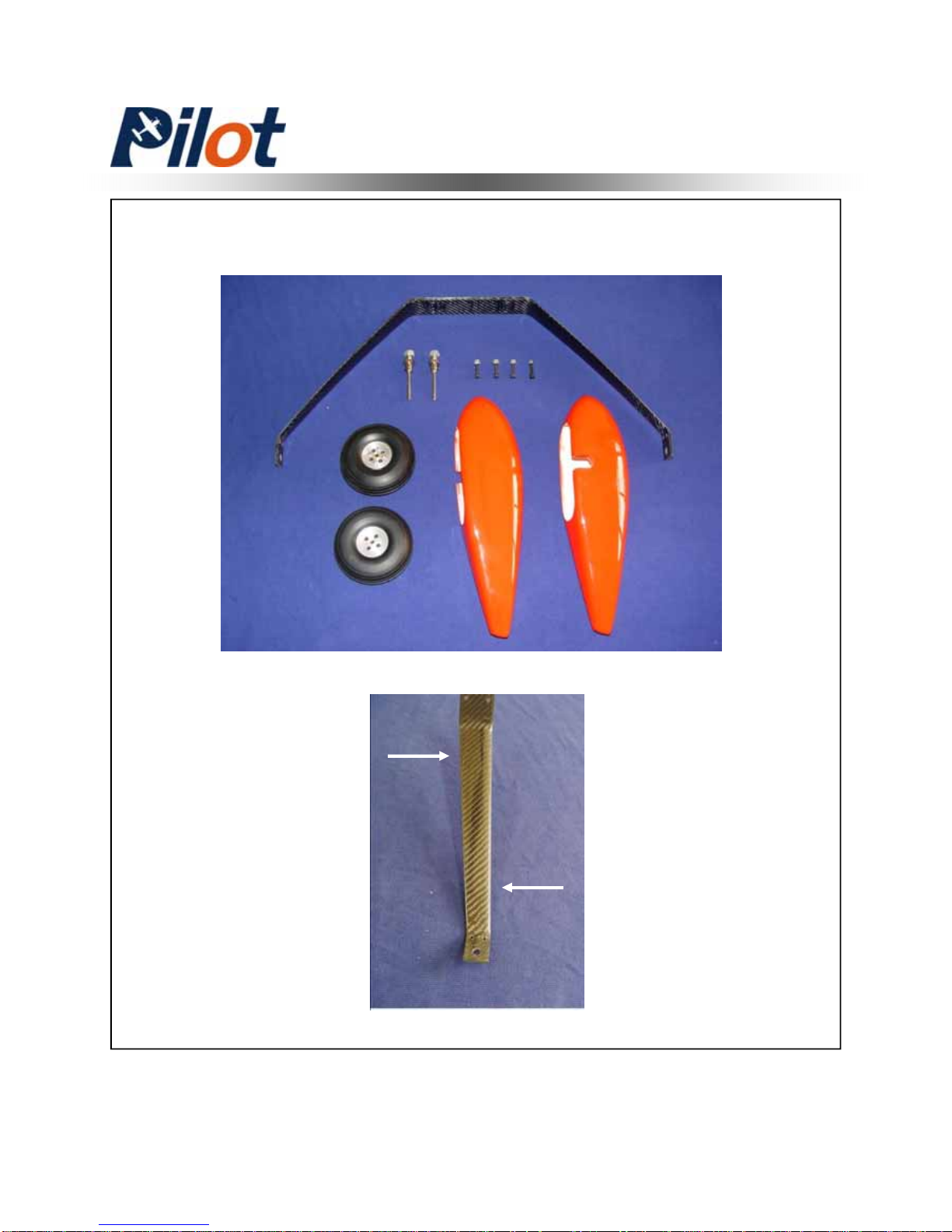

Main Landing Gear Installation

Landing Gear Assembly

NOTE: the correct edge in mounting

Taper to
rear

Straight
edge to
front of
fuse

9

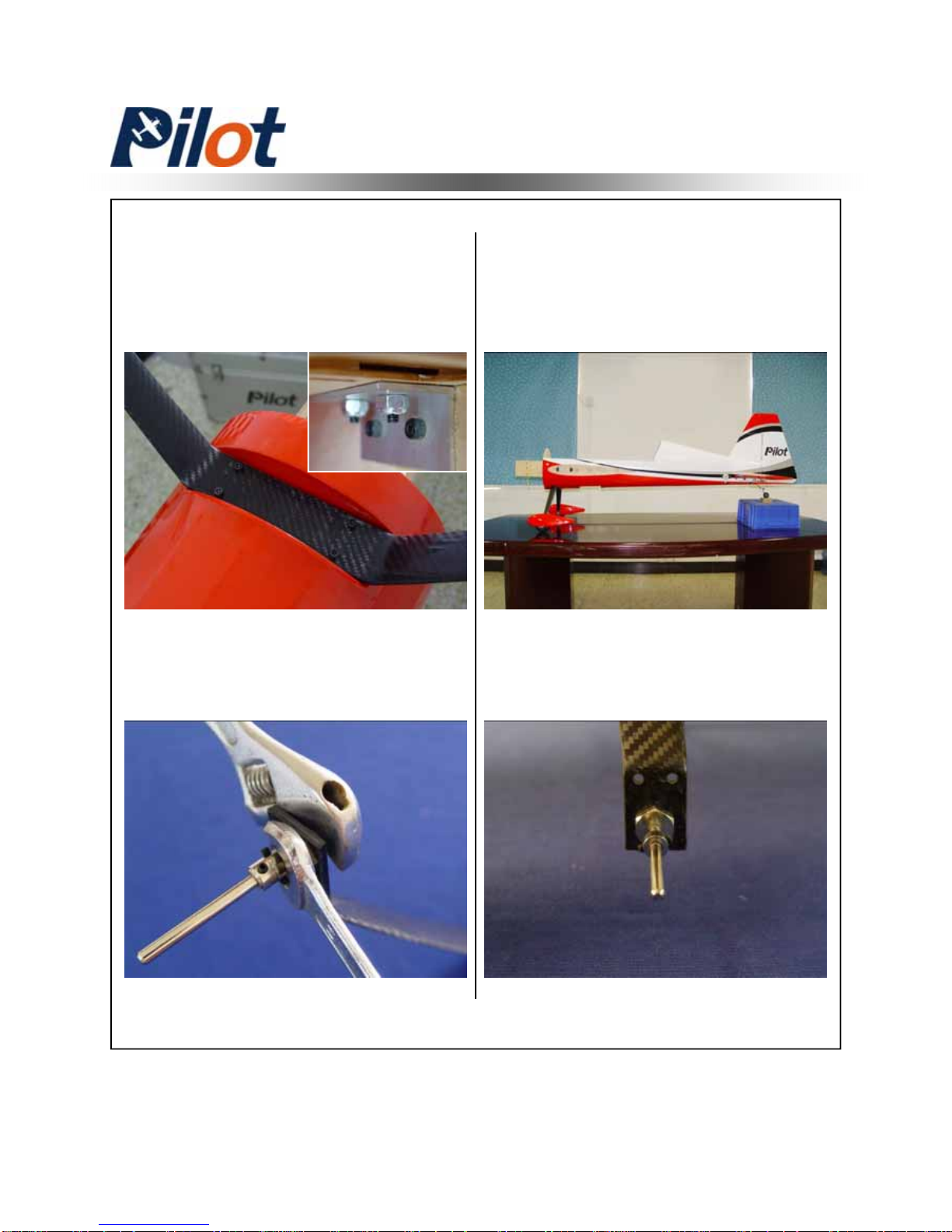

Landing Gear Assembly

1. Install the landing gear with the
bolts and locking nuts
Note:Don’t over tighten and crack
the carbon fiber

2. Install the landing gear axles with
lock nut ,but do not tighten

4. Make the flat sides of the axle bolt
vertical with ground .Then tighten the

lock nut against the landing gear strut

3. Lift the rear of fuse to line it up with
ground as shown

10

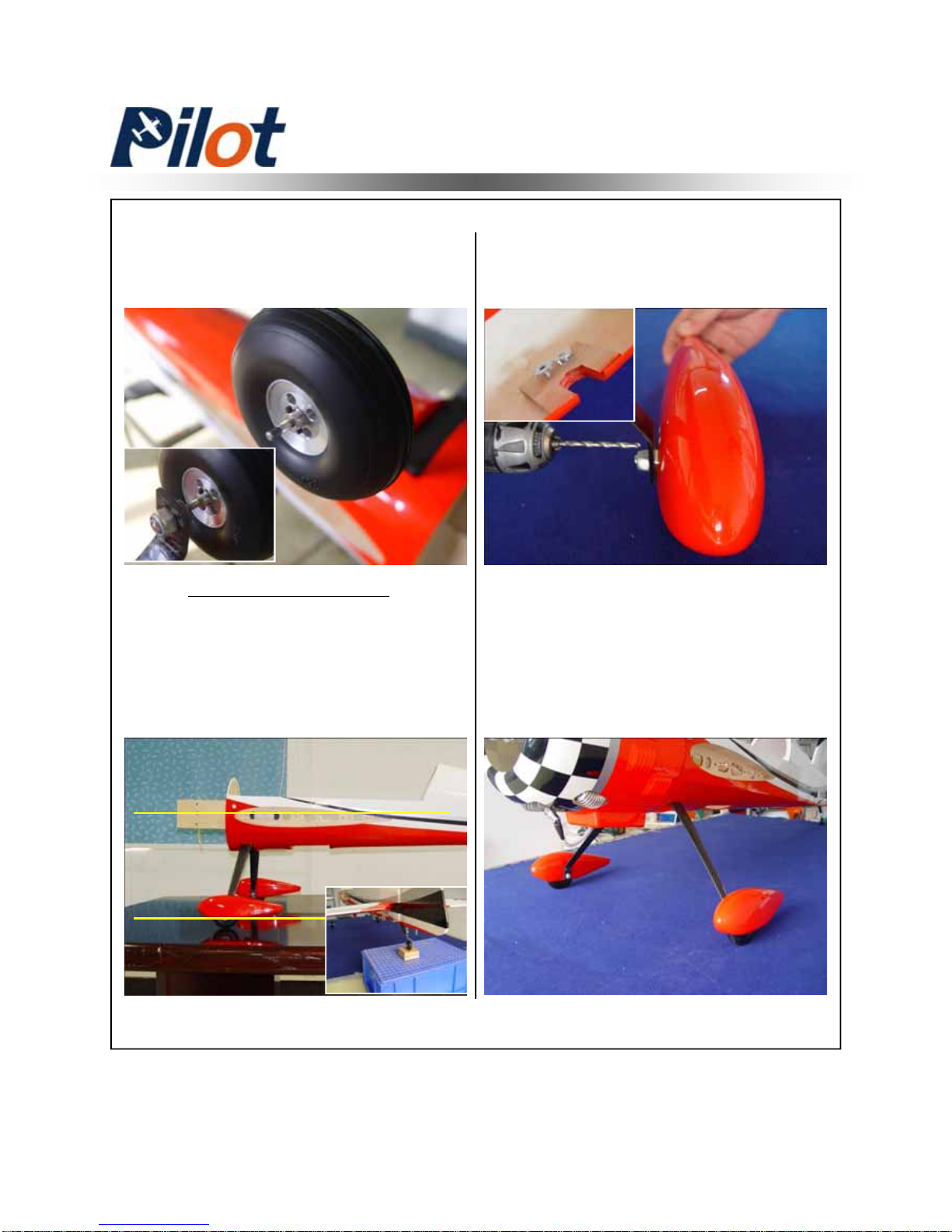

Landing Gear Assembly

1. Lift the rear of fuse and line the
wheel pant up with the ground by
slipping them over the axles and
supporting them from the rear for the
proper clearance

2. Drill the holes for the mounting
bolts and install the blind nuts.

3. Finish the wheel pants mounting
with the bolts and use Blue Loctite
on the threads

5. Install the collars and wheel in
order with a drop of Blue Loctite on
the collar set screw and ensure the
wheel is free to rotate.

Pants Installation

11

Servo Unit

Wing Servo Assembly

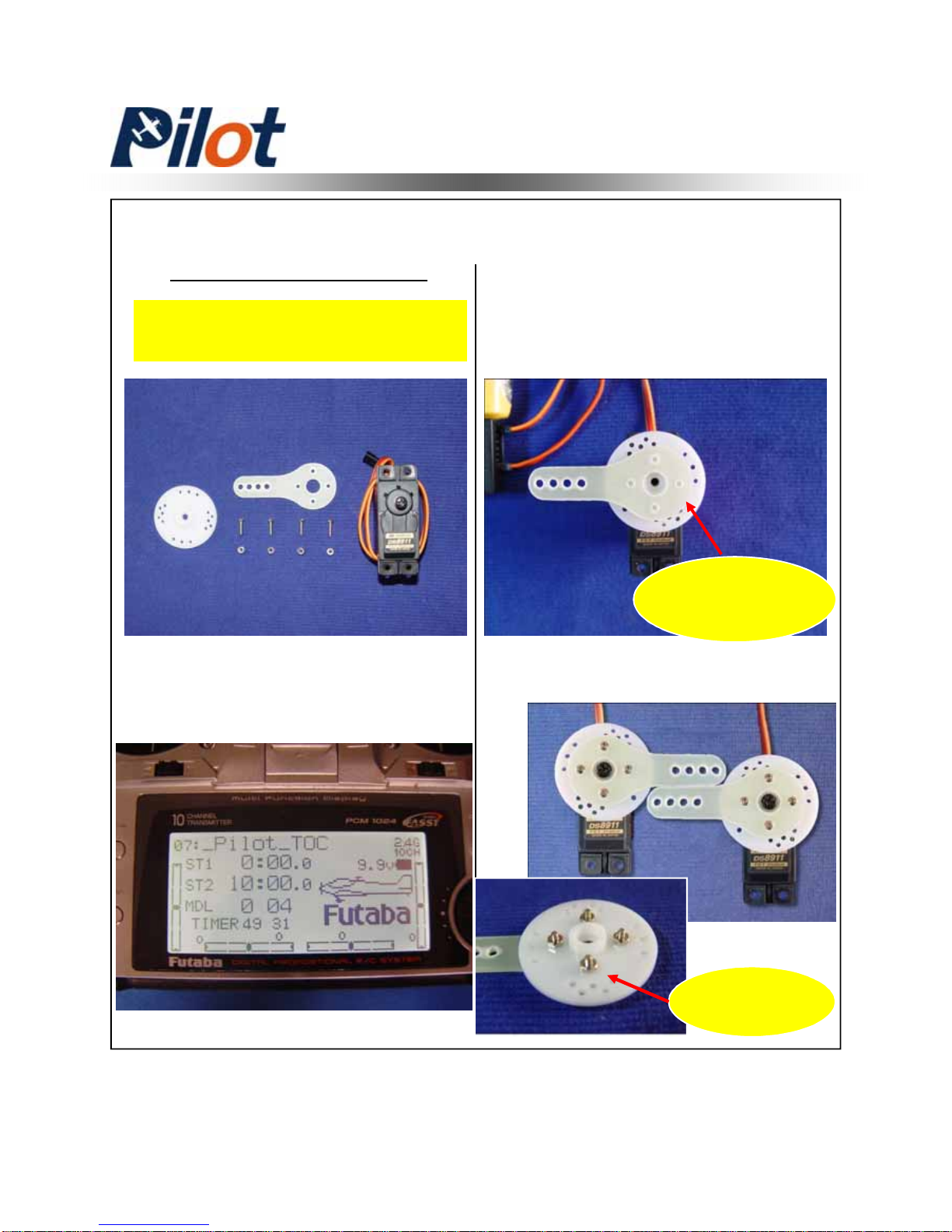

Minimum Request Servo:

Servo Arm Installation

1. Turn on y our transmitter and
plug the servo into receiver. Ensure
every channel is neutral

2. Ensure the servo arm is 90
degrees with servo as shown. Then
mark and drill holes with 2mm bit

3. Mounting screws and nuts

180 in.zo / Metal Gear / Digital

A drop of fast
cured gule here

Pre fasten the arm
with drops of fast
cured gule on edge

12

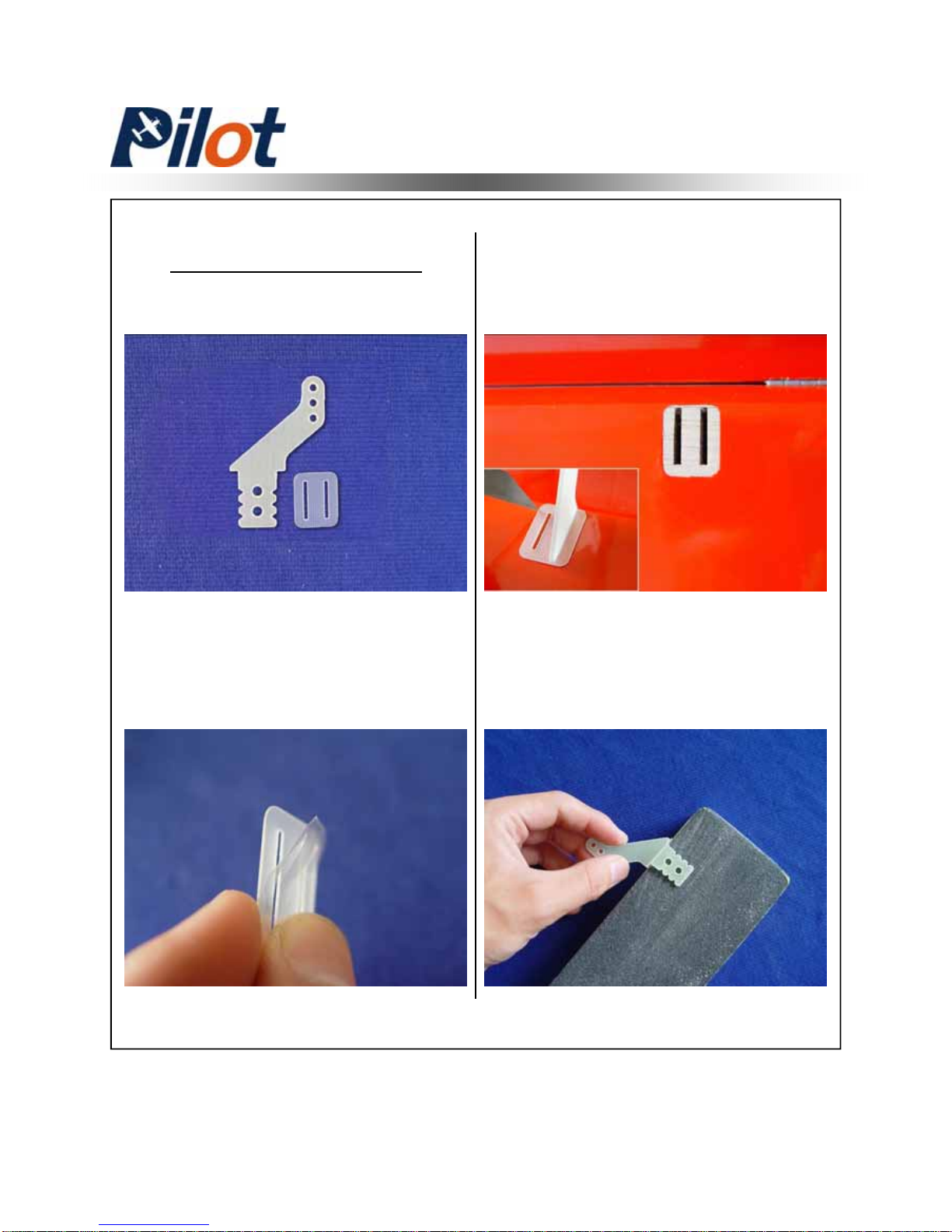

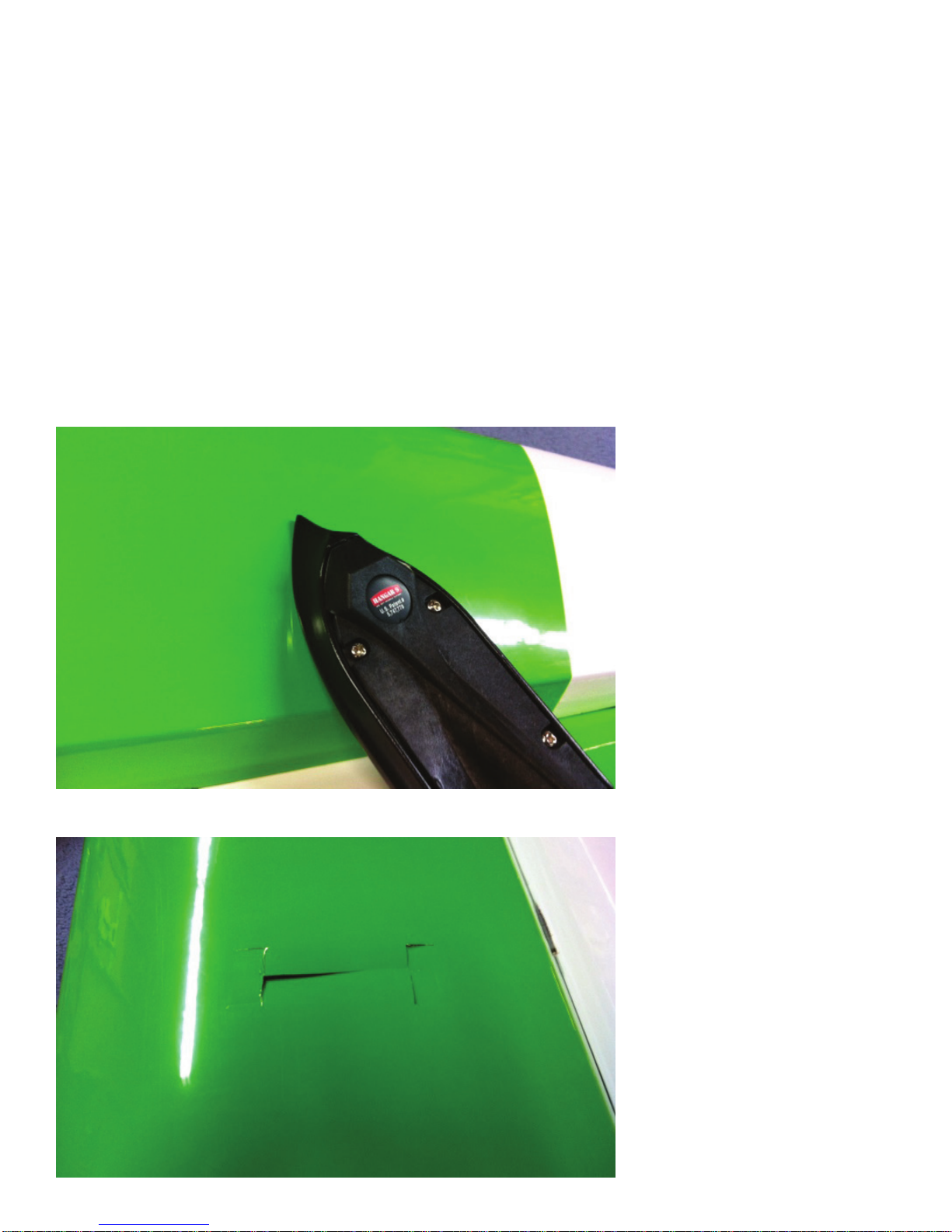

Aileron Control Horns

1. Tear off the cover on the horns
and locking plates

2. Trace around the locking plate
with kinfe and cut off the cover
below.Then the pre-cut sl ots appear

3. Scuff the horns with a piece of
sand paper for good glue bond.Then
clean up the surface

Wing Servo Assembly

13

4. Apply the 30 minutes epoxy
inside the pre-cut slot for horn ,and
coat the horn with epoxy as shown

5. Slide the horn into slot slightly
and Mount the locking plate in
place.Wipe away excess epoxy
with rubbing alcohol

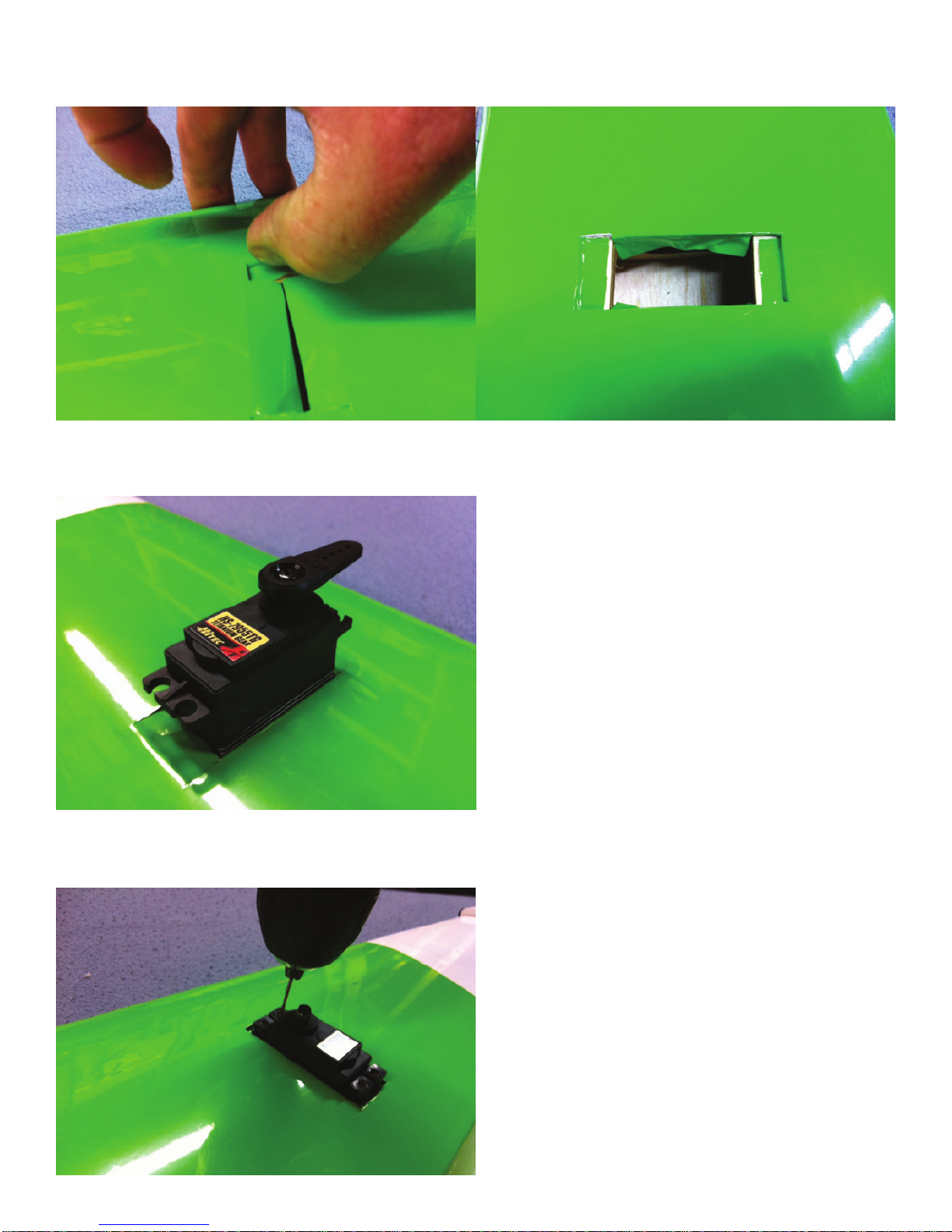

Servo Installation

1. Cut out the cover for servo location
carefully as shown

Wing Servo Assembly

14

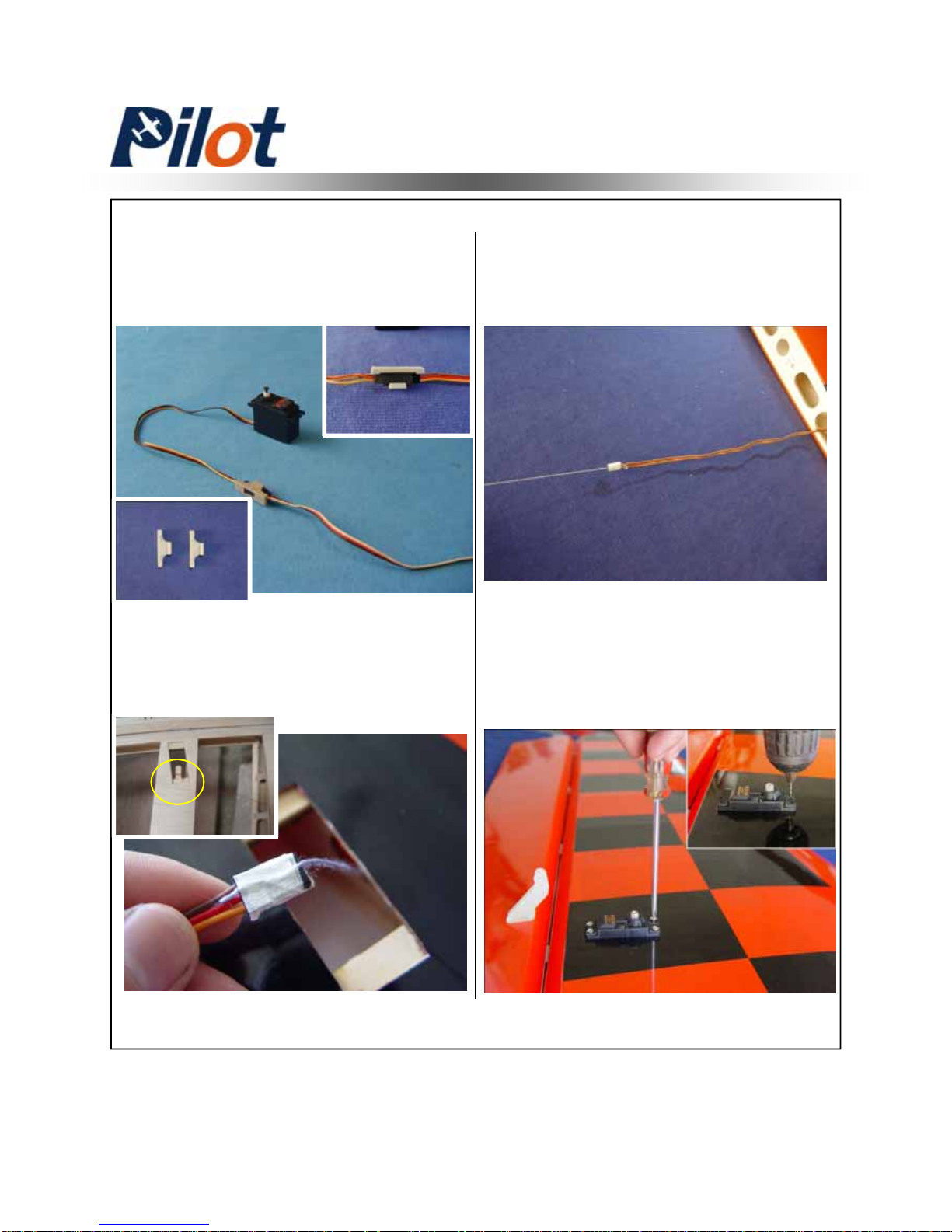

3. Tape the lead to pull-string
tightly. In order to ensure the servo
wire can be pulled out without
hanging up inside wing

4. Then put the extention lead
through the root of wing

5. Install servo with mounting
screws. Face the brand toward the
trailing edge of the wing. Use 1mm
bit to drill the mounting holes

Wing Servo Assembly

2. Lock the connector with the
provided safety clip against vibration
and loosened tension as shown

15

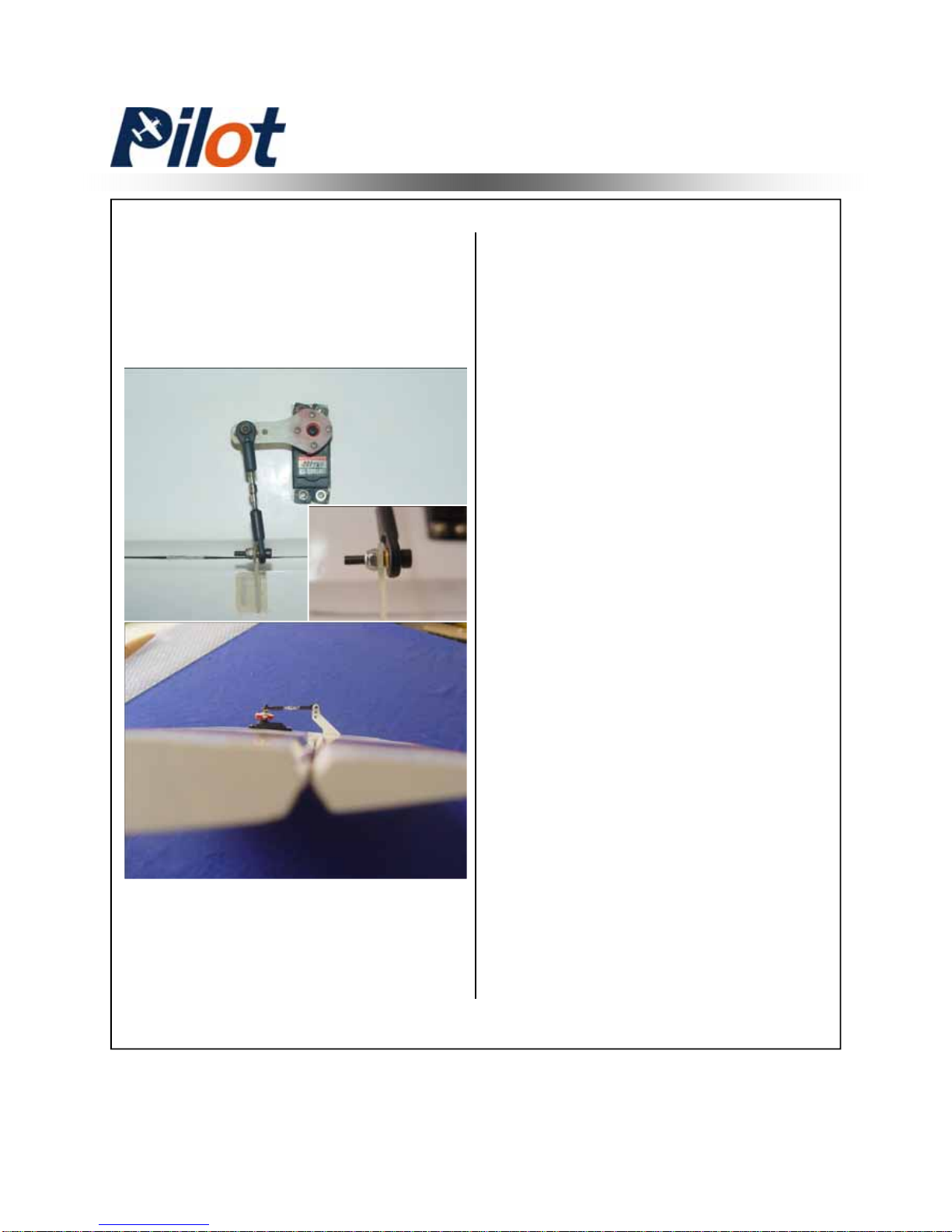

6. Install the servo arms facing
toward the wing tip and adjust
pushrod in proper length to keep the
aileron panel on the neutral position

7. Repeat all the step above for the
other wing

The carbon tube and wing bolts use
to be mounted in the final assembly

Wing Servo Assembly

16

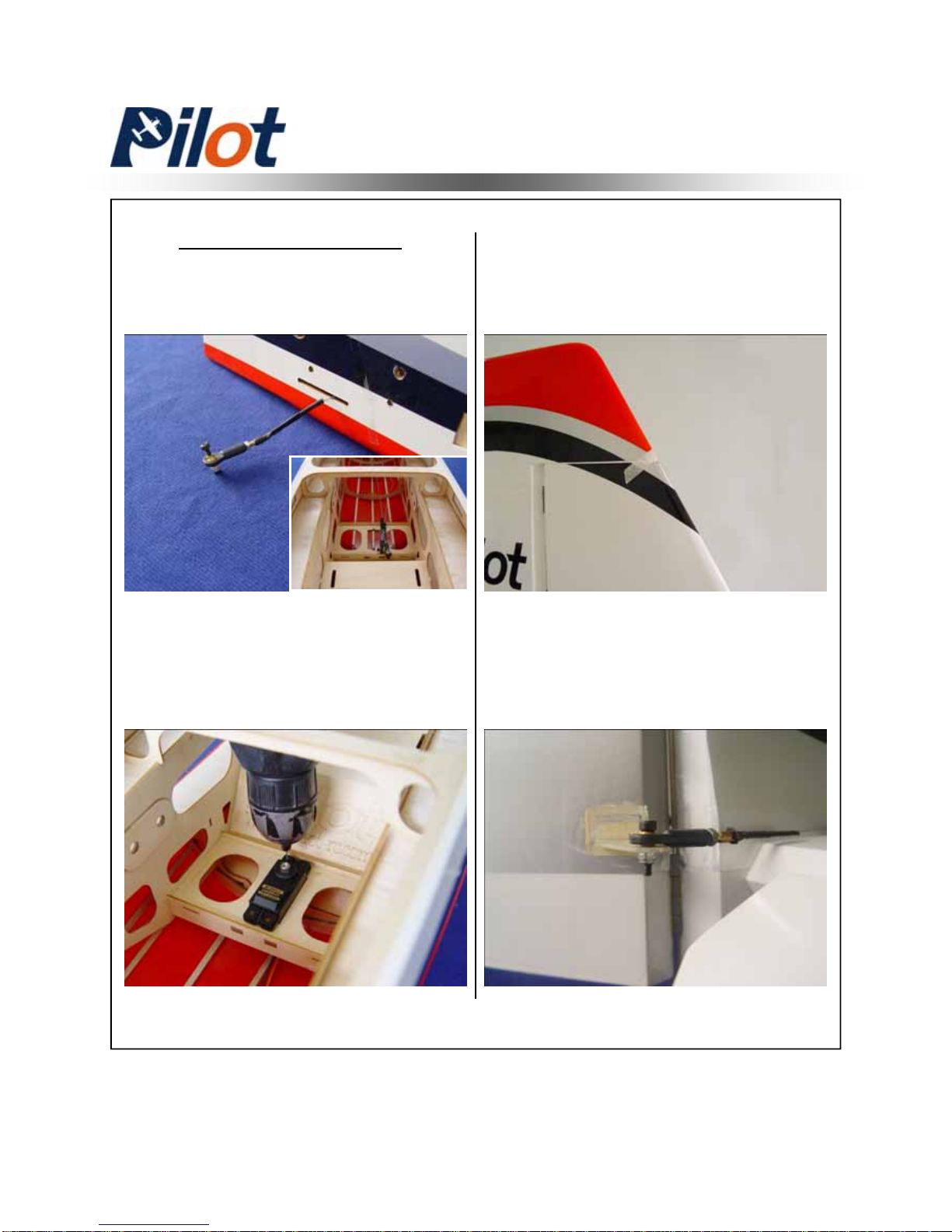

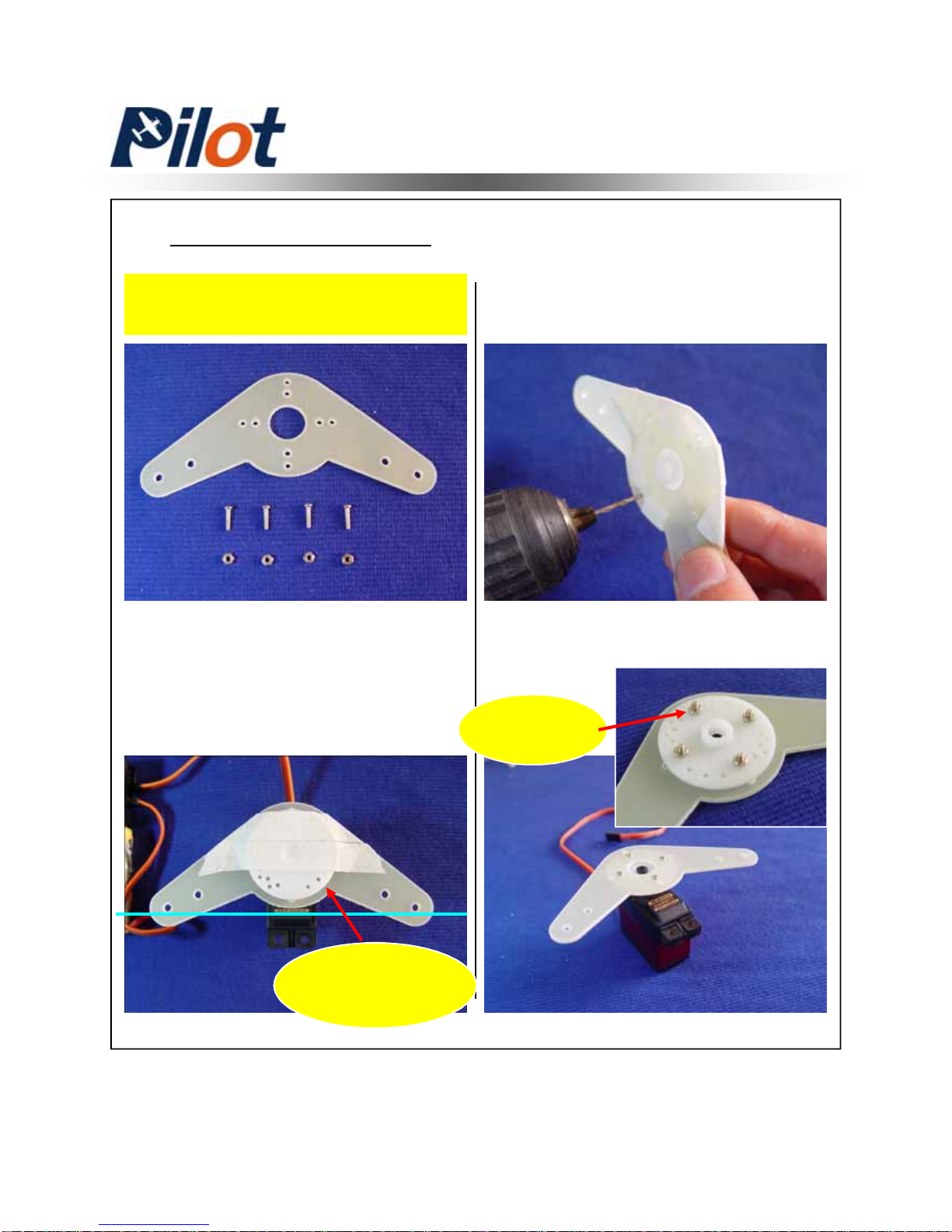

Rudder Servo Assembly

Servo T ray Installation

2. Drill holes with 2mm bit

A drop of fast
cured gule here

3. Mounting screws and nuts

Minimum Request Servo:

180 in.zo / Metal Gear / Digital

1. Turn on y our radio device
according the W i ng Servo

Installation.Keep the tray holes on

center and the arm aligned with

brand as shown. Then tape tightly

Or pre fasten the arm
with drops of fast
cured gule on edge

17

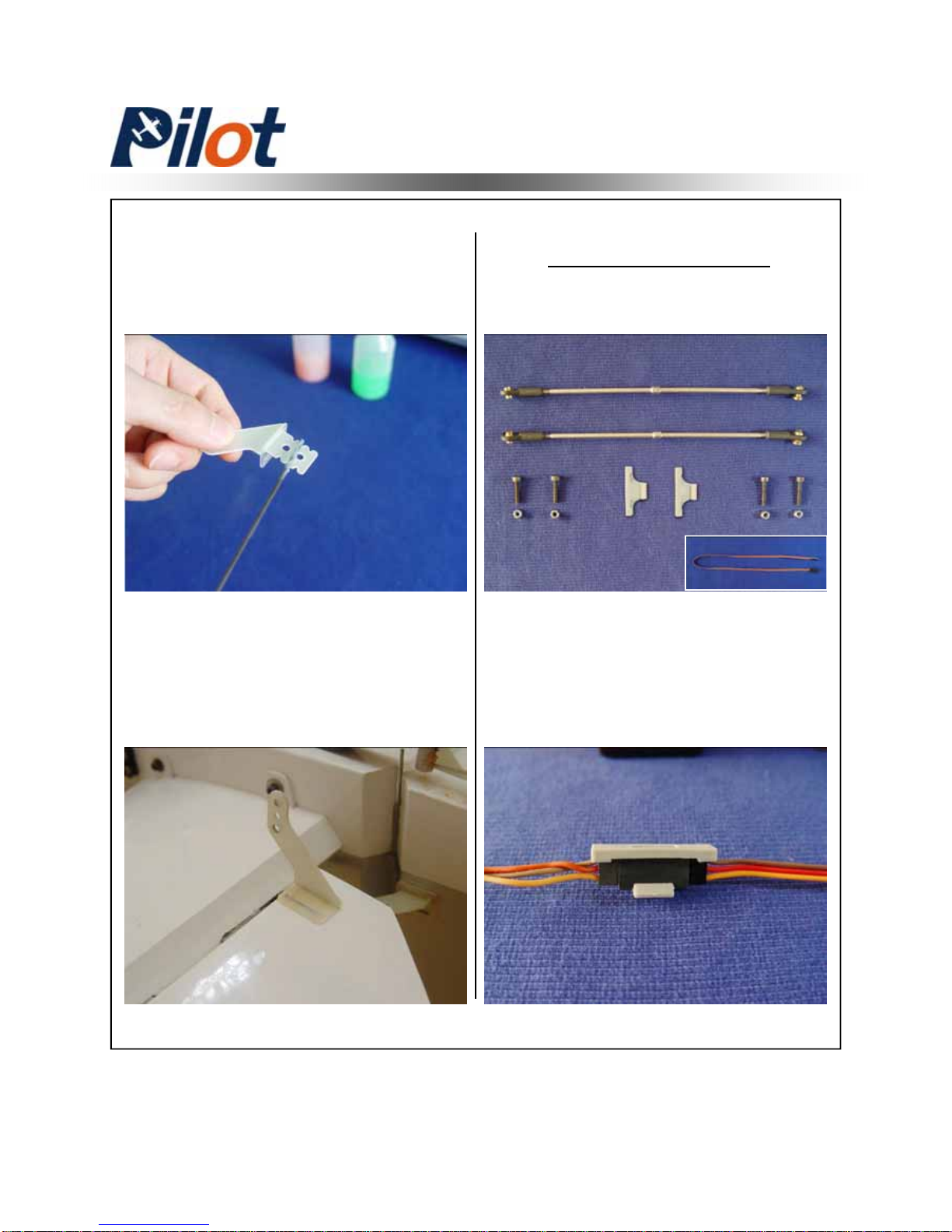

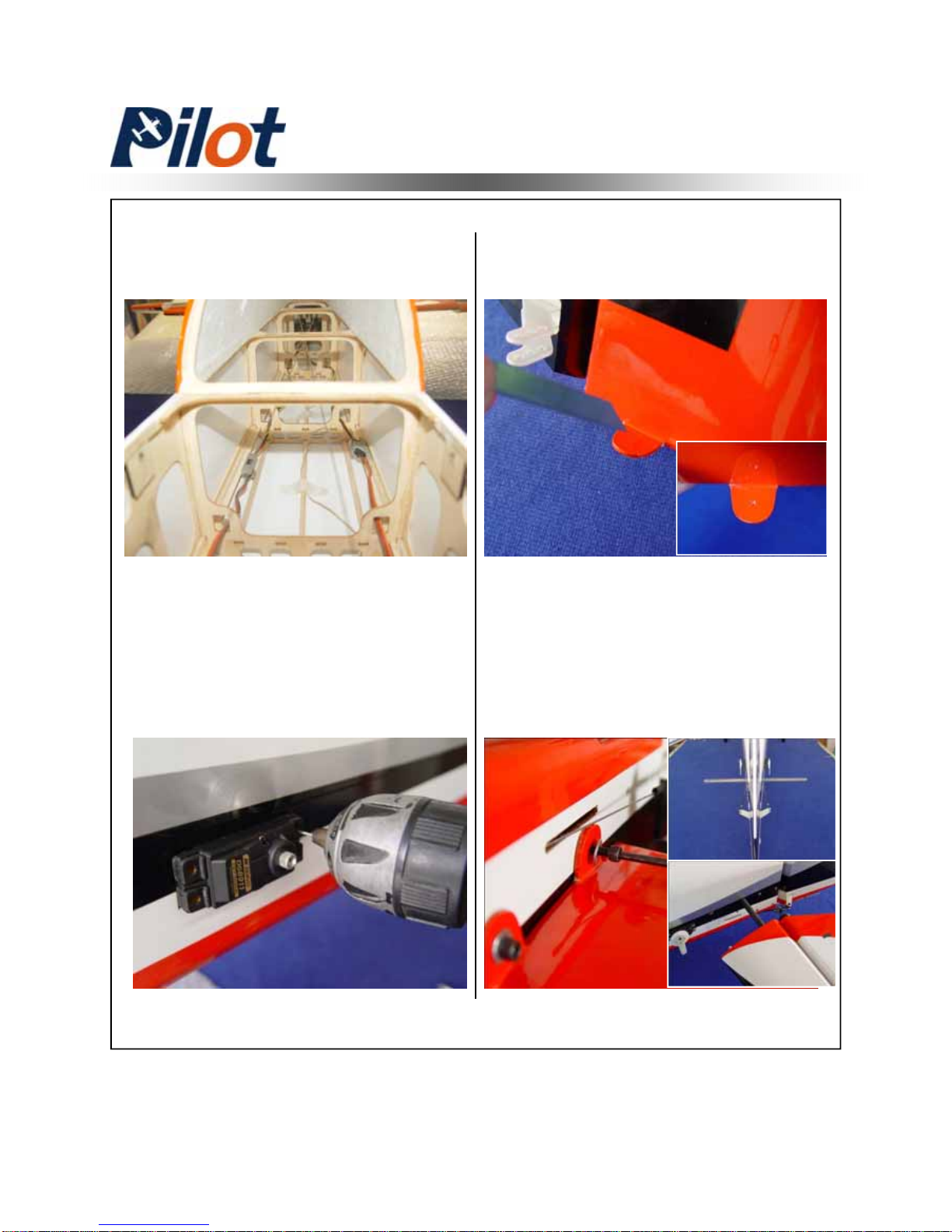

Servo Installation

1. Mount servo with mounting
screws and face the brand toward
the rudder.Drill holes with 1mm bit

2. Tape the rudder panel to top of
the vertical fin in the neutral position
to make it straight

The rudder cables and couplers have
been installed as shown

3. Attach the pre-installed boll li nk
to the rudder horn and not tighten
the locking nut

Rudder Servo Assembly

18

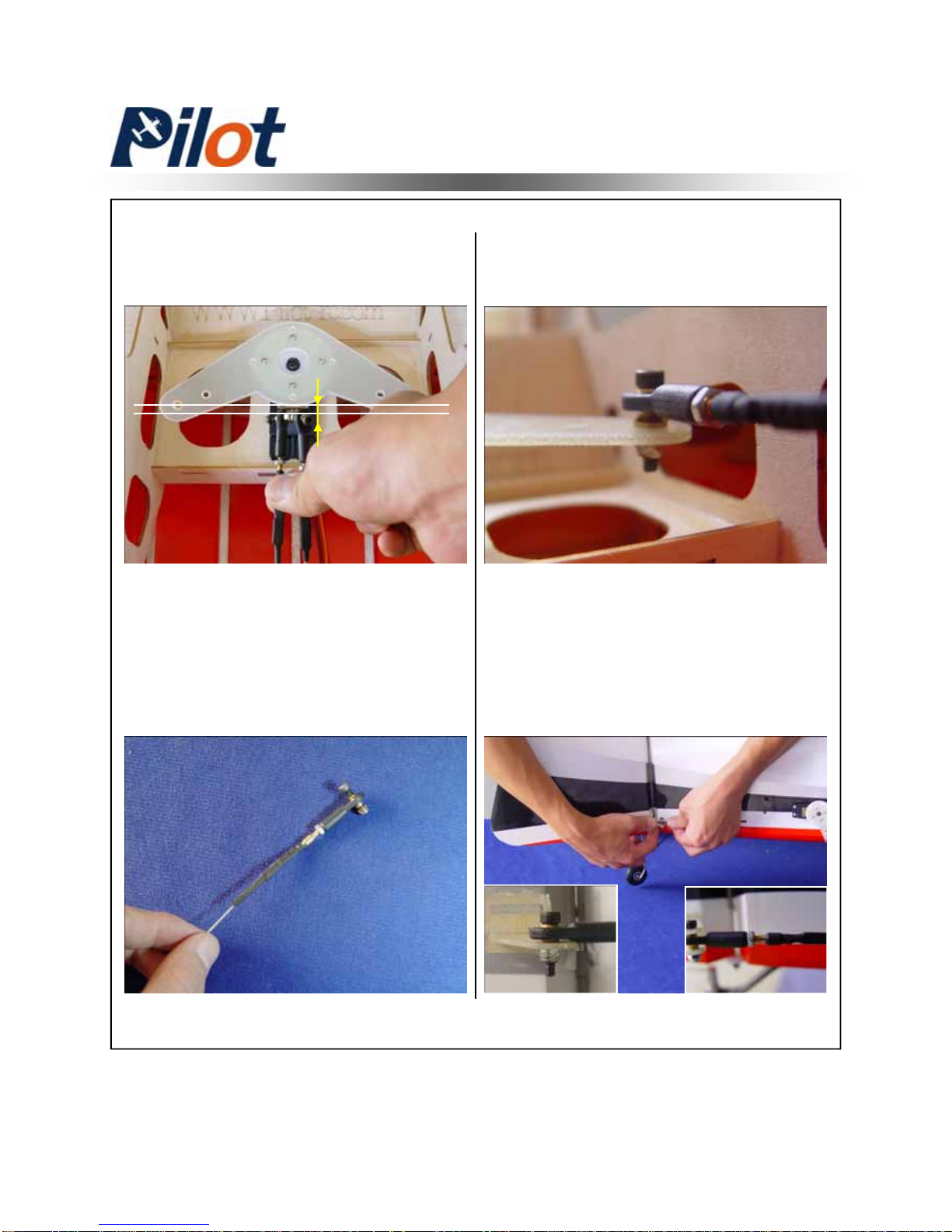

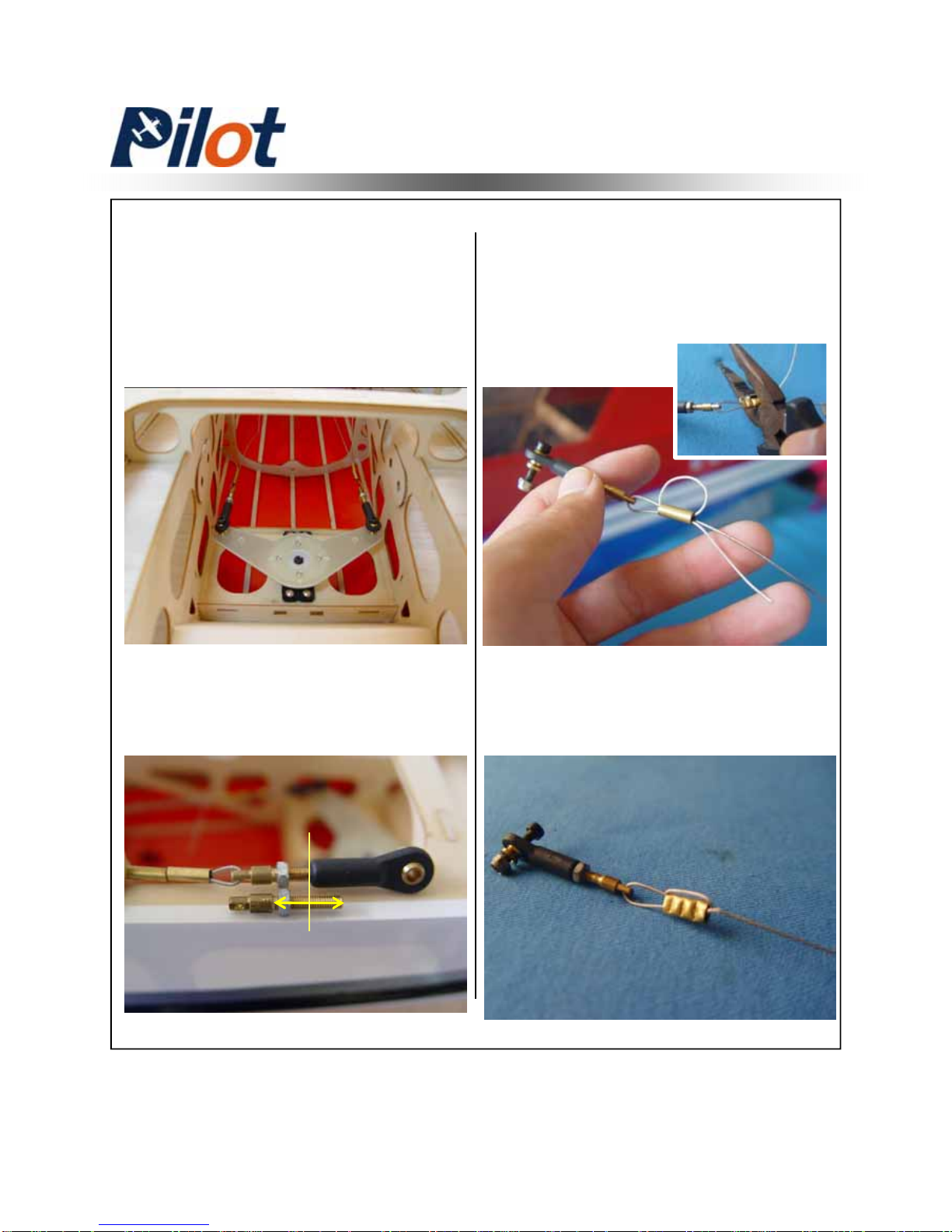

4. Turn on your radio to k eep the

servo neutral. Mount the pre-installed

boll link to the rudder arm without
locking nut. Put two brass tube
through the cable and thread through
the coupler hole. Ensure the cables
are straight

NOTICE: The coupler is best to
thread half way into ball link for
further tightening next

Rudder Servo Assembly

5. Crimp them in place with crimping
pliers

6. Cut away excess cable

19

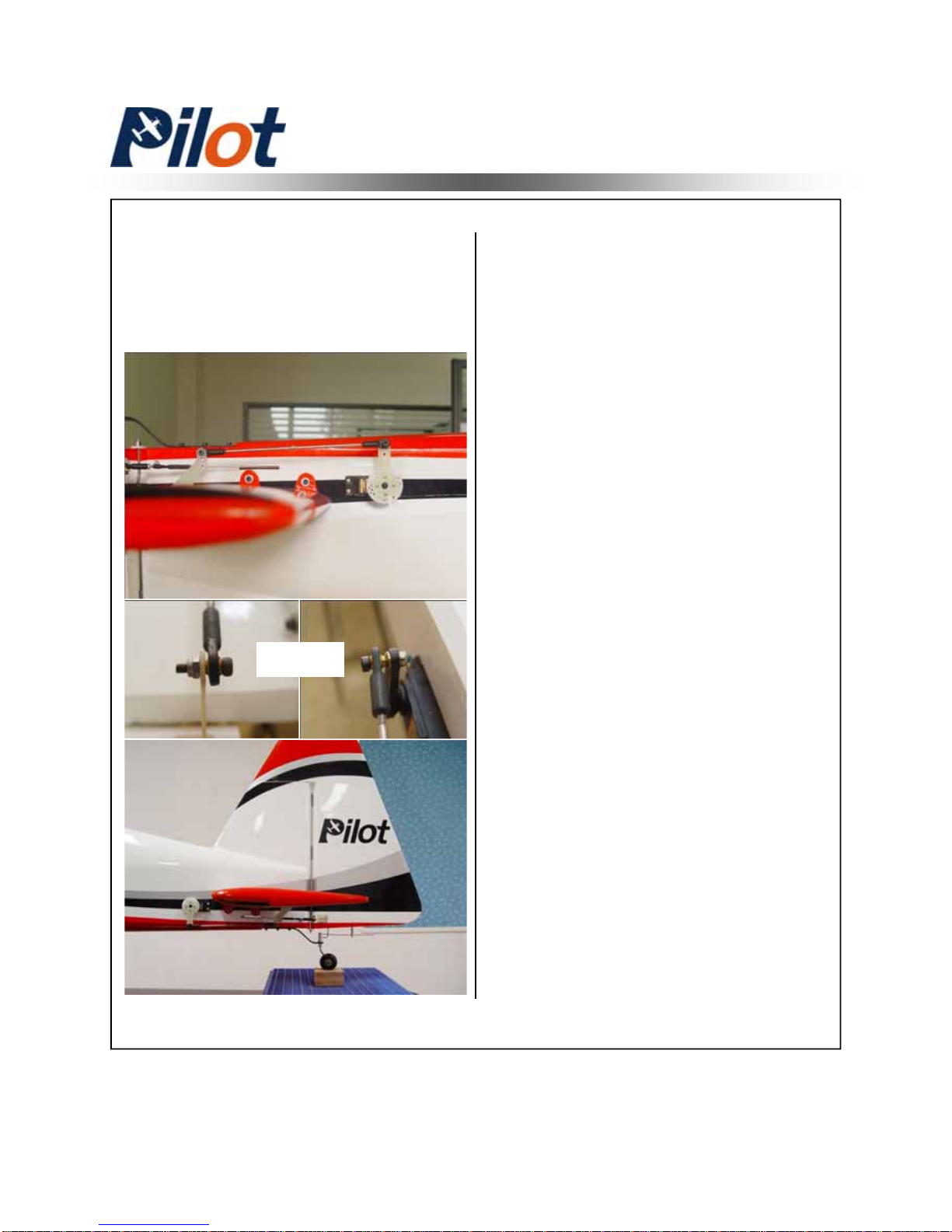

7. Thread the coupler in 2 – 4 mm.
Ensure the same length of cables
and tension

9. Remove the ball links from
rudder horn and install the servo
arm ball links with bolts and nuts

10. Turn off the radio now. Reinstall
the ball link (Don’t pull strongly to
hurt the rudder or back to step 7 for
readjustment )you can find a helper
and do that at certain deflection with
supporting the bottom of the rudder.

Rudder Servo Assembly

8. Shrink the heat shrinking tube on
the brass tube

2-4mm

20

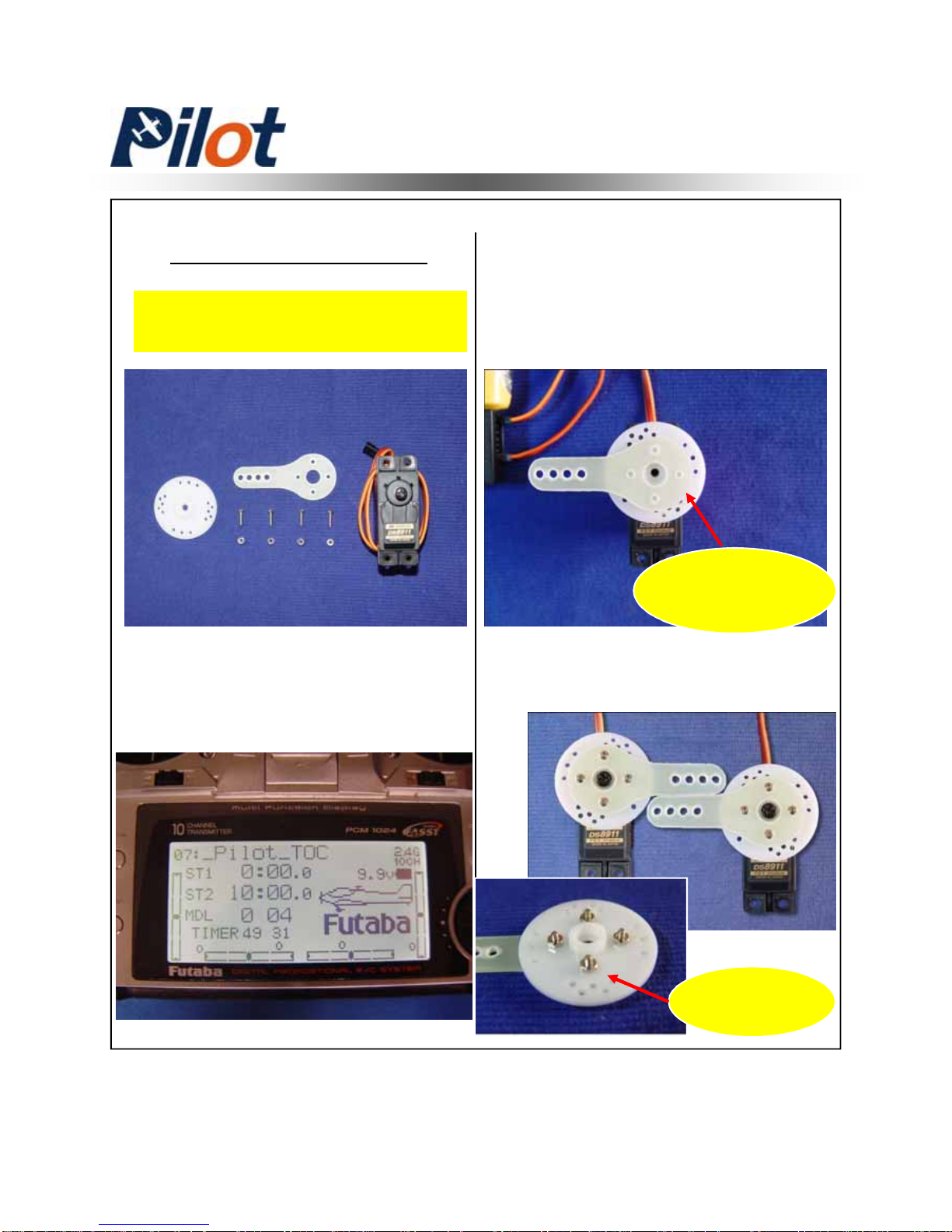

Elevator Servo Assembly

Minimum Request Servo:

1. Turn on y our transmitter and
plug the servo into receiver. Ensure
every channel is neutral

2. Ensure the servo arm is 90
degrees with servo as shown. Then
mark and drill holes with 2mm bit

3. Mounting screws and nuts

180 in.zo / Metal Gear / Digital

A drop of fast dry
gule here

Servo Arm Installation

Pre fasten the arm
with drops of fast
cured gule on edge

21

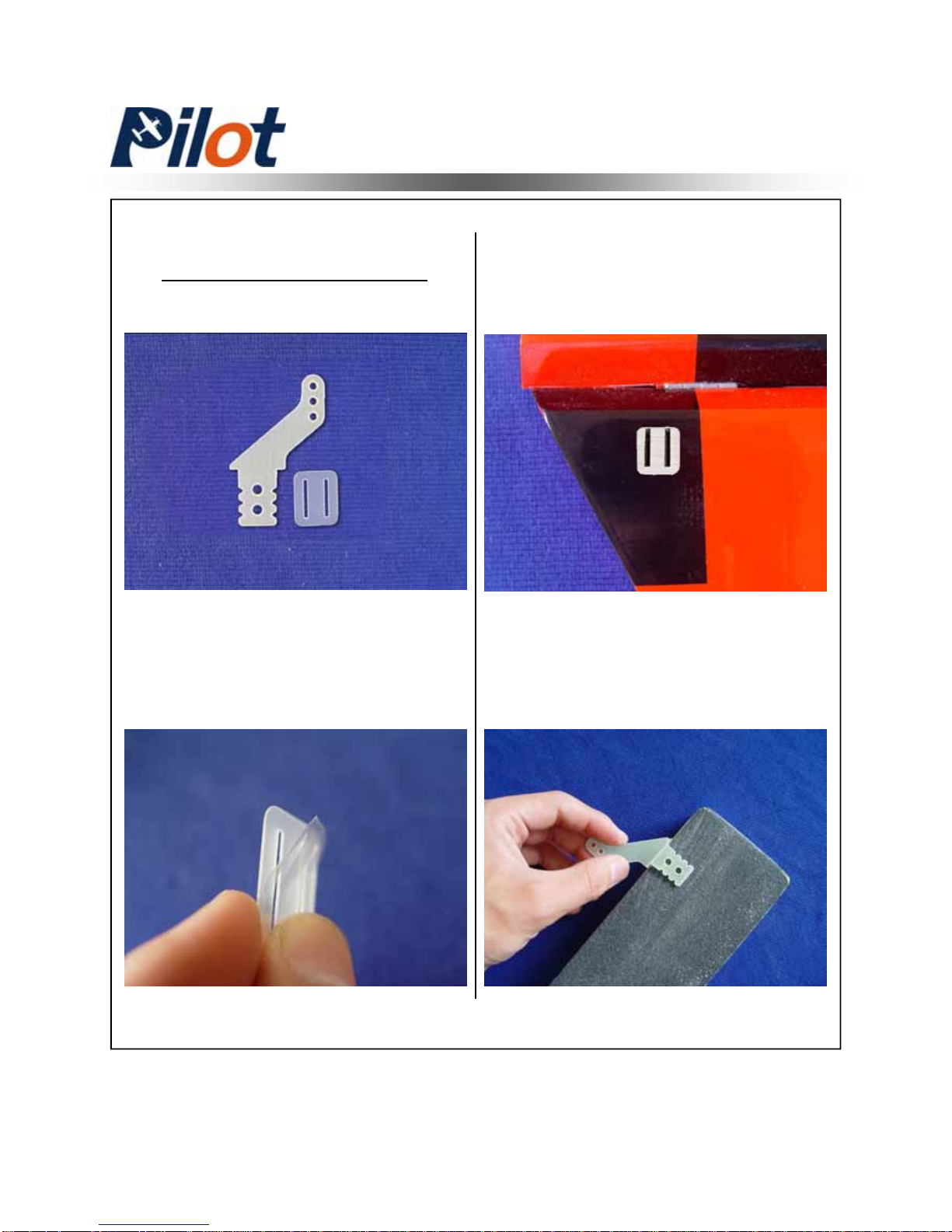

Elevator Control Horns

1. Tear off the cover on the horns
and locking plates

2. Trace around the locking plate
with kinfe and cut off the cover
below.Then the pre-cut sl ots appear

3. Scuff the horns with a piece of
sand paper for good glue bond.Then
clean up the surface

Elevator Servo Assembly

22

4. Apply the 30 minutes epoxy
inside the pre-cut slot for horn ,and
coat the horn with epoxy as shown

Servo Installation

Elevator Servo Assembly

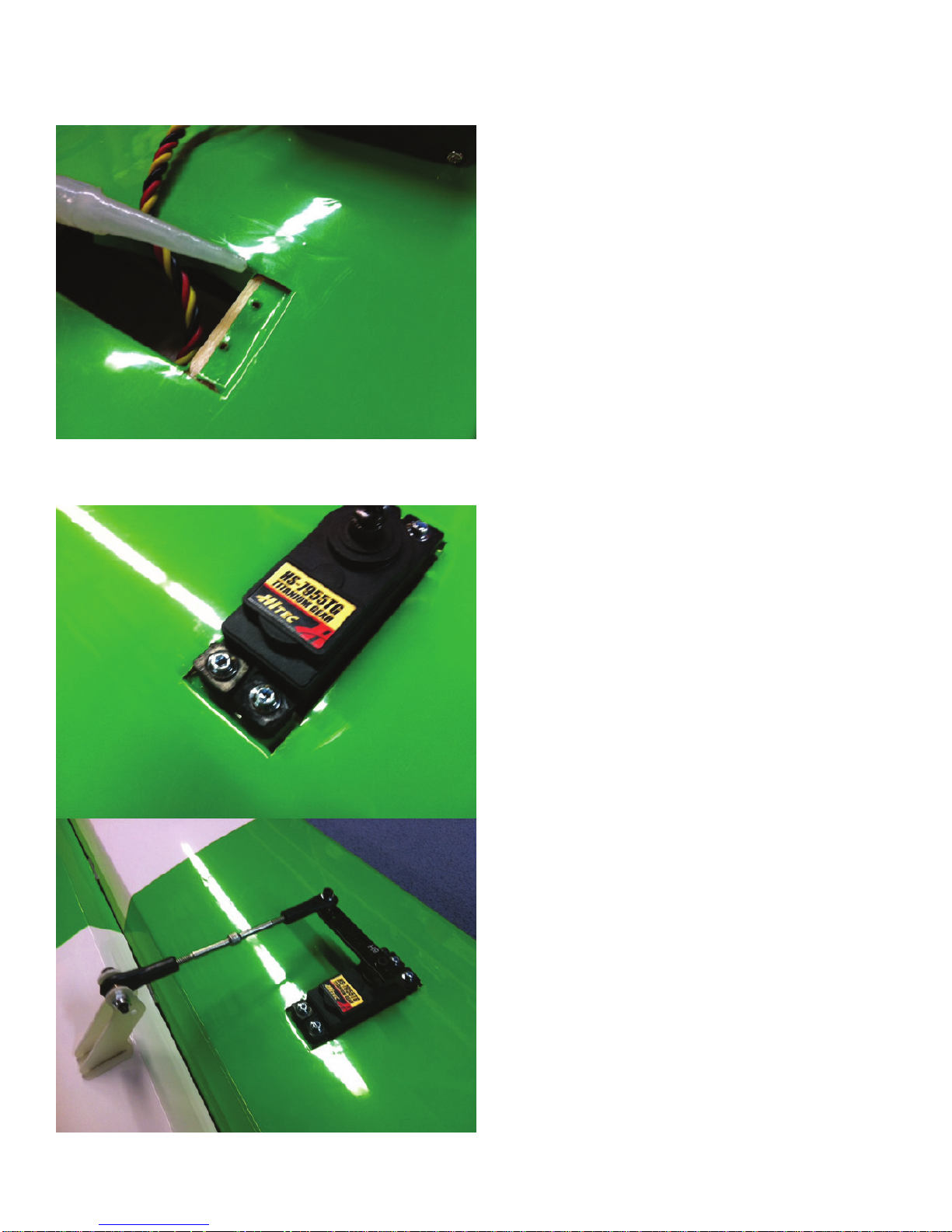

1. Lock the connector with the
provided safety clip against vibration
and loosened tension as shown

5. Slide the horn into slot slightly
and Mount the locking plate in
place.Wipe away excess epoxy
with rubbing alcohol

23

3. Install servos with mounting
screws. Face the brand toward the
rear of fuse. Use 1mm bit to drill the
mounting holes

2. Then put the extention lead
through fuselarge

4. Cut the cover on the pre-drill hole
for stab mounting

5. Install the stab with mounting
bolts and washers

Elevator Servo Assembly

24

6. Install the servo arms facing
toward the ground and adjust
pushrod in proper length to keep the
aileron panel on the neutral position
as shown

7. Repeat all the step above for the
other stabiliz er

Elevator Servo Assembly

NOTICE

25

Switch Installation

Switch Assembly

Note: The switch mounting holes

have been pre-cut for standar size.
Otherwise fill it with the same size

1.7mm plywood and a larger one
(both not included) as reinforce

2. Finish the mounting with screws
and nuts supplied.

1.cut off the cover with a sharp knife

26

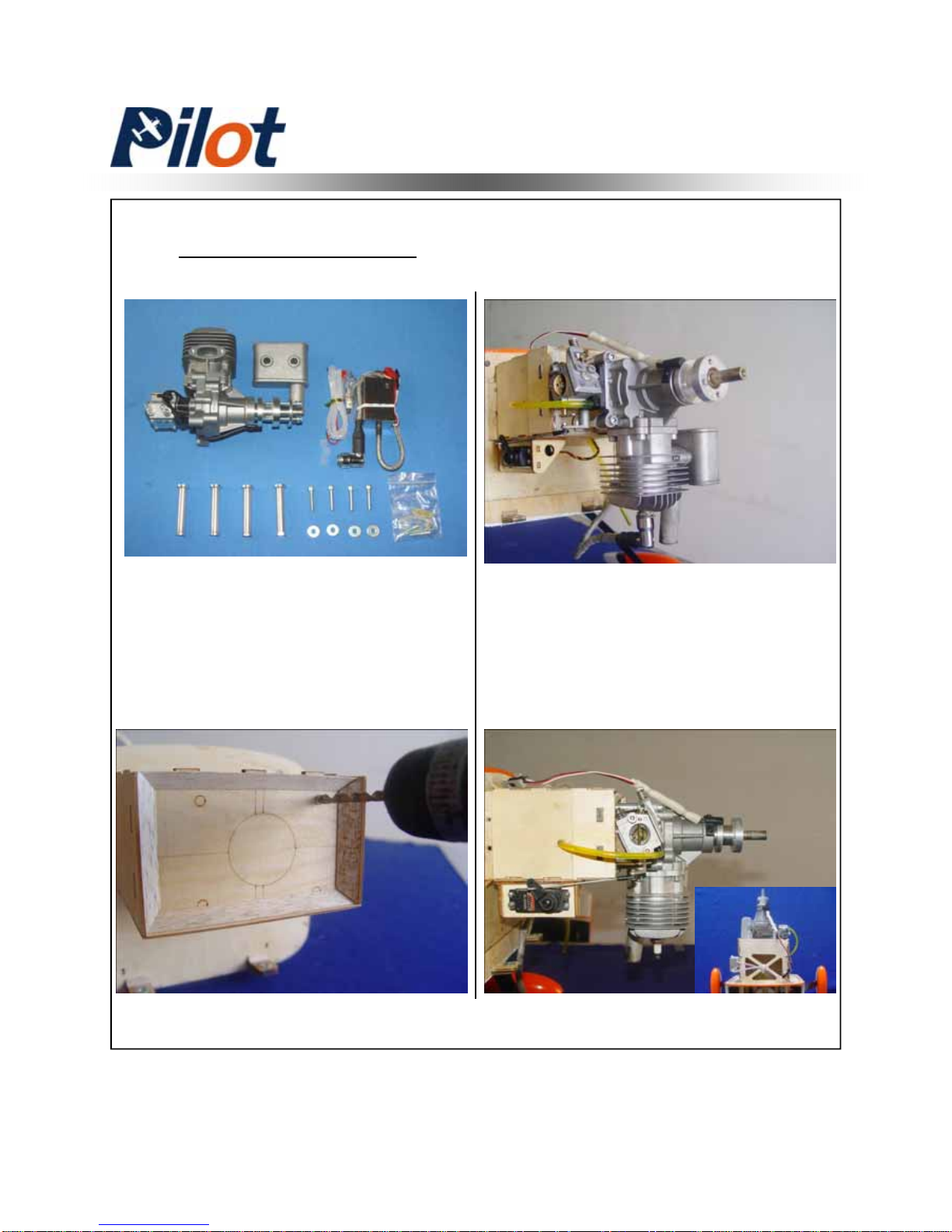

Engine Installation

Remenber: Use Bue Loctite on all

engine mounting screws

Engine Assembly

The firewall has been m ounted.

Drill according pre-set laser holes
for DLE-30. Otherwise measure
your engine’s mounting location.

27

Throttle servo Installation

A drop of gule on nut

5. Finish the servo installation with
mounting screws

Throttle Servo Installation

1. Install the engine throttle arm
witn a little Blue Loctite. Measure
and cut the extra wire .Then bend
to a sharp of “z” as shown. Mount
the throttle pushrod to engine

2. Determine where the throttle servo
mounting tray is going to be mounted
on the engine box to get the straight
and precise throttle linkage connecti on.
Then make a mark and epoxy the tray
in place .Finally secure with self­tapping screws

28

Ignition Module

Ignition Module

1. Tape foam rubber on bottom of
ignition and attach to safety cover
surplied as shown

2. Position the ignition outside the
engine box to allow the spark plug
leads to connect the engine without
excess tension .Drill for Nylon tie

3. Lock the connectors with the
provided safety clip against vibration
and loosened tension as shown

29

Engine Box Hatch

Epoxy the hatch in place and secure
with self-tapping screws

Fule Tank And Dot

Fule tank and fule dot have been
installed.Just tighten the velcro ties

Hatch And Fule Tank

Fule line

Fule Fill Line

30

Crowl Assembly

Crowl Assembly

1. Make or use the suppli ed pattern
of the exit air cooling. But do not cut
off the crowl mounting holes position
as shown

3. Also cut out for clearance for the
exhaust pipes

2. Use a fiber cutting tool to rough
cut the cowl and finish with a round
sander.Trial fit to make sure there is
a minimum of 3/8”around the engine
cooling.

31

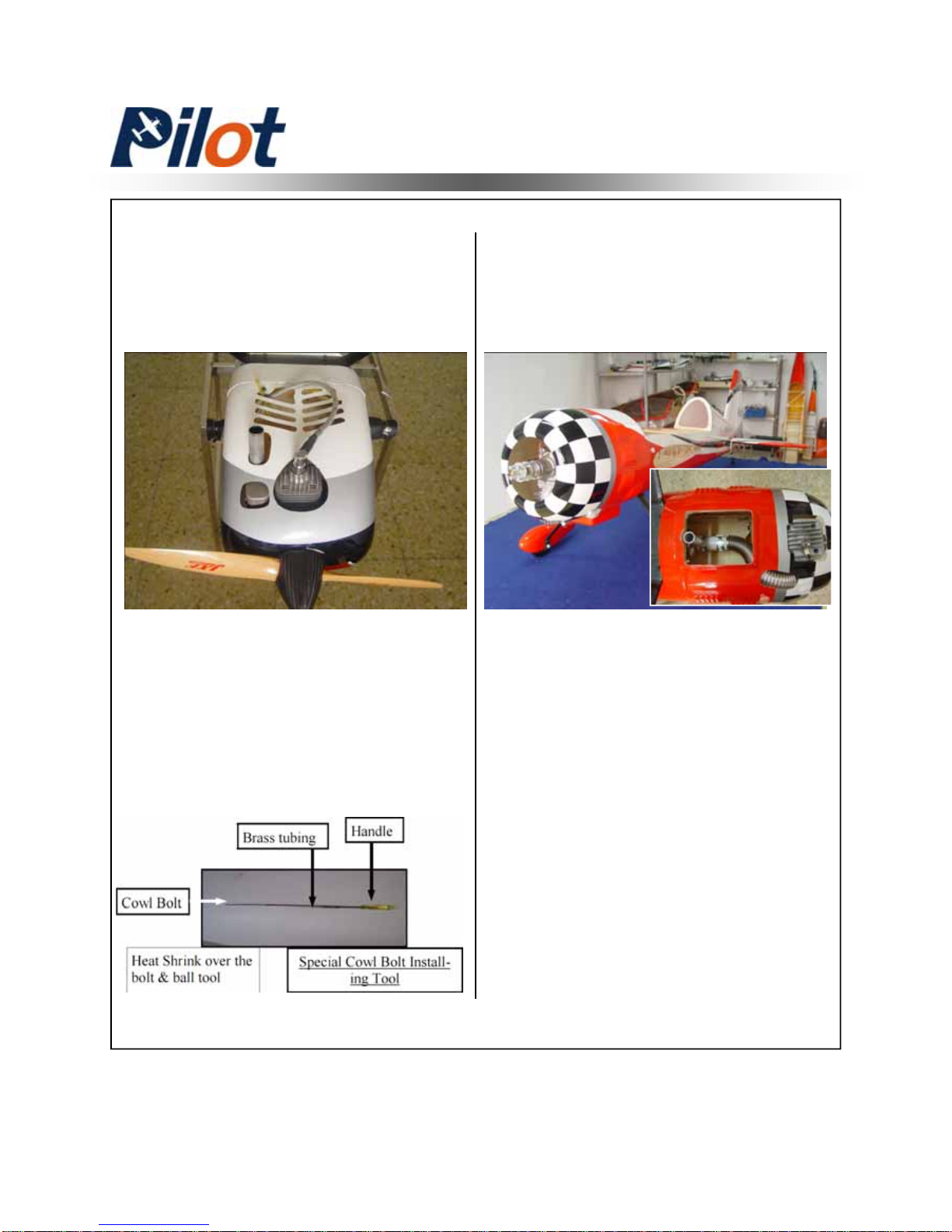

YAK-54 73’’ have two that mount

from the rear of the firewall on the
top of the cowl and two that mount
from the front of the cowl opening

4. Ensue all the corner are rounded
and not sharp 90 degrees against
splitting under vibration. Trial fit till
the cowl is right

Maybe more exit air cooling
will be needed to allow for
depending on your engine’s
recommended running
temperature.Always check
your engine and Pilot-rc
dosen’t accept responsibility
for any damage from
improper engine cooling

NOTICE:

YAK-54 73’’ need an extension tool

with a proper size ball driver and
handle by cutting standard ball driver
in half .Some small heat shrink
tubing are attached to the ball driver
to hold in place.You have to reattach
the cowl in the future by this method

Crowl Assembly

32

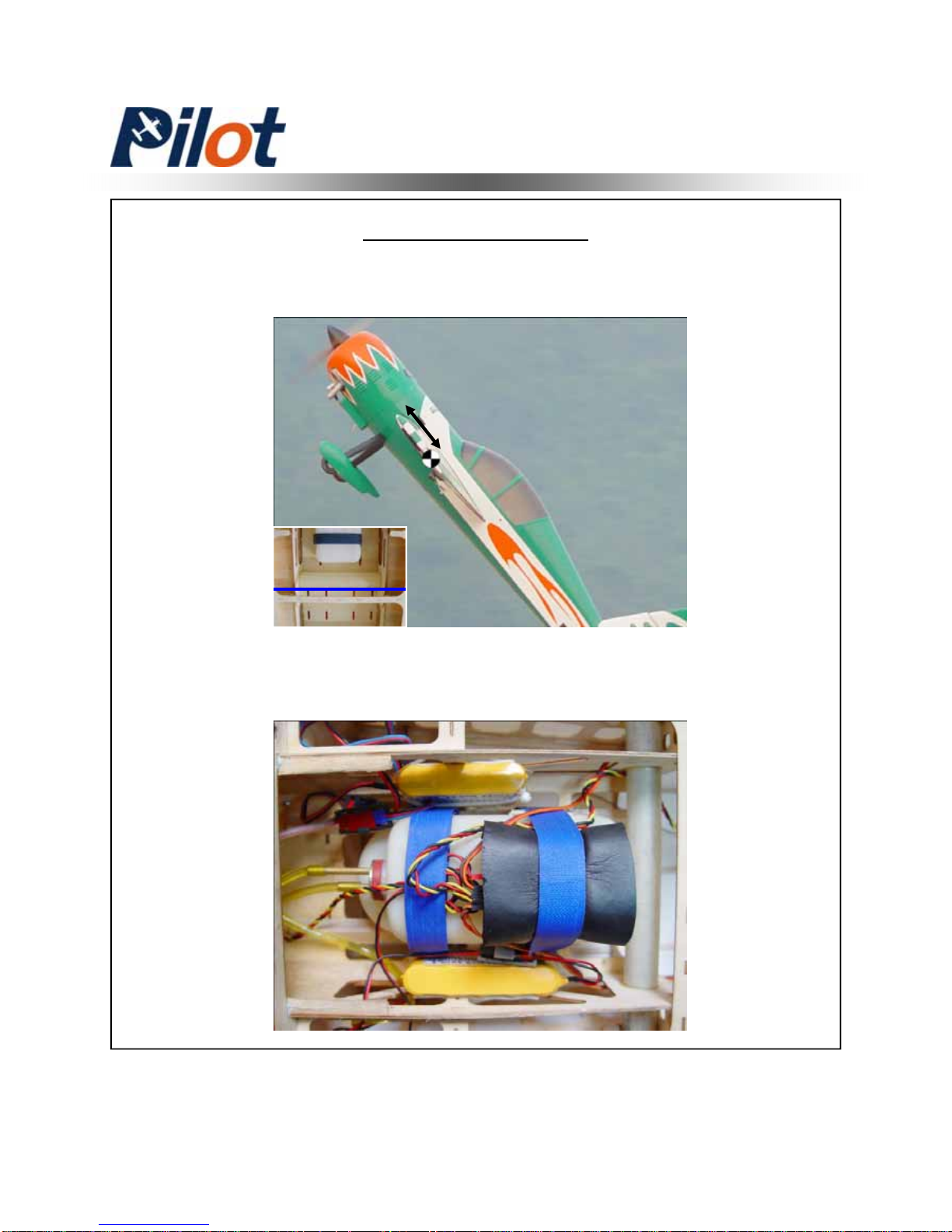

Center of Gravity

Center Of Gravity

Your balance at the CG will determine batteries final

mounting location .Mount batteries and secure with Nylon ties

The center of gravity is on the rear of the wing

tube .For more plane please refer to the CG list

Center of gravity

33

EXTRA-300 73’’ 131mm/5.2inch
EXTRA-300 88’’ 170mm/6.7inch

EXTRA-300 107’’ 211mm/8.3inch
EXTRA-300 122’’ 244mm/9.6inch

EXTRA-260 73’’ 144mm/5.7inch
EXTRA-260 87’’ 172mm/6.8inch
EXTRA-260 106’’ 209mm/8.2inch
EXTRA-260 122’’ 248mm/9.8inch

The CG list of Pilot-RC products

YAK-54 73’ ’ 156 mm/6.1inch
YAK-54 87’ ’ 183 mm/7.2inch

YAK-54 107’ ’ 225 mm/8.9inch
YAK-54 121’ ’ 266 mm/10.5inch
YAK-54 129’ ’ 273 mm/10.7inch
YAK-54 148’ ’ 314 mm/12.4inch

Edge-540 87’’ 175mm/6.9inch
Edge-540 107’’ 141mm/5.6inch

Sbach 342 73’’ 145mm/5.7inch
Sbach 342 87’’ 173mm/6.8inch

Sbach 342 107’’ 234mm/9.2inch

Sbach 342 122’’ 269mm/10.6inch
Sbach 342 148’’ 309mm/12.1inch

Edge-540 122’’ 166mm/6.5inch

YAK-54 180’ ’ 401 mm/15.8inch

This recommendation balance point is for

your first flight.The CG can be moved

around to fit your personal taste.

CG locationPLANE

The location of CG has been
marked inside plane as show

Control Throws

■ Afer you set the given control

throws up and have a few flights under
you belt, you can change the amounts
as well as moving the CG back at 1/4"
intervals

Elevator: 40 Degrees on Hi gh rate

12 Degrees on Low rate

Aileron: 30 Degrees on High rate

12 Degrees on Low rate

Rudder: 45 D egrees on Hi gh rate

40 Degrees on Low rate

Throttle: Adjust idle –full

■ Learn to use exponential of about

40 percent on your elevator to make
great landings and not over control a
highly aerobatic airplane.Use 70
percent exponential on High Rate!

The First Flight set up

34

35

■ Make sure you have the right model programmed into your

transmitter

■ Check the direction of each surface not and also right before

you take off .

■ Rememver nothing wrong on the ground ever improves in

the air

■ Check the air plane with t he engine running and do a range

check w ith

■ your body between you and the plane at 150 feet.

■ Check your battery voltage after each flight in case one

servo is draining your battery

■ Recheck all screws ,horns and linkages for slop after your

maiden fight and check for damage if you made a bad landing
you first time

■ Have an experienced pi l ot fly it for you the first time if you

have any doubts in your mind about the maiden flight

■ Take a break after you first flight and let the adrenaline

burned off by bragging to your fellow menbers how good it
flies

■ Fly low and at a medium speed on your first few flight

■ Listen to your engine run and have an observer with you to

remember w hat you talked about during the flight or if you ger
into trouble . Alwa ys balance your props, vibration is a killer.

■ Remember nose heavy airplanes fly all the time, tail heavy

airplanes fly only once.Be on the CG!

■ Fly 3D two mistakes high in the beginning and not close to

people, planes or runways. Being a center of the runway hog
does not endear you to many modelers.

Flight Preperation

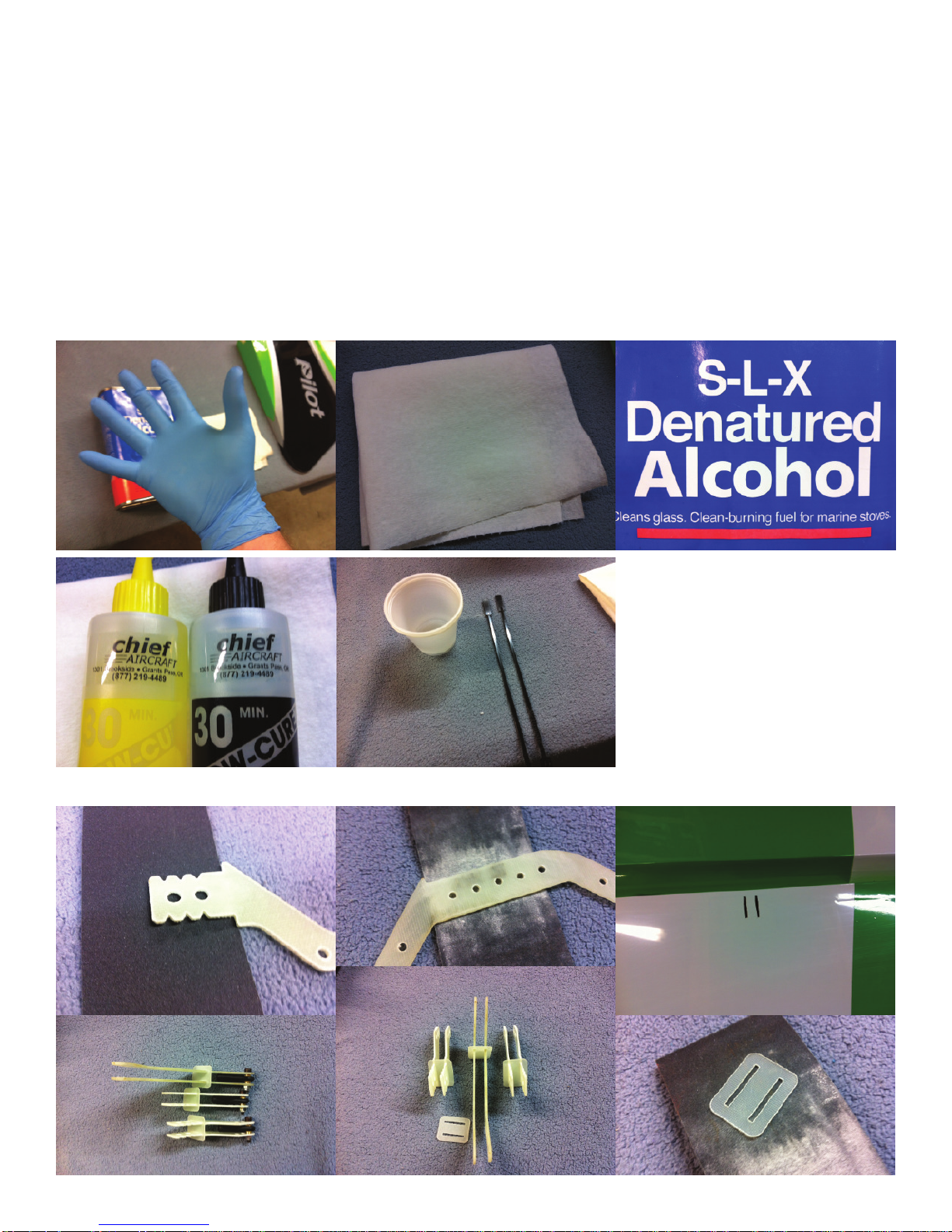

Pilot RC Control Horn Installation

(50cc and larger have dual control horns & 30cc Aircra have a single control horn)

• Rubber/Latex Gloves.

• Epoxy (30 Minute or Stronger)

• Epoxy Mixing Cups

• Epoxy Mixing Sticks (Any mixing stick that will t into the slot)

• Denatured Alcohol or Acetone.

• Paper Towels

• Sand Paper

• X-Acto Knife

• Dremel and Small Drill Bit (Optional and Not Always Needed)

en Prepare your parts..

en you will need to test t your parts together before gluing in place. Please note that
sometimes the slots need to be cleaned out a little bit and can be done with a dremel and a
small drill bit or an x-acto knife.

Force your epoxy into the slots. Also apply a thin layer of epoxy on the control horn and
bottom of the guide plate.

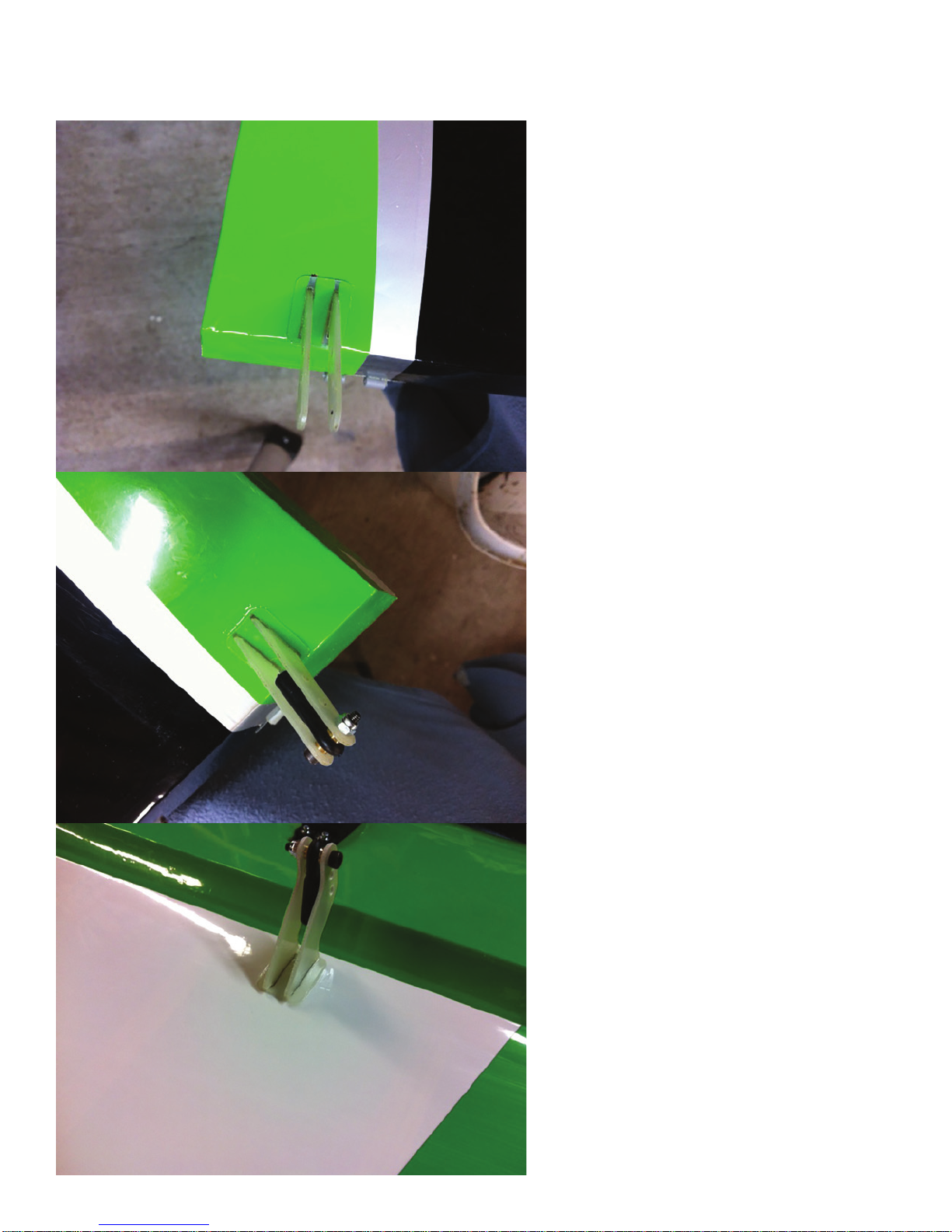

Install your horns. Make sure to clean o any epoxy that comes out from under the plate
with a paper towel and alcohol.

Pilot RC

Wing & Elevator Servo Installation

You will need:

• Hobby Iron

• X-Acto Knife

• in CA “Super Glue”

• Drill and Drill Bit

First nd the servo mounting hole and iron around to assure that the covering is stuck to
the surrounding wood.

en cut like this or to your preference.

en press and iron excess covering down into the servo slot.

Now you can pre t the servo.

Make sure your grommets are installed and drill the holes for the servo screws.

Now apply a small amount of the CA to the already drilled servo screw holes and if need­ed run your extension wire through. (Don’t forget the safety clip!!)

Now you can install the servo with your choice of screws and attach the linkage.

Final adjustment of turnbuckles and it ready for servo adjustment.

Center of gravity

The CG list of Pilot-RC products

p

This recommendation balance point is for

your first flight.The CG can be moved

around to fit your personal taste.

CG locationPLANE

DECATHLON 107” 133mm/5.2inch
DECATHLON 122’’ 145 mm/5.7inch
DE

C

ATHLON 150’’ 182 mm/7.2inch

-

’’

’’

Edge-540 87’’ 136mm/5.35inch
Edge-540 107’’ 141mm/5.6inch
Edge-540 122’’ 166mm/6.5inch

Edge-540 73’’ 116mm/4.5inch

YAK-54 53’’ 126mm/5.0 inch

YAKM55 73” 165mm/6.5inch
YAKM55 88’’ 216 mm/8.5inch
YAKM55 107’’ 267 mm/10.5inch
YAKM55 122’’ 287mm/11.3inch

CO50 8/c

DECATHLON 180’’ 217 mm/8.5inch

Columbia 400 128’’ 136mm/5.35inch
Columbia 400 150’’ 141mm/5.6inch

EXTRA-300/330 73’’ 154mm/6.06inch

EXTRA

260 73

140mm/5.51 inch

EXTRA-260 87’’ 170mm/6.7inch
EXTRA-260 106’’ 202mm/7.95inch
EXTRA-260 122’’ 248mm/9.8inch

YAK

-54 73

156 mm/6.1inch

YAK-54 87’’ 183 mm/7.2inch

YAK-54 107’’ 225 mm/8.9inch
YAK-54 121’’ 266 mm/10.5inch
YAK-54 129’’ 273 mm/10.7inch
YAK-54 148’’ 314 mm/12.4inch
YAK-54 180’’ 401 mm/15.8inch

EXTRA-300/330 88’’

170mm/6.7inch

EXTRA-300/330 107’’ 211mm/8.3inch
EXTRA-300/330 122’’ 236mm/9.3inch

Sbach 342 73’’ 145mm/5.7inch
Sbach 342 87’’ 173mm/6.8inch
Sbach 342 107’’ 234mm/9.2inch

’’

The location of CG has been
marked inside plane as show.

Sbach 342 53’’ 132mm/5.2inch

Sbach 342 122

269mm/10.6inch

Sbach 342 148’’ 305mm/12 inch

Usually it is near the wing tube.
