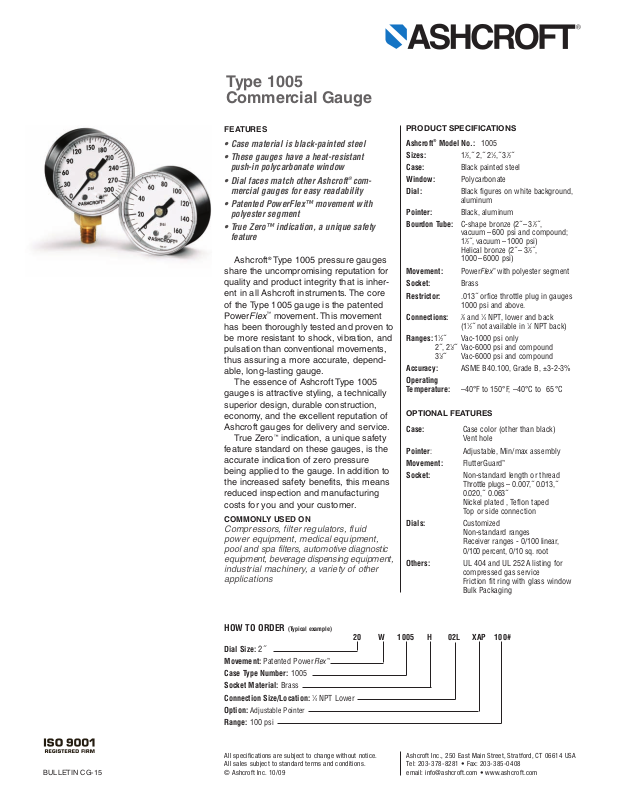

Type 1005
Commercial Gauge
FEATURES
• Case material is black-painted steel
• These gauges have a heat-resistant
push-in polycarbonate window
• Dial faces match other Ashcroft
®
com-
mercial gauges for easy readability
• Patented PowerFlex™ movement with
polyester segment
• True Zero™ indication, a unique safety
feature
Ashcroft
®
Type 1005 pressure gauges
share the uncompromising reputation for
quality and product integrity that is inherent in all Ashcroft instruments. The core
of the Type 1005 gauge is the patented
PowerFlex
™
movement. This movement
has been thoroughly tested and proven to
be more resistant to shock, vibration, and
pulsation than conventional movements,
thus assuring a more accurate, dependable, long-lasting gauge.
The essence of Ashcroft Type 1005
gauges is attractive styling, a technically
superior design, durable construction,
economy, and the excellent reputation of
Ashcroft gauges for delivery and service.
True Zero
™
indication, a unique safety
feature standard on these gauges, is the
accurate indication of zero pressure
being applied to the gauge. In addition to
the increased safety benefits, this means
reduced inspection and manufacturing
costs for you and your customer.
COMMONLY USED ON
Compressors, filter regulators, fluid
power equipment, medical equipment,
pool and spa filters, automotive diagnostic
equipment, beverage dispensing equipment,
industrial machinery, a variety of other
applications
PRODUCT SPECIFICATIONS
®
Ashcroft
Sizes: 11⁄2,˝ 2,˝ 21⁄2,˝ 31⁄2˝
Case: Black painted steel
Window: Polycarbonate
Dial: Black figures on white background,
Pointer: Black, aluminum
Bourdon Tube: C-shape bronze (2˝ – 3
Movement: PowerFlex
Socket: Brass
Restrictor: .013˝ orfice throttle plug in gauges
Connections:1⁄8 and1⁄4 NPT, lower and back
Ranges: 11⁄2˝ Vac-1000 psi only
Accuracy: ASME B40.100, Grade B, ±3-2-3%
Operating
Temperature: –40°F to 150°F, –40°C to 65°C
OPTIONAL FEATURES
Case: Case color (other than black)
Pointer: Adjustable, Min/max assembly
Movement: FlutterGuard
Socket: Non-standard length or thread
Dials: Customized
Others: UL 404 and UL 252A listing for
Model No.: 1005
aluminum
1
vacuum – 600 psi and compound;
1
1
⁄2˝, vacuum –1000 psi)
Helical bronze (2˝ – 3
1000 – 6000 psi)
™
with polyester segment
1000 psi and above.
(11⁄2˝ not available in1⁄4 NPT back)
2˝, 21⁄2˝ Vac-6000 psi and compound
31⁄2˝ Vac-6000 psi and compound
Vent hole
™
Throttle plugs – 0.007,˝ 0.013,˝
0.020,˝ 0.063˝
Nickel plated , Teflon taped
Top or side connection
Non-standard ranges
Receiver ranges - 0/100 linear,
0/100 percent, 0/10 sq. root
compressed gas service
Friction fit ring with glass window
Bulk Packaging
⁄2˝,
1
⁄2˝,
BULLETIN CG-15
HOW TO ORDER (Typical example)
20 W 1005 H 02L XAP 100#
Dial Size: 2˝
Movement: Patented PowerFlex
Case Type Number: 1005
Socket Material: Brass
Connection Size/Location:1⁄4 NPT Lower
Option: Adjustable Pointer
Range: 100 psi
All specifications are subject to c hang e without notice.
All sales subject to standard terms a nd conditions.
© Ashcroft Inc. 10/09
™
Ashcroft Inc., 250 East Main St reet , Stratford, CT 06 614 USA
Tel: 203-378-8281 • Fax: 203-385-0408
email: [email protected] • www.ashcroft.com
Page 2
A
G
B
K
C
M
W
H
F
NPT
W
SQ
.
FLA
TS
F1
NPT
Type 1005
Commercial Gauge
DIMENSIONS
DIAL SIZE
inches
(mm)˜
A
1.62 0.86 0.99 1.601⁄8 or 1.46 0.28 0.67 0.66 0.56 0.44
11⁄2˝
(42) (22) (25) (41)1⁄4
2.09 1.04 1.04 2.05
2˝
(53) (26) (26) (52)
2.73 1.10 1.07 2.681⁄8 or1⁄8 or 2.18 0.36 0.88 0.84 0.56 0.56
21⁄2˝
(69) (28) (27) (68)
3.67 1.21 1.21 3.611⁄8 or1⁄8 or 2.72 0.43 0.88 0.92 0.56 0.56
31⁄2˝
(93) (31) (31) (92)1⁄4
B
LOWER BACK
FF
C
NPT NPT
1
⁄8 or1⁄8 or 1.85 0.34 0.88 0.82 0.56 0.56
1
GHKM
1
⁄8
(37) (7) (17) (17) (14) (11)
1
1
⁄4
⁄4 (47) (9) (22) (21) (14) (14)
1
1
⁄4
⁄4 (55) (9) (22) (21) (14) (14)
1
⁄4 (69) (11) (22) (23) (14) (14)
W
LOWER BACK
WEIGHT
(ozs)
2 0
3.6
4.5
6.8
BULLETIN CG-15
