Pifco P28021 User Manual

YOUR SAFETY &
INSTRUCTION MANUAL

PLEASE READ CAREFULLY

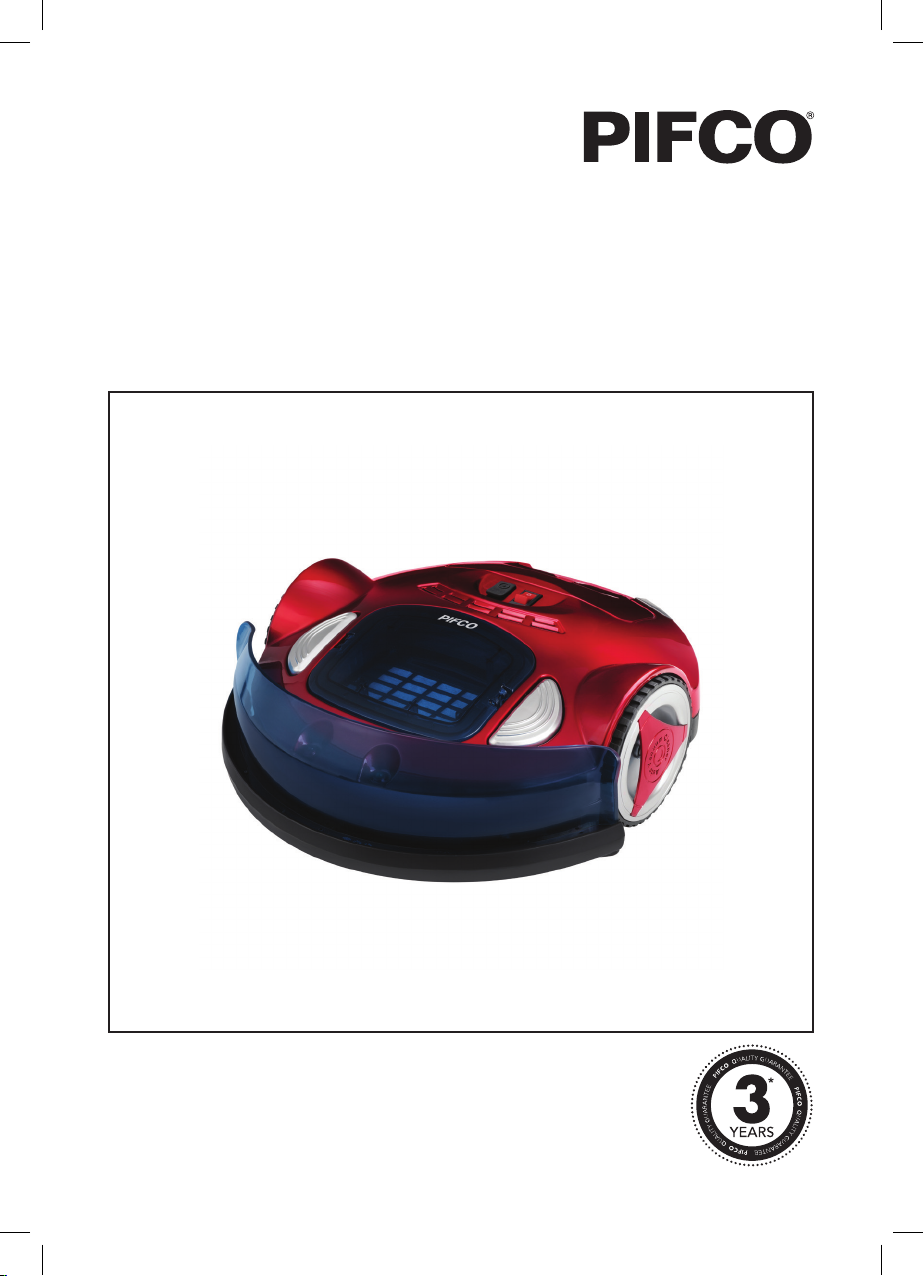

ROBOTIC

VACUUM CLEANER

MODEL P28021

www.pifco.co

SERVICE DEPARTMENT: [phone]

TECHNICAL DATA

Description: Robotic Vacuum Cleaner
Model: P28021
Voltage: 220V
Frequency: 60Hz
Input: DC16.8V 300mA
Battery: DC14.4 800mAh Ni-MH

DOCUMENTATION

We declare that this product conforms to the following product legislation in accordance with the
following directive(s):

2004/108/EC Electromagnetic Compatibility Directive.
2006/95/EC Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.

RKW Quality Assurance, United Kingdom

WARRANTY

This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.

• The product must be installed and used in accordance with the instructions contained in this
instruction guide.

• It must be used only for domestic purposes.

• It does not cover wear and tear, damage, misuse or consumable parts.

• RKW has limited liability for incidental or consequential loss or damage.

• This guarantee is only Valid in the UK and Eire Only.

An extended warranty is available for this appliance.
See back page for details.

2

www.pifco.co

PRODUCT SAFETY

When using any electrical appliance, basic safety precautions should always be followed including
the following:

• Check that the voltage of the main
circuit corresponds with the rating of the
appliance before operating.

• Please ensure that the appliance is used on
a stable, level, and heat resistant surface.

• Do not immerse cords, plugs or any part of
the appliance in water or any other liquid.

• Do not leave the appliance unattended
while it is operating.

• Close supervision is necessary when any
appliance is used by or near children or
pets.

• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not
be made by children without supervision.

• Switch off at the wall socket then remove
the plug from the socket when not in use or
before cleaning.

• If the supply cord or appliance is damaged,
stop using the appliance immediately and
seek advice from the manufacturer or its
service agent or a similarly qualied person.

• Do not let the cord hang over the edge of a

table or counter or let it come into contact
with any hot surfaces.

• The use of accessory attachments is
not recommended by the appliance
manufacturer, apart from those supplied
with this product.

• Do not pull the plug out by the cord as this
may damage the plug and/or the cable.

• Do not use this product for anything other
than its intended use.

• This appliance is for household use only.

• Do not carry the appliance by the power
cord.

• Do not use the appliance outdoors.

• Use extra care when cleaning on stairs.

• Do not immerse cord, plug or machine in
water or any other liquid.

• Keep hair, loose clothing, ngers, feet and
all parts of body away from moving parts.

• Do not close doors on the cord or move
the vacuum by pulling the cord around
sharp edges or corners.

• Unplug cleaner when not in use.

• Turn all controls off before unplugging from
mains.

• Use only original accessories.

• In the unlikely event the appliance develops
a fault, stop using it immediately and seek
advice from the service department.

HIGH VOLTAGE ROTATING PARTS

3

SERVICE DEPARTMENT: [phone]

WHAT’S IN THE BOX

Robot Vacuum Cleaner

Rechargeable Battery

Wiping Board Cloth x 3

Charger

1. Handle

2. Battery Cover

3. Charger Cover

4. On/Off Switch

5. Air Outlet

6. Dust Box

7. Dust Box Release Buttons

8. Bafe Plate

9. Indicator Lights

10. Wheels

11. Universal Wheels

12. Wiping Board

13. Suction Nozzle

1 2 3 4 5

6

7

8

9

10

11

12

BEFORE YOUR FIRST USE:

1. Remove the appliance from the box.

2. Charge the appliance as directed.

3. Please retain all packaging until you have checked and counted all the parts and the contents
against the parts list.

Dispose of the packaging in a responsible manner.

4

13

www.pifco.co

USING YOUR APPLIANCE

Charging the battery:

1. Make sure that the dust catcher is
powered off before tting the battery.

2. First press the battery cover locking catch
to release the cover.

3. Open the battery cover.

4. Place the rechargeable battery into the
compartment and attach the electrical
wire to the batteries plug.

5. Close the battery compartment cover.

6. Please make sure the voltage the name
plate shows is the same as the voltage
you are using.

7. When charging for the rst time, it should
be charged for 12 hours. After that it
normally charges for 9 hours.

8. The other end of the plug is inserted into
alternating current socket.

9. Use the charger supplied.

10. Don’t use it if the connection of the
battery is damaged.

11. Don’t touch the charger, plug or electric
wire with wet hands.

12. Stop charging and pull out the plug before
using the dust catcher.

13. When you use the dust catcher and the
electric quantity is sufcient, the right light
will shine once every 0.5 second. When
there is only red shining slowly, it means
the electric quantity of the battery is not
enough. When charging, the right light
will shine quickly. If the right light is always
on, it means the electricity charging has
already nished.

Installing operation method of cleaning plate

1. Take out the wiping board and the cloth.

2. Use the screwdriver to insert the four
corner of the fabric into the clamp.

3. Install the wiping board to the vacuum
cleaner.

Troubleshooting

Important! Be sure to power off before

checking it.

If the problems mentioned below still exist,

please send it to the appointed service centre.

If there is any change about the product forgive

us not to issue a separate notice.

Electrical
Machinery
Non-rotating

Suction
weaken

Battery plug
loose or
non­charged

Filtration
system
blocked.

Insert the
battery plug
tightly or use
after charging

Clear up the
dirt on the
ltration cloth
Change or
wash ltration
cloth or empty
the dust pot

The pipe is
blocked

Machine
body is
generating
heat

Dislodge the
blockage

Generating a
little heat is a
normal
phenomenon

5

SERVICE DEPARTMENT: [phone]

NOTE:

Filter must be used at all times when operating

this vacuum.

Keep the suction opening clear of obstructions

as the motor could be damaged due to

overheating

CLEANING AND CARE

• Open the dust box and remove.

• Pull out the lter.

• Empty dust from the lter.

• Rinse the lter in cold water and dry

.

thoroughly before putting back into the
collection container.

CAUTION:

Never immerse the motor part of the vacuum
in water.

Always unplug the vacuum and allow to cool
before cleaning.

DO NOT use the vacuum cleaner without the
lters.

WARNING:

DO NOT IMMERSE THE UNIT IN WATER

6

www.pifco.co

DISPOSAL OF THE UNIT

Appliances bearing the symbol shown here may not be disposed of

in domestic rubbish. You are required to dispose of old electrical and

electronic appliances like this separately.

Please visit www.recycle-more.co.uk or www.recyclenow.co.uk

for access to information about the recycling of electrical items.
Please visit www.weeeireland.ie for access to information about

the recycling of electrical items purchased in Ireland.

The WEEE directive, introduced in August 2006, states that

all electrical items must be recycled, rather than taken to landfill.
Please arrange to take this appliance to your local Civic Amenity

site for recycling, once it has reached the end of its life.

7

We hope you enjoy your appliance for many years.

As a thank you for purchasing one of our fantastic products,

we are giving you an extra 2 years peace of mind.

To receive your extra 2 years guarantee, register your appliance online by visiting

www.pifco.co

Should you have a problem

with your appliance or need any spare parts please call our

Service Department on:

[phone]

Distributed throughout the UK by RKW LTD

0715.V1
