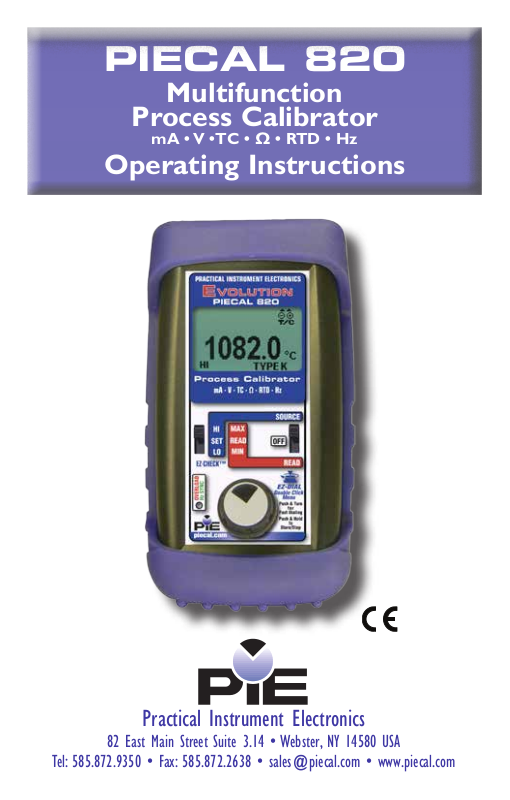

PIECAL 820
Multifunction
Process Calibrator
mA • V •TC • Ω • RTD • Hz
Operating Instructions
PIECAL 820
Multifunction
Process Calibrator
mA • V •TC • Ω • RTD • Hz
Operating Instructions
Practical Instrument Electronics
82 East Main Street Suite 3.14 • Webster, NY 14580 USA
Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com
Contents
General Operations
Field & Bench Use, Changing Batteries ..................... 2
Storing EZ-CHECK Outputs, Connections ................. 3
Basic Operation
Switches & Knobs .................................................. 4, 5
Double Click Menus ...............................................6, 7
Stepping, Auto Off, Backlight ..................................8, 9
Functions and Hookup Diagrams
Milliamp
Source mA ................................................................ 10
Simulate 2 Wire Transmitters .....................................11
Read mA .................................................................. 12
Power/Measure Transmitters .................................... 13
Voltage & Millivolt
Source mV/V ............................................................ 14
Read mV/V .............................................................. 15

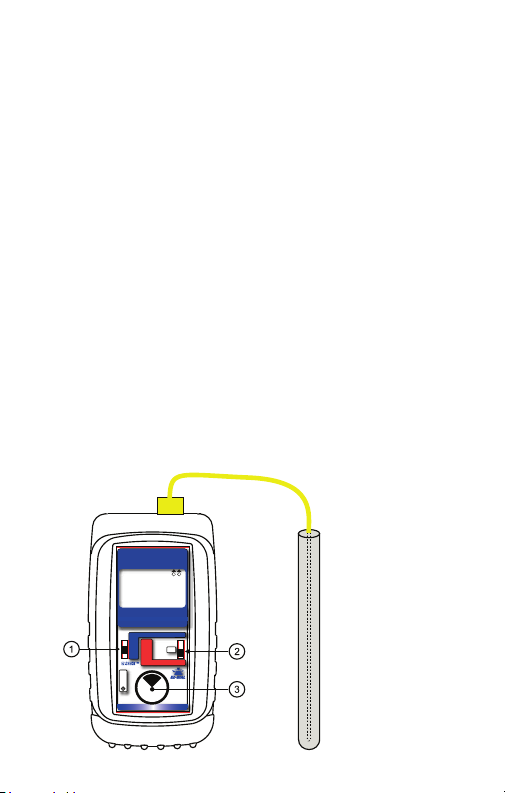

Thermocouple
Source T/C ............................................................... 16
Read T/C Sensors .................................................... 17

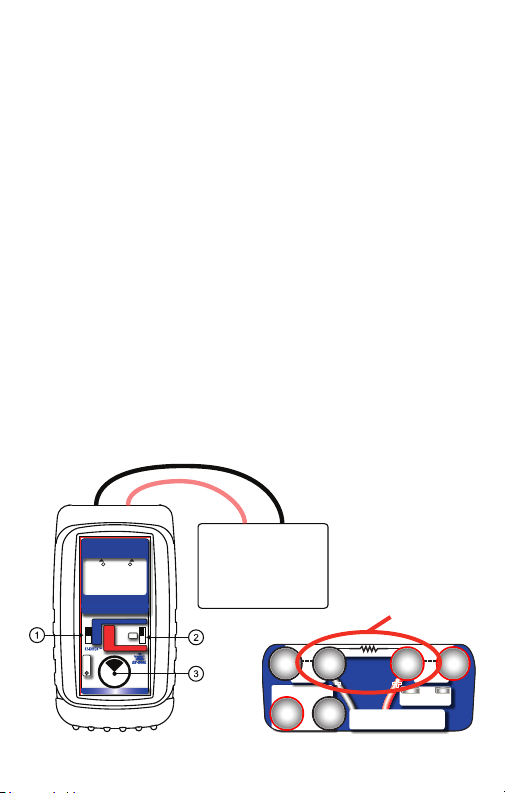

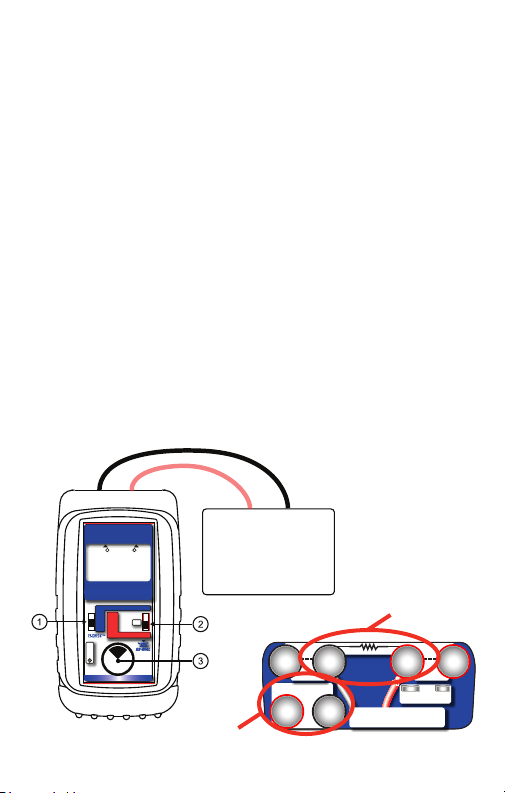

Resistance
Source Resistance ................................................... 18
Read Resistance & Check Continuity ...................... 19

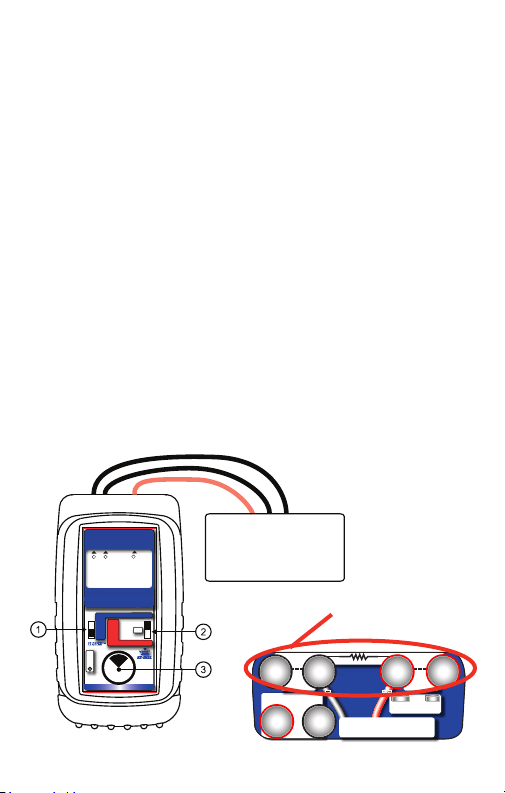

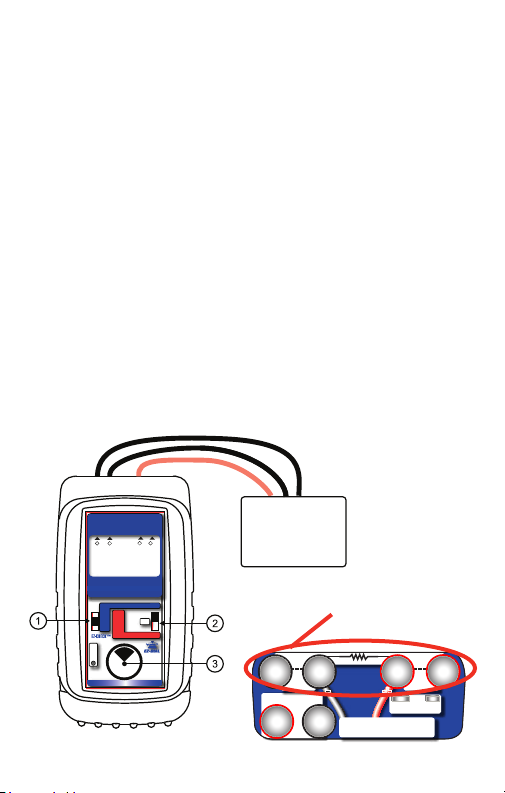

RTD
Source RTD .............................................................. 20
Read RTD Sensors ..................................................21
Frequency
Source Frequency .................................................... 22
Read Frequency ....................................................... 23
Specifications
General ................................................................ 24-28
Thermocouple Ranges & Accuracies ..................29-31
RTD Ranges & Accuracies ....................................... 32
Additional Information
Warranty & Accessories ........................................... 33
General Information
Technician friendly operation
The unique and intuitive EZ-DIAL Double Click Menu makes it
easier to setup than other multifunction calibrators. Uses the same
menus as the single function PIECAL Evolution Calibrators
on the display indicate where to plug in the test leads.
Use it as a milliamp and voltage calibrator
Source 0 to 24.00 mA, 0 to 10.25 V & -10.00 to 80.00 mV dc
Read 0 to 24.00 mA, 0 to 10.25 V, 0 to 60.0 V and -10.00 to
80.00 mV dc
Simulate 2-Wire Transmitters & Power up transmitters & loops
Calibrate in temperature with 0.1°C/°F resolution
Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P II
Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) RTD
Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTD
Checkout flow and vibration systems
Source & read frequency from 0 to 2000 CPM (Counts-PerMinute), 0.00 to 999.99 Hz, 0.0 to 9999.9 Hz and 0.000 to 20.000 kHz.
Checkout resistance instruments, loop & wiring problems
Source and read resistance from 0.0 to 401.0 and 0 to 4010
Beep’ out connections with the built-in continuity checker.
ohms. ‘
Guaranteed compatible with all instrumentation
Works with Rosemount & Honeywell Smart Transmitters, PLCs,
DCSs, Multi-Channel Recorders and other pulsed excitation devices.
Easy to read
Turn on the backlight & easily see the display in dark areas.
Quickly set any three outputs plus automatic stepping & ramping
Easily set any value quickly with the adjustable “DIAL” plus
store any three output settings for instant recall with the
EZ-CHECK™ switch. Choose between 2, 3, 5 & 11 steps or
RAMP to increase and decrease the output between Zero and
Span from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds.
Measure temperature sensors, frequency pickups, mA & V
Check the values of your process sensors. Instantly recall
MAX and MIN values to see process variability.
Page 1
. Icons
Operating Instructions
FIELD & BENCH USE
PIECAL 820 comes with a carrying case designed for handsfree operation and a rubber boot with a built-in tilt stand. The
PIECAL 820 is held in the case by elastic straps for use with the
carrying case open. The tilt stand is easily raised by pulling the
stand until it locks into place.
CHANGING BATTERIES
Low battery is indicated by a battery symbol on the display.
Approximately one to four hours of typical operation remain before
the PIECAL 820 will automatically turn off. To change the batteries;
remove the rubber boot, remove the battery door from the back of
the unit by sliding the door downward. This allows access to the
battery compartment. Replace with four (4) “AA” 1.5V batteries
being careful to check the polarity. Replace the battery door and
replace the boot. All stored configuration options (T/C Type,
EZ-CHECK Memories, etc.) are reset to factory settings when the
batteries are removed.
Note: Alkaline batteries are supplied and recommended for
typical battery life and performance. Optional rechargeable
batteries (charged externally) are available.
Page 2
Operating Instructions
STORING HI and LO EZ-CHECK Source Outputs
Speed up your calibration by storing Span & Zero output setting
for instant recall with the EZ-CHECK switch.
1) Store your high (SPAN) output temperature by moving the
EZ-CHECK switch to the HI position and turning the EZ-Dial
knob until the desired output value is on the display. Press
and hold the EZ-Dial knob until STORED appears to store
the value. Release the EZ-Dial knob.
2) Store your low (ZERO) output value by moving the EZ-CHECK
switch to the LO position and turning the EZ-Dial knob until
the desired output value is on the display. Press and hold the
EZ-Dial knob until STORED appears to store the value.
Release the EZ-Dial knob.
3) Instantly output your SPAN and ZERO output settings by
moving the EZ-CHECK switch between HI and LO. You may
also select any third output setting (such as mid-range) using
the SET position on the EZ-CHECK switch.
Connections
PIECAL 820 has banana jacks compatible with standard banana
plugs or retractable safety banana plugs. Included with your
calibrator are a pair of test leads with alligator clips for mA, V &
Hz connections. Four test leads with spade lugs are also
included for 2, 3 and 4 Wire RTD connections. Thermocouple
connections are made through a miniature thermocouple socket.
23
Ω
RTD
All mA∙ Read V
-
+
65
-
+
Source & Read Hz∙ mV
Source V∙ pH
Page 3
4
1
Ω
RTD
-
T/C
Operating Instructions

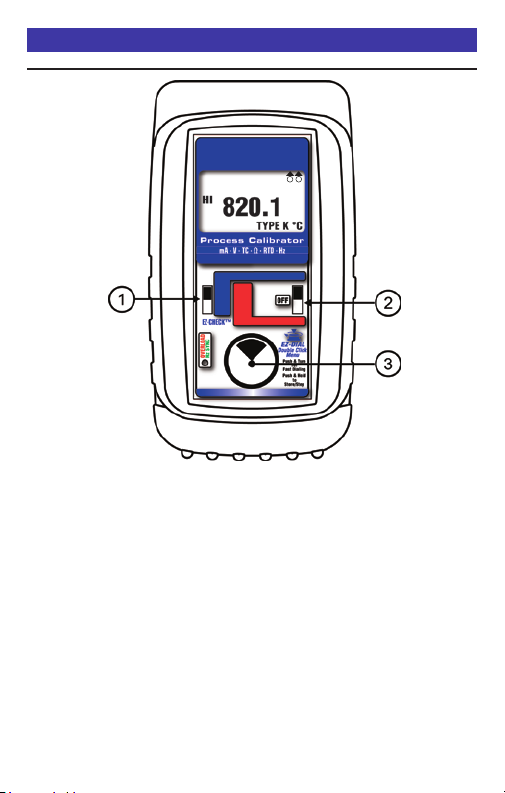

Basic Operation
+
-
T/C
HI
SET
LO
SOURCE
MAX
READ
MIN
READ
q EZ-CHECK™ SWITCH
SOURCE: Instantly output two preset settings by moving the
EZ-CHECK™ switch to the “LO” position or “HI” position.
three point checks select the “SET” position. The PIECAL 820
will remember the last “SET” value, even with the power off.
These values can easily be changed to suit the calibration requirements.
The values stored in the HI and LO positions are also used for Auto
Stepping.
READ: Slide the switch to the SET position. The PIECAL 820 will
display the current reading from the sensor or device being measured.
Slide the switch to MAX and the highest value measured since turn-on
or MAX/MIN reset will be displayed; slide the switch to MIN and the
lowest value measured since turn-on or MAX/MIN reset will be
displayed.
Page 4
For fast
Operating Instructions
Basic Operation
w SOURCE/OFF/READ Switch
Select “SOURCE” to output mA, V, T/C, Ω, RTD or Hz.
Select “READ” to read mA, V, T/C, Ω, RTD or Hz.
e EZ-DIAL™ KNOB
SOURCE: Turn the knob to adjust the output level. Turn clockwise to
increase the output, counter clockwise to decrease the output in one
least significant digit steps at a time. Push down and turn the
EZ-DIAL knob for faster dialing.
Press and hold the knob for two seconds to store desired
EZ-Check™ HI/LO points in SOURCE mode. Continue to press and
hold the knob for two more seconds to start the automatic ramping.
READ: Press and hold to transfer the current temperature into
the EZ-Check™ MIN/MAX points. This clears the MIN/MAX
readings which will update as the input value changes.
SELECTING FUNCTIONS
The EZ-DIAL knob is used to setup the PIECAL 820 to match
the instrument to be calibrated or signal to be measured. Each
time you turn on the PIECAL 820 the LCD displays the following
screen for about 1 second followed by operating in the function
used the last time it was operated.
MODEL 820
DOUBLE CLICK
EZ-DIAL KNOB
FOR CONFIGURATION
V #.##
Double Click the EZ-DIAL knob to change the function of the
calibrator and to select ranges, units and other user settings.
Each function (mA, V, T/C, Ohms, RTD, Frequency) has two
pages of menus. The first menu page has settings for the function and the second menu page has settings for STEPPING,
AUTO OFF and BACKLIGHT. Settings are remembered even
with the power off but are reset when the batteries are changed.
Page 5
Operating Instructions
Double Click Menus
Double click the EZ-DIAL knob to access the Double Click
Menus to select each function and the options for each function.
Available choices are shown in grey.
Source mA & Simulate 2 Wire Transmitters
MAIN
> EXIT (1/2)
FUNCTION mA
MODE SOURCE 2W SIM
UNITS mA %
HART 250Ω ON OFF
Read mA & Power/Measure Transmitters
> EXIT (1/2)
FUNCTION mA
MODE READ PWR MEAS
UNITS mA %
HART 250Ω ON OFF
Source Volts & Millivolts
> EXIT (1/2)
FUNCTION V
RANGE 10V 80mV
Read Volts & Millivolts
> EXIT (1/2)
FUNCTION V
RANGE 10V 60V 80mV
Source & Read Frequency
> EXIT (1/2)
FUNCTION FREQ
RANGE 20KHZ 10000HZ 1000HZ 2000CPM
Page 6
Operating Instructions
Double Click Menus
Source & Read Thermocouples
> EXIT (1/2)
FUNCTION T/C
UNITS °C °F
T/C TYPE J K E T R S B N L U G C D P
COLD JUNC ON
Source RTD
> EXIT (1/2)
FUNCTION RTD
UNITS °C °F
RTD Pt 100 a=3850 [* RTD Types]
WIRE MODE 234W
Read RTD
> EXIT (1/2)
FUNCTION RTD
UNITS °C °F
RTD Pt 100 a=3850 [* RTD Types]
WIRE MODE 3W 2W 4W
* RTD Types: Pt 100 a=3850, a=3902, a=3916, a=3926
Pt 1000 a=3850; Cu 10 a=4274, Cu 50 a=4280
Ni 120 a=6720, Ni 110 a=5801
Source Ohms
>EXIT (1/2)
FUNCTION OHMS
RANGE 400Ω 4000Ω
WIRE MODE 234W
Read Ohms
>EXIT (1/2)
FUNCTION OHMS
RANGE 400Ω 4000Ω CONT
WIRE MODE 3W 2W 4W
Page 7
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
Operating Instructions
To change the Automatic Stepping settings
Double click the e DIAL KNOB at any time the unit is on and
the following typical display (will be different for each FUNCTION)
will appear for 15 seconds:
MAIN
> EXIT (1/2)
FUNCTION mA
MODE SOURCE
UNITS mA
HART 250Ω ON
Turn the
(FEATURES) page.
Turn the e DIAL KNOB to move through the menu. Press the e
DIAL KNOB to toggle between OFF and ON or to change the
STEPS/RAMP and the STEP/RAMP TIME settings. These
settings are remembered even with the power off.
EXIT MENU - exits this menu immediately and saves any
changes. Menu will automatically exit after 15 seconds of
inactivity.
AUTO OFF - If AUTO OFF is ON, the unit will turn off after 30
minutes of inactivity to save battery life. If AUTO OFF is OFF the
unit will stay on until the POWER SWITCH is moved to the off
position.
e DIAL KNOB to move to the second menu
FEATURES
> EXIT (2/2)
AUTO OFF ON
BACKLIGHT ON
STEPS/RAMP 3
STEP/RAMP TIME 5
Page 8
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
Operating Instructions
STEPS/RAMP - pressing the knob will cycle through 2, 3, 5, 11
and RAMP. The endpoints of the steps or ramp are based on the
values stored in the HI and LO EZ-CHECK outputs.
2 steps will automatically switch between the values stored in
the HI & LO EZ-CHECK (0 & 100%).
3 steps between the HI, Midpoint and LO EZ-CHECK (0, 50
& 100%).
5 steps between the HI and LO EZ-CHECK in 25%
increments (0, 25, 50, 75 & 100%).
11 steps between the HI and LO EZ-CHECK in 10%
increments (0, 10, 20...80, 90 &100%).
RAMP continuously ramps up and down between the HI and
LO EZ-CHECK outputs.
STEP/RAMP TIME - pressing the knob will cycle through 5, 6, 7,
8, 9, 10, 15, 20, 25, 30 and 60 seconds.
To start the Automatic Stepping
Start automatic stepping or ramping by placing the EZ-CHECK
Switch into the HI or LO position then press and hold the e
DIAL KNOB for 6 seconds (the word STORE will appear on the
display after 3 seconds and continue to press the EZ-DIAL
KNOB) until the word STEP appears on the display. The word
STEP will appear on the display anytime the selected automatic
function is running. Stop the stepping or ramping by again
pressing and holding the
e DIAL KNOB for 3 seconds.
BACKLIGHT - If BACKLIGHT is ON the backlight will light all the
time the unit is powered up. For maximum battery life turn the
backlight off when using the calibrator in areas with enough
ambient light to read the display.
Page 9
SOURCE mA / SOURCE % (Percent of 4 to 20 mA)
Choose this function to provide an output from 0.00 to 24.00
milliamps. The compliance voltage is a nominal 24 VDC to
provide the driving power to your milliamp receivers.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and SOURCE for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIECAL 820 to the inputs of the
device being calibrated, making sure to check polarity. Red lead
to the plus (+) input and black lead to the minus (-) input. Open
loops and signals above the maximum scale are limited by
protection circuitry with “ERROR” or “OVER RANGE” flashed on
the display and the red OVERLOAD LED lit.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.01 mA (0.1%) increments by turning
the knob
e. Press and turn the knob for faster dialing with 1.00
mA (10.0%) increments.
Milliamp Receiver Input
+
SOURCE
-
5 6
20.00
HI
mA
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
MIN
LO
OVERLOAD
Hz SYNC
SOURCE
OFF
Double Click
READ
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Controller
Transmitter
Computer
Logger, I/P, DCS
All mA∙ Read V
Page 10
23
Ω
RTD
-
-
+
Source & Read Hz∙ mV
65
All milliamp connections
+
Source V∙ pH
4
1
Ω
RTD
-
T/C
2 Wire SIM mA, 2 Wire SIM % (Percent of 4 to 20 mA)
Choose this function to simulate a 2 Wire Transmitter output from
0.00 to 24.00 milliamps. Operates in loops with power supply
voltages from 2 to 60 VDC.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and 2W SIM for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIECAL 820 to the inputs of the
device being calibrated, making sure to check polarity. Red lead
to the plus (+) input and black lead to the minus (-) input. Open
loops and signals above the maximum scale are limited by
protection circuitry with “ERROR” or “OVER RANGE” flashed on
the display and the red OVERLOAD LED lit.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.01 mA (0.1%) increments by turning
the knob
e. Press and turn the knob for faster dialing with 1.00
mA (10.0%) increments.
To
Receiver
Powers External
2-Wire Transmitter
+
-
5 6
2-WIRE
20.00
HI
mA
Sensor
+ IN - REF +OUT-
Power Supply
(2 to 100 VDC)
Page 11
Typical
2-Wire
Transmitter
(Disconnected)
READ mA, READ % (Percent of 4 to 20 mA)
Choose this function to measure from 0.00 to 24.00 milliamps or
-25.0 to 125.0%.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
e to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and READ for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the red input lead (+) of the PIECAL 820 to the more
positive point of the break and the black input to the more
negative point.
Signals below 0 mA or open circuits are indicated by 0.00 mA
(-25.0%) on the display. Signals above 24 mA are current limited
by protection circuitry with “OVER RANGE” on the display and
the red OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob e to
clear the MAX and MIN readings.
q to MAX to see the highest reading and to
READ
+
-
5 6
SOURCE
HI
SET
LO
All milliamp connections
Milliamp Output Signal
Controller
Transmitter
P/I
DCS
23
Ω
RTD
All mA∙ Read V
-
+
65
Page 12
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
Power/Measure mA, Power/Measure % (Percent of 4 to 20 mA)
Choose this function to simultaneously supply power to a 2 Wire
Transmitter while displaying the 4 to 20 mA output of the
transmitter.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
e to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and PWR MEAS for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Disconnect one or both input wires from the device to be
calibrated. Connect the red source lead of the PIECAL 820 to
the plus (+) input of the device and the black source lead to the
minus (-).
The PIECAL 820 supplies a nominal 24 volts DC at 24 mA to the
2 Wire Transmitter. The current passed by the transmitter will be
accurately displayed by the PIECAL 820. Calibrate the transmitter
in the usual manner and disconnect the PIECAL 820. Signals
above 24 mA are current limited by protection circuitry with
“OVER RANGE” on the display and the red OVERLOAD LED lit.
PWRM
+
-
5 6
Transmitter Input
Sensor
Process Signal
Simulated Input
+ IN - REF -OUT+
Typical
2-Wire
Transmitter
Page 13
SOURCE
MAX
HI
READ
SET
MIN
LO
READ
SOURCE mV / V
Choose this function to provide an output from 0.00 to 80.00 mV
or from 0.00 to 10.25 V. The source current is a nominal 24 mA
to provide the driving power to your voltage receivers.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select V for the FUNCTION and 10V or 80 mV for the
RANGE.
Connect the output leads of the PIECAL 820 to the inputs of the
device being calibrated, making sure to check polarity. Red lead
to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 0.01
mV or V increments by turning the knob
e. Press and turn the
knob for faster dialing with 1.00 mV or V increments.
Voltage Receiver Input
Controller
Transmitter
Computer
Logger
DCS
23
Ω
RTD
All mA∙ Read V
-
+
65
V & mV Source
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
HI
Process Calibrator
OVERLOAD
+
2
10.00
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
MIN
LO
Hz SYNC
V
-
1
SOURCE
OFF
Double Click
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 14

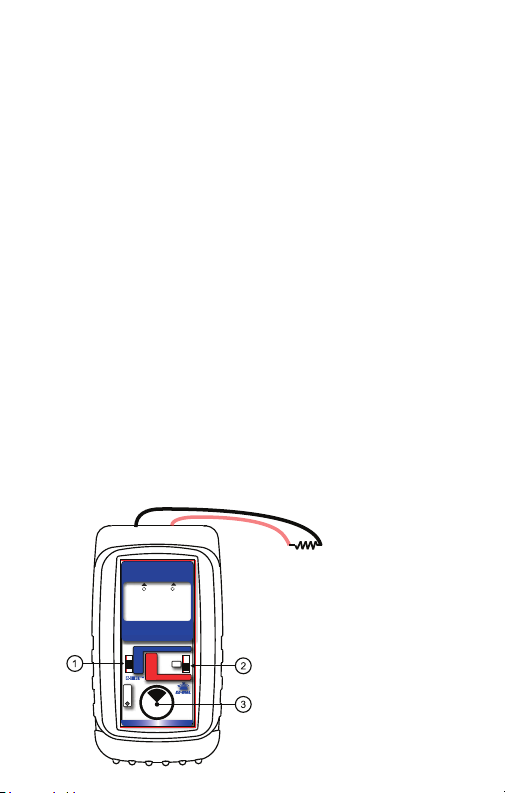

Read mV / V
Choose this function to measure from 0.00 to 80.00 millivolts,
0.00 to 10.25 V dc or 0.0 to 60.0 V dc.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select V for the FUNCTION and 10V, 60V or 80 mV for
the RANGE.
Connect the red input lead (+) of the PIECAL 820 to the more
positive point of the break and the black input to the more
negative point.
Signals above the maximum scale are limited by protection
circuitry with “OVER RANGE” on the display and the red
OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
q to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob e to
clear the MAX and MIN readings.
Voltage Output Signal
+
-
2
8.20
mV
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
OFF
MIN
LO
Double Click
OVERLOAD
Hz SYNC
1
SOURCE
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Read 10 V & 60 V
Controller
Transmitter
Power Supply
All mA∙ Read V
Read mV
23
Ω
RTD
-
+
65
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
Page 15
Source Thermocouple
Choose this function to provide a simulated thermocouple signal
into controllers, temperature transmitters, indicators or any input
devices that measure thermocouple sensors.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select T/C for the FUNCTION, °F or °C for the UNITS,
T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or
P (Platinel II) and internal COLD JUNC ON or OFF (ON is the
default).
Connect the PIECAL 820 to the inputs of the device being
calibrated using the proper type of thermocouple wire via the
miniature thermocouple socket.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 0.1°
increments by turning the knob
e. Press and turn the knob for
faster dialing with 10.0° increments.
Thermocouple Wire
Instrument with T/C Input
Controller
Temperature Transmitter
Temperature Indicator
Temperature Trip or Alarm
23
Ω
RTD
All mA∙ Read V
-
+
65
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
820.0
LO
TYPE K °C
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
Double Click
OVERLOAD
Hz SYNC
+
-
T/C
READ
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
All thermocouple connections
Page 16

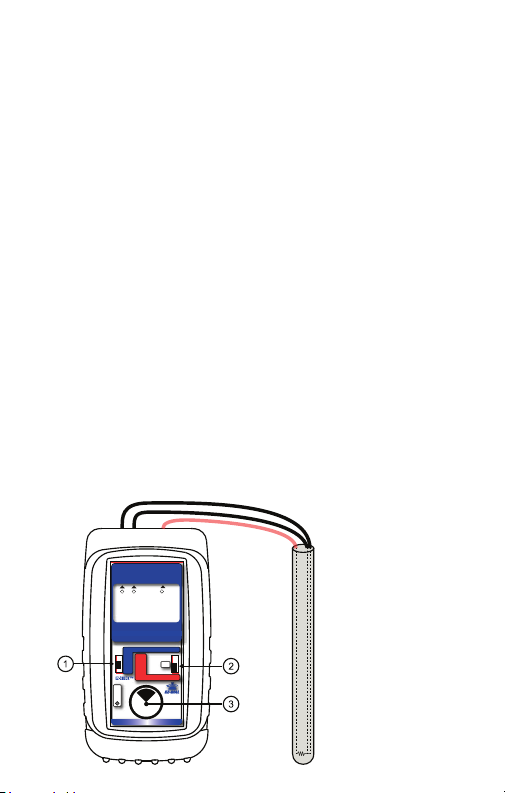

Read Thermocouple Sensors
Choose this function to measure temperatures with a
thermocouple probe or sensor.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select T/C for the FUNCTION, °F or °C for the UNITS,
T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or
P (Platinel II) and COLD JUNC ON or OFF (ON is the default).
Connect the PIECAL 820 to the inputs of the device being
calibrated using the proper type of thermocouple wire via the
miniature thermocouple socket. If no sensor is connected, a wire
is broken or the sensor is burned out, OPEN TC will appear on
the display. Signals above the maximum scale are limited by
protection circuitry with “OVER RANGE” on the display and the
red OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
q to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob e to
clear the MAX and MIN readings.
Thermocouple Wire
+
-
T/C
1820.1
TYPE K °F
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 17
Source Resistance
Choose this function to provide a simulated resistance into any
device that measures resistance.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select OHMS for the FUNCTION, 400Ω or 4000Ω for
the RANGE.
Disconnect all sensor wires from the devices to be calibrated
and connect the PIECAL 820 to the inputs of the device using 2,
3 or 4 wires.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in
0.1Ω/1Ω increments by turning the knob
e. Press and turn the
knob for faster dialing with 10.0Ω/100Ω increments.
Instrument with
Resistance Input
+
-
-
2
3
250.0
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
MIN
LO
OVERLOAD
Hz SYNC
1
SOURCE
OFF
Double Click
Menu
Push & Turn
Fast Dialing
Push & Hold
Store/Step
+
4
Ω
READ
for
to
Controller
Transmitter
PLC
2, 3 & 4 Wire Resistance Connections
23
Ω
RTD
All mA∙ Read V
-
+
65
-
Source & Read Hz∙ mV
+
Source V∙ pH
4
1
Ω
RTD
-
T/C
Page 18

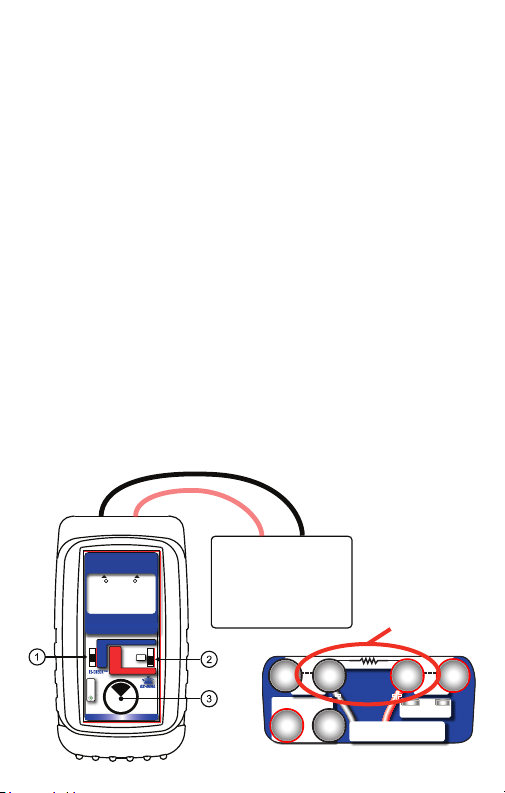

Read Resistance & Check Continuity
Choose this function to measure resistance or check continuity.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select OHMS for the FUNCTION, 400Ω, 4000Ω or
Continuity for the RANGE. You must also select the WIRE
MODE for 2W, 3W or 4W to match the 2, 3 or 4 wires being used
to measure resistance. For continuity the only choice is 2W.
Disconnect all wires from the sensor and connect the PIECAL
820 to the inputs of the device using 2, 3 or 4 wires.
If continuity is selected, resistance is measured up to 400.0Ω.
The beeper will sound and
)))) appears on the display when
resistances below 100.0Ω are measured.
Signals above the maximum scale are limited by protection
circuitry with “OVER RANGE” on the display and the red
OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob
q to MAX to see the highest reading and to
e to
clear the MAX and MIN readings.
+
-
1
2
820.9
Ω
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 19
Source RTD
Choose this function to provide a simulated RTD signal into
controllers, temperature transmitters, indicators or any input
devices that measure RTD sensors.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select RTD for the FUNCTION, °F or °C for the UNITS
and RTD (Choose from one of Platinum 100Ω, or 1000Ω, Copper
10Ω or 50Ω, Nickel 120Ω or 110Ω curves). Note: Pt 100Ω 3850
is the most common RTD type.
Disconnect all sensor wires from the devices to be calibrated
and connect the PIECAL 820 to the inputs of the device using 2,
3 or 4 wires.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 0.1°
increments by turning the knob
e. Press and turn the knob for
faster dialing with 10.0° increments.
Instrument with RTD Input
Controller
+
-
2-3
820.0
LO
Pt 100 α=3850 °C
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
MIN
LO
OVERLOAD
Hz SYNC
1
SOURCE
OFF
Double Click
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Temperature Transmitter
Temperature Indicator
Temperature Trip or Alarm
2, 3 & 4 Wire RTD Connections
23
Ω
RTD
All mA∙ Read V
-
-
+
65
1
RTD
+
-
Source & Read Hz∙ mV
T/C
Source V∙ pH
4
Ω
Page 20
Read RTD Sensors
Choose this function to measure temperatures with an RTD
probe or sensor.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select RTD for the FUNCTION, °F or °C for the UNITS
and RTD (Choose from one of Platinum 100Ω, or 1000Ω, Copper
10Ω or 50Ω, Nickel 120Ω or 110Ω curves). Note: Pt 100Ω 3850
is the most common RTD type. You must also select the WIRE
MODE for 2W, 3W or 4W to match the 2, 3 or 4 wires on the RTD
sensor.
Disconnect all wires from the sensor and connect the PIECAL
820 to the inputs of the device using 2, 3 or 4 wires.
Signals above the maximum scale are limited by protection
circuitry with “OVER RANGE” on the display and the red
OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob
q to MAX to see the highest reading and to
e to
clear the MAX and MIN readings.
+
-
-
1
2
3
820.1
Pt 100 α=3850 °F
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 21
Source Frequency
Choose this function to provide a frequency signal into any input
devices that measure frequency.
Move the power switch
w to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select FREQ for the FUNCTION and 20KHZ,
10000HZ, 1000HZ or 2000CPM for the RANGE.
Disconnect all input wires from the devices to be calibrated and
connect the PIECAL 820 to the input of the device matching
polarity.
The green HZ SYNC LED pulses in synch with the output pulses
and may be used to calibrate optical pickups. The output signal
is a zero crossing square wave with a fixed amplitude of 6 V
peak-to-peak from -1 and + 5 V.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 1
count increments by turning the knob
e. Press and turn the
knob for faster dialing with 100 count increments.
Frequency Receiver Input
Flowmeter
Transmitter
Computer
Controller
Page 22
Logger
DCS
All mA∙ Read V
RTD
23
Ω
-
+
65
All Frequency
Connections
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
HI
Process Calibrator
OVERLOAD
Hz SYNC
+
2
20.000
KHz
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
MIN
LO
OFF
-
1
SOURCE
Double Click
Push & Turn
Fast Dialing
Push & Hold
READ
Menu
for
to
Store/Step
Read Frequency
Choose this function to count frequency.
Move the power switch
w to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select FREQ for the FUNCTION and 20KHZ,
10000HZ, 1000HZ or 2000CPM for the RANGE.
Disconnect all input wires from the devices to be calibrated and
connect the PIECAL 820 to the output of the device matching
polarity.
The green HZ SYNC LED pulses in synch with the input
frequency.
Signals above the maximum scale are limited by protection
circuitry with “OVER RANGE” on the display and the red
OVERLOAD LED lit.
The PIECAL 820 measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
q to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob e to
clear the MAX and MIN readings.
Voltage Output Signal
+
-
2
1
820.00
Hz
Process Calibrator
mA ∙ V ∙ TC ∙ Ω ∙ RTD ∙ Hz
MAX
HI
READ
SET
OFF
MIN
LO
Double Click
OVERLOAD
Hz SYNC
SOURCE
READ
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Flowmeter
Flow Sensor
Variable Speed Drive
Controller
Transmitter
23
Ω
RTD
All mA∙ Read V
-
+
65
All Frequency
Connections
-
Source & Read Hz∙ mV
Source V∙ pH
4
1
Ω
RTD
+
-
T/C
Page 23
Specifications
General
Operating Temp Range
Storage Temp Range -30 to 60 °C (-22 to 140 °F)
Temperature effect ≤ ± 0.01 %/°C of Full Scale
Relative Humidity
Range
Normal Mode Rejection
Common Mode Rejection
Noise
Size
Weight
Batteries Four “AA” Alkaline 1.5V (LR6)
Battery life Read Functions: ≥ 20 hours
Low Battery Low battery indication with nominal 1
Protection against
misconnection
Display
-20 to 60 °C (-5 to 140 °F)
10 % ≤RH ≤90 % (0 to 35 °C),
Non-condensing
10 % ≤RH≤ 70 % (35 to 60 °C),
Non-condensing
50/60 Hz, 50 dB
50/60 Hz, 120 dB
≤ ± ½ Least Significant Digit from 0.1 to 10 Hz
5.63x3.00x1.60” 143x76x41mm (LxWxH)
12.1 ounces, 0.34 kg with boot & batteries
Source mA: ≥ 14 hours @ 12 mA into 250Ω
Pwr/Meas mA: ≥ 12 hours at 20 mA
Source V, Ω, T/C, RTD & Hz:
hour of operation left
Over-voltage protection to 60 vrms
(rated for 30 seconds)
Red LED indicates OVERLOAD or out
of range conditions
High contrast graphic liquid crystal display
with 0.315” (8.0 mm) high digits. LED
backlighting.
≥ 20 hours
Page 24
Specifications
Read mA
Ranges and Resolution
Accuracy ≤ ± (0.03 % of Full Scale)
Voltage burden ≤ 2V at 24 mA
Overload/Current
limit protection
Source mA / Power & Measure Two Wire Transmitters
Ranges and Resolution
Accuracy ≤ ± (0.03 % of Full Scale)
Loop compliance voltage
Loop drive capability 1200 Ω at 20 mA for 15 hours nominal;
mA 2-Wire Transmitter Simulation
Accuracy Same as Source/Power & Measure
Voltage burden ≤ 2V at 20 mA
Overload/Current limit
protection
Loop voltage limits 2 to 60 VDC (fuse-less protected from
0.00 to 24.00 mA or -25.0 to 125.0% of
4-20 mA
25 mA nominal
0.00 to 24.00 mA or -25.0 to 125.0% of
4-20 mA
≥ 24 DCV @ 20.00mA
950 Ω with Hart Resistor enabled
25 mA nominal
reverse polarity connections)
Page 25
Specifications
DC Voltage Read
Range and Accuracy
Input resistance ≥ 1 MΩ
Source V dc
Range & Accuracy
Source Current
Sink Current > 16 mA
Output Impedance < 1 Ohm
Short Circuit Duration Infinite
Thermocouple Source
Accuracy ±(0.03% of Full Scale)
Cold Junction Compensation
Output Impedance < 1 Ohm
Source Current > 20 mA (drives 80 mV into 10 Ohms)
0.00 to 80.00 mV, ≤ ±(0.03% of Full Scale)
0 to 10.25 V, ≤ ±(0.03% of FS + 0.005V)
0.0 to 60.0 V, ≤ ±(0.03% of FS + 0.05V)
-
10.00 to 80.00 mV, ≤ ± (0.03% of Full Scale)
0.00 to 10.25 V, ≤ ± (0.03% of FS +0.005V)
≥ 24 mA
[Note: Full Scale is 80.00 mV]
±0.1°C (Thermistor traceable to NIST
for 11 years)
Page 26
Specifications
Thermocouple Read
Accuracy & Cold
Junction Compensation
Input Impedance
Open TC Threshold;
Pulse
RTD, OHMS and Continuity Read
Resistance Ranges 0.0 to 401.0, 0 to 4010 Ohms
Accuracy ±(0.03% of Full Scale + 0.075 Ohms)
Excitation Current
Continuity 0.0 to 401.0 Ohms; Beeps from 0.0 to
RTD and OHMS Source
Accuracy
F ro m 1 t o 1 0 .2 m A
External Excitation
Current
B e l o w 1 m A o f E x t e r n a l
Excitation Current
Resistance Ranges 0.0 to 401.0, 0 to 4010 Ohms
Allowable Excitation
Current Range
Pulsed Excitation
Current Compatibility
Same as Thermocouple Source
> 1 Megohms
10K Ohms; <5 µamp pulse for 300
milliseconds (nominal)
1.0 mA to 401.0 Ohms, 0.5 mA to 4010
Ohms (nominal)
100.0 Ohms
±(0.03% of Full Scale + 0.075 Ohms)
±(0.03% of Full Scale+0.075 Ohms +
0.025 mV
mA Excitation Current
<401 Ohm:10.2 mA max; steady or pulsed/
intermittent
401 to 4000 Ohms: 1 mA max; steady or
pulsed/intermittent
DC to 0.01 second pulse width
)
Page 27
Specifications
Frequency Source
Ranges 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1
Accuracy ±(0.03% of Full Scale)
Output Waveform
Risetime (10 to 90% of
amplitude)
Output Impedance < 1 Ohm
Source Current > 1 mA rms at 20 kHz
Short Circuit Duration Infinite
Optical Coupling Green LED (HZ SYNC) flashes at
Frequency Read
Ranges & Accuracy Same as Frequency Source
Accuracy ±(0.03% of Full Scale)
Trigger Level 1 V rms, dc coupled
Input Impedance > 1 Meg Ohm + 60 pF
to 9999.9 Hz, 0.001 to 20.000 kHz
Square Wave, Zero Crossing -1.0 to +5 V
peak-to-peak ±10%
< 10 microseconds
output frequency
Page 28
Thermocouple Ranges & Accuracies
Table based on Accuracy:
Note: Doesn’t include cold junction error of ±0.1°C
T/C Degrees C
J -200.0 to -150.0 ±1.2° -328.0 to -238.0 ±2.0°
-150.0 to -50.0 ±0.7° -238.0 to -58.0 ±1.3°
-50.0 to 100.0 ±0.5° -58.0 to 212.0 ±0.9°
100.0 to 1200.0 ±0.4° 212.0 to 2192.0 ±0.8°
K -230.0 to -150.0 ±2.6° -382.0 to -238.0 ±4.7°
-150.0 to 0.0 ±1.0° -238.0 to 32.0 ±1.8°
0.0 to 1100.0 ±0.6° 32.0 to 2012.0 ±1.1°
1100.0 to 1371.1 ±0.7° 2012.0 to 2500.0 ±1.2°
T -260.0 to -230.0 ±6.1° -436.0 to -382.0 ±11.0°
-230.0 to -150.0 ±2.2° -382.0 to -238.0 ±4.0°
-150.0 to 50.0 ±1.1° -238.0 to 122.0 ±2.0°
50.0 to 300.0 ±0.5° 122.0 to 572.0 ±1.0°
300.0 to 400.0 ±0.4° 572.0 to 752.0 ±0.7°
E -240.0 to -150.0 ±2.5° -400.0 to -238.0 ±4.5°
-150.0 to -50.0 ±0.7° -238.0 to -58.0 ±1.1°
-50.0 to 150.0 ±0.4° -58.0 to 302.0 ±0.8°
150.0 to 1000.0 ±0.3° 302.0 to 1832.0 ±0.6°
R -18.3 to 50.0 ±6.5° -1.0 to 122.0 ±11.7°
50.0 to 500.0 ±3.7° 482.0 to 932.0 ±6.6°
500.0 to 800.0 ±2.2° 932.0 to 1472.0 ±4.0°
800.0 to 1767.8 ±2.0° 1472.0 to 3214.0 ±3.5°
≤ ± (0.03 % of 80 mV)
Range
°C Degrees F
Range
Page 29
°F
Thermocouple Ranges & Accuracies
Table based on Accuracy:
Note: Doesn’t include cold junction error of ±0.1°C
T/C Degrees C
Range
S -18.3 to 50.0 ±6.1° -1.0 to 122.0 ±10.9°
50.0 to 300.0 ±3.7° 122.0 to 572.0 ±6.6°
300.0 to 600.0 ±2.6° 572.0 to 1112.0 ±4.7°
600.0 to 1767.8 ±2.3° 1112.0 to 3214.0 ±4.2°
B 315.6 to 600.0 ±7.9° 600.0 to 1122.0 ±14.2°
600.0 to 1050.0 ±4.0° 1122.0 to 1922.0 ±7.3°
1050.0 to 1400.0 ±2.5° 1922.0 to 2552.0 ±4.6°
1400.0 to 1820.0 ±2.1° 2552.0 to 3308.0 ±3.8°
N -230.0 to 0.0 ±4.2° -382.0 to 32.0 ±7.5°
0.0 to 450.0 ±0.9° 32.0 to 842.0 ±1.7°
450.0 to 1150.0 ±0.6° 842.0 to 2102.0 ±1.1°
1150.0 to 1300.0 ±0.7° 2102.0 to 2372.0 ±1.2°
G
100.0 to 300.0 ±4.5° 212.0 to 572.0 ±8.2°
(W)
300.0 to 650.0 ±2.1° 572.0 to 1202.0 ±3.7°
650.0 to 1800.0 ±1.3° 1202.0 to 3272.0 ±2.4°
1800.0 to 2320.0 ±1.9° 3272.0 to 4208.0 ±3.5°
C
-1.1 to 200.0 ±1.8° 30.0 to 392.0 ±3.2°
(W5)
200.0 to 1350.0 ±1.4° 392.0 to 2462.0 ±2.6°
1350.0 to 2000.0 ±1.9° 1742.0 to 3632.0 ±3.4°
2000.0 to 2320.0 ±2.6° 3632.0 to 4208.0 ±4.7°
≤ ± (0.03 % of 80 mV)
°C Degrees F
Range
°F
Page 30
Thermocouple Ranges & Accuracies
Table based on Accuracy:
Note: Doesn’t include cold junction error of ±0.1°C
T/C Degrees C
D
-1.1 to 400.0 ±2.5° 30.0 to 752.0 ±4.5°
(W3)
400.0 to 1500.0 ±1.3° 752.0 to 2732.0 ±2.4°
1500.0 to 2000.0 ±2.3° 2732.0 to 3632.0 ±3.0°
2000.0 to 2320.0 ±2.6° 3632.0 to 4208.0 ±4.6°
0.0 to 150.0 ±0.8° 32.0 to 302.0 ±1.5°
P
Platinel
150.0 to 1100.0 ±0.6° 302.0 to 2012.0 ±1.1°
1100.0 to 1395.0 ±0.8° 2012.0 to 2543.0 ±1.5°
L
-200.0 to 0.0 ±0.7° -328.0 to 32.0 ±1.3°
J-DIN
T-DIN
0.0 to 550.0 ±0.5° 32.0 to 1022.0 ±0.8°
550.0 to 900.0 ±0.4° 1022.0 to 1652.0 ±0.7°
U
-200.0 to -25.0 ±1.4° -328.0 to -13.0 ±2.6°
-25.0 to 100.0 ±0.7° -13.0 to 212.0 ±1.2°
100.0 to 300.0 ±0.5° 212.0 to 572.0 ±0.9°
300.0 to 600.0 ±0.4° 572.0 to 1112.0 ±0.7°
≤ ± (0.03 % of 80 mV)
Range
°C Degrees F
Range
°F
Page 31
RTD Ranges & Accuracies
Based on ±(0.03% of 400Ω) / Pt 1000Ω Based on ±(0.03% of 4000Ω)
RTD
Type
Pt 100 Ohm
DIN/IEC/JIS 1989
1.3850 (ITS-90)
Pt 100 Ohm
(Burns)
1.3902
Pt 100 Ohm
(Old JIS 1981)
1.3916
Pt 100 Ohm
(US Lab)
1.3926
Pt 1000 Ohm
DIN/IEC/JIS 1989
1.3850
Copper 10 Ohm
1.4274 (Minco)
Copper 50 Ohm
1.4280
Ni 120 Ohm
1.6720 (Pure)
Ni 110 Ohm
(Bristol 7 NA)
1.5801
Degrees C
Range
-200.0 to 120.0
120.0 to 430.0
430.0 to 850.0
-195.6 to 160.0
160.0 to 460.0
460.0 to 648.9
-200.0 to 170.0
170.0 to 480.0
480.0 to 648.9
-200.0 to 180.0
180.0 to 490.0
490.0 to 850.0
-200.0 to 120.0
120.0 to 430.0
430.0 to 850.0
-200.0 to 260.0
-50.0 to 150.0
-80.0 to 260.0
-100.0 to 260.0
°C
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±5.1°
±0.9°
±0.3°
±0.3°
Degrees F
Range
-328.0 to 248.0
248.0 to 806.0
806.0 to 1562.0
-320.0 to 320.0
320.0 to 860.0
860.0 to 1200.0
-328.0 to 338.0
338.0 to 896.0
896.0 to 1200.0
-328.0 to 356.0
356.0 to 914.0
914.0 to 1562.0
-328.0 to 248.0
248.0 to 806.0
806.0 to 1562.0
-328.0 to 500.0
-58.0 to 302.0
-112.0 to 500.0
-148.0 to 500.0
°F
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±9.2°
±1.7°
±0.5°
±0.5°
Page 32
Warranty
Our equipment is warranted against defective material and
workmanship (excluding batteries) for a period of three years
from the date of shipment. Claims under warranty can be made
by returning the equipment prepaid to our factory. The equipment
will be repaired, replaced or adjusted at our option. The liability
of Practical Instrument Electronics (PIE) is restricted to that
given under our warranty. No responsibility is accepted for
damage, loss or other expense incurred through sale or use of
our equipment. Under no condition shall Practical Instrument
Electronics, Inc. be liable for any special, incidental or
consequential damage.
Accessories
INCLUDED:
Four “AA” Alkaline batteries, Certificate of Calibration
Evolution Hands Free Carrying Case Part No. 020-0211
Dark Blue Rubber Boot Part No. 020-0213
PIE Multifunction Wire Kit
1 Red & 1 Black Lead with
2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
OPTIONAL:
Ni-MH 1 Hour Charger with 4 Ni-MH AA Part No. 020-0103
Batteries (100-120 V AC input for North America Only)
T/C Wire Kit 1* for Types J, K, T & E Part No. 020-0202
T/C Wire Kit 2* for Types B, R/S & N Part No. 020-0203
* Thermocouple extension wire, stripped on one end with a
corresponding miniature thermocouple male connector on
the other end.
Banana Plug & Alligator Clips
Part No. 020-0820
Page 33
Practical Instrument Electronics
82 East Main Street Suite 3.14
Webster, NY 14580 USA
Tel: 585.872.9350 • Fax: 585.872.2638
sales@piecal.com • www.piecal.com
Copyright © 2017 All rights reserved
820-9002 - Rev G 9 Feb 2017
Additional Information
PIE Calibrators are manufactured in the USA.
calibrated on equipment traceable to NIST and includes a
Certificate of Calibration. Test Data is available for an additional
charge.
Practical Instrument Electronics recommends a calibration
interval of one year. Contact your local representative for
recalibration and repair services.
This product is
Loading...
