Practical Instrument Electronics
82 E. Main Street Suite 3.14 • Webster, NY 14580 Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com
Multifunction Process Calibrator
Carry six single function
calibrators in the palm of your
hand with the PIECAL 820
• Lighten up your toolbox
Pocket sized calibrator replaces toolbox of single function devices
Milliamp • Voltage • Frequency
Thermocouples • RTDs • Check Continuity
• Technician friendly operation
Intuitive EZ-DIAL Double Click Menu makes it easier to setup than
other multifunction calibrators. Uses the same menus as the single
function PIE Evolution Calibrators. Icons on the display indicate
where to plug in the test leads.
• Use it as a milliamp and voltage calibrator
Source 0 to 24.00 mA, 0 to 10.25 V and -10.00 to 80.00 mV dc
Read to 24.00 mA, 10.25 V, 60.0 V and -10.00 to 80.00 mV dc
Simulate 2-Wire Transmitters
Power up transmitters & loops with the built-in 24 V power supply.
Simplify HART hookups with built-in 250 Ohm resistor
PIECAL 820
• Calibrate directly in temperature (°C & °F)
The PIECAL 820 works with the instruments you use.
Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P
(Platinel II)
Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
• Checkout flow and vibration systems
Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
Hz, 9999.9 Hz & to 20.000 kHz.
• Troubleshoot loop & wiring problems
‘Beep’ out connections with the built-in continuity checker.
• Easy to read
Turn on the backlight & easily see the display in dark areas of the plant.
• Quickly set any three outputs plus automatic stepping & ramping
Easily set any value quickly with the adjustable “DIAL” plus store any three output settings for instant recall with
the EZ-CHECK™ switch. Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%,
25% or 10% of span. Select RAMP to smoothly increase and decrease the output between Zero and Span. Set
step/ramp time to match your system from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds.
• Measure temperature sensors, frequency pickups, loop currents and voltage levels
Check the values of your process sensors. Instantly recall MAX and MIN values to see process variability.
• Evolutionary design
PIECAL Calibrators are designed and built by members of the same team that designed and built the calibrators
manufactured by Fluke* under the Altek* label. The PIECAL 820 improves upon other brands by including a rubber
boot, a backlit display with larger digits, higher accuracy and more ranges for greater flexibility.
Actual Size
* PIECAL Calibrators are not manufactured or distributed by Fluke Corp or Altek Industries Inc, manufacturers of Altek Calibrators.

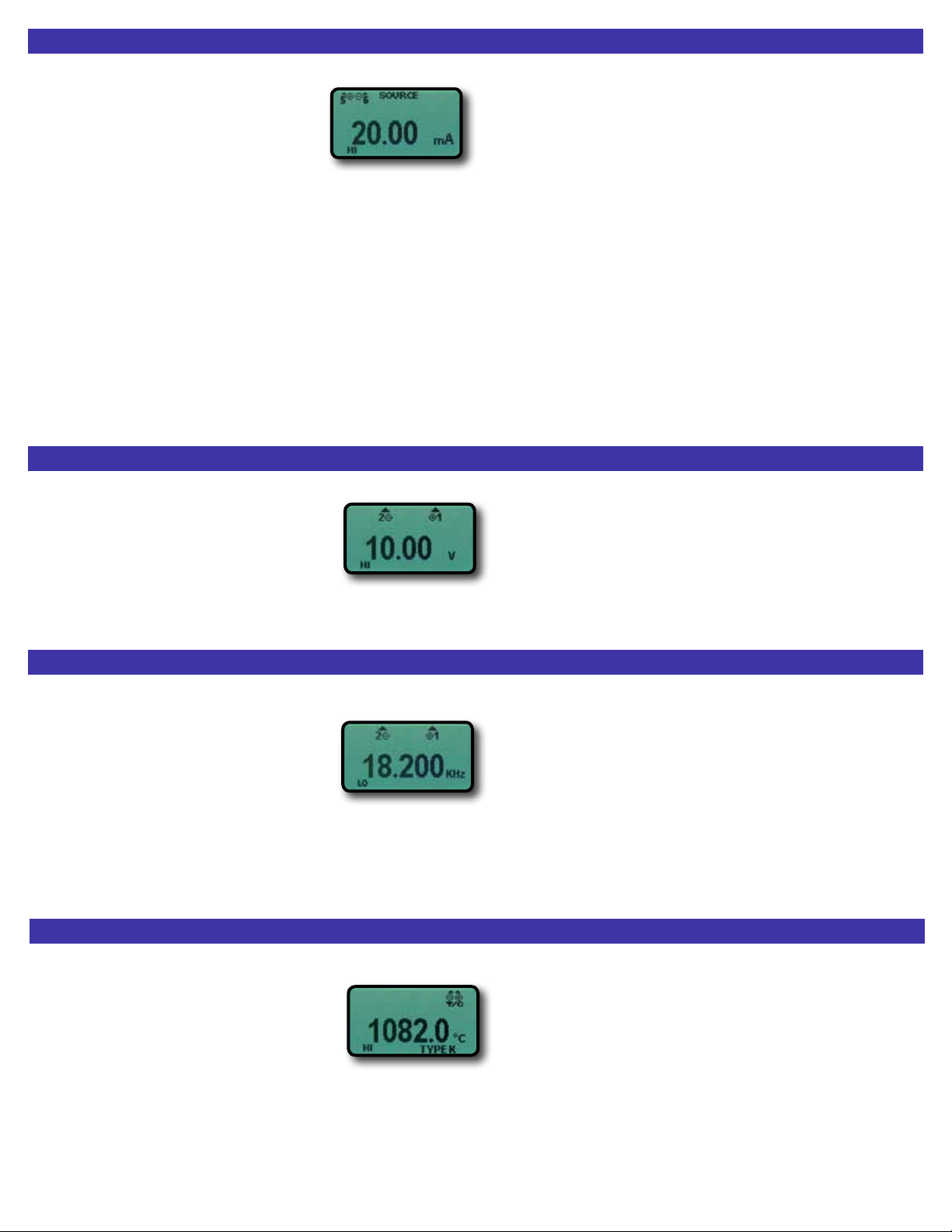

Milliamp Calibrator
• Easy to use
With the PIECAL 820 you can check,
calibrate and measure all your
current signal instruments in a 4 to
20 milliamp DC loop. It can be used
at any access point in your loop.
Source & Read 0.00 to 24.00 mA, Simulate a 2 Wire
Transmitter or use the PIECAL 820 to simultaneously
power your 2 Wire Transmitter and measure its output.
• Source milliamps
Calibrate recorders, digital indicators, stroke valves or
any instruments that get their input from a 4 to 20 mA
loop. Easily set any value quickly to within 0.01 mA with
the adjustable digital potentiometer “EZ-DIAL” or use
preset 4.00 mA (0.0%) and 20.00 mA (100.0%)
EZ-CHECK™ settings.
Voltage Calibrator
• Source mV & V dc
With the PIECAL 820 you can check,
calibrate and measure all your
voltage, millivolt and pH signal
instruments in your plant. Source 0
to 10.25 V dc and -10.00 to 80.00
m V.
• Calibrate using loop power
Check loop wiring and receivers by using the PIECAL
820 in place of a 2 Wire transmitter. Uses any loop
power from 2 to 60 V DC.
• Read loop current
Check controller outputs or measure the milliamp signal
anywhere in the loop. The PIECAL 820 measures 0.00
to 24.00 mA (-25.0 to 125.0%) signals with greater
accuracy than a typical multimeter.
• Power & measure 2 wire transmitters
The PIECAL 820 can simultaneously output 24V DC to
power any and all devices in a process loop using the
internal batteries and internal switching power supply,
while measuring the output of a 2 Wire Transmitter and
any other loop devices. Powers HART™ transmitters
with built-in 250 ohm resistor simplifying hookups with
HART communicators.
• Read DC volts
The PIECAL 820 can measure from 0 to 10.25 V, -10.00
to 80.00 mV and 0.0 to 60.0 VDC. Use it to check loop
power supplies, I/V converters, 1 to 5 Volt signals, and
other voltages.
Frequency Calibrator
• Calibrate flow meters and frequency instruments
Generate zero crossing square
waves to check, calibrate and
measure all the frequency signal
instruments in your plant. Source
and read frequencies from 1 to 2000
CPM (Counts-Per-Minute), 0.01 to
999.00 Hz, 0.1 to 9999.9 Hz and
0.001 to 20.000 kHz.
Thermocouple Calibrator
• Calibrate directly in temperature (°C & °F)
Stop carrying around a millivolt
source and thermocouple tables.
The PIECAL 820 works with the
thermocouples you use including
types J, K, T, E, R, S, B, N, G, C, D,
L (J-DIN), U (T-DIN) and P (Platinel
II). Easily set any value quickly to
within 0.1° with the adjustable digital
potentiometer “EZ-DIAL” plus recall
any three temperatures for instant
recall with the EZ-CHECK™ switch.
• Checkout optical pickups
The PIECAL 820 has a green LED that flashes in sync
with the output frequency. Select a frequency and hold
the calibrator up to the optical sensor.
• Measure thermocouple sensors
Trouble shoot sensor connections and find broken wires
or corroded connections. Connect your thermocouple
with a miniature thermocouple connector and the
PIECAL 820 measures the probe in degrees C or F.
RTD, Resistance Calibrator
• Easy to use
With the PIECAL 820 you can check
& calibrate all your RTD instruments
and measure RTD Sensors.
Automatic indication of connections
on the display for simple hookups.
• Calibrate directly in temperature (°C & °F)
Stop carrying around a decade box and RTD resistance
tables. The PIECAL 820 works with the RTDs you use
including Platinum 100 (alpha = 3850, 3902, 3916,
3926) & 1000 (alpha = 3850) Ohm, Copper 10 & 50
Ohm, Nickel 100 and 120 Ohm. Easily set any value
quickly to within 0.1° with the adjustable digital
potentiometer “EZ-DIAL” plus store any three
temperatures for instant recall with the EZ-CHECK™
switch. Or use like a decade box from 0.0 to 401.0 and
from 0 to 4010 Ohms.
Continuity Checker
• Troubleshoot wiring and connection problems
Use the built-in continuity checker to look at wiring and
connections during installation or to locate shorts.
Beeps from 0 to 100 Ohms.
• Compatible with ALL process instruments
No competitor’s calibrator is compatible with as many
process instruments! Connect directly to the RTD inputs
of smart transmitters, PLCs, DCS and multichannel
recorders and verify their outputs or displays. Works with
older instruments with fixed excitation currents and
newer multichannel instruments that switch the excitation
current between input channels.
• Measure RTD sensors
Trouble shoot sensor connections and find broken wires
with patented technology. Connect your two, three or
four wire RTDs and the PIECAL 820 measures the RTD
in degrees C or F.
Hang from your neck for
hands free calibrating
Thermocouple Ranges & Accuracies
Note: Doesn’t include cold junction error of ±0.1°C
T/C Degrees C
Range
J -200.0 to -150.0 ±1.2° -328.0 to -238.0 ±2.0° +Iron
-150.0 to -50.0 ±0.7° -238.0 to -58.0 ±1.3°
-50.0 to 100.0 ±0.5° -58.0 to 212.0 ±0.9°
100.0 to 1200.0 ±0.4° 212.0 to 2192.0 ±0.8°
K -230.0 to -150.0 ±2.6° -382.0 to -238.0 ±4.7° + Chromel®
-150.0 to 0.0 ±1.0° -238.0 to 32.0 ±1.8°
0.0 to 1100.0 ±0.6° 32.0 to 2012.0 ±1.1°
1100.0 to 1371.1 ±0.7° 2012.0 to 2500.0 ±1.2°
T -260.0 to -230.0 ±6.1° -436.0 to -382.0 ±11.0° +Copper
-230.0 to -150.0 ±2.2° -382.0 to -238.0 ±4.0°
-150.0 to 50.0 ±1.1° -238.0 to 122.0 ±2.0°
50.0 to 300.0 ±0.5° 122.0 to 572.0 ±1.0°
300.0 to 400.0 ±0.4° 572.0 to 752.0 ±0.7°
E -240.0 to -150.0 ±2.5° -400.0 to -238.0 ±4.5° +Chromel
-150.0 to -50.0 ±0.7° -238.0 to -58.0 ±1.1°
-50.0 to 150.0 ±0.4° -58.0 to 302.0 ±0.8°
150.0 to 1000.0 ±0.3° 302.0 to 1832.0 ±0.6°
R -18.3 to 50.0 ±6.5° -1.0 to 122.0 ±11.7° +Pt/13Rh
50.0 to 500.0 ±3.7° 482.0 to 932.0 ±6.6°
500.0 to 800.0 ±2.2° 932.0 to 1472.0 ±4.0°
800.0 to 1767.8 ±2.0° 1472.0 to 3214.0 ±3.5°
S -18.3 to 50.0 ±6.1° -1.0 to 122.0 ±10.9° +Pt/10Rh
50.0 to 300.0 ±3.7° 122.0 to 572.0 ±6.6°
300.0 to 600.0 ±2.6° 572.0 to 1112.0 ±4.7°
600.0 to 1767.8 ±2.3° 1112.0 to 3214.0 ±4.2°
B 315.6 to 600.0 ±7.9° 600.0 to 1122.0 ±14.2° +Pt/30Rh
600.0 to 1050.0 ±4.0° 1122.0 to 1922.0 ±7.3°
1050.0 to 1400.0 ±2.5° 1922.0 to 2552.0 ±4.6°
1400.0 to 1820.0 ±2.1° 2552.0 to 3308.0 ±3.8°
°C Degrees F
Range
°F T/C
Table based on Accuracy:
≤ ± (0.03 % of 80 mV)
Material
-Connstantan
-Alumel®
-Constantan
-Constantan
-Platinum
-Platinum
-Pt/6Rh
T/C Degrees C
Range
N -230.0 to 0.0 ±4.2° -382.0 to 32.0 ±7.5° +Nicrosil
0.0 to 450.0 ±0.9° 32.0 to 842.0 ±1.7°
450.0 to 1150.0 ±0.6° 842.0 to 2102.0 ±1.1°
1150.0 to 1300.0 ±0.7° 2102.0 to 2372.0 ±1.2°
G
100.0 to 300.0 ±4.5° 212.0 to 572.0 ±8.2° +Tungsten
(W)
300.0 to 650.0 ±2.1° 572.0 to 1202.0 ±3.7°
650.0 to 1800.0 ±1.3° 1202.0 to 3272.0 ±2.4°
1800.0 to 2320.0 ±1.9° 3272.0 to 4208.0 ±3.5°
C
-1.1 to 200.0 ±1.8° 30.0 to 392.0 ±3.2° +W5/Re
(W5)
200.0 to 1350.0 ±1.4° 392.0 to 2462.0 ±2.6°
1350.0 to 2000.0 ±1.9° 1742.0 to 3632.0 ±3.4°
2000.0 to 2320.0 ±2.6° 3632.0 to 4208.0 ±4.7°
D
-1.1 to 400.0 ±2.5° 30.0 to 752.0 ±4.5° +W3/Re
(W3)
400.0 to 1500.0 ±1.3° 752.0 to 2732.0 ±2.4°
1500.0 to 2000.0 ±2.3° 2732.0 to 3632.0 ±3.0°
2000.0 to 2320.0 ±2.6° 3682.0 to 4208.0 ±4.6°
0.0 to 150.0 ±0.8° 32.0 to 302.0 ±1.5°
P
Platinel
150.0 to 1100.0 ±0.6° 302.0 to 2012.0 ±1.1°
1100.0 to 1395.0 ±0.8° 2012.0 to 2543.0 ±1.5°
L
-200.0 to 0.0 ±0.7° -328.0 to 32.0 ±1.3° +Iron
J-DIN
T-DIN
0.0 to 550.0 ±0.5° 32.0 to 1022.0 ±0.8°
550.0 to 900.0 ±0.4° 1022.0 to 1652.0 ±0.7°
U
-200.0 to -25.0 ±1.4° -328.0 to -13.0 ±2.6° +Copper
-25.0 to 100.0 ±0.7° -13.0 to 212.0 ±1.2°
100.0 to 300.0 ±0.5° 212.0 to 572.0 ±0.9°
300.0 to 600.0 ±0.4° 572.0 to 1112.0 ±0.7°
°C Degrees F
Range
°F T/C
Material
-Nisil
-W26/Re
-W26/Re
-W25/Re
+Pd55/Pt31/
Au14
-Au65/Pd35
-Connstantan
-Constantan
RTD
Type
Pt 100 Ohm
DIN/IEC/JIS 1989
Based on ITS-90
Pt 100 Ohm
(Burns)
Pt 100 Ohm
(Old JIS 1981)
Pt 100 Ohm
(US Lab)
Alpha Degrees C
Range
1.3850
(0.00385)
1.3902
(0.003902)
1.3916
(0.003916)
1.3926
(0.003926)
-200.0 to 120.0
120.0 to 430.0
430.0 to 850.0
-195.6 to 160.0
160.0 to 460.0
460.0 to 648.9
-200.0 to 170.0
170.0 to 480.0
480.0 to 648.9
-200.0 to 180.0
180.0 to 490.0
490.0 to 850.0
°C
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
±0.5°
±0.6°
±0.7°
RTD Ranges & Accuracies
Degrees F
Range
-328.0 to 248.0
248.0 to 806.0
806.0 to 1562.0
-320.0 to 320.0
320.0 to 860.0
860.0 to 1200.0
-328.0 to 338.0
338.0 to 896.0
896.0 to 1200.0
-328.0 to 356.0
356.0 to 914.0
914.0 to 1562.0
°F
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
±0.9°
±1.0°
±1.2°
Pt 1000 Ohm
DIN/IEC/JIS 1989
Copper 10 Ohm
Copper 50 Ohm
Ni 120 Ohm
(Bristol 7 NA)
RTD
Type
(Minco)
(Pure)
Ni 110
Alpha Degrees C
Range
1.3850
(0.00385)
1.4274
(0.004274)
1.4280
(0.00428)
1.6720
(0.00672)
1.5801
(0.005801)
-200.0 to 120.0
120.0 to 430.0
430.0 to 850.0
-200.0 to 260.0
-50.0 to 150.0
-80.0 to 260.0
-100.0 to 260.0
°C
±0.5°
±0.6°
±0.7°
±5.1°
±0.9°
±0.3°
±0.3°
Degrees F
Range
-328.0 to 248.0
248.0 to 806.0
806.0 to 1562.0
-328.0 to 500.0
-58.0 to 302.0
-112.0 to 500.0
-148.0 to 500.0
°F
±0.9°
±1.0°
±1.2°
±9.2°
±1.7°
±0.5°
±0.5°
PIECAL 820 Specifications
(Unless otherwise indicated all specifications are rated from a nominal 23°C, 70% RH for 1 year from calibration)
General
Operating Temperature
Range
Storage Temperature Range -30 to 60 °C (-22 to 140 °F)
Temperature effect ≤ ± 0.01 %/°C of Full Scale
Relative Humidity Range 10 % ≤RH ≤90 % (0 to 35 °C), Non-condensing
Normal Mode Rejection 50/60 Hz, 50 dB
Common Mode Rejection 50/60 Hz, 120 dB
Noise ≤ ± ½ Least Significant Digit from 0.1 to 10 Hz
Size 5.63 x 3.00 x 1.60 in, 143 x 76 x 41mm (L x W x H)
Weight 12.1 ounces, 0.34 kg (including boot & batteries)
Batteries Four “AA” Alkaline 1.5V (LR6)
Optional NiMh
battery kit
Battery Life Read Functions: ≥ 20 hours
Low Battery Low battery indication with nominal 1 hour of
Protection against
misconnection
Display High contrast graphic liquid crystal display with
Rechargeable
-20 to 60 °C (-5 to 140 °F)
10 % ≤RH≤ 70 % (35 to 60 °C), Non-condensing
120 VAC for North America Only; charger, four
NiMh batteries, AC & DC cords [Part # 020-0103]
Source mA: ≥ 14 hours @ 12 mA into 250Ω
Pwr/Meas mA: ≥ 12 hours at 20 mA
Source V, Ω, T/C, RTD & Hz: ≥ 20 hours
operation left
Over-voltage protection to 60 vrms (rated for 30
seconds)
Red LED indicates OVERLOAD or out of range
conditions
0.315” (8.0 mm) high digits. LED backlighting for
use in low lit areas.
Source V dc
Range & Accuracy -10.00 to 80.00 mV, ≤ ± (0.03 % of Full Scale)
0.00 to 10.25 V, ≤ ± (0.03 % of Full Scale +0.005V)
Source Current
Sink Current > 16 mA
Output Impedance < 1 Ohm
Short Circuit Duration Infinite
Thermocouple Source
Accuracy ±(0.03% of Full Scale) [Note: Full Scale is 80.00 mV]
Cold Junction Compensation
Output Impedance < 1 Ohm
Source Current > 20 mA (drives 80 mV into 10 Ohms)
Thermocouple Read
Accuracy & Cold
Junction Compensation
Input Impedance
Open TC Threshold; Pulse
RTD, OHMS and Continuity Read
Resistance Ranges 0.0 to 401.0, 0 to 4010 Ohms
Accuracy ±(0.03% of Full Scale + 0.075 Ohms)
Excitation Current
Continuity 0.0 to 401.0 Ohms; Beeps from 0.0 to 100.0 Ohms
≥ 24 mA
±0.1°C (Thermistor traceable to NIST for 11 years)
Same as Thermocouple Source
> 1 Megohms
10K Ohms; <5 µamp pulse for 300 milliseconds (nominal)
1.0 mA to 401 Ohms, 0.5 mA to 4010 Ohms (nominal)
Read mA
Ranges and Resolution
Accuracy ≤ ± (0.03 % of Full Scale)
Voltage burden ≤ 2V at 24 mA
Overload/Current limit
protection
Source mA / Power & Measure Two Wire Transmitters
Ranges and Resolution
Accuracy ≤ ± (0.03 % of Full Scale)
Loop compliance voltage
Loop drive capability 1200 Ω at 20 mA for 15 hours nominal;
mA 2-Wire Transmitter Simulation
Accuracy Same as Source/Power & Measure
Voltage burden ≤ 2V at 20 mA
Overload/Current limit
protection
Loop voltage limits 2 to 60 VDC (fuse-less protected from reverse
DC Voltage Read
Range and Accuracy 0.00 to 80.00 mV, ≤ ±(0.03 % of Full Scale)
Input resistance ≥ 1 MΩ
0.00 to 24.00 mA or -25.0 to 125.0% of 4-20 mA
25 mA nominal
0.00 to 24.00 mA or -25.0 to 125.0% of 4-20 mA
≥ 24 DCV @ 20.00mA
950 Ω with Hart Resistor enabled
25 mA nominal
polarity connections)
0 to 10.25 V, ≤ ±(0.03 % of Full Scale + 0.005V)
0.0 to 60.0 V, ≤ ±(0.03 % of Full Scale + 0.05V)
Specifications subject to change without notice.
RTD and OHMS Source
Accuracy
F r om 1 t o 1 0. 2 m A
External Excitation Current
B e l o w 1 m A o f E x t e r n a l
Excitation Current
Resistance Ranges 0.0 to 401.0, 0 to 4010 Ohms
Allowable Excitation
Current Range
Pulsed Excitation
Current Compatibility
Frequency Source
Ranges 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1 to 9999.9 Hz,
Accuracy ±(0.03% of Full Scale)
Output Waveform
Risetime (10 to 90% of
amplitude)
Output Impedance < 1 Ohm
Source Current > 1 mA rms at 20 kHz
Short Circuit Duration Infinite
Optical Coupling Green LED (HZ SYNC) flashes at output frequency
Frequency Read
Ranges & Accuracy Same as Frequency Source
Accuracy ±(0.03% of Full Scale)
Trigger Level 1 V rms, dc coupled
Input Impedance > 1 Meg Ohm + 60 pF
±(0.03% of Full Scale + 0.075 Ohms)
±(0.03% of Full Scale+0.075 Ohms + )
<401 Ohm:10.2 mA max; steady or pulsed/intermittent
401 to 4000 Ohms: 1 mA max; steady or pulsed/intermittent
DC to 0.01 second pulse width
0.001 to 20.000 kHz
Square Wave, Zero Crossing -1.0 to +5 V peak-to-peak ±10%
< 10 microseconds
0.025 mV
mA Excitation Current
Warranty
Practical Instrument Electronics
82 East Main Street Suite 3.14 • Webster, NY 14580 USA
Tel: 585.872.9350 • Fax: 585.872.2638
sales@piecal.com • www.piecal.com
Copyright © 2017 All rights reserved 820-9001 - Rev F 8 Feb 2017
Our equipment is warranted against defective material and
workmanship (excluding batteries) for a period of three years
from the date of shipment. Claims under warranty can be made
by returning the equipment prepaid to our factory. The equipment
will be repaired, replaced or adjusted at our option. The liability
of Practical Instrument Electronics (PIE) is restricted to that
given under our warranty. No responsibility is accepted for
damage, loss or other expense incurred through sale or use of
our equipment. Under no condition shall Practical Instrument
Electronics, Inc. be liable for any special, incidental or
consequential damage.
Additional Information
PIE Calibrators are manufactured in the USA.
calibrated on equipment traceable to NIST and includes a
Certificate of Calibration. Test Data is available for an additional
charge.
Practical Instrument Electronics recommends a calibration
interval of one year. Contact your local representative for
recalibration and repair services.
This product is
Accessories
INCLUDED:
Four “AA” Alkaline batteries, Certificate of Calibration
Dark Blue Rubber Boot Part No. 020-0212
Evolution Hands Free Carrying Case Part No. 020-0211
PIE Multifunction Wire Kit Part No. 020-0820
1 Red & 1 Black Lead with
2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
OPTIONAL:
Ni-MH 1 Hour Charger with 4 Ni-MH AA Batteries Part No. 020-0103
(100-120 V AC input for North America Only)
(100-120 V AC input for North America Only)
T/C Wire Kit 1* for Types J, K, T & E Part No. 020-0202
T/C Wire Kit 2* for Types B, R/S & N Part No. 020-0203
* Thermocouple extension wire, stripped on one end with a corresponding
miniature thermocouple male connector on the other end.
Banana Plug & Alligator Clips
Flip out stand for bench use
Available From:
Loading...
