Functions and Hookup Diagrams
Milliamp
Source mA ............................................................................ 12
Simulate 2 Wire Transmitters .................................................13
Read mA ............................................................................... 14
Power/Measure Transmitters ................................................. 15
Power/Measure Transmitters with Leak Detection ................ 16
Voltage & Millivolt
Source V & mV ..................................................................... 18
Read V & mV ........................................................................ 19
pH
Source pH ............................................................................. 20
Thermocouple
Source T/C ............................................................................22
Read T/C Sensors................................................................. 23
Resistance
Source Resistance ................................................................ 24
Read Resistance & Check Continuity ...................................25
RTD
Source RTD .......................................................................... 26
Read RTD Sensors ...............................................................27
Frequency
Source KHz, Hz & CPM ........................................................28
Read KHz, Hz & CPM ..........................................................29
Pressure
Read Pressure ......................................................................30
Specifications
General ................................................................................. 32
Thermocouple Ranges & Accuracies....................................37
RTD Ranges & Accuracies ...................................................40
Warranty
Warranty & Additional Information ........................................41
General Information
Technician friendly operation
The unique and intuitive EZ-DIAL Double Click Menu makes it
easier to setup than other multifunction calibrators. Uses the same
menus as the single function PIE Evolution Calibrators
Use it as a milliamp and voltage calibrator
Source 0 to 24.000 mA, 0 to 10.250 V dc, -20.000 to 99.999
mV and -500.00 to 999.99 mV
Read to 24.000 mA, 60.00 V dc ±99.999 mV & ±999.99 mV
Simulate 2-Wire Transmitters & Power up transmitters & loops
Calibrate in temperature with 0.1°C/°F resolution
Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P II
Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) RTD
Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTD
Checkout flow and vibration systems
Source & read frequency from 0 to 2000 CPM (Counts-PerMinute), 0.00 to 999.99 Hz, 0.0 to 9999.9 Hz and 0.000 to 20.000 kHz.
Checkout resistance instruments, loop & wiring problems
Source and read resistance from 0.00 to 410.00 and 0.0 to 4001.0
ohms. ‘Beep’ out connections with the built-in continuity checker.
Troubleshoot loop problems
Quickly diagnose ground fault and current leakage with patented
loop diagnostic technology (US Patent 7,248,058).
Simulate pH probes into transmitters & analyzers
Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding
to -414.12 to +414.12 mV to verify the pH system is operating
properly before placing the probe into calibrated buffers.
Measure pressure with optional pressure modules
Three modules for 30 PSI/2 bar gauge, 500 PIS/35 bar gauge
and 30 PSI/2 bar absolute
Guaranteed compatible with all instrumentation
Works with Rosemount & Honeywell Smart Transmitters, PLCs,
DCSs, Multi-Channel Recorders and other pulsed excitation devices.
Page 1
.
Easy to read
Turn on the backlight & easily see the display in dark areas.
Quickly set any three outputs plus automatic stepping & ramping
Easily set any value quickly with the adjustable “DIAL” plus
store any three output settings for instant recall with the
EZ-CHECK™ switch. Choose between 2, 3, 5 & 11 steps or
RAMP to increase and decrease the output between Zero and
Span from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds.
Measure temperature sensors, frequency pickups, mA & V
Check the values of your process sensors. Instantly recall
MAX and MIN values to see process variability.
Page 2
Accessories
INCLUDED:
Four “AA” Alkaline batteries, Certificate of Calibration
Evolution Hands Free Carrying Case Part No. 020-0211
Blue Rubber Boot Part No. 020-0212
Test Leads - one pair: with Part No. 020-0207
banana plug & alligator clips
Evolution RTD Wire Kit Part No. 020-0208
2 Red & 2 Black Leads with
Banana Plugs & Spade Lugs
OPTIONAL:
Ni-MH 1 Hour Charger with 4 Ni-MH AA Part No. 020-0103
Batteries (100-120 V AC input for North America Only)
T/C Wire Kit 1* for Types J, K, T & E Part No. 020-0202
T/C Wire Kit 2* for Types B, R/S & N Part No. 020-0203
*Three feet (1 meter) of T/C extension wire, stripped on one
end with a miniature T/C male connector on the other end.
Female BNC to Banana Plug Adaptor Part No. 020-0218
Page 3
Operating Instructions
FIELD & BENCH USE

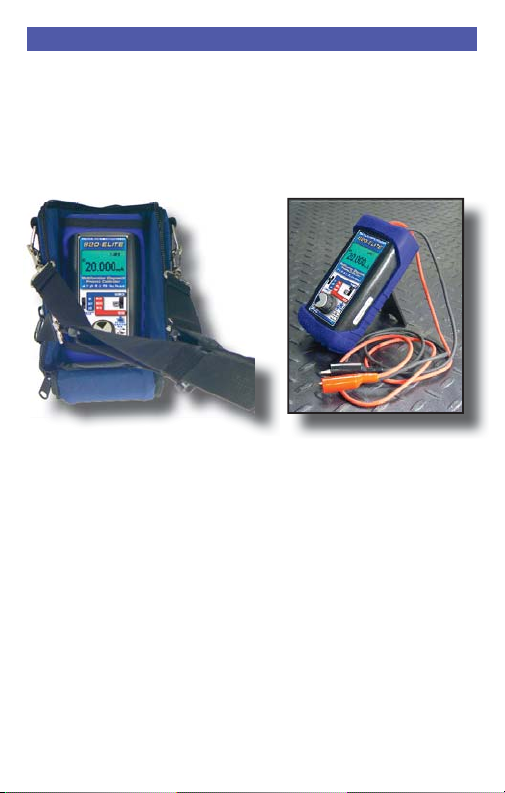

PIE 820-ELITE comes with a carrying case designed for handsfree operation and a rubber boot with a built-in tilt stand. The PIE
820-ELITE is held in the case by elastic straps for use with the
carrying case open. The tilt stand is easily raised by pulling the
stand until it locks into place.
CHANGING BATTERIES
Low battery is indicated by “BAT” on the display. Approximately
one to four hours of typical operation remain before the PIE
820-ELITE will automatically turn off. To change the batteries;
remove the rubber boot, remove the battery door from the back of
the unit by sliding the door downward. This allows access to the
battery compartment. Replace with four (4) “AA” 1.5V batteries
being careful to check the polarity. Replace the battery door and
replace the boot. All stored configuration options (T/C Type,
EZ-CHECK Memories, etc.) are reset to factory settings when the
batteries are removed.
Note: Alkaline batteries are supplied and recommended for
typical battery life and performance. Optional rechargeable
batteries (charged externally) are available.
Page 4
Operating Instructions
STORING HI and LO EZ-CHECK Source Outputs
Speed up your calibration by storing Span & Zero output setting
for instant recall with the EZ-CHECK switch.
1) Store your high (SPAN) output temperature by moving the
EZ-CHECK switch to the HI position and turning the EZ-Dial
knob until the desired output value is on the display. Press
and hold the EZ-Dial knob until STORED appears to store
the value. Release the EZ-Dial knob.
2) Store your low (ZERO) output value by moving the EZ-CHECK
switch to the LO position and turning the EZ-Dial knob until
the desired output value is on the display. Press and hold the
EZ-Dial knob until STORED appears to store the value.
Release the EZ-Dial knob.
3) Instantly output your SPAN and ZERO output settings by
moving the EZ-CHECK switch between HI and LO. You may
also select any third output setting (such as mid-range) using
the SET position on the EZ-CHECK switch.
Connections
PIE 820-ELITE has banana jacks compatible with unshielded or
retractable banana plugs. Included with your calibrator are: a
pair of test leads with alligator clips for mA, V, pH & Hz
connections. Four test leads with spade lugs are also included
for 2, 3 and 4 Wire RTD connections. Thermocouple connections
are made through a miniature thermocouple socket.
Page 5
Operating Instructions
Basic Operation
HI
820.1
TYPE K °C
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SET
Hz SYNC
OVERLOAD
SOURCE
MAX
HI
READ
OFF
MIN
LO
READ
READ
Double Click
Menu
Push & Turn
Fast Dialing
Push & Hold
Store/Step
for
to
EZ-CHECK™ SWITCH
SOURCE: Instantly output two preset settings by moving the
EZ-CHECK™ switch to the “LO” position or “HI” position.
three point checks select the “SET” position. The PIE 820-ELITE
will remember the last “SET” value, even with the power off.
These values can easily be changed to suit the calibration requirements.
The values stored in the HI and LO positions are also used for Auto
Stepping.
For fast
READ: Slide the switch to the SET position. The PIE 820-ELITE will
display the current reading from the sensor or device being measured.
Slide the switch to MAX and the highest value measured since turn-on
or reset will be displayed; slide the switch to MIN and the lowest value
measured since turn-on or reset will be displayed.
Page 6
Operating Instructions
Basic Operation
SOURCE/OFF/READ Switch
Select “SOURCE” to output mA, V, T/C, Ohms, RTD or frequency.
Select “READ” to read mA, V, T/C, Ohms, RTD or frequency.
EZ-DIAL™ KNOB
SOURCE: Turn the knob to adjust the output level. Turn clockwise to
increase the output, counter clockwise to decrease the output in one
least significant digit steps at a time. Push down and turn the
EZ-DIAL knob for faster dialing.
Press and hold the knob for two seconds to store desired
EZ-Check™ HI/LO points in SOURCE mode. Continue to press and
hold the knob for two more seconds to start the automatic ramping.
READ: Press and hold to transfer the current temperature into
the EZ-Check™ MIN/MAX points. This clears the MIN/MAX
readings which will update as the input value changes.
SELECTING FUNCTIONS
The EZ-DIAL knob is used to setup the PIE 820-ELITE to match
the instrument to be calibrated or signal to be measured. Each
time you turn on the PIE 820-ELITE the LCD displays the following screen for about 1 second followed by operating in the
function used the last time it was operated.
PIE 820-ELITE
DOUBLE CLICK
EZ-DIAL KNOB
FOR CONFIGURATION
Double Click the EZ-DIAL knob to change the function of the
calibrator and to select ranges, units and other user settings.
Each function (mA, V, T/C, Ohms, RTD, Frequency) has two
pages of menus. The first menu page has settings for the function and the second menu page has settings for STEPPING,
AUTO OFF and BACKLIGHT. Settings are remembered even
with the power off but are reset when the batteries are changed.
Page 7
Operating Instructions
Double Click Menus
Double click the EZ-DIAL knob to access the Double Click
Menus to select each function and the options for each function.
Available choices are shown in grey.
Source mA & Simulate 2 Wire Transmitters
> EXIT
FUNCTION mA
MODE SOURCE 2W SIM
UNITS mA %
HART 250Ω
ON OFF
Read mA, Power/Measure Transmitters
& Leak Detect
> EXIT
FUNCTION mA
MODE READ PWR MEAS PWRM LEAK
UNITS mA %
HART 250Ω
ON OFF
Source V & mV
>EXIT
FUNCTION V
RANGE 10V 100mV 1V
Read V & mV
>EXIT
FUNCTION V
RANGE 10V 1V 60V 100mV
Source pH
> EXIT
FUNCTION pH
Source & Read Frequency
> EXIT
FUNCTION FREQ
RANGE 20KHZ 10000HZ 1000HZ 2000CPM
Page 8
Operating Instructions
Double Click Menus
Source & Read Thermocouples
> EXIT
FUNCTION T/C
UNITS °C °F
T/C TYPE J K T E R S B G C D L U P
COLD JUNC ON
Source RTD
> EXIT
FUNCTION RTD
UNITS °C
RTD Pt 100 =3850 [* RTD Types]
WIRE MODE 234W
°F
Read RTD
> EXIT
FUNCTION RTD
UNITS °C °F
RTD Pt 100 =3850 [* RTD Types]
WIRE MODE 2W 3W 4W
Source Ohms
>EXIT
FUNCTION OHMS
RANGE 400Ω
WIRE MODE 234W
4000Ω
>EXIT
FUNCTION OHMS
RANGE 400Ω
WIRE MODE 2W 3W 4W
*Pt 100 =3902,
=3916, =3926
Pt 1000 =3850;
Cu 10 =4274,
Cu 50 =4280
Ni 120 =6720,
Ni 110 =5801
Read Ohms
4000Ω CONT
Read Pressure
>EXIT
FUNCTION PRESSURE
UNITS psi inH2O* inHg bar mbar kPa Mpa ksc cmH2O*
mmH2O* mmHg *Multiple temperatures in °C & °F
Page 9
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
Operating Instructions
To change the Automatic Stepping settings
Double click the DIAL KNOB at any time the unit is on and
the following typical display (will be different for each FUNCTION)
will appear for 15 seconds:
> EXIT
FUNCTION mA
MODE SOURCE
UNITS mA
HART 250Ω ON
Turn the
Turn the DIAL KNOB to move through the menu. Press the
DIAL KNOB to toggle between OFF and ON or to change the
STEPS and the STEP TIME settings. These settings are
remembered even with the power off.
EXIT MENU - exits this menu immediately and saves any
changes. Menu will automatically exit after 15 seconds of
inactivity.
AUTO OFF - If AUTO OFF is ON, the unit will turn off after 30
minutes of inactivity to save battery life. If AUTO OFF is OFF the
unit will stay on until the POWER SWITCH is moved to the off
position.
DIAL KNOB to move to the second menu page.
> EXIT
STEPS 3
STEP TIME 5
AUTO OFF ON
BACKLIGHT ON
Page 10
Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT
Operating Instructions
STEPS - pressing the knob will cycle through 2, 3, 5, 11 and
RAMP. The endpoints of the steps or ramp are based on the
values stored in the HI and LO EZ-CHECK outputs.
2 steps will automatically switch between the values stored in
the HI & LO EZ-CHECK (0 & 100%).
3 steps between the HI, Midpoint and LO EZ-CHECK (0, 50
& 100%).
5 steps between the HI and LO EZ-CHECK in 25%
increments (0, 25, 50, 75 & 100%).
11 steps between the HI and LO EZ-CHECK in 10%
increments (0, 10, 20...80, 90 &100%).
RAMP continuously ramps up and down between the HI and
LO EZ-CHECK outputs.
STEP TIME - pressing the knob will cycle through 5, 6, 7, 8, 9,
10, 15, 20, 25, 30 and 60 seconds.
To start the Automatic Stepping
Start automatic stepping or ramping by placing the EZ-CHECK
Switch into the HI or LO position then press and hold the
DIAL KNOB for 6 seconds (the word STORE will appear on the
display after 3 seconds and continue to press the EZ-DIAL
KNOB) until the word STEPPING appears on the display. The
word STEPPING will appear on the display anytime the selected
automatic function is running. Stop the stepping by again
pressing and holding the
DIAL KNOB for 3 seconds.
BACKLIGHT - If BACKLIGHT is ON the backlight will light all the
time the unit is powered up. For maximum battery life turn the
backlight off when using the calibrator in areas with enough
ambient light to read the display.
Page 11
HHI
mA
000
READ
mA SOURCE/ % SOURCE (Percent of 4 to 20 mA)
Choose this function to provide an output from 0.000 to 24.000
milliamps. The compliance voltage is a nominal 24 VDC to
provide the driving power to your milliamp receivers.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and SOURCE for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.001 mA (0.01%) increments by
turning the knob
. Press and turn the knob for faster dialing
with 0.100 mA (1.00%) increments.
Milliamp Receiver Input
Controller
HI
20.000
20.
mA
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Hz SYNC
Menu
OVERLOAD
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Transmitter
Computer
Logger
I/P
DCS
All milliamp connections
Page 12
2 Wire SIM mA, 2 Wire SIM % (Percent of 4 to 20 mA)
Choose this function to simulate a 2 Wire Transmitter output from
0.000 to 24.000 milliamps. Operates in loops with power supply
voltages from 2 to 60 VDC.
Move the power switch
to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and 2W SIM for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO (defaults to 20 & 4
mA). You may also select any third output setting (such as
mid-range) using the SET position on the EZ-CHECK switch.
The output is adjusted in 0.001 mA (0.01%) increments by
turning the knob
. Press and turn the knob for faster dialing
with 0.100 mA (1.00%) increments.
Receiver
Powers External
2-Wire Transmitter
Power Supply
(2 to 100 VDC)
MAX
HI
READ
SET
MIN
LO
SOURCE
READ
Page 13
To
Sensor
+ IN - REF +OUT-
Typical
2-Wire
Transmitter
(Disconnected)

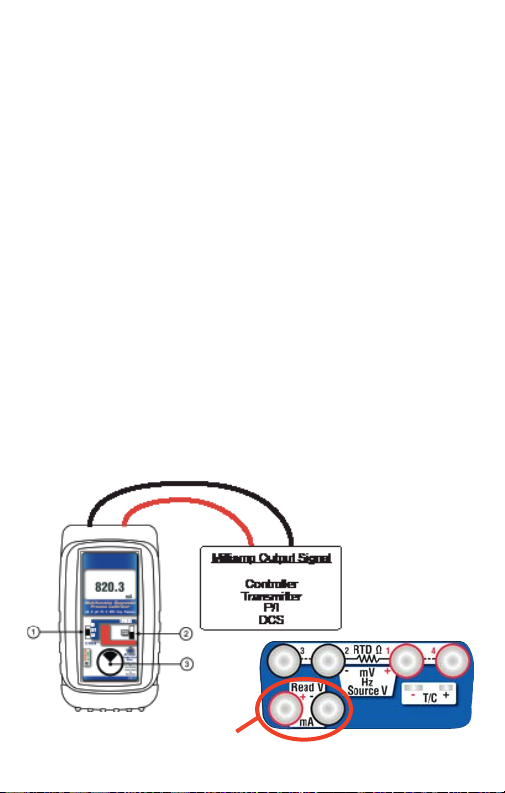

READ mA, READ % (Percent of 4 to 20 mA)
Choose this function to measure from 0.000 to 24.000 milliamps
or -25.00 to 125.00%.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and READ for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Connect the red input lead (+) of the PIE 820-ELITE to the more
positive point of the break and the black input to the more
negative point.
Signals below 0 mA or open circuits are indicated by 0.00 mA
(-25.0%) on the display. Signals above 24 mA are current limited
by protection circuitry with “OVERRANGE” flashed on the
display and the red OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob to
clear the MAX and MIN readings.
to MAX to see the highest reading and to
All milliamp connections
Page 14
Power/Measure mA, Power/Measure % (Percent of 4 to 20 mA)
Choose this function to simultaneously supply power to a 2 Wire
Transmitter while displaying the 4.000 to 20.000 mA output of
the transmitter.
Move the power switch
to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select mA for the FUNCTION and PWR MEAS for the
MODE. Choose either mA or % and whether you need the 250Ω
HART resistor active in the loop.
Disconnect one or both input wires from the device to be
calibrated. Connect the red source lead of the PIE 820-ELITE to
the plus (+) input of the device and the black source lead to the
minus (-).
The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to
the 2 Wire Transmitter. The current passed by the transmitter will
be accurately displayed by the PIE 820-ELITE. Calibrate the
transmitter in the usual manner and disconnect the PIE
820-ELITE. Signals above 24 mA are current limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
Transmitter Input
Sensor
Process Signal
Simulated Input
+ IN - REF +OUT-
Typical
2-Wire
Transmitter
Page 15
SOURCE
MAX
HI
READ
SET
MIN
LO
READ
Using Ground Leak Detection
mA OUT, % OUT (Percent of 4 to 20 mA)
Find current leaks in loops caused by ground faults, moisture or
corrosion. The 820-ELITE simultaneously supplies power to a 2
Wire Transmitter (or loop with a transmitter) while displaying the
4 to 20 mA output and the amount of current leaking in the loop.
1) Move the power switch
EZ-DIAL knob to get into the Double Click Menu. Turn the
knob to scroll through the settings and press the knob to
make your selection. Select mA for the FUNCTION and
PWRM LEAK for the MODE. Choose either mA or %.
2) Connect the red source lead from the mA (+) jack of the 820ELITE to the plus (+) input of the device and the black source
lead from the mA (-) to the minus (-).
The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to
the 2 Wire Transmitter or loop. The current passed by the
transmitter will be accurately displayed by the 820-ELITE along
with an indication of leakage current at the top of the display. If
there is an uncontrolled loop, a transmitter with upscale burnout
and bad or missing sensor or a short the display shows "OVER
RANGE”
Note: Many installed transmitters will normally indicate 0.01 to
0.02 mA leakage without significant control problem. Unstable
readings may indicate loose connections or the presence of
moisture.
All milliamp connections
to READ then Double Click the
Page 16
12.280
Using Ground Leak Detection
12.280
PROCESS
INDICATOR
Transmitter Input
Sensor
Process Signal
Simulated Input
+ IN - REF +OUT-
Typical
2-Wire
Transmitter
Typical Error Conditions
LEAK ERROR = 00.28
12.280
PWR MEAS
mA
LEAK ERROR = 00.28
12.280 mA
PWR MEAS
The PIE 820-ELITE is
supplying the loop voltage.
A calibrated transmitter is
limiting the loop current to
12.00 mA. An additional
0.28 mA is not controlled
by the transmitter and is
leaking somewhere in the
loop.
Page 17
LEAK ERROR =
OVER RANGE
PWR MEAS
The PIE 820-ELITE is
supplying the loop voltage.
There is a control loop
error. This may be a
transmitter (set for upscale
burnout) with a bad or
missing sensor, or a short
in the loop.
Process Ca
librator
000
H
HI
mV/V SOURCE
Choose this function to provide an output from -20.000 to 99.999
mV, -500.00 TO 999.99 mV or from 0.000 to 10.250 V. The
source current is a nominal 24 mA to provide the driving power
to your voltage receivers.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select V for the FUNCTION and 10V or 80 mV for the
RANGE.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead to the plus (+) input and black lead to the minus (-) input.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in
0.001 mV, 0.01 mV or 0.001 V increments by turning the knob
.
Press and turn the knob for faster dialing with 0.100 mV, 1.00 mV
or 0.100 V increments.
Voltage Receiver Input
HI
10.000
10.
Process Calibrator
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
HI
SET
LO
OVERLOAD
Hz SYNC
V
V
SOURCE
MAX
READ
OFF
MIN
READ
READ
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Controller
Transmitter
Computer
Logger
DCS
V & mV Source
Page 18
V
203
Read mV/V
Choose this function to measure from -99.999 to 99.999
millivolts, -99.999 to +99.999 mV, 0.000 to 10.250 V dc or 0.00
to 60.00 V dc.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select V for the FUNCTION and 10V, 1V, 60V or 100
mV for the RANGE.
Connect the red input lead (+) of the PIE 820-ELITE to the more
positive point of the break and the black input to the more
negative point.
Signals above the maximum scale are limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob to
clear the MAX and MIN readings.
Voltage Output Signal
Controller
Transmitter
8.203
8.
mV
m
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Power Supply
Read mV
Process Calibrator
Read 10 V & 60 V
Page 19
pH SOURCE
Process Ca
librator
BAS
pH
p
820
Choose this function to provide an output from 0.000 to 14.000
pH @ 25°C (77°F) which corresponds to 414.12 to -414.12 mV.
The source current is a nominal 24 mA to provide the driving
power to your pH receivers.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select pH for the FUNCTION.
Connect the output leads of the PIE 820-ELITE to the inputs of
the device being calibrated, making sure to check polarity. Red
lead from the mV (+) jack of the 820-ELITE to the plus (+) input
and black lead from the mV (-) jack to the minus (-) input. You
may also use the optional adaptor jack (020-0###) if you require
BNC connections.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the DIAL
position on the EZ-CHECK switch. The output is adjusted in
0.001 pH increments by turning the knob
. Press and turn the
knob for faster dialing with 0.100 pH increments.
pH Receiver Input
Controller
Transmitter
13.820
13.
BASE pH
E
Process Calibrator
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
Fast Dialing
Push & Hold
Store/Step
for
to
Analyzer
V & mV Source
Page 20
Simulate pH probes into transmitters & analyzers
Use the pH simulator to verify proper operation of pH devices
before you place a probe into a calibrated buffer. Adjusting the
pH transmitter or analyzer without a probe allows you to make
sure the device is calibrated and operating correctly. The
820-ELITE simulates 0.000 to 14.000 pH @ 25°C corresponding
to 414.12 to -414.12 mV.
Once the pH instrument has been adjusted against the PIE
820-ELITE reconnect the pH probe and check it against the
proper buffer (typically 7 pH). If the instrument zero point
requires more than the manufacturer’s recommendations
(typically within 0.5 pH) it is time to clean or replace the probe.
Page 21

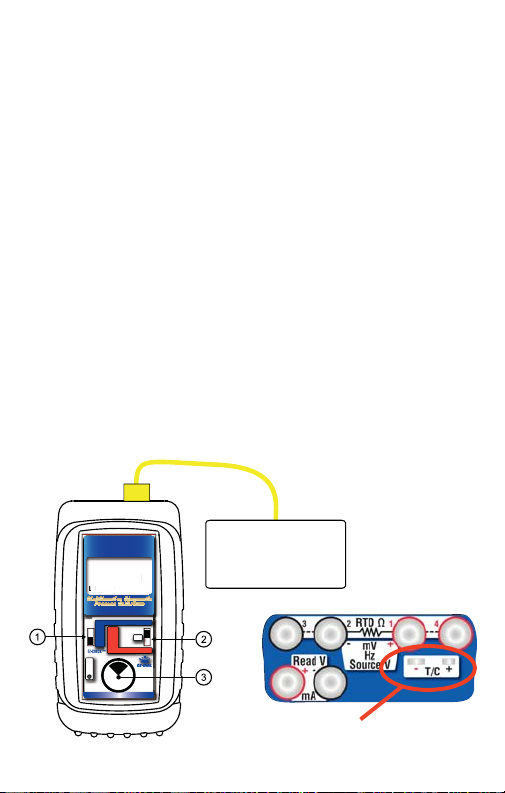

Thermocouple Source
TYPE K
C
820.0
L
L
Choose this function to provide a simulated thermocouple signal
into controllers, temperature transmitters, indicators or any input
devices that measure thermocouple sensors.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select T/C for the FUNCTION, °F or °C for the UNITS,
T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or
P (Platinel II) and internal COLD JUNC ON or OFF (ON is the
default).
Connect the PIE 820-ELITE to the inputs of the device being
calibrated using the proper type of thermocouple wire via the
miniature thermocouple socket.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 0.1°
increments by turning the knob
. Press and turn the knob for
faster dialing with 10.0° increments.
Thermocouple Wire
Instrument with T/C Input
Controller
Temperature Transmitter
Temperature Indicator
820.0
LO
TYPE K °C
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Temperature Trip or Alarm
All thermocouple connections
Page 22

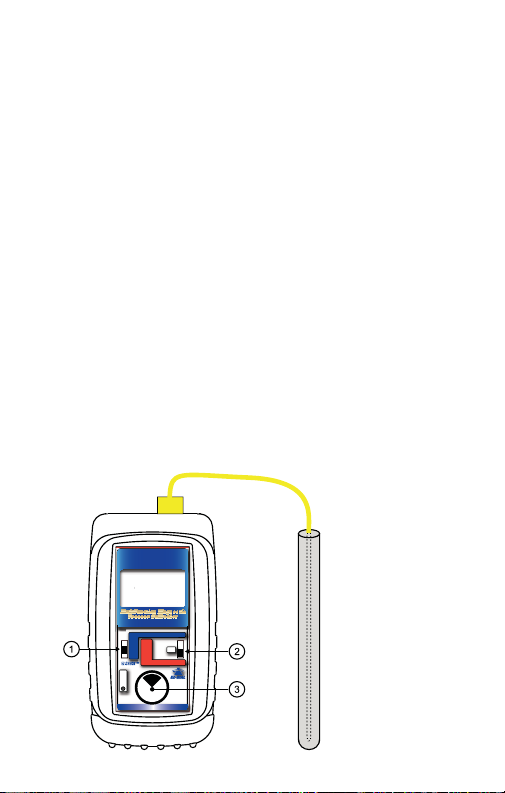

Read Thermocouple Sensors
Process CaPlibrator
TYPE K
F
1
Choose this function to measure temperatures with a
thermocouple probe or sensor.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select T/C for the FUNCTION, °F or °C for the UNITS,
T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or
P (Platinel II) and COLD JUNC ON or OFF (ON is the default).
Connect the PIE 820-ELITE to the inputs of the device being
calibrated using the proper type of thermocouple wire via the
miniature thermocouple socket. If no sensor is connected, a wire
is broken or the sensor is burned out, OPEN TC will appear on
the display. Signals above the maximum scale are limited by
protection circuitry with “OVERRANGE” on the display and the
red OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob to
clear the MAX and MIN readings.
Thermocouple Wire
1820.1
1820.
TYPE K °F
Process Calibrator
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 23

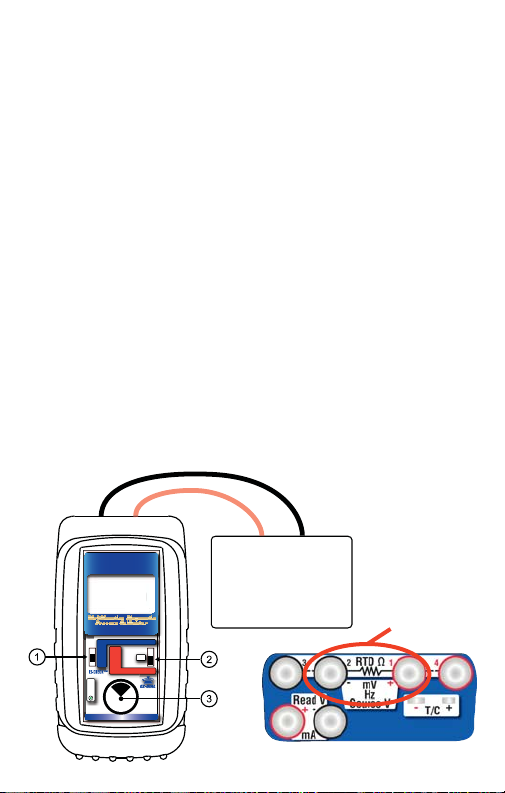

Resistance Source
Ω
00
H
Choose this function to provide a simulated resistance into any
device that measures resistance.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select OHMS for the FUNCTION, 400 or 4000 for
the RANGE.
Disconnect all sensor wires from the devices to be calibrated
and connect the PIE 820-ELITE to the inputs of the device using
2, 3 or 4 wires.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in
0.01/0.1 increments by turning the knob
. Press and turn
the knob for faster dialing with 1.00/10.0 increments.
Instrument with
Resistance Input
Controller
HI
250.00
250.
Ω
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Transmitter
PLC
2, 3 & 4 Wire Resistance Connections
Page 24

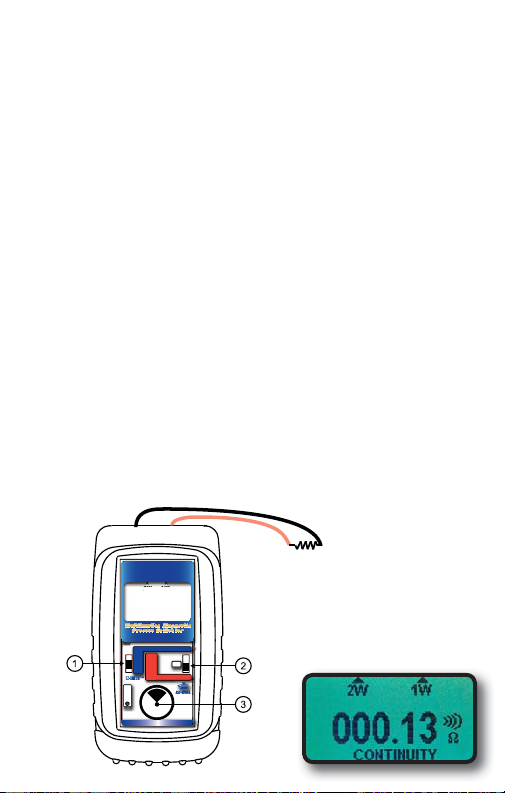

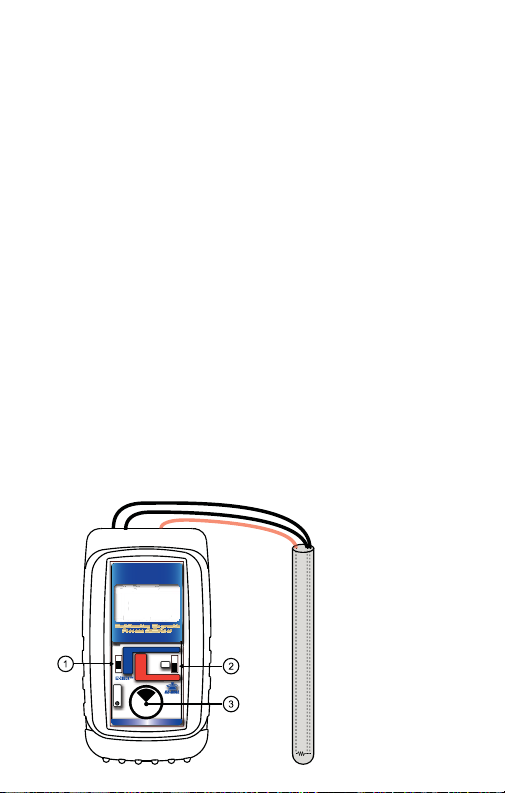

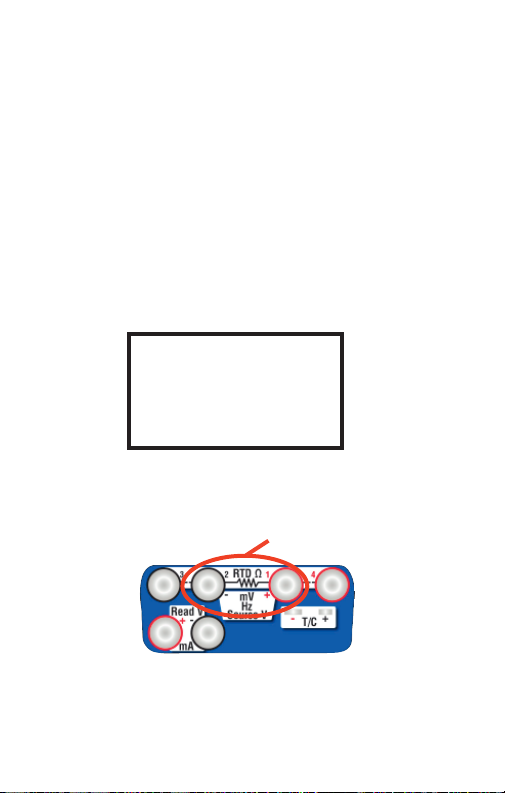

Read Resistance & Check Continuity
820.3
2W 1W
Choose this function to measure resistance or check continuity.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select OHMS for the FUNCTION, 400, 4000 or
Continuity for the RANGE. You must also select the WIRE
MODE for 2W, 3W or 4W to match the 2, 3 or 4 wires being used
to measure resistance. For continuity the only choice is 2W.
Disconnect all wires from the sensor and connect the PIE
820-ELITE to the inputs of the device using 2, 3 or 4 wires.
If continuity is selected, resistance is measured up to 400.0.
The beeper will sound and
)))) appears on the display when
resistance and below 100.0 is measured.
Signals above the maximum scale are limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob
to MAX to see the highest reading and to
to
clear the MAX and MIN readings.
^ ^
2W 1W
820.3
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 25
RTD Source
Pt 100
D3850
C
820.0
H
Choose this function to provide a simulated RTD signal into
controllers, temperature transmitters, indicators or any input
devices that measure RTD sensors.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select RTD for the FUNCTION, °F or °C for the UNITS
and RTD (Choose from one of Platinum 100Ω, or 1000Ω, Copper
10Ω or 50Ω, Nickel 120Ω or 110Ω curves). Note: Pt 100Ω 3850
is the most common RTD type.
Disconnect all sensor wires from the devices to be calibrated
and connect the PIE 820-ELITE to the inputs of the device using
2, 3 or 4 wires.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 0.1°
increments by turning the knob
. Press and turn the knob for
faster dialing with 10.0° increments.
Instrument with RTD Input
Controller
Temperature Transmitter
HI
820.0
Pt 100 D=3850 °C
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Temperature Indicator
Temperature Trip or Alarm
2, 3 & 4 Wire RTD Connections
Page 26
Read RTD Sensors
Pt 100
D3850
F
820.1
3W
2W 1W
Choose this function to measure temperatures with an RTD
probe or sensor.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select RTD for the FUNCTION, °F or °C for the UNITS
and RTD (Choose from one of Platinum 100Ω, or 1000Ω, Copper
10Ω or 50Ω, Nickel 120Ω or 110Ω curves). Note: Pt 100Ω 3850
is the most common RTD type. You must also select the WIRE
MODE for 2W, 3W or 4W to match the 2, 3 or 4 wires on the RTD
sensor.
Disconnect all wires from the sensor and connect the PIE
820-ELITE to the inputs of the device using 2, 3 or 4 wires.
Signals above the maximum scale are limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob
to MAX to see the highest reading and to
to
clear the MAX and MIN readings.
^ ^ ^
3W 2W 1W
820.1
Pt 100 D=3850 °F
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Page 27
Frequency Source
000
HI
Choose this function to provide a frequency signal into any input
devices that measure frequency.
Move the power switch to SOURCE then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select FREQ for the FUNCTION and 20KHZ,
10000HZ, 1000HZ or 2000CPM for the RANGE.
Disconnect all input wires from the devices to be calibrated and
connect the PIE 820-ELITE to the input of the device matching
polarity.
The green HZ SYNC LED pulses in synch with the output pulses
and may be used to calibrate optical pickups. The output signal
is a zero crossing square wave with a fixed amplitude of 6 V
peak-to-peak from -1 and + 5 V.
Instantly output your SPAN and ZERO output settings by moving
the EZ-CHECK switch between HI and LO. You may also select
any third output setting (such as mid-range) using the SET
position on the EZ-CHECK switch. The output is adjusted in 1
count increments by turning the knob
. Press and turn the
knob for faster dialing with 100 count increments.
Frequency Receiver Input
HI
20.000
20.
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
HI
SET
LO
OVERLOAD
Hz SYNC
KHz
KHz
SOURCE
MAX
READ
OFF
MIN
READ
READ
Double Click
Menu
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Flowmeter
Transmitter
Computer
Logger
Controller
DCS
All Frequency
Connections
Page 28
Read Frequency
Hz
00
Choose this function to count frequency.
Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select FREQ for the FUNCTION and 20KHZ,
10000HZ, 1000HZ or 2000CPM for the RANGE.
Disconnect all input wires from the devices to be calibrated and
connect the PIE 820-ELITE to the output of the device matching
polarity.
The green HZ SYNC LED pulses in synch with the input
frequency.
Signals above the maximum scale are limited by protection
circuitry with “OVERRANGE” flashed on the display and the red
OVERLOAD LED lit.
The PIE 820-ELITE measures the input signal and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
to MAX to see the highest reading and to
MIN to see the lowest reading. Press and hold the knob to
clear the MAX and MIN readings.
Voltage Output Signal
Flowmeter
Flow Sensor
820.00
820.
Hz
mA ∙ V ∙ pH ∙ TC ∙ Ω ∙ RTD ∙ Freq ∙ Pressure
SOURCE
MAX
HI
READ
SET
OFF
MIN
LO
READ
READ
Double Click
Menu
OVERLOAD
Hz SYNC
Push & Turn
for
Fast Dialing
Push & Hold
to
Store/Step
Variable Speed Drive
Controller
Transmitter
All Frequency
Connections
Page 29
Read Pressure
Choose this function to measure pressure in one of 15 different
engineering units using a Crystal Multical Pressure Module.
1) Move the power switch to READ then Double Click the
EZ-DIAL knob to get into the Double Click Menu. Turn the knob
to scroll through the settings and press the knob to make your
selection. Select PRESSURE for the FUNCTION and make your
choice of UNITS to match the pressure instrument to be
checked.
The following screen will appear each time pressure is seletecd
to remind you that the switch on the Multical Pressure Module
MUST be set to PSI for the PIE 820-ELITE to indicate the correct
pressure. Failure to do so will result in the wrong pressure being
indicated and possible damage to the pressure module.
PLUG IN MODULE
SWITCH TO PSI
PRESS
E-Z DIAL KNOB
TO CONTINUE
2) Connect the electrical output of the pressure module to the
mV inputs of the PIE 820-ELITE matching polarity.
Read mV
Page 30
Read Pressure
3) Connect pressure hoses, fittings & pumps (if required) to the
pressure instrument to be checked.
4) Move the switch on the Pressure Module to PSI and press the
E-Z Dial knob on the 820-ELITE.
5) Press and hold the
E-Z DIAL KNOB for 1 second to 'Zero'
the pressure. The word "TARE" appears on the display indicating
that all measurements are relative to the pressure measured
when the calibrator was zeroed.
Pressure readings appear on the display of the 820-ELITE and
are constantly updated.
The PIE 820-ELITE measures the pressure and constantly
updates the display with the current reading. Move the
EZ-CHECK switch
MIN to see the lowest reading. Press and hold the knob
to MAX to see the highest reading and to
for 2
seconds to clear the MAX and MIN readings.
30 psi/2 bar Gauge &
Absolute Modules
Units Maximum
PSI 30.000
Inches H2O@4°C 830.40
Inches H2O@20°C 831.90
Inches H2O@60°F 831.22
Inches HG@0°C 61.080
bar 2.0684
mbar 2068.4
kPa 206.84
MPa 0.2068
Kgf/CM2 2.1092
cm H2O@4°C 2109.2
cm H2O@23°C 2114.4
mm H2O@4°C 21092
mm H2O@23°C 21144
mm Hg @ 0°C 1551.4
500 psi/35 bar Gauge Modules
Units Maximum
PSI 500.00
Inches H2O@4°C 999.99*
Inches H2O@20°C 999.99*
Inches H2O@60°F 999.99*
Inches HG@0°C 1018.0
bar 34.474
mbar 34474
kPa 3447.4
MPa 3.4474
Kgf/CM2 35.153
cm H2O@4°C 35153
cm H2O@23°C 35240
mm H2O@4°C 99999*
mm H2O@23°C 99999*
mm Hg @ 0°C 25857
* Indicates OVER RANGE above this value
Page 31
Specifications
General
Operating Temp Range
Storage Temp Range -30 to 60 °C (-22 to 140 °F)
Temperature effect ≤ ± 0.005 %/°C of Full Scale
Relative Humidity
Range
Normal Mode Rejection
Common Mode Rejection
Noise
Size
Weight
Batteries Four “AA” Alkaline 1.5V (LR6)
Battery life Read Functions: ≥ 20 hours
Low Battery Low battery indication with nominal 1
Protection against
misconnection
Display
-20 to 60 °C (-5 to 140 °F)
10 % ≤RH ≤90 % (0 to 35 °C),
Non-condensing
10 % ≤RH≤ 70 % (35 to 60 °C),
Non-condensing
50/60 Hz, 50 dB
50/60 Hz, 120 dB
≤ ± ½ Least Significant Digit from 0.1 to 10 Hz
5.63x3.00x1.60” 143x76x41mm (LxWxH)
12.1 ounces, 0.34 kg with boot & batteries
Source mA: ≥ 14 hours @ 12 mA into 250Ω
Pwr/Meas mA: ≥ 12 hours at 20 mA
Source V, Ω, T/C, RTD & Hz:
hour of operation left
Over-voltage protection to 60 vrms
(rated for 30 seconds)
Red LED indicates OVERLOAD or out
of range conditions
High contrast graphic liquid crystal display
with 0.315” (8.0 mm) high digits. LED
backlighting.
≥ 20 hours
Page 32
Specifications
Read mA
Ranges and Resolution
Accuracy ≤ ± (0.02 % of Reading + 0.003 mA)
Voltage burden ≤ 2V at 24 mA
Overload/Current
limit protection
Source mA / Power & Measure Two Wire Transmitters
Ranges and Resolution
Accuracy ≤ ± (0.02 % of Reading + 0.003 mA)
Loop compliance voltage
Loop drive capability 1200 Ω at 20 mA for 15 hours nominal;
mA 2-Wire Transmitter Simulation
Accuracy Same as Source/Power & Measure
Voltage burden ≤ 2V at 20 mA
Overload/mA protection
Loop voltage limits 2 to 60 VDC (fuse-less protected from
DC Voltage Read
Range and Resolution
Accuracy
Input resistance ≥ 1 MΩ
0.000 to 24.000 mA or -25.00 to 125.00%
of 4-20 mA
25 mA nominal
0.000 to 24.000 mA or -25.00 to 125.00%
of 4-20 mA
≥ 24 DCV @ 20.00mA
950 Ω with Hart Resistor or leak
detection running
24 mA nominal
reverse polarity connections)
±99.999 mV, ±999.99mV, 0 to 10.250 V, 0.00
to 60.00 V DC
≤ ± (0.02 % of Reading + 0.01% Full Scale)
Page 33
Specifications
Source V dc
Ranges and Resolution
Accuracy
Source Current
Sink Current > 16 mA
Output Impedance < 1 Ohm
Short Circuit Duration Infinite
pH Source
Range and Resolution
Accuracy in mV
Accuracy in pH ≤ ± 0.003 pH @ 25°C
Thermocouple Source
Accuracy ≤ ± (0.02 % of Reading + 0.01 mV)
Cold Junction Compensation
Output Impedance < 1 Ohm
Source Current > 20 mA (drives 80 mV into 10 Ohms)
Thermocouple Read
Accuracy & Cold
Junction Compensation
Input Impedance
Open TC Threshold;
Pulse
-20.000 to 99.999 mV, -500.00 to 999.99 mV,
0.000 to 10.250V
≤ ± (0.02 % of Reading + 0.01% Full Scale)
≥ 24 mA
0.000 to 14.000 pH
≤ ± (0.02 % of Reading in mV + 0.1 mV)
± (0.1°C + 0.01%/°C)
Same as Thermocouple Source
> 1 Megohms
10K Ohms; <5 μamp pulse for 300
milliseconds (nominal)
Page 34
Specifications
RTD, OHMS and Continuity Read
Resistance Ranges 0.00 to 401.00, 0.0 to 4010.0 Ohms
Accuracy ±(0.02% of Reading + 0.075 Ohms)
Excitation Current
Continuity 0.0 to 401.0 Ohms; Beeps from 0.0 to
RTD and OHMS Source
3 Wire & 4 Wire
Accuracy
From 1 to 10.2 mA
External Excitation Current
Below 1 mA of External
Excitation Current
2 Wire Accuracy
Resistance Ranges 0.0 to 410.00, 0.0 to 4010.0 Ohms
Allowable Excitation
Current Range
Pulsed Excitation
Current Compatibility
1.0 mA to 401 Ohms, 0.6 mA to 4010
Ohms (nominal)
100.0 Ohms
±(0.03% of Full Scale + 0.075 Ohms)
±(0.03% of Full Scale+0.075 Ohms +
0.025 mV
mA Excitation Current
Add 0.1 Ohm to specifications listed above
<401 Ohms: 10.2 mA max; steady or
pulsed/intermittent
401 to 4010 Ohms: 1 mA max; steady or
pulsed/intermittent
DC to 0.01 second pulse width
)
Page 35
Specifications
Frequency Source
Ranges 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1
Accuracy
Output Waveform
Risetime (10 to 90% of
amplitude)
Output Impedance < 1 Ohm
Source Current > 1 mA rms at 20 kHz
Short Circuit Duration Infinite
Optical Coupling Green LED (HZ SYNC) flashes at
Frequency Read
Ranges & Accuracy Same as Frequency Source
Accuracy
Trigger Level 1 V rms, dc coupled
Input Impedance > 1 Meg Ohm + 60 pF
to 9999.9 Hz, 0.001 to 20.000 kHz
≤ ± (0.02 % of Reading + 0.01% Full Scale)
Square Wave, Zero Crossing -1.0 to +5 V
peak-to-peak ±10%
< 10 microseconds
output frequency
≤ ± (0.02 % of Reading + 0.01% Full Scale)
Page 36
Thermocouple Ranges & Accuracies
Based on ±(0.03% of 80 mV)
T/C Degrees C
Range
J -200.0 to -50.0 ±0.5° -328.0 to -58.0 ±1.0°
-50.0 to 300.0 ±0.2° -58.0 to 572.0 ±0.4°
300.0 to 900.0 ±0.3° 572.0 to 1652.0 ±0.6°
900.0 to 1200.0 ±0.4° 1652.0 to 2192.0 ±0.8°
K -230.0 to -50.0 ±1.2° -382.0 to -58.0 ±2.2°
-50.0 to 550.0 ±0.3° -58.0 to 1022.0 ±0.6°
550.0 to 1000.0 ±0.5° 1022.0 to 1832.0 ±0.8°
1000.0 to 1371.1 ±0.6° 1832.0 to 2500.0 ±1.1°
T -260.0 to -230.0 ±2.9° -436.0 to -382.0 ±5.2°
-230.0 to -210.0 ±1.0° -382.0 to -346.0 ±1.9°
-210.0 to -50.0 ±0.8° -346.0 to -58.0 ±1.4°
-58.0 to 50.0 ±0.3° -58.0 to 122.0 ±0.6°
50.0 to 400.0 ±0.2° 122.0 to 752.0 ±0.4°
E -240.0 to -200.0 ±0.9° -400.0 to -328.0 ±1.7°
-200.0 to 0.0 ±0.5° -328.0 to 32.0 ±0.8°
0.0 to 350.0 ±0.2° 32.0 to 662.0 ±0.3°
350.0 to 1000.0 ±0.3° 662.0 to 1832.0 ±0.6°
R -18.3 to 100.0 ±2.1° -1.0 to 212.0 ±3.8°
100.0 to 500.0 ±1.3° 212.0 to 932.0 ±2.4°
500.0 to 1400.0 ±1.0° 932.0 to 2552.0 ±1.8°
1400.0 to 1767.8 ±1.2° 2552.0 to 3214.0 ±2.0°
°C Degrees F
Range
°F
Page 37
Thermocouple Ranges & Accuracies
Based on ≤ ± (0.02 % of Reading + 0.01 mV)
T/C Degrees C
Range
S -18.3 to 100.0 ±2.0° -1.0 to 212.0 ±3.7°
100.0 to 350.0 ±1.4° 212.0 to 662.0 ±2.5°
350.0 to 1600.0 ±1.1° 662.0 to 2912.0 ±2.0°
1600.0 to 1767.8 ±1.3° 2912.0 to 3214.0 ±2.4°
B 315.6 to 600.0 ±3.2° 600.0 to 1122.0 ±5.7°
600.0 to 850.0 ±1.7° 1122.0 to 1562.0 ±3.1°
850.0 to 1100.0 ±1.3° 1562.0 to 2012.0 ±2.4°
1100.0 to 1820.0 ±1.1° 2012.0 to 3308.0 ±2.0°
N -230.0 to -150.0 ±1.9° -382.0 to -238.0 ±3.4°
-150.0 to -50.0 ±0.7° -238.0 to -58.0 ±1.2°
-50.0 to 950.0 ±0.4° -58.0 to 1742.0 ±0.8°
950.0 to 1300.0 ±0.5° 1742.0 to 2372.0 ±1.0°
G
100.0 to 350.0 ±1.7° 212.0 to 662.0 ±3.0°
(W)
350.0 to 1700.0 ±0.8° 662.0 to 3092.0 ±1.5°
1700.0 to 2000.0 ±1.0° 3092.0 to 3632.0 ±1.8°
2000.0 to 2320.0 ±1.1° 3632.0 to 4208.0 ±2.1°
C
-1.1 to 100.0 ±0.8° 30.1 to 212.0 ±1.4°
(W5)
100.0 to 1000.0 ±0.7° 212.0 to 1832.0 ±1.3°
1000.0 to 1750.0 ±1.2° 1832.0 to 3182.0 ±2.1°
1750.0 to 2320.0 ±2.0° 3182.0 to 4208.0 ±3.5°
°C Degrees F
Range
°F
Page 38
Thermocouple Ranges & Accuracies
Based on ≤ ± (0.02 % of Reading + 0.01 mV)
T/C Degrees C
Range
D -1.1 to 150.0 ±1.0° 30.1 to 302.0 ±1.8°
150.0 to 1100.0 ±0.7° 302.0 to 2012.0 ±1.3°
1100.0 to 1750.0 ±1.0° 2012.0 to 3182.0 ±1.8°
1750.0 to 2320.0 ±2.0° 3182.0 to 4208.0 ±3.6°
P 0.0 to 600.0 ±0.3° 32.0 to 1112.0 ±0.6°
600.0 to 900.0 ±0.4° 1112.0 to 1652.0 ±0.8°
900.0 to 1200.0 ±0.6° 1652.0 to 2192.0 ±1.1°
1200.0 to 1395.0 ±0.7° 2192.0 to 2543.0 ±1.2°
L
-200.0 to -50.0 ±0.4° -328.0 to -58.0 ±0.7°
J-DIN
T-DIN
-50.0 to 300.0 ±0.2° -58.0 to 572.0 ±0.4°
300.0 to 900.0 ±0.3° 572.0 to 1652.0 ±0.5°
U
-200.0 to -50.0 ±0.6° -328.0 to -58.0 ±1.1°
-50.0 to 50.0 ±0.3° -58.0 to 122.0 ±0.5°
50.0 to 550.0 ±0.2° 122.0 to 1022.0 ±0.4°
550.0 to 600.0 ±0.3° 1022.0 to 1112.0 ±0.5°
°C Degrees F
Range
°F
Page 39
RTD Ranges & Accuracies
RTD Accuracy Based on
RTD
Type
Pt 100 Ohm
DIN/IEC/JIS 1989
1.3850 (ITS-90)
Pt 100 Ohm
(Burns)
1.3902
Pt 100 Ohm
(Old JIS 1981)
1.3916
Pt 100 Ohm
(US Lab)
1.3926
Pt 1000 Ohm
DIN/IEC/JIS 1989
1.3850
Copper 10 Ohm
1.4274 (Minco)
Copper 50
1.4280
Ni 120 Ohm
1.6720 (Pure)
Ni 110 Ohm
Bristol 7 NA 1.5801
Degrees C
-200.0 to 0.0
0.0 to 340.0
340.0 to 640.0
640.0 to 850.0
-200.0 to 10.0
10.0 to 350.0
350.0 to 650.0
650.0 to 850.0
-200.0 to 20.0
20.0 to 360.0
360.0 to 650.0
650.0 to 850.0
-200.0 to 20.0
20.0 to 360.0
360.0 to 660.0
660.0 to 850.0
-200.0 to 0.0
0.0 to 340.0
340.0 to 640.0
640.0 to 850.0
-200.0 to 260.0
-50.0 to 150.0
-80.0 to 260.0
-100.0 to 260.0
±(0.03% of Reading in Ohms + 0.075 Ohms)
Range
°C
±0.2°
±0.3°
±0.4°
±0.5°
±0.2°
±0.3°
±0.4°
±0.5°
±0.2°
±0.3°
±0.4°
±0.5°
±0.2°
±0.3°
±0.4°
±0.5°
±0.2°
±0.3°
±0.4°
±0.5°
±2.0°
±0.4°
±0.1°
±0.2°
Degrees F
Range
-328.0 to 32.0
248.0 to 644.0
644.0 to 1184.0
1184.0 to 1562.0
-328.0 to 50.0
50.0 to 662.0
662.0 to 1202.0
1202.0 to 1562.0
-328.0 to 68.0
68.0 to 680.0
680.0 to 1202.0
1202.0 to 1562.0
-328.0 to 68.0
68.0 to 680.0
680.0 to 1220.0
1220.0 to 1562.0
-328.0 to 32.0
248.0 to 644.0
644.0 to 1184.0
1184.0 to 1562.0
-328.0 to 500.0
-58.0 to 302.0
-112.0 to 500.0
-148.0 to 500.0
°F
±0.4°
±0.6°
±0.8°
±1.0°
±0.4°
±0.6°
±0.8°
±0.9°
±0.4°
±0.6°
±0.8°
±0.9°
±0.4°
±0.6°
±0.8°
±0.9°
±0.4°
±0.6°
±0.8°
±1.0°
±3.6°
±0.8°
±0.3°
±0.4°
Page 40
Standard Warranty
Our equipment is warranted against defective material and
workmanship (excluding batteries) for a period of three years
from the date of shipment. Claims under warranty can be made
by returning the equipment prepaid to our factory. The equipment
will be repaired, replaced or adjusted at our option. The liability
of Practical Instrument Electronics (PIE) is restricted to that
given under our warranty. No responsibility is accepted for
damage, loss or other expense incurred through sale or use of
our equipment. Under no condition shall Practical Instrument
Electronics, Inc. be liable for any special, incidental or
consequential damage.
Optional Repair/Replacement Warranty
Under our Repair/Replacement Warranty (RP-WAR-B), our
equipment is warranted against ANY damage or malfunction
that may cause the unit to fail for a period of three (3) years from
the date of shipment.
This warranty is limited to one complete replacement against
any damage or malfunction during the warranty period. If
replaced, the new calibrator will carry our Standard Warranty for
the remainder of the three (3) years or a minimum of one (1)
year from the date of shipment.
Additional Information
PIE Calibrators are manufactured in the USA.
calibrated on equipment traceable to NIST and includes a
Certificate of Calibration. Test Data is available for an additional
charge.
Practical Instrument Electronics recommends a calibration
interval of one year. Contact your local representative for
recalibration and repair services.
Page 41
This product is
Loading...
