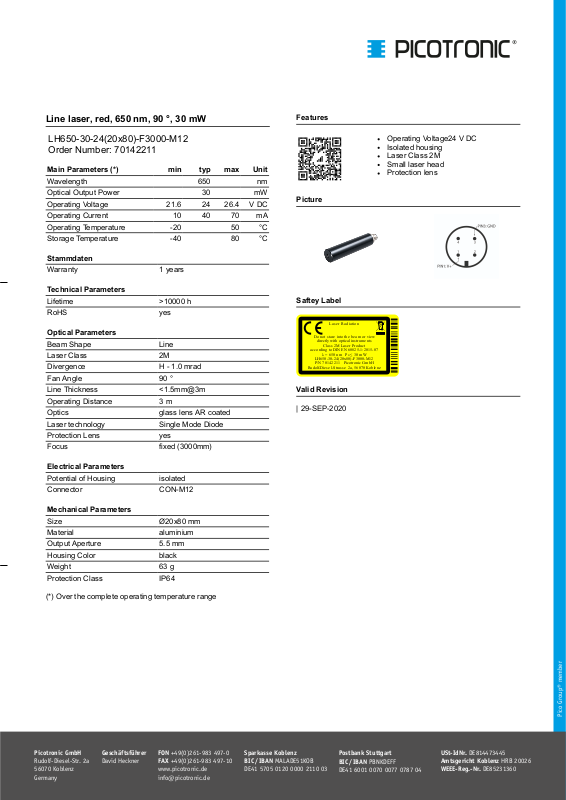

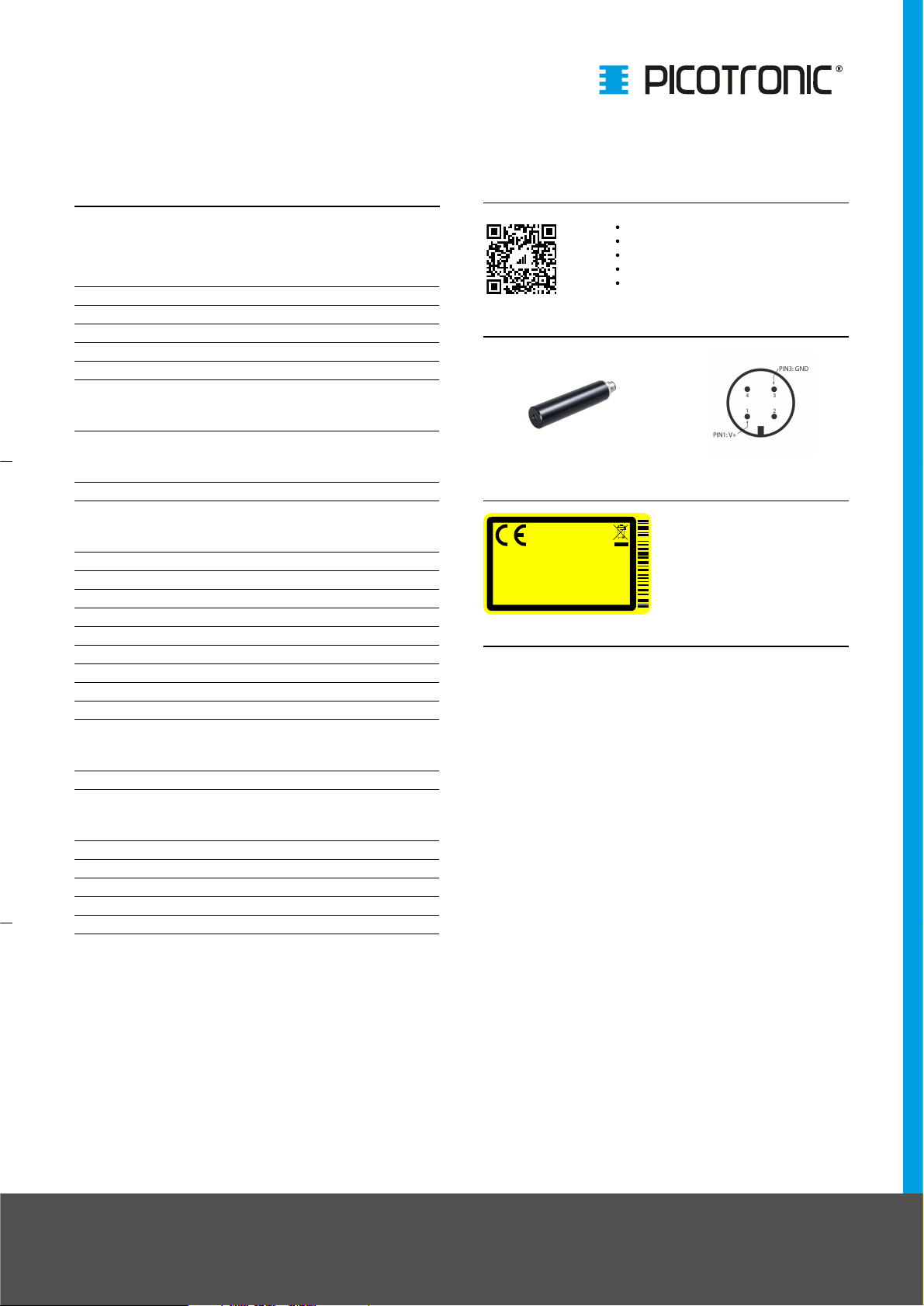

Line laser, red, 650 nm, 90 °, 30 mW
LH650-30-24(20x80)-F3000-M12
Order Number: 70142211
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 30 mW
Operating Voltage 21.6 24 26.4 V DC
Operating Current 10 40 70 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Stammdaten
Warranty 1 years
Technical Parameters
Lifetime >10000 h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2M
Divergence H - 1.0 mrad
Fan Angle 90 °
Line Thickness <1.5mm@3m
Operating Distance 3 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Protection Lens yes
Focus fixed (3000mm)
Electrical Parameters
Potential of Housing isolated
Connector CON-M12
Mechanical Parameters
Size Ø20x80 mm
Material aluminium
Output Aperture 5.5 mm
Housing Color black
Weight 63 g
Protection Class IP64
(*) Over the complete operating temperature range
Features
Operating Voltage24 V DC
Isolated housing
Laser Class 2M
Small laser head
Protection lens
Saftey Label
Las er Rad iat ion
Do no t sta re into the b eam or view
direc tly with o ptical ins trumen ts
Clas s 2 M Las er P rodu ct
ac cording to DIN EN 60 825-1:2 015-0 7
λ = 6 50 nm P₀ ≤ 3 0 mW
LH650-3 0-24(20 x80)-F3 000-M12
P/N 7 0142 211 P icotron ic GmbH
Rud olf-Dies el-Stra ss e 2 a, 56 070 Kob lenz
Valid Revision
| 29-SEP-2020
