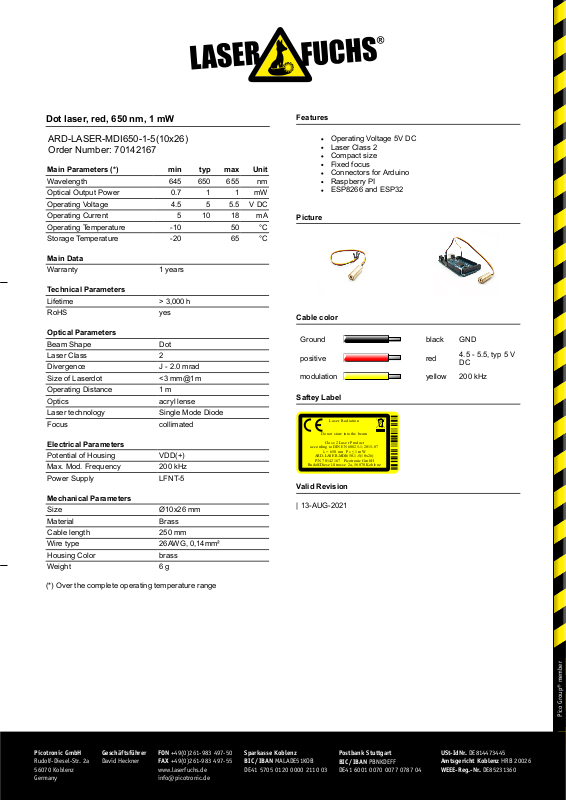

Dot laser, red, 650 nm, 1 mW
ARD-LASER-MDI650-1-5(10x26)
Order Number: 70142167
Main Parameters (*) min typ max Unit
Wavelength 645 650 655 nm
Optical Output Power 0.7 1 1 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 5 10 18 mA
Operating Temperature -10 50 °C
Storage Temperature -20 65 °C
Main Data
Warranty 1 years
Technical Parameters
Lifetime > 3,000 h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence J - 2.0 mrad
Size of Laserdot <3 mm@1m
Operating Distance 1 m
Optics acryl lense
Laser technology Single Mode Diode
Focus collimated
Electrical Parameters
Potential of Housing VDD(+)
Max. Mod. Frequency 200 kHz
Power Supply LFNT-5
Mechanical Parameters
Size Ø10x26 mm
Material Brass
Cable length 250 mm
Wire type 26AWG, 0,14mm²
Housing Color brass
Weight 6 g
(*) Over the complete operating temperature range
Features
Operating Voltage 5V DC
Laser Class 2
Compact size
Fixed focus
Connectors for Arduino
Raspberry PI
ESP8266 and ESP32
Cable color
Ground black GND
positive red
4.5 - 5.5, typ 5 V
DC
modulation yellow 200 kHz
Saftey Label
Las er Rad iat ion
Do no t sta re into the b eam
Clas s 2 Lase r Pro duct
ac cording to DIN EN 60 825-1:2 015-0 7
λ = 6 50 nm P₀ ≤ 1 mW
ARD-LASER-MDI650 -1-5(10x2 6)
P/N 7 0142 167 P icotron ic GmbH
Rud olf-Dies el-Stra ss e 2 a, 5 6070 Koblenz
Valid Revision
| 13-AUG-2021
