Dot laser, red, 650nm, 1mW
Ø
9
20
Ø
9
Ø
6
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW

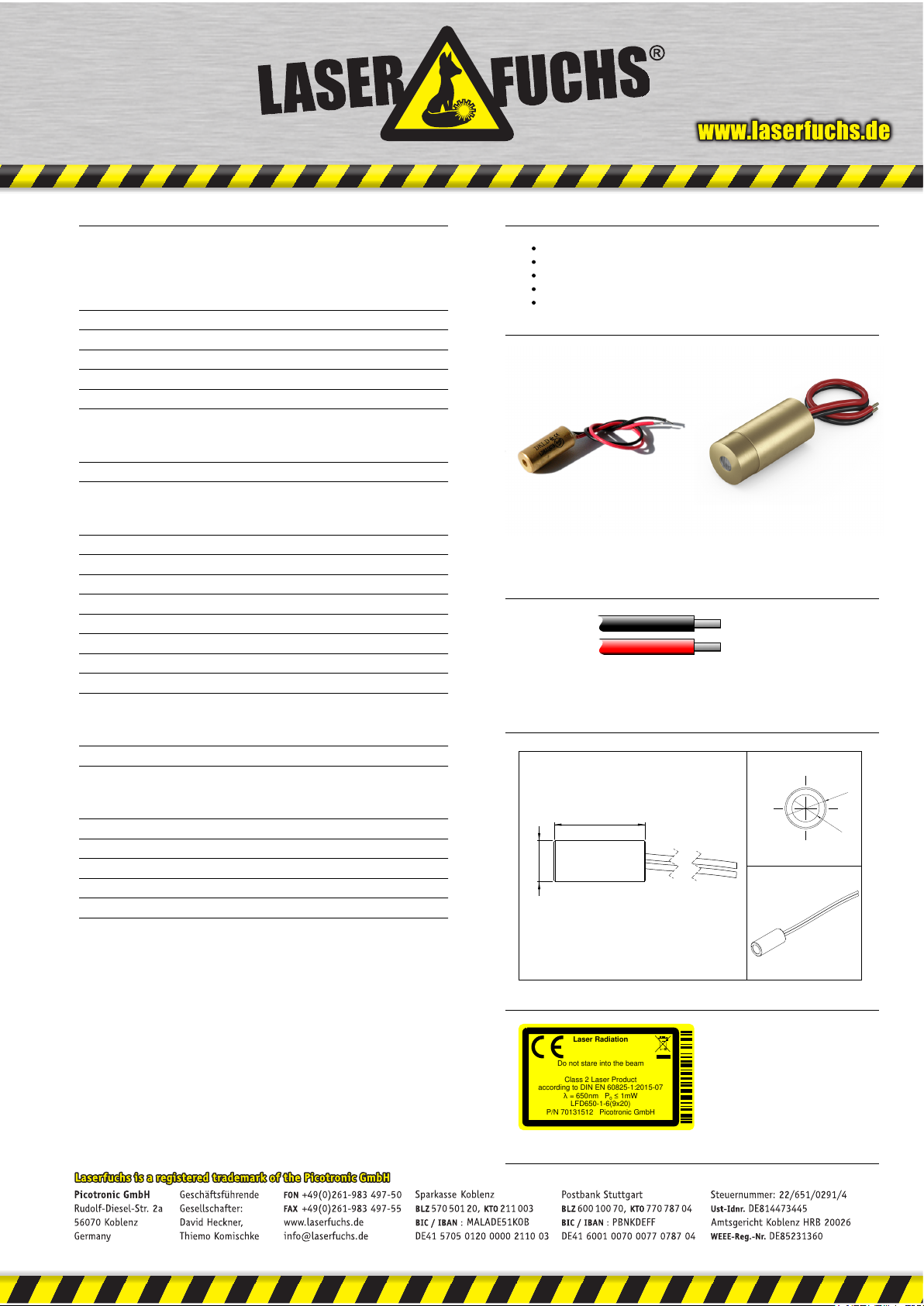

LFD650-1-6(9x20)
P/N 70131512 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LFD650-1-6(9x20)
Order Number: 70131512
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 0.5 1 1 mW
Operating Voltage 3 3 6 V DC
Operating Current 3 6 30 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence H - 1.0mrad
Beam Diameter 3mm
Size of Laserdot <4..5mm@5m
Operating Distance 10m
Optics acryl lense
Laser technology diode
Focus collimated
Electrical Parameters
Potential of Housing VDD(+)
Power Supply LFNT-3
Features
Optimized for 3-6V DC
Low cost
Laser Class 2
Compact size
Fixed focus
Cable Colors
Ground black GND
Positive red 3 - 6, typ 3V DC
Drawing
Mechanical Parameters
Size Ø9x20mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3mm
Weight 6g
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
| 26-OCT-2018
