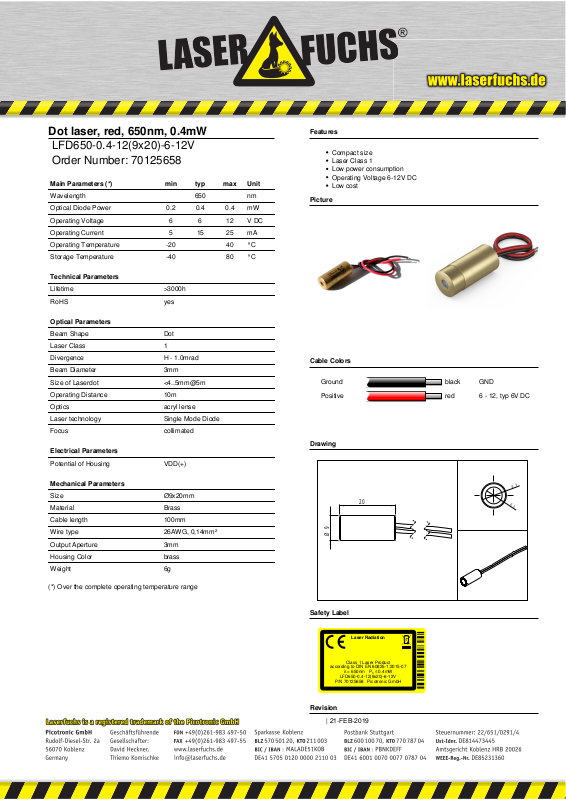

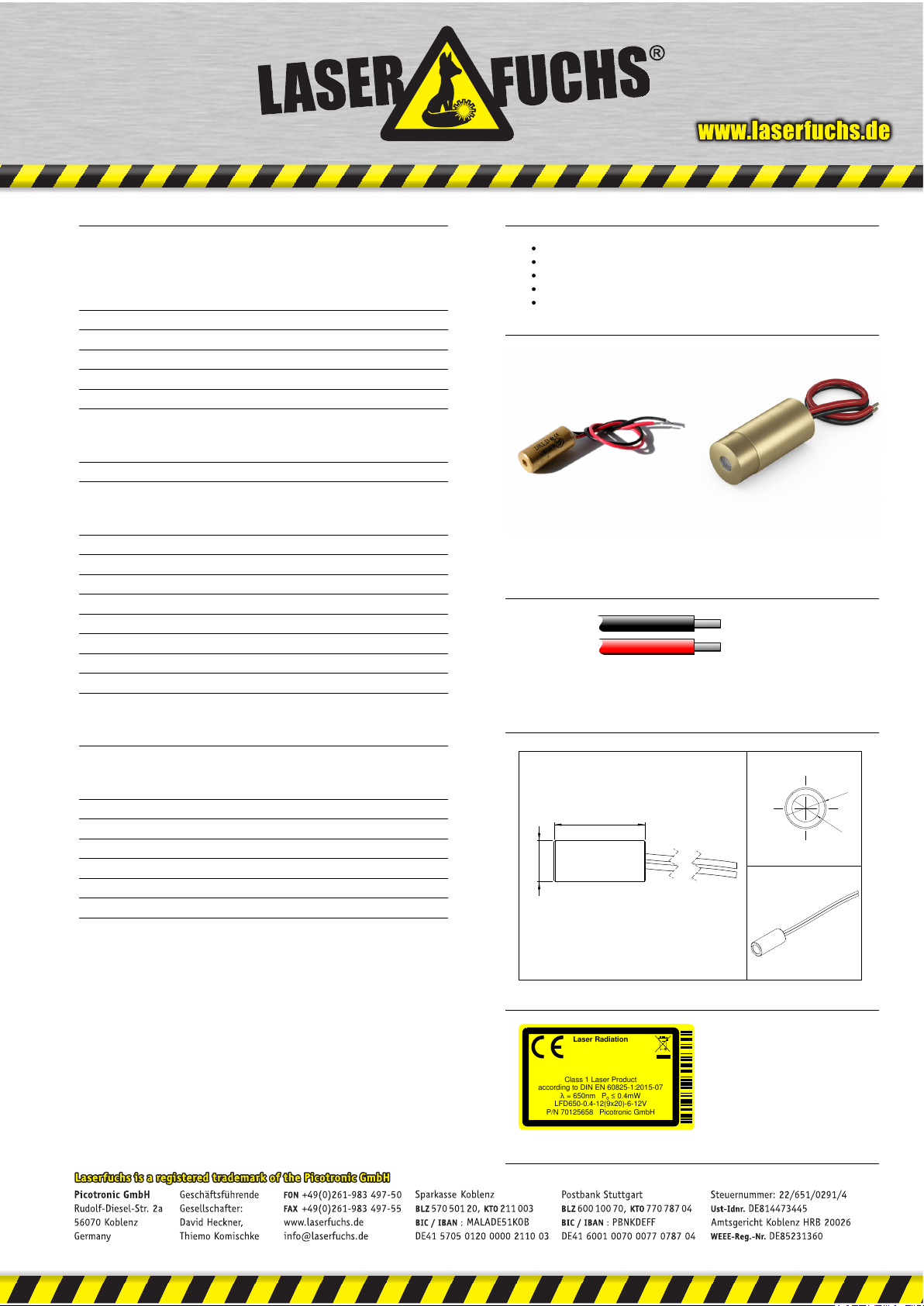

Dot laser, red, 650nm, 0.4mW
Ø
9
20
Ø
9
Ø
6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 0.4mW
LFD650-0.4-12(9x20)-6-12V
P/N 70125658 Picotronic GmbH
LFD650-0.4-12(9x20)-6-12V
Order Number: 70125658
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 0.2 0.4 0.4 mW
Operating Voltage 6 6 12 V DC
Operating Current 5 15 25 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 1
Divergence H - 1.0mrad
Beam Diameter 3mm
Size of Laserdot <4..5mm@5m
Operating Distance 10m
Optics acryl lense
Laser technology Single Mode Diode
Focus collimated
Electrical Parameters
Potential of Housing VDD(+)
Features
Compact size
Laser Class 1
Low power consumption
Operating Voltage 6-12V DC
Low cost
Cable Colors
Ground black GND
Positive red 6 - 12, typ 6V DC
Drawing
Mechanical Parameters
Size Ø9x20mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3mm
Housing Color brass
Weight 6g
(*) Over the complete operating temperature range
Safety Label
Revision
| 21-FEB-2019
