Dot laser, red, 670nm, 1mW
Ø
11,4
Ø
12
4
35
40
Ø
12
Ø
11,4
Ø
5
Picotronic GmbH
Rudolf-Diesel-Str. 2a
56070 Koblenz
Germany
Geschäftsführer
David Heckner
FON +49(0)261-983 497-0
FAX +49(0)261-983 497-10
www.picotronic.de
info@picotronic.de
Sparkasse Koblenz
BLZ 570 501 20, KTO 211 003
BIC / IBAN MALADE51KOB
DE41 5705 0120 0000 2110 03
USt-IdNr. DE814473445
Amtsgericht Koblenz HRB 20026
WEEE-Reg.-Nr. DE85231360
Postbank Stuttgart
BLZ 600 100 70, KTO 770 787 04
BIC / IBAN PBNKDEFF
DE41 6001 0070 0077 0787 04
Pico Group® member
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 670nm P₀ ≤ 1mW
DG670-1-12-F(12x40)-C300
P/N 70117653 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)

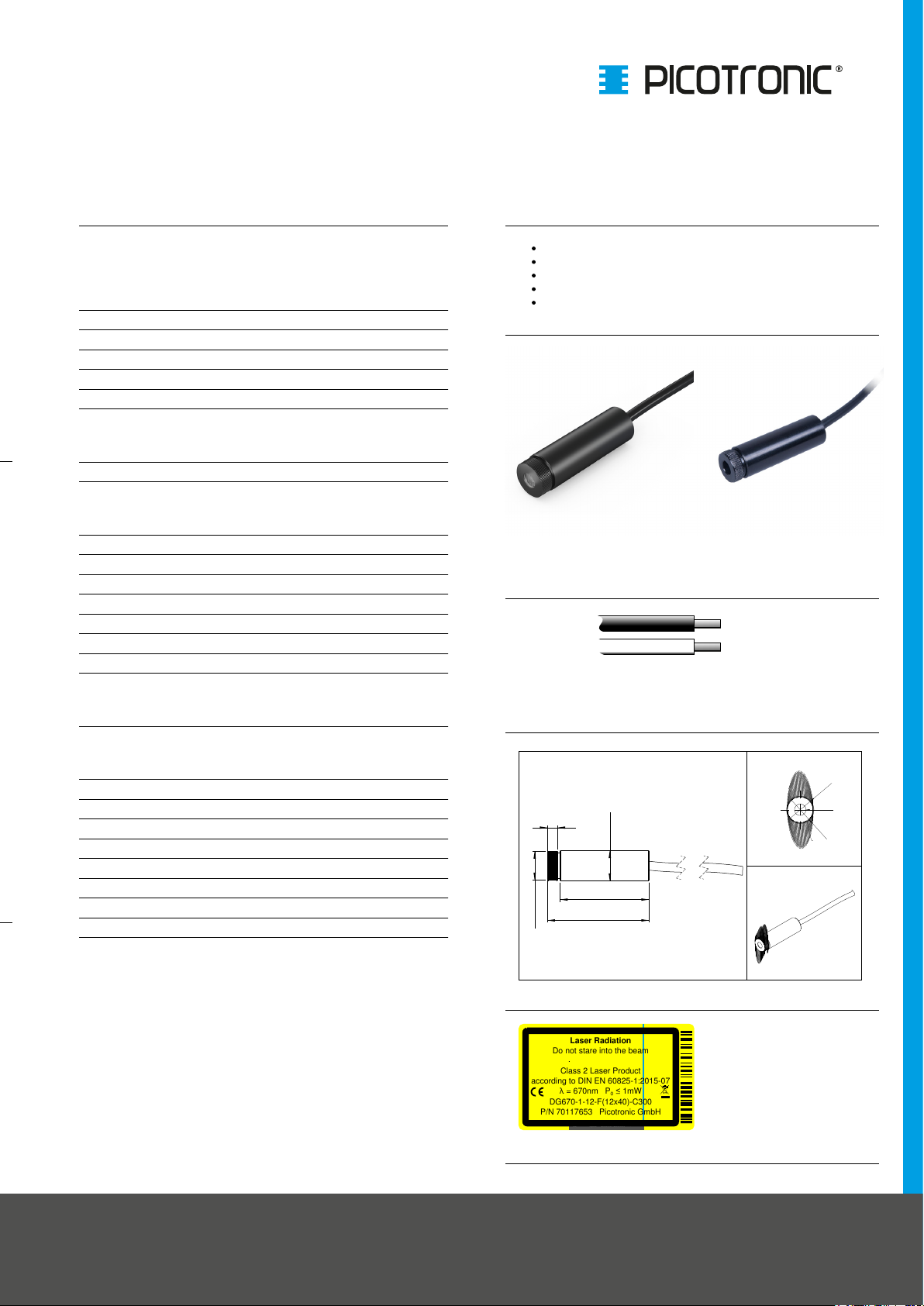

DG670-1-12-F(12x40)-C300
Order Number: 70117653
Main Parameters (*) min typ max Unit
Wavelength 670 nm
Optical Output Power 1 mW
Operating Voltage 10.8 12 13.2 V DC
Operating Current 20 30 50 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence G - 0.8mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics acryl lense
Laser technology Single Mode Diode
Focus adjustable
Features
Operating Voltage 12V DC
Laser Class 2
Compact size
Adjustable focus
Uniform illumination
Cable Colors
Ground black GND
Positive white 10.8 - 13.2, typ 12V
DC
Electrical Parameters
Potential of Housing isolated
Mechanical Parameters
Size Ø12x40mm
Material aluminium
Cable length 300mm
Wire type 22AWG, black, 3,6mm
Output Aperture 5mm
Housing Color black
Weight 18.5g
Stripping of wire 5mm
Stripping of cable cover 50mm
(*) Over the complete operating temperature range
Drawing
Safety Label
Revision
REV 4 | 14-JAN-2016
