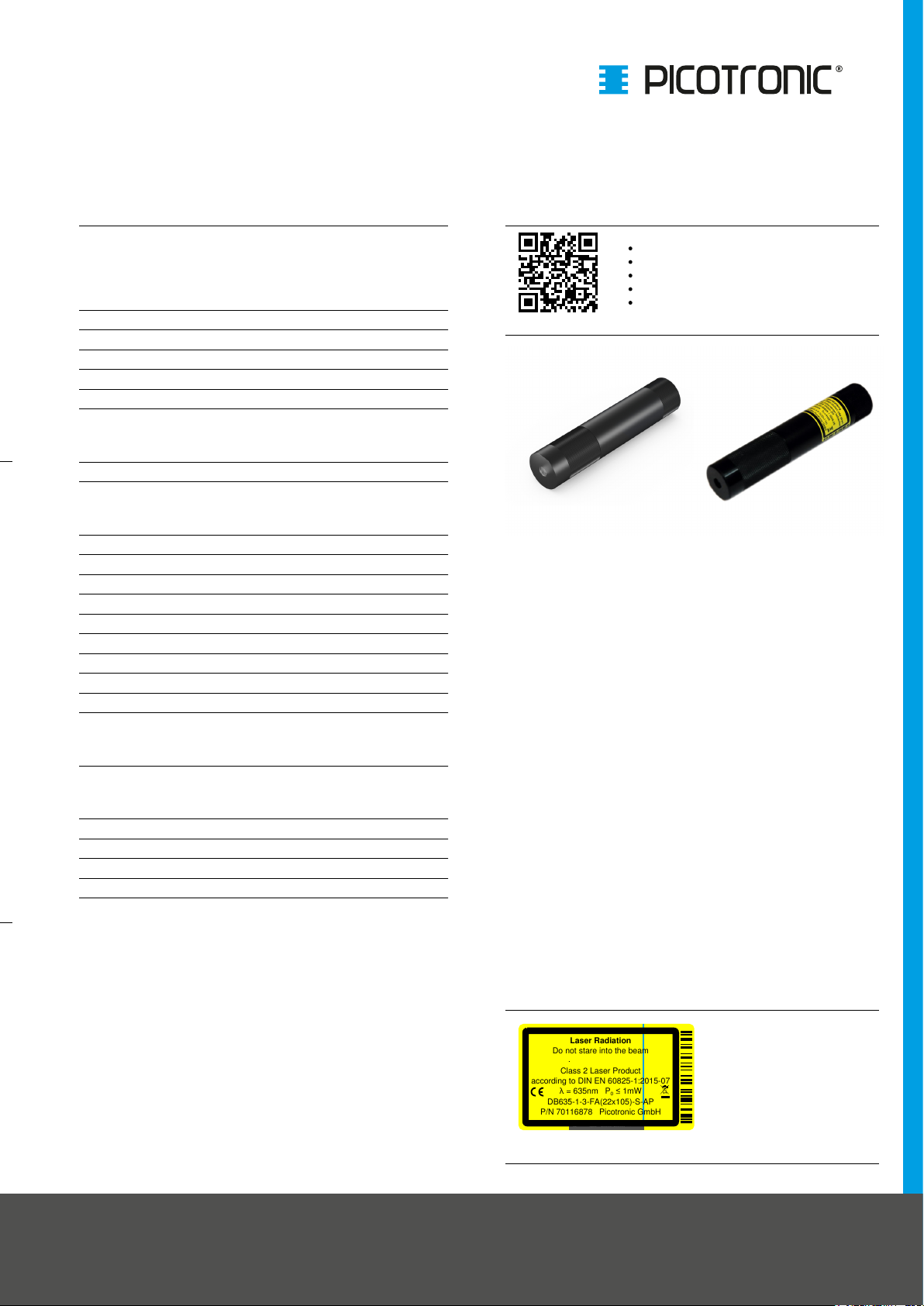

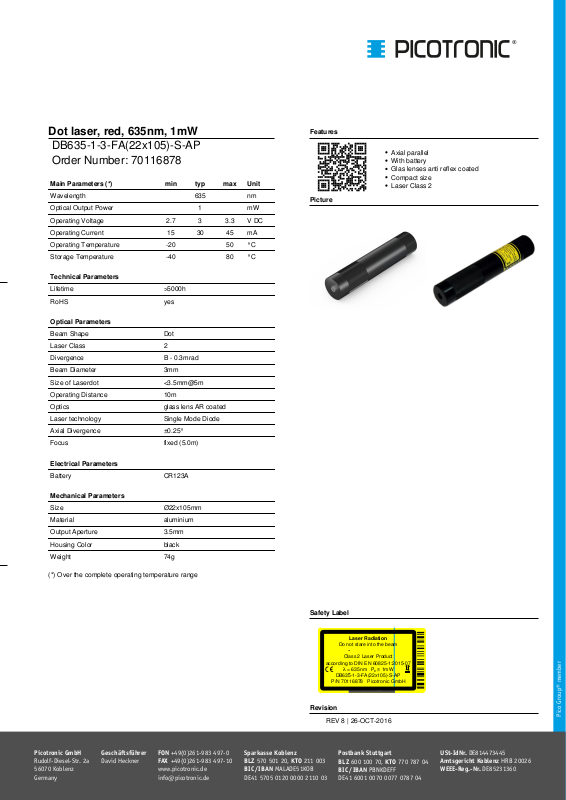

Dot laser, red, 635nm, 1mW
Picotronic GmbH
Rudolf-Diesel-Str. 2a
56070 Koblenz
Germany
Geschäftsführer
David Heckner
FON +49(0)261-983 497-0
FAX +49(0)261-983 497-10
www.picotronic.de
info@picotronic.de
Sparkasse Koblenz
BLZ 570 501 20, KTO 211 003
BIC / IBAN MALADE51KOB
DE41 5705 0120 0000 2110 03
USt-IdNr. DE814473445
Amtsgericht Koblenz HRB 20026
WEEE-Reg.-Nr. DE85231360
Postbank Stuttgart
BLZ 600 100 70, KTO 770 787 04
BIC / IBAN PBNKDEFF
DE41 6001 0070 0077 0787 04
Pico Group® member
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 1mW
DB635-1-3-FA(22x105)-S-AP
P/N 70116878 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DB635-1-3-FA(22x105)-S-AP
Order Number: 70116878
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 30 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence B - 0.3mrad
Beam Diameter 3mm
Size of Laserdot <3.5mm@5m
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Axial Divergence ±0.25°
Focus fixed (5.0m)
Features
Axial parallel
With battery
Glas lenses anti reflex coated
Compact size
Laser Class 2
Electrical Parameters
Battery CR123A
Mechanical Parameters
Size Ø22x105mm
Material aluminium
Output Aperture 3.5mm
Housing Color black
Weight 74g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 8 | 26-OCT-2016
