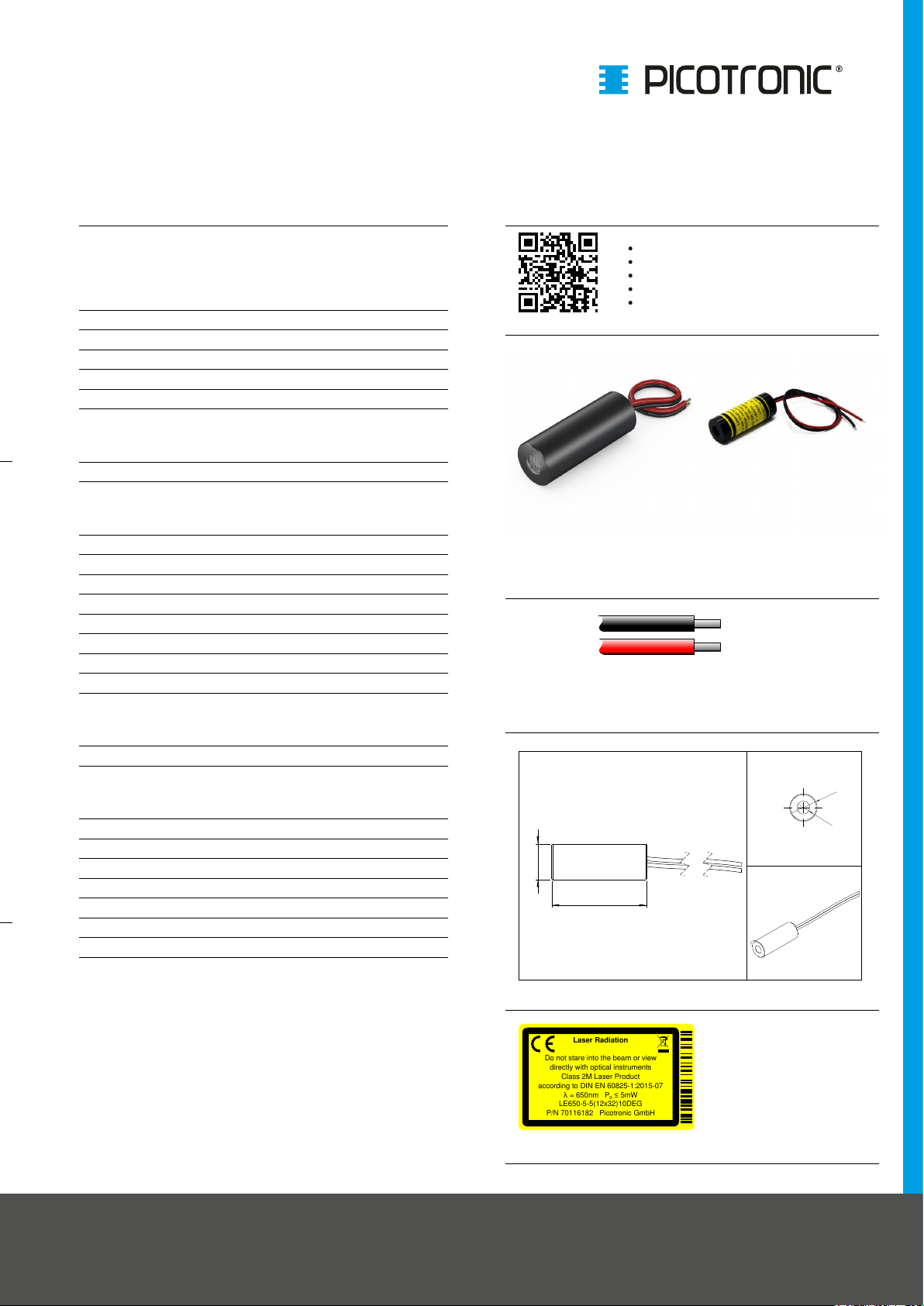

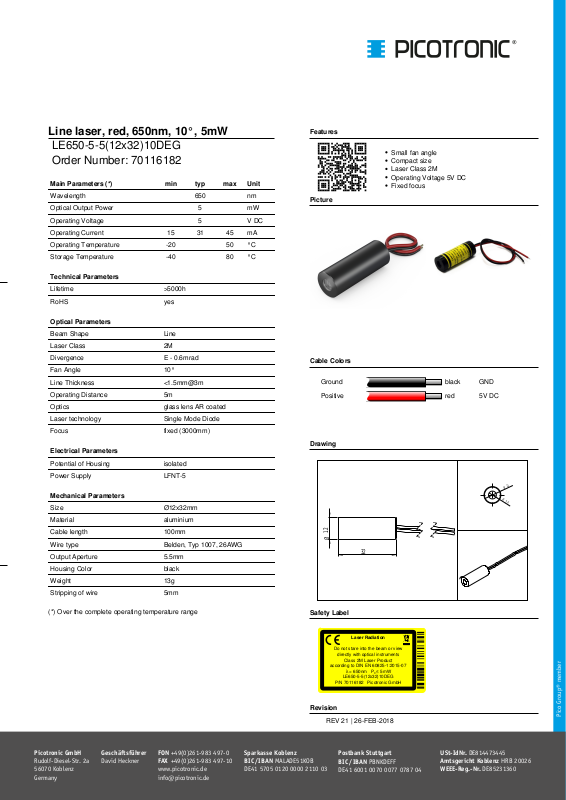

Line laser, red, 650nm, 10°, 5mW
Ø
12
32
Ø
12
Ø
5,6
Laser Radiation
Do not stare into the beam or view
directly with optical instruments
Class 2M Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LE650-5-5(12x32)10DEG
P/N 70116182 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LE650-5-5(12x32)10DEG
Order Number: 70116182
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 5 mW
Operating Voltage 5 V DC
Operating Current 15 31 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2M
Divergence E - 0.6mrad
Fan Angle 10°
Line Thickness <1.5mm@3m
Operating Distance 5m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (3000mm)
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-5
Features
Small fan angle
Compact size
Laser Class 2M
Operating Voltage 5V DC
Fixed focus
Cable Colors
Ground black GND
Positive red 5V DC
Drawing
Mechanical Parameters
Size Ø12x32mm
Material aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 5.5mm
Housing Color black
Weight 13g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 21 | 26-FEB-2018
