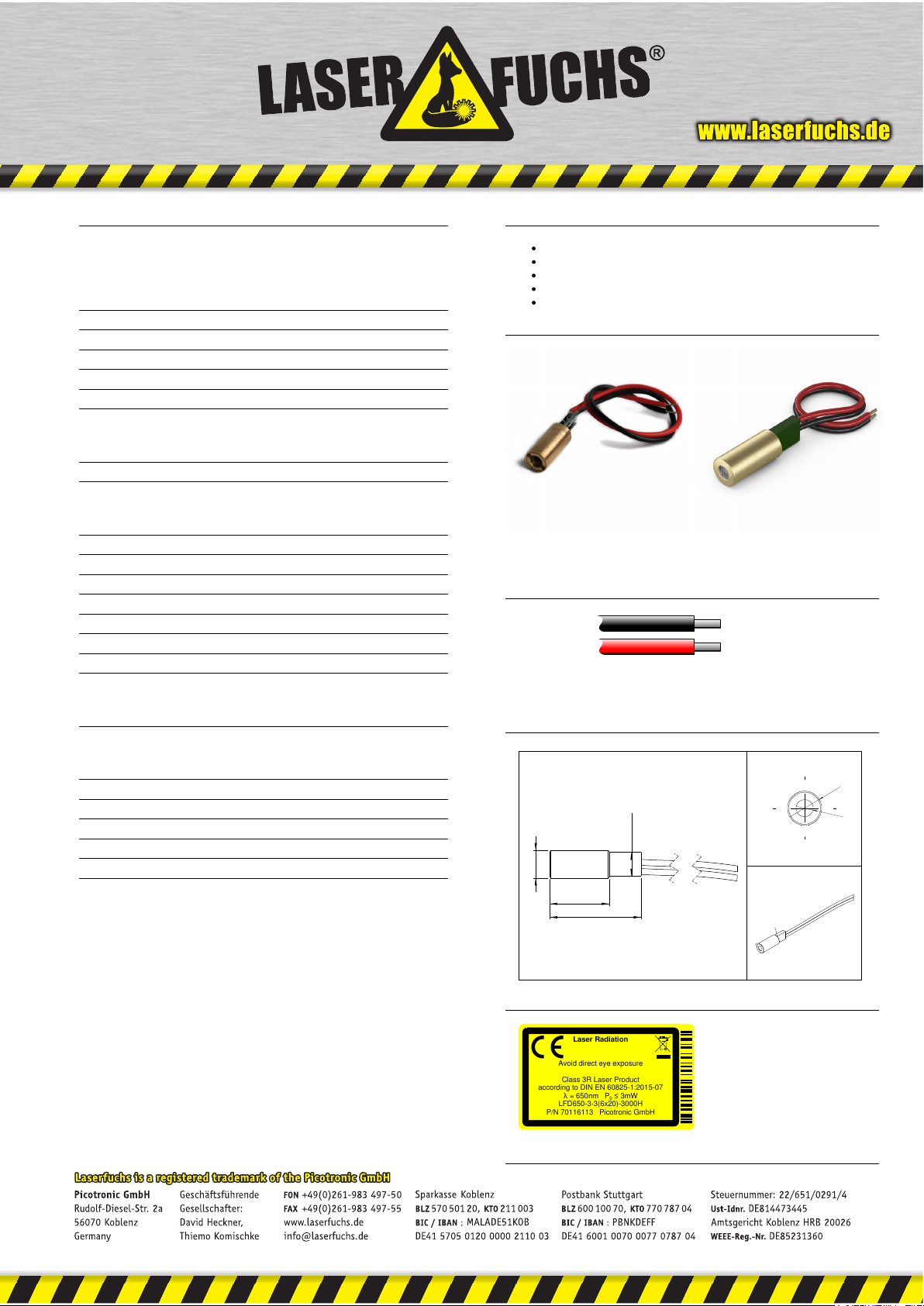

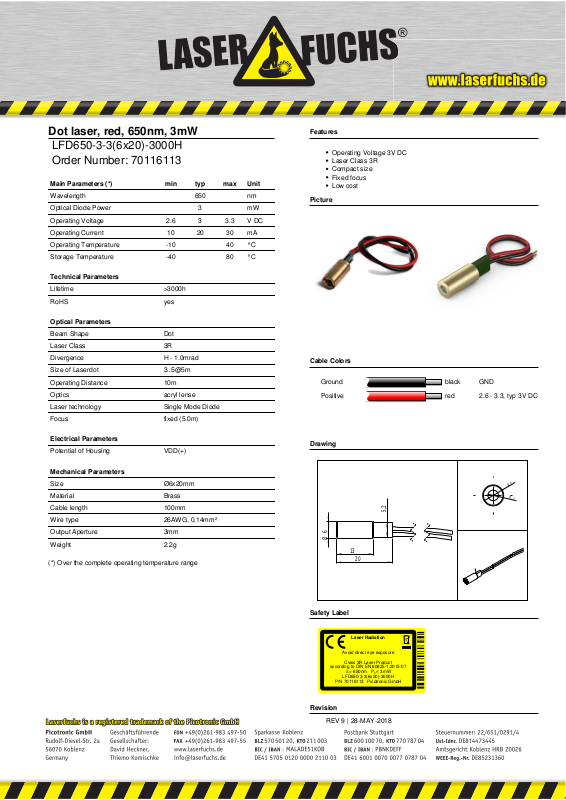

Dot laser, red, 650nm, 3mW
Ø
6
13
20
5,2
Ø
6
Ø
3
Laser Radiation
Avoid direct eye exposure
Class 3R Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 3mW
LFD650-3-3(6x20)-3000H
P/N 70116113 Picotronic GmbH
LFD650-3-3(6x20)-3000H
Order Number: 70116113
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 3 mW
Operating Voltage 2.6 3 3.3 V DC
Operating Current 10 20 30 mA
Operating Temperature -10 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 3R
Divergence H - 1.0mrad
Size of Laserdot 3..5@5m
Operating Distance 10m
Optics acryl lense
Laser technology Single Mode Diode
Focus fixed (5.0m)
Features
Operating Voltage 3V DC
Laser Class 3R
Compact size
Fixed focus
Low cost
Cable Colors
Ground black GND
Positive red 2.6 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing VDD(+)
Mechanical Parameters
Size Ø6x20mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3mm
Weight 2.2g
(*) Over the complete operating temperature range
Drawing
Safety Label
Revision
REV 9 | 28-MAY-2018
