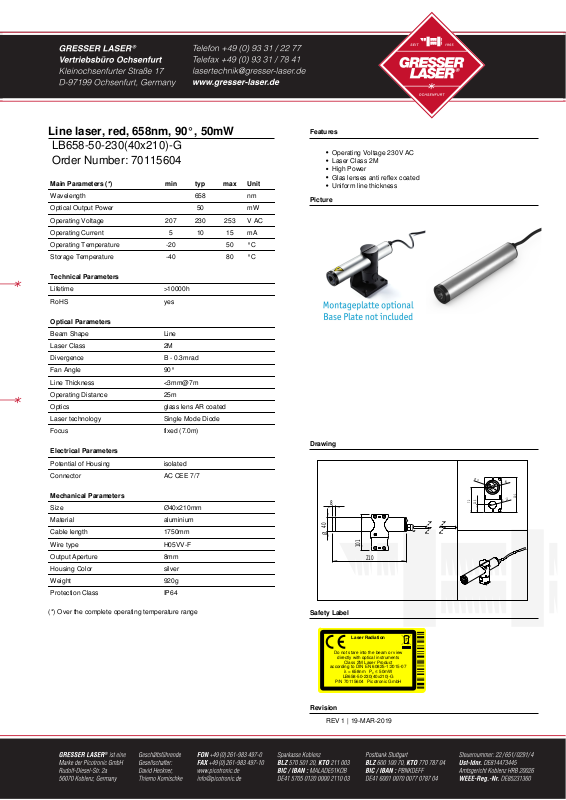

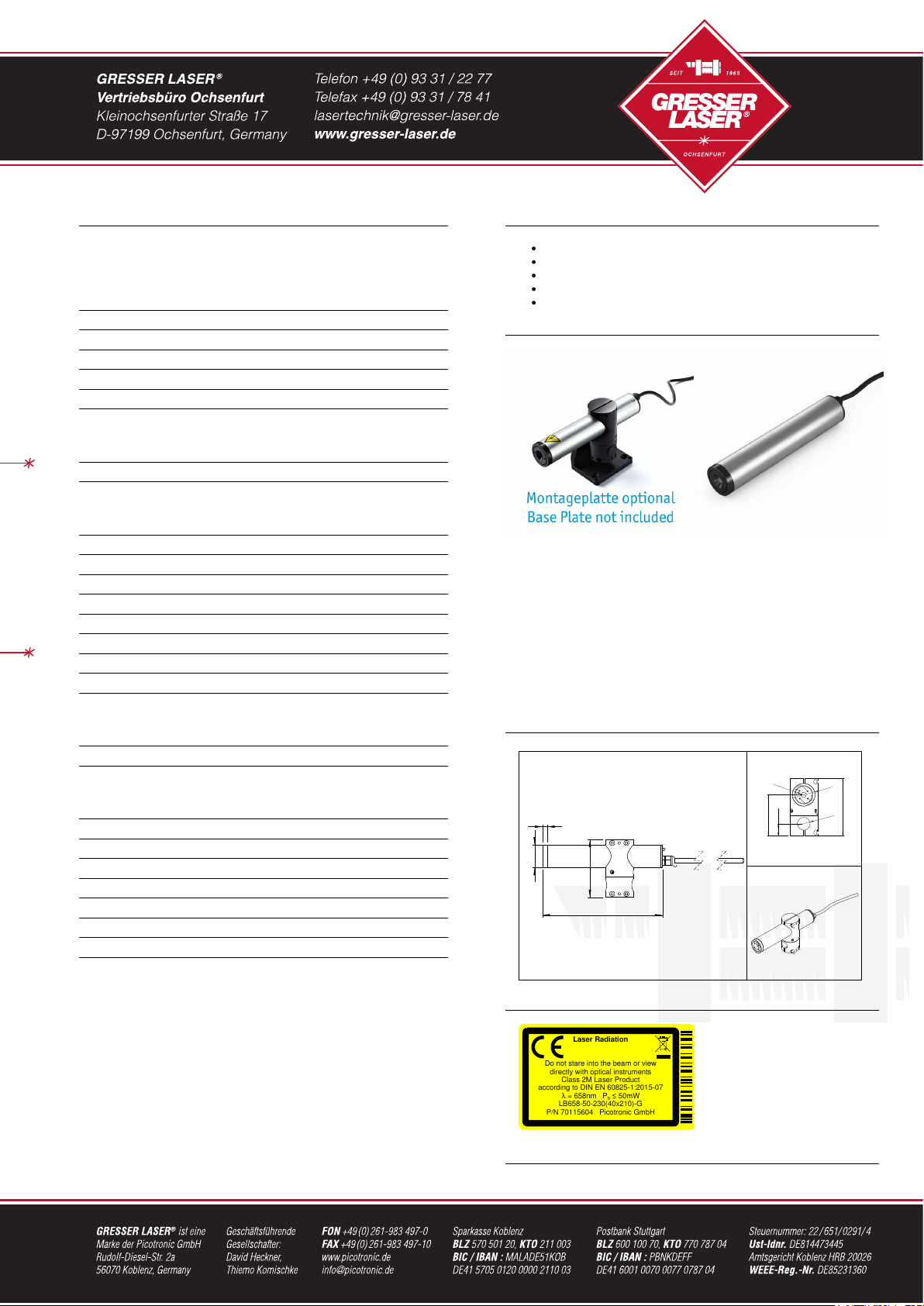

Line laser, red, 658nm, 90°, 50mW
Ø
40
210
101
8
101
72
Ø
9
Ø
22
Ø
40
21,5
Laser Radiation
Do not stare into the beam or view
directly with optical instruments
Class 2M Laser Product
according to DIN EN 60825-1:2015-07
λ = 658nm P₀ ≤ 50mW
LB658-50-230(40x210)-G
P/N 70115604 Picotronic GmbH
LB658-50-230(40x210)-G
Order Number: 70115604
Main Parameters (*) min typ max Unit
Wavelength 658 nm
Optical Output Power 50 mW
Operating Voltage 207 230 253 V AC
Operating Current 5 10 15 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2M
Divergence B - 0.3mrad
Fan Angle 90°
Line Thickness <3mm@7m
Operating Distance 25m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (7.0m)
Electrical Parameters
Potential of Housing isolated
Connector AC CEE 7/7
Features
Operating Voltage 230V AC
Laser Class 2M
High Power
Glas lenses anti reflex coated
Uniform line thickness
Drawing
Mechanical Parameters
Size Ø40x210mm
Material aluminium
Cable length 1750mm
Wire type H05VV-F
Output Aperture 8mm
Housing Color silver
Weight 920g
Protection Class IP64
(*) Over the complete operating temperature range
Safety Label
Revision
REV 1 | 19-MAR-2019
