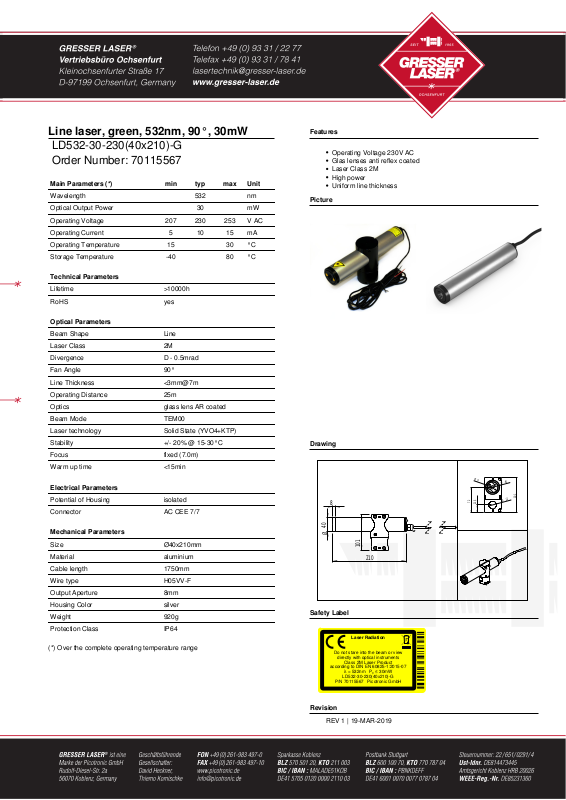

Line laser, green, 532nm, 90°, 30mW
Ø
40
210
101
8
101
72
Ø
9
Ø
22
Ø
40
21,5
Laser Radiation
Do not stare into the beam or view
directly with optical instruments
Class 2M Laser Product
according to DIN EN 60825-1:2015-07
λ = 532nm P₀ ≤ 30mW
LD532-30-230(40x210)-G
P/N 70115567 Picotronic GmbH
LD532-30-230(40x210)-G
Order Number: 70115567
Main Parameters (*) min typ max Unit
Wavelength 532 nm
Optical Output Power 30 mW
Operating Voltage 207 230 253 V AC
Operating Current 5 10 15 mA
Operating Temperature 15 30 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2M
Divergence D - 0.5mrad
Fan Angle 90°
Line Thickness <3mm@7m
Operating Distance 25m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Stability +/- 20% @ 15-30°C
Focus fixed (7.0m)
Warm up time <15min
Features
Operating Voltage 230V AC
Glas lenses anti reflex coated
Laser Class 2M
High power
Uniform line thickness
Drawing
Electrical Parameters
Potential of Housing isolated
Connector AC CEE 7/7
Mechanical Parameters
Size Ø40x210mm
Material aluminium
Cable length 1750mm
Wire type H05VV-F
Output Aperture 8mm
Housing Color silver
Weight 920g
Protection Class IP64
(*) Over the complete operating temperature range
Safety Label
Revision
REV 1 | 19-MAR-2019
