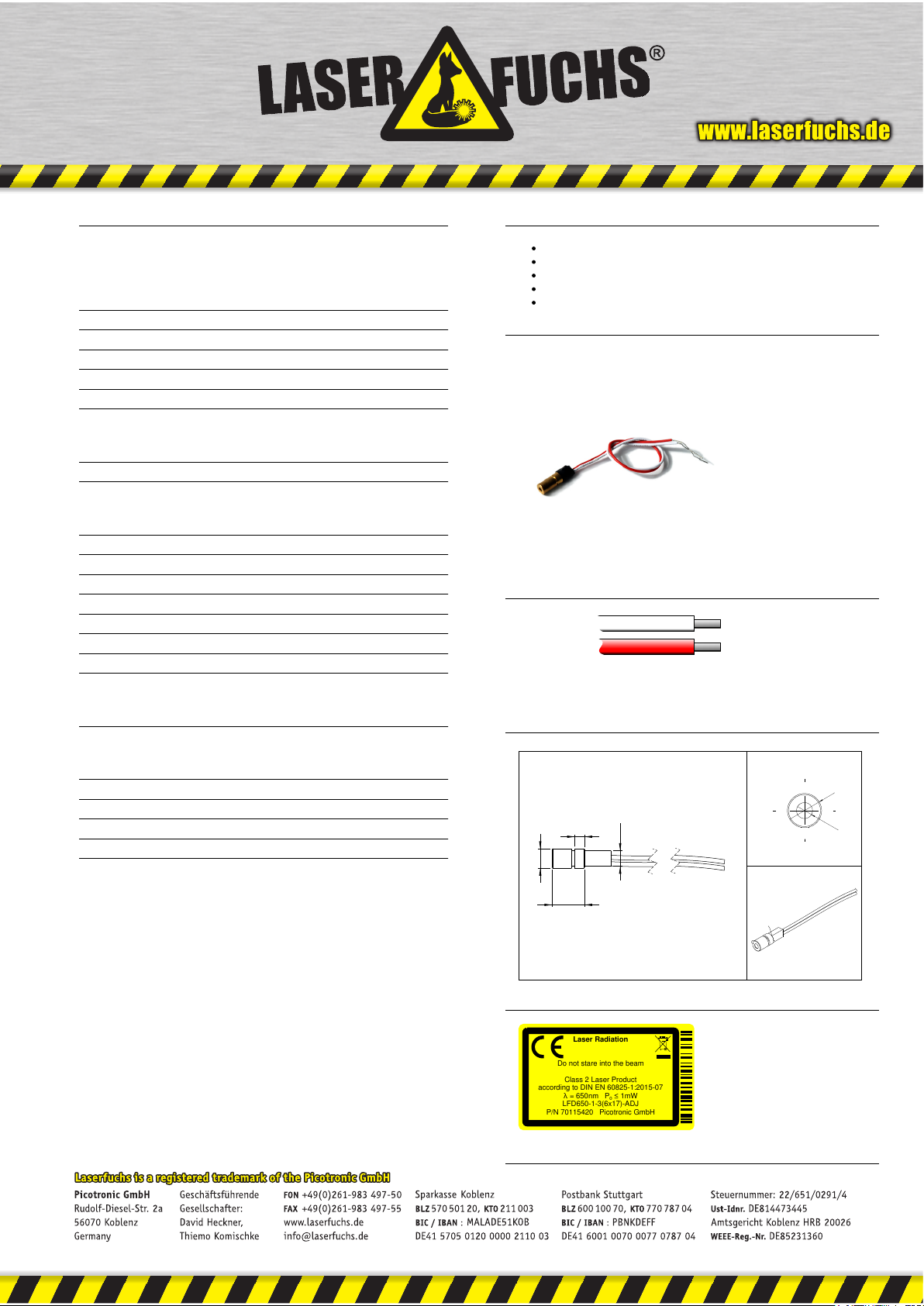

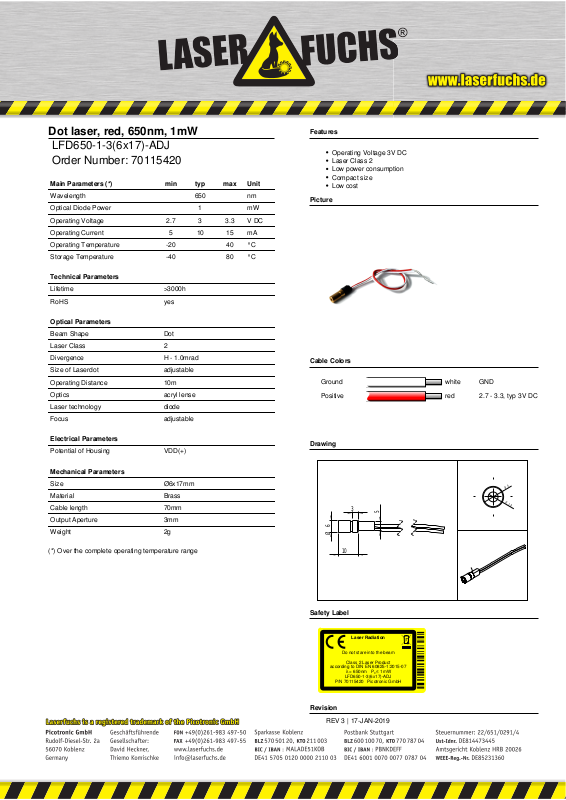

Dot laser, red, 650nm, 1mW
Ø
6
10
3
5
Ø
6
Ø
2,8
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
LFD650-1-3(6x17)-ADJ
P/N 70115420 Picotronic GmbH
LFD650-1-3(6x17)-ADJ
Order Number: 70115420
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 5 10 15 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence H - 1.0mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics acryl lense
Laser technology diode
Focus adjustable
Features
Operating Voltage 3V DC
Laser Class 2
Low power consumption
Compact size
Low cost
Cable Colors
Ground white GND
Positive red 2.7 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing VDD(+)
Mechanical Parameters
Size Ø6x17mm
Material Brass
Cable length 70mm
Output Aperture 3mm
Weight 2g
(*) Over the complete operating temperature range
Drawing
Safety Label
Revision
REV 3 | 17-JAN-2019
