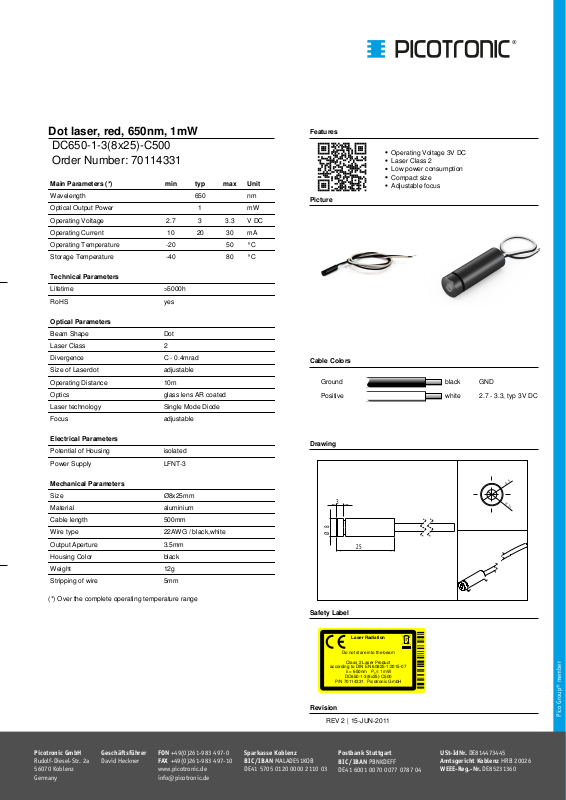

Dot laser, red, 650nm, 1mW
Ø
8
25
3
Ø
8
Ø
3,5
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DC650-1-3(8x25)-C500
P/N 70114331 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)

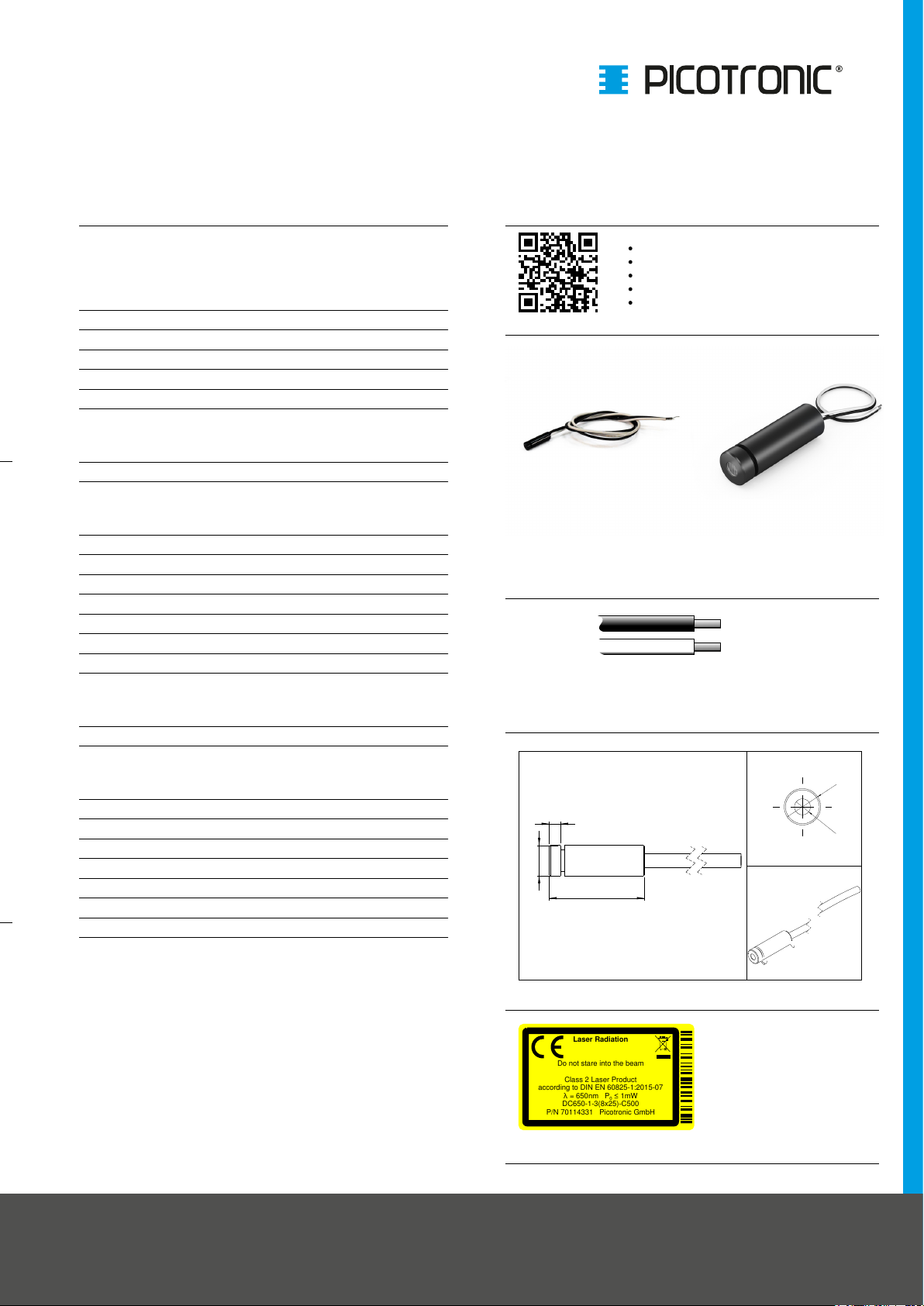

DC650-1-3(8x25)-C500
Order Number: 70114331
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence C - 0.4mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Features
Operating Voltage 3V DC
Laser Class 2
Low power consumption
Compact size
Adjustable focus
Cable Colors
Ground black GND
Positive white 2.7 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø8x25mm
Material aluminium
Cable length 500mm
Wire type 22AWG / black,white
Output Aperture 3.5mm
Housing Color black
Weight 12g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Drawing
Safety Label
Revision
REV 2 | 15-JUN-2011
