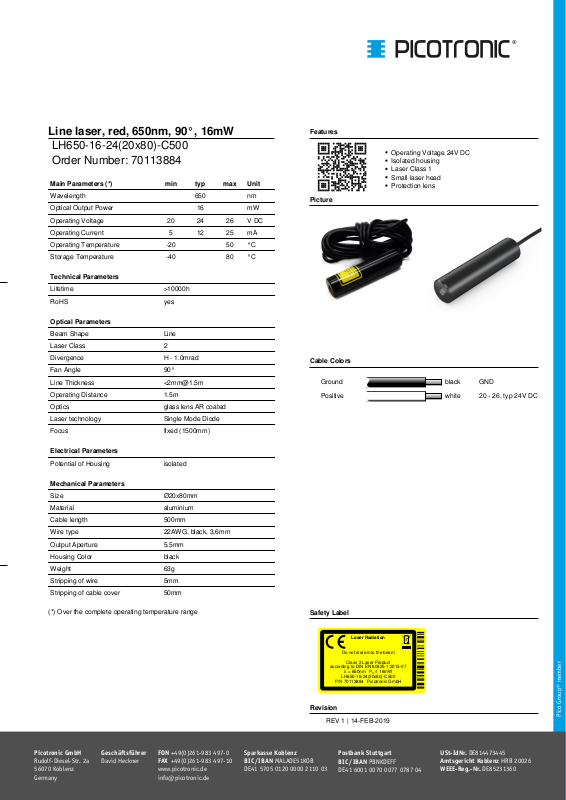

Line laser, red, 650nm, 90°, 16mW
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 16mW
LH650-16-24(20x80)-C500
P/N 70113884 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LH650-16-24(20x80)-C500
Order Number: 70113884
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 16 mW
Operating Voltage 20 24 26 V DC
Operating Current 5 12 25 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2
Divergence H - 1.0mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 1.5m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (1500mm)
Features
Operating Voltage 24V DC
Isolated housing
Laser Class 1
Small laser head
Protection lens
Cable Colors
Ground black GND
Positive white 20 - 26, typ 24V DC
Electrical Parameters
Potential of Housing isolated
Mechanical Parameters
Size Ø20x80mm
Material aluminium
Cable length 500mm
Wire type 22AWG, black, 3,6mm
Output Aperture 5.5mm
Housing Color black
Weight 63g
Stripping of wire 5mm
Stripping of cable cover 50mm
(*) Over the complete operating temperature range
Safety Label
Revision
REV 1 | 14-FEB-2019
