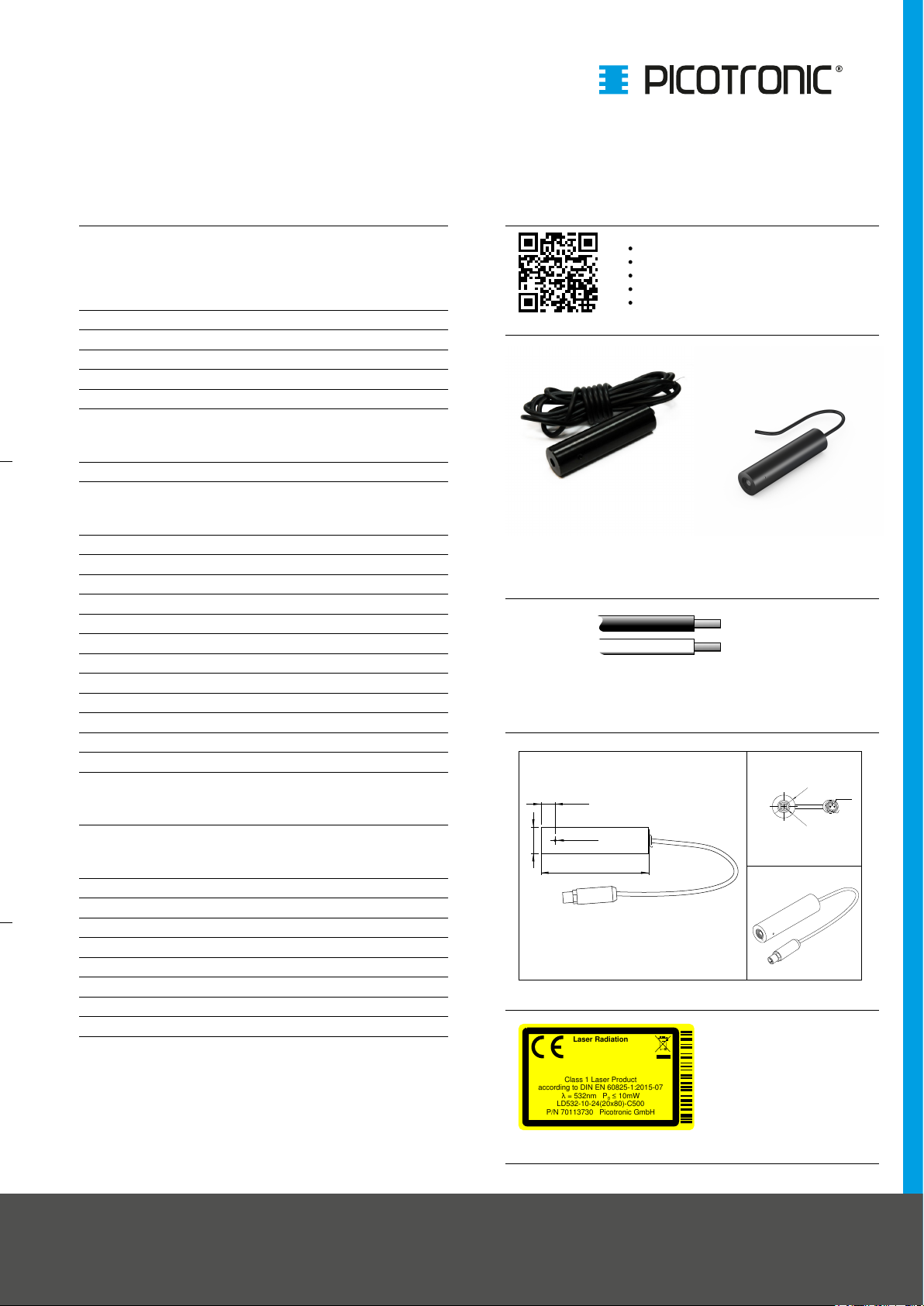

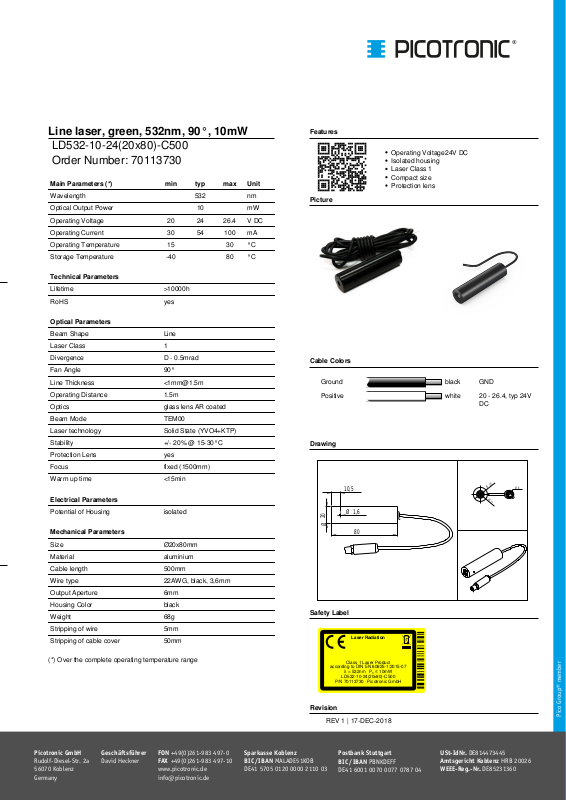

Line laser, green, 532nm, 90°, 10mW
Ø
20
80
10,5
Ø
1,6
Ø
20
Ø
11
Ø
8
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 532nm P₀ ≤ 10mW
LD532-10-24(20x80)-C500
P/N 70113730 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LD532-10-24(20x80)-C500
Order Number: 70113730
Main Parameters (*) min typ max Unit
Wavelength 532 nm
Optical Output Power 10 mW
Operating Voltage 20 24 26.4 V DC
Operating Current 30 54 100 mA
Operating Temperature 15 30 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence D - 0.5mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 1.5m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Stability +/- 20% @ 15-30°C
Protection Lens yes
Focus fixed (1500mm)
Warm up time <15min
Features
Operating Voltage24V DC
Isolated housing
Laser Class 1
Compact size
Protection lens
Cable Colors
Ground black GND
Positive white 20 - 26.4, typ 24V
DC
Drawing
Electrical Parameters
Potential of Housing isolated
Mechanical Parameters
Size Ø20x80mm
Material aluminium
Cable length 500mm
Wire type 22AWG, black, 3,6mm
Output Aperture 6mm
Housing Color black
Weight 68g
Stripping of wire 5mm
Stripping of cable cover 50mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 1 | 17-DEC-2018
