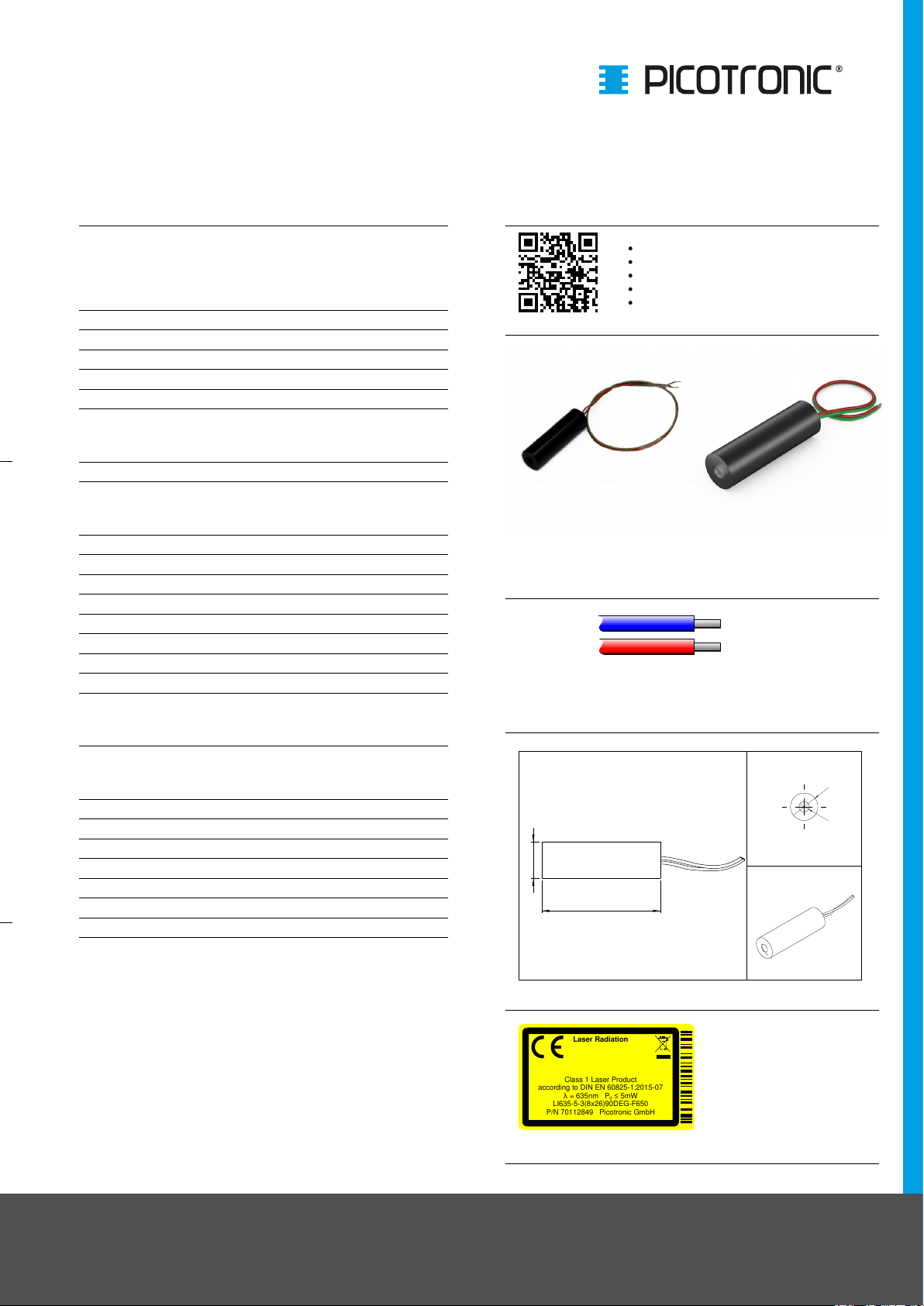

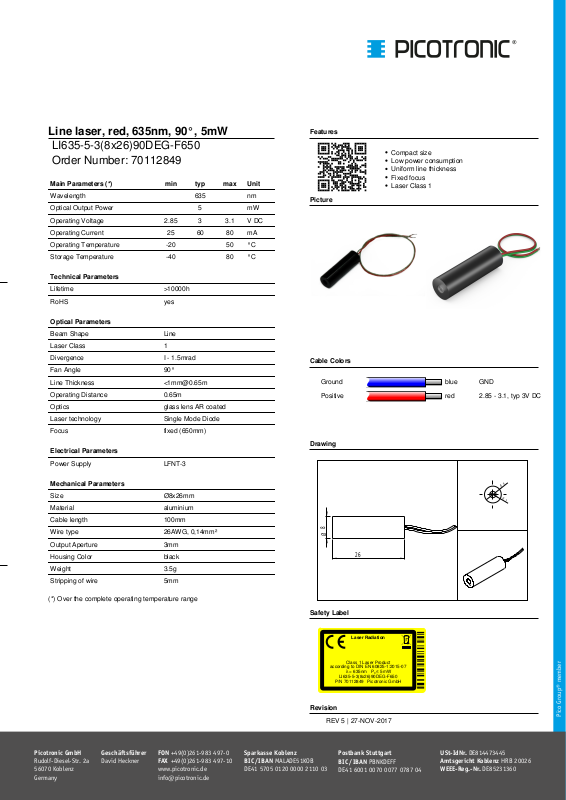

Line laser, red, 635nm, 90°, 5mW
Ø
8
26
Ø
8
Ø
3
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 5mW
LI635-5-3(8x26)90DEG-F650
P/N 70112849 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LI635-5-3(8x26)90DEG-F650
Order Number: 70112849
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 5 mW
Operating Voltage 2.85 3 3.1 V DC
Operating Current 25 60 80 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence I - 1.5mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 0.65m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (650mm)
Electrical Parameters
Power Supply LFNT-3
Features
Compact size
Low power consumption
Uniform line thickness
Fixed focus
Laser Class 1
Cable Colors
Ground blue GND
Positive red 2.85 - 3.1, typ 3V DC
Drawing
Mechanical Parameters
Size Ø8x26mm
Material aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3mm
Housing Color black
Weight 3.5g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 5 | 27-NOV-2017
